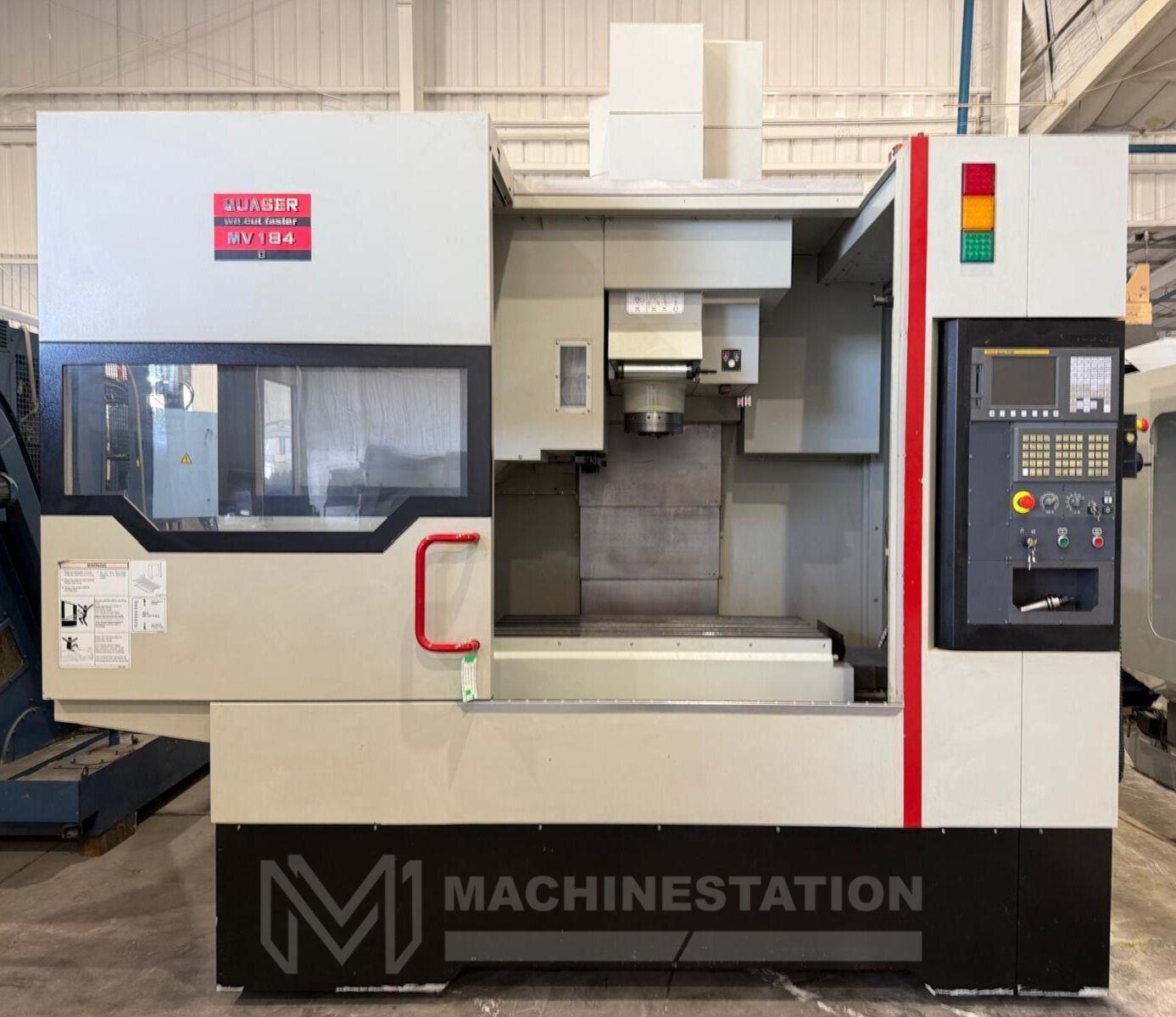

Quaser MV184C/12C CNC Vertical Machining Center – TSC, 12,000 RPM Mill

Quaser MV184C/12C CNC Vertical Machining Center – TSC, 12,000 RPM Mill

Name: Quaser MV184C/12C CNC Vertical Machining Center – TSC, 12,000 RPM Mill
Brand: QUASER
SKU: 113543
Availability: InStock

Brand

QUASER

Location

Not specified

REQUEST FINANCING

Specifications
Files & Videos

Disclaimer: All specifications and hours are approximate and for reference only, often based on manufacturer literature. Buyer must verify all details prior to purchase. Accessories shown are included only if listed on the invoice.

Equipment is sold AS-IS, WHERE-IS. All sales are final.

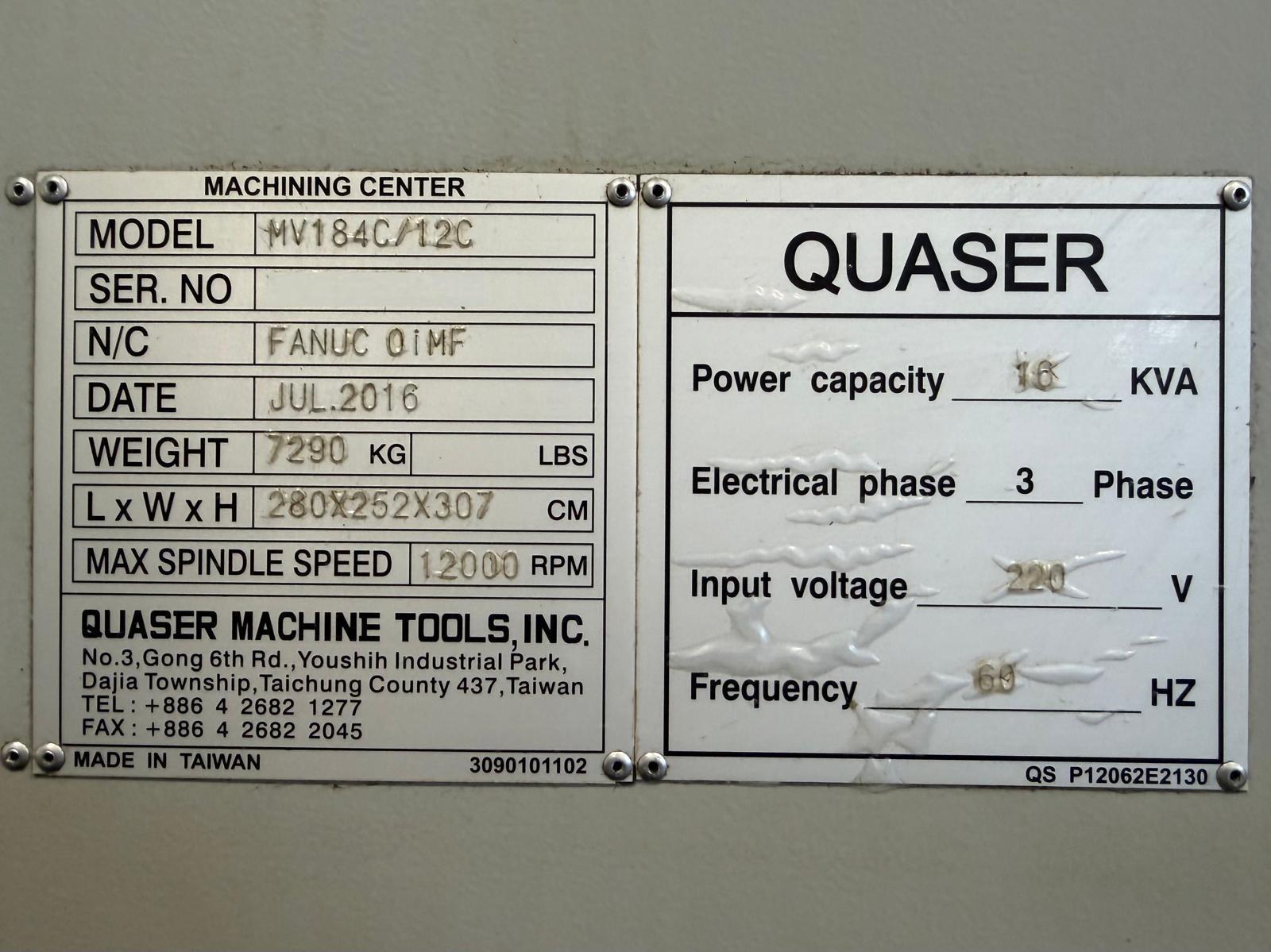

SKU:	113543
Make:	Quaser
Model:	MV184C/12C
Year:	2016
Condition:	Used – Excellent

Features:

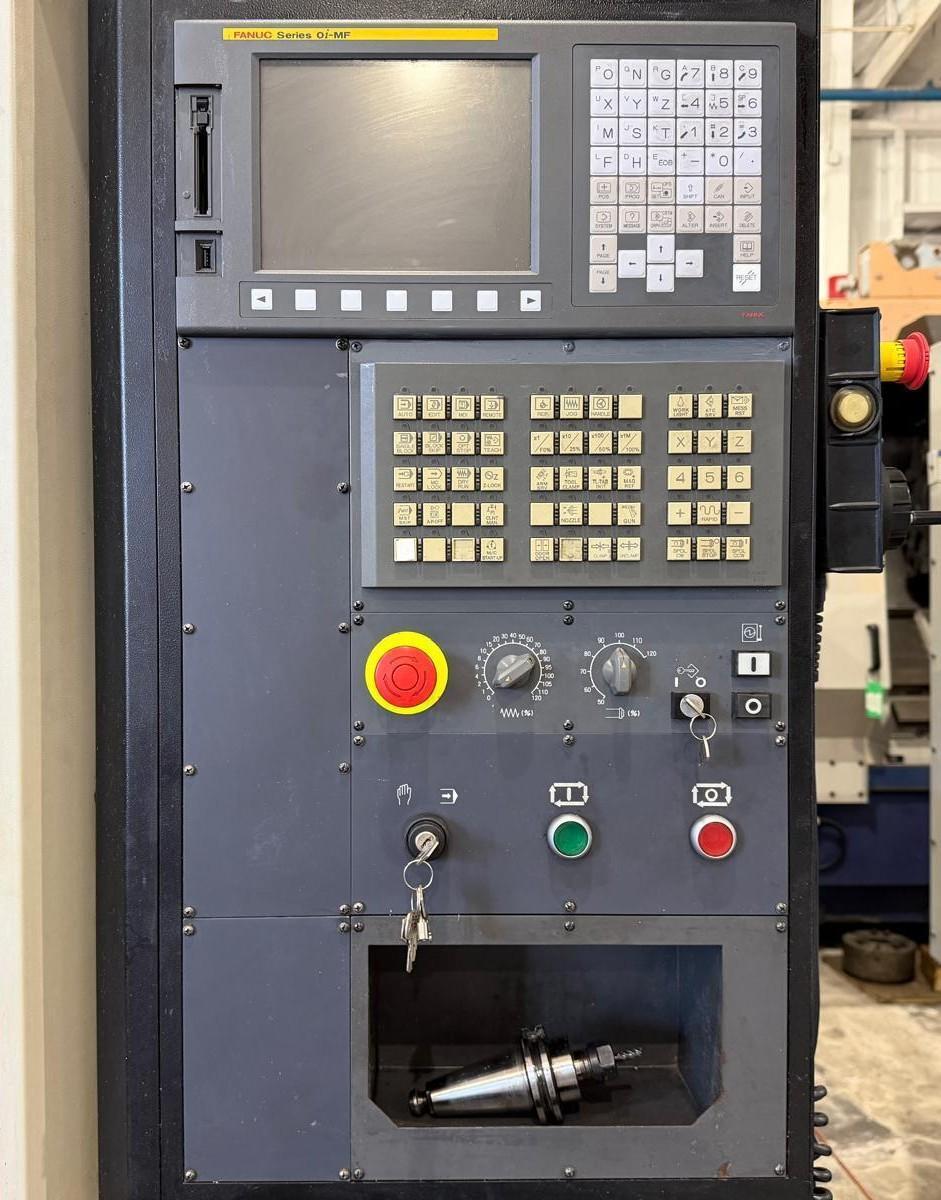

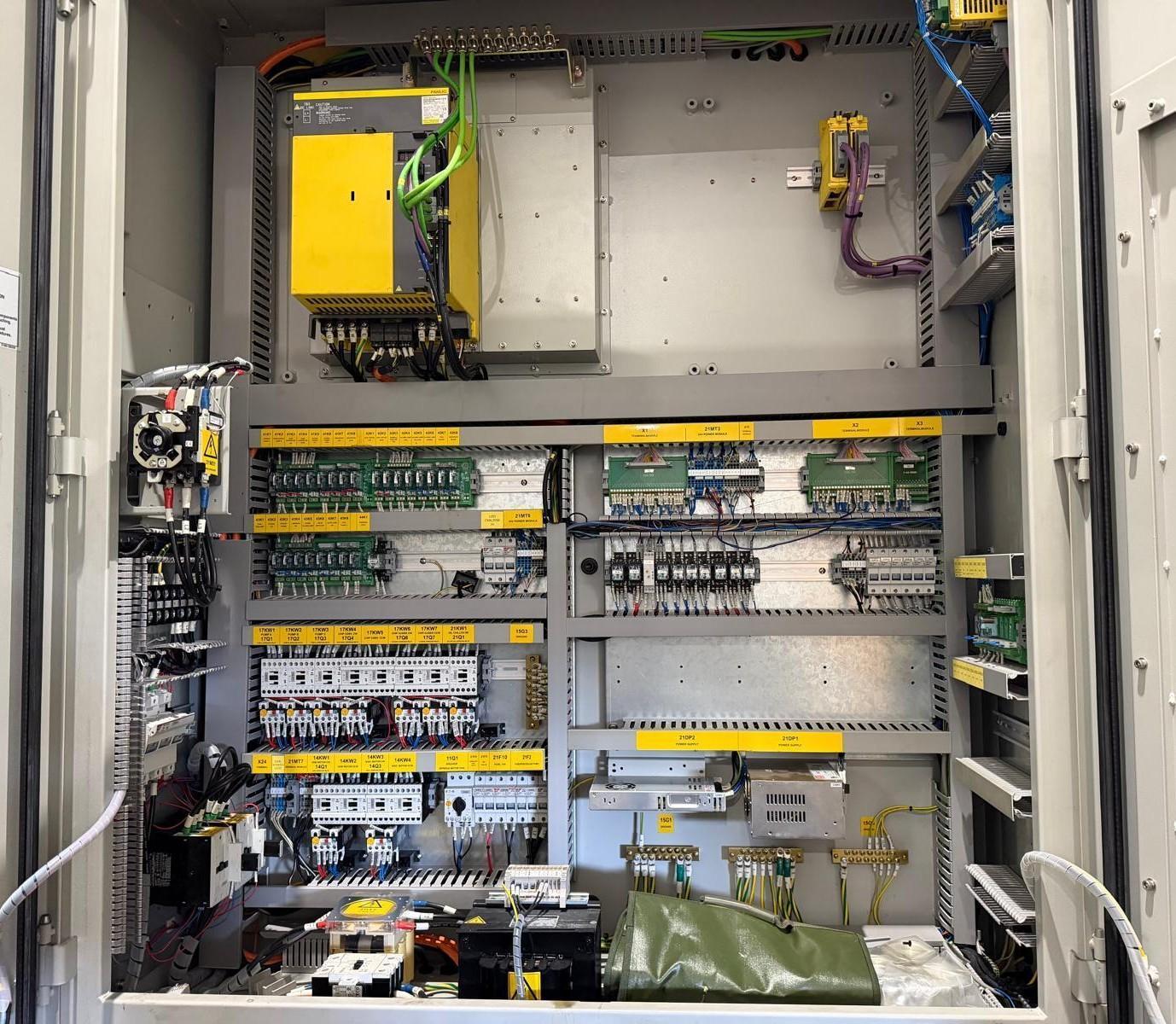

Fanuc Oi-MF Series CNC Control
Linear Ways Construction
12000 RPM High Speed Spindle
30 Station Side Mounted Automatic Tool changer
Through Spindle Coolant

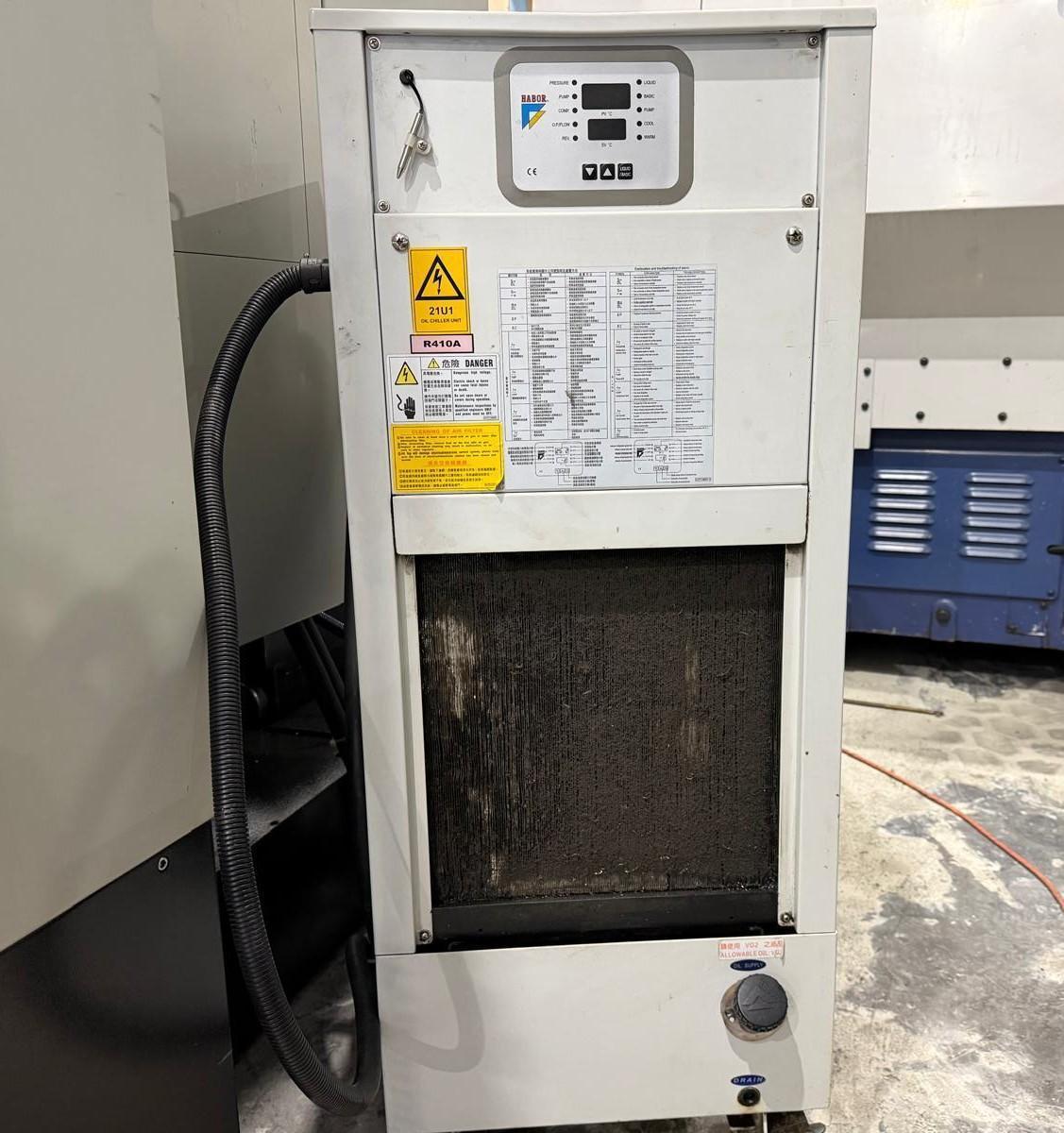

Spindle Chiller Unit
PCMCIA Card Slot
USB Port
Rigid Tapping

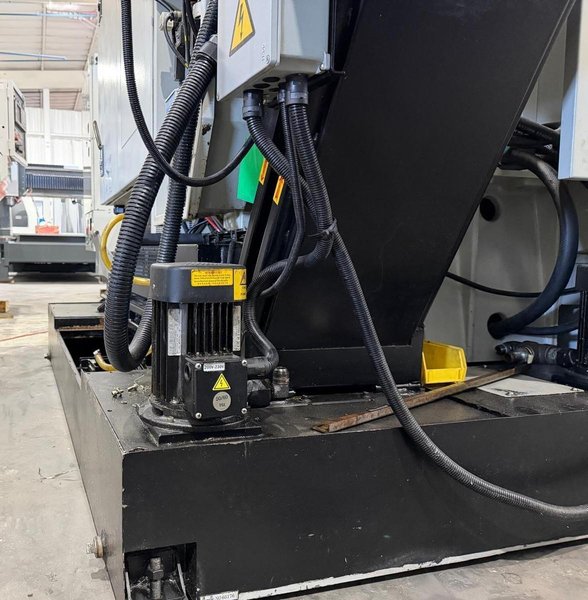

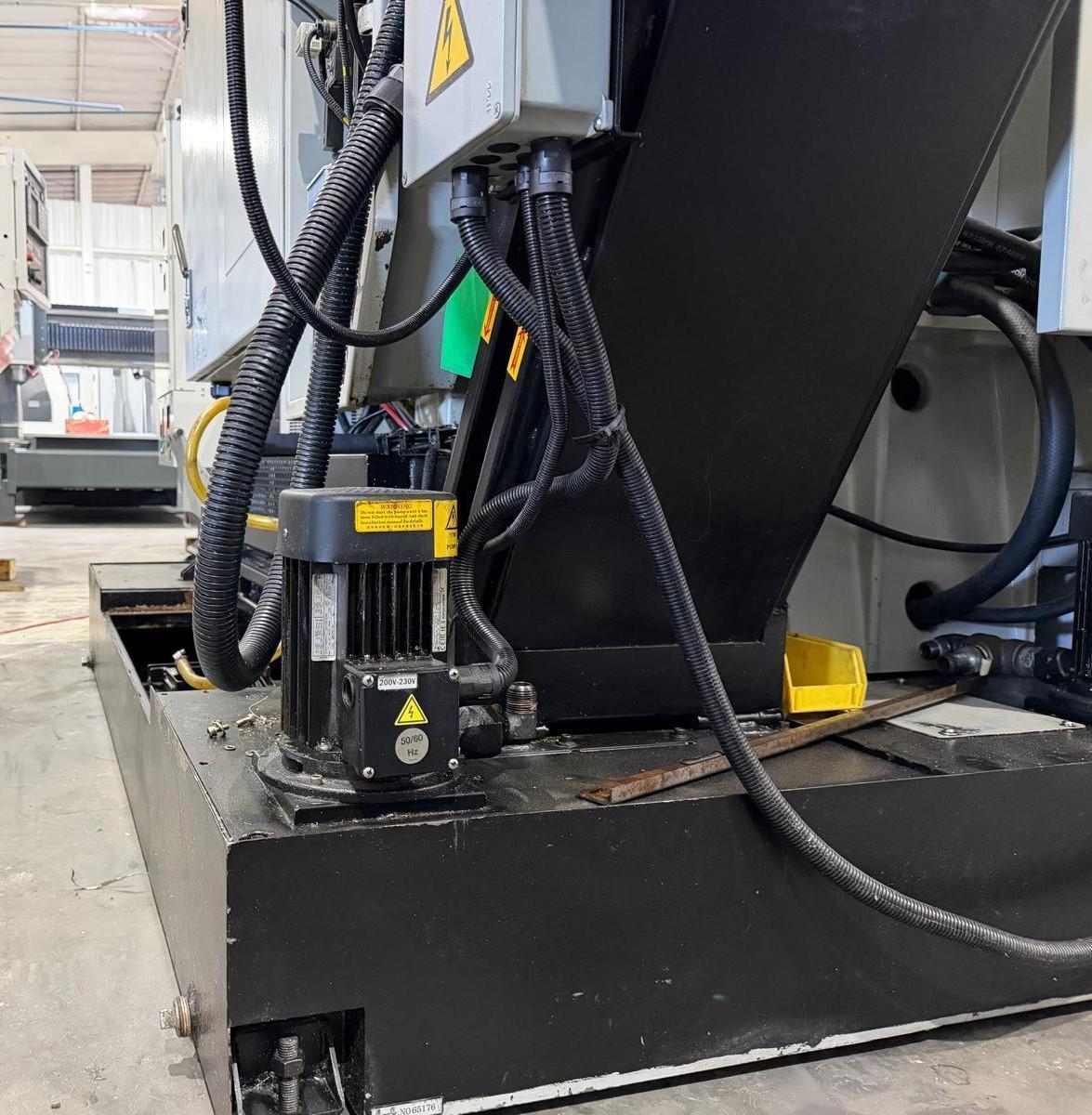

Coolant System

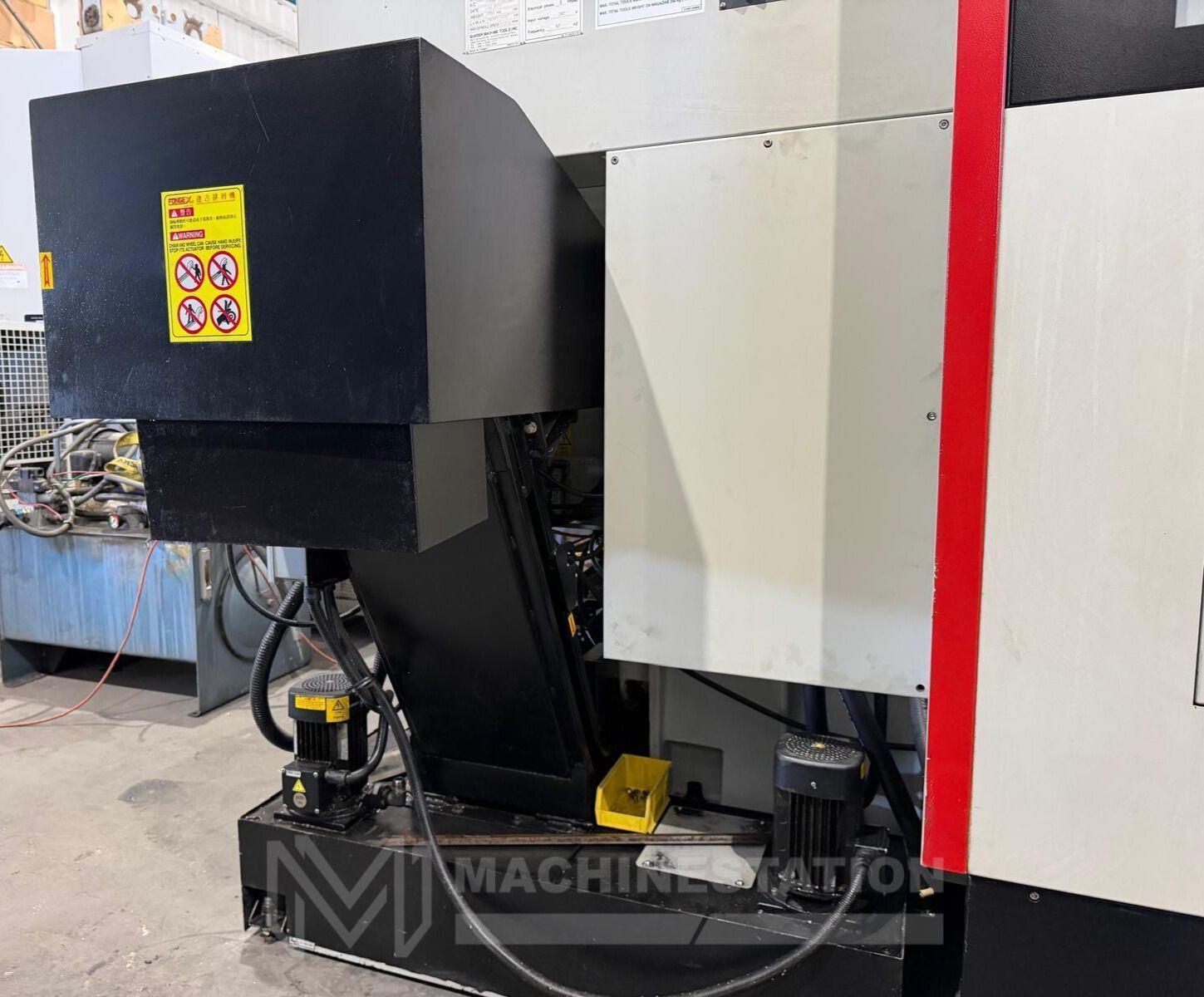

Chip Conveyor

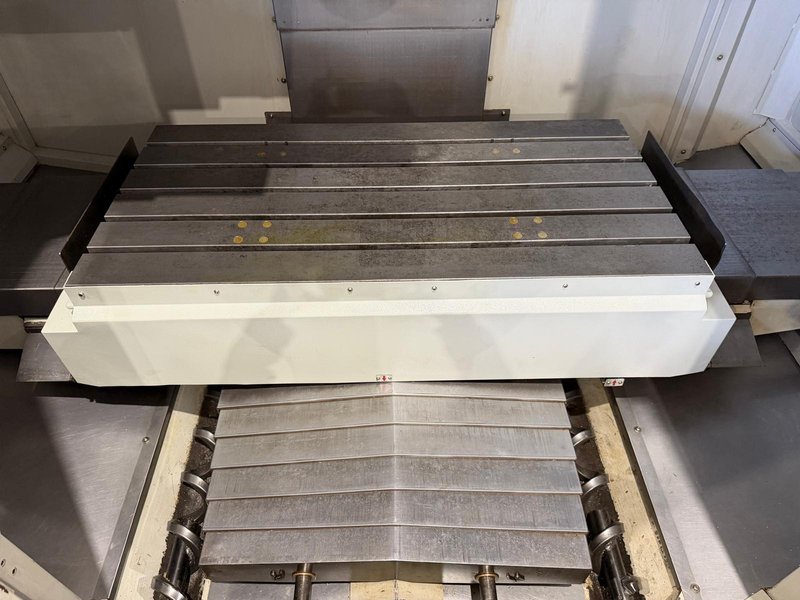

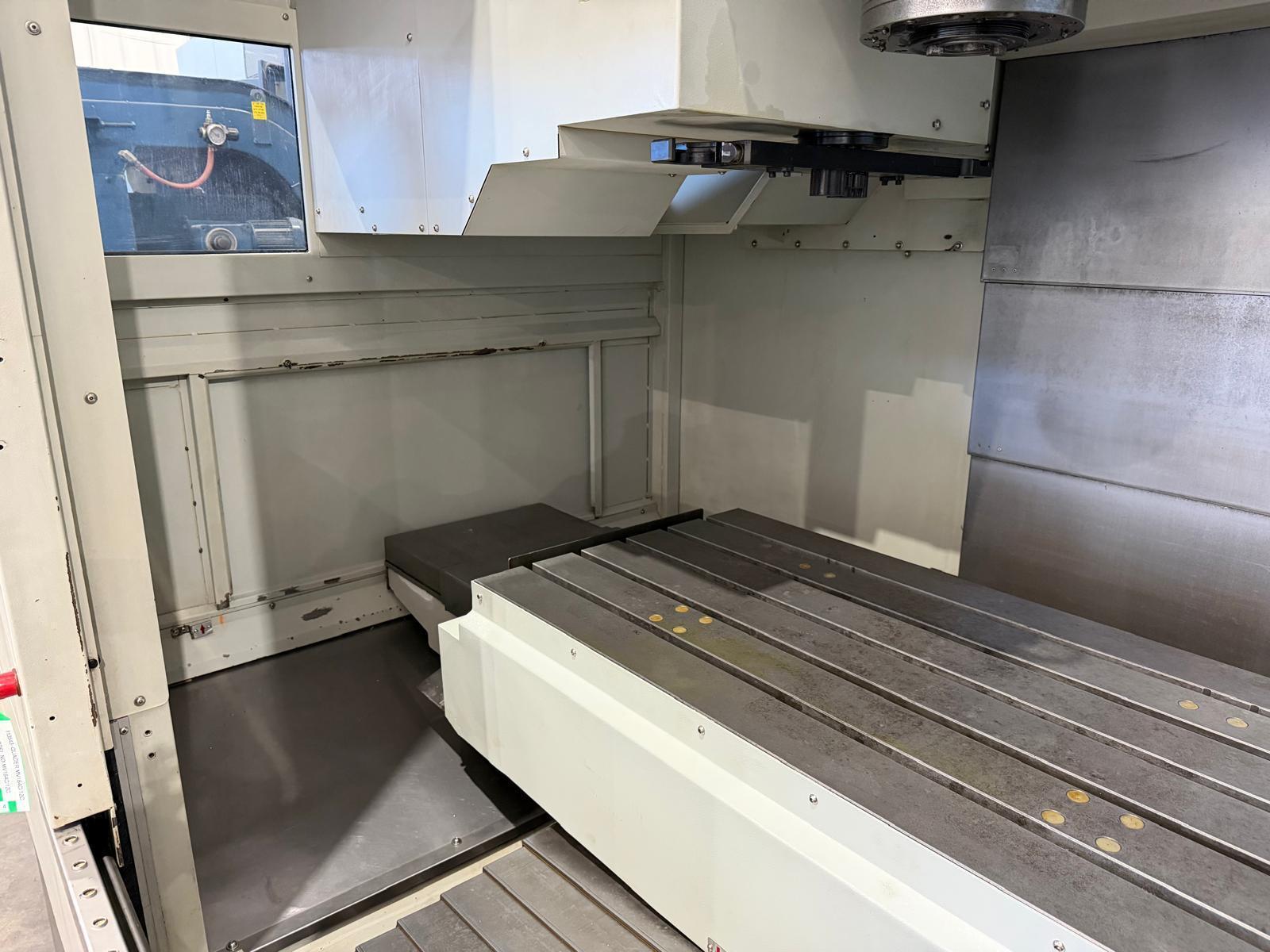

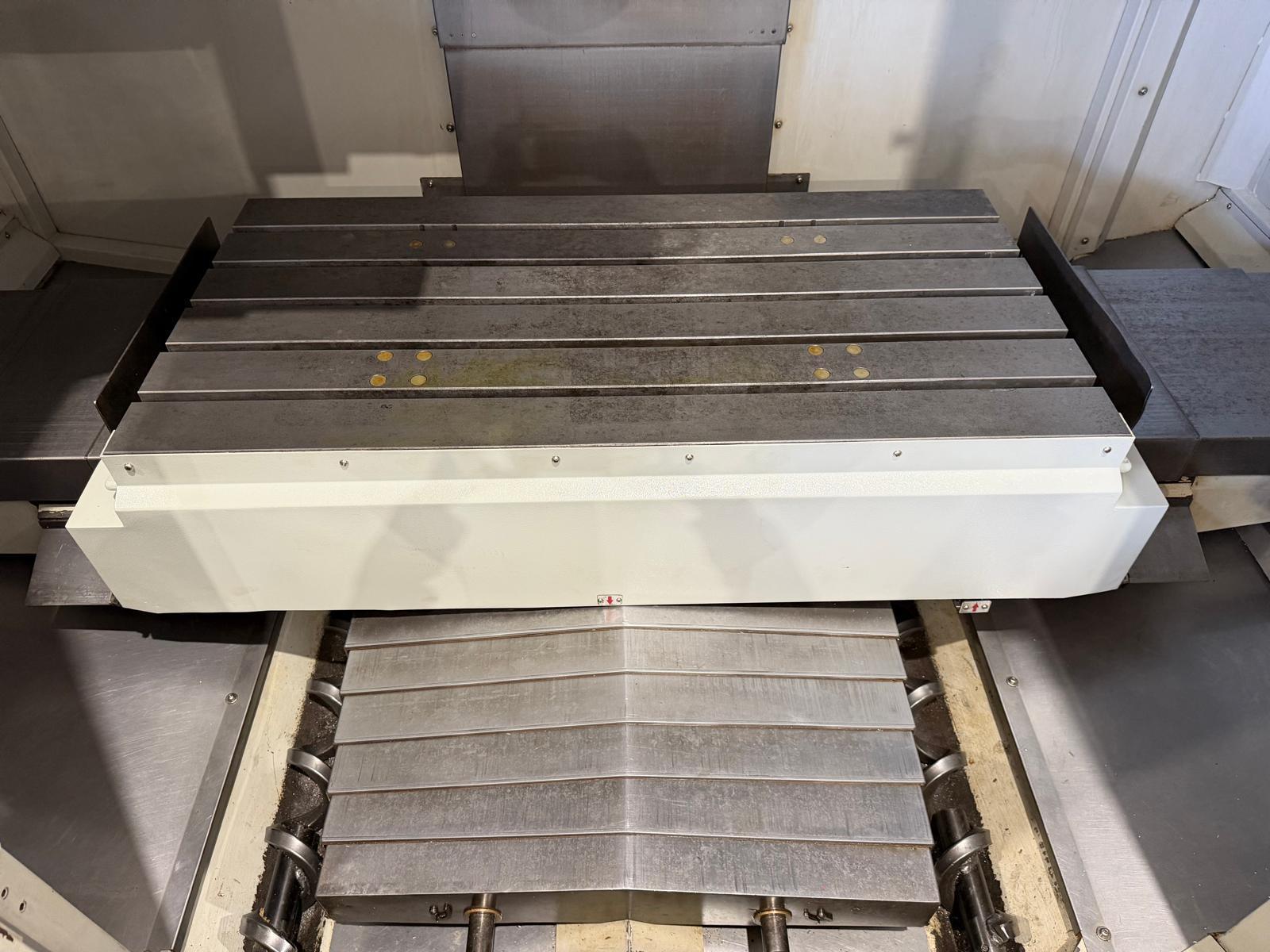

Table:
Length: 47.24″
Width: 23.62″
Number of Std T-Slots: 5
T-Slot Width: 0.70″ X 3.93″
Max Weight on Table: 1102 lbs

Travels:
X-Axis: 40.15″
Y-Axis: 24.01″
Z-Axis: 24.01″
Rapid Traverse Rates X & Y Axis: 1260 IPM
Rapid Traverse Rates Z Axis: 945 IPM
Spindle Nose to Table (Min.- Max.): 3.94″ – 27.95″

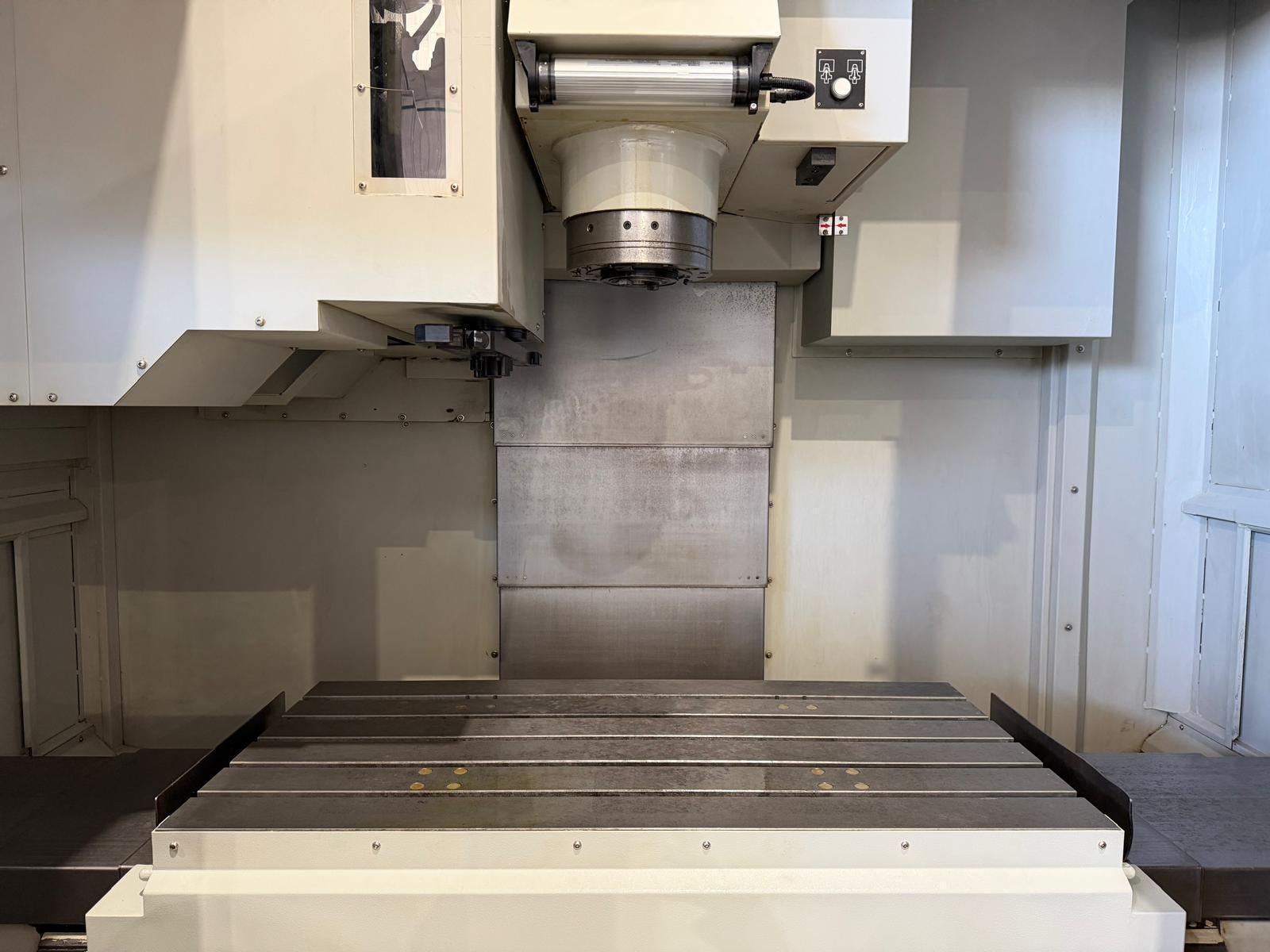

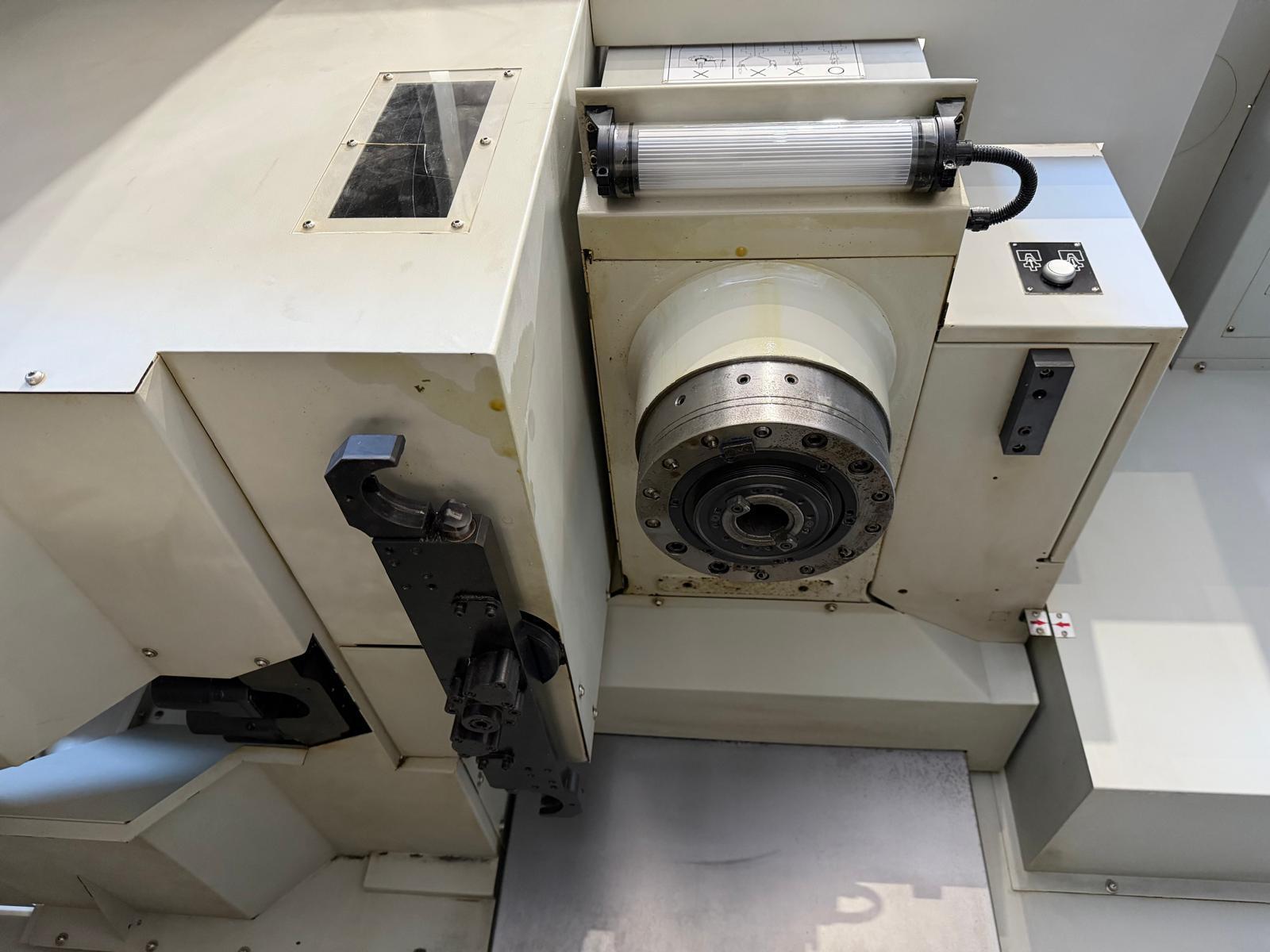

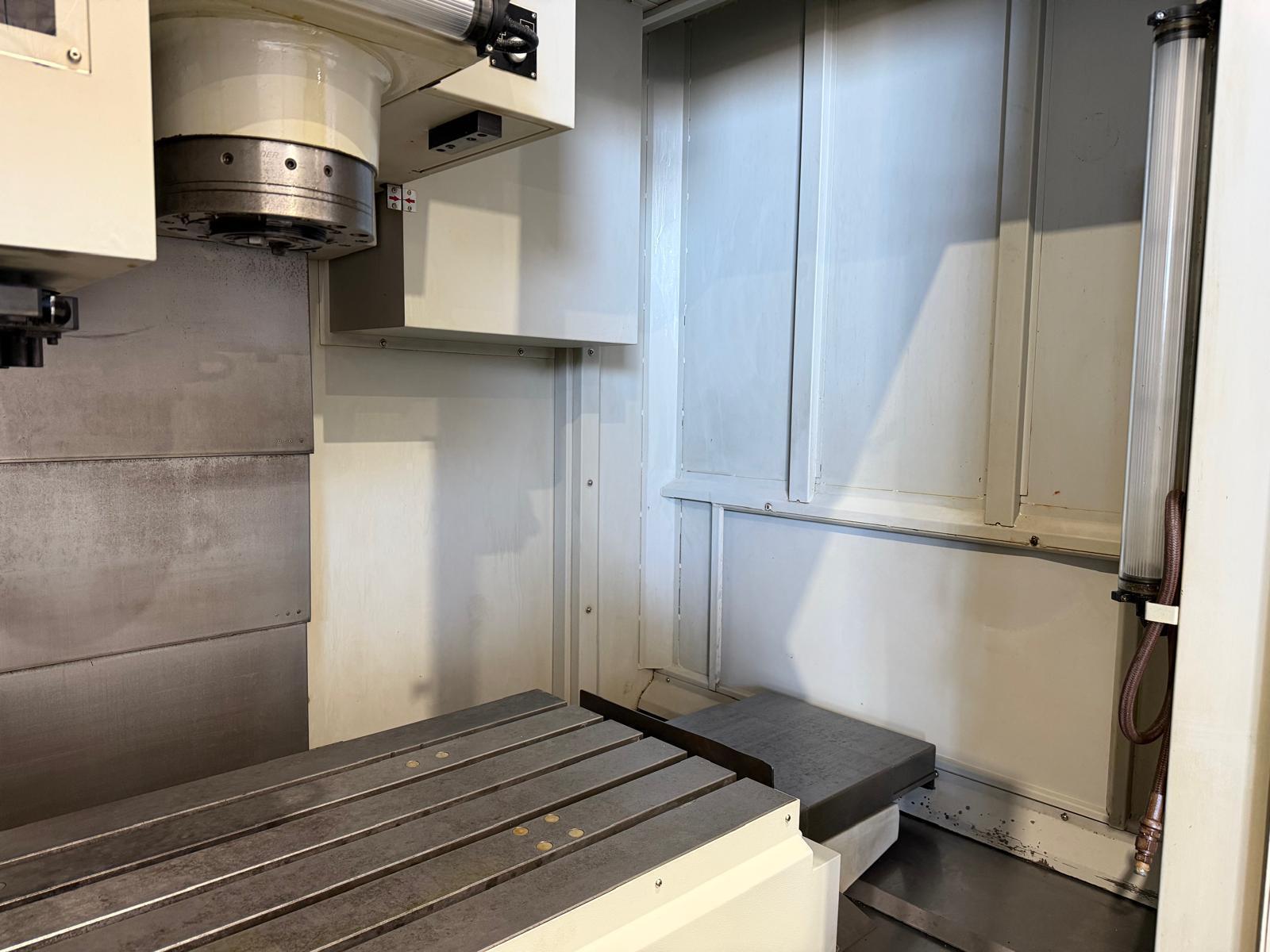

Spindle:
Taper Size: 40
Speed Range: 12000 RPM
Spindle Power: 20 HP

Automatic Tool Changer:
Capacity: 30 Station Side Mounted
Max Tool Weight: 15.43 lbs
Max Tool Dia: 3.0″ – 4.92″
Max Tool Length: 11.02″
Tool Changing Time (Chip to Chip): 4.2 Seconds
