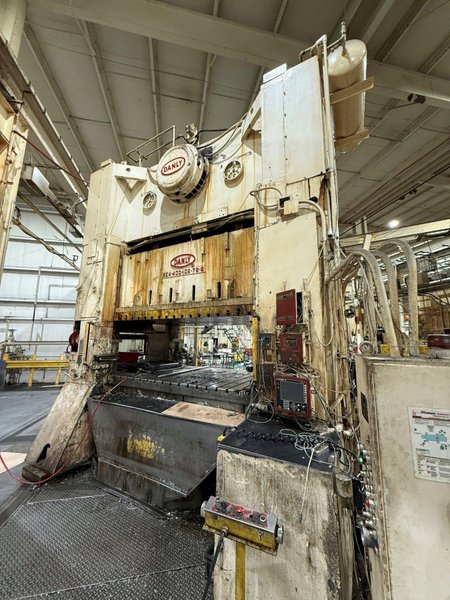

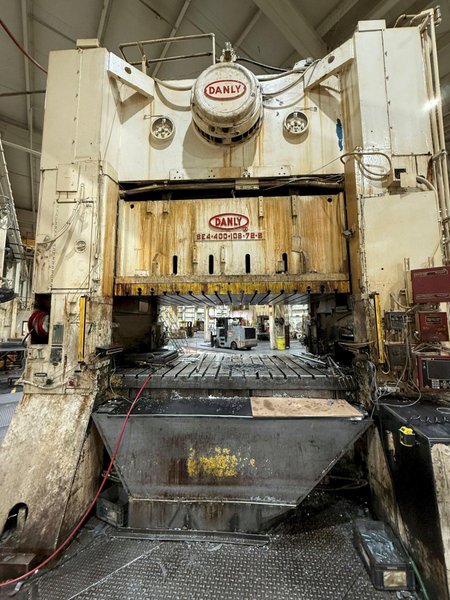

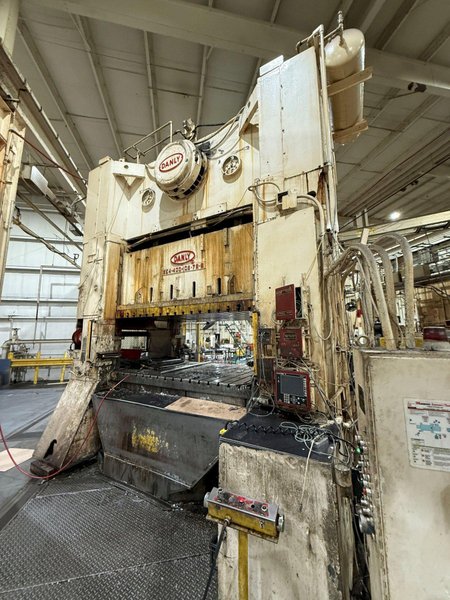

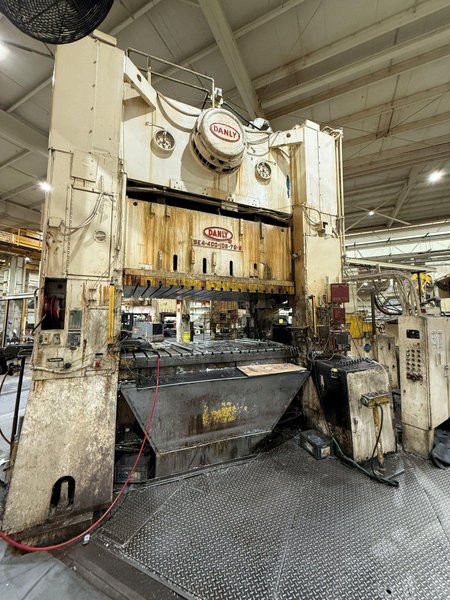

400-ton DANLY S4-400-108-72 Double Crank Straight Side Mechanical Press - Used

Name: 400-ton DANLY S4-400-108-72 Double Crank Straight Side Mechanical Press - Used
Brand: DANLY
SKU: 2998
Availability: PreOrder

Brand

DANLY

Michigan

Tonnage	400
Stroke	12 inches
Shut Height	42 inches
Adjustment	10 inches
Bed Size	108" x 72"
Ram Area	108" x 72"
SPM	20-40 VSPM
Danly Straight Side Mechanical Stamping Press Press Model S4-400-108-72 400-ton Capacity 12" Stroke 42" Shut Height Over Bed 35" Shut Height Over Bolster 10" Motorized Adjustment 108" LR x 72" FB Bed Area 108" LR x 72" FB Slide Area 20-40 Variable Strokes Per Minute Equipment and Features Air Clutch and Brake Air Counterbalances Recirculating Lube System T-Slotted Ram and Bolster 7" Thick Bolster Plate 36" Wide Windows Wintriss Smart Pak 2 Press Controls Wintriss Die Protection - DSI 2 Wintriss Programmable Outputs Wintriss Autoset Pac Floor Standing This 400-ton Danly can be seen in operation in a stamping facility. For more details please contact S&G Press Maximize production with this 400-ton Danly S4-400-108-72, a high-performance straight side mechanical stamping press. Featuring a massive 108" x 72" bed, 12" stroke, and Wintriss Smart Pak 2 controls, this four-point press ensures precision metalforming at 20–40 SPM. Equipped with 36" windows and Wintriss die protection, this floor-standing used Danly press is available for inspection under power.
