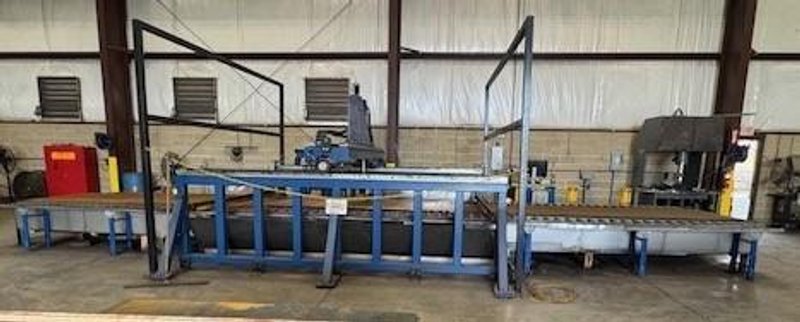

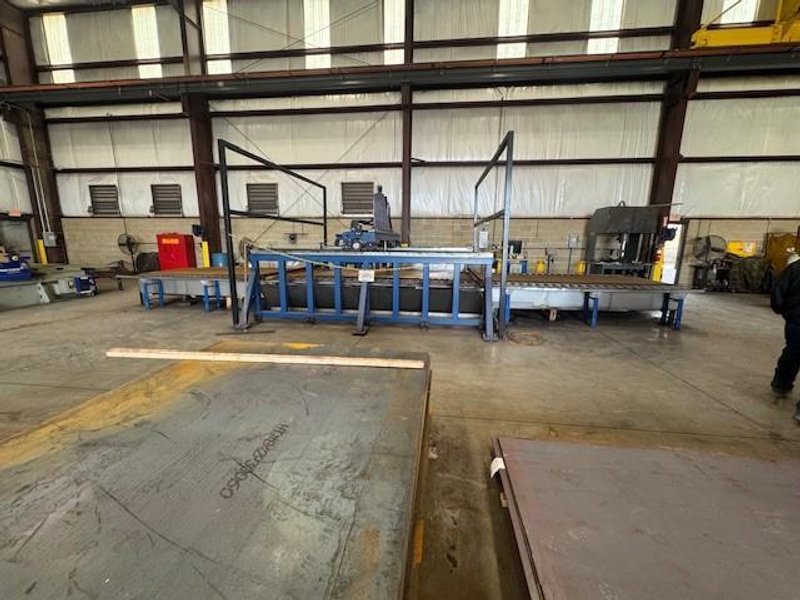

Multi-Axis Ultrasonic Testing (UT) Immersion System for Inspection of Plate, including auto plate sizing

Matec Instrument Companies

·       (Multi-Channel Conventional and Phased Array Option)

Structural Steel Frame, X Axis Leveling and Drive

System. Heavy Duty Bridge Assembly and Mechanicals

Including Single Y and Z Axis Mechanics. Includes Cable

Ways, Bellow Style Covers for all X and Y axis Linear

Rail. Closed Loop DC Servo Motor Control of all Axes

Including High Precision Gearboxes, Encoders (Motor

and Load Side).

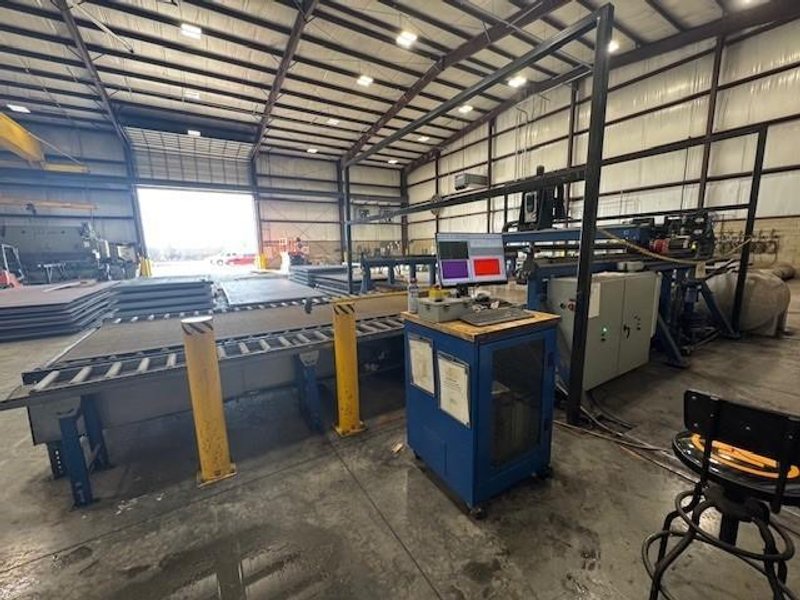

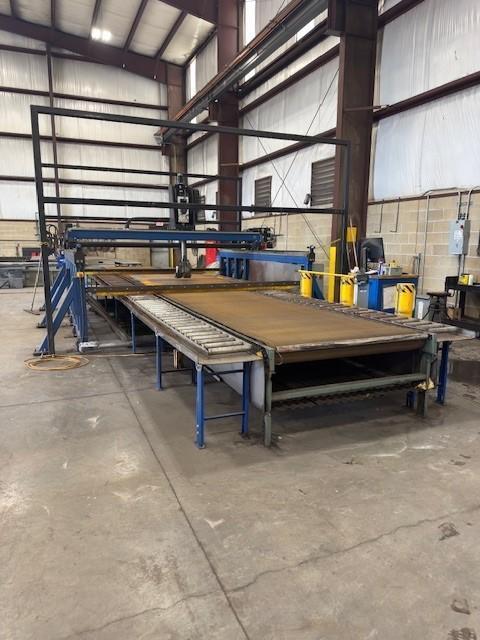

·       Plate Conveyors, Quantity of Three (3). Includes In and

Out Feed Conveyor and a Middle Conveyor Which Will

Support the Plate Under Test. The In Feed Conveyor

Will Include a Pneumatic Plate Alignment Device to

Push the Plate Against a Reference Edge Once Loaded

by the Overhead Crane system. Conveyors will be

Motorized to Shuttle the Plate IN and OUT of the

Inspection Zone

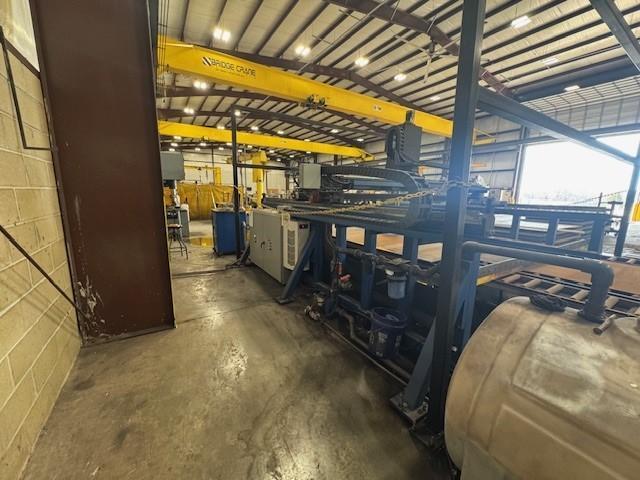

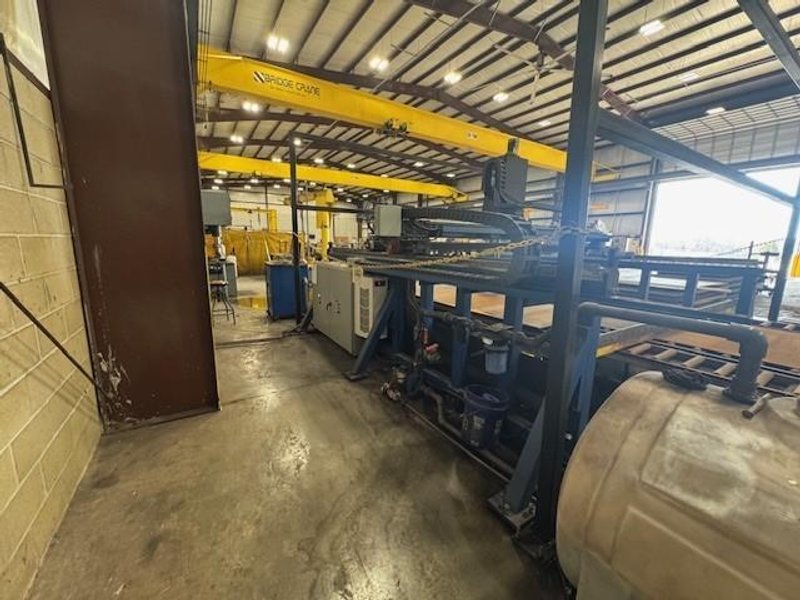

·       Stainless Steel Water Collection Tray, Spans the Scan

Area of the System and Collects the Flooded Shoe Water.

Includes Pumps, Filters, and Holding Tank. Includes

Precision Computer Controlled Flow Regulators.

·       Integration of 1D Triangulation Laser Scanner for Plate

Edge Detection. Includes Laser, Sensors, Mounting

Hardware, and Software Integration to Feedback Plate

Location and Size to the UT Scanner Mechanics.

·       NEMA Cabinet, Modified to Install Supplied 2-Axis

Complete Motion Control Electronics with Expansion

Capability

·       Matec Aragorn A-, B-, C-Scan Data Collection And

Imaging Software Module (standard simple contour

package multi-step and scan package for flat and simple

contour geometries). Software Modules to Support

Multi-Channel Simultaneous Scanning and Image

Reconstruction. Full Analysis Software Module.

The Matec developed Aragorn Software is a 64-bit Windows 10 Software Module which

performs real-time, simultaneous, multi-channel, on-screen A-Scan display (RF Waveform

Display per Location), and C-Scan collection (A Color Mapped Peak Amplitude and Time-OfFlight Representation).

·       Ultrasonic/Data Acquisition and Computer

Electronics. Includes 4 Channels of TRx Programmable

Square Wave Pulser/Receiver Instruments with

Preamplifiers. Also Includes 4 Channels of High-Speed

On-Board Data Acquisition.
