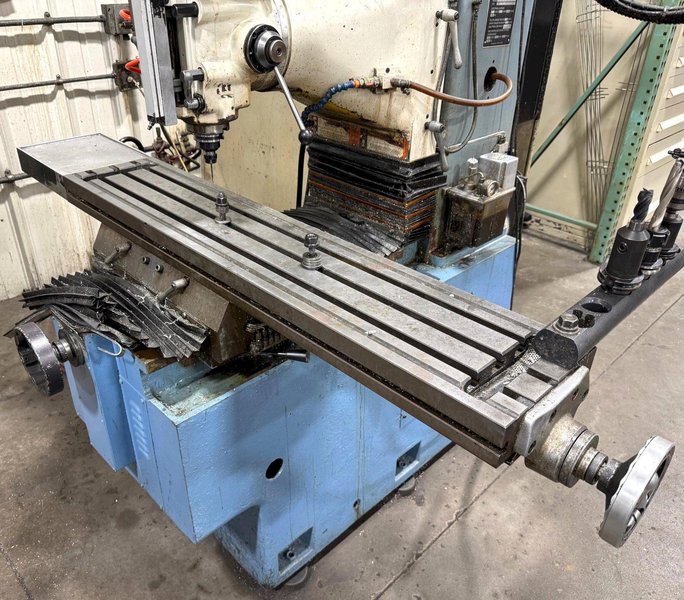

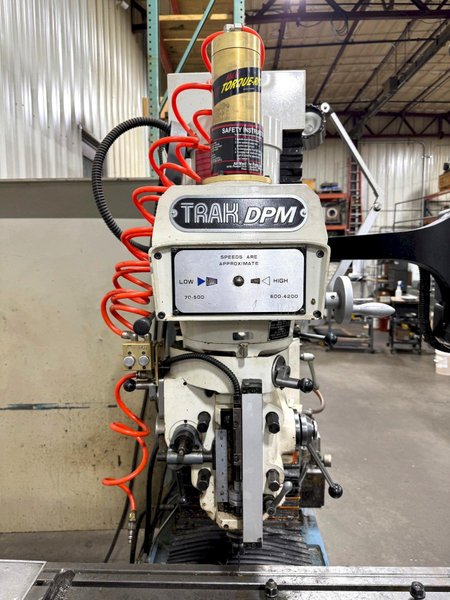

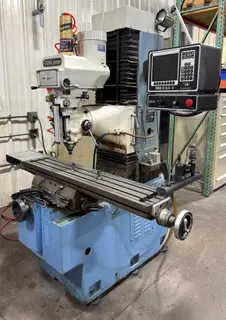

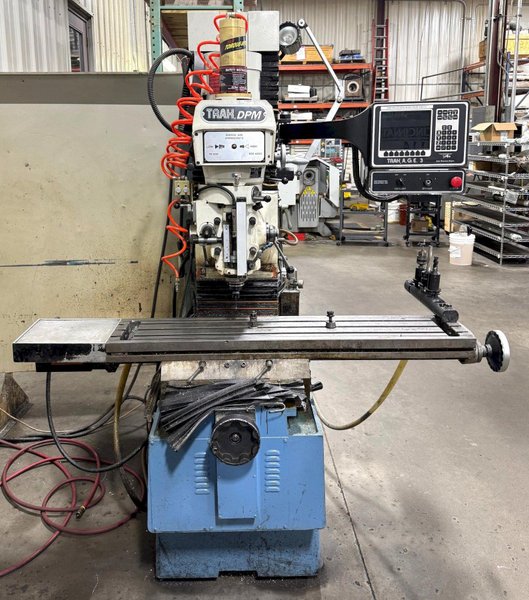

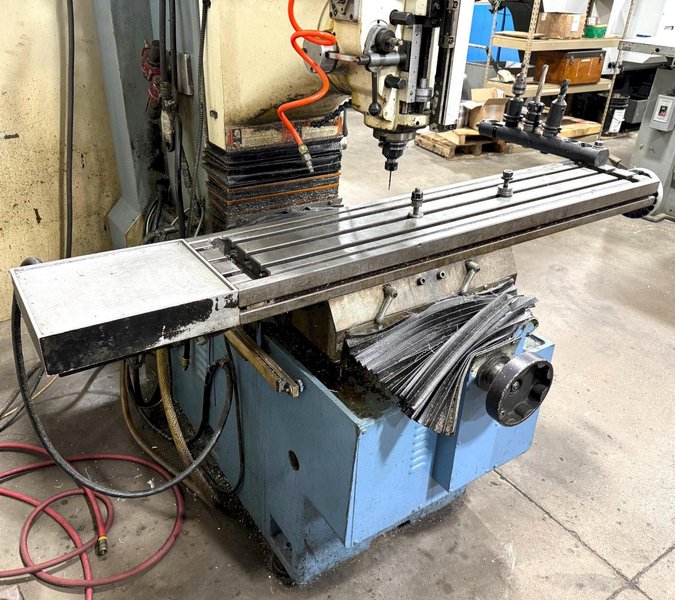

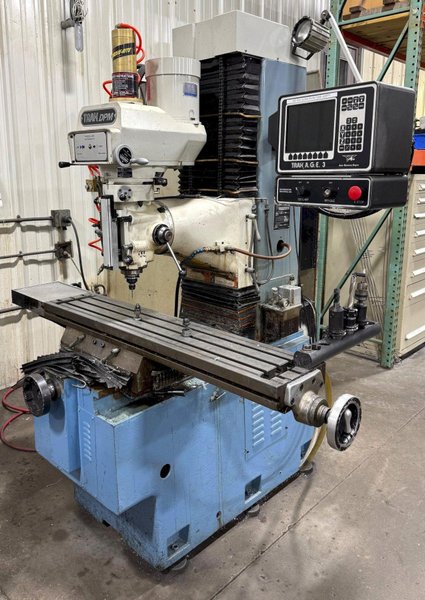

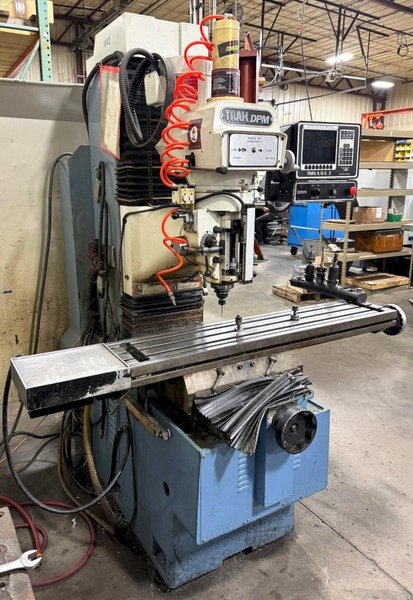

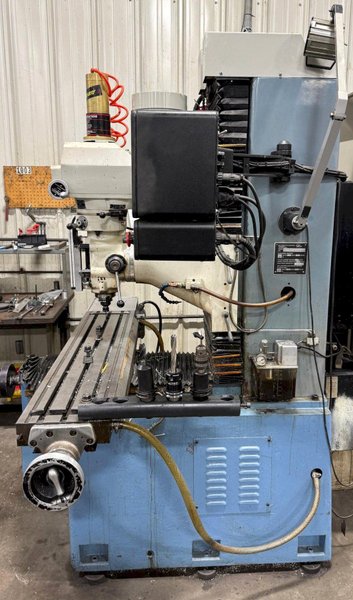

SWI TRAK CNC Vertical Mill DPM, 3-Axis, Bed Type, A.G.E. 3 Control

Brand
SWI TRAK
Category
Milling Machines
Type
Mills, CNC
Model
TRAK DPM
Stock #
32123
Year
2000
Condition
Used

Location

Ohio
REQUEST FINANCING
SWI TRAK CNC BED TYPE VERTICAL MILL

MODEL: DPM

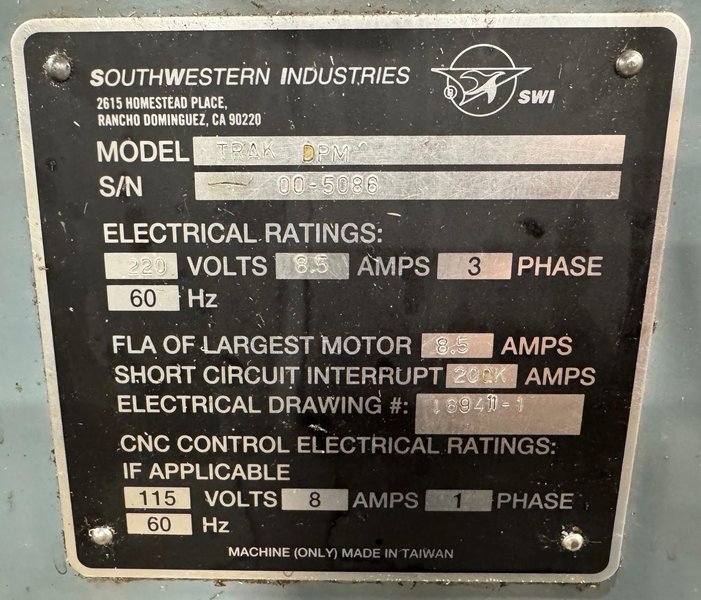

SERIAL NUMBER: 00-5086

GENERAL SPECIFICATIONS

Table Size: 10" x 50"
Table Travel (X): 31"
Saddle Travel (Y): 17"
Vertical Head Travel (Z): 23.5"
Quill Travel: 5"
Spindle Taper: No. 40
Spindle Nose To Table: 0 to 24"
Spindle Center To Column Face: 17.3"
Head Swivel Left and Right: 90 Degrees
Spindle Speed Range: 70 - 4200 RPM
Quill Feeds: (3) .002, .004, .006 IPR
Maximum Work Piece Weight: 1320 Lbs.

EQUIPPED WITH

3 HP Spindle Motor

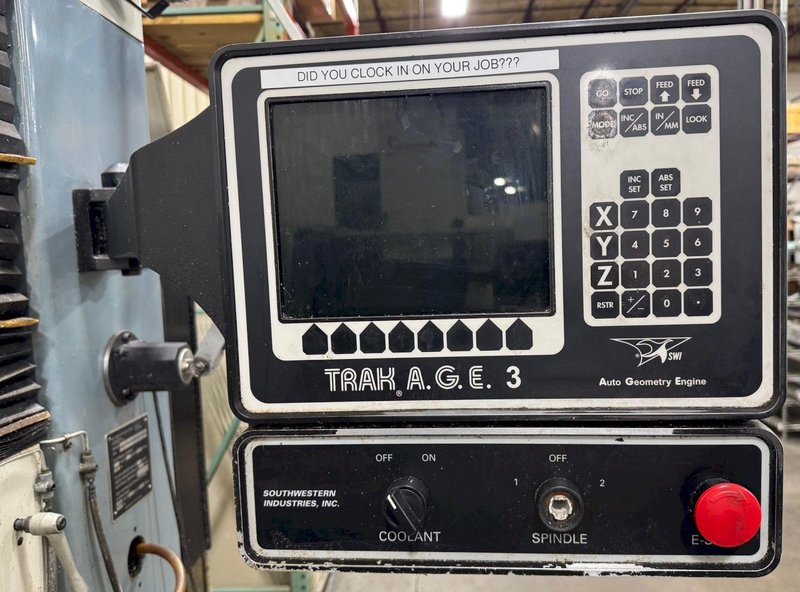

TRAK A.G.E. 3-Axis Control
Torque-Rite Power Draw Bar
Hardened and Ground Square Box Ways

Approximate Dimensions: 68"W x 64"D x 95"H
Approximate Weight: 4100 Lbs.

F.O.B. Cincinnati, Ohio

ALL SPECIFICATIONS SUBJECT TO VERIFICATION BY PURCHASER
