GWF - Heavy Duty - 4000 ton x 16 200 mm CNC

GWF - Heavy Duty - 4000 ton x 16 200 mm CNC

Name: GWF - Heavy Duty - 4000 ton x 16 200 mm CNC
Brand: GWF MENGELE
SKU: O.01 16222
Availability: PreOrder

Brand

GWF MENGELE

Location

Not specified

REQUEST FINANCING

Specifications
Files & Videos

Located in Deinze, Belgium

Technical information

Capacity 4000 ton x 16 200 mm
Backgauge CNC
Control 2D Touch
Passage between uprights 4600 mm (2x)
Max stroke 1000 mm
Max distance between table -- ram 1650 mm
Depth of throat 1250 mm
Table width 650 mm
Locking speed 70 mm/sec
Working speed 4 > 7,5 mm/sec
Returning speed 75 mm/sec
Electric motor (power) 75 kW (2x)
Power needed 380V
Length 7100 mm
Depth 5000 mm
Height 6350 mm (above floor)
Weight 500 ton (2x 250 ton)
Capacity 4000 ton
Bending length 16200 mm

Additional info

12 CNC axes: Y1 / Y2 / Y3 / Y4 / V / X1 / X2 / X3 / X4 / R1 / R2 / R3 / R4 / X5 /

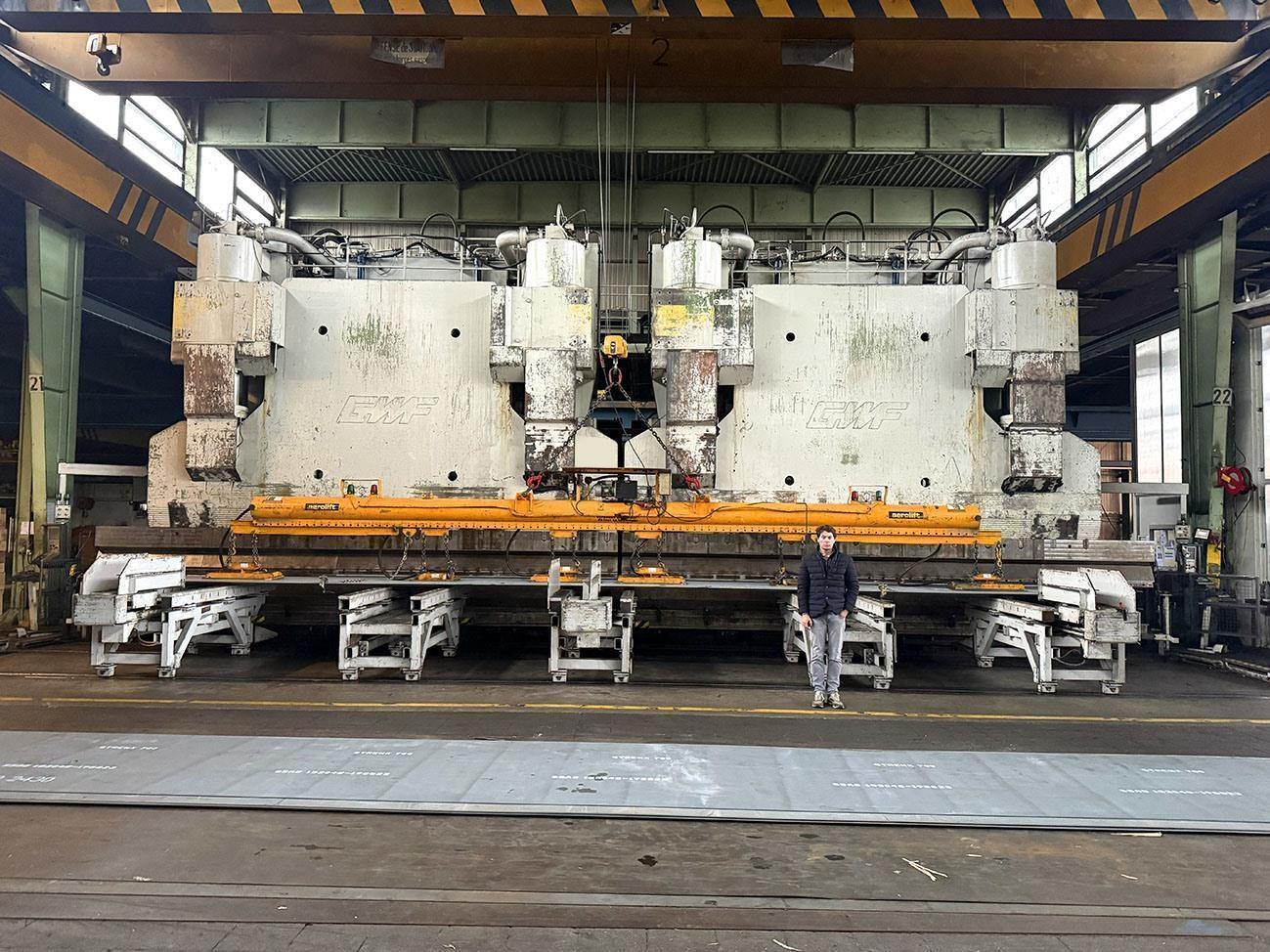

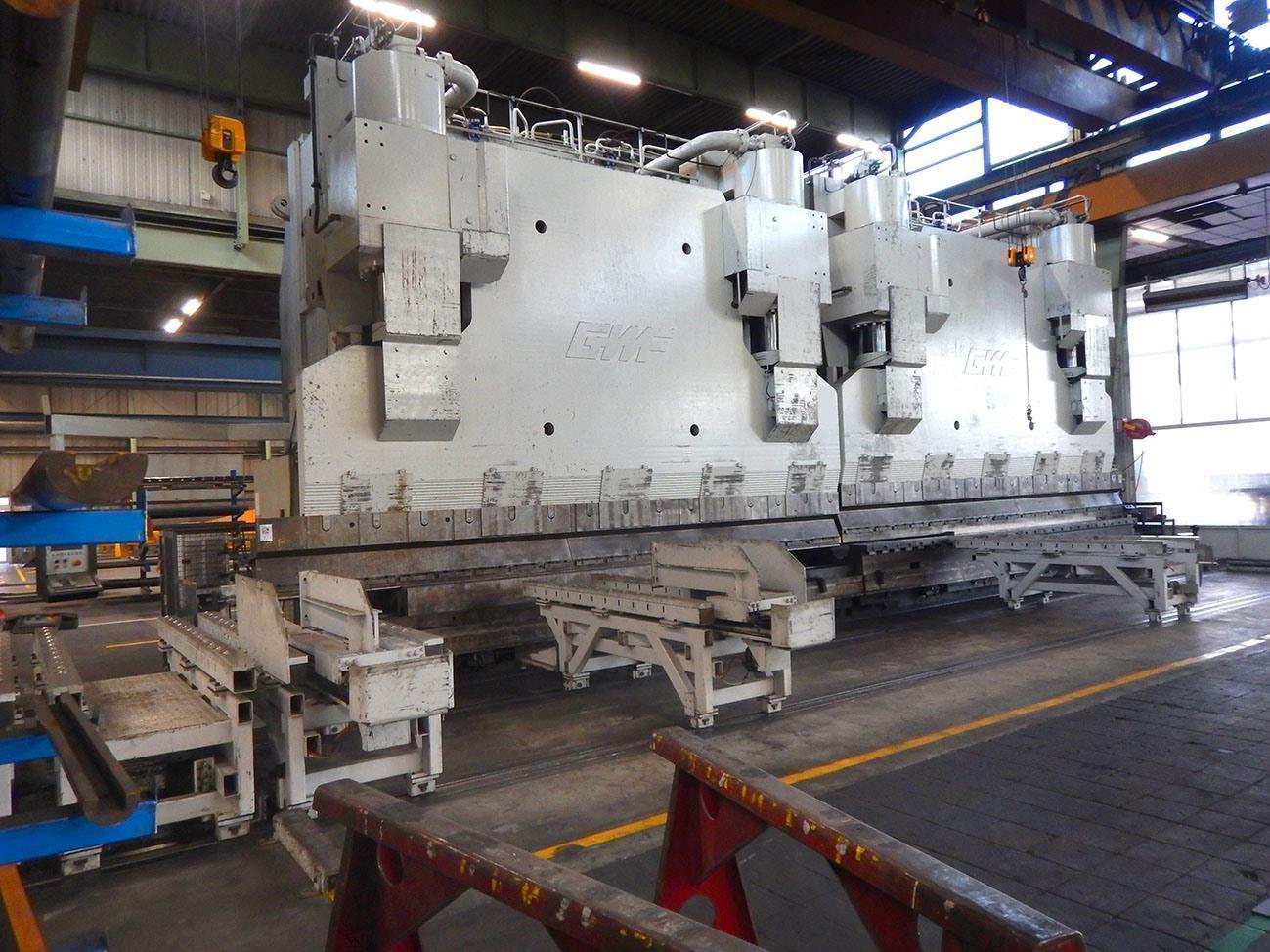

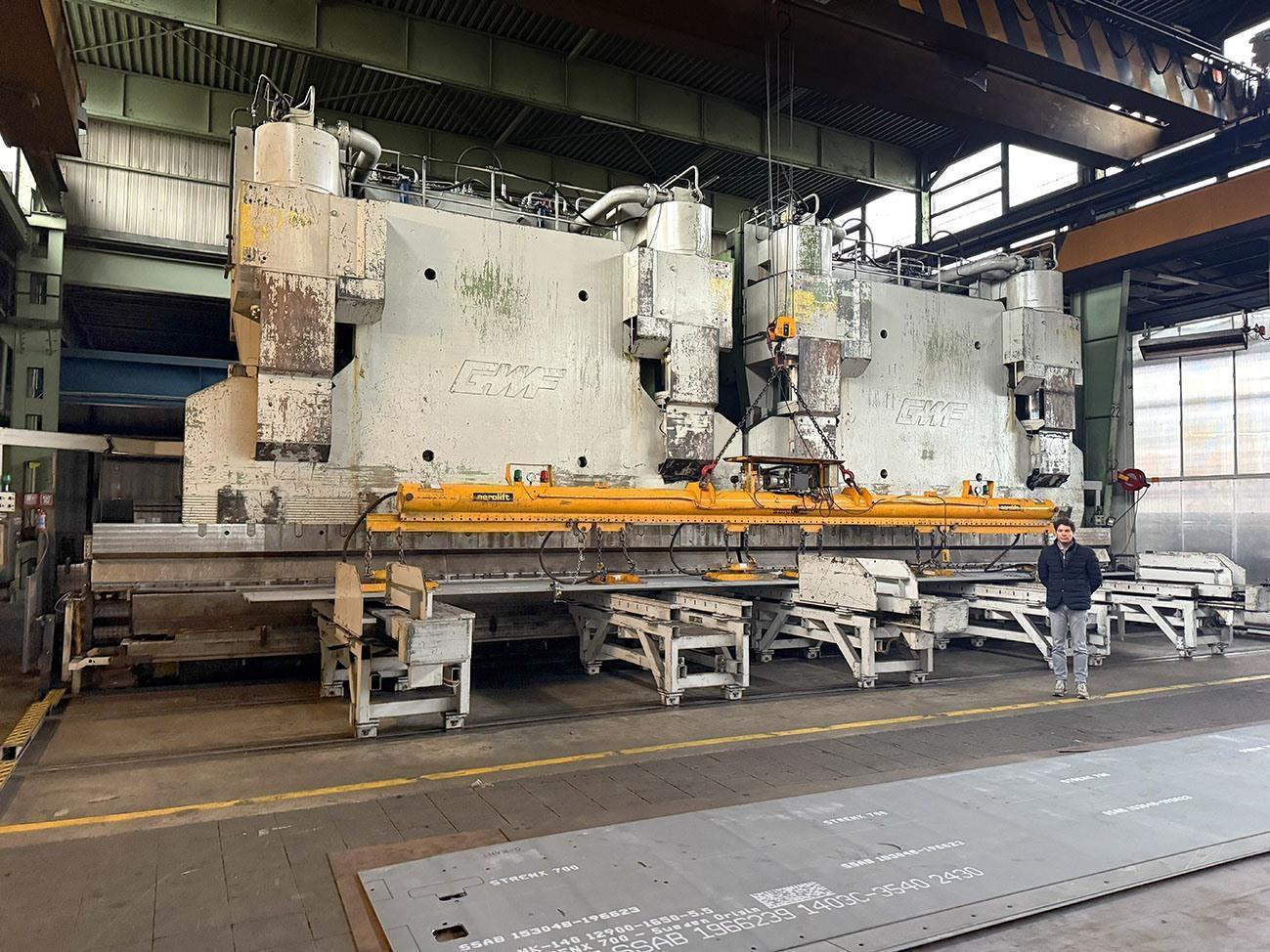

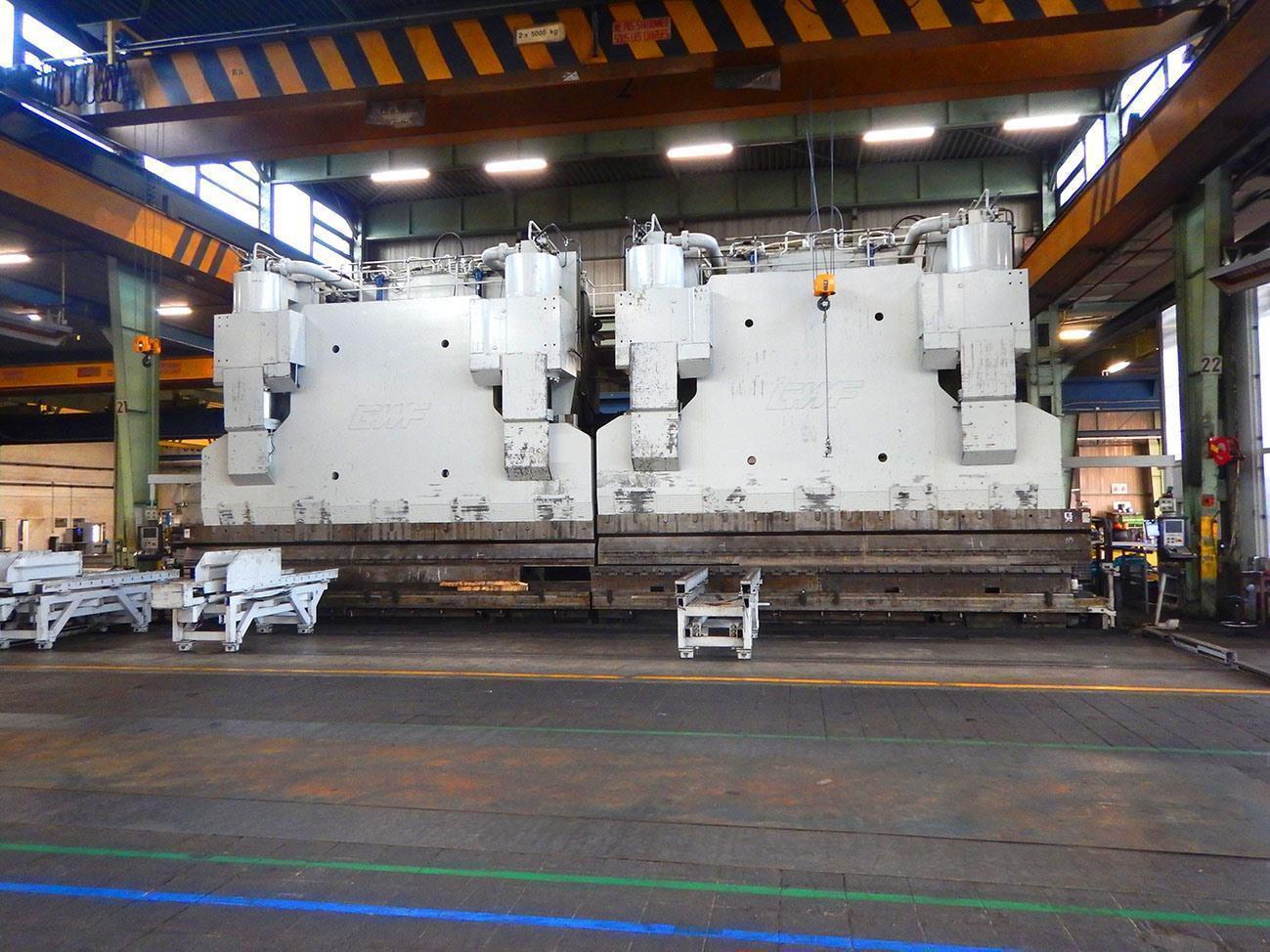

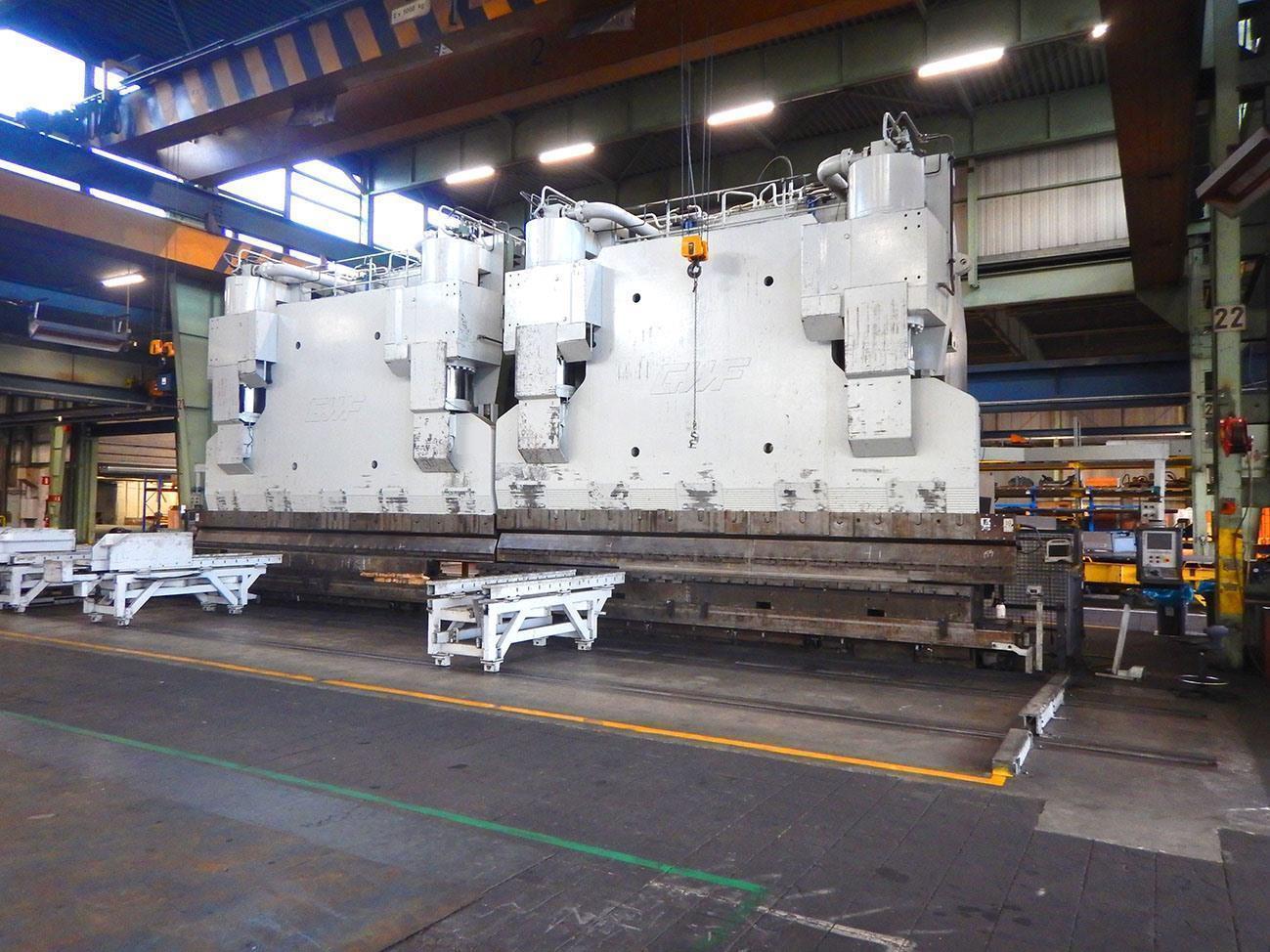

Tandem pressbrake: 2 x 2000 tons GWF

If you bend a workpiece of 16 meters long, the depth of throat is maximum 1250 mm.

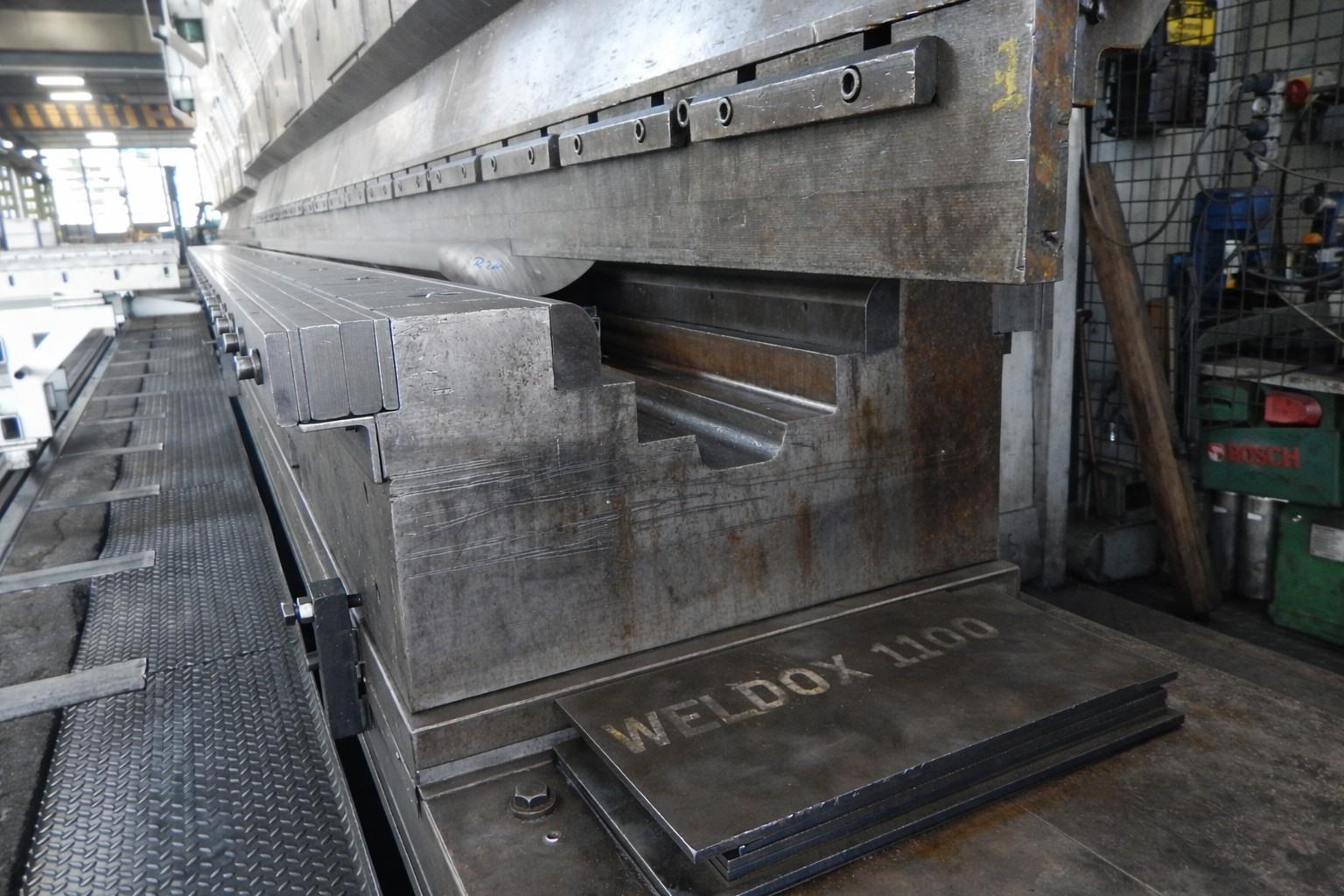

Bending example: 35 mm (normal steel) on a length of 16 meters
