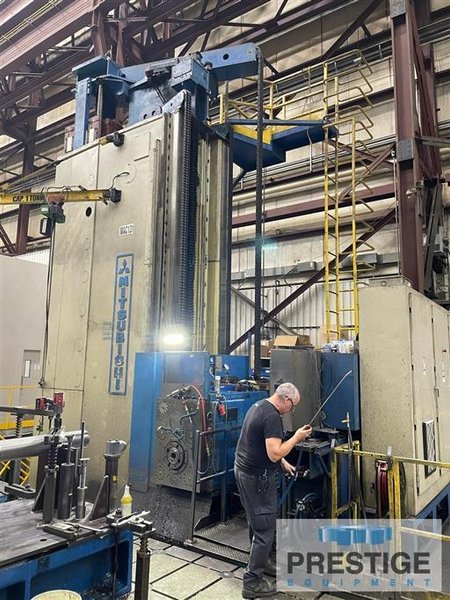

Boring Mills Horizontal Floor Type CNC

SPECIFICATIONS:
Spindle Diameter 7.08"
Milling Spindle Diameter 9.44"
Vertical Head Travel, Y 157.48"
Horizontal Column Travel, X 629.92"
Headstock Travel, Z 47.24"
Boring Spindle Travel, W 47.24"
Total Axial Travel 94.48"
Spindle Taper #50 ANSI
Milling Feeds: Inf.Variable 0.04 IPM-142 IPM
Rapid Traverse: X & Y 315 IPM
Rapid Traverse: Z, W & U 197 IPM
Spindle Speeds: 3-Steps 4-800 RPM
High Speed Shaft: 3-Steps 11-2800 RPM
ROTARY TABLE:
Table Size 98" x 98"
Weight Capacity 44,000 Lbs
Longitudinal Table Travel 66.9"
Diagonal (Corner To Corner) 132"
Overall Table Height 41"
Rotation Speeds-Stepless Range 0.0095-0.475 RPM
Feeding Speed-Stepless Range 0.025-63 IPM
Rapid Traverse 63 IPM
Scale Graduations 0.5 Degree
Number Of T-Slots 9
Distance Between T-Slot Centers 10"
Size Of T-Slots (W x D) 1.75" x 2.25"



Equipped With:

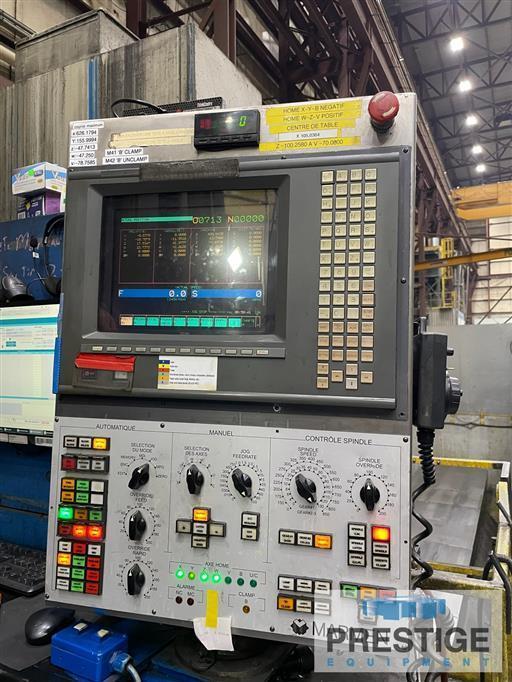

Fanuc 15M CNC Control (Retrofit 1997)
Various Right Angle Heads: Long Reach,
Short Reach, Universal, 4-Positon Right Angle
High Speed Head Attachment : 2400 RPM
1 Ton Jib Crane

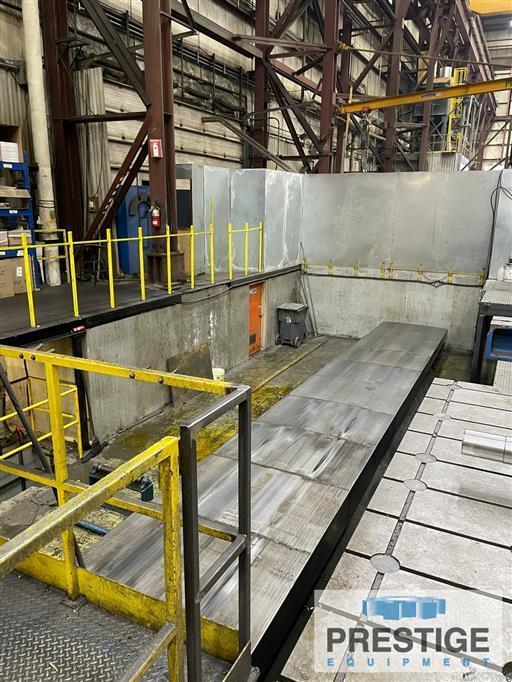

(4) 78" x 157" x 16" Thick T-Slotted Floor Plates

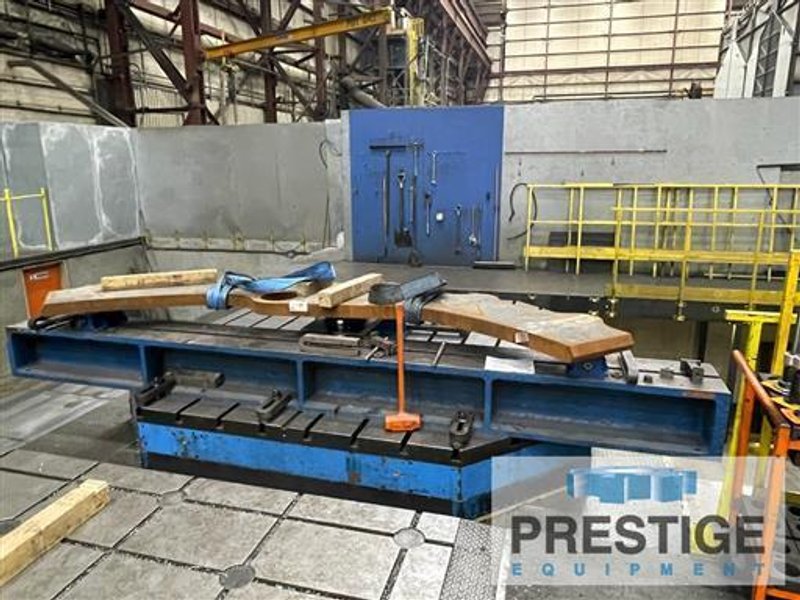

98" x 98" Mitsubishi Infeeding Rotary Table
Power Draw Bar
Way Covers On X & Y Axes
Hardened & Ground Ways
Chip Conveyor
75 HP Spindle Drive
Overall Height: 366.14"
Weight: 187,000 lbs
