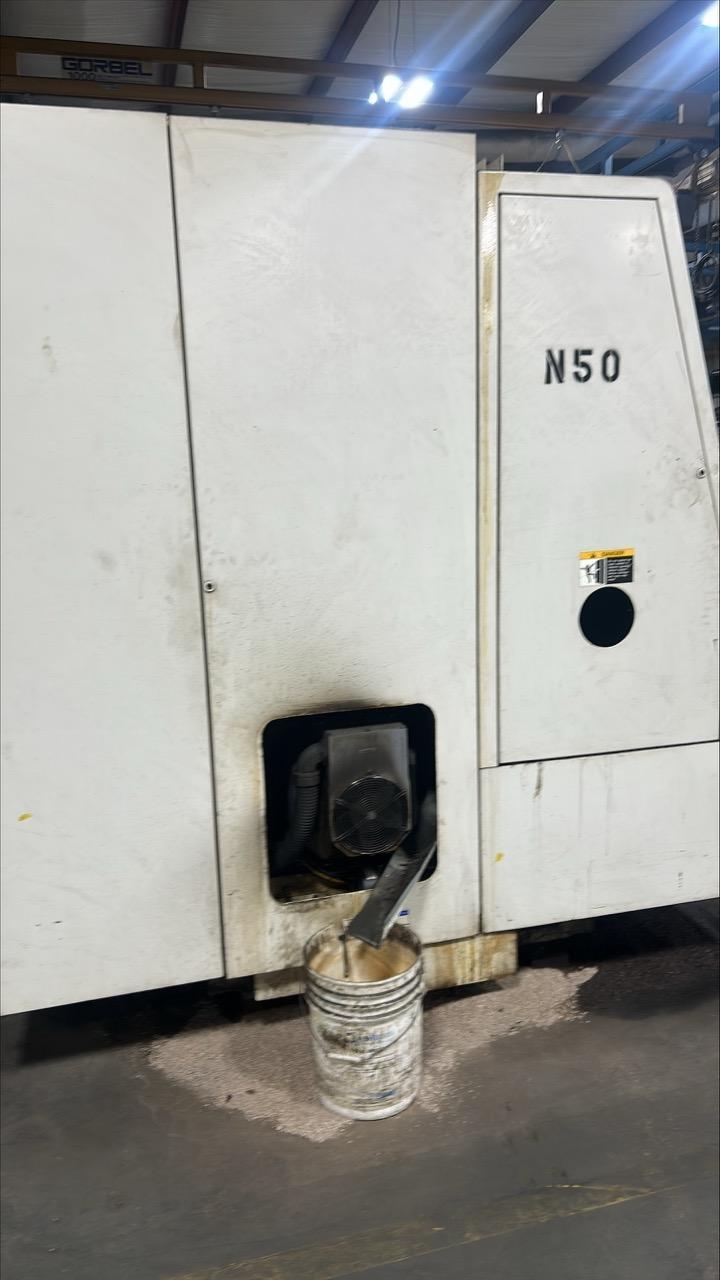

Doosan Puma 450 CNC Lathe, 1997 – Chip Conveyor, 12 Station Turret
Brand
Not specified
Category
Type
Model
Puma 450
Stock #
631972
Year
1997
Condition
Not specified
Location
Michigan
|
Swing Over Bed: 35.4″
Swing Over Cross Slide: 24.8″
Maximum Turning Diameter: 24.8″
Maximum Turning Length: 80″
Chuck Size: 15″
Bar Capacity: 4.1″
Spindle Speed: 1,500 RPM
Spindle Motor: 40 HP
Spindle Nose: A2-11
X-Axis Travel: 13.4″
Z-Axis Travel: 80.7″
Rapid Traverse (X/Z): 472 / 787 IPM
Turret: 12 Station
Machine Weight: Approx. 24,000 lbs
All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Equipped With: All specifications are assumed to be correct but must be confirmed by the purchasing entity.,CNC Control 12-Station Turret Hydraulic Chuck Coolant System Chip Conveyor All Available Manuals All specifications are assumed to be correct but must be confirmed by the purchasing entity. |
