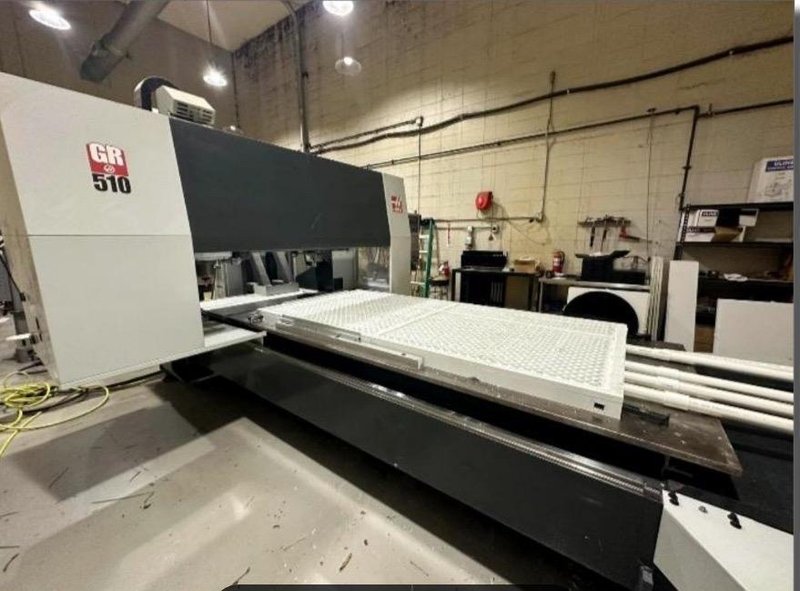

Haas GR-510 Gantry Router, 2020 – 5’x10′ Table, HSM, Rigid Tapping

X-Axis Travel: 121″ Y-Axis Travel: 61″ Z-Axis Travel: 11″ Spindle Speed: 15,000 rpm Motor ower: 15 hp Taper: CT40 Spindle Nose to Table: 2.5″ – 13.5″ Max Torque: 48 ft‑lb @ 1,500 rpm Drive System: Direct speed, belt drive Max Table Load (evenly distributed): 6,000 lbs Distance Between Columns: 62″ Rapids X: 800 ipm Rapids Y: 2,100 ipm Rapids Z: 1,100 ipm Max Cutting: 800 ipm Tool capacity: 10-Position Carousel Max Tool Diameter (adjacent pockets full): 3.5″ Max Tool Weight: 12 lbs Approx. Dimensions: 206″ × 111″ × 108″ Approx. Weight: 19,400 lbs

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Equipped With: Haas CNC Control 32 GB Expanded Memory Ethernet Interface HaasConnect Remote Monitoring HaasDrop Media Display M‑code M130 Remote Jog Handle with Touchscreen Display Early Power Failure Detection Module Low‑Voltage Option Probe System Gantry Router Coolant System Programmable Coolant Nozzle High‑Speed Machining Second Home Position Rigid Tapping Chip Tray Filter Kit

All specifications are assumed to be correct but must be confirmed by the purchasing entity.
