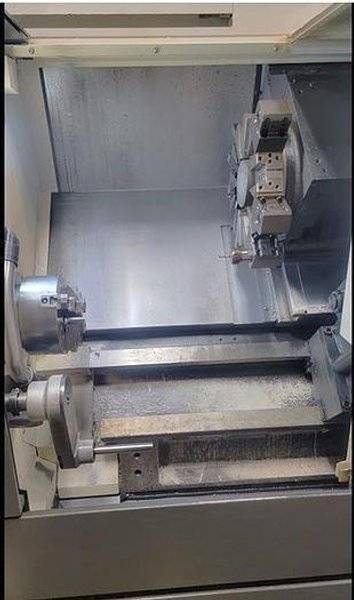

Hyundai Wia HD 2200 CNC Lathe, 2018 – 8″ Chuck, Rigid Tapping, Chip Conveyor

Chuck Size: 8″ 3 Jaw Hydraulic Chuck Maximum Swing 21.67″ Maximum Turning Diameter: 15″ Maximum Machining Length: 22.2″ Maximum Bar Capacity: 2.6″ X-Axis Travel: 8.5″ Z-Axis Travel: 22.8″ Spindle Nose: A2-6″ Spindle Bore: 2.99″ Spindle Speeds: 4,000 RPM Spindle Motor: 24.8 HP Spindle Torque: 152 ft./lbs. Number of Tool Positions: 12 Station Turret Rapid Traverse Rates X/Z: 944/1181 IPM Tailstock Quill Taper: MT #4 Quill Diameter: 2.6″ Tailstock Travel: 22.8″ Quill Travel: 3.1″ Approx. Dimensions: 115″ x 65″ x 71.7″ (155.8″ Length with Conveyor included) Approx. Weight: 10,000 lbs

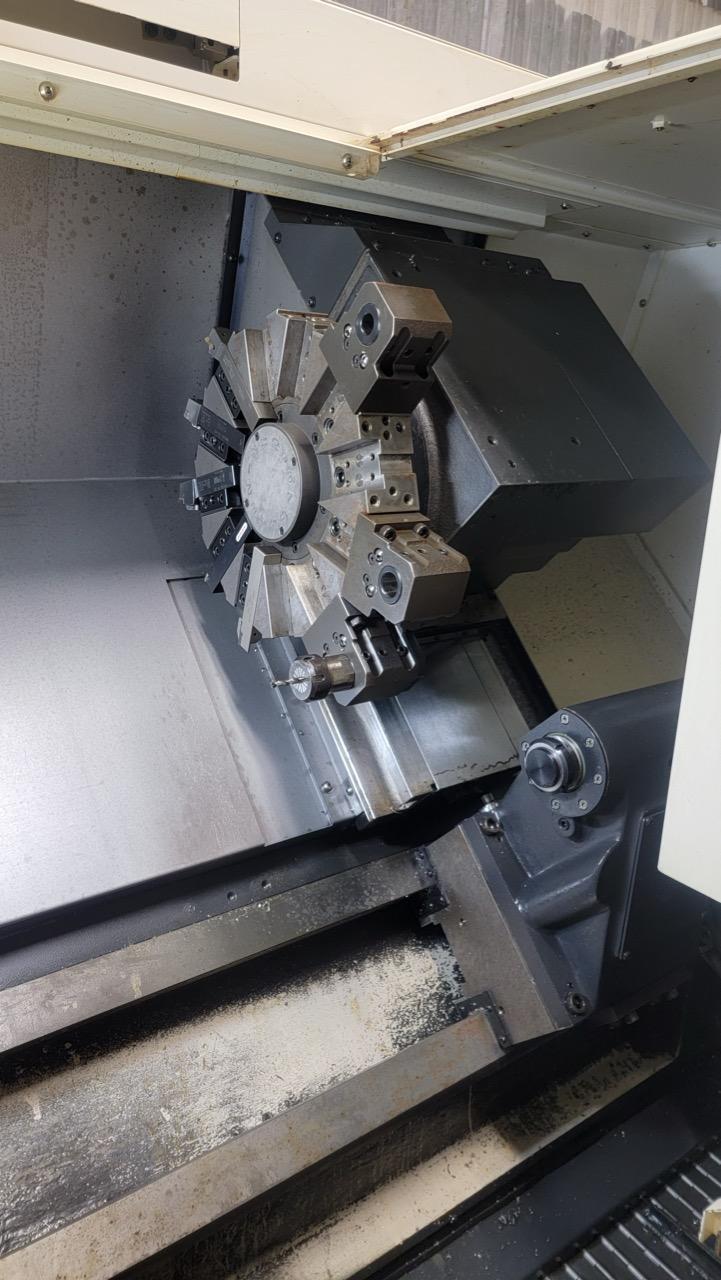

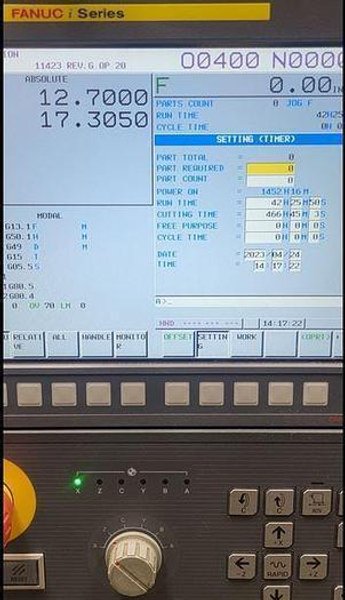

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Equipped With: Fanuc i Series CNC Control Parts Catcher Tool Presetter Chip Conveyor Tailstock Rigid Tapping 12 Station Servo Driven Turret Boxed Guideways for Heavy Cutting Conversational Guide i 45 Degree Slant Bed Design Coolant System with Tank & Pump USB Port Interface RS 232 Port Interface

All specifications are assumed to be correct but must be confirmed by the purchasing entity.
