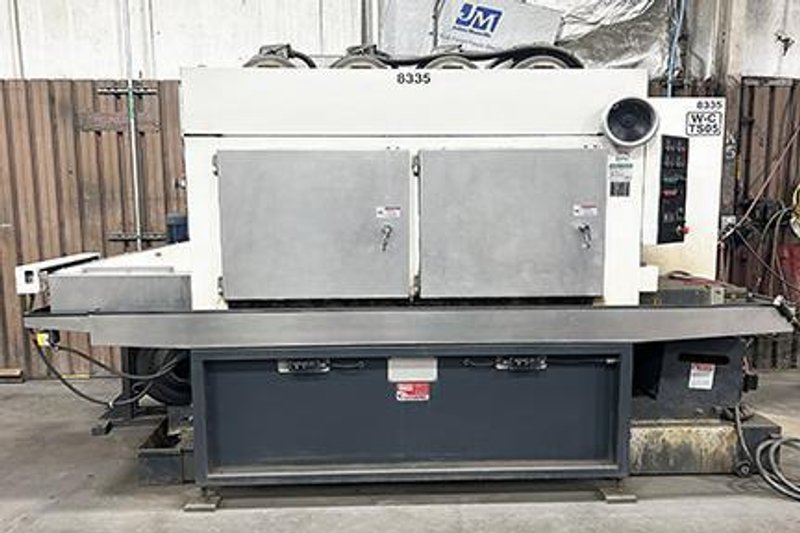

TIMESAVERS LYNX 19MWT-DDDD-60 WET PROCESS ABRASIVE 4 BELT DEBURRING/SURFACE FINISHING MACHINE, 2019

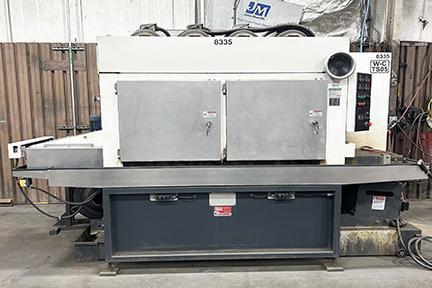

USED TIMESAVERS Lynx 19MWT-DDDD-60

Wet Process Abrasive 4 Belt Deburring/Surface Finishing Machine

The Timesavers Lynx 19MWT-DDDD-60 is equipped with four top heads. It has four 6” contact drums powered by four 20 HP motors.  The machine is engineered for wet operation.  Metal parts are treated with a flood of coolant.  Internal shields and seals are designed to control coolant overspray and dispersal.  The wet operation eliminates dust and reduces fire hazard.  It increases abrasive belt life, eliminates belt loading and improves the consistency and finish of the final products.

 Manufactured - 2019

 Abrasive belt size:........................................... 19” x 60”

Motors:........................................................... 20, 20, 20, 20 HP

Maximum width stock:................................... 18”

Minimum part length:..................................... 8”

Machine opening:........................................... 0 – 8.25”

Feed speed:..................................................... 6-20 FPM

Passline height:............................................... 38”, Constant

Voltage/Phase/Frequency:............................. 460/3/60

Approximate full load amps @ 230 volt:......... 253

Compressed air requirements:......................... 8 CFM @ 90 psi

Approximate shipping weight:........................ 11,500 lbs.

  Features:

 6” Diameter Contact Drums:

Dynamically balanced 6” diameter contact rolls with precision bearings.

Machine Design:

The machine has a fixed height conveyor for constant pass line height.  Each contact drum is adjustable to accommodate thickness.

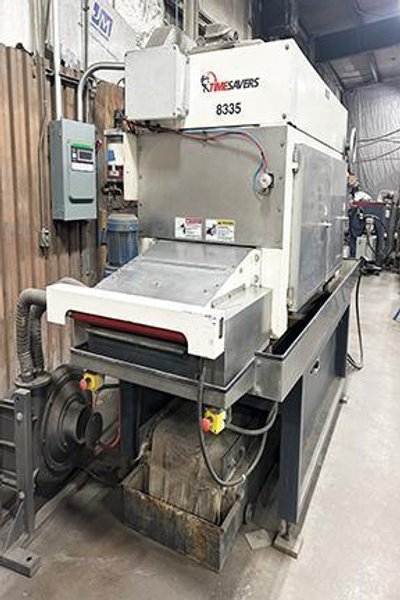

Infeed and Outfeed Holddown Rolls:

Rubber-covered, spring-loaded rolls aid in holding sheet metal parts onto conveyor as they pass through the machine.

Air Knife Parts Dryer:

Air blows and squeegees sheet metal parts on exit end of machine after deburring process.  Includes precision top and bottom air knives, squeegee rolls, feed rolls, high efficiency blower, guards and controls.

Air Operated Disc Brake:

Used to stop the contact roll to assure consistent abrasive belt and belt head stoppage in approximately four seconds.  This braking system will not fade under continuous braking and has non-sparking, easily replaceable linings.  The brake disc is located on the main motor shaft for easy maintenance.

Automatic Advance Paper Media Filter:

The automatic indexing coolant system cleans and re-circulates coolant for efficient deburring and finishing.  This system is complete with pump, controls, media paper and flow controls to advance the media automatically when necessary.  The filter has been designed to fit directly below the machine to minimize floor space.  This location allows better evacuation of the coolant directly to the filtration system.

Quick Release Outboard Support:

Allows fast removal of outboard support to expedite abrasive belt change.

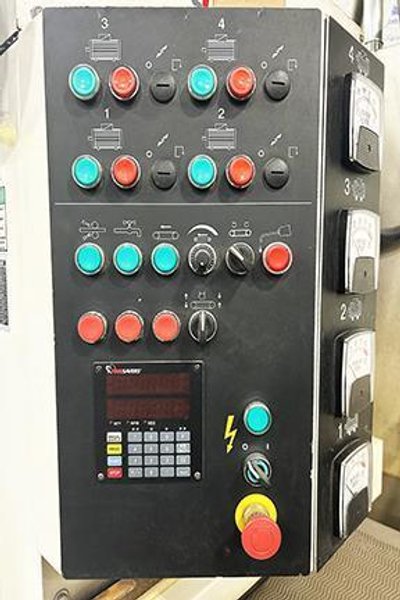

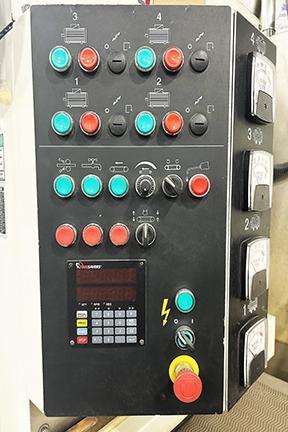

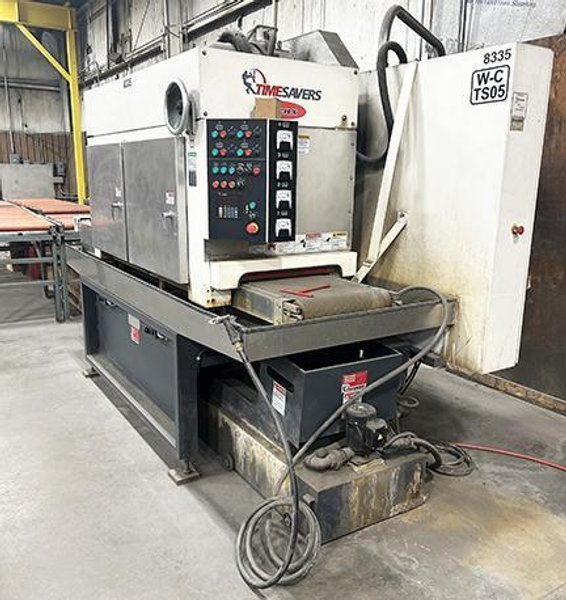

 Centralized Control Panel:

Simple operator controls for machine operation.  Conveyor feed, speed, abrasive belt head are controlled at this centralized station.

Infeed Stop Bar:

A sheet metal gate acts as an emergency stop for the operator when loading the machine.  The gate actuates a limit switch which shuts down the abrasive belt head and conveyor feed in emergency situations.

Percentage Load Meter:

Provided on each head to show the exact percentage of main motor horsepower being used during operation.

Electronic Go-To Device:

Allows user to digitally enter desired machine opening position.  Indicates conveyor speed and conveyor bed position in relation to sanding belt for accurate setup to .001”.  The device can store up to ten programs.

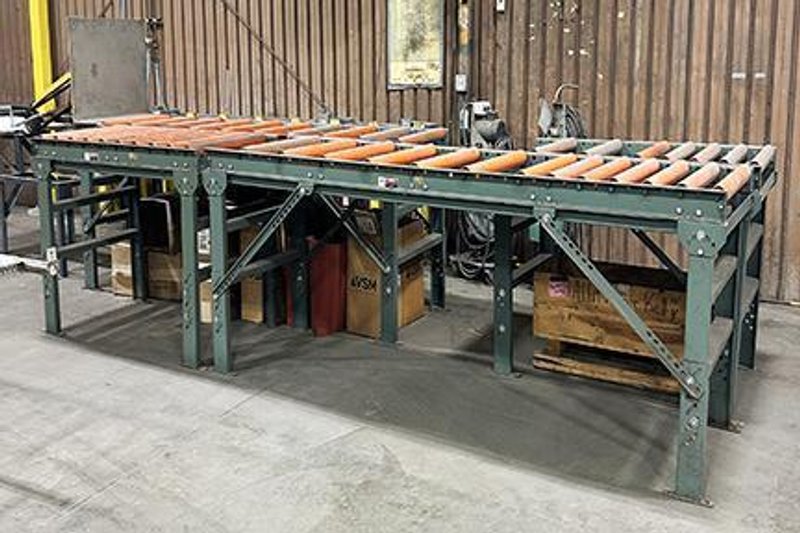

Variable Speed Conveyor Drive:

10 - 30 FPM A/C variable frequency conveyor drive.  Feed drive and take-up rolls will be 6” diameter.

Motorized Thickness Adjustment:  Thickness setting is motor driven.  This allows for quick changes in thickness settings of material to be processed.

Reversing Conveyor on Feed System

A switch on the control panel will reverse the feed system direction to return parts.  No finishing is to be performed in the reverse mode!

Automatic Lubrication:

The system automatically supplies necessary lubrication to all high-speed bearings at frequent pre-set intervals.

460/3/60 Volt

Location:        Southern MO Plant
