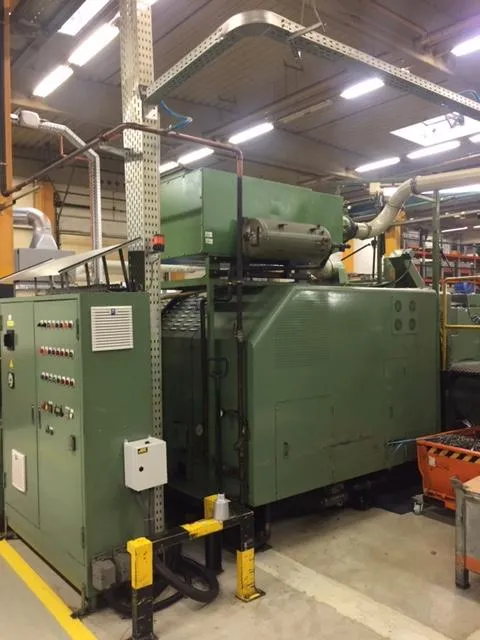

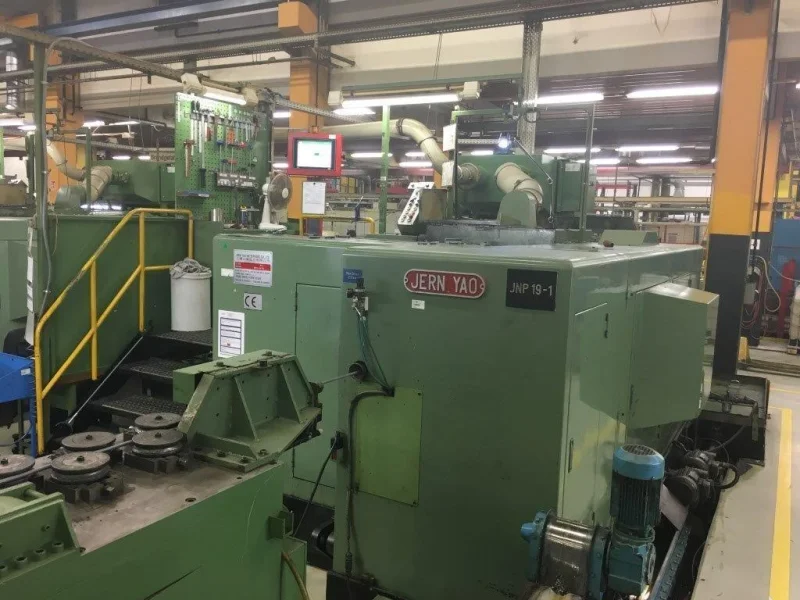

22mm Jern Yao JNP19B5S Parts Former

Name: 22mm Jern Yao JNP19B5S Parts Former
Brand: JERN YAO
SKU: 10373
Availability: PreOrder

Brand

JERN YAO

Location

Not specified

REQUEST FINANCING

Specifications
Files & Videos

CUT-OFF DIA. MAX. (mm) 22
CUT-OFF LENGTH MAX. (mm) 11~70
KICK-OUT LENGTH MAX. (mm) 100 (50)
P.K.O. LENGTH MAX. (mm) 20
CUT-OFF QUILL (DxL) (mm) 70×75
MAIN DIE HOLE (DxL) (mm) 90×140
DIES PITCH (mm) 111
PUNCH HOLE (DxL) (mm) 65×130
RAM STROKE (mm) 176
FORGING POWER (ton) 185
OPEN UPSET DIA. (mm) 27
MAX. OUTPUT (pcs/minute) 160
MAIN MOTOR (hp) 50

Monitor not included

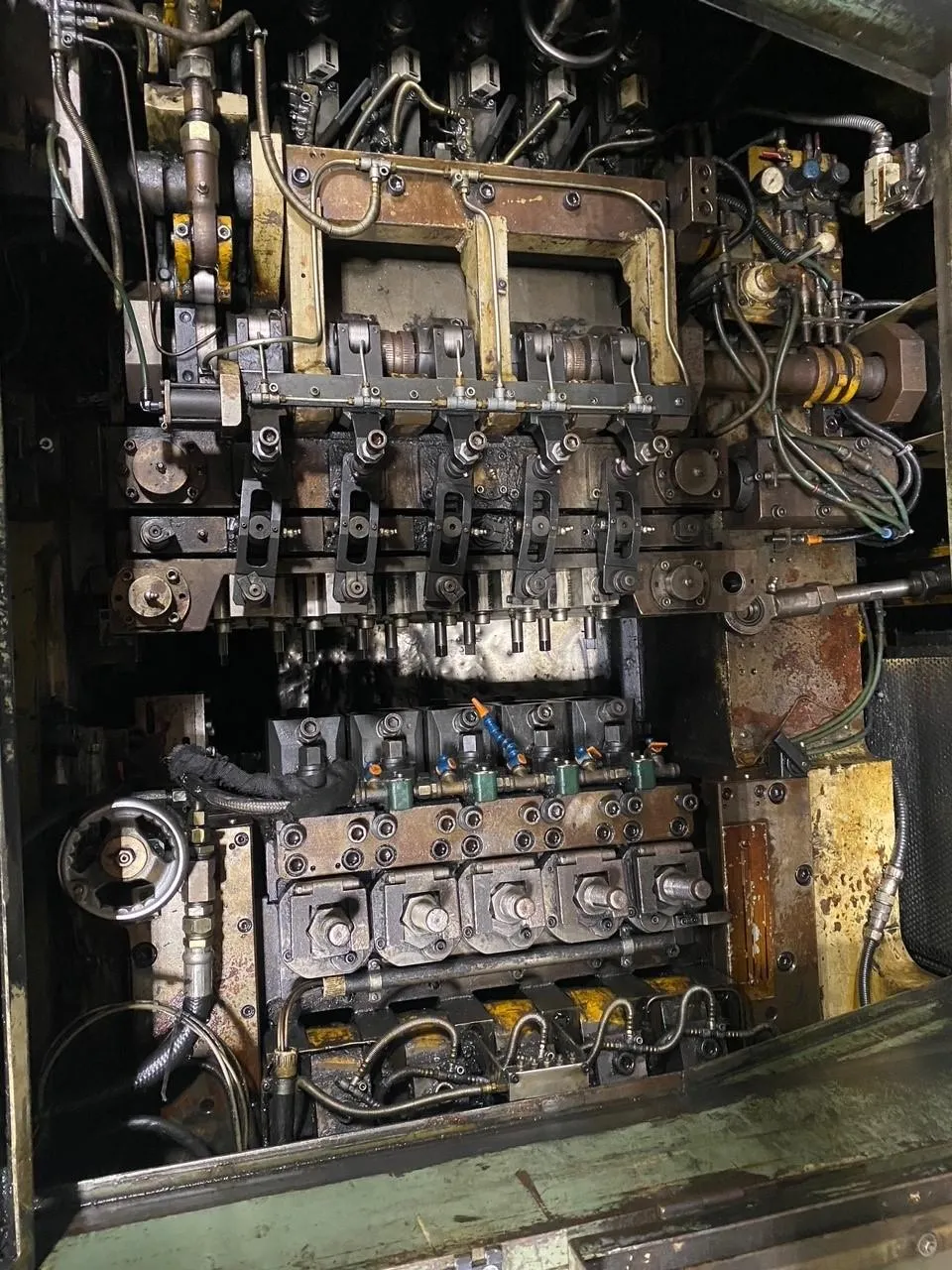

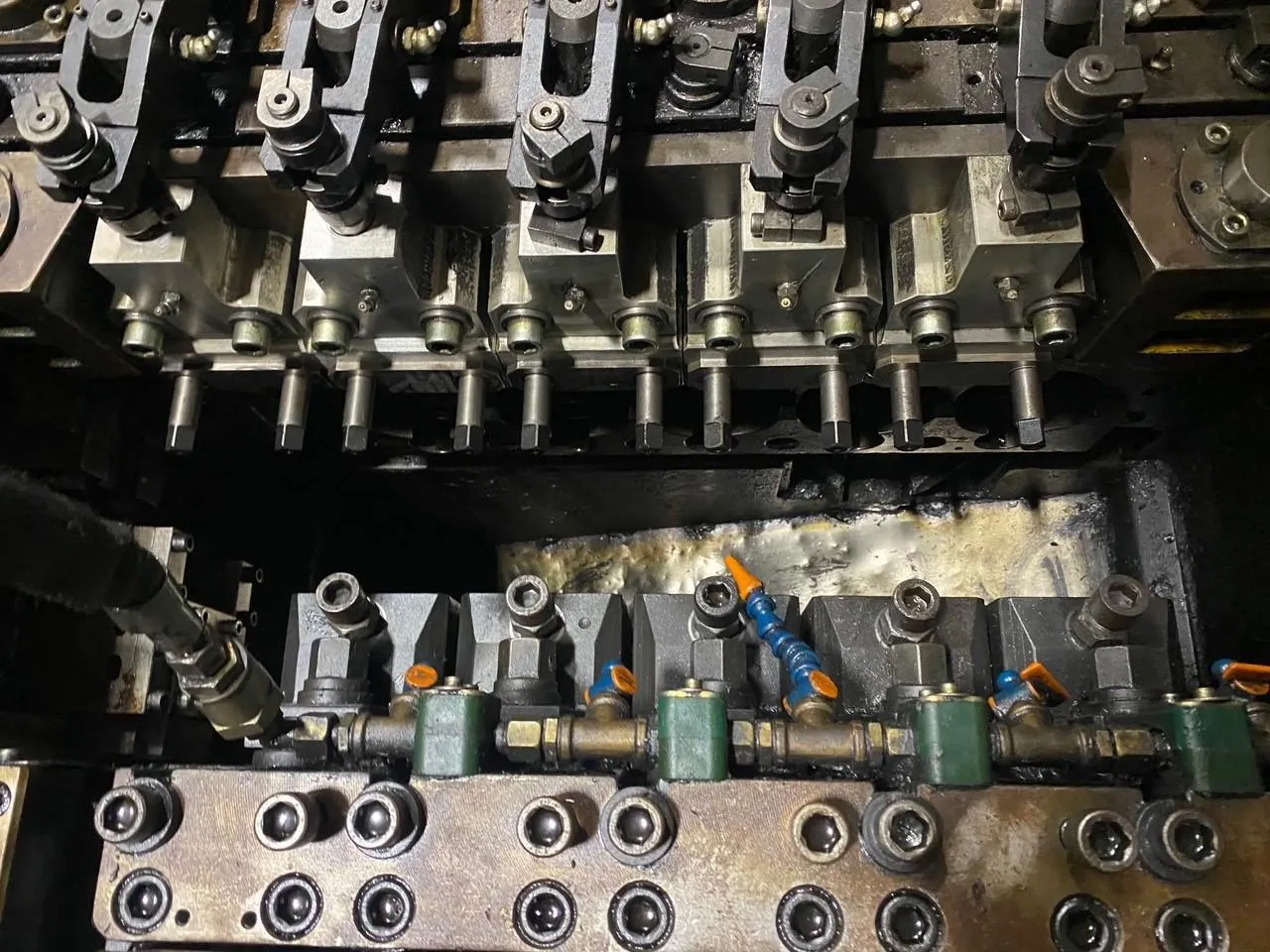

Capable of rotational transfer and timed fingers

Additional Information

Assembled Dimensions	225"L × 114"W × 90"H
Main Body Weight	68000 lbs

Accessories

Coil Stand	72"L × 72"W × 87"H	450 lbs
Operator Stairs	103"L × 48"W × 81"H	390 lbs
Cover w/Misc	48"L × 45"W × 14"H	200 lbs
Air Filtration Unit	72"L × 66"W × 36"H	335 lbs
Chip Conveyor	84"L × 42"W × 61"H	280 lbs
Small Cabinet	40"L × 20"W × 36"H	90 lbs
Feeder / Straightener	62"L × 26"W × 61"H	560 lbs

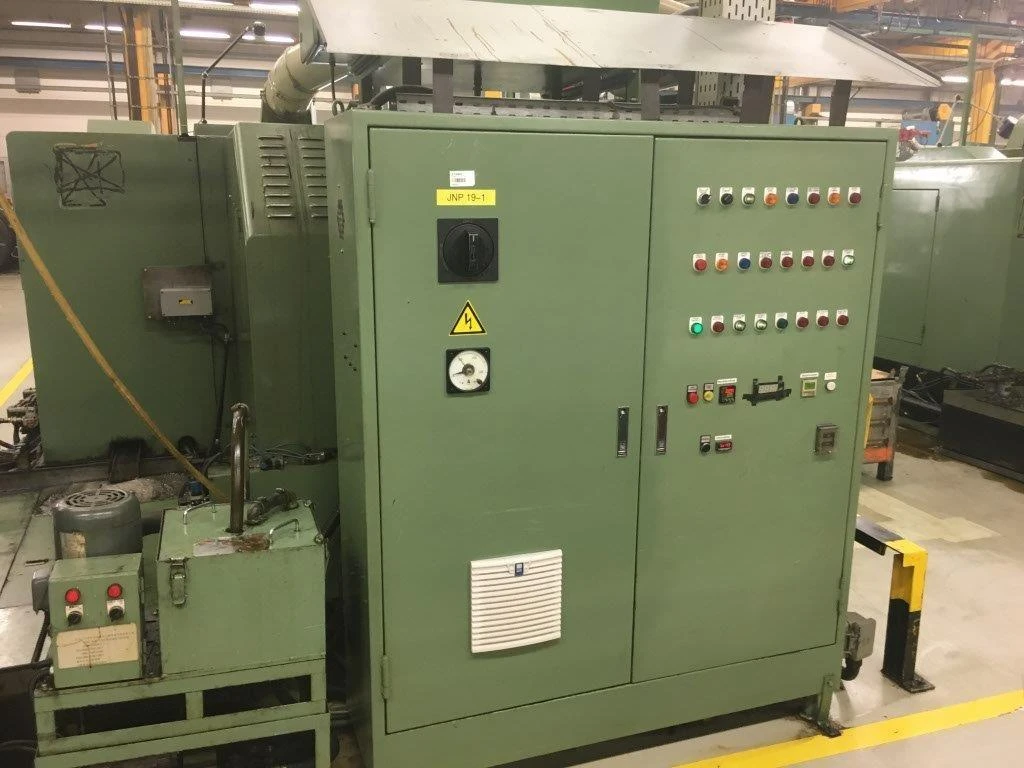

Electrical Control Cabinet	67"L × 21"W × 80"H	340 lbs
Pump	29"L × 20"W × 44"H	250 lbs
Tank w/Misc	96"L × 48"W × 24"H	650 lbs
