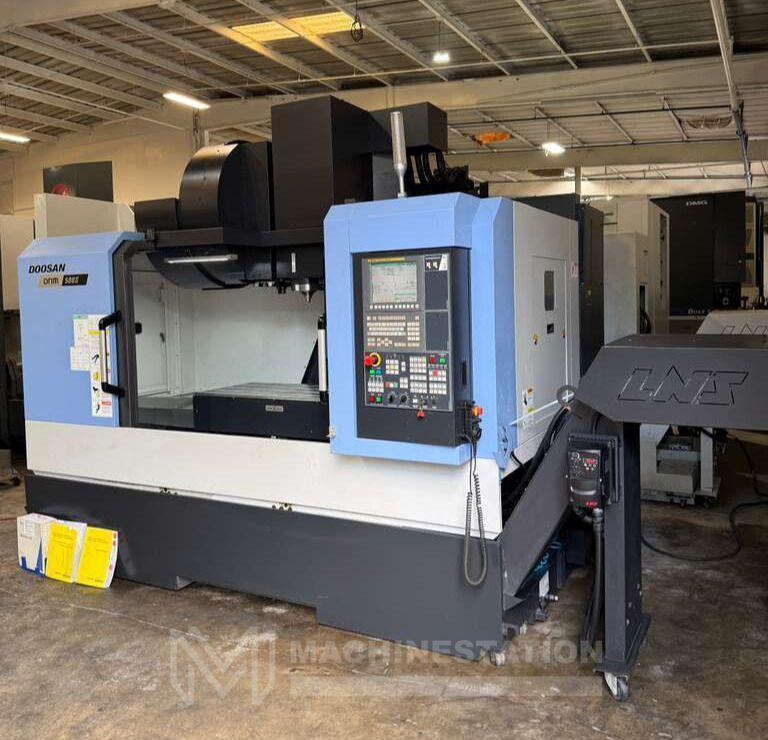

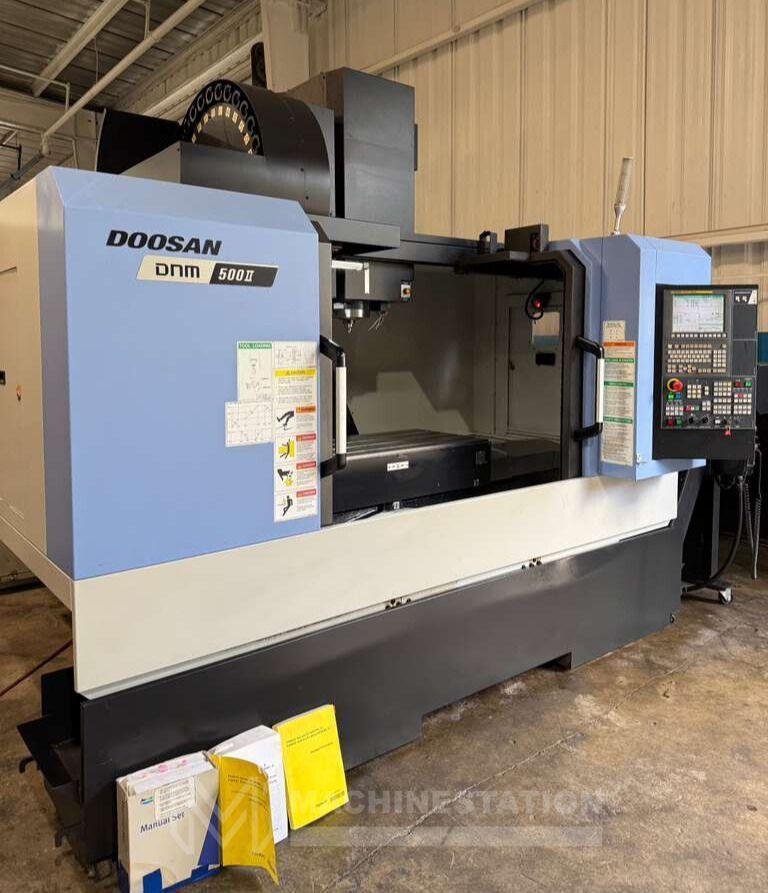

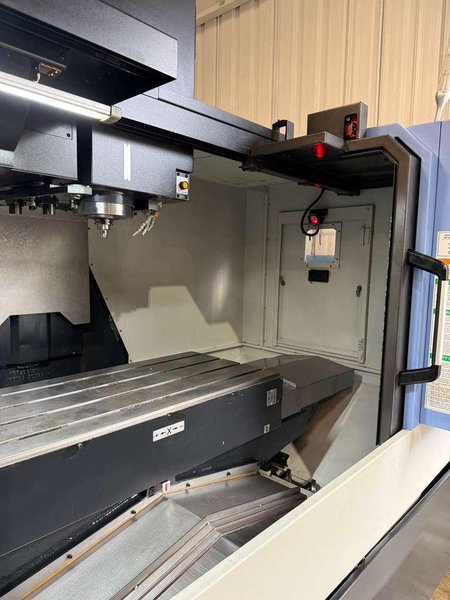

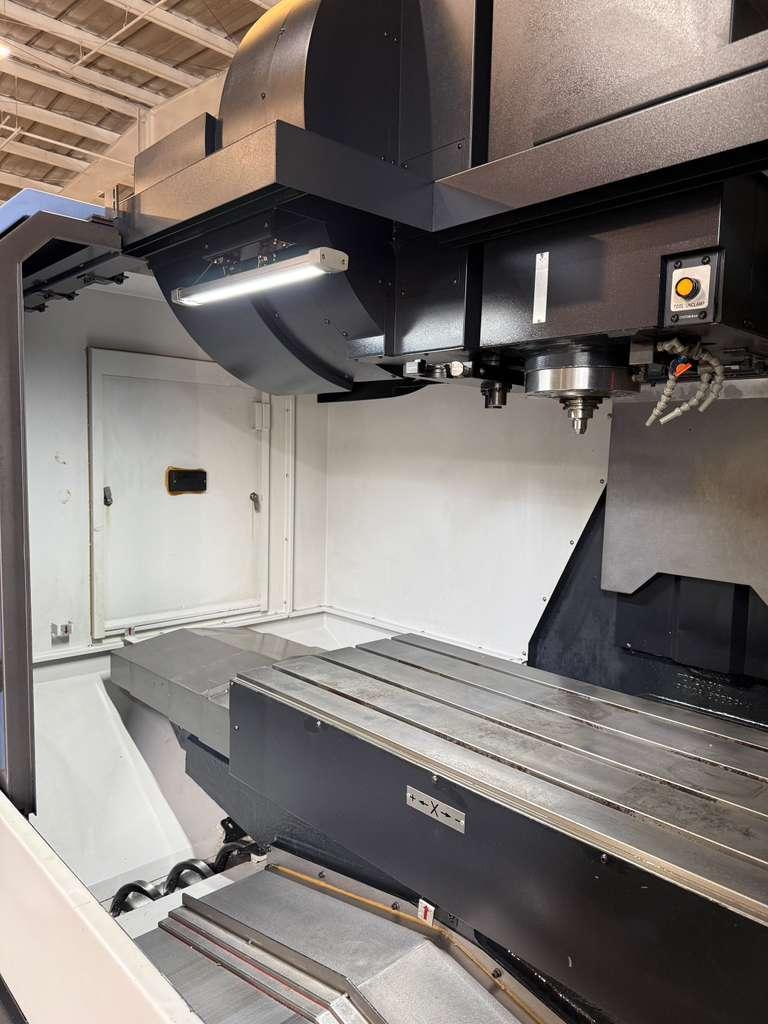

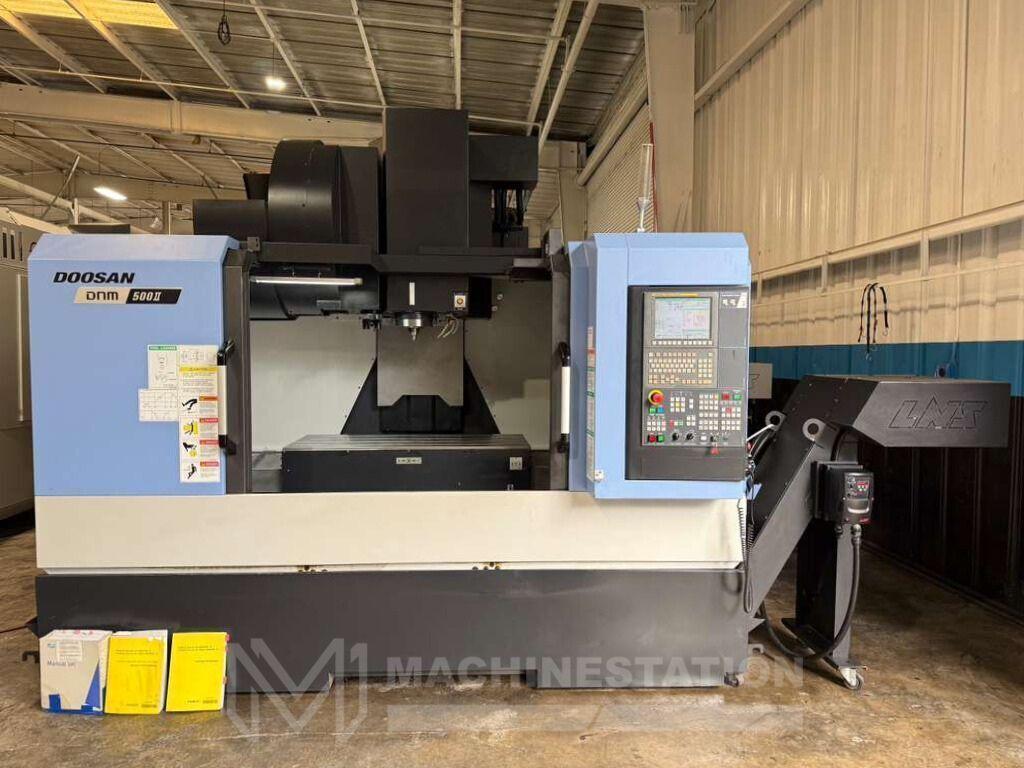

Doosan DNM-500II CNC Vertical Machining Center – TSC Mill

Brand
DOOSAN
Category
Machining Centers
Type
Vertical Machining Centers
Model
Doosan DNM 500II
Stock #
113519
Year
2015
Condition
Not specified

Location

Not specified
REQUEST FINANCING

Disclaimer: All specifications and hours are approximate and for reference only, often based on manufacturer literature. Buyer must verify all details prior to purchase. Accessories shown are included only if listed on the invoice.

Equipment is sold AS-IS, WHERE-IS. All sales are final.

Make: Doosan
Model: DNM-500II
Year: 2015 (Sold & Installed in 2016)
Condition: Used-Good
Features:

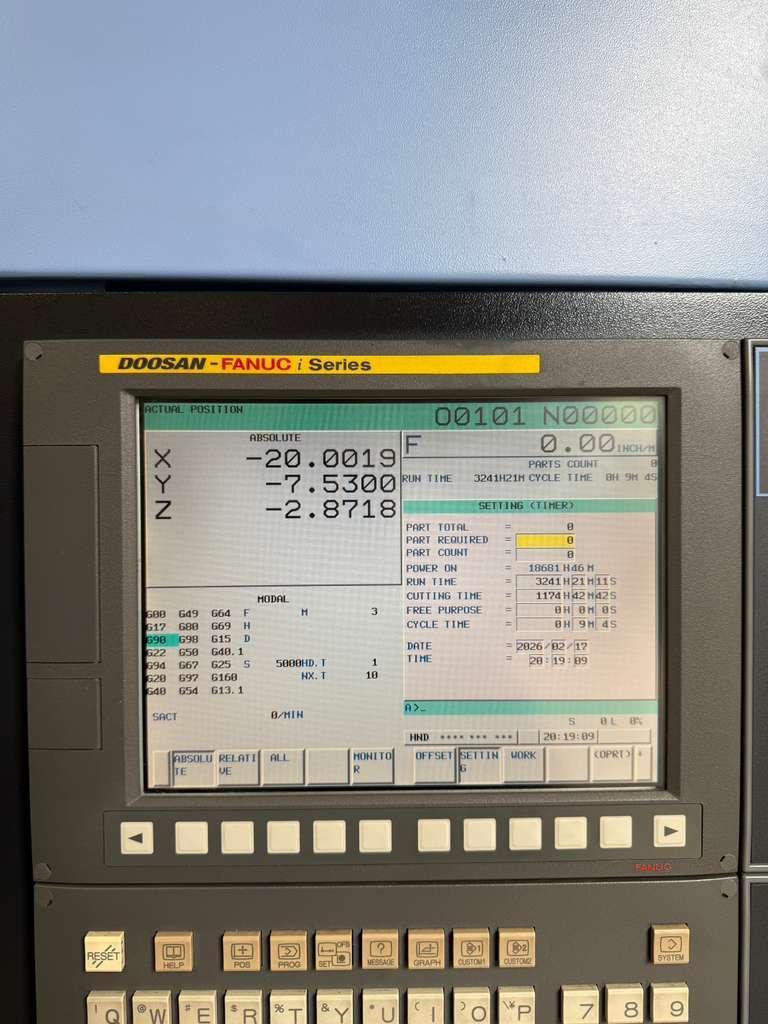

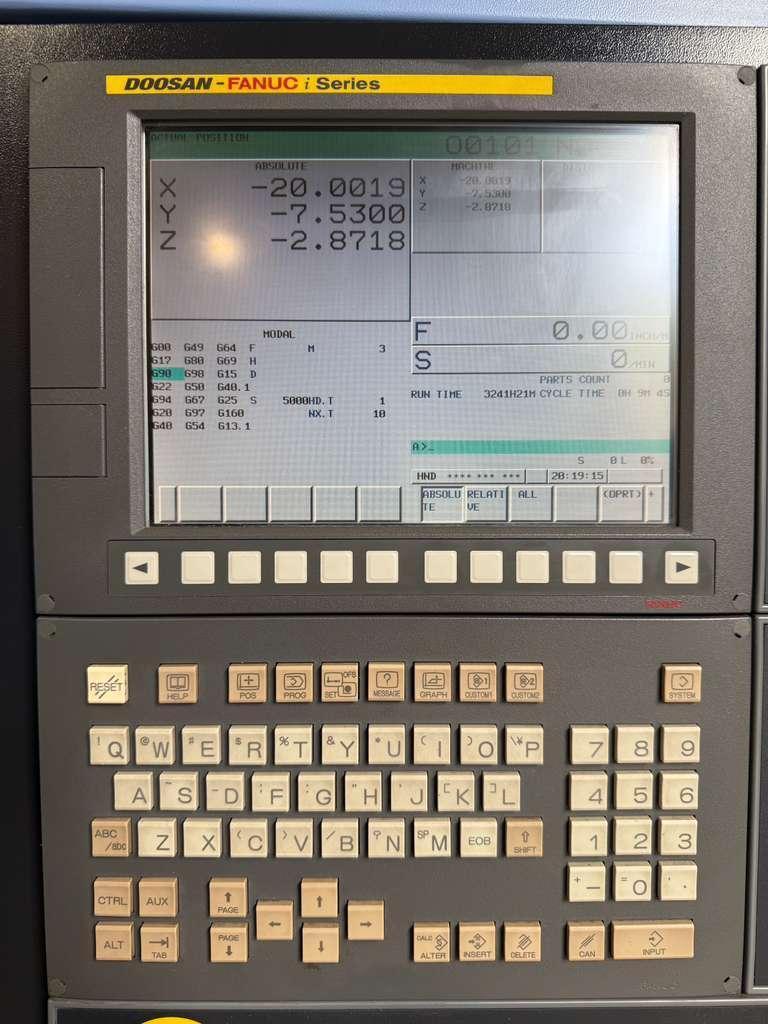

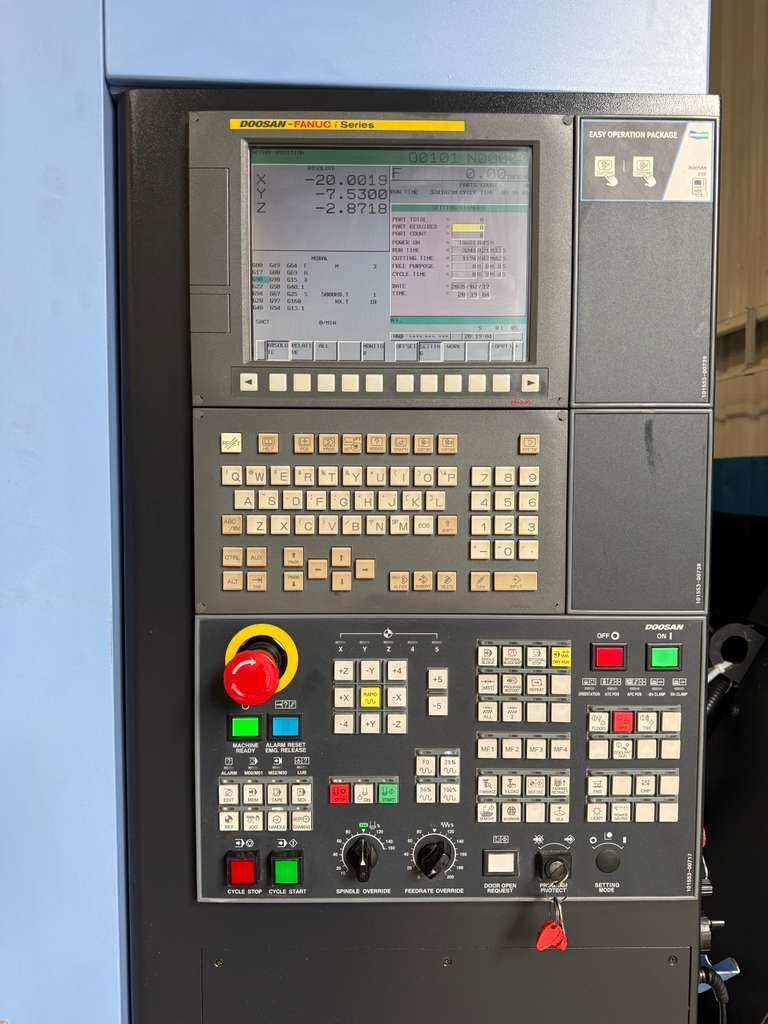

Doosan Fanuc i-Series CNC Control
8,000 RPM Spindle
Through Spindle Coolant
Renishaw Probing System Ready (Probe Needed)

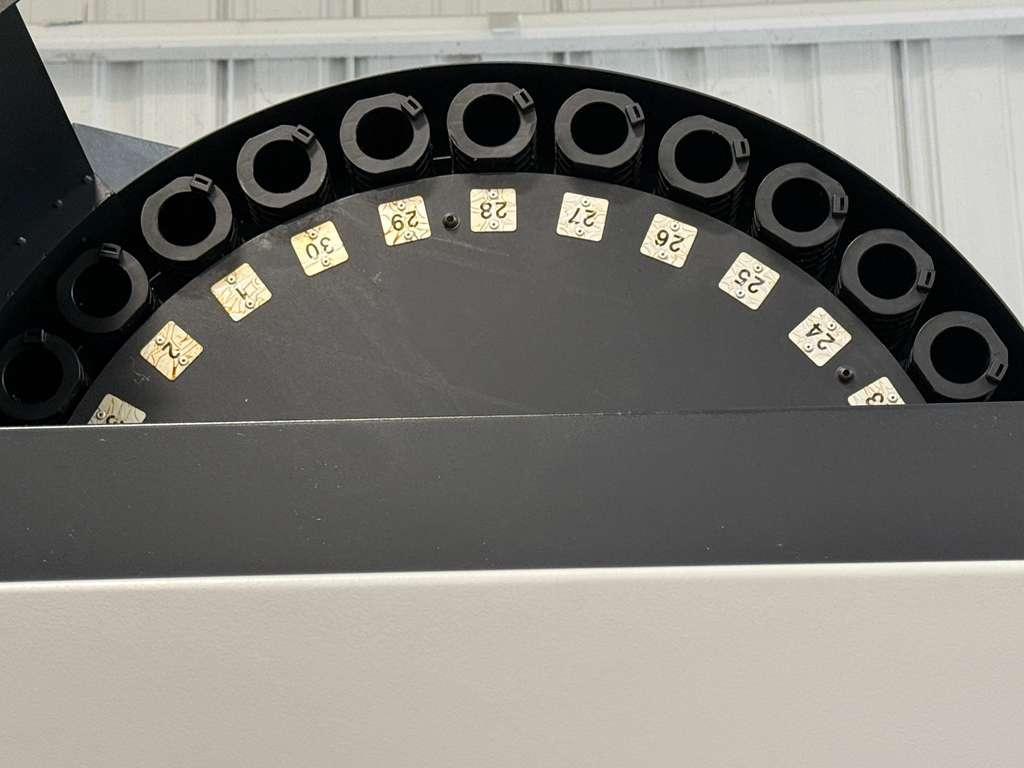

30 Station Automatic Tool changer
CAT-40 Taper Spindle
USB Drive

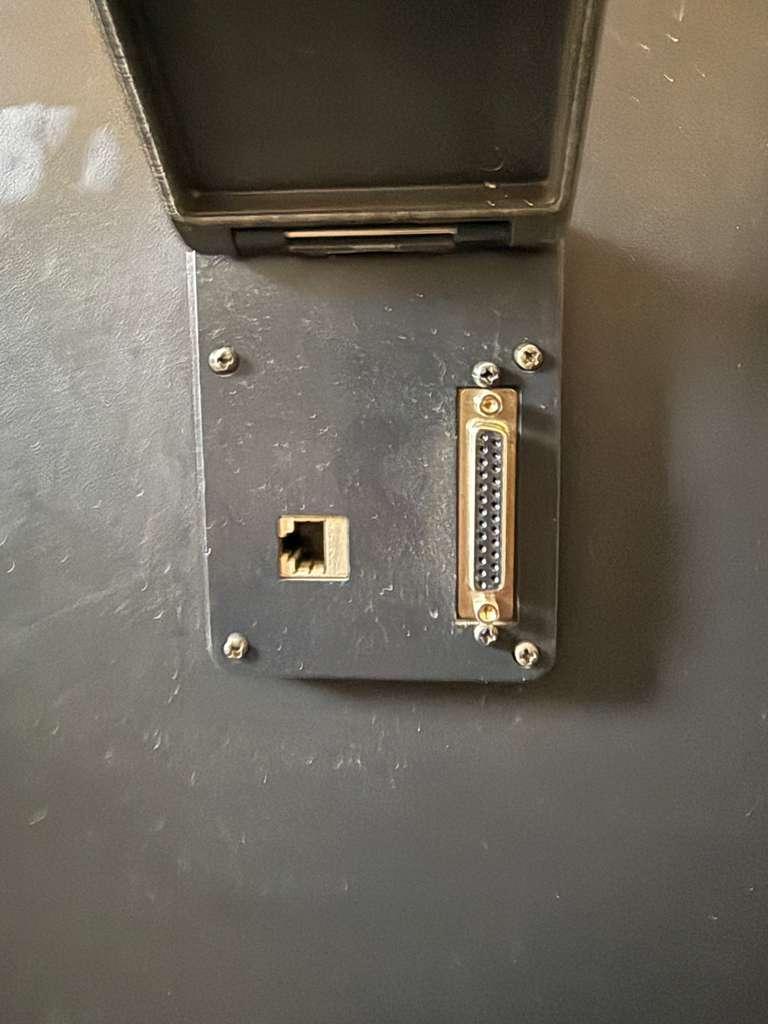

PCMCIA Card Slot & RS-232 Port
MPG Hand Wheel Control
Automatic Lubrication System
Rigid Tapping
Coolant System

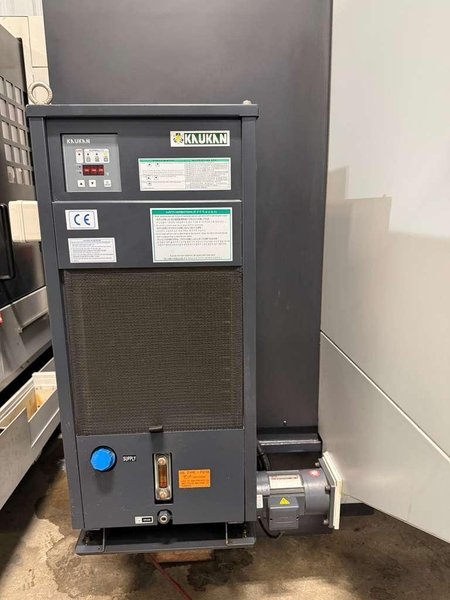

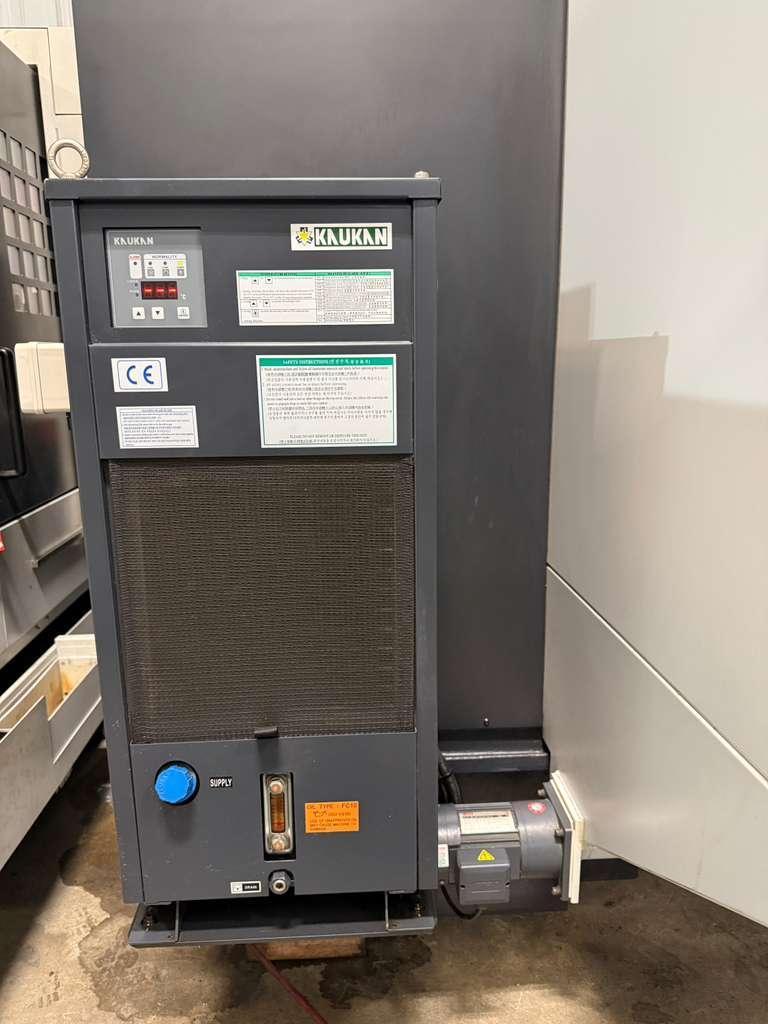

Spindle Chiller Unit
LNS Chip Conveyor
Books & Manuals
Levelling Pads
Travels:
X-Axis: 40.2″
Y-Axis: 21.3″
Z-Axis: 20.1″
Rapid Traverse Rates X & Y Axis: 1417 IPM
Rapid Traverse Rates Z Axis: 1181 IPM
Cutting Feed Rates: 590 IPM
Spindle Nose to Table (Min.- Max.): 5.9″ – 26.0

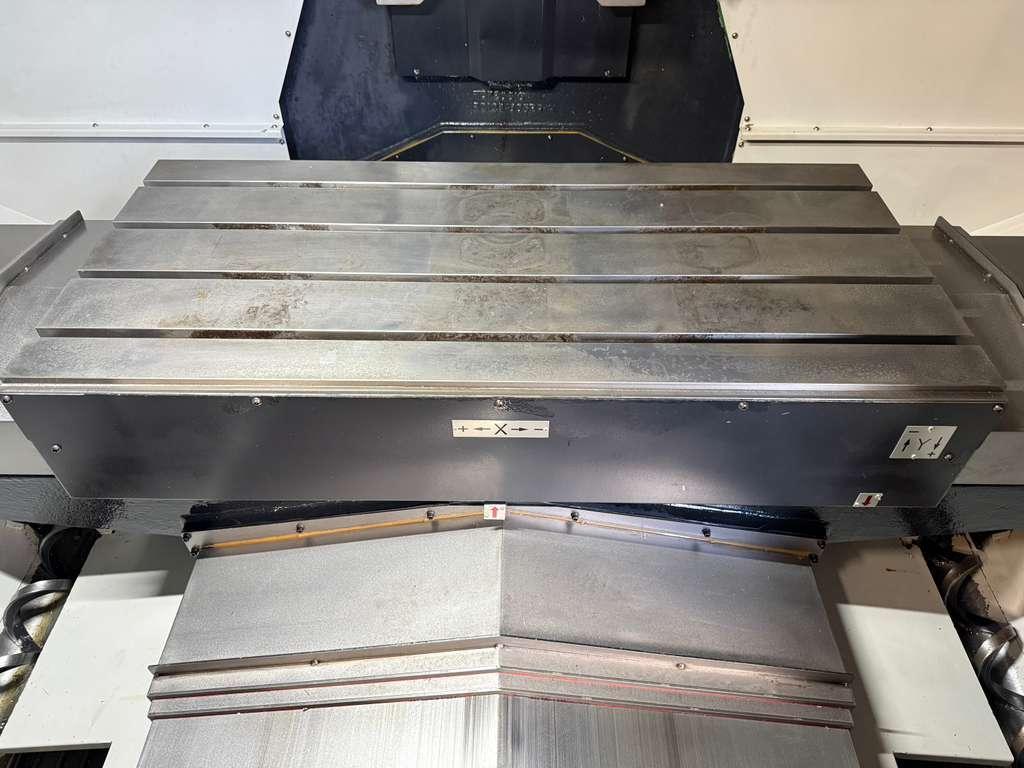

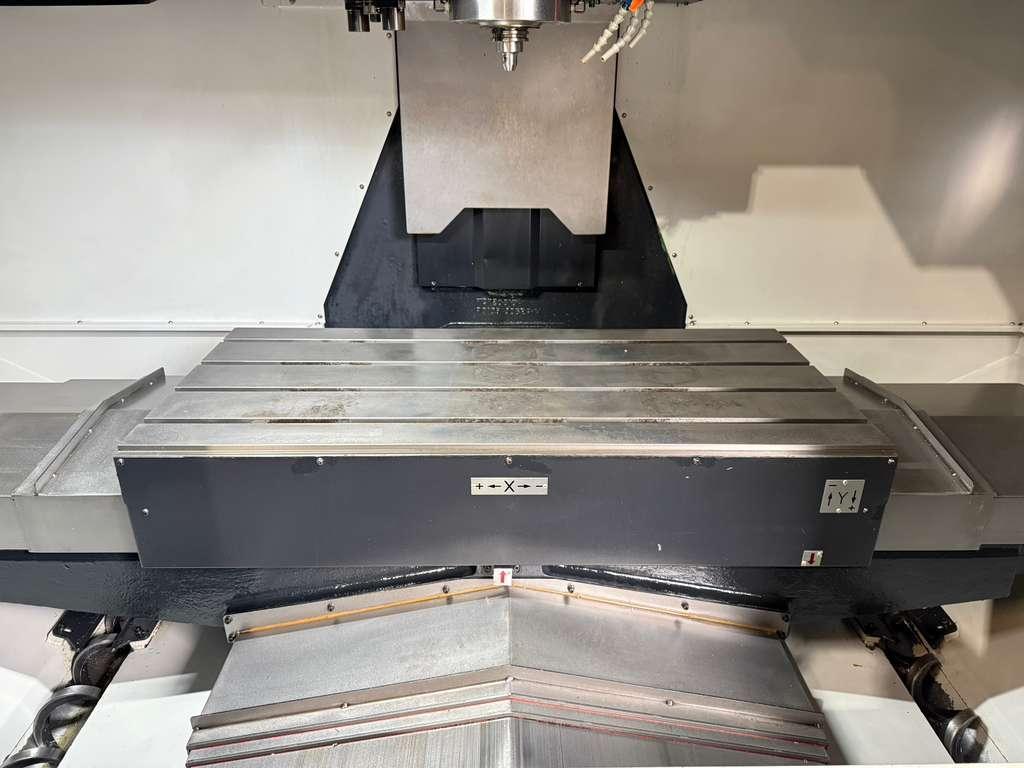

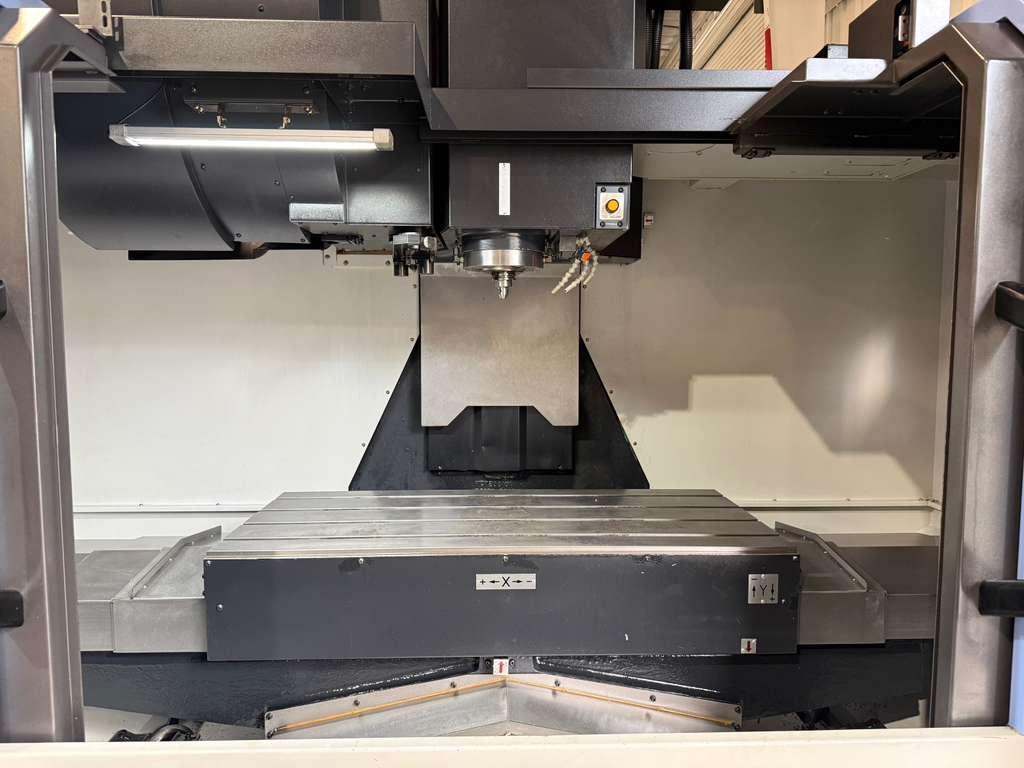

Table:
Length: 47.2″
Width: 21.3″
Number of Std T-Slots: 4
T-Slot Width: 4.9″ x 0.7″
Max Weight on Table: 1764 lbs

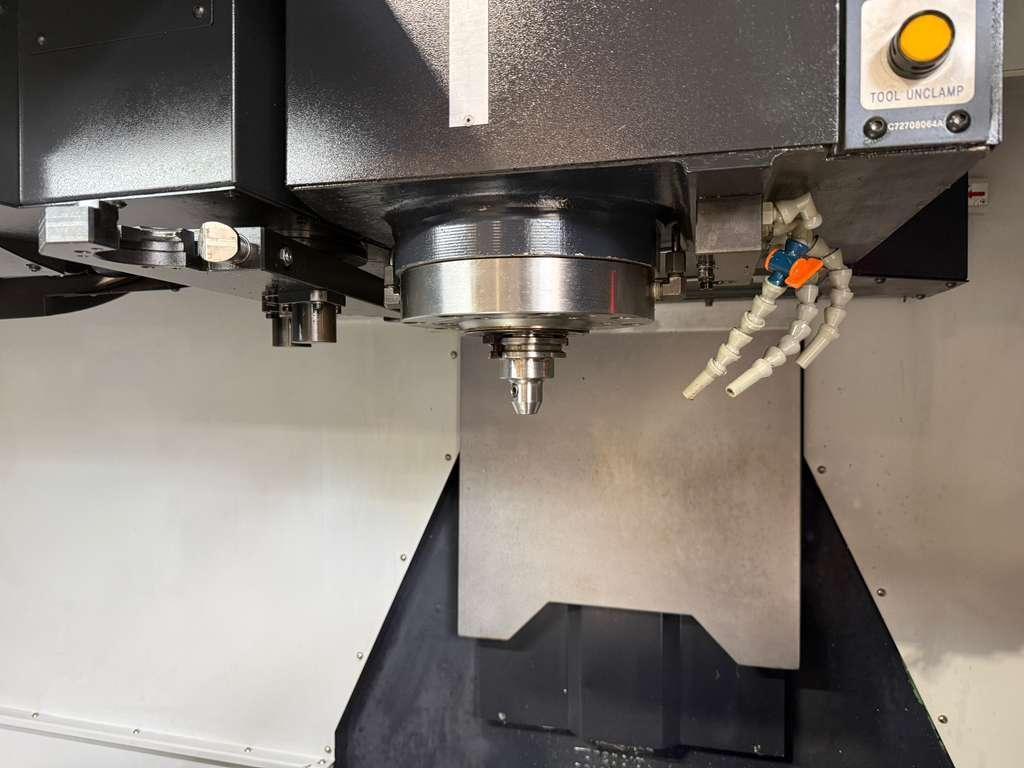

Spindle:
Taper Size: CAT-40
Speed Range: 8,000 RPM
Spindle Power: 12 HP
Automatic Tool Changer:
Capacity: 30 Station Side Mounted
Max Tool Weight: 17.6 lbs
Max Tool Dia: 3.1″ -4.9″
Max Tool Length: 11.81″
Tool Changing Time : 1.3 Seconds
General:
Air Required: 90 psi 4 scfm
Power: 220v / 30 kva / 3-Phase / 50/60 Hz
Overall Dimensions: 116″ x 96″ x 107″ High
Weight: 14330 lbs
