Kaps-All Complete Bottling & Corking Line – AC-65 Bottle Cleaner, FA-PG-E 12-Head Filler, BC-23 Carrier, Conveyors & Custom Feeder Corker

High-speed Kaps-All bottling and corking line featuring AC-65 inverting air bottle cleaner, FA-PG-E 12-head inline filler, BC-23 bottle carrier, 16′ & 8′ conveyors, and custom feeder corker. Ideal for beer, cider, sparkling water, kombucha, and wine, with PLC controls, adjustable container handling, vacuum extraction, and precision corking for commercial-scale beverage bottling operations.

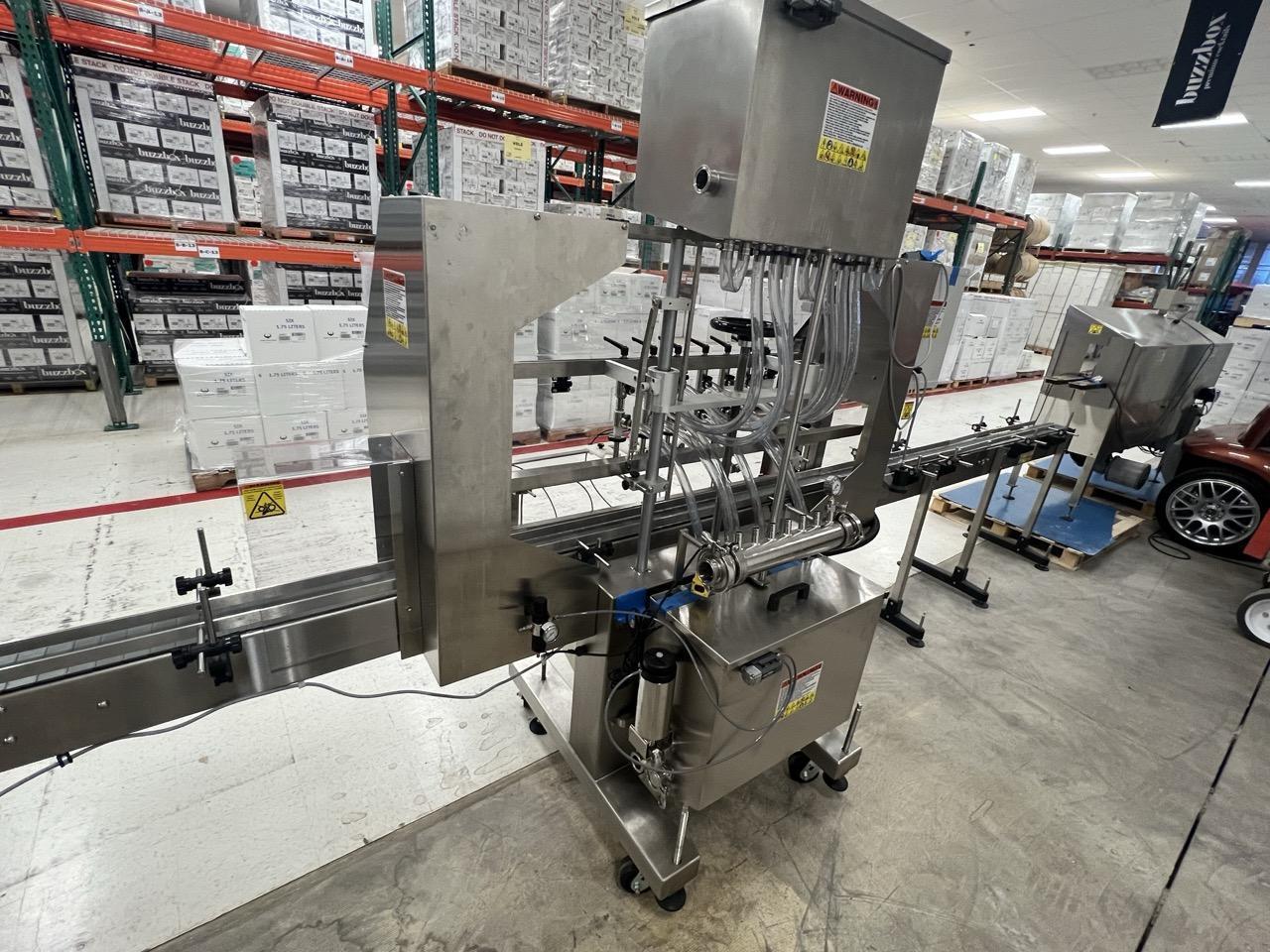

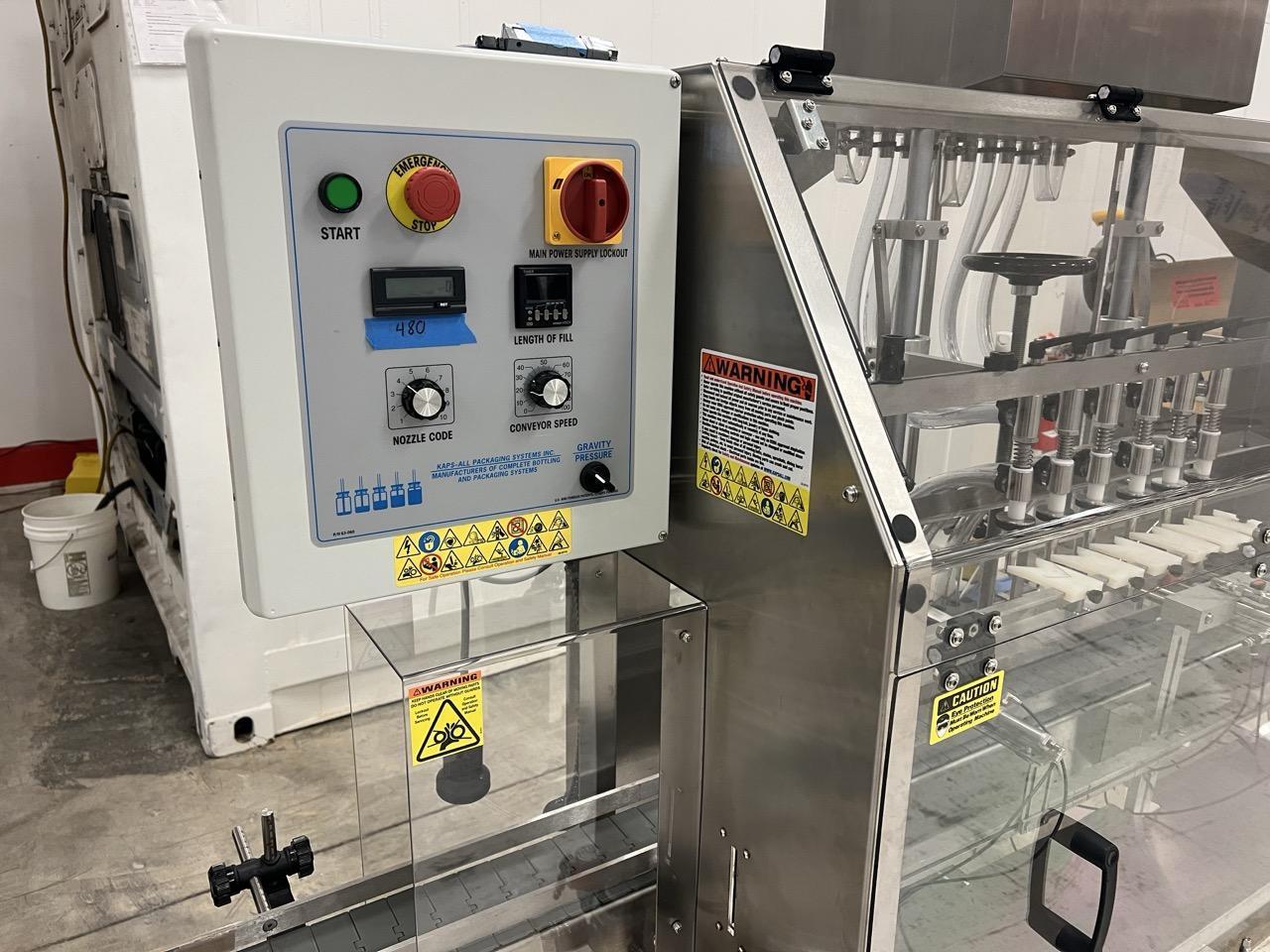

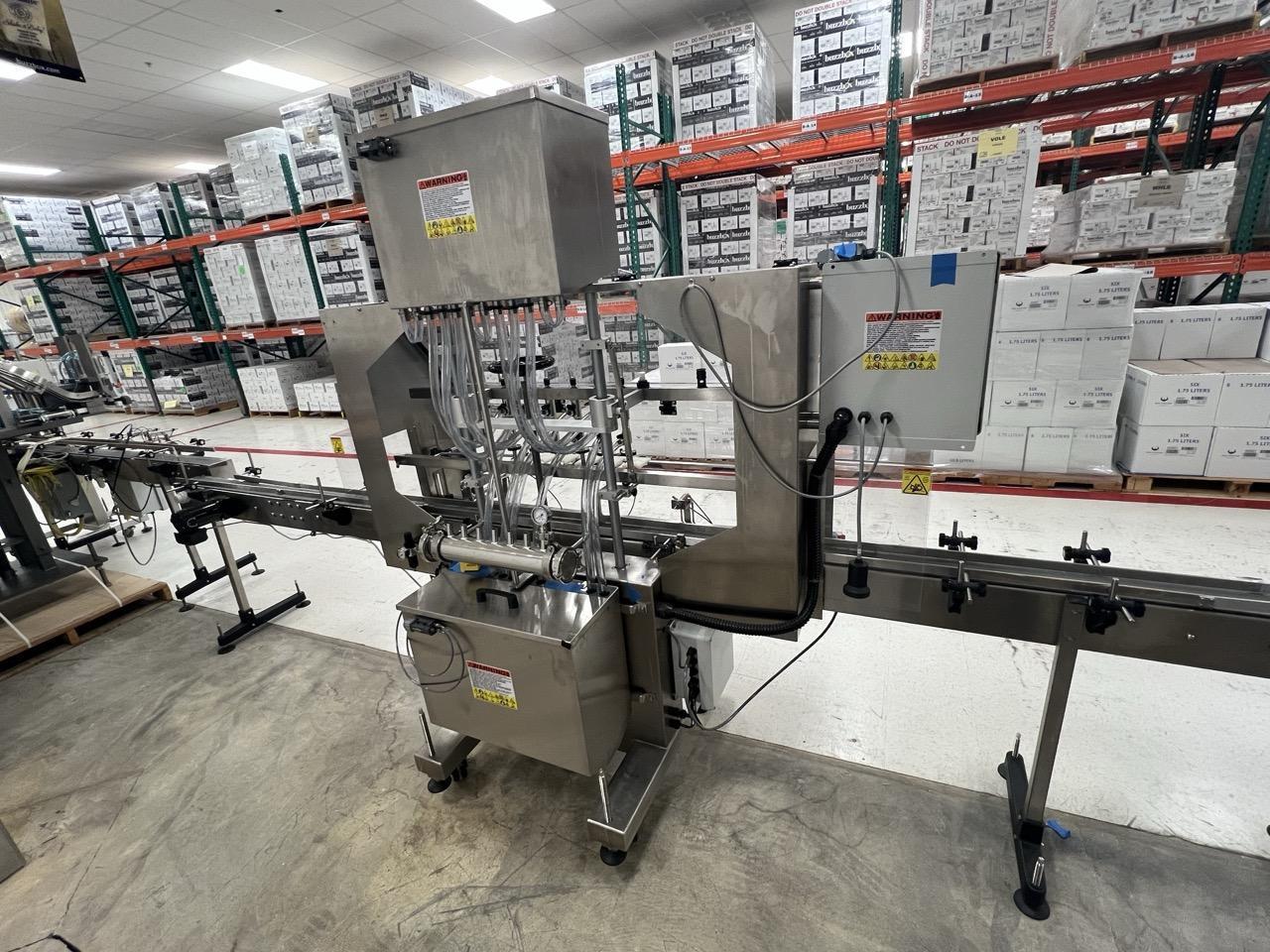

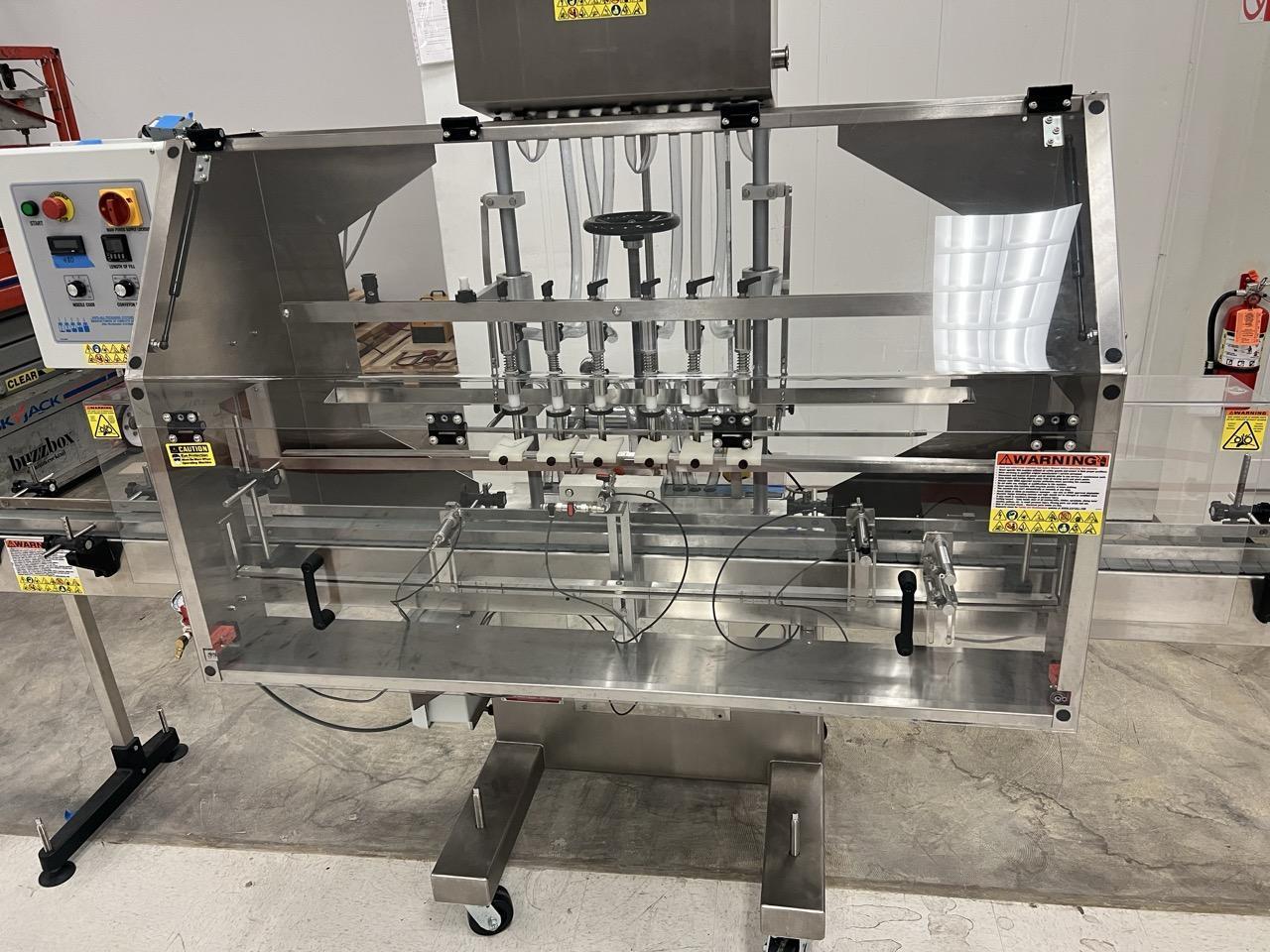

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Model: FA-PG-E Pressure/Gravity Inline Filler Number of Nozzles: 12 Fill Range: Application Dependent Pump: 37 GPM Polypropylene Diaphragm Pump Frame: Stainless Steel Controls: PLC Based Container Handling: Adjustable Guide Rails

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Equipped With: 12 Nozzles Upper and Lower Tank Covers Drip Pan Bottle Neck Centering Guide System Extended 54″ Nozzle Rack and Gating System Transfer to Corker Conveyor 37 GPM Polypropylene Diaphragm Pump Bottle Back-Up Eye Heavy Duty Gating System All Available Manuals

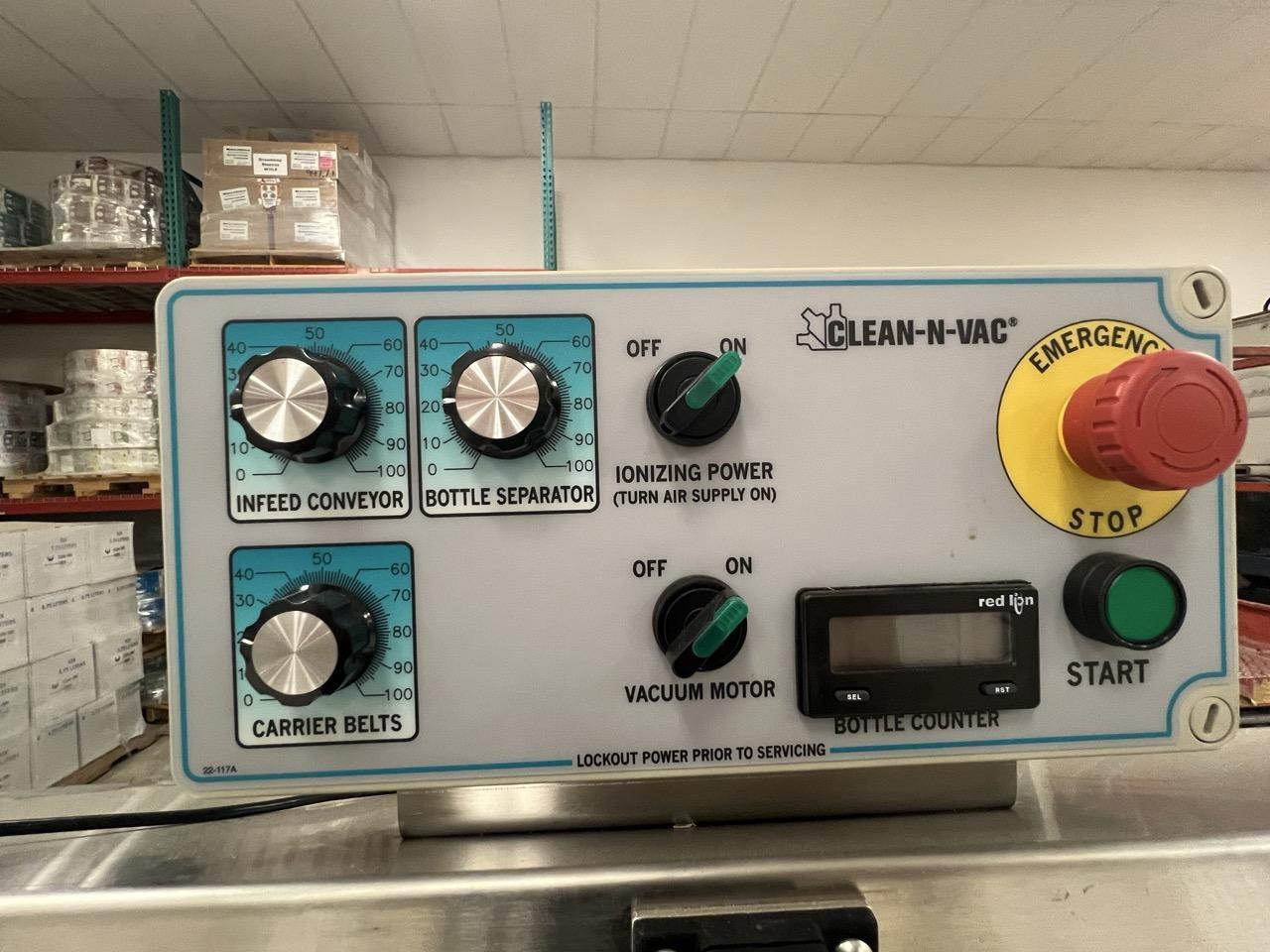

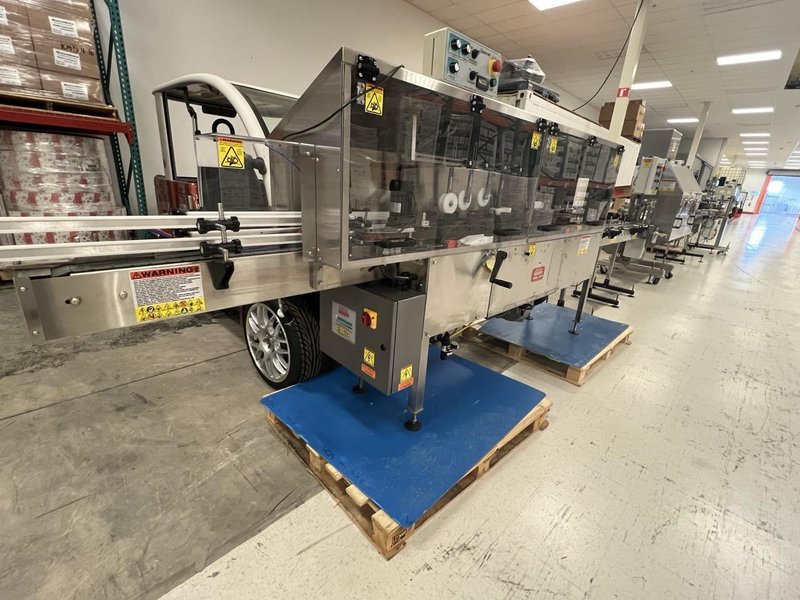

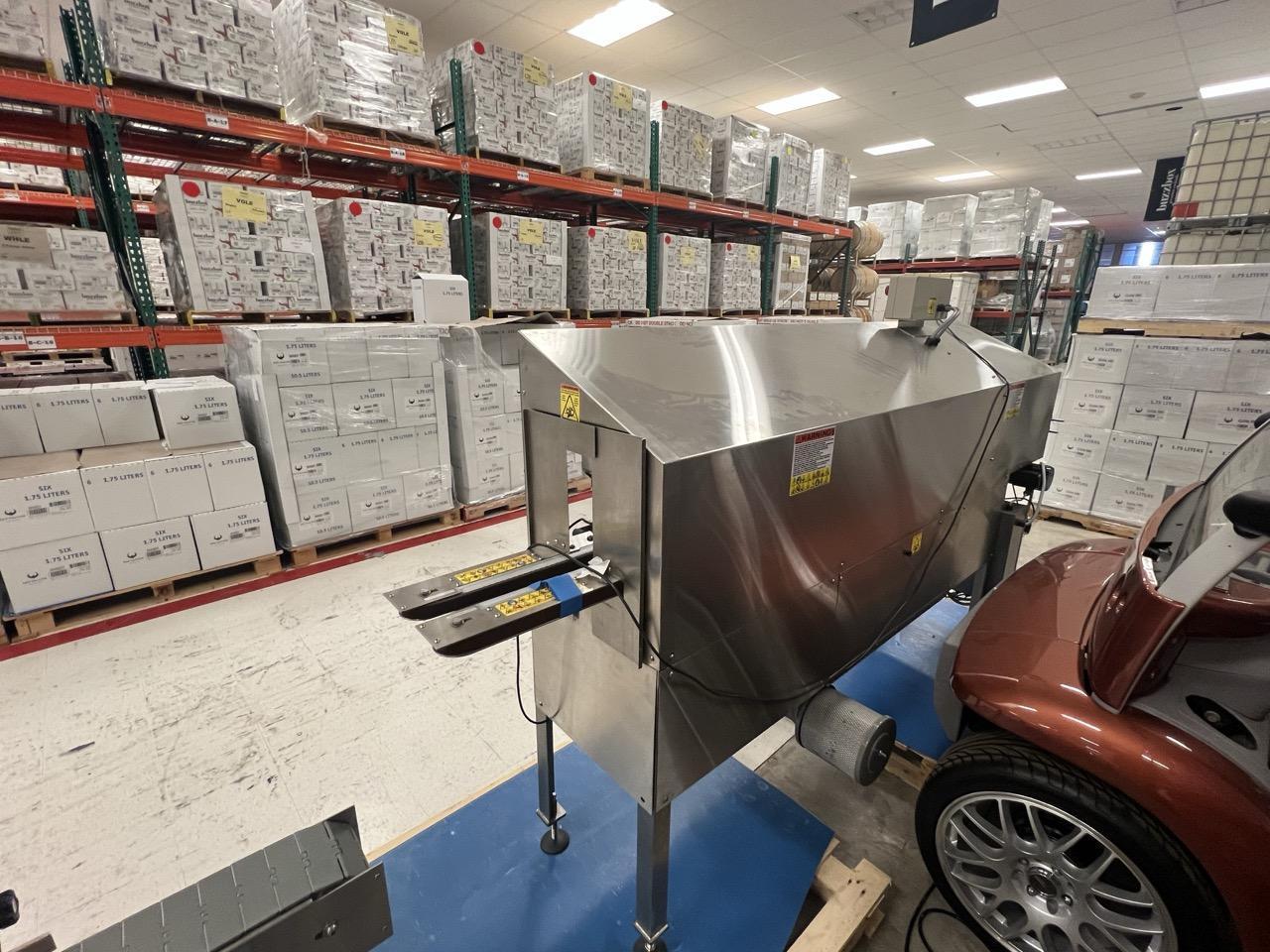

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Model: Clean-N-Vac AC-65 Machine Type: Inverting Air Bottle Cleaner Container Size Range: 10 mL – 1 Gallon (application dependent) Container Diameter Range: Approx. 0.5″ – 6″ Operation: Invert, Ionized Air Rinse, Vacuum Extraction Speed Range: Up to 200 Containers Per Minute (container dependent) Construction: Stainless Steel Frame Electrical: 110V or 220V (model dependent) Air Requirement: 80–100 PSI

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Equipped With: Bottle Back-Up Eye Rate Meter All Available Manuals

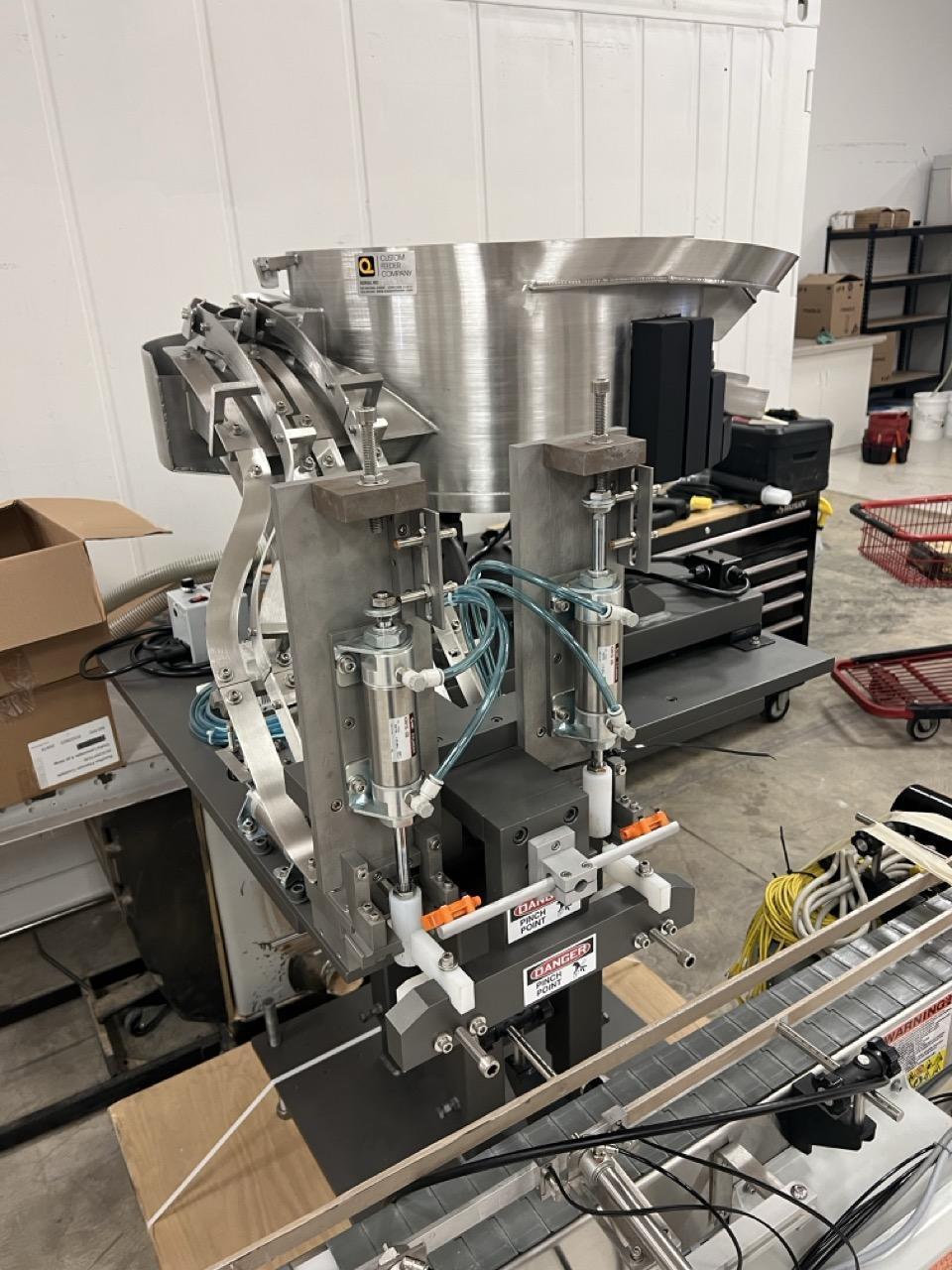

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Custom Feeder Corker

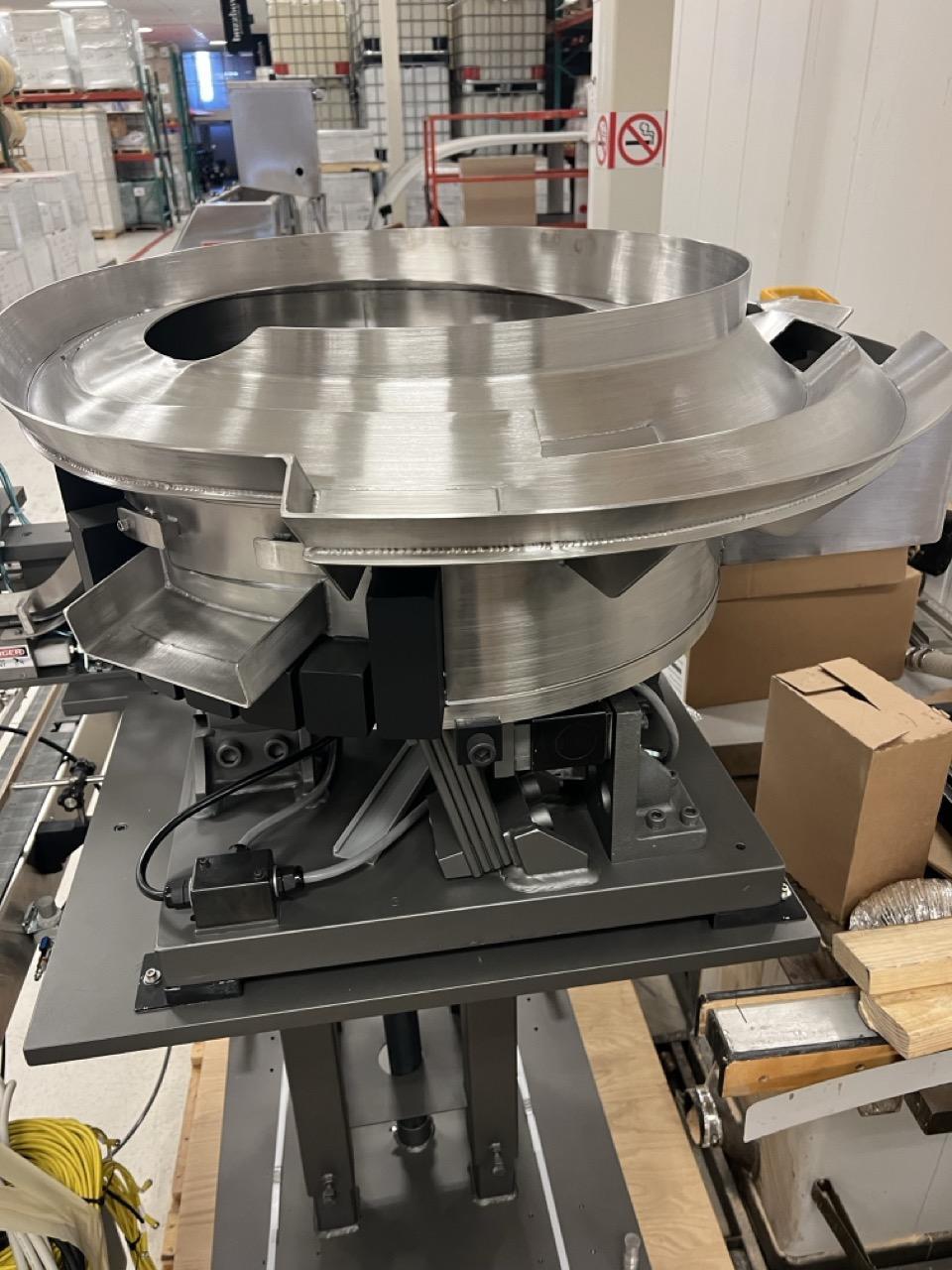

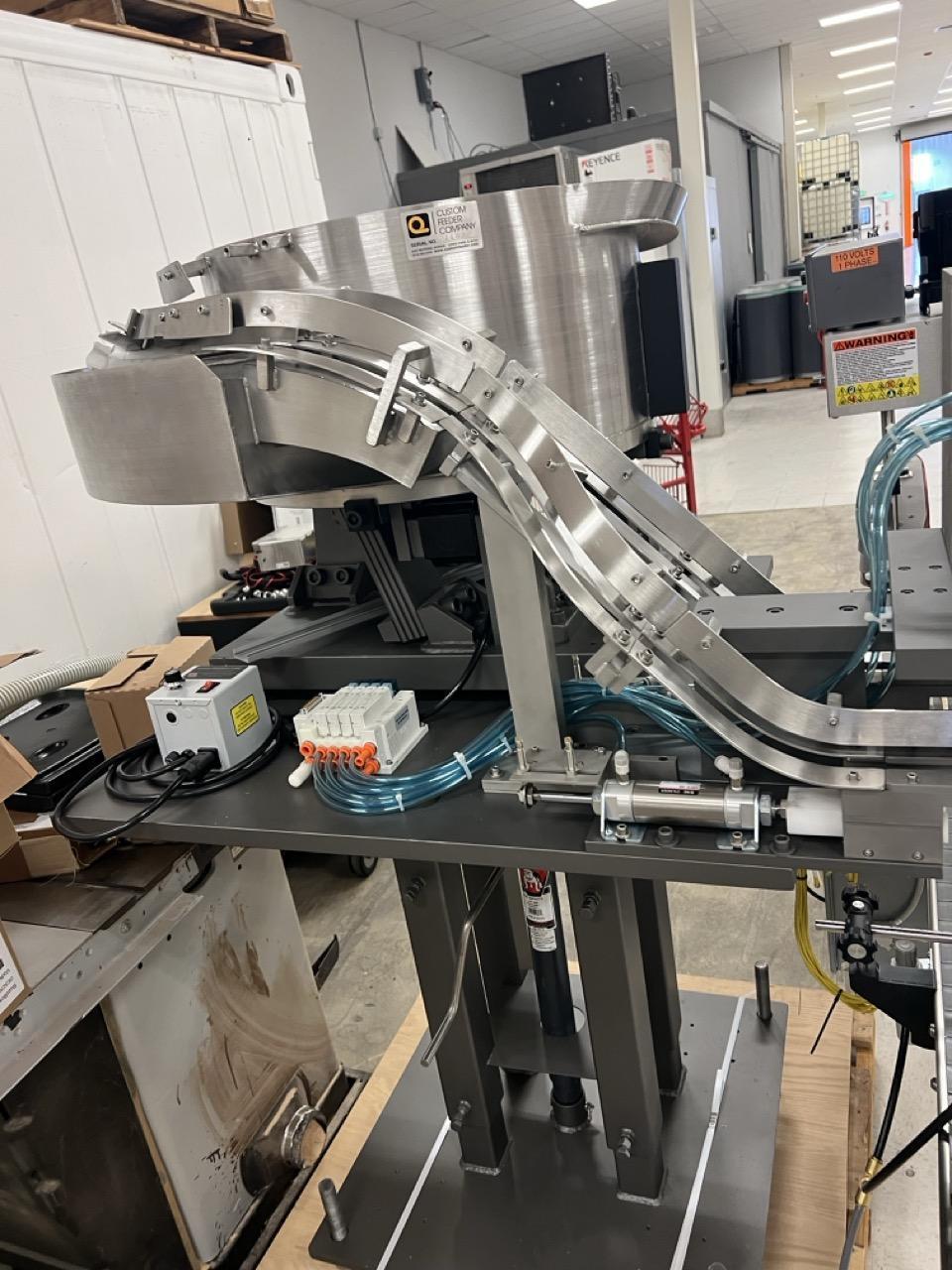

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Machine Type: Vibratory Feeder Corking System Corking System: Dual Pneumatic Plunger Controls: PLC Controlled Frame: Height Adjustable Steel Base Pneumatics: Digital Pneumatic Valves Operation: Vibratory Bowl Feed with Gated Transfer

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Equipped With: Custom Vibrating Feeder Bowl Conveyor Speed Control Box PLC Control Box Operator Control Box Pneumatic Gating System 2 Pneumatic Cork Plunger System Height Adjustable Steel Base Vibration Control Box Digital Pneumatic Valves All Available Manuals

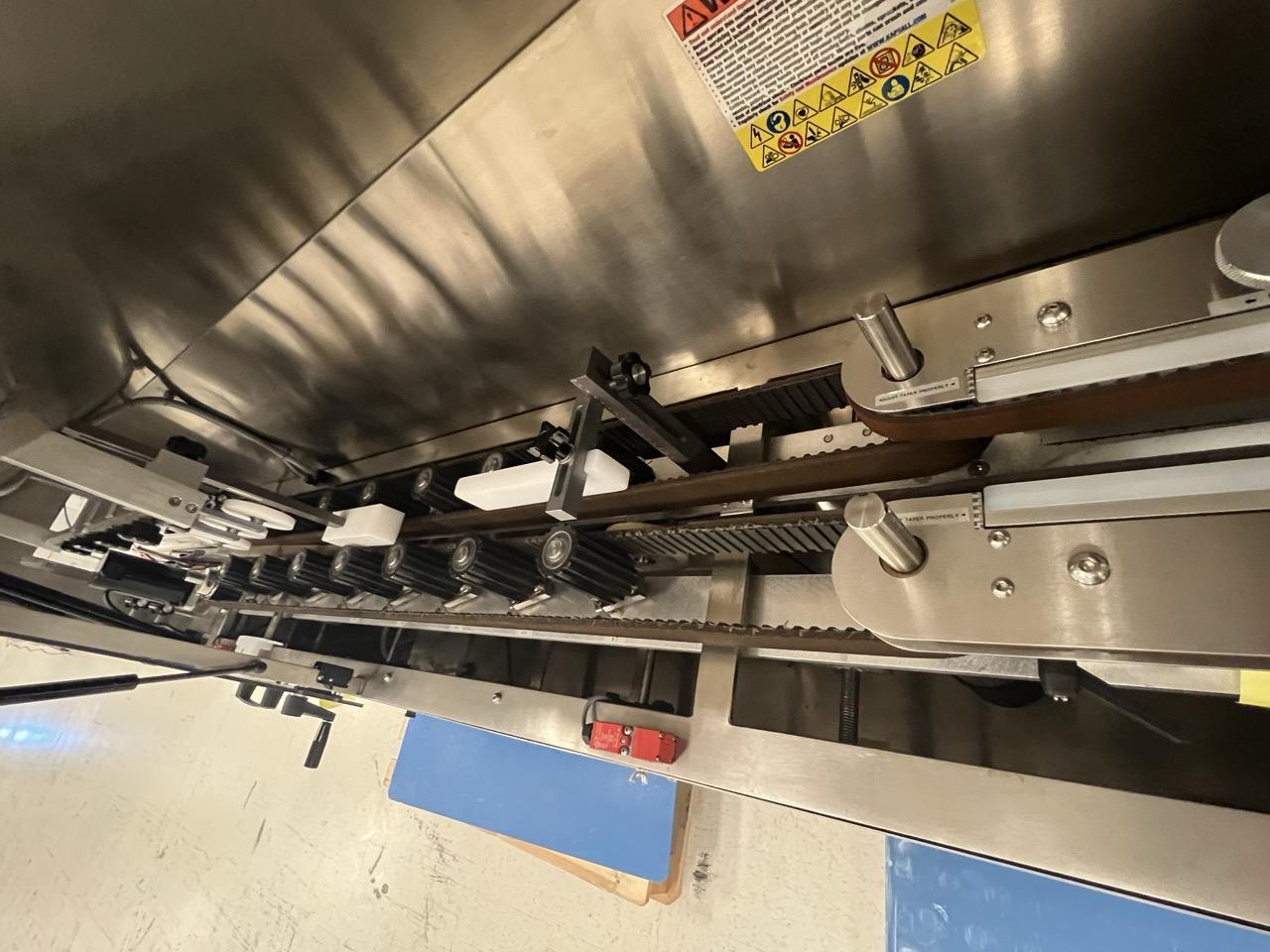

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Model: BC-23 Multi-Purpose Bottle Carrier / Conveyor

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Speed: Variable (Application Dependent) Construction: Stainless Steel Base Container Size Range: Adjustable via Belt System

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Equipped With: Upgraded Adjustable Gripping Belts Stainless Steel Base Bottle Back-Up Eye All Available Manuals

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Stand-Alone Conveyor (Filler) Length: 16′ Electrical: 110V Construction: Stainless Steel Frame

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Equipped With: Conveyor Belt All Available Manuals

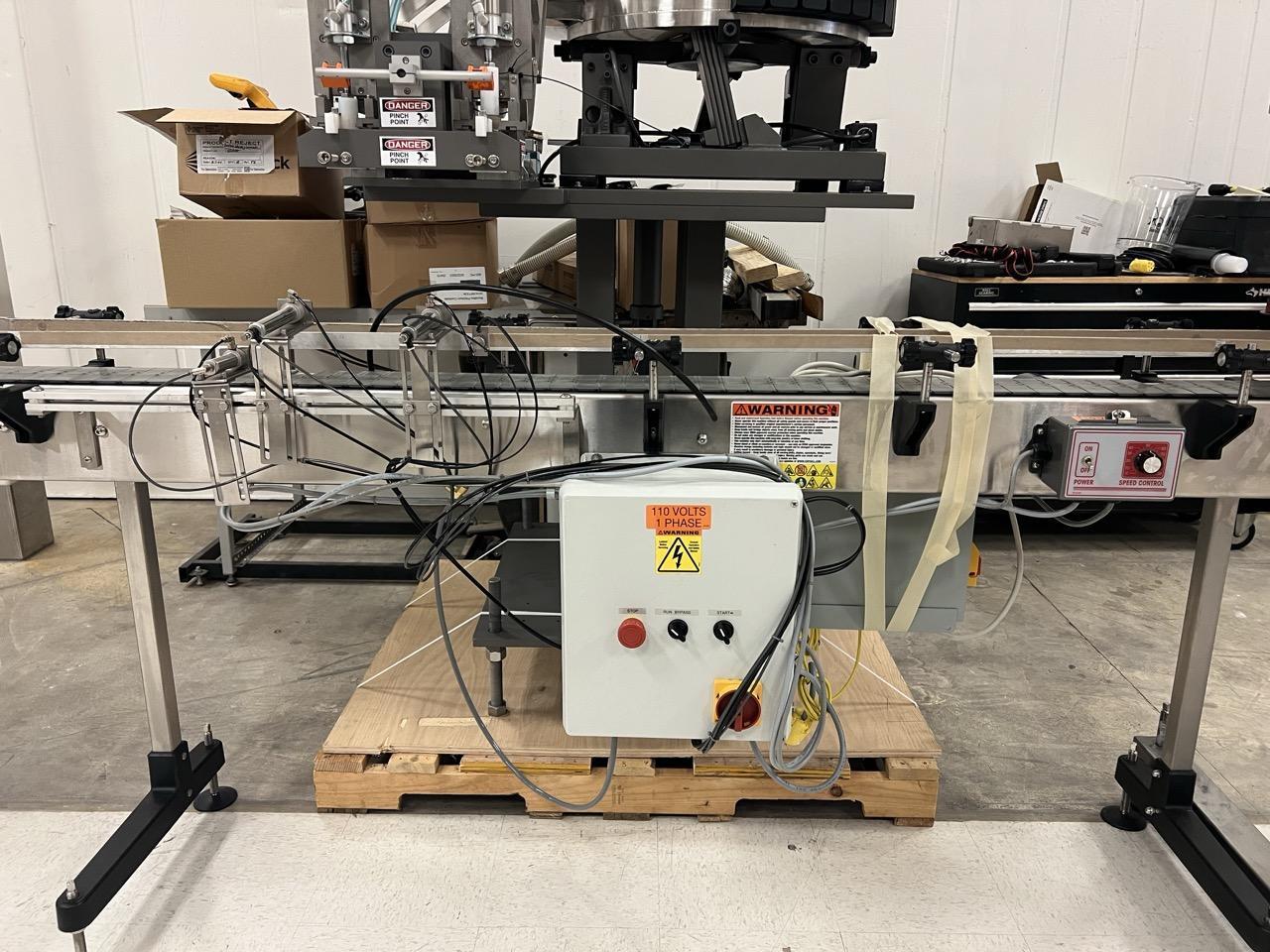

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Stand-Alone Conveyor (Corker) Length: 8′ Electrical: 110V Speed Control Box Included

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Equipped With: Speed Controller Box All Available Manuals
