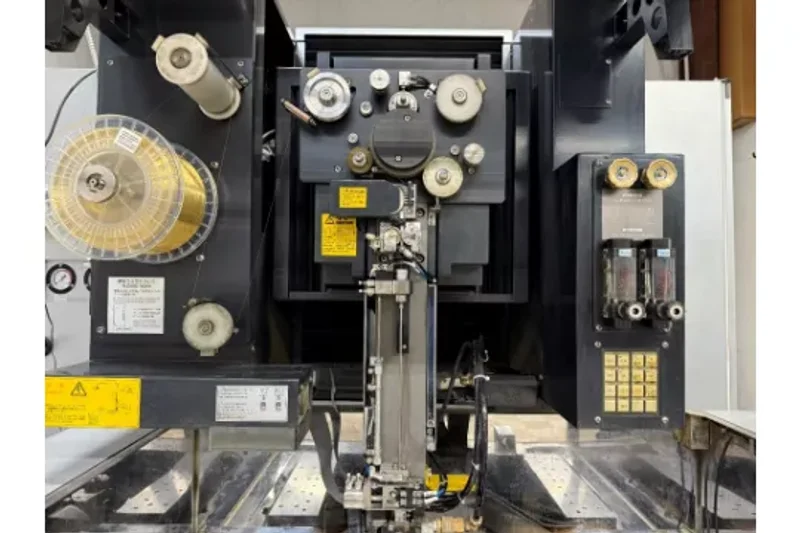

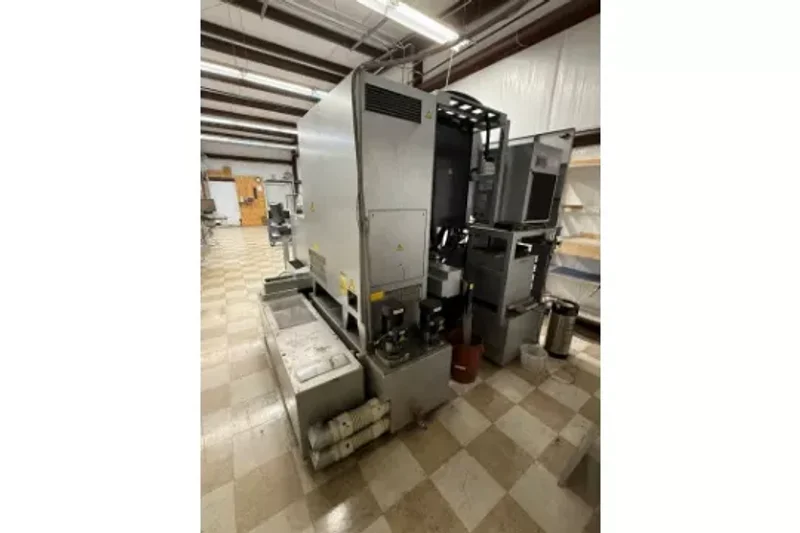

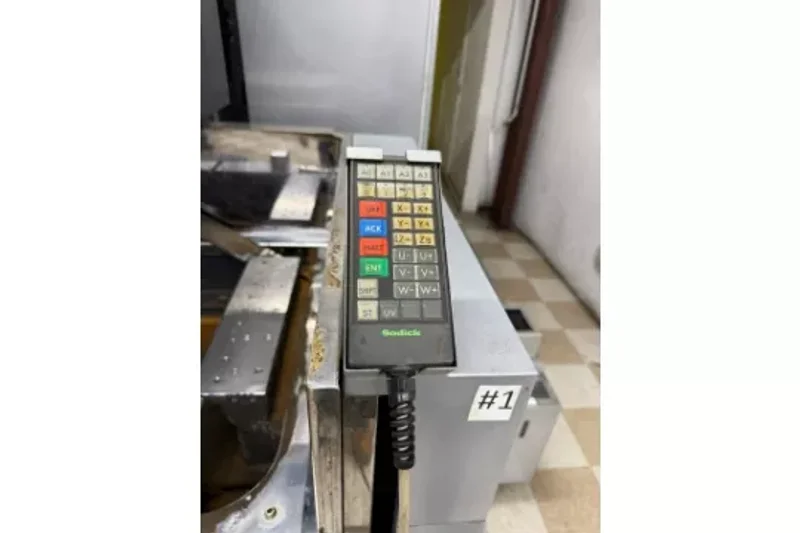

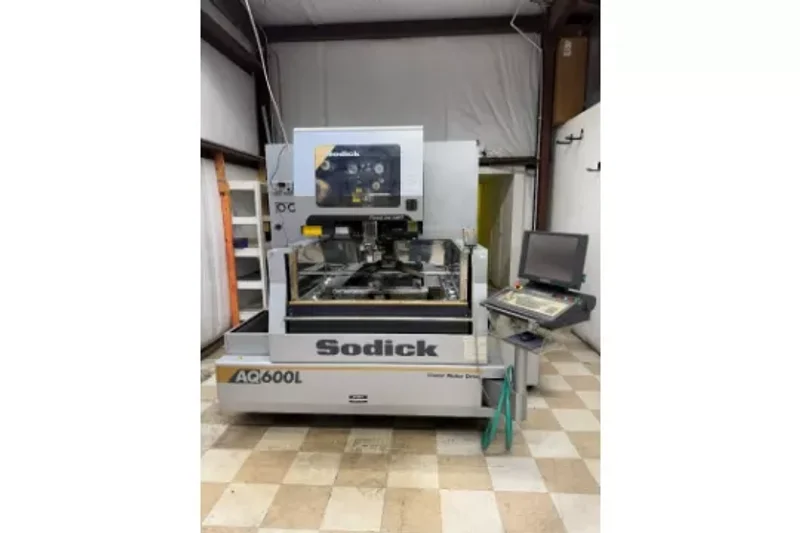

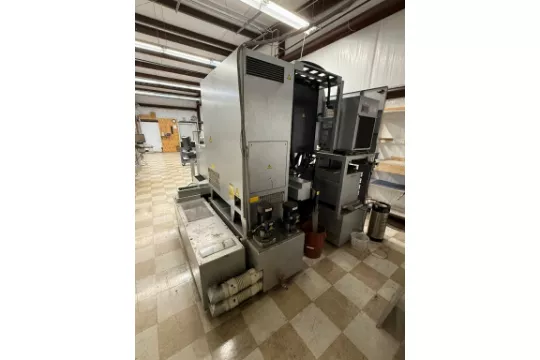

Sodick AQ600L CNC 5-Axis Wire EDM 2011
Brand
Category
Type
Model
AQ-600L
Stock #
530784
Year
2011
Condition
Not specified
Location
Not specified
|
X-Axis Travel 23.62″
Y-Axis Travel 15.75″
Z-Axis Travel 11.81″
U/V Axis Travel 3.15″ – 4.73″
Max Dimensions ( SUB) 31.1″ x 21.65″ x 9.84″
Max WP Weight (submerged) 1,741 lbs.
Work Tank Dimensions (inside) 44.68″ x 35.03″
Wire Diameter 0.006″ – 0.012″
Taper Angle ±20°
Wire Speed 16.53″ per sec (420 mm / sec)
Machine Dimensions 94.48″ x 115.35″ x 86.02″
Machine Tool Weight 10,648 lbs.

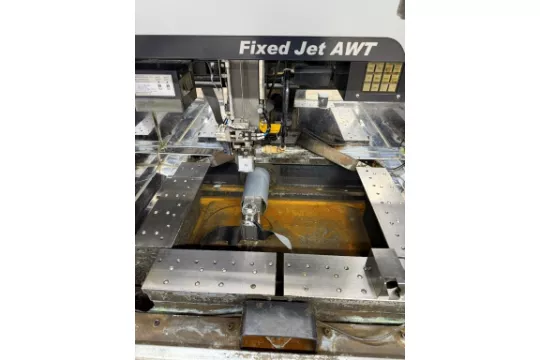

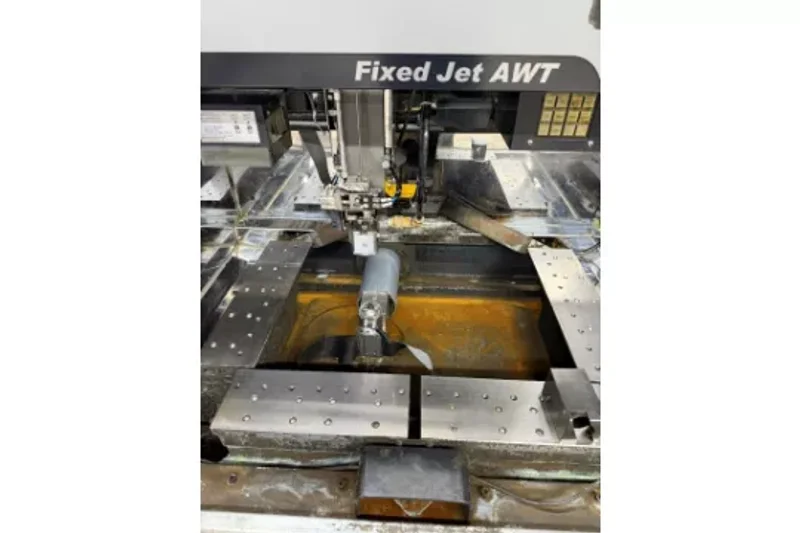

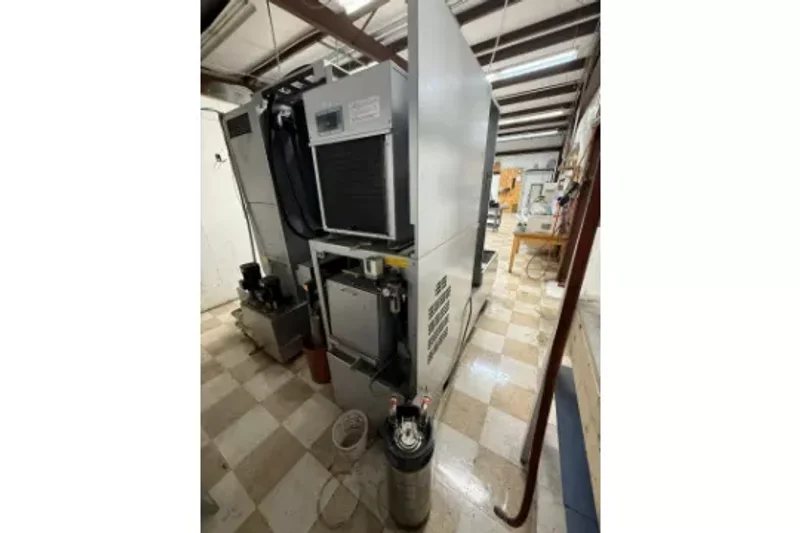

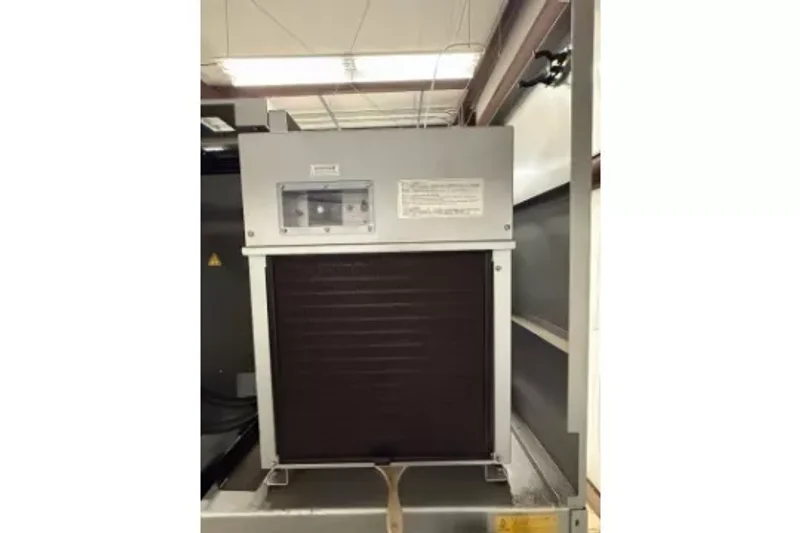

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Equipped with: All specifications are assumed to be correct but must be confirmed by the purchasing entity.,LN2W Control Linear Motor Drives AWT Dielectric System Chiller Wire Chopper All specifications are assumed to be correct but must be confirmed by the purchasing entity. |
