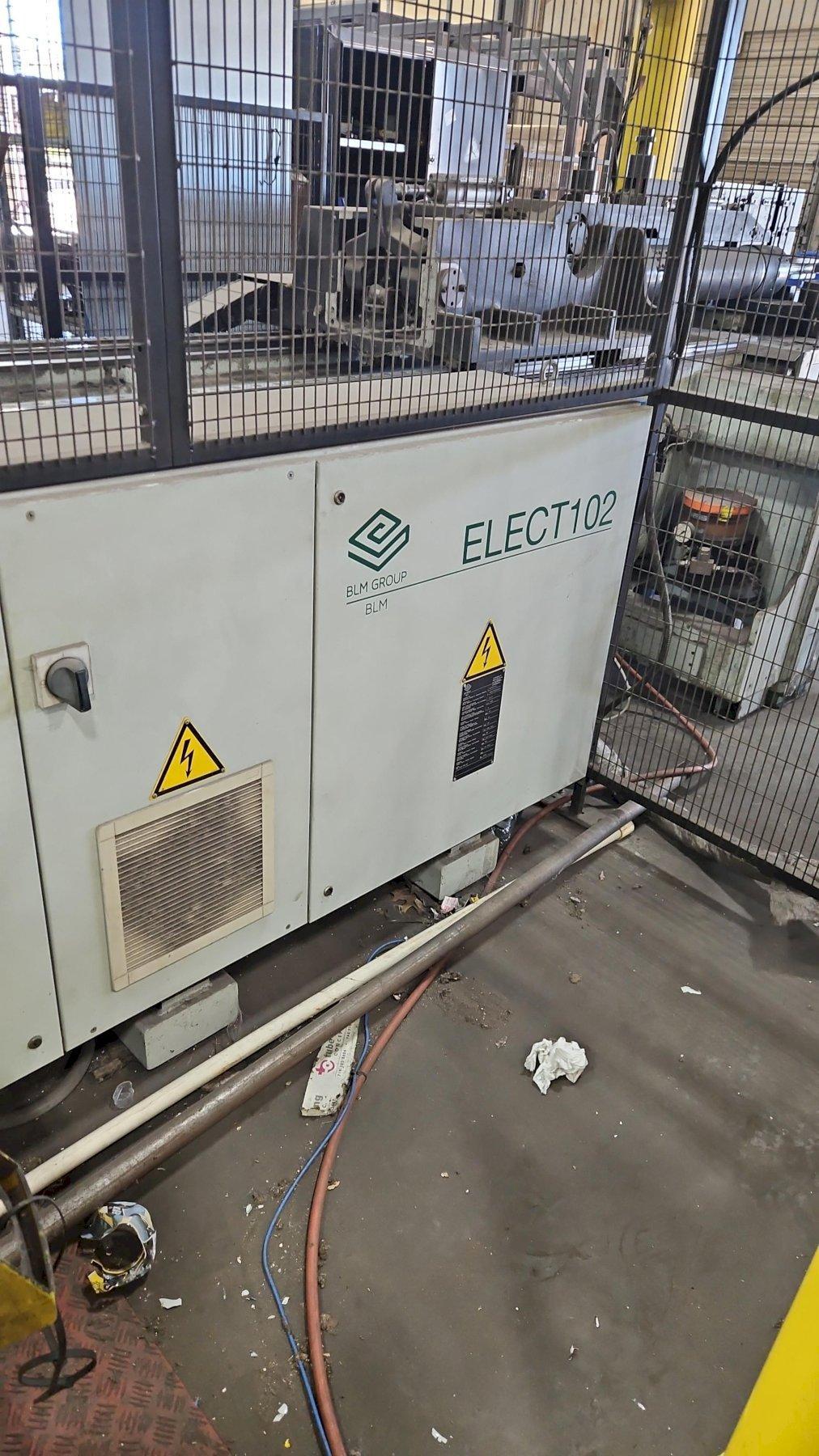

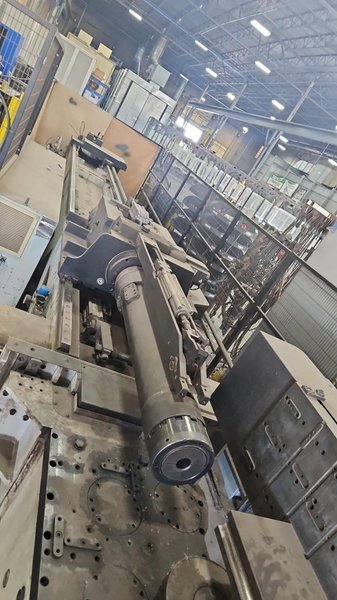

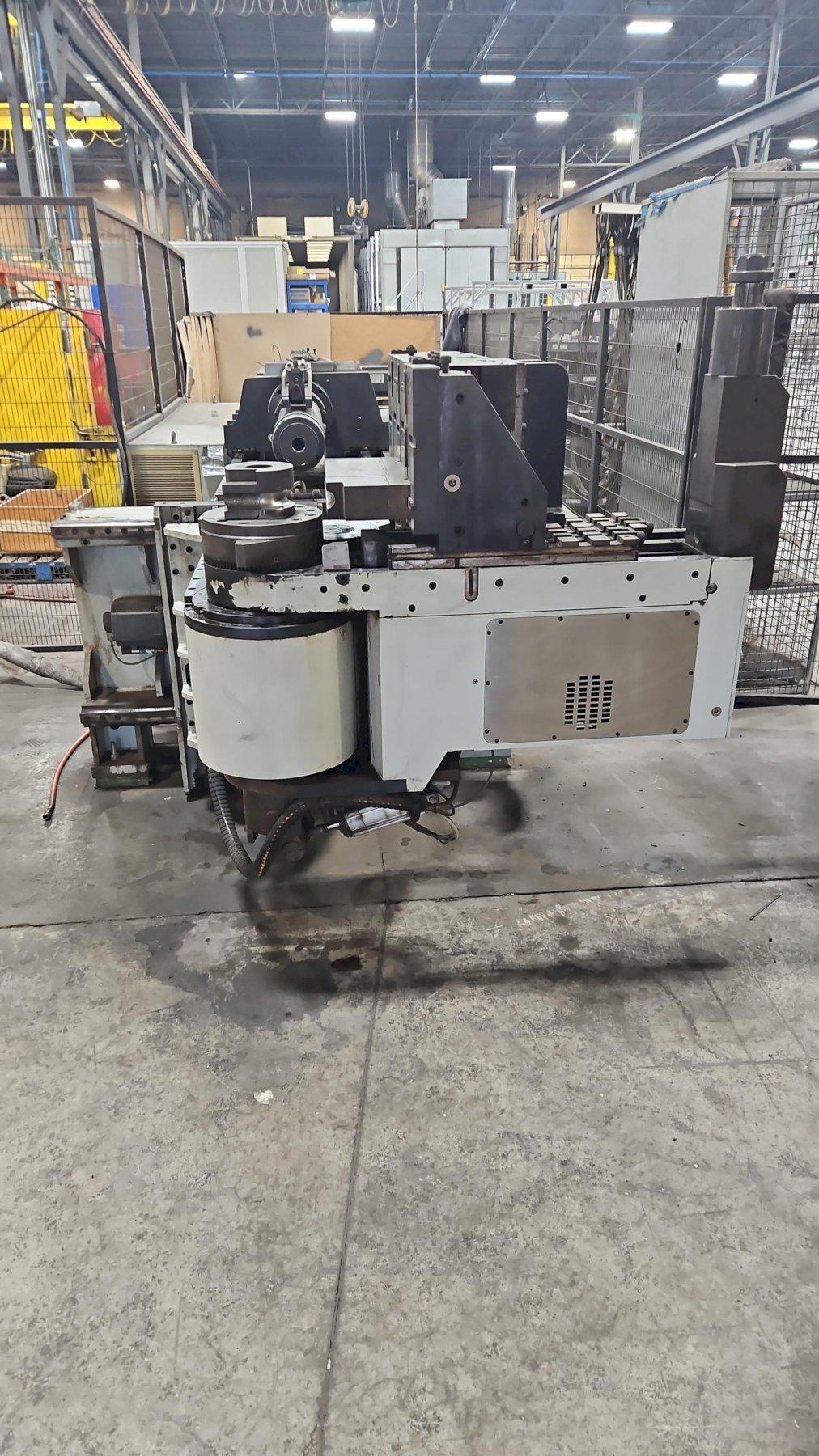

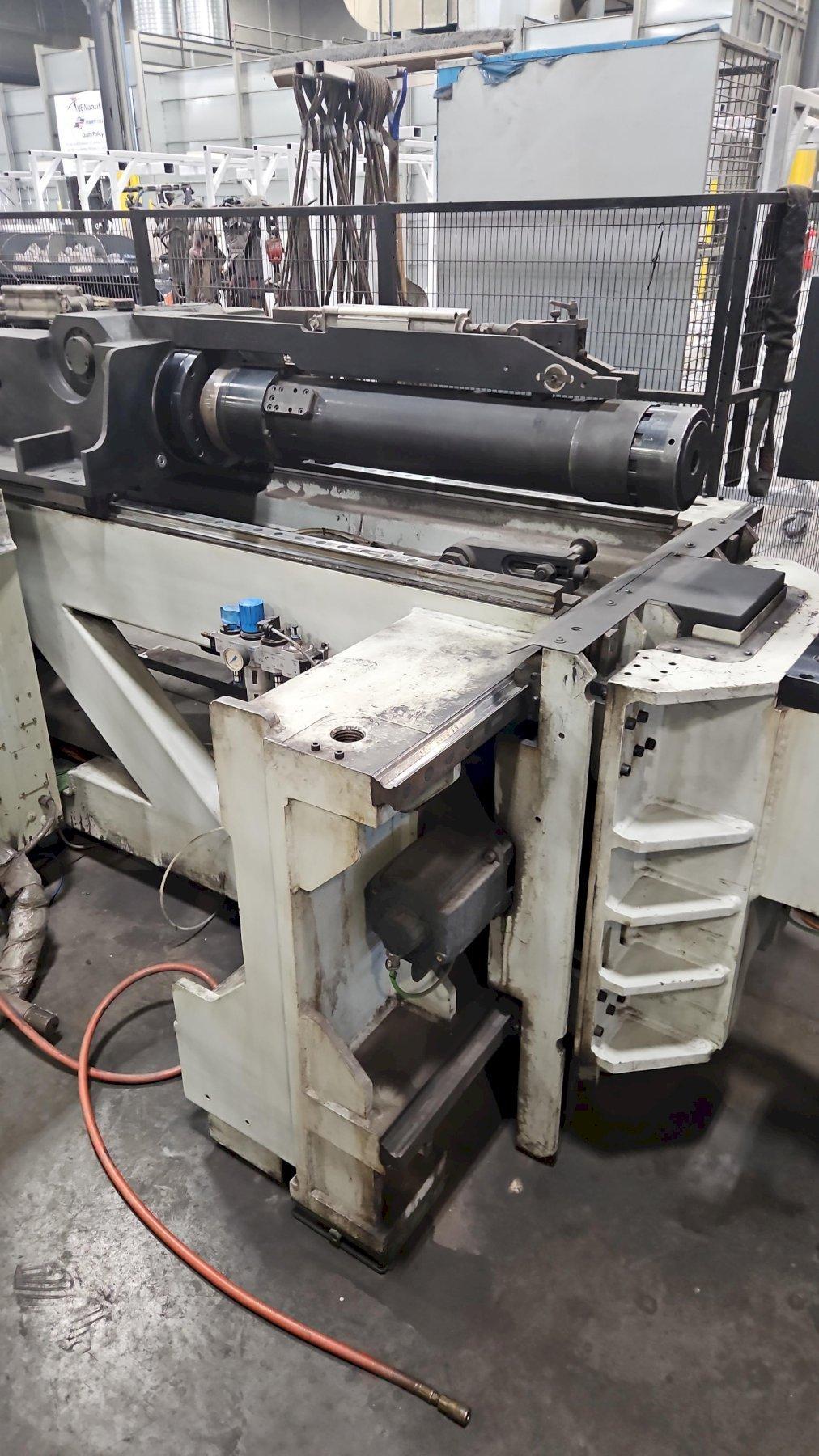

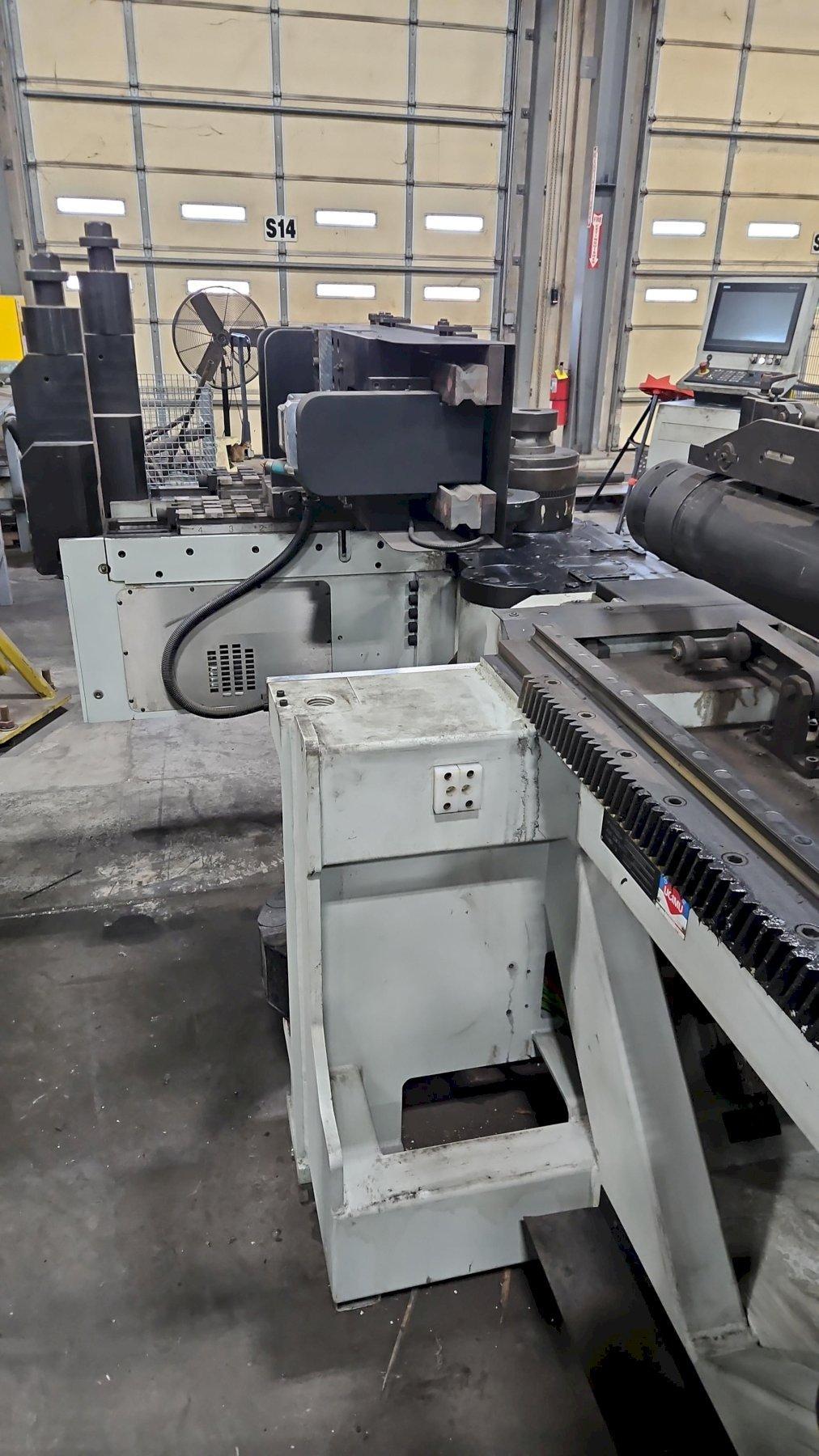

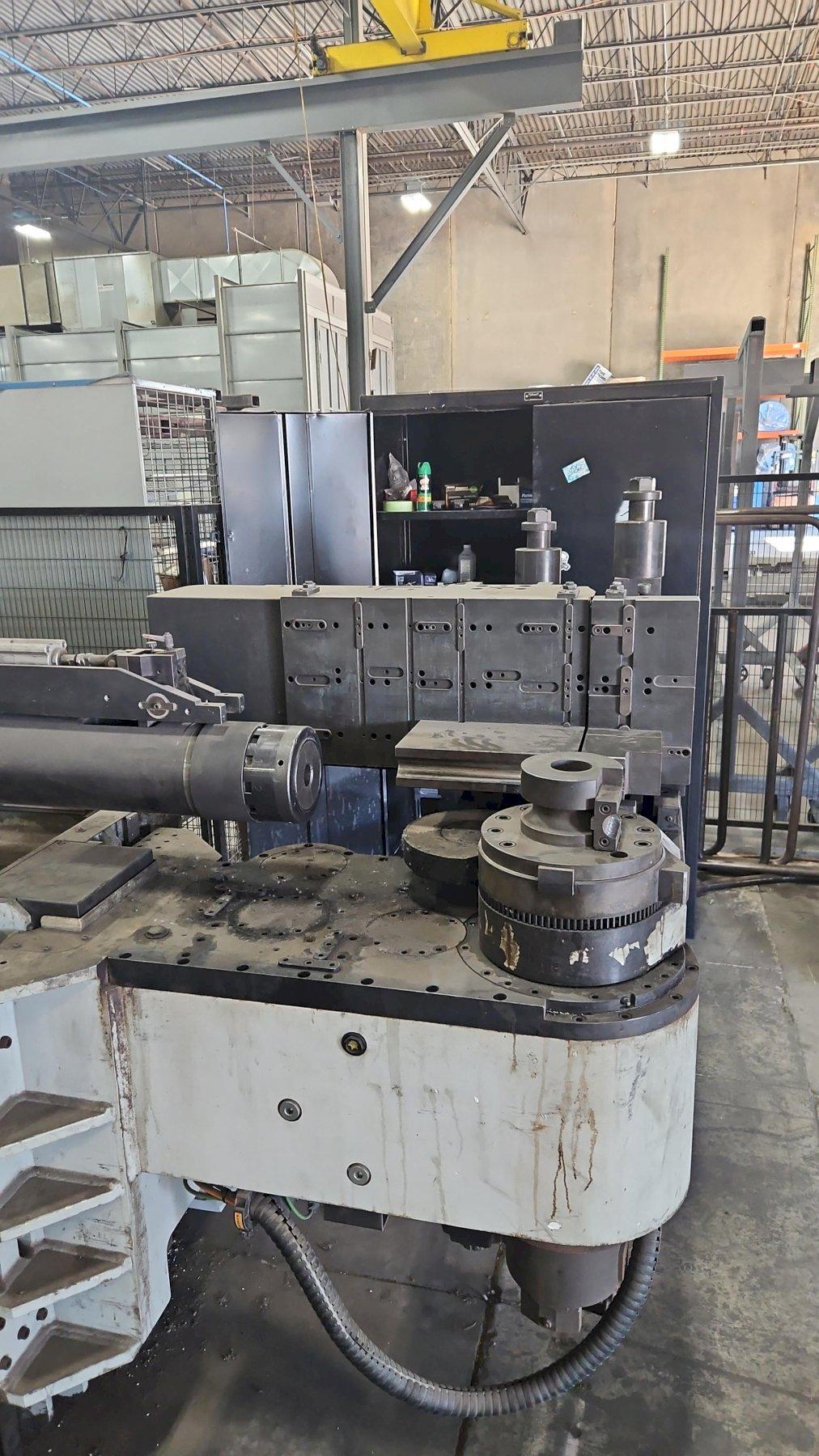

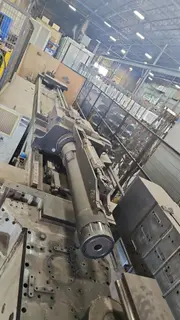

BLM Elect 102 Tube Bender, 2017

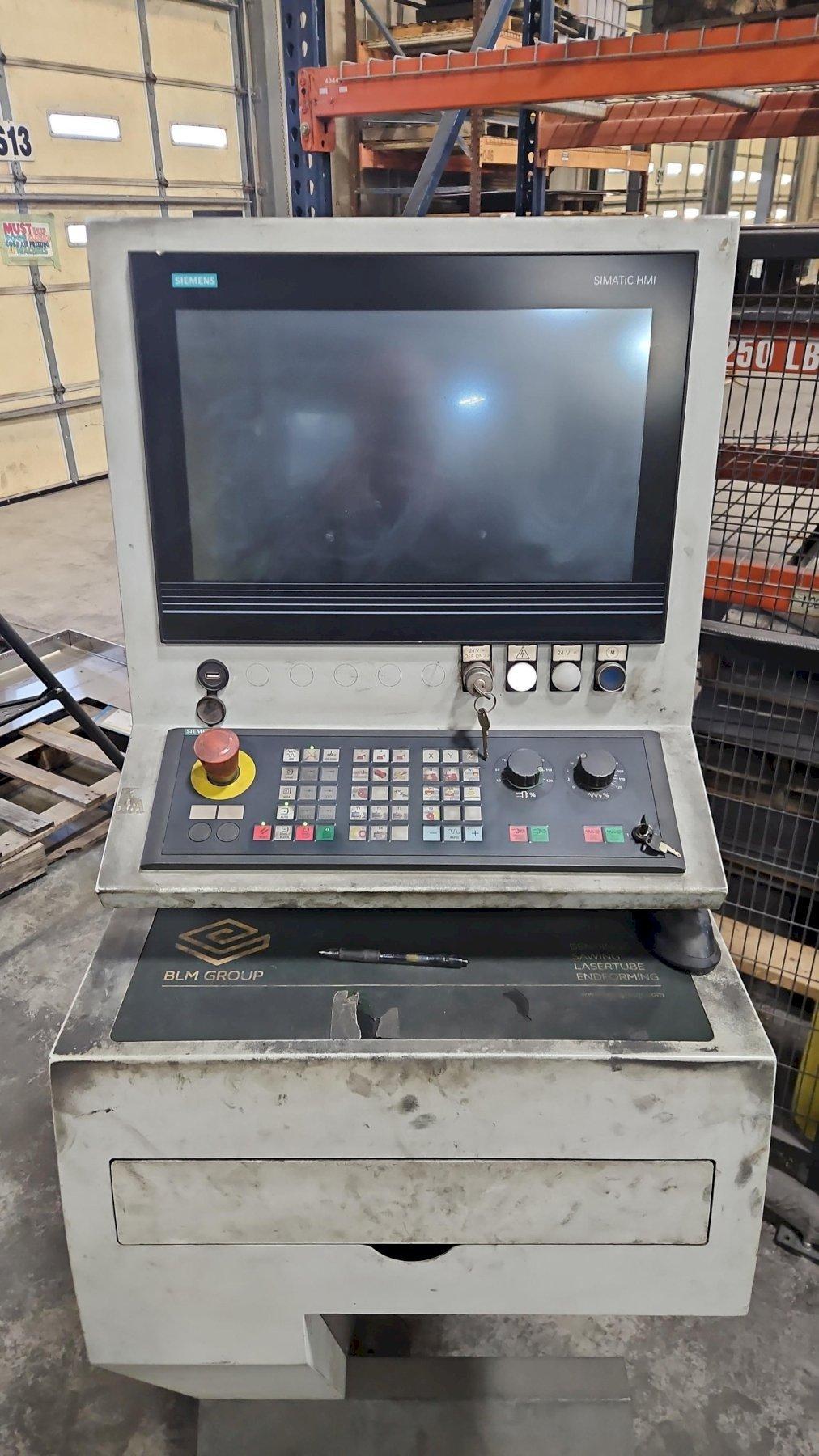

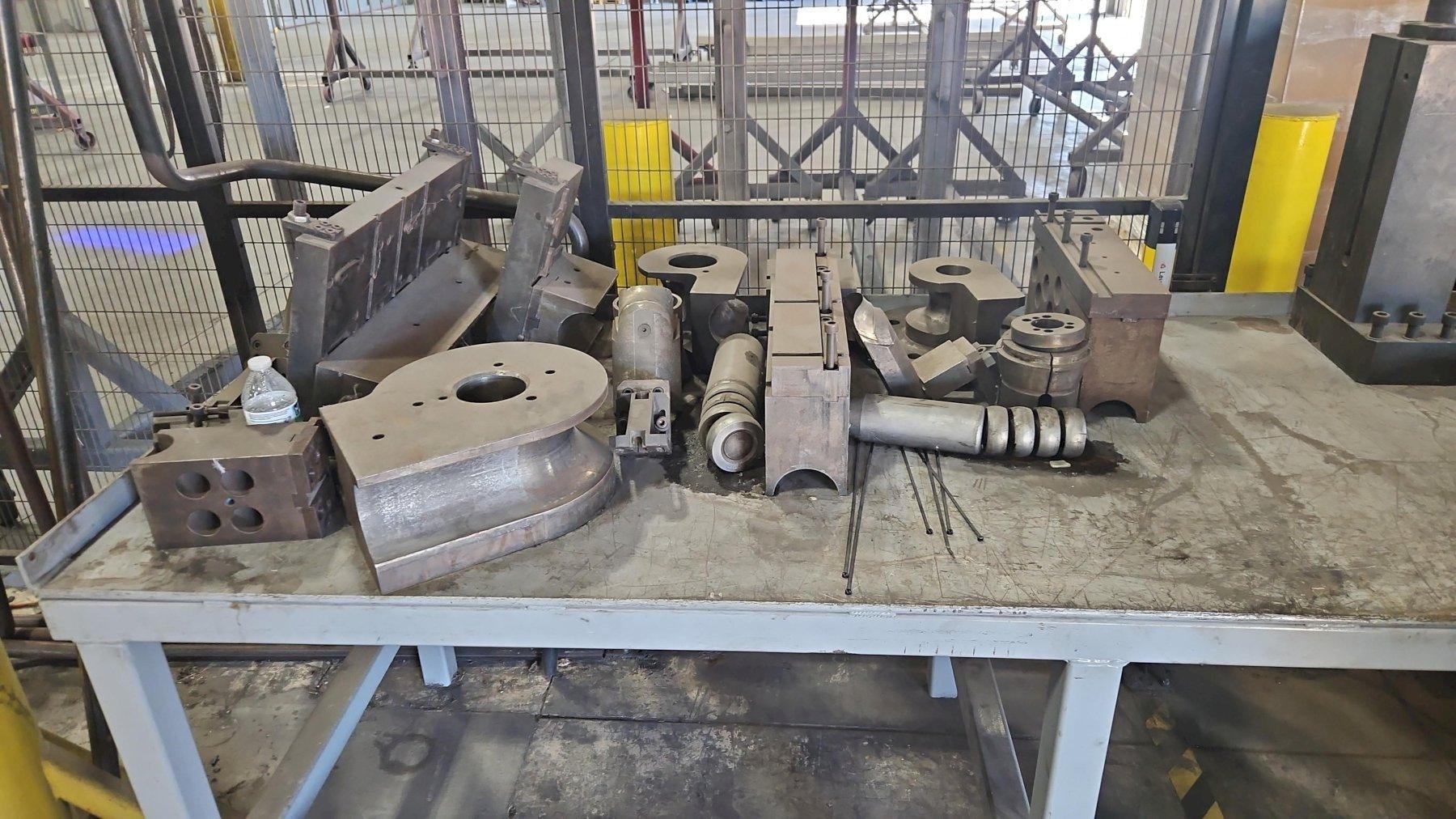

Capacity: Max Tube OD of 4″/ 102mm Bending Direction: In-process right or left-handed, convertible. Tooling: Multi-stack, up to 8 tools simultaneously, suitable for fixed or variable radii. Axes: All-electric, 8+2 optional. Accuracy: Y and Z axes: 0.05″ X-axis: 0.002″ Performance: Boost power up to 60,000 N allowing for tight radius bends without deformation. Control/Software: SIEMENS Simotion D435-2 CNC, utilizing VGP3D graphical software. Dimensions/Weight: Approx. 35,000LBS

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,The 2017 BLM Elect 102 is an all-electric, CNC mandrel tube bending machine capable of handling tubes up to 4.0″ (102mm) OD. It features multi-stack, right/left-hand in-process bending with up to 12 axes, high precision (0.005″ for Y/Z axes), and an average noise level of 65db(A)

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Spec Sheet Available Upon Request
