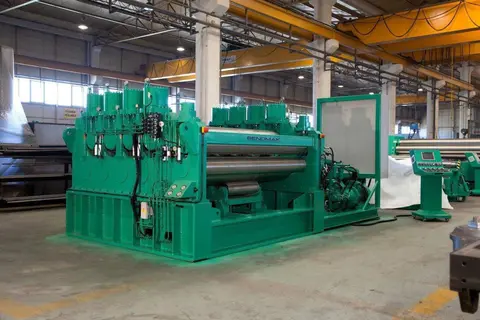

31.49” X 2” Plate Straightening Machine with Bendmak Control Panel, 9 Straightening Rolls and Variable Speeds of Rotation for the Bottom Rolls.

GENERAL SPECIFICATIONS
Capacity in Material with Yield Point 260 N/In²:        31.49” X 2”
Capacity in Material with Yield Point 360 N/In²:        31.49” X 1.65”
Minimum Capacity:                        .315”
Diameter of Straightening Rolls:                15.75”
Diameter of Infeeding Rolls:                9.84”
Rolling Speed:                        0-6 M/Min
Roll Adjustment Speed:                    1mm/Sec.
Max Opening Between Top & Bottom Rolls:        2.36”
Min Opening Between Top and Bottom Rolls:        -1.18”


INCLUDES: Bendmak Control Panel, 9 Straightening Rolls and Variable Speeds of Rotation for the Bottom Rolls.

***We strongly encourage personal inspection of all pieces of used equipment***
***All Price, Location and Specifications Subject to Change without Notice***
