ZEISS ATOS Q Industrial 3D Scanner System – 12MP Dual Camera – Rotary Table – Full Mobile Metrology Package- Auction Item

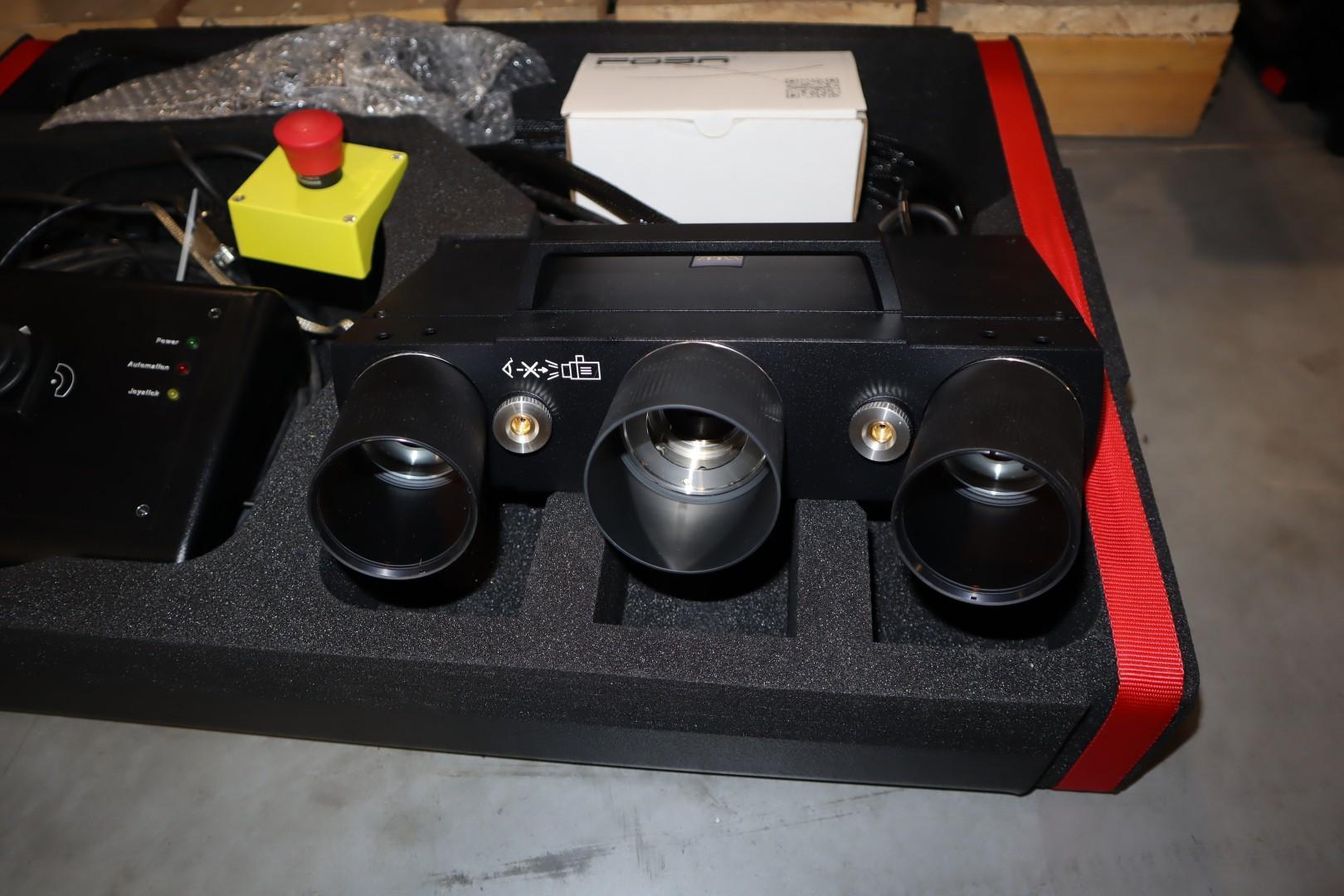

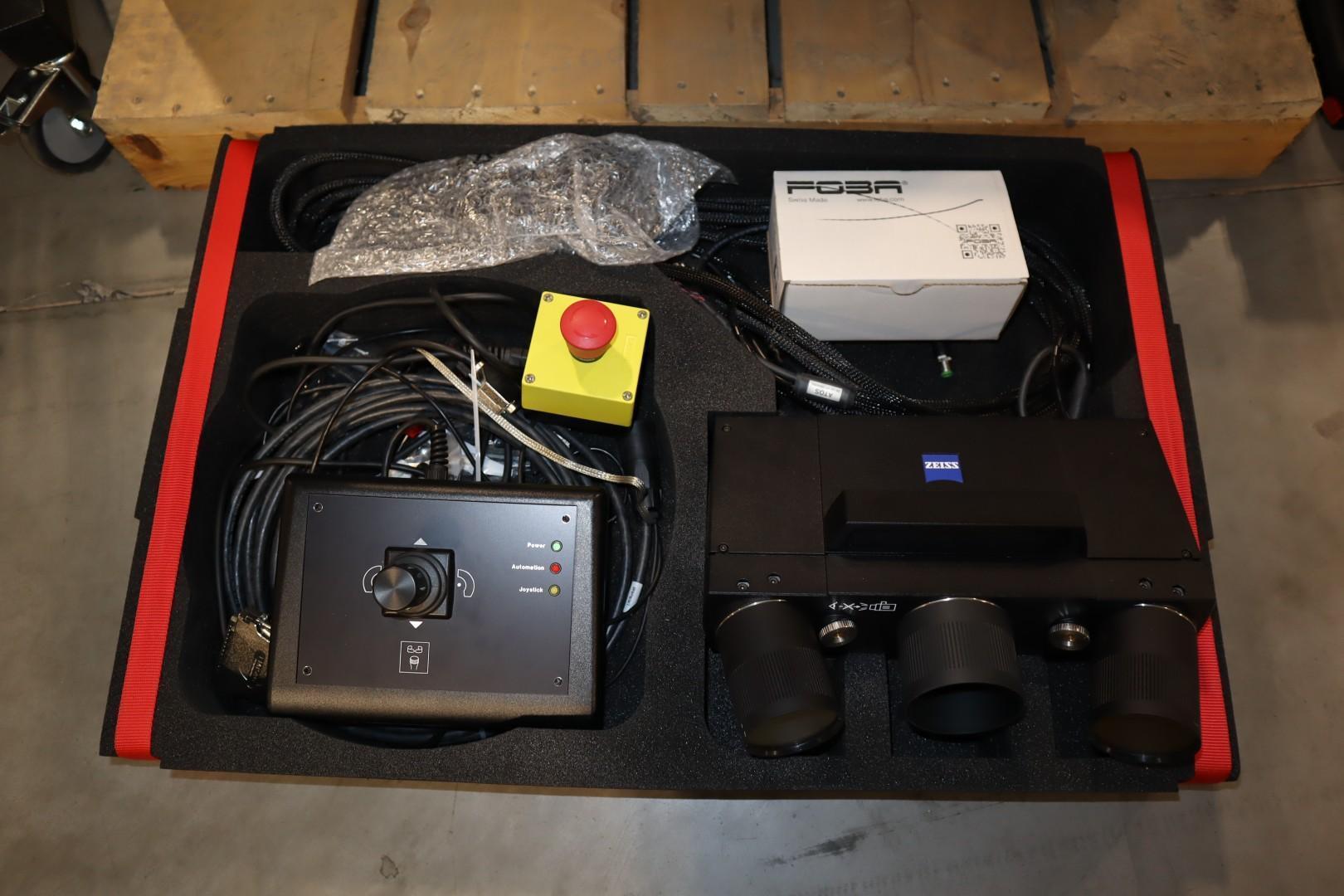

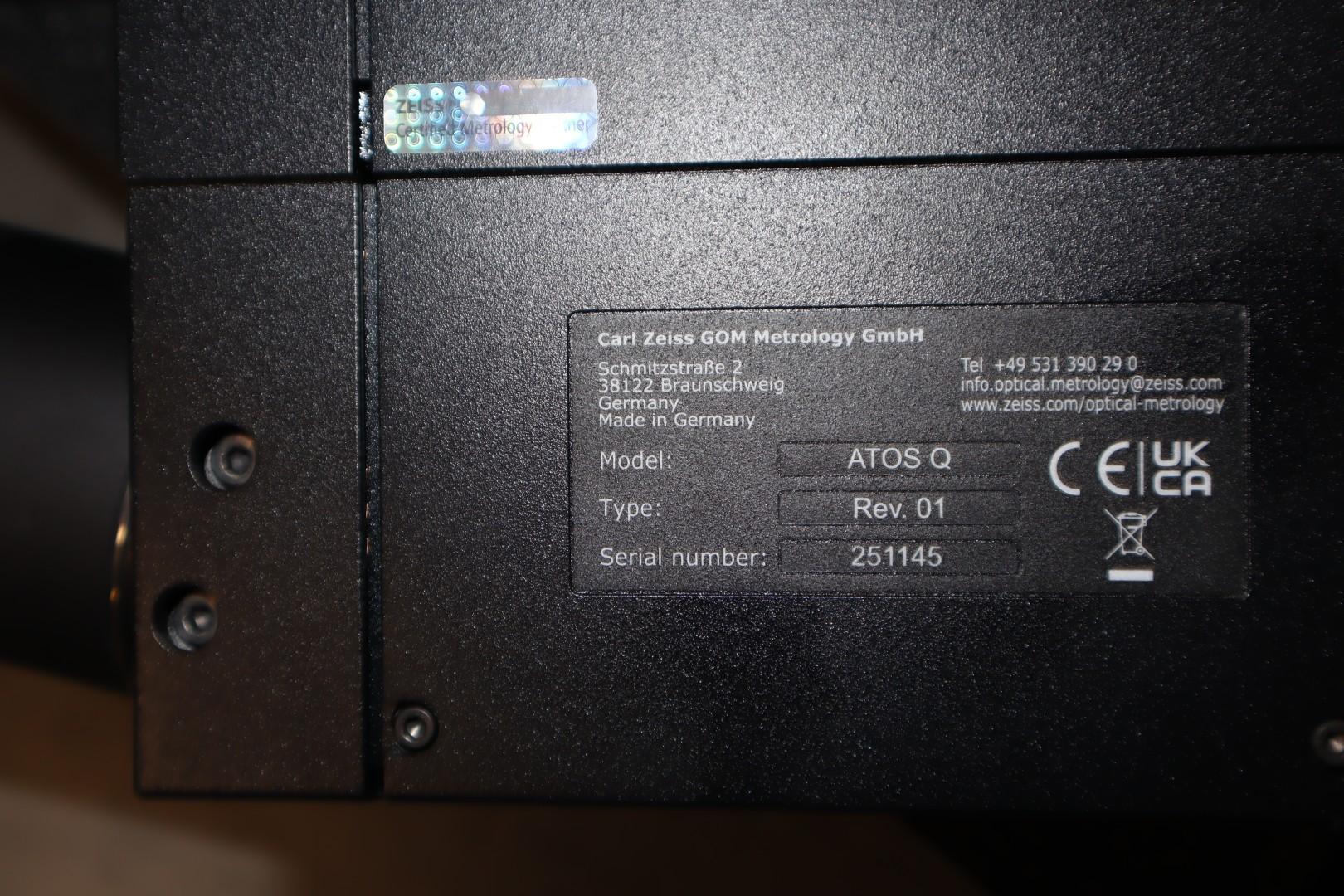

• ZEISS ATOS Q Sensor Head
• 500 x 370 mm Measuring Volume

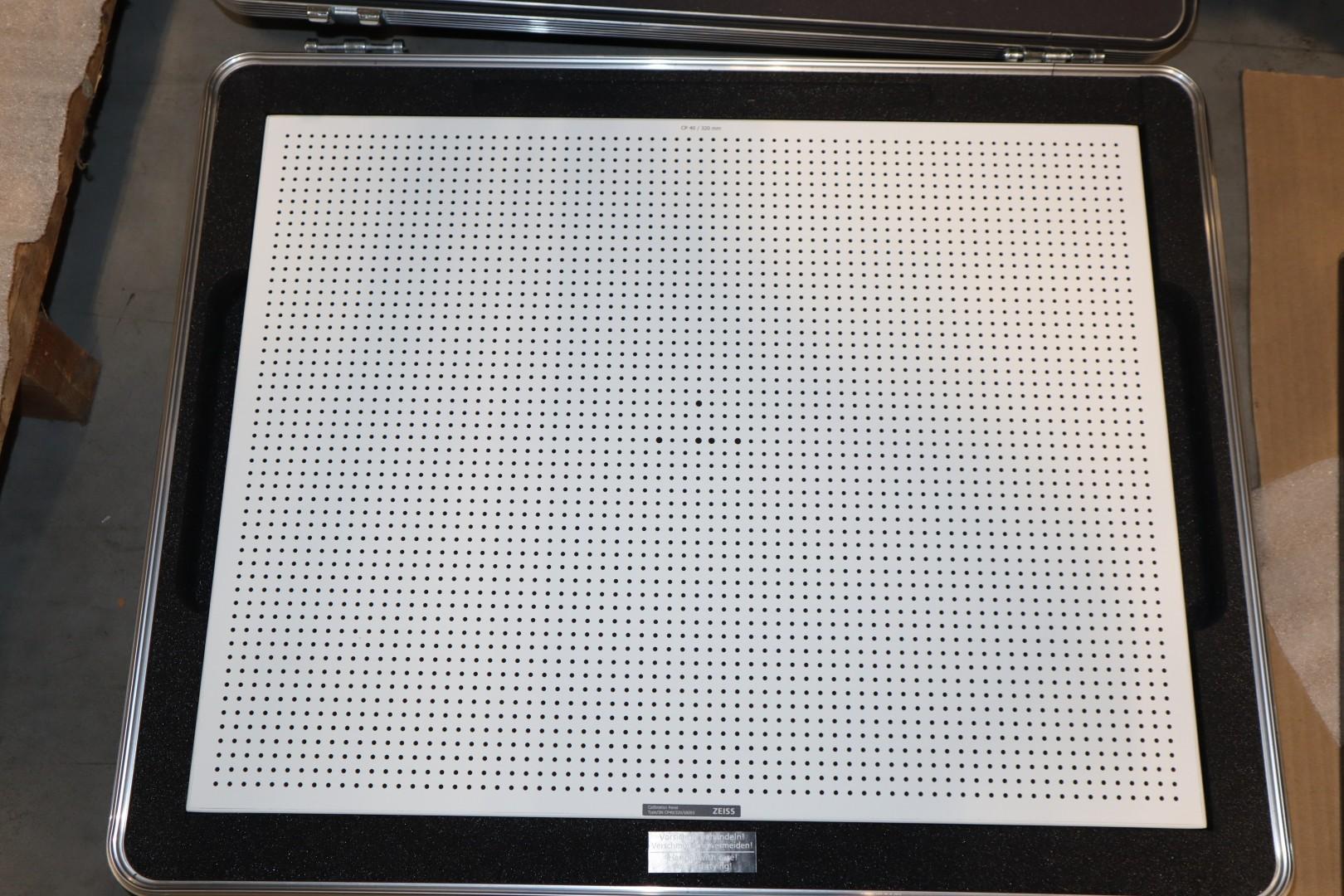

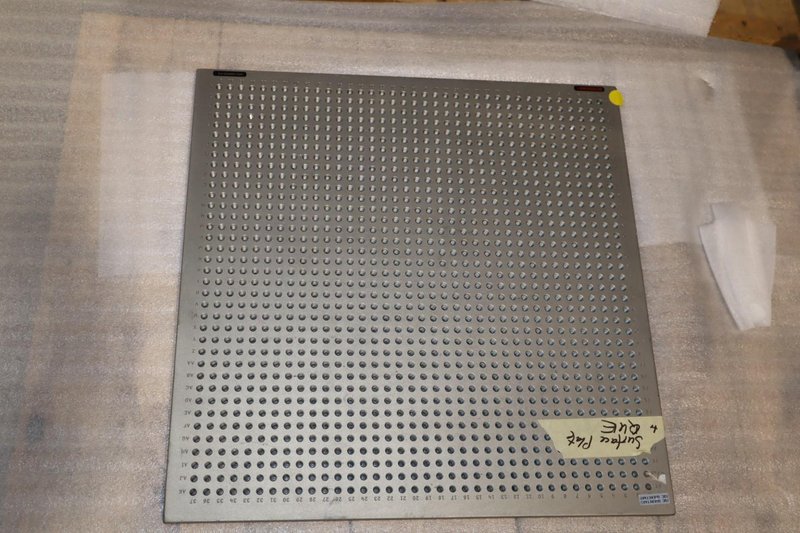

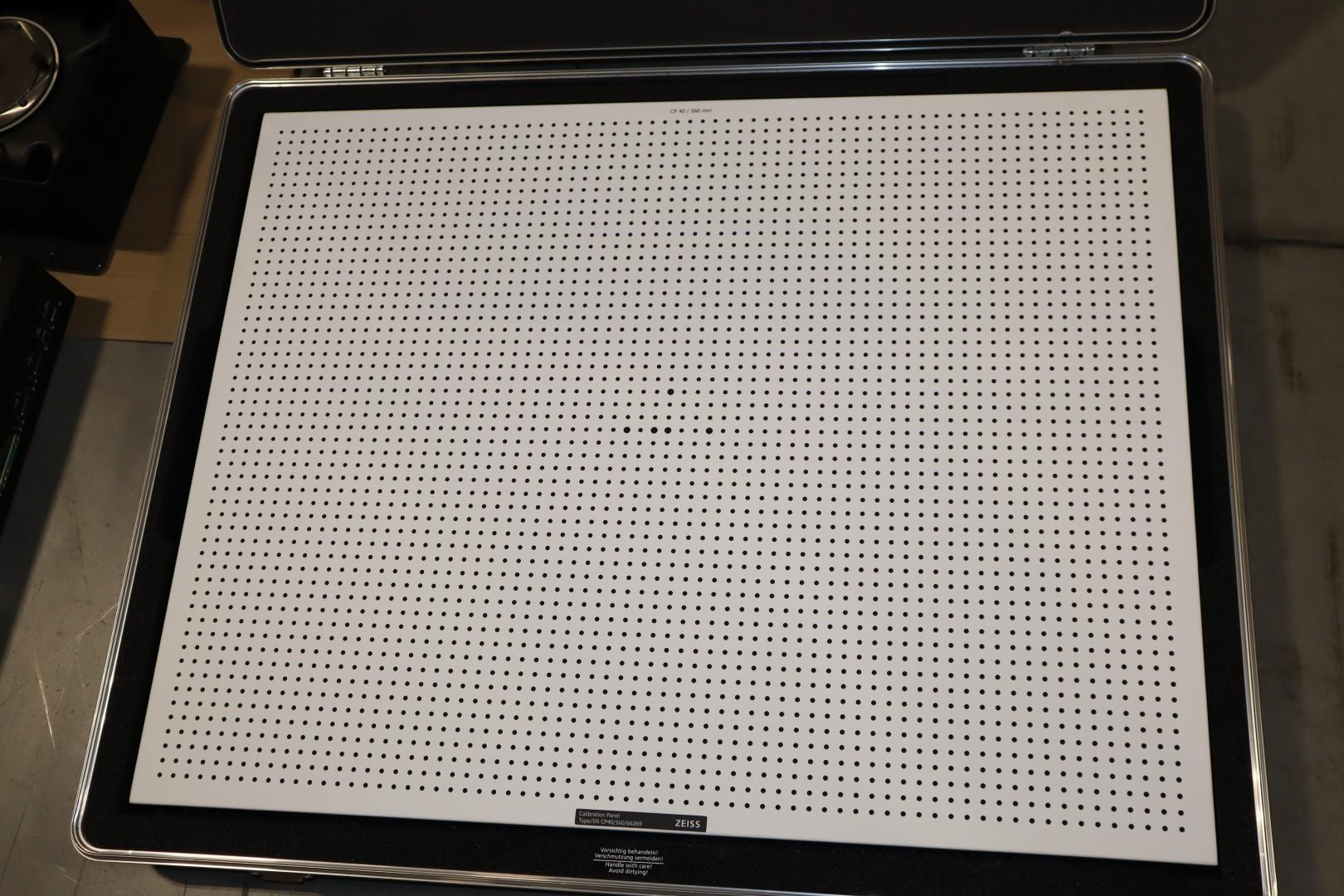

• Calibration Object with Certificate
• Point Marker Kit

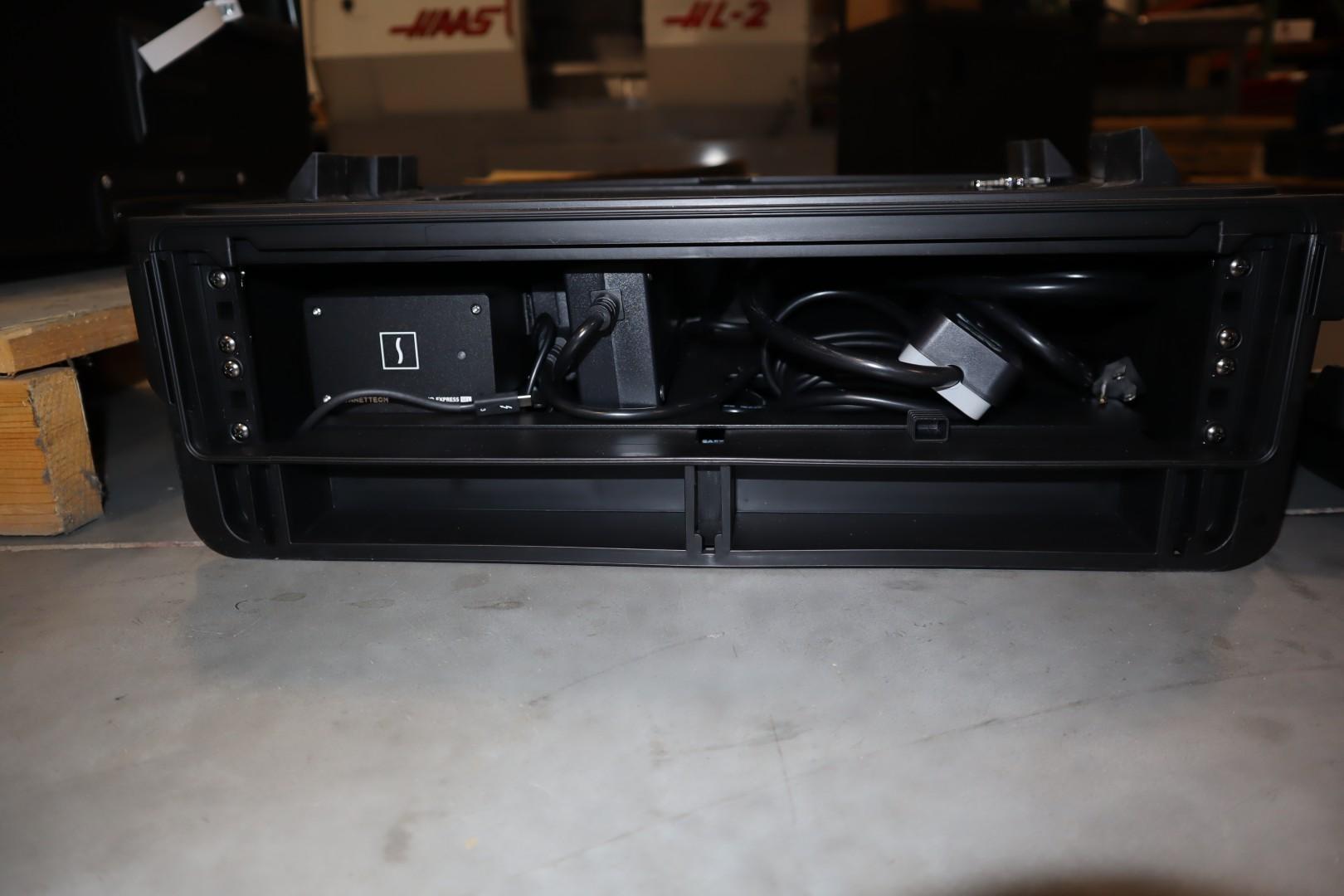

• Mobile Controller / Converter Box (Thunderbolt 3 Interface)
• Fiber Optic Cable

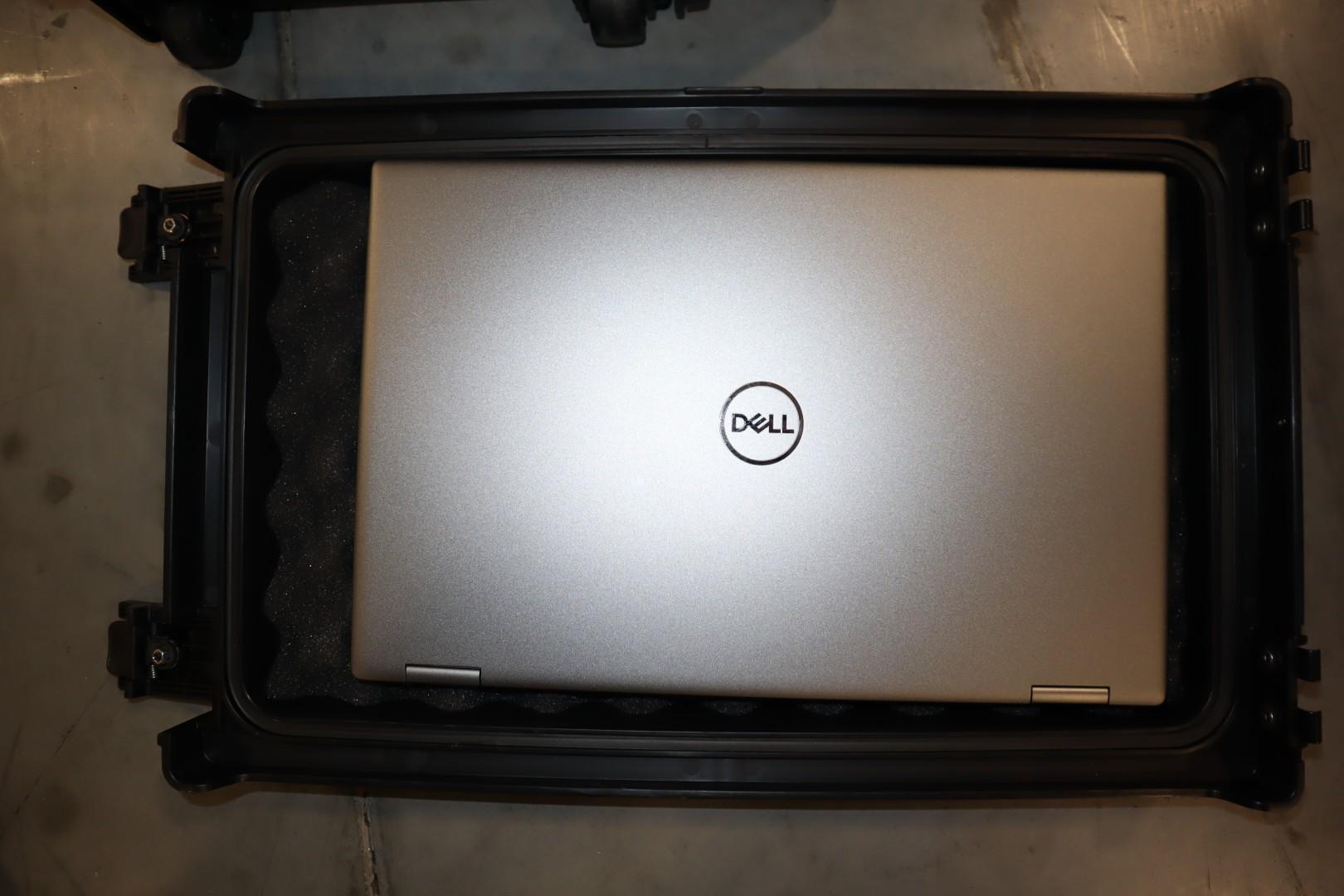

• Industrial Laptop (64 GB RAM, NVIDIA Quadro GPU, 1 TB SSD)
• External Backup Drive

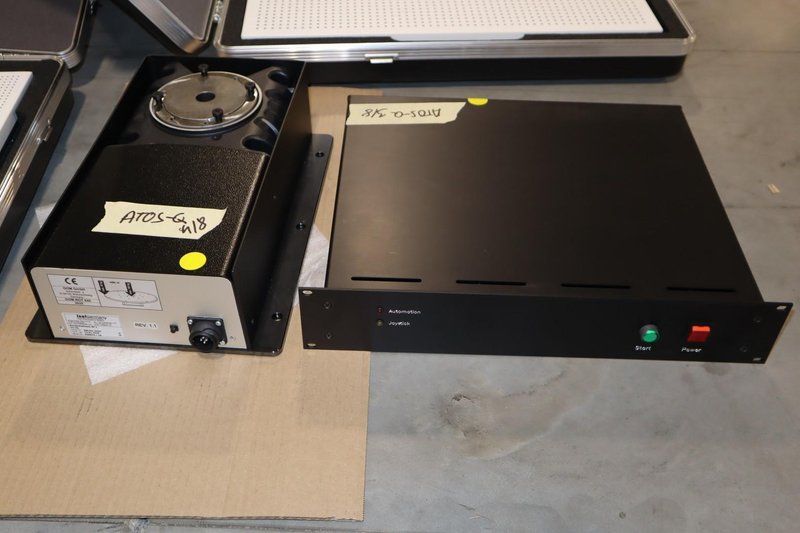

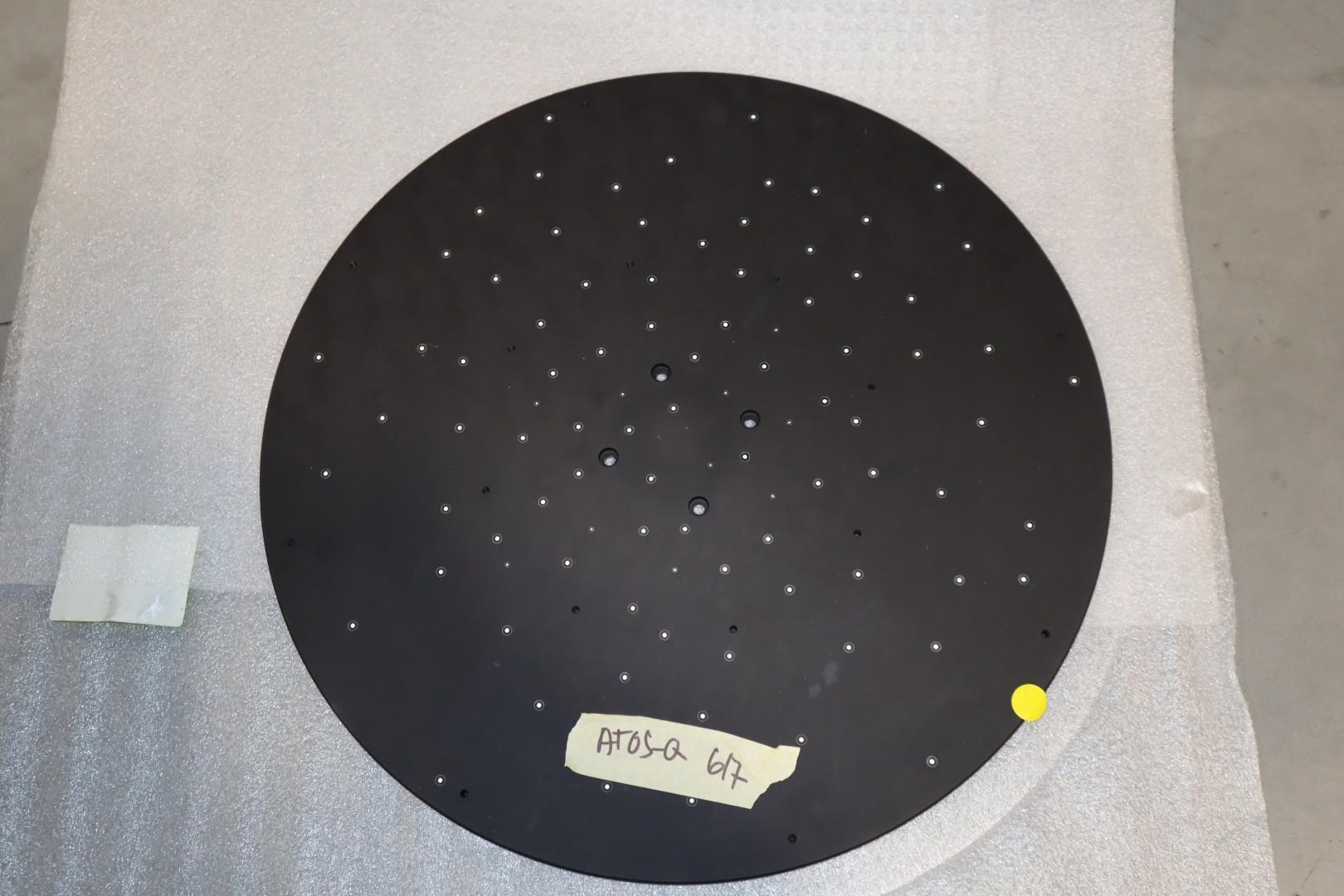

• Motorized Rotation Table (640 mm Diameter, 100 kg Capacity)
• 19" Rotation Table Controller
• Adjustable Stand (1.8 m Height)
• All Interconnect Cables & Power Supplies

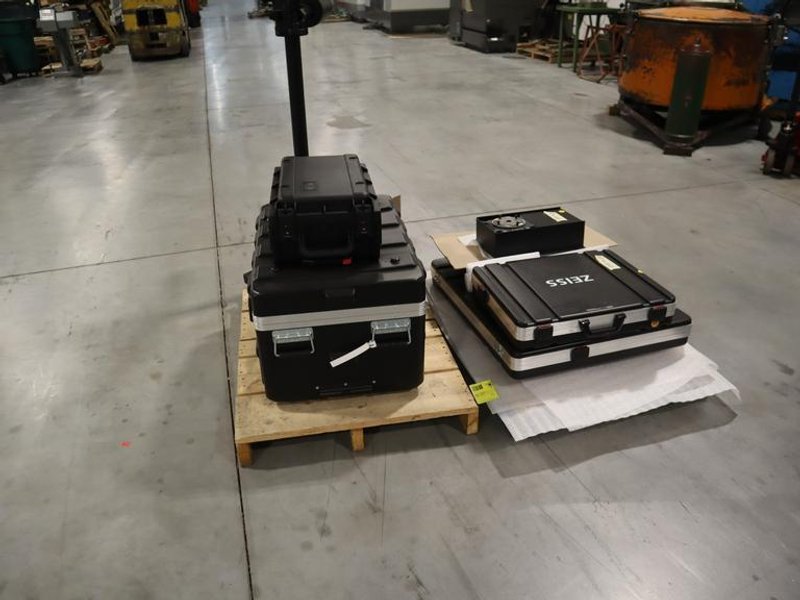

• Padded Hard Rolling Transport Case

ZEISS ATOS Q – Complete Industrial Optical 3D Measurement System

Mobile. Metrologically precise. Shop-floor ready.

The ZEISS ATOS Q is a high-performance optical 3D scanning system designed for demanding industrial measurement and inspection applications. Built with real ATOS DNA, this system delivers fast, precise, and repeatable full-field surface digitization for quality control, reverse engineering, tool validation, and dimensional inspection.

This is a production-grade industrial metrology platform — not a consumer scanner.

System is housed in a padded hard rolling transport case, making it ideal for mobile inspection, in-plant measurement, or field deployment.

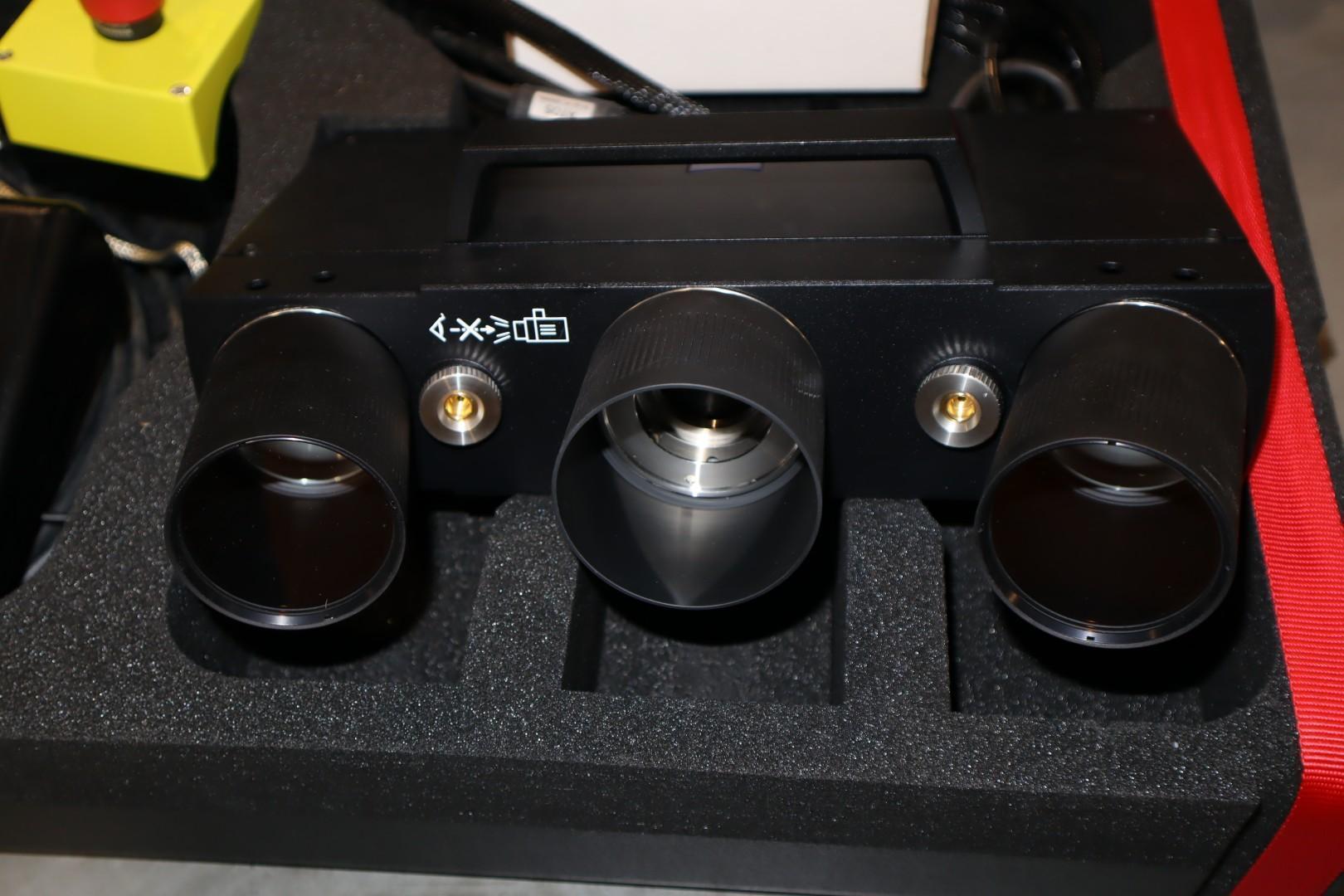

ATOS Q Sensor Features:
• Dual 12-Megapixel CMOS Cameras (4112 x 3008 resolution)
• Blue Light Equalizer fringe projection technology
• LED illumination
• Laser pointers for stand-off setup
• Fiber optic connectivity
• Industrial-grade housing
• Acceptance tested per VDI 2634 Part 3

Measuring Area:
• 500 x 370 mm
• Calibration object with traceable certification
• Point marker kit included

Software:
ZEISS INSPECT Optical 3D
• CAD import (STEP, IGES, JT, STL, PLY, VDA)
• Full-field CAD comparison with color deviation mapping
• GD&T evaluation (ISO GPS & ASME Y14.5)
• Mesh processing & alignment tools
• Reporting module

Includes motorized rotation table with automatic software control.

Applications:
• Aerospace
• Automotive
• Tool & Die
• Mold validation
• Casting inspection
• First Article Inspection
• Reverse Engineering

System sold as shown.
