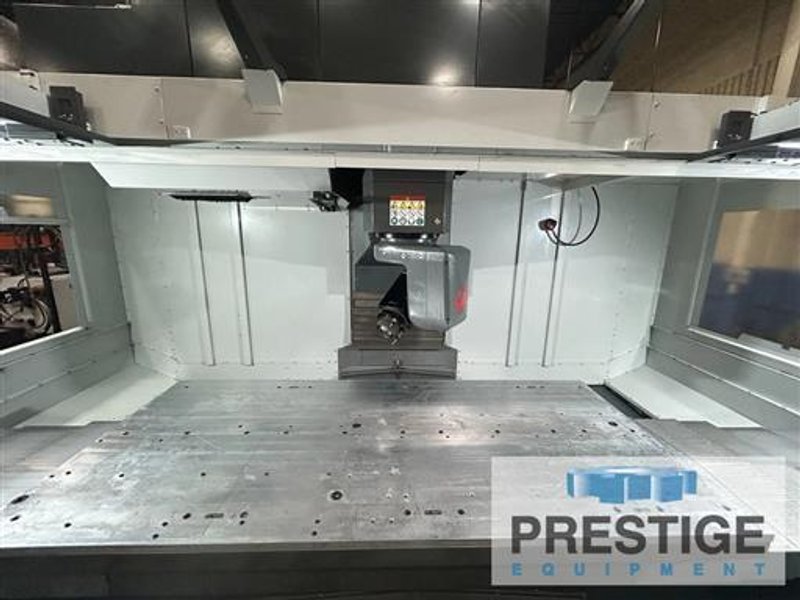

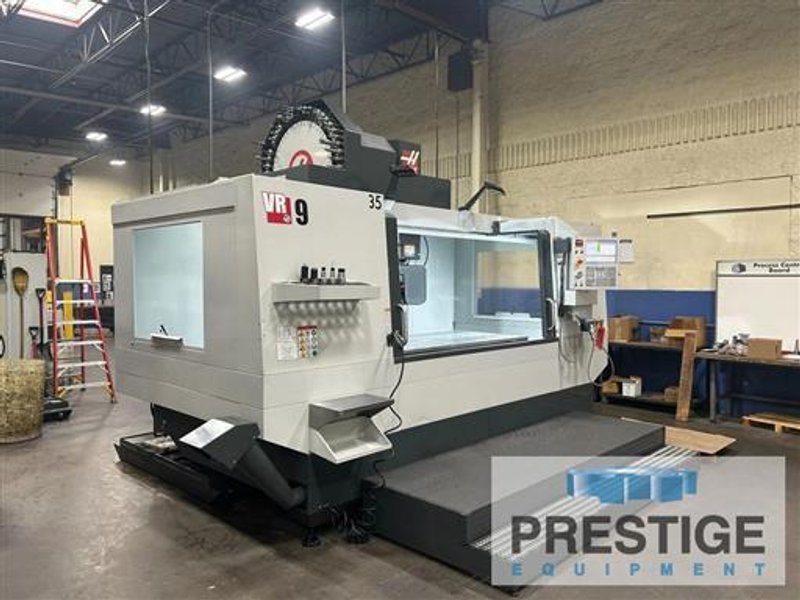

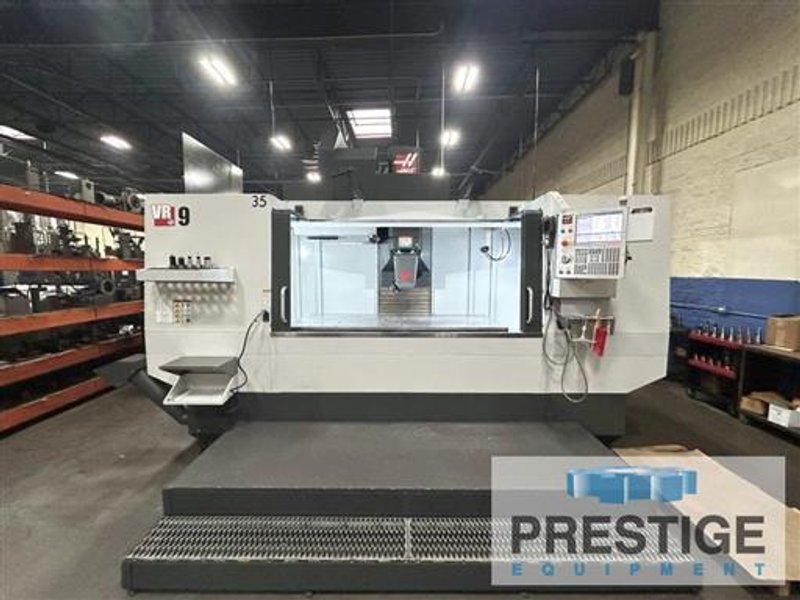

Haas VR-9 5-Axis Vertical Machining Center

SPECIFICATIONS:
X-Axis Travel 84"
Y-Axis Travel 40"
Z-Axis Travel 42"
B-Axis Tilt +/- 120 Degrees
C-Axis Rotation +/- 245 Degrees
Table Size 84" x 36"
Maximum Weight on Table 4,000 Lbs.
Spindle Drive Motor 29 HP
Rapids (X/Y/Z Axis) 600 IPM
Cutting Feed Rates 500 IPM
Spindle Speeds (2-Speed Geared Head) 20,000 RPM
Spindle Taper HSK 63
Approximate Machine Weight 28,300 Lbs.



Equipped With:
Haas 5-Axis CNC Control
Ethernet + WIFI Connectivity
50 Station Side Mounted Automatic Tool Changer
Wireless Intuitive Probing System
Dynamic Work Offsets & Tool Center Point Control
High Pressure Flood Coolant
Large Remote Jog Handle
Programmable Coolant Nozzle
High Intensity Lighting + Window Blast
Power Surge Protector
Early Power-Failure Detection Mode
Rigid Tapping
8" Extended Z-Axis Clearance
Chip Auger + 95 Gallon Coolant Tank & Pump

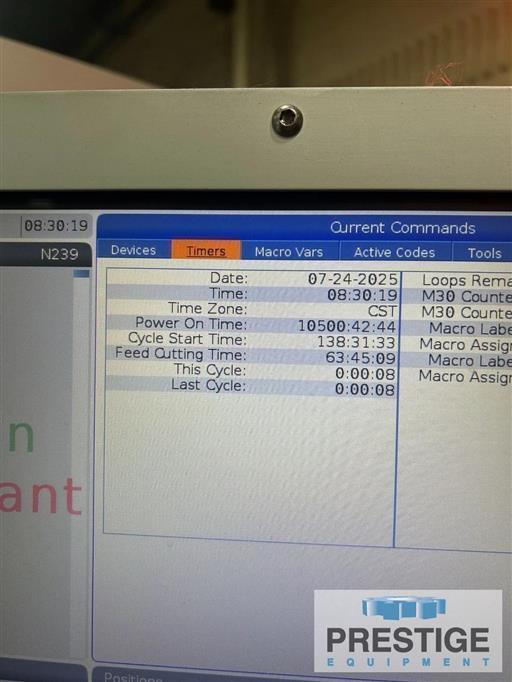

NOTE: Less than 100 hours on machine, like new
