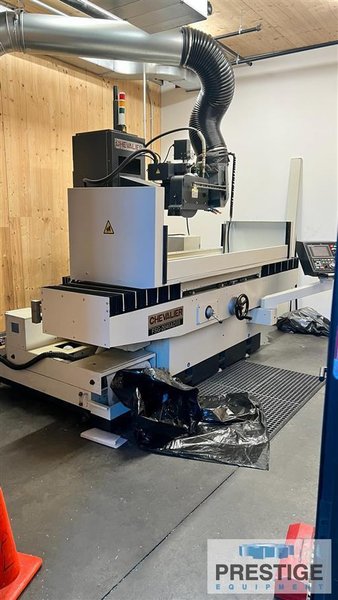

Chevalier FSG-2040ADIII 20" x 40" Horizontal Surface Grinder

SPECIFICATIONS:
Table Working Size 20" x 40"
Max. Grinding Length (Longitudinal) 40"
Max. Grinding Width (Crosswise)........ 20" 20"
Distance Between Table to Spindle 28.7"
Distance Table to Ground 39"
Table Speed 16-82 FPM
Maximum Table Stroke 43.25"
Spindle Speed 1,750 RPM
Wheel Size 14" x 2" x 5"
Spindle Motor 7.5 HP
Approximate Dimensions 150" x 118" x 107"
Approximate Weight 13,640 Lbs.



Equipped With:

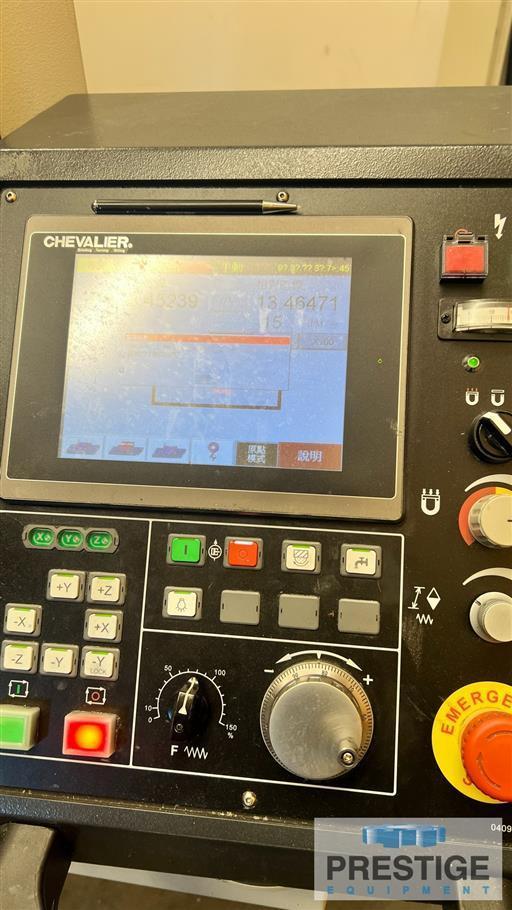

Micro-Processor Programmable Control
20" x 40" Electromagnetic Chuck
Precision Spindle and Rigid Elevating Guideways
Overwheel Parallel Dresser with Automatic Dress Compensation

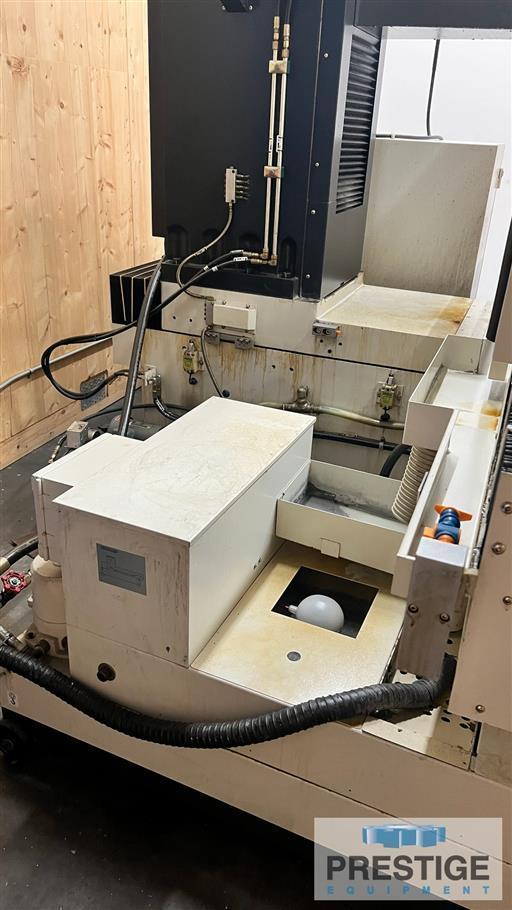

Coolant System with Auto Paper Feeding Device
Automatic Incremental Power Down Feed
Automatic Cross Feed Reversal
Automatic Surface & Plunge Grinding Capabilities
Rough/Fine Grind Settings On Vertical & Crossfeeds

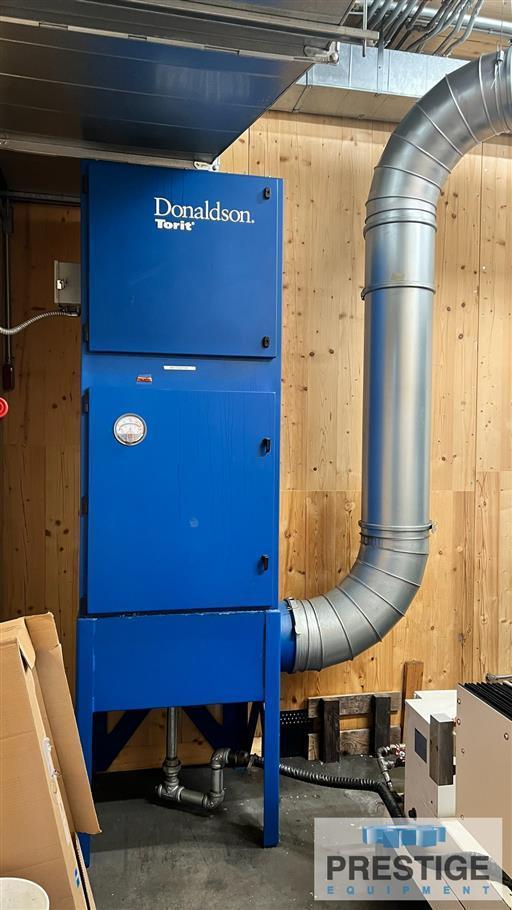

Donaldson Torit Dust Collector
