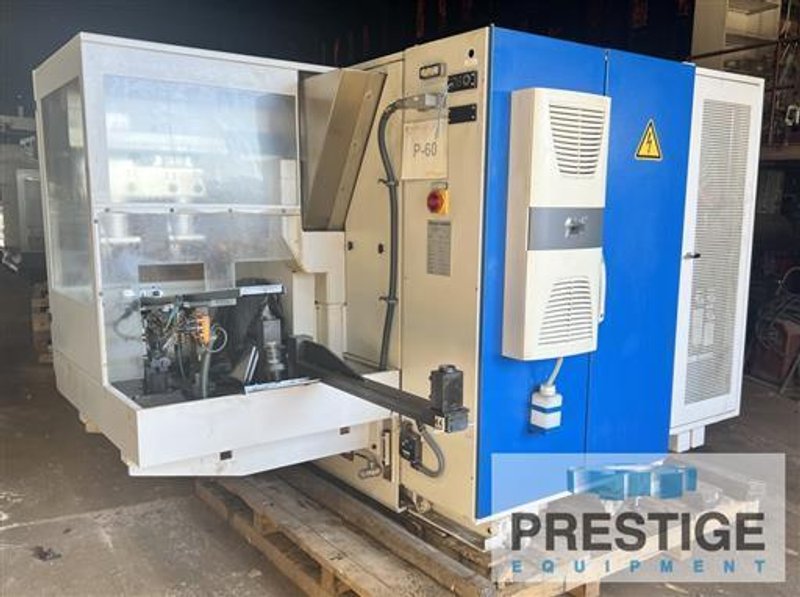

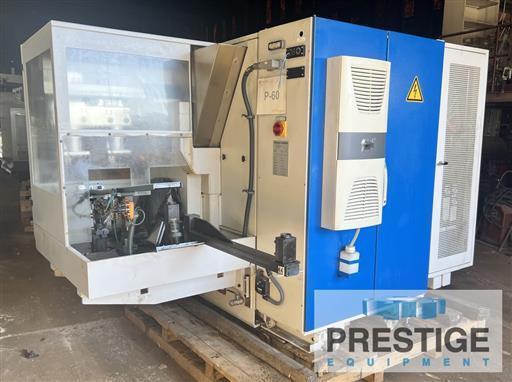

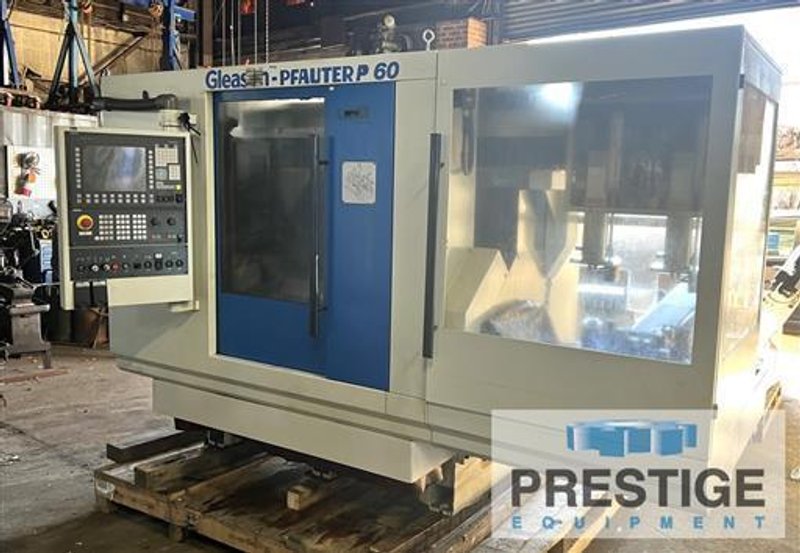

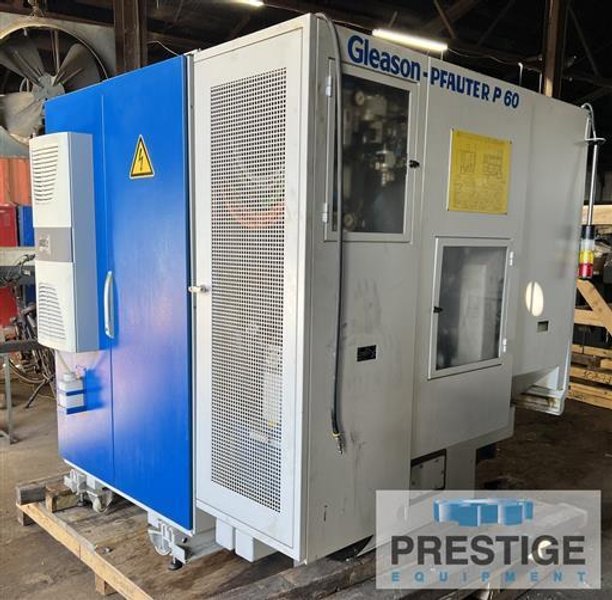

Gear Hobbers CNC

SPECIFICATIONS:
Max part cutting diameter 2.36"
Wheel diameter max 65 mm
Wheel width 140 mm
Modul max 3 mm
Clamping length 320 mm
Swivel angel max +45°/-115°
X-Way 80 mm
Y-Way 100 mm
Z-Way 220 mm
Milling speed infinitely variable 300-5000 U/min
Workpiece spindle variable 0-3000 U/min
Total power requirement 12 kW
Machine weight ca. 4.8 ton
Space requirements ca. 3.3 × 3.3 × 2.1 m
power 400 volt 50/60 cycle
load 10 KvA



Equipped With:

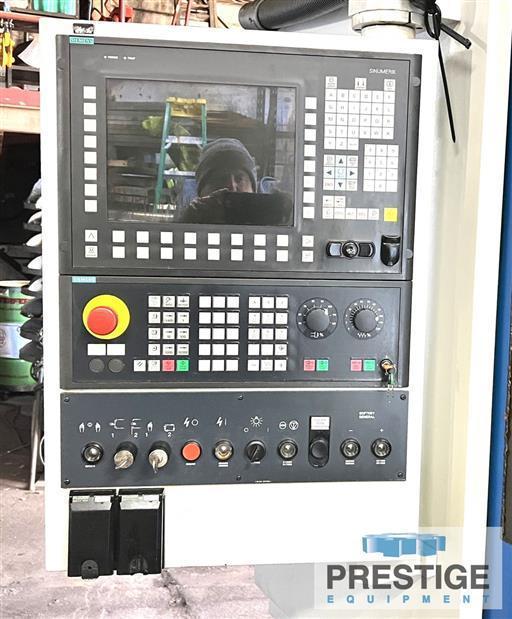

Siemens 840D CNC Control
conveyor style In and Out loading system w/ gantry load & unload
Programmable Tailstock & Center
Full Enclosure
Chip Conveyor
Misc. Tooling
Books and manuals


NOTE: Special autoload cnc gear hobber with conveyor
Hard skiving (Re-hobbing) capabilities
