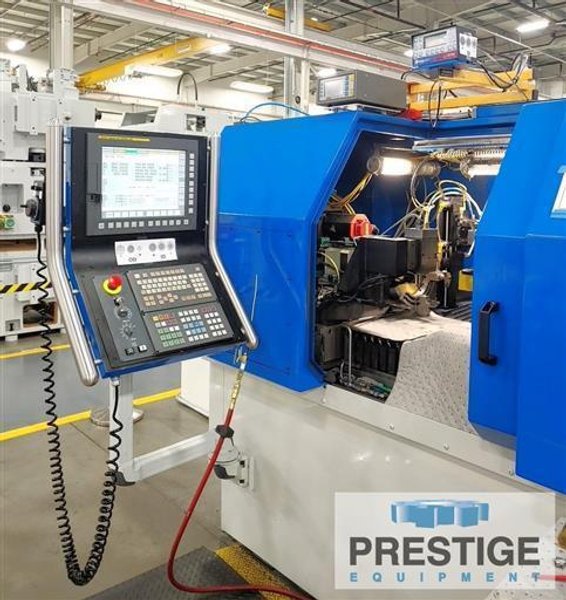

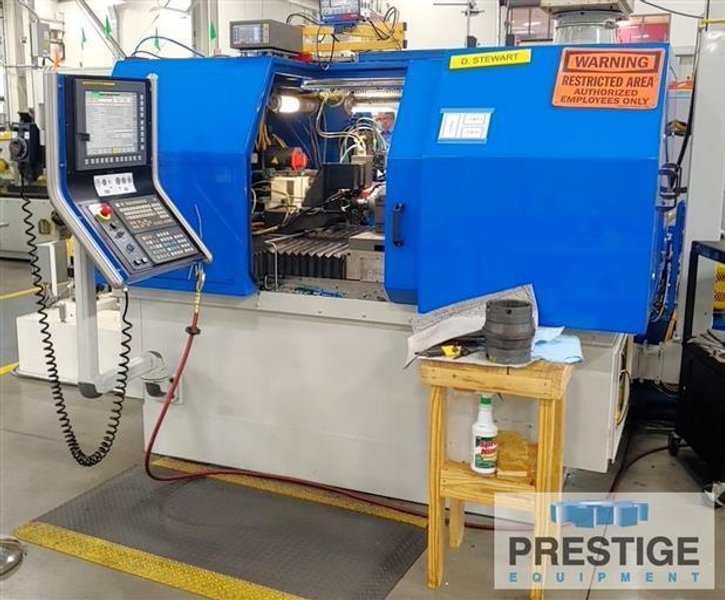

Grinders Bearing Race

SPECIFICATION:
Max. External Diameter 6.9"
Stroke Length 10"
Work Head Swivel 30°
Minimum Bore Diameter .40"
Maximum Bore, Chucker 4"
Maximum Bore, Shoe Centerless 5.5"
Maximum Length of Bore 3"
X-Axis Travel 2"
X-Axis Resolution .000004"
Z-Axis Travel 10"
Z-Axis Resolution .000016"
Work Speed, Shoe Centerless 1,850 RPM
Shoe Centerless Drive Motor 1.5 HP
Work Speed, Chucker 4,000 RPM
Chucker Drive Motor 1 HP
Maximum Spindle Speed 120,000 RPM
Machine Weight 13,900 Lbs



Equipped With:

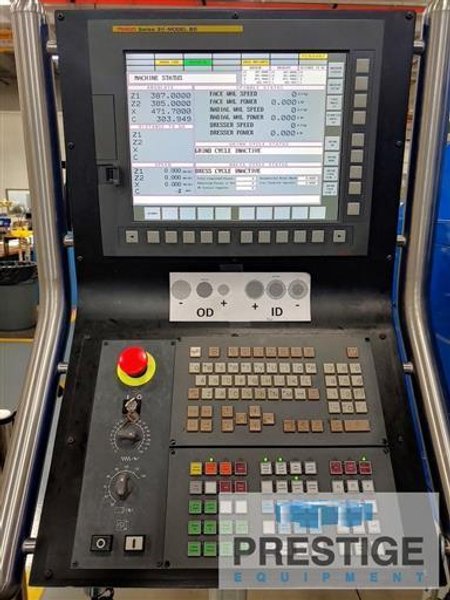

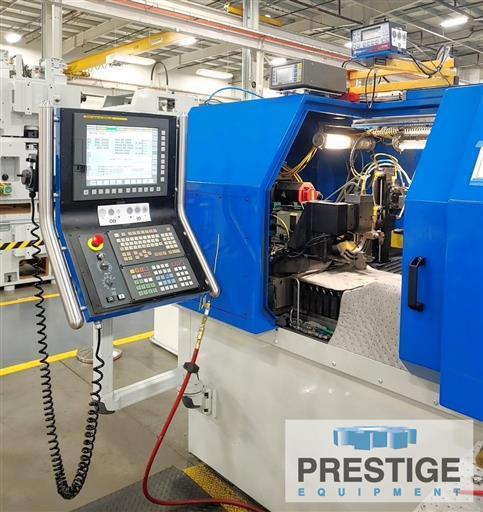

Fanuc 31i-B5 CNC Control
In-Process Gauge System
Poka-Yolk Part Load System
CBN Face Grinding Wheel
CBN Bore Grinding Wheel
CBN OD Grinding Wheel
CBN ID Grinding Wheel
Hi-Frequency Rotary Diamond Dresser
Shoe Bodies, 1 Set of Shoe Pads

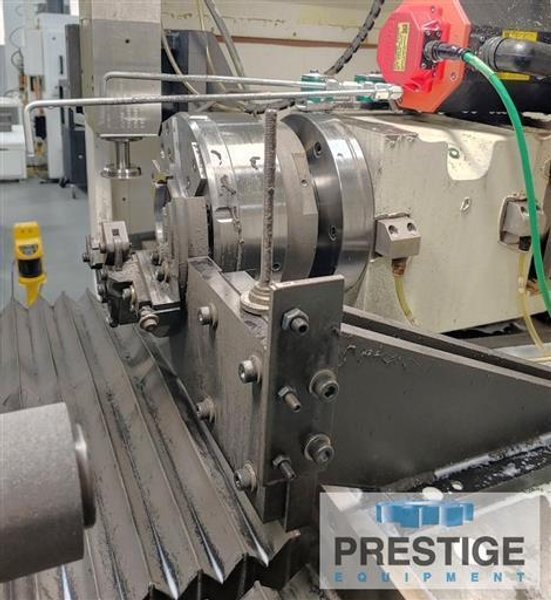

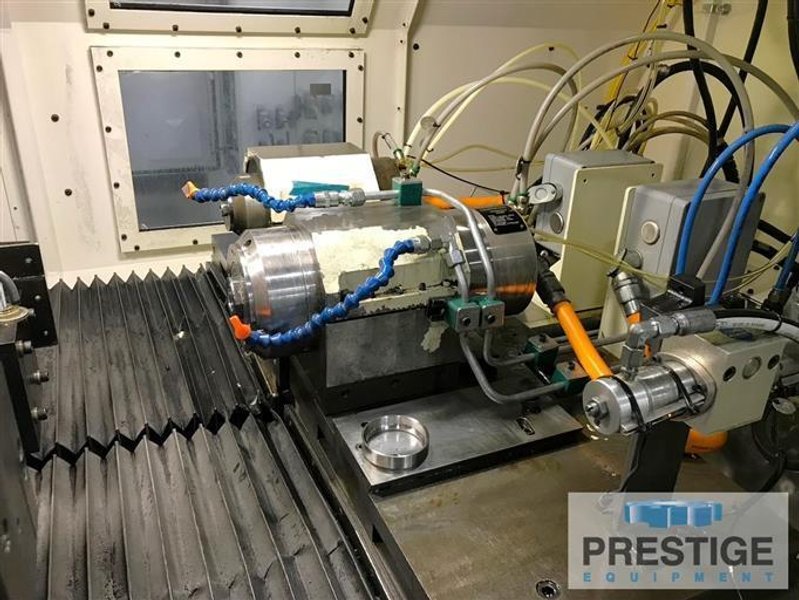

Shoe Centerless Fixture
