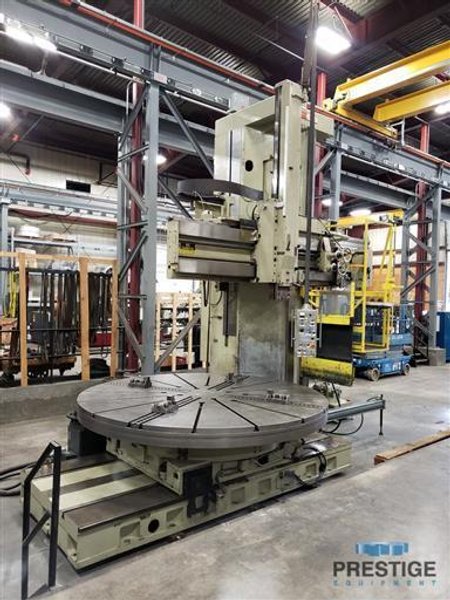

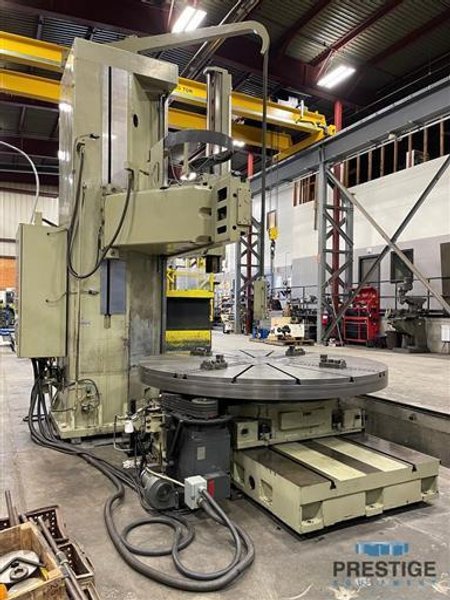

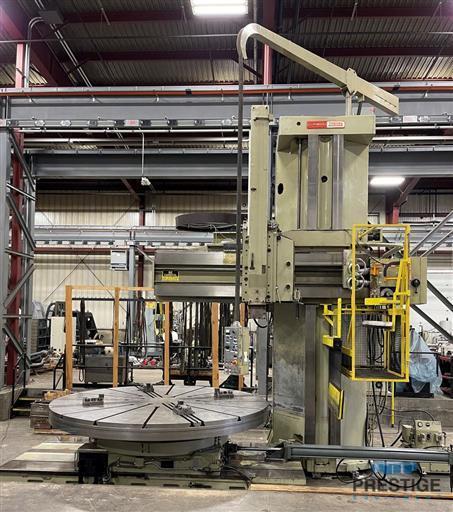

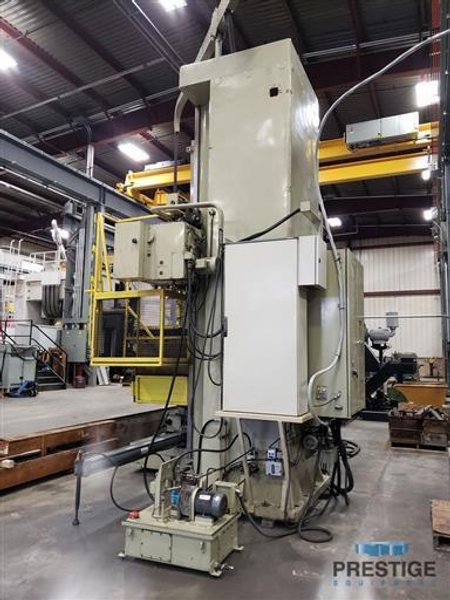

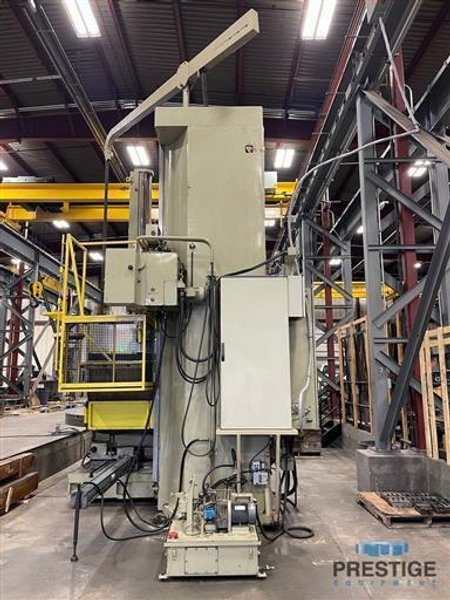

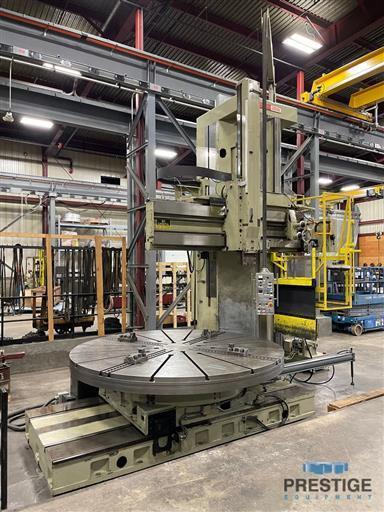

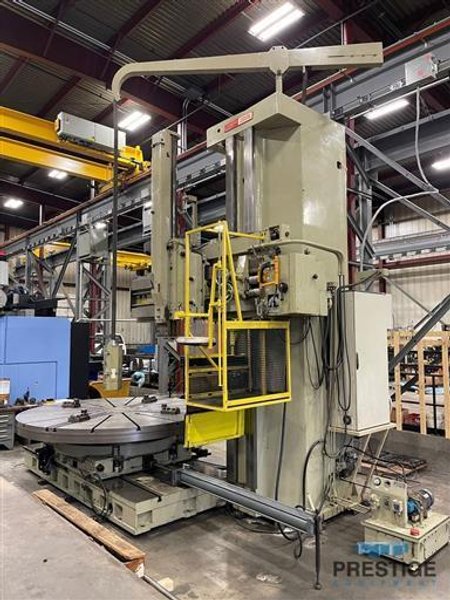

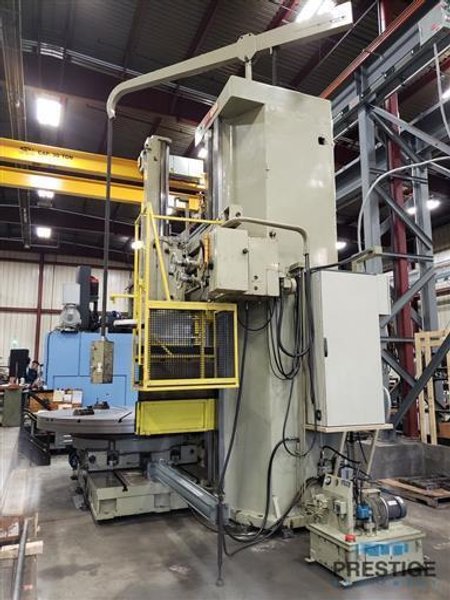

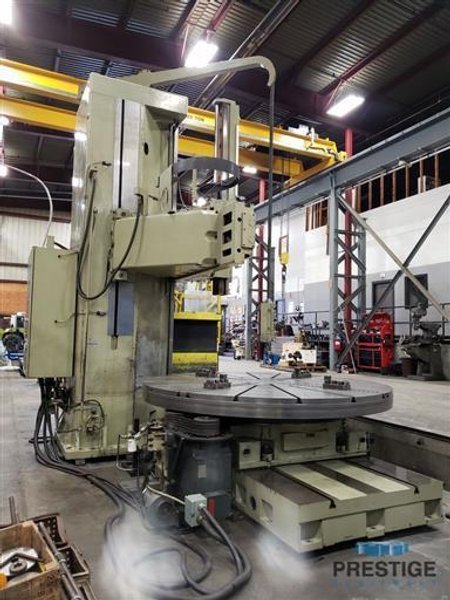

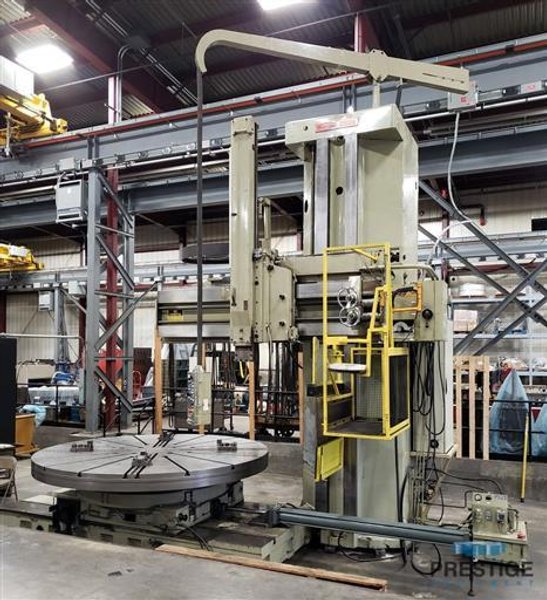

Toshiba TSS30/55A 118" /216" Openside Vertical Boring Mill

CAPACITY:
Table Diameter 118"
Maximum Swing 216.5"
Maximum Swing For Center Turn 157"
Maximum Height Under Rail 109.6"
Height Under Tool 102.4"
Cross Rail Travel 53"
Ram Stroke 49"
Ram Tilt (+/-) +/- 30 Degrees
Table Speeds (16) 1.25-80 RPM
Feeds .0008-.8 IPR
Threading Range:
Threading Range , Metric 1-16 mm
Machine Footprint 335" x 260"
Machine Height 268"
Machine Net Weight 75,000 lbs



Equipped With:

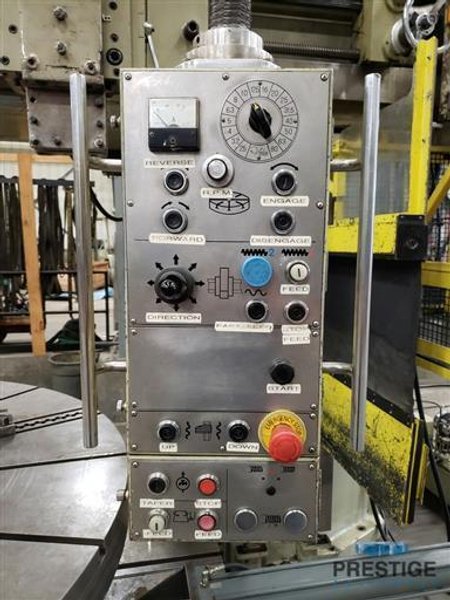

Full pendant Control w/ Joystick
118" Face Plate Type Chuck with 4-Top Jaws
Threading
Digital Readout
Operator Platform
Variable Speed Table
Table on Infeed Slide for extended travel
Hydraulic Table Positioning
85 HP (63 KW) Main Motor


Note: Inspect Under Power!
Offer includes Disassembly and Loading to Trucks!
