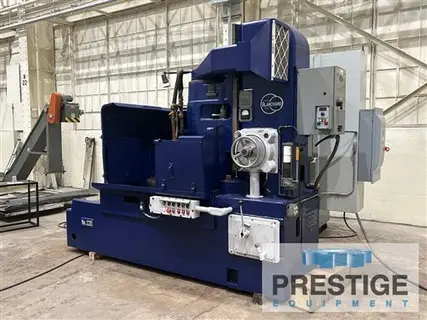

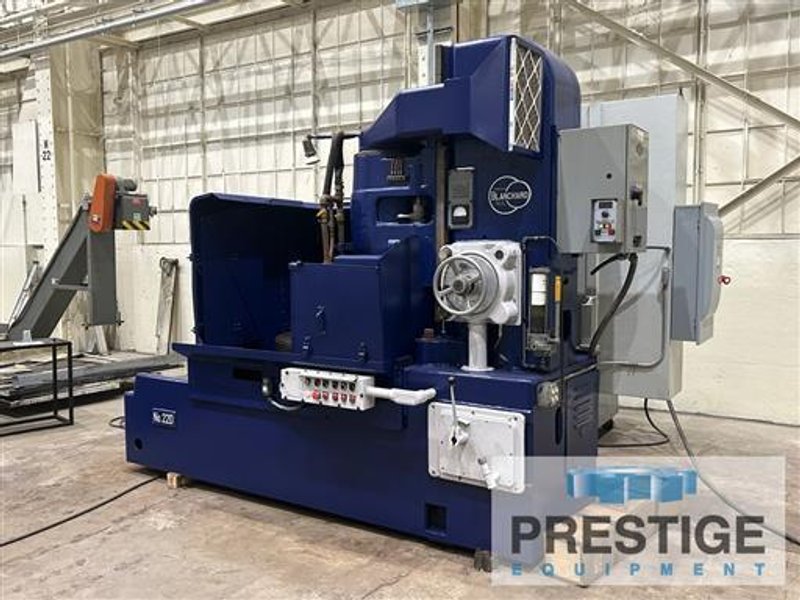

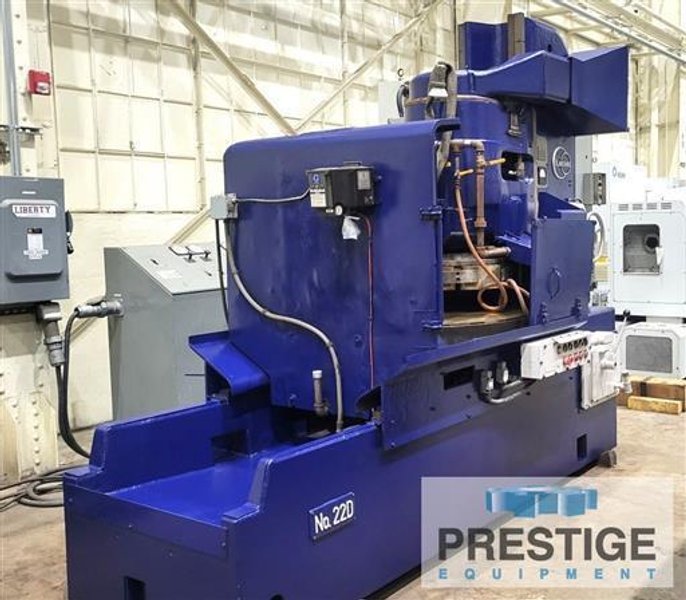

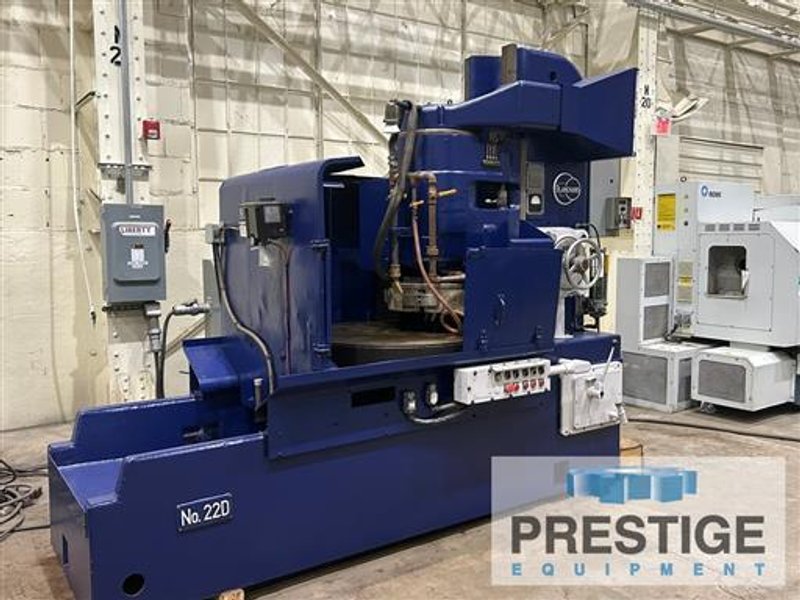

Grinders Surface Rotary Vertical Spindle
Brand
Category
Type
Model
22D-42
Stock #
43174
Year
Not specified
Condition
Not specified
Location
Not specified
|
CAPACITIES:

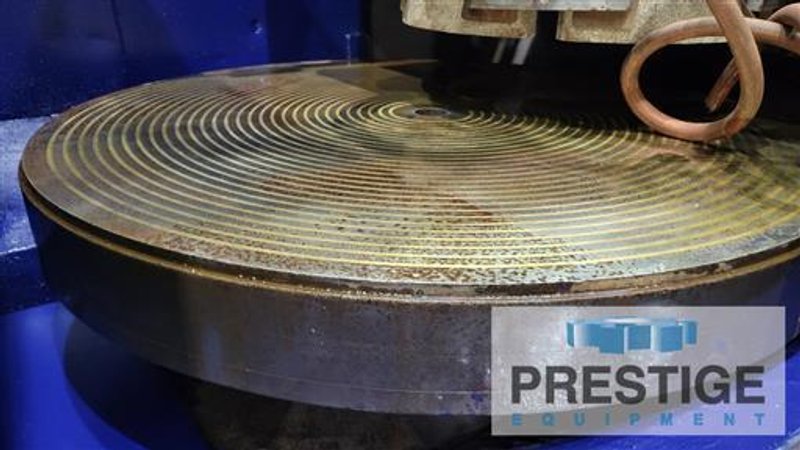

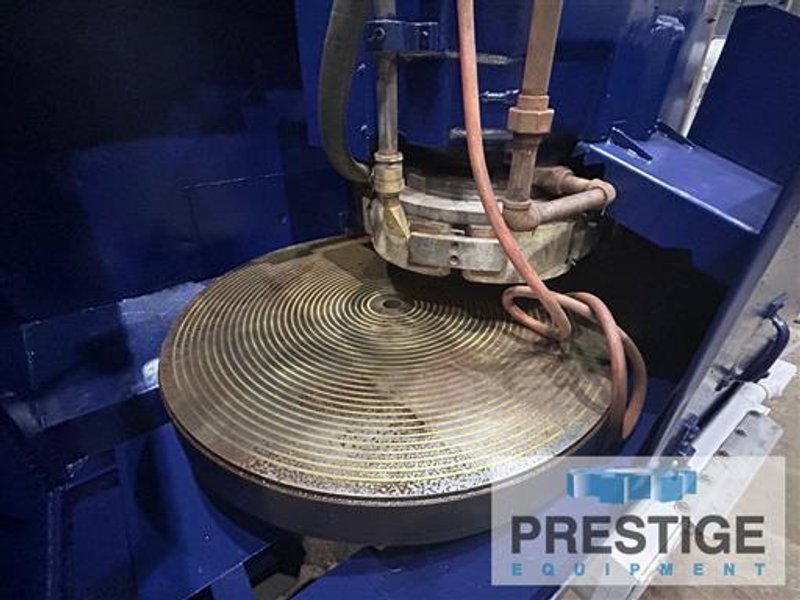

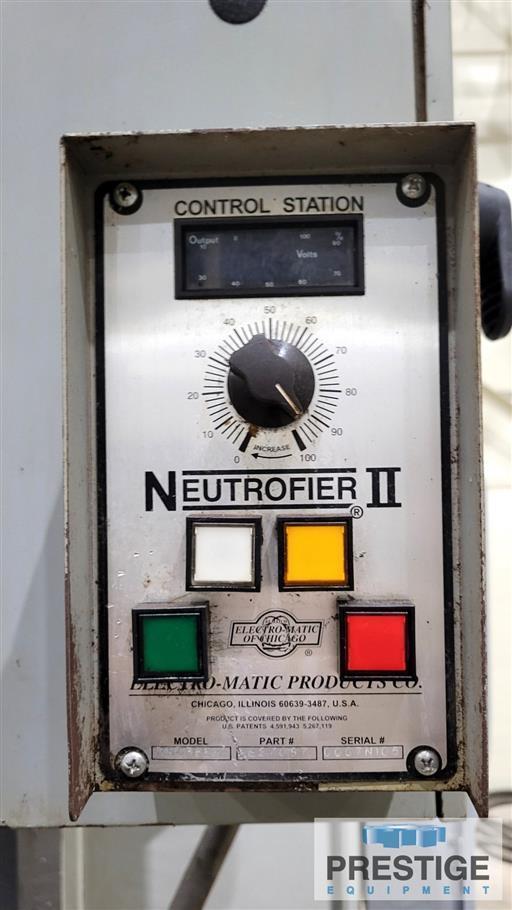

Swing Inside Splash Guards 48" Diameter of Magnetic Chuck 42" Chuck Center Hole Diameter............. 2" 2" Height Under New Wheel 18" Diameter of Wheel Chuck 22" Main Motor 40 HP Grinding Spindle Speed 720 RPM Chuck Rotation Speeds 6 to 33 RPM Automatic Downfeeds .004 - 0.080 IPM Floor Space 142" x 100" Machine Height 109" Approximate Machine Weight 14,550 Lbs. Equipped With: 42" Magnetic Chuck Neutrofier II Magnetic Chuck Control 22" Segmented Wheel Chuck 40 HP Main Motor 440/3/60 Electrics |
