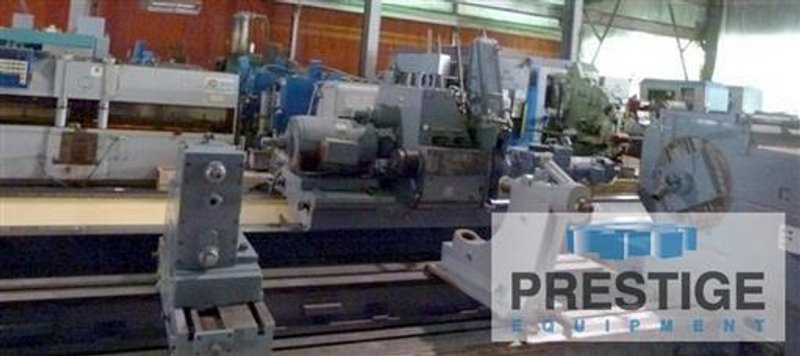

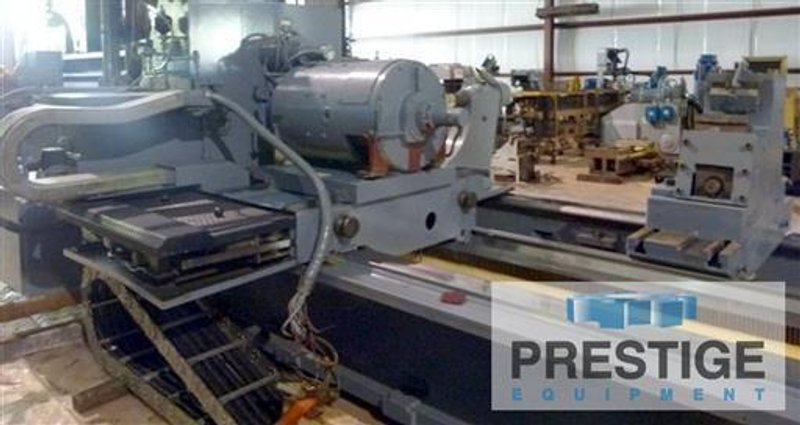

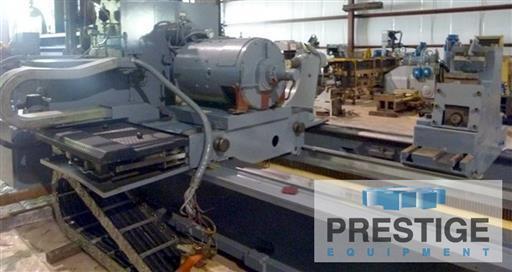

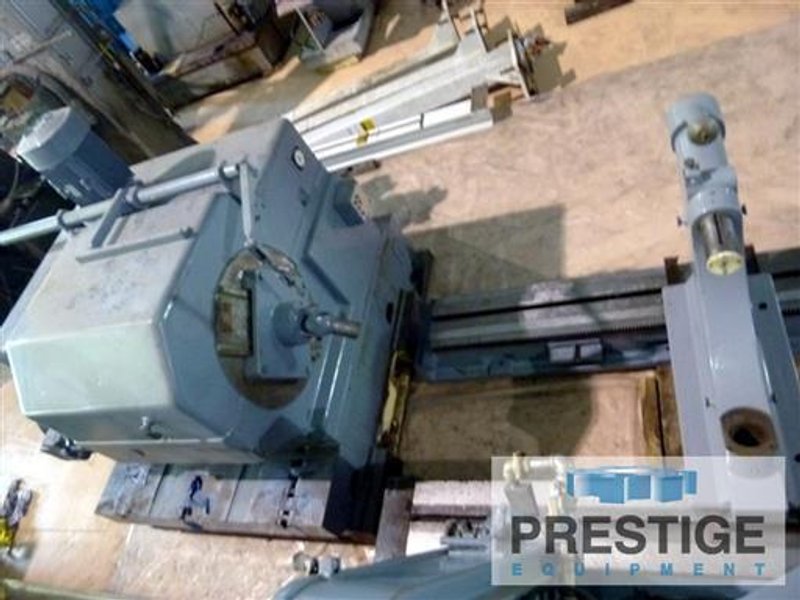

Grinders Roll

Specifications:
Maximum Swing, Altered Foundation 98"
Maximum Swing, Standard Foundation 78"
DISTANCE BETWEEN CENTERS 472.40"
MAXIMUM WORKPIECE WEIGHT 176000 lbs
WHEEL OD MAXIMUM 32.00"
WHEEL WIDTH MAXIMUM 4.00"
WHEEL ID 12.00"
WHEELHEAD ANGLE 90 DEGREES TO WORKPIECE AXIS
WHEEL SPINDLE POWER 27 - 59/59 HP
WHEEL DRESSER BED MOUNTED ROLL
WHEELHEAD TRAVEL 25.60"
TABLE TRAVEL (WHEEL HEAD TRAVEL) 488.40"
WHEEL SPINDLE SPEED 450 - 1800 RPM Infinitely Variable
WORKHEAD POWER 1.9 - 59/59 HP 1.4 - 44/44 Kw.
WORKHEAD SPEED .5 - 300 RPM
WAYS CAST IRON FULL HYDROSTATIC
SLUDGE CONVEYOR NONE
COOLANT YES
FILTRATION SYSTEM COMBINATION 2 CARTRIDGE AND FABRIC FILTER

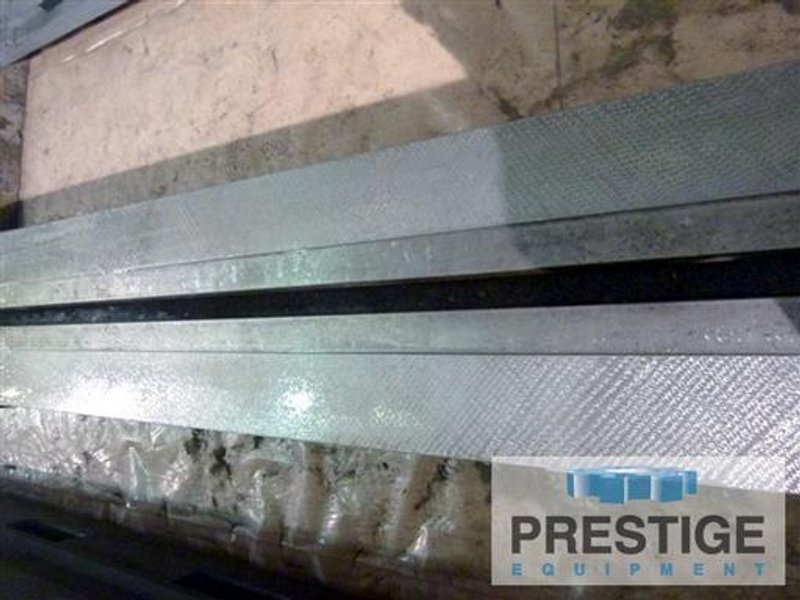

WAY COVERS METAL TELESCOPIC
POWER 3PHASE 200 - 500 Volts, 50-60 Hz



Equipped With:

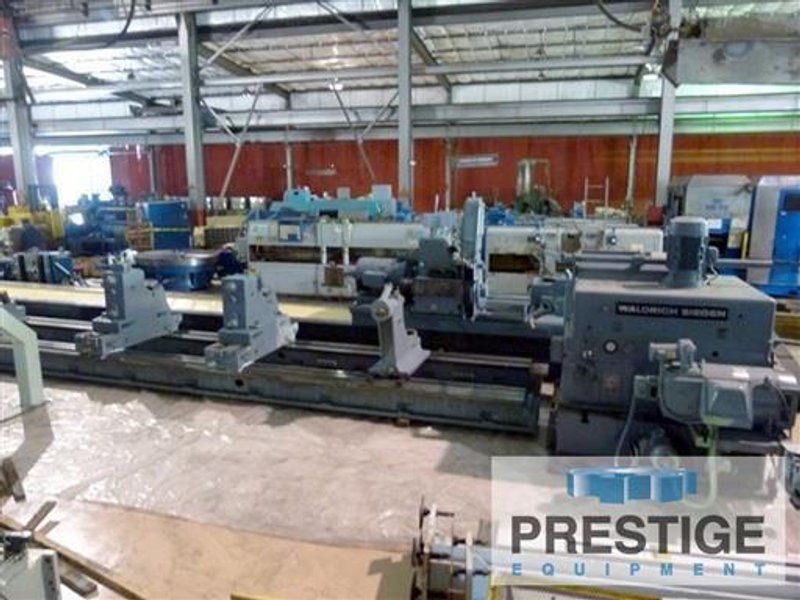

WALDRICH SIEGEN 4" WIDTH ROLL BELT
GRINDING ATTACHMENT, ROLL CAMBERING
CROWNING, RANGE OF TABLE SETTING FOR CAMBER
CONVEX: .0005 - .292 MM, RANGE OF TABLE SETTING
FOR CAMBER / CONVEX / AND CONCAVE .0004 - .1024
mm, RANGE OF TABLE SETTING FOR CAMBER BASED ON

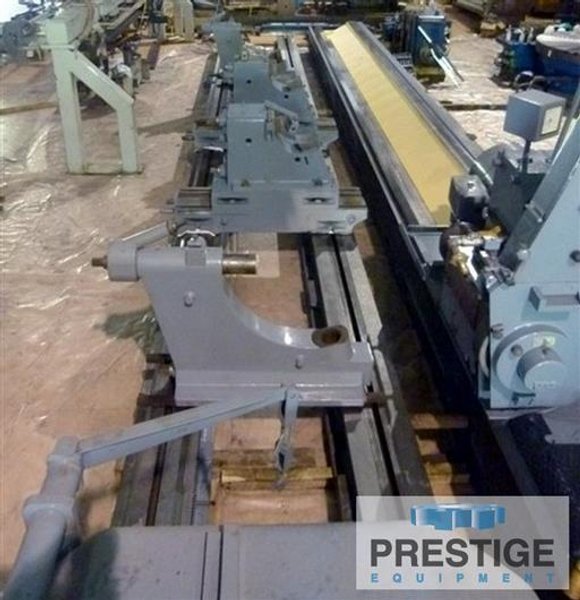

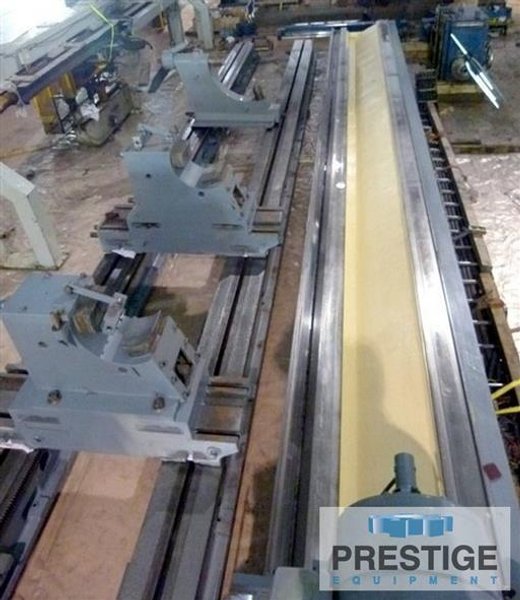

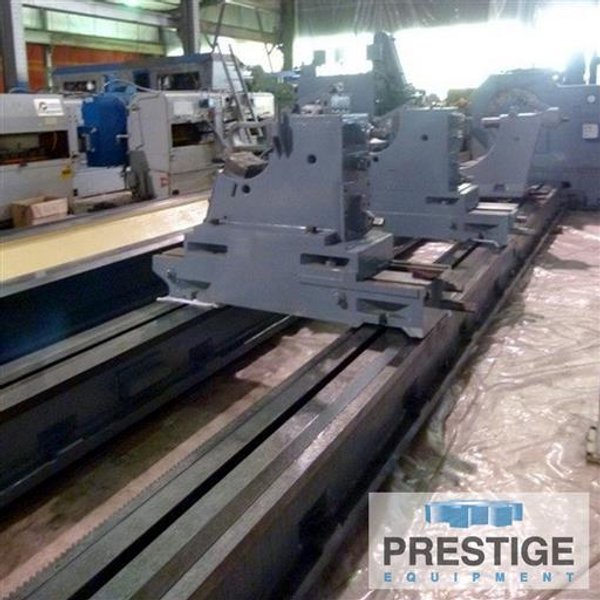

RADIUS: .0039 - .1496, 2 - 2 JAW STEADY RESTS
DIAMETER RANGE 7.88 - 20"
CROSS ADJUSTMENT OF STEADY RESTS 23.6"
MULTIPLE WHEEL MOUNTS AND VARIOUS STEADY REST
SPACER PLATES FOR DIFFERENT DIAMETERS.
MACHINE DIMENSIONS (LxWxH): 732" x 219" x 91"
WEIGHT: 134000 lbs. 60800 Kg.
CONDITION: EXCELLENT
* The larger diameter capacity is possible by simply altering the foundation
height of the workpiece bed sections.
