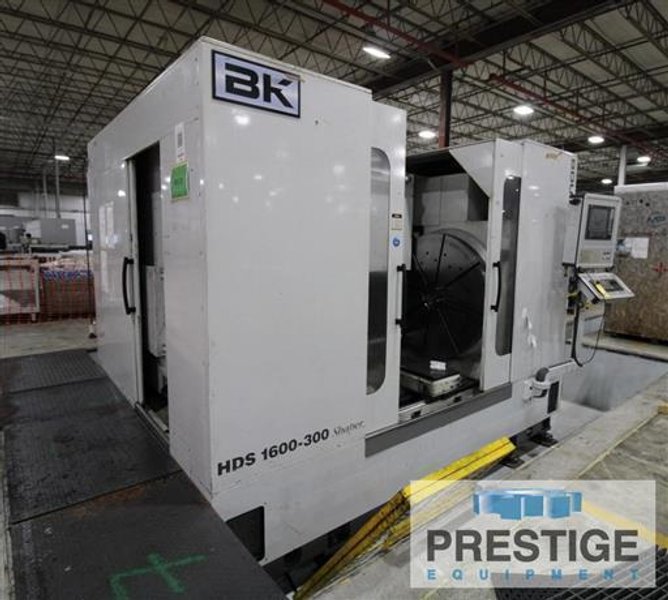

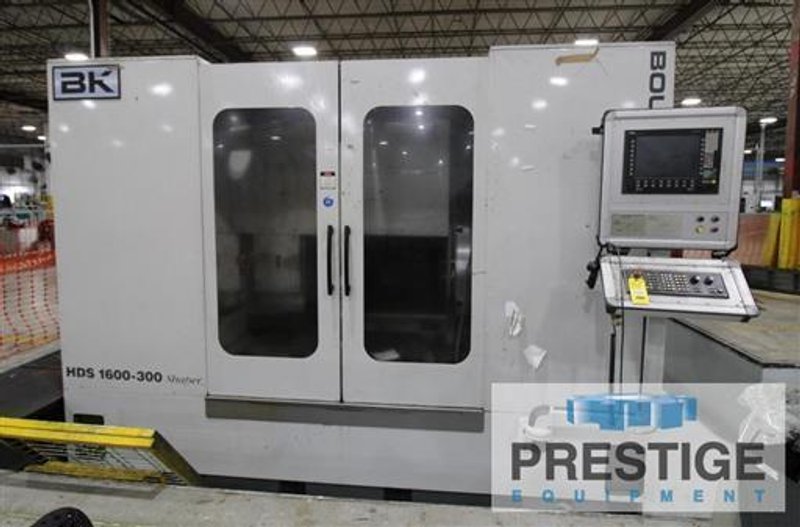

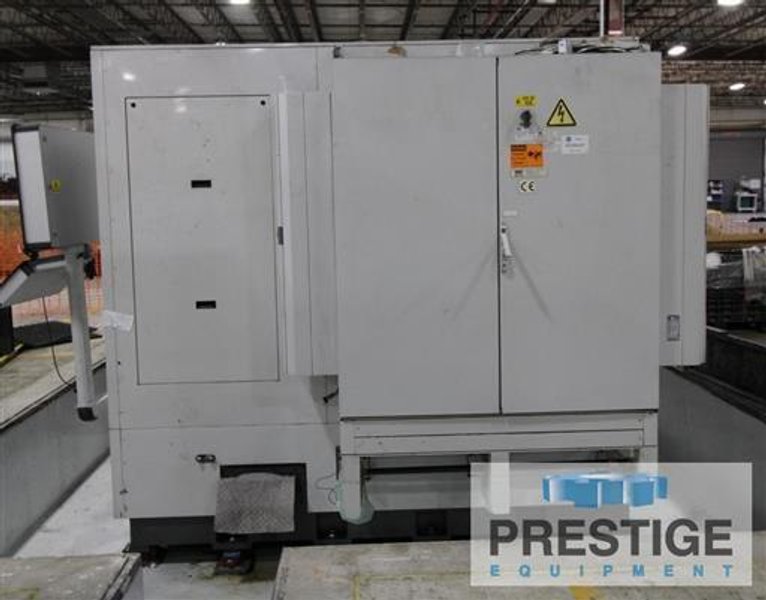

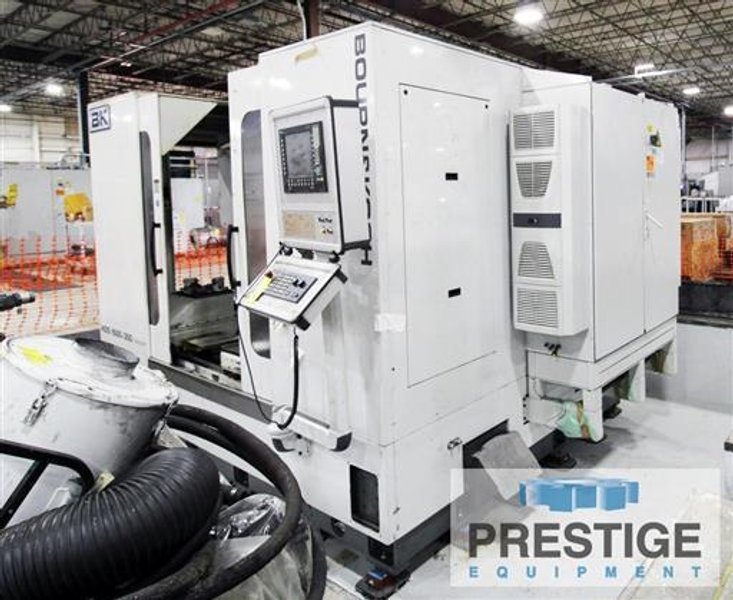

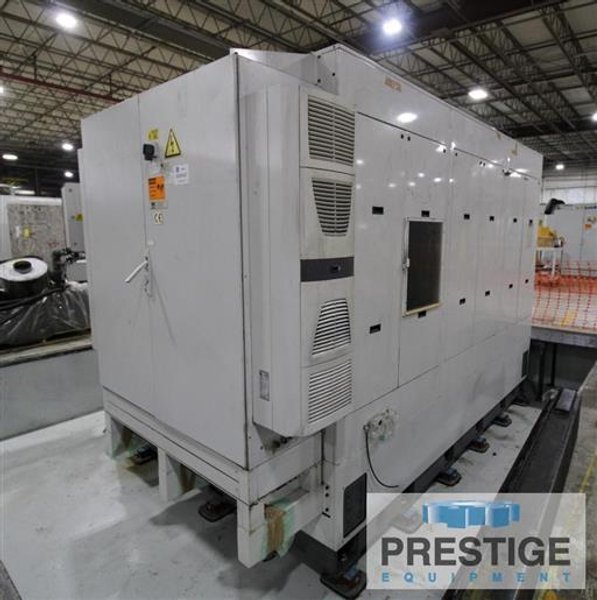

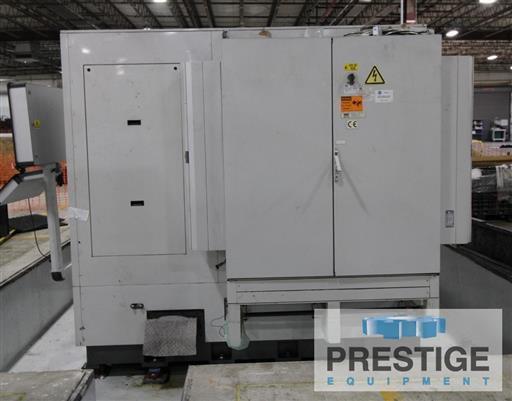

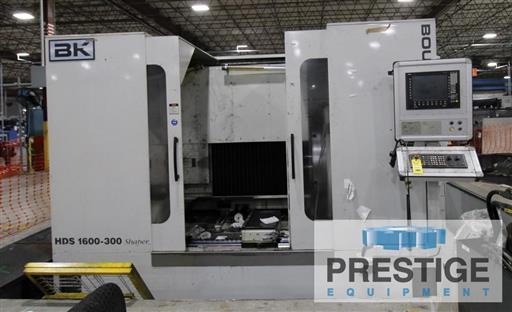

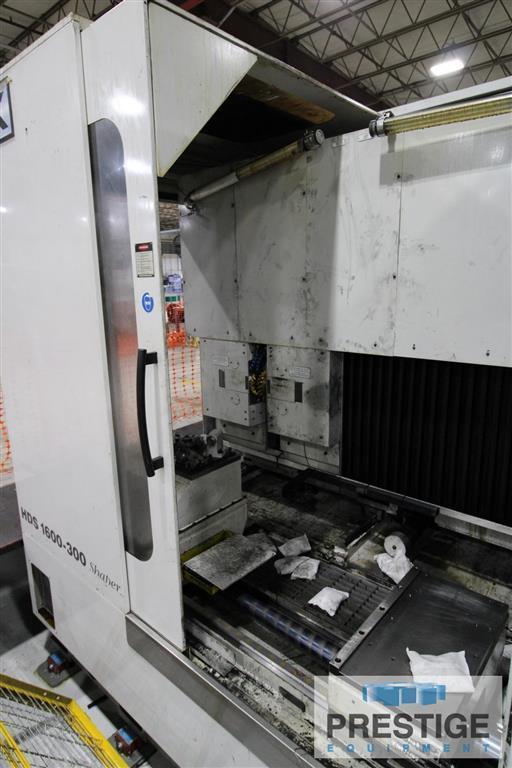

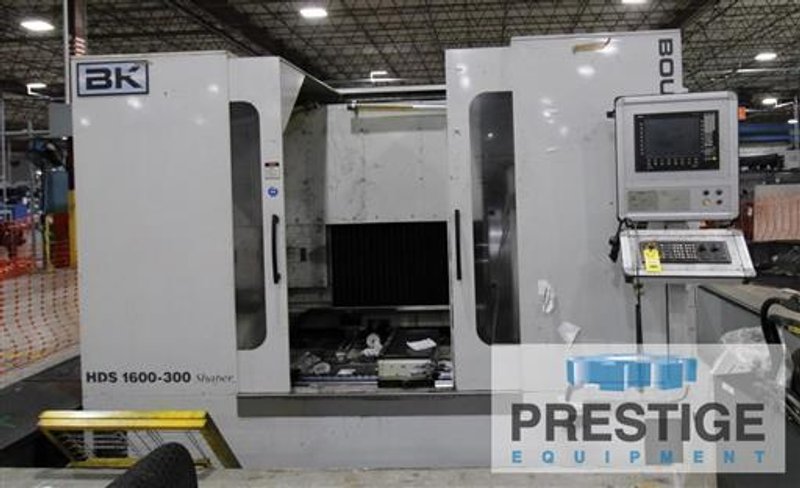

Gear Shapers CNC

CAPACITY:
Nominal Pitch Diameter, External 62.99"
Maximum Face Width, w/ Both Heads 23.62"
Maximum Face Width, Single Face 11.81"
Maximum Diametral Pitch, Spur 2 DP
Maximum Diametral Pitch, Helical 2 DP
Minimum Gear Pitch 8 DP
Maximum Helix Angle 40 Degrees

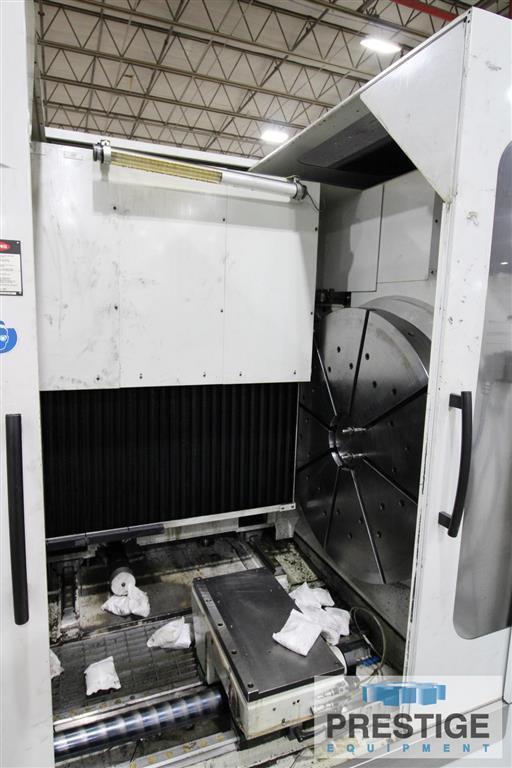

Worktable Diameter 44.09"
Worktable Bore 9.975"
Work Spindle Speeds 1-25 RPM
X-Axis Travel 34"
Z-Axis Travel 13"
Cutter Spindle Stroking Range 12-150 SPM
Cutter Spindle Diameter 4.72"
Cutter Pitch Diameter, Max 8.26"
Cutter Pitch Diameter, Min 5.9"
Cutter Fit, Max 3.54"
Cutter Fit, Min 2.755"
Minimum Center Distance 4.0"
Overall Dimensions 191" L x 144" W x 132" H
Machine Weight 120,000 Lbs.



Equipped With:

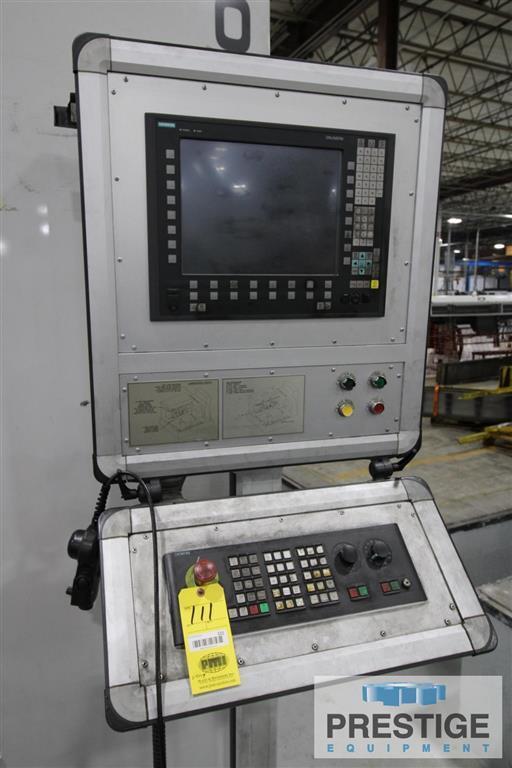

Siemens 9-Axis CNC Control
Inch/Metric Operation
CNC Crowning and Taper For External Gears

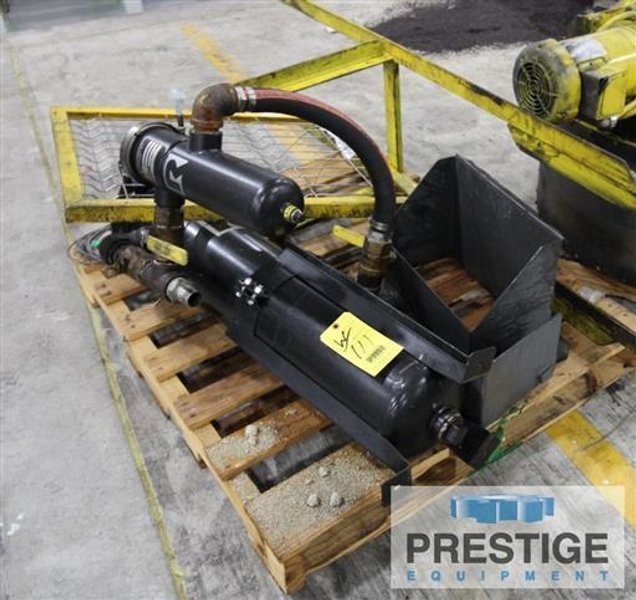

Lubrication System
Coolant System

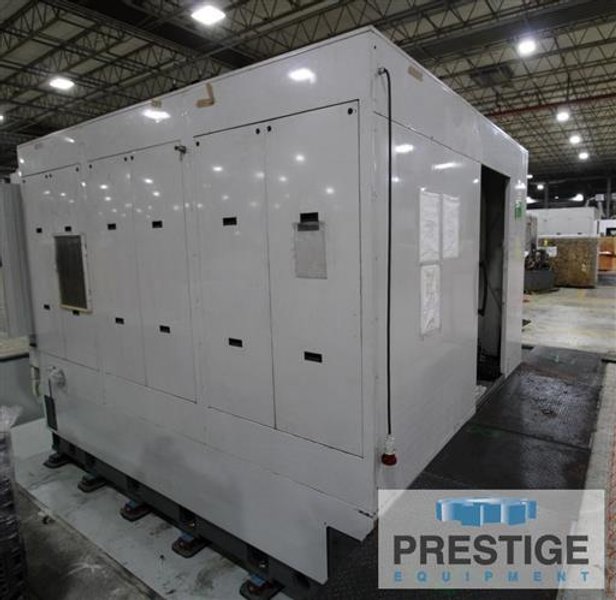

Full Enclosure
Mist Collector
