Midwest Automation Counter Top Saw CS5230, 16" Blade, Routers, 5 HP

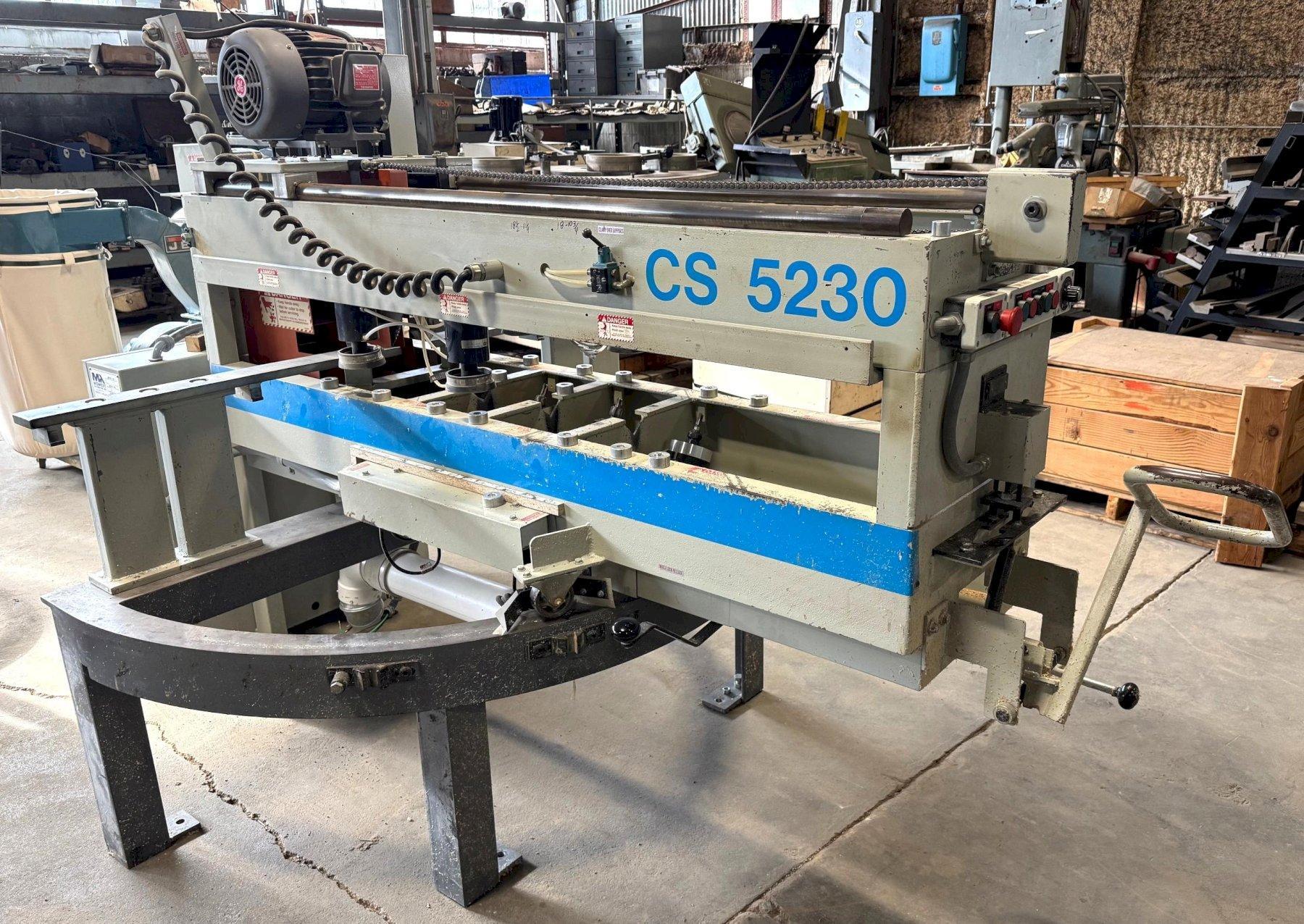

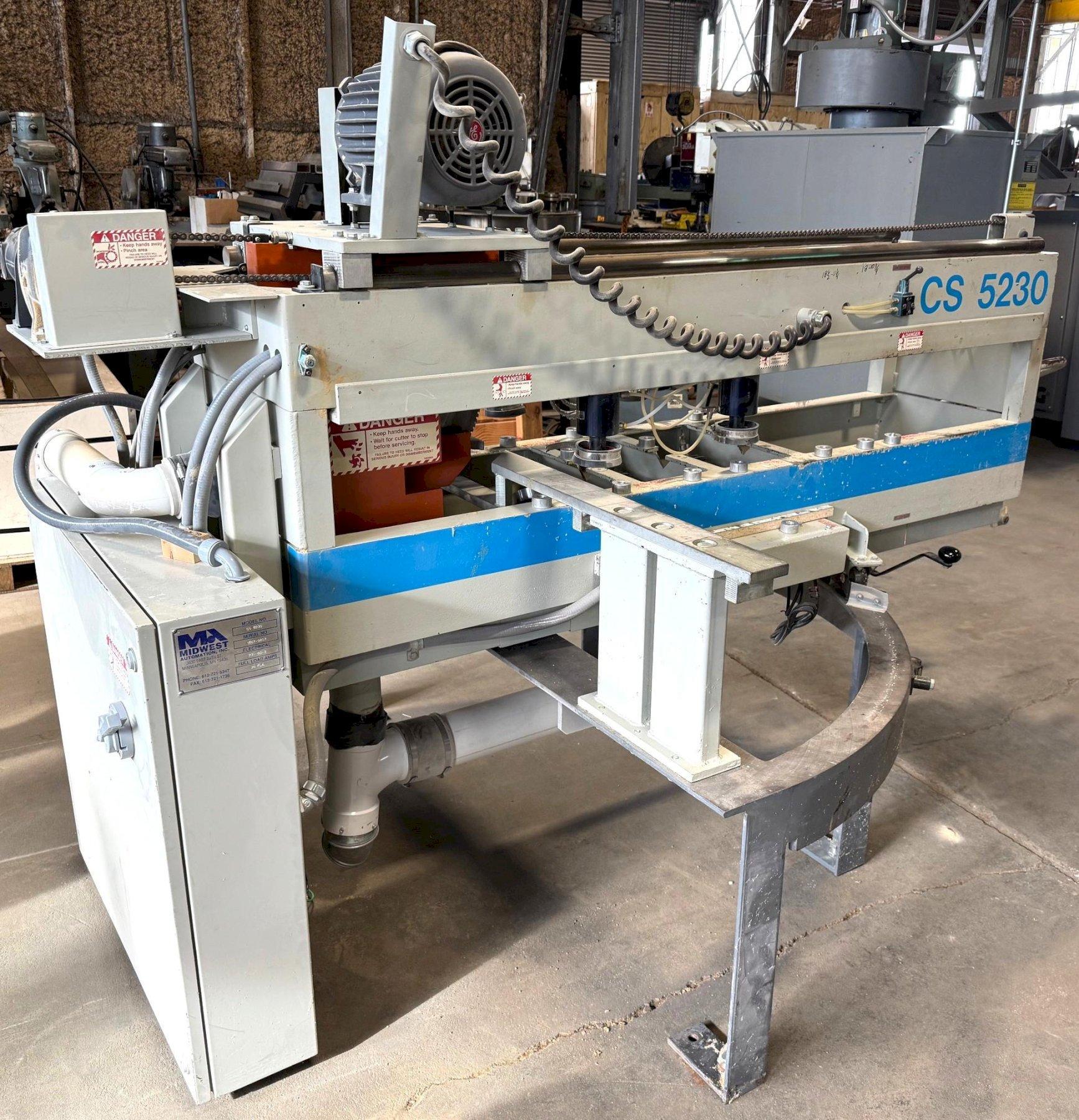

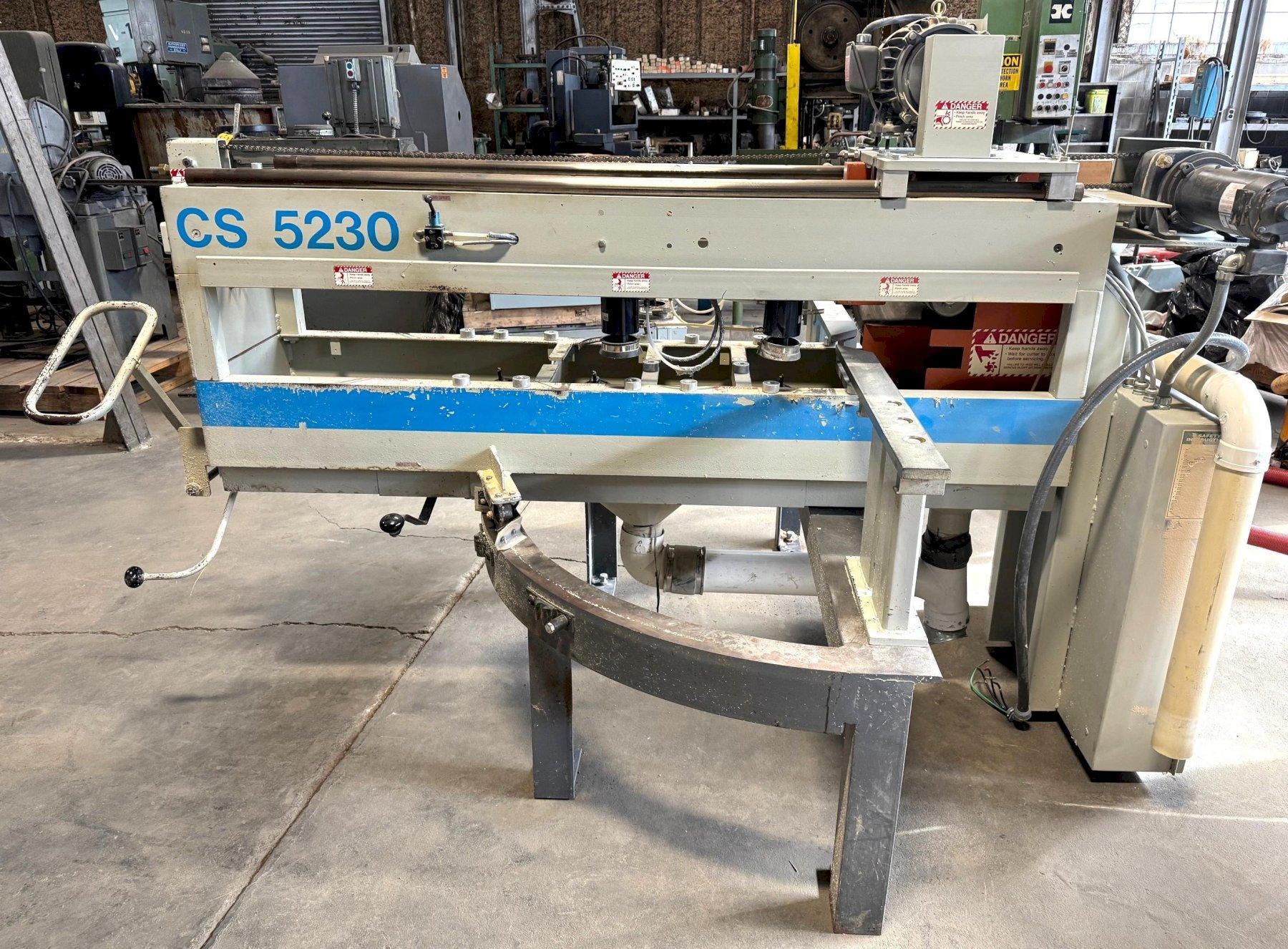

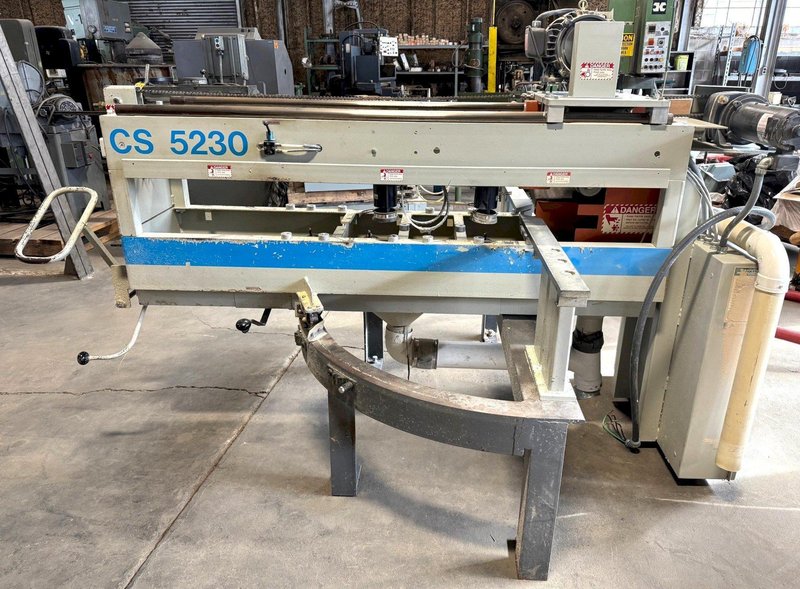

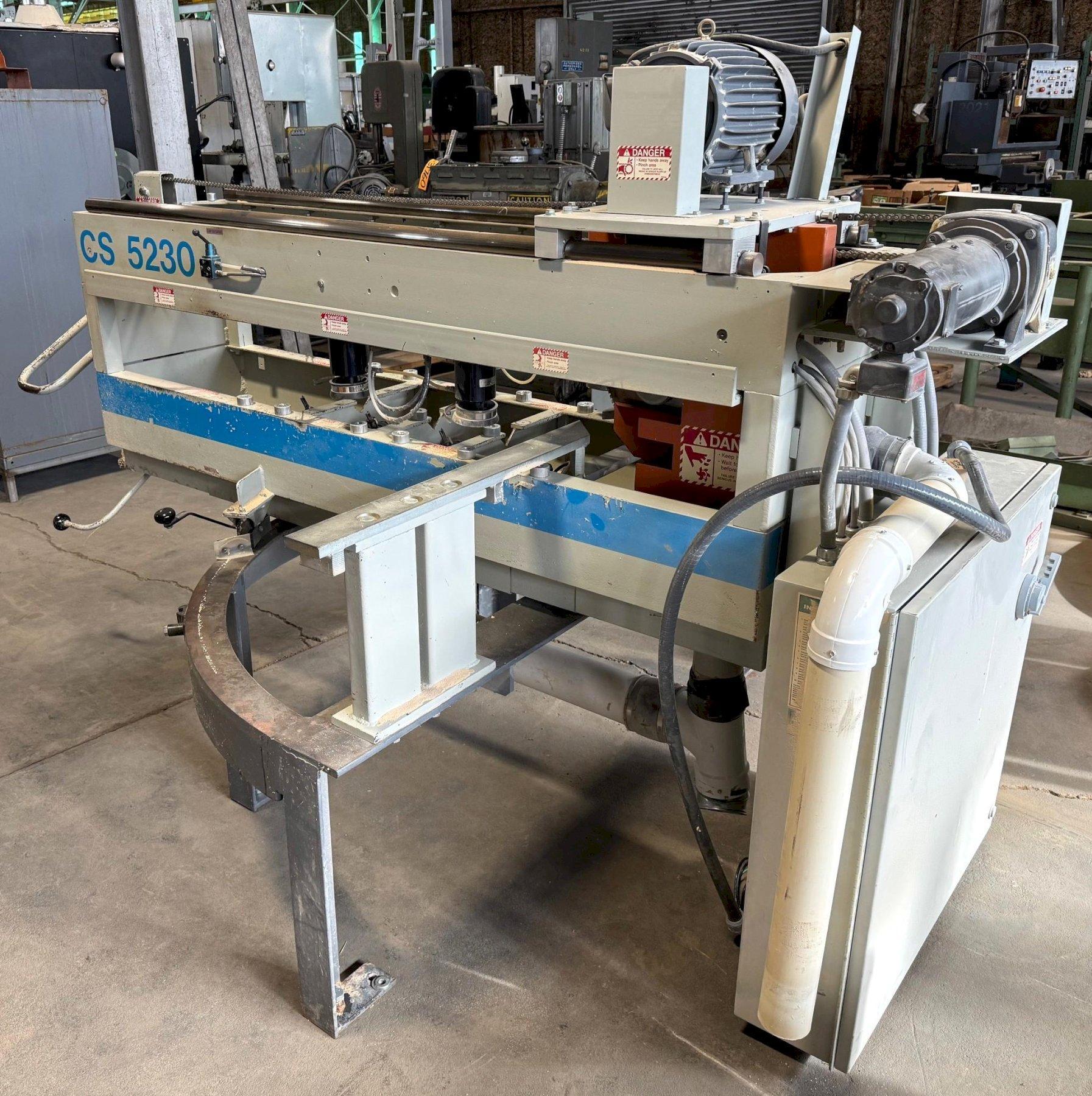

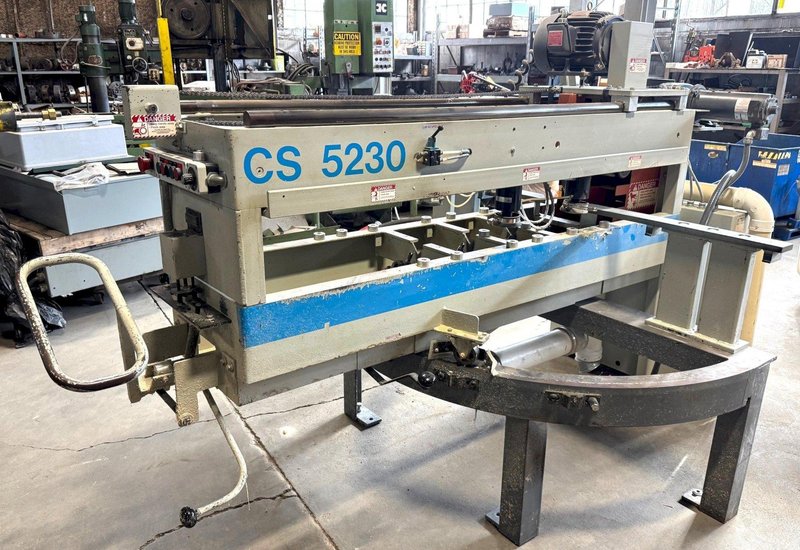

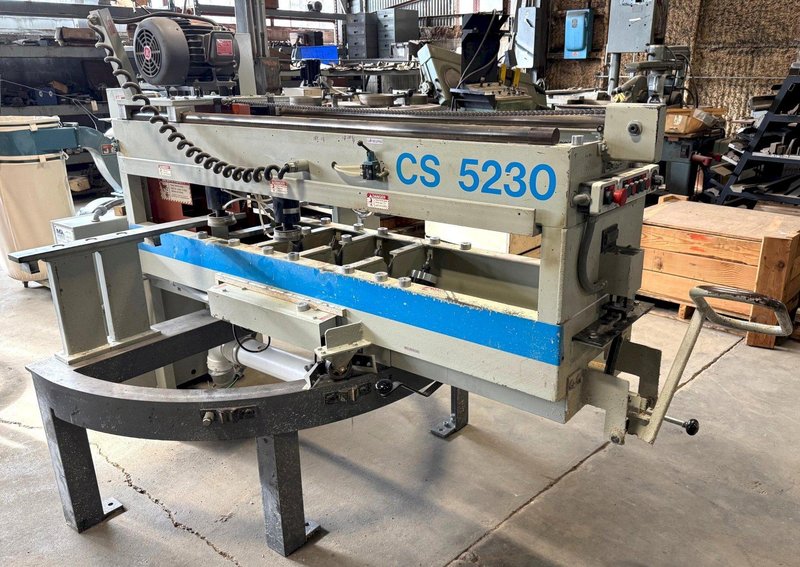

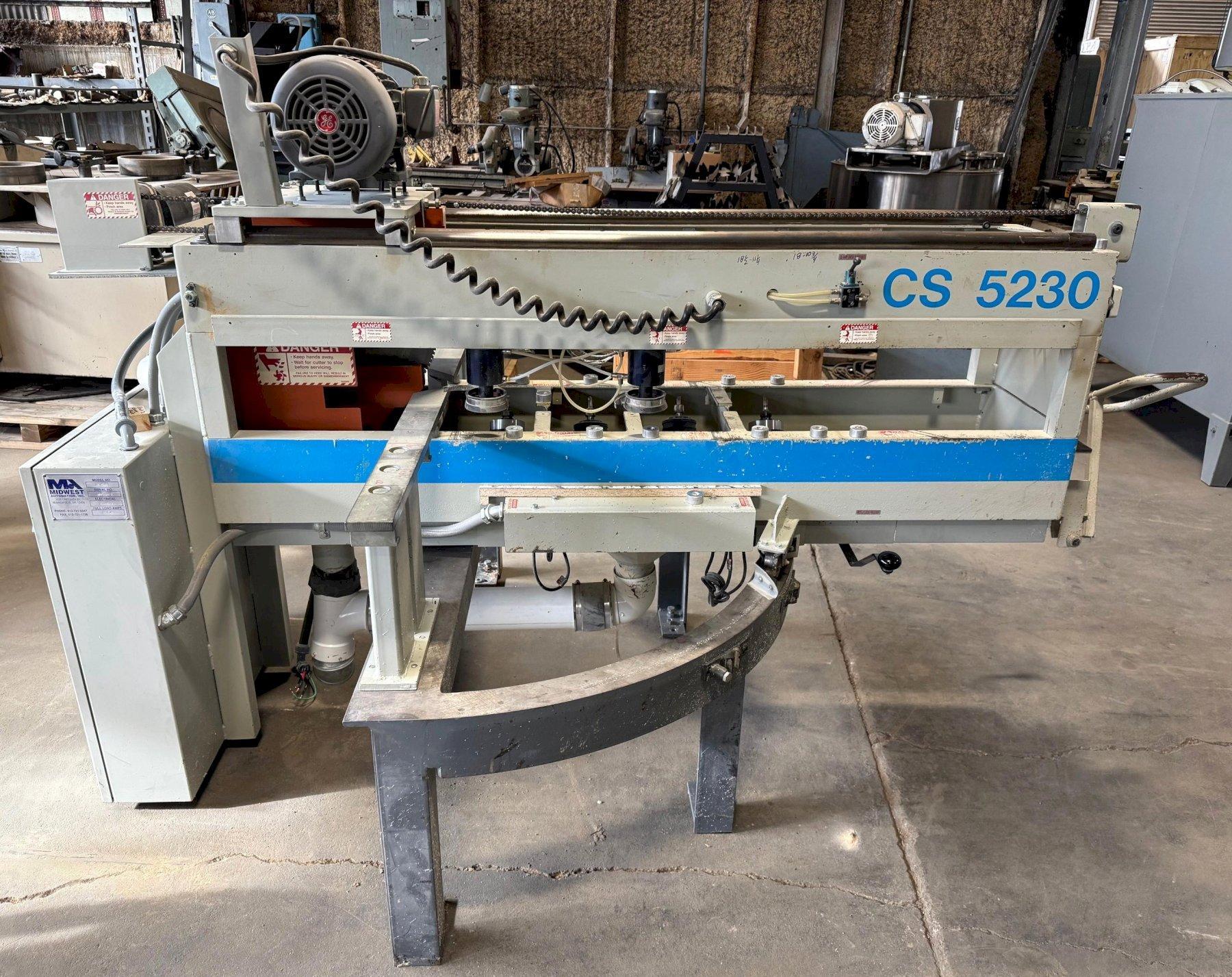

MIDWEST AUTOMATION COUNTER TOP SAW

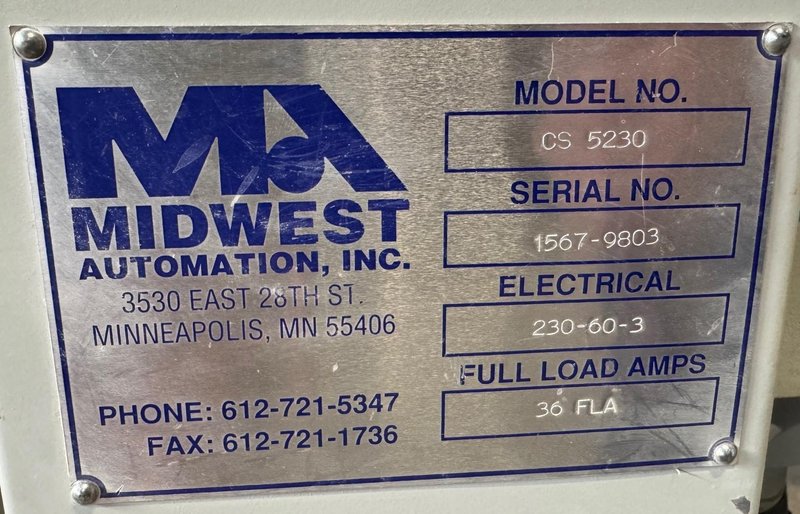

MODEL: CS5230
SERIAL NUMBER: 1567-9803

GENERAL SPECIFICATIONS

Maximum Cutting Length @ 2" Thick, 90 Degrees: 42"
                                                             22-1/2 Degrees: 38"
                                                             45 Degrees: 27-1/2"
Maximum Cutting Height w/Builddown: 5-5/8"
Maximum Cutting Height w/o Builddown: 4-7/8"
Maximum Build Down Thickness: 3/4"
Maximum Backsplash Height From Bottom Of Deck: 4-7/8"
Minimum Board Length @ 90 Degrees: 12"
Miter Cut Fixed Positions: 90 Degrees, 45 Degrees R & L, 22-1/2 Degrees R & L
Saw Blade Diameter: 16"
Saw Blade Kerf: .187"
Saw Blade Speed: 3400 RPM
Saw Motor: 5 HP
Saw Arbor Diameter: 1"
Drive Motor: 1/2 HP
Feed Speed: 0 - 45 FPM
Return Speed: 45 FPM
Mortising System
 Number Of Stations: 4
 Router Motors: 1-1/2 HP
 Router Speed: 23,000 RPM
Router Bit Diameter: 1/2"
Router Bit Length: 2-1/4"
Hold Down Clamps Per Side: 2
Dust Collection Diameter: 4"
External Air Requirement @ 80 PSI: 1 CFM

Service Manual

Approximate Weight: 2000 Lbs.

F.O.B. Cincinnati, Ohio

ALL SPECIFICATIONS SUBJECT TO VERIFICATION BY PURCHASER
