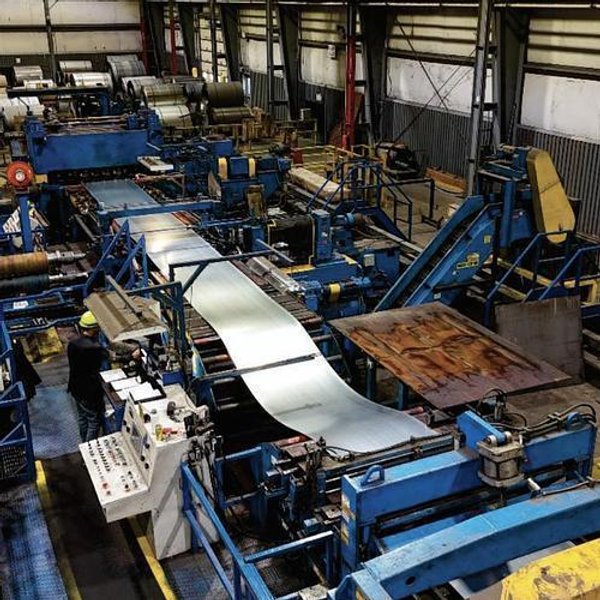

74" X .135" X 80,000 LBS. SMS/PRO-ECO MULTI-BLANKING CUT-TO-LENGTH
Brand
Not specified
Category
Type
Model
Not specified
Stock #
117189
Year
Not specified
Condition
Not specified
Location
Not specified
|
SPECIFICATIONS:
MANUFACTURER: SMS/PRO-ECO
MATERIAL: CR, GALVANIZED
MAXIMUM COIL WIDTH: 74"
MINIMUM COIL WIDTH: 18"
MAXIMUM COIL O.D.: 84"
MINIMUM COIL O.D.: 40"
MAXIMUM COIL WEIGHT: 80,000 LBS.
COIL I.D.: 20" / 24"
THICKNESS RANGE: .010" - .135"
MAXIMUM SHEAR STRENGTH: 80,000 PSI @ .135" / 120,000 PSI @ .090"
YIELD STRENGTH RANGE: 30,000 - 120,000 PSI
LINE DIRECTION: LEFT TO RIGHT
SLITTING / PROCESSING:
SLITTER ARBOR DIAMETER: 9"
SLITTER KNIFE DIAMETER: 11.5" - 13.5"
CUT CHART: 11 CUTS @ .1345" / 31 CUTS @ .010" @ 60,000 SHEAR STRENGTH
CUT-TO-LENGTH:
MAXIMUM CUT LENGTH: 240"
MINIMUM CUT LENGTH: 16"
STACK WEIGHT CAPACITY: 1,000 - 20,000 LBS.
MAXIMUM STACK HEIGHT: 24" WITH DUNNAGE
SPEED:
LINE SPEED: 200 FPM
EQUIPMENT INCLUDED:
FLYING SHEAR
SCRAP CHOPPERS
|
