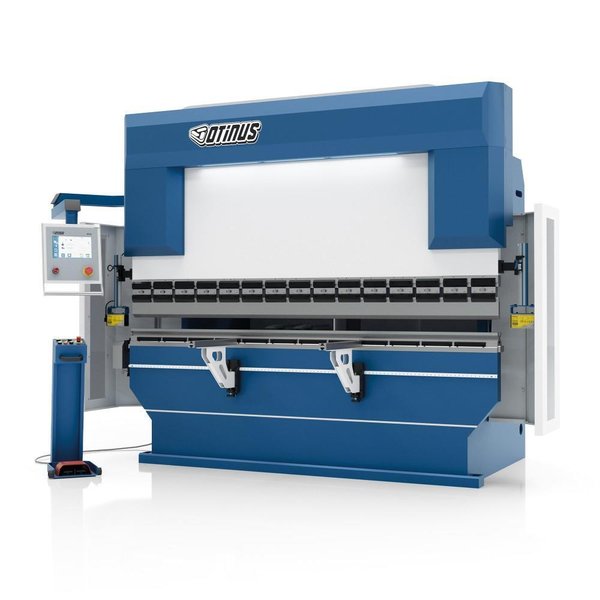

NEW 41 TON X 5' OTINUS MODEL PBO-1604-OT41 CNC PRESS BRAKE

NEW 41 TON X 5' OTINUS MODEL PBO-1604-OT41 CNC PRESS BRAKE

Name: NEW 41 TON X 5' OTINUS MODEL PBO-1604-OT41 CNC PRESS BRAKE
Brand: OTINUS
SKU: 30199
Availability: PreOrder

Brand

OTINUS

Location

Illinois

REQUEST FINANCING

Specifications
Files & Videos

NEW 41 TON X 5' OTINUS MODEL PBO-1604-OT41 CNC PRESS BRAKE

Specifications

Maximum bending thickness (S235): up to 0.118 in
Nominal bending force: 41 T
Maximum bending length: 5.2 ft
Throat depth: 7.9 in
Maximum stroke: 3.9 in
Daylight: 11.8 in
Distance between side frames: 3.9 ft
Backgauge travel distance: 600 mm
Motor power output: 2 ft
Length: 5.9 ft
Width: 3.9 ft
Height: 6.1 ft
Weight: 5071 lb

Tools

Front supports: 2 pcs.
Backgauge drive (travel along the X-axis): servo motor
Ram drive (travel along the Y-axis): servo motor
Backgauge fingers positioning (R-axis): manual
Punch quick change tooling system form AMADA

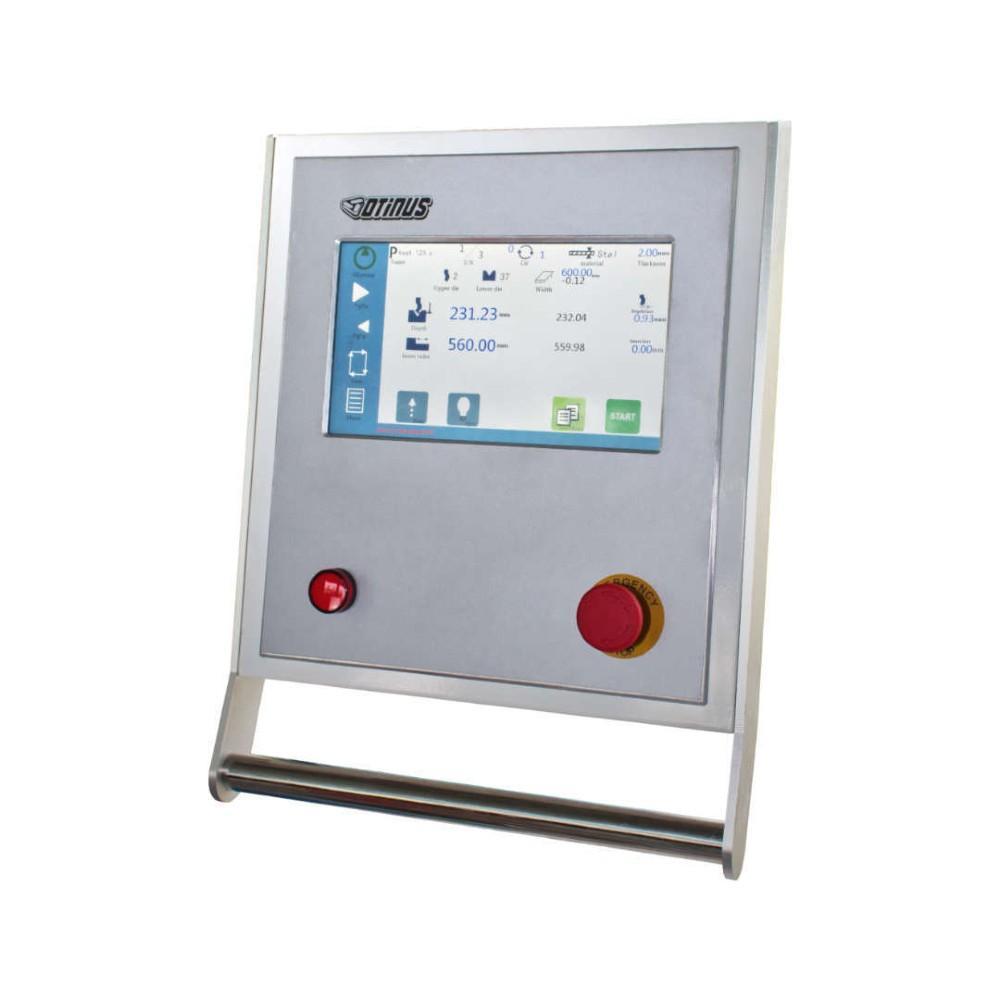

Otinus CNC OT-41 control
The CNC controller Otinus is featured with convenient and intuitive menu. The software calculates the bending angle on its own. The large color touchscreen is readable from any angle.
The controller can store up to 2,000 programs of 30 steps each.
Top quality components
