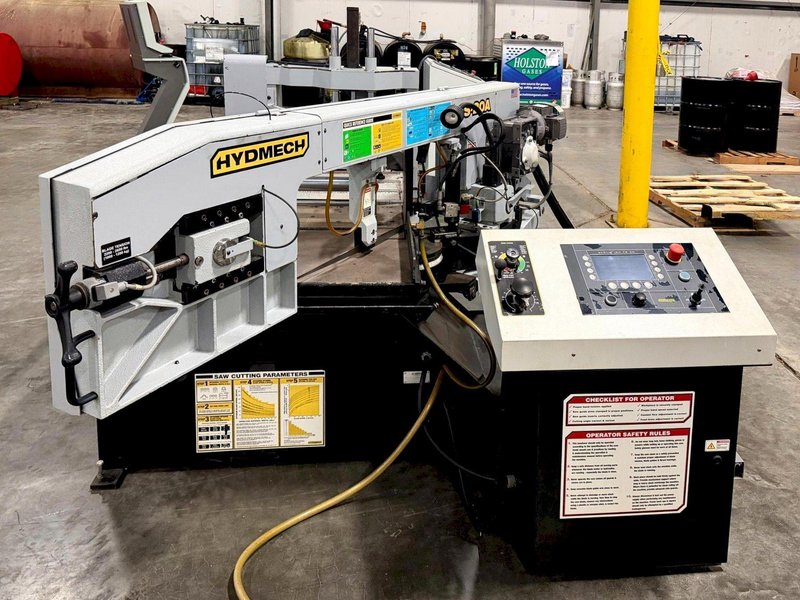

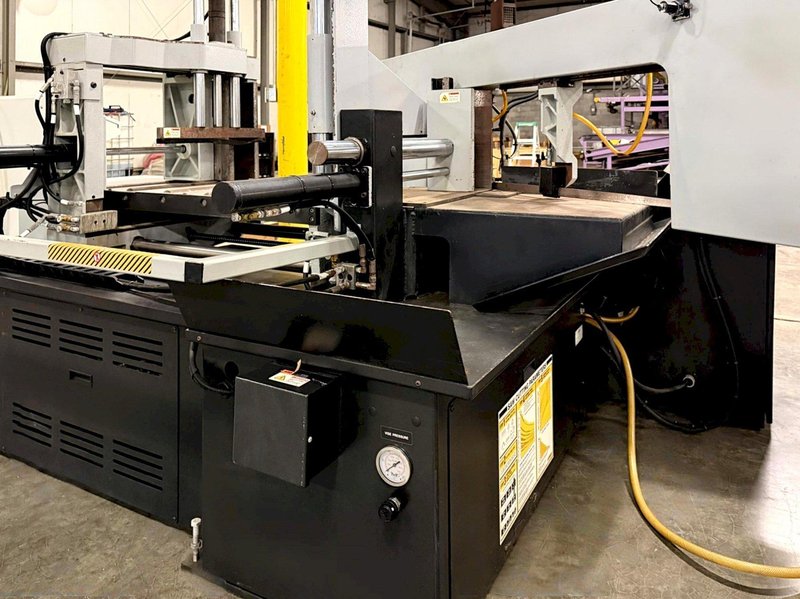

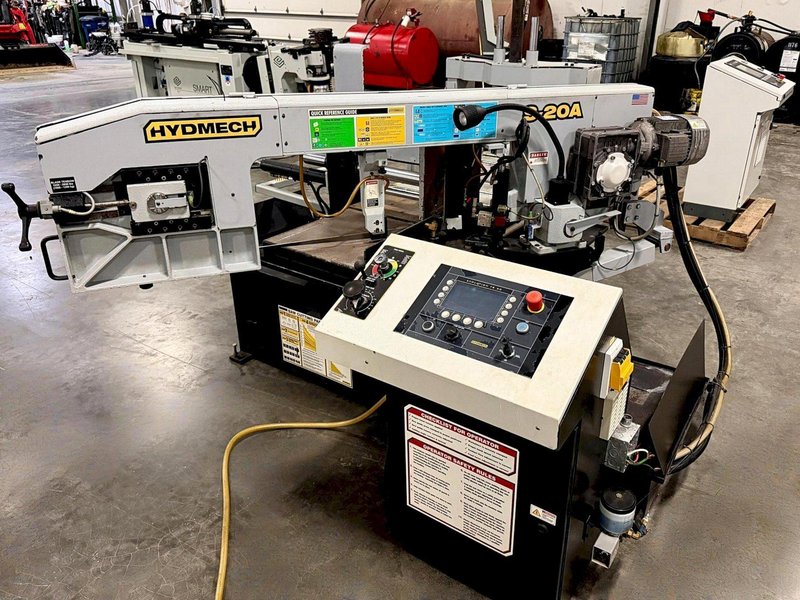

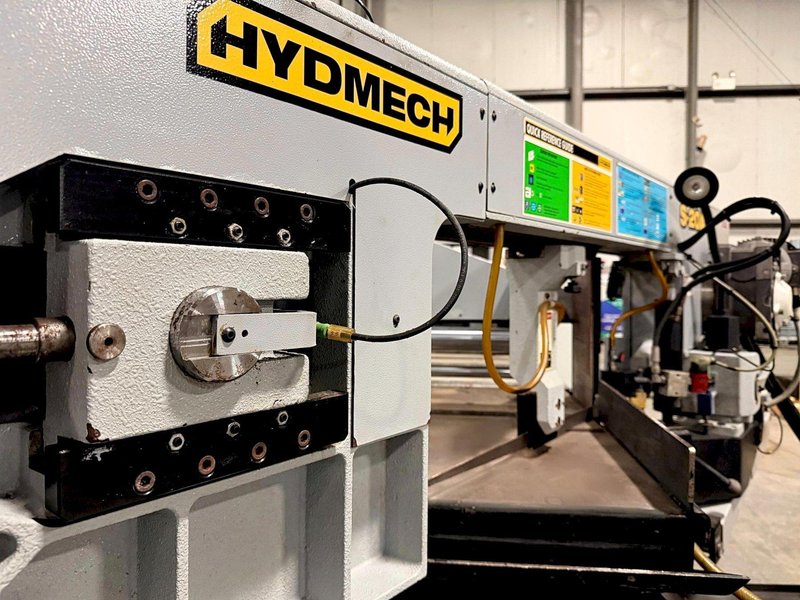

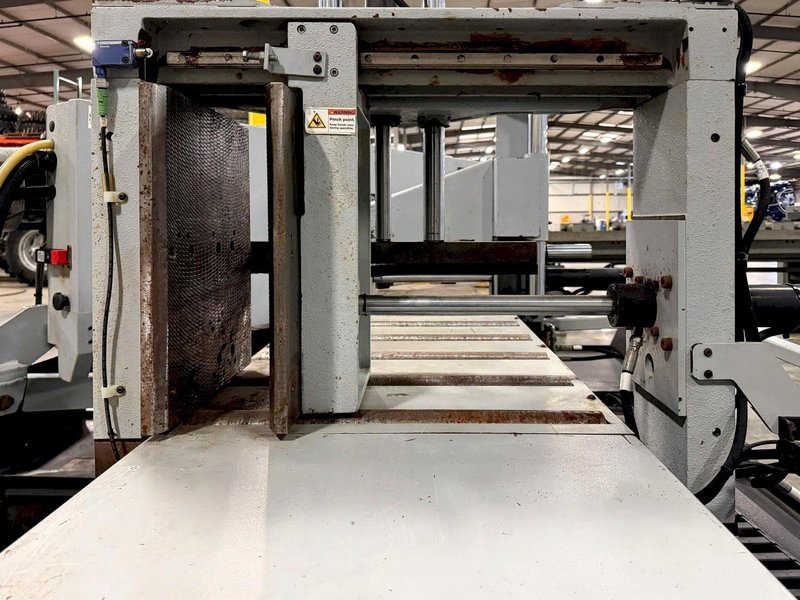

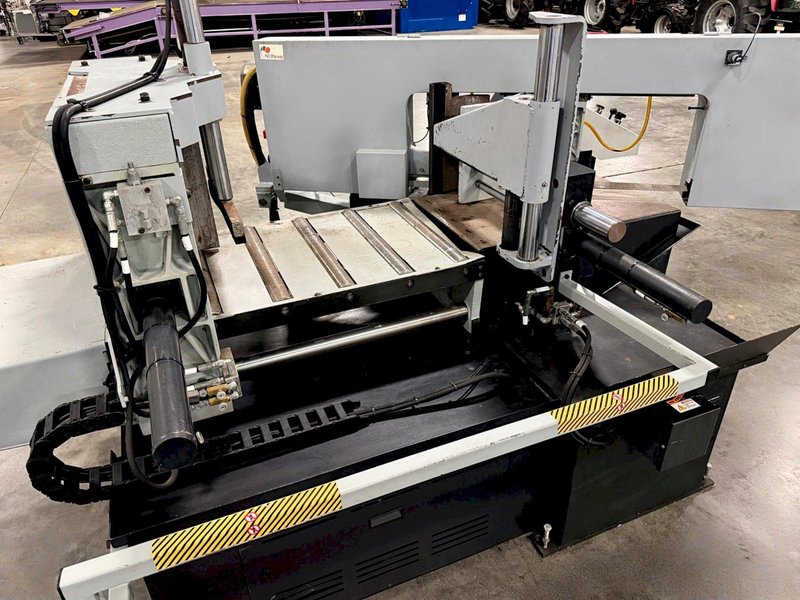

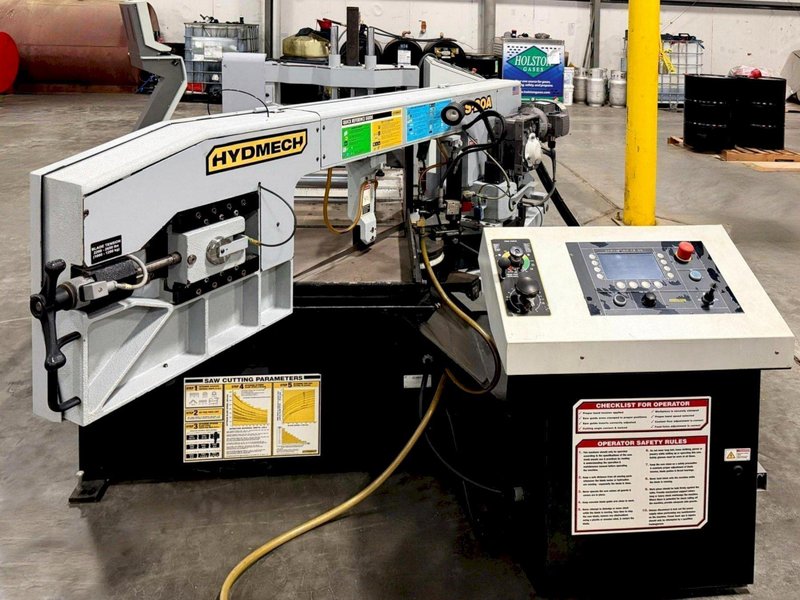

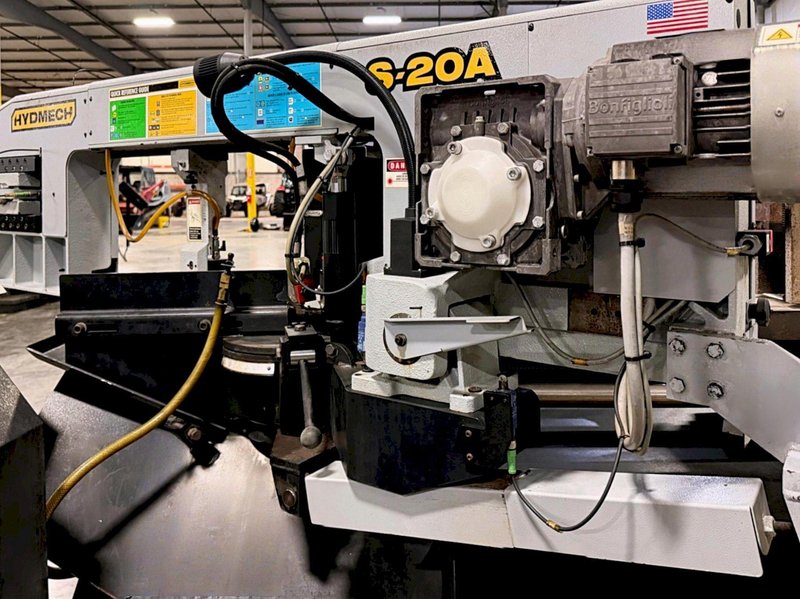

HydMech S20A Horizontal Band Saw

Name: HydMech S20A Horizontal Band Saw
Brand: HYDMECH
SKU: 100638
Availability: PreOrder

Brand

HYDMECH

Not specified

Capacity Rectangular @ 90°	13" X 18"
Capacity Rectangular @ 45°	13" x 10-3/4"
Capacity Rectangular @ 30°	13" x 7-3/4"
Capacity Rounds @ 90°	13"
Capacity Rounds @ 45°	12"
Capacity Rounds @ 30°	8-1/2"
Blade Speed	75-330 SFM
Blade Size	1” x 14” 10”
Shuttle Stroke	0-29" Single Stroke
Work Load	5,000 Lbs.
Table Height	31"
Coolant Tank Capacity	12 US Gal.
Blade Drive	5 HP
Electrical	480V / 3ph / 60hz
Dimensions	L 93” x W 86” x H 52”
Weight	3,800 Lbs.

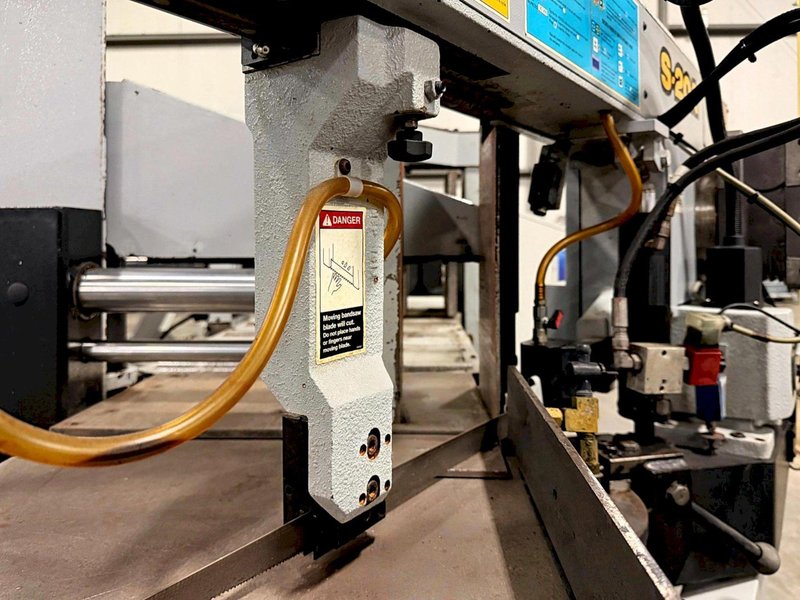

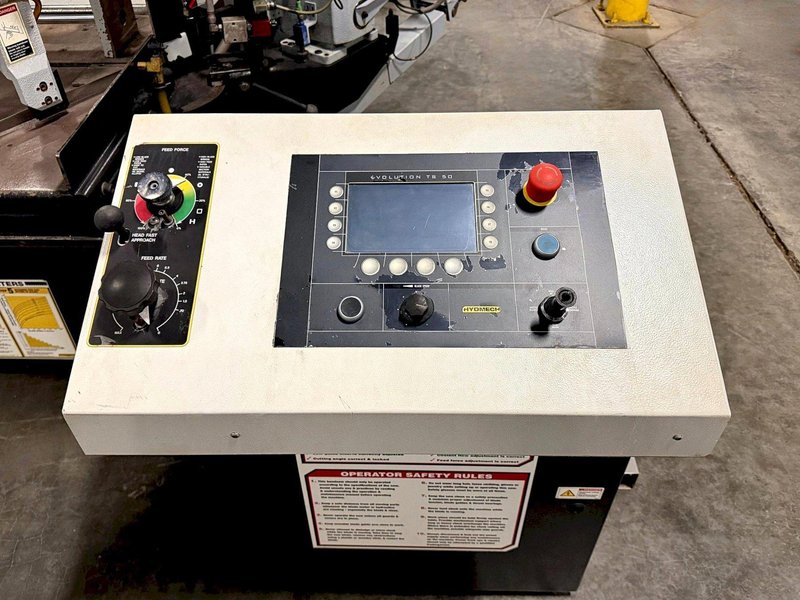

Equipped With: 5 HP VFD. True Direct Blade Drive (No Belts/Pulleys) On-Demand Hydraulics Save Energy Blade Chamber Separates Material from Cut Part, Extending Blade Life Cast Iron Band Wheels Automatic PLC Touch Screen Control Replaceable Blade Brush Easy to Read Angle Scale w/ Angle Locking Mechanism Cast Iron Guide Arms Mounted on Linear Rails Full Capacity, Full Stroke Hydraulic Material Vises Mechanical Band Tensioning w/ Digital Readout Hydraulic Positive Down Feed of Sawing Head Pre-Set, Replaceable Carbide Guide Inserts Flood Coolant w/ Wash Down Hose
