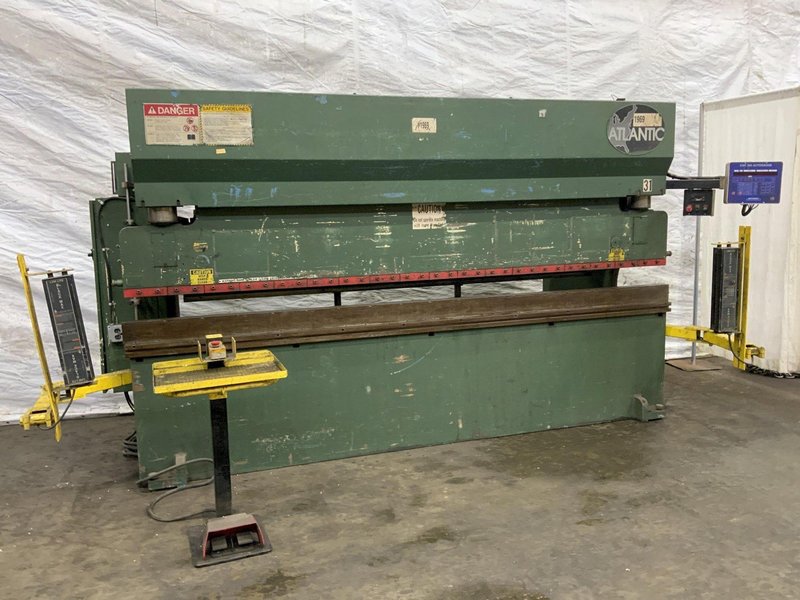

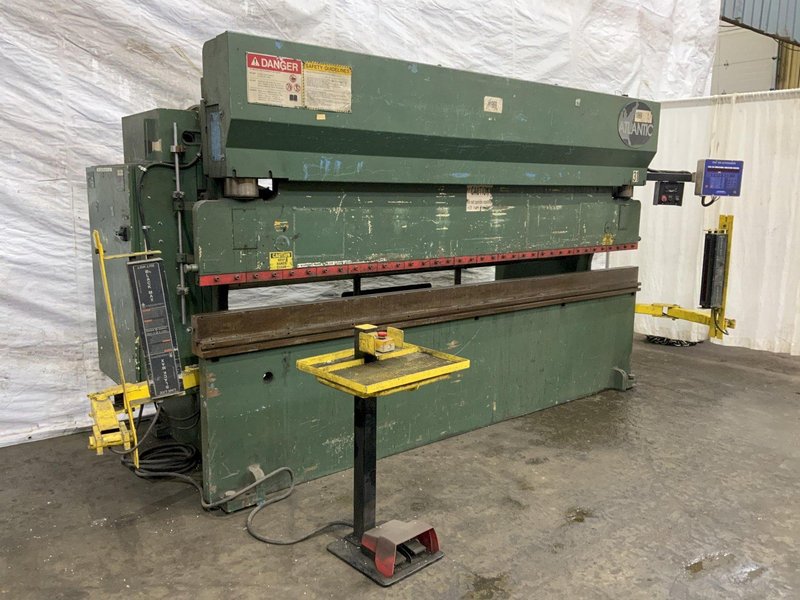

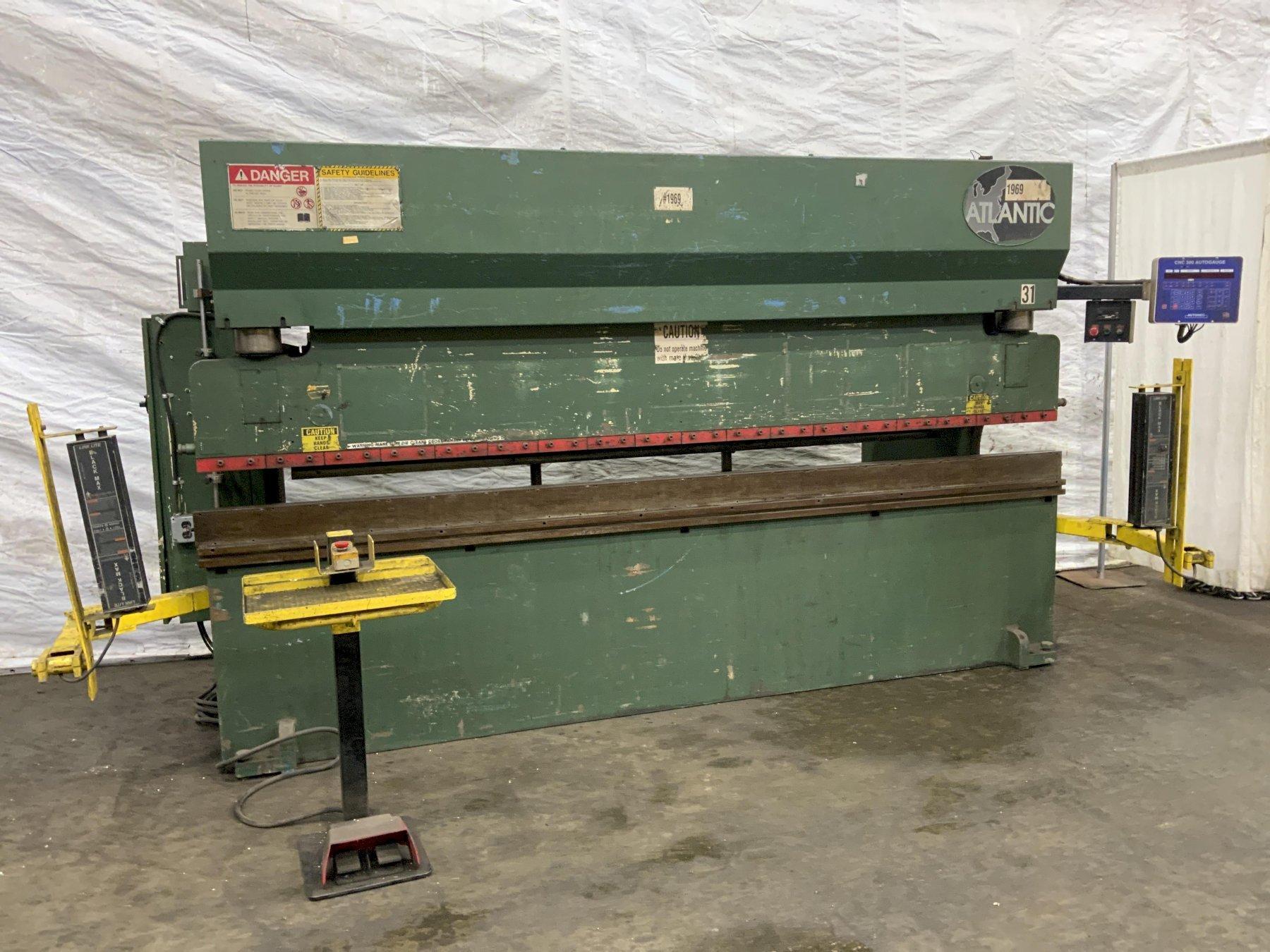

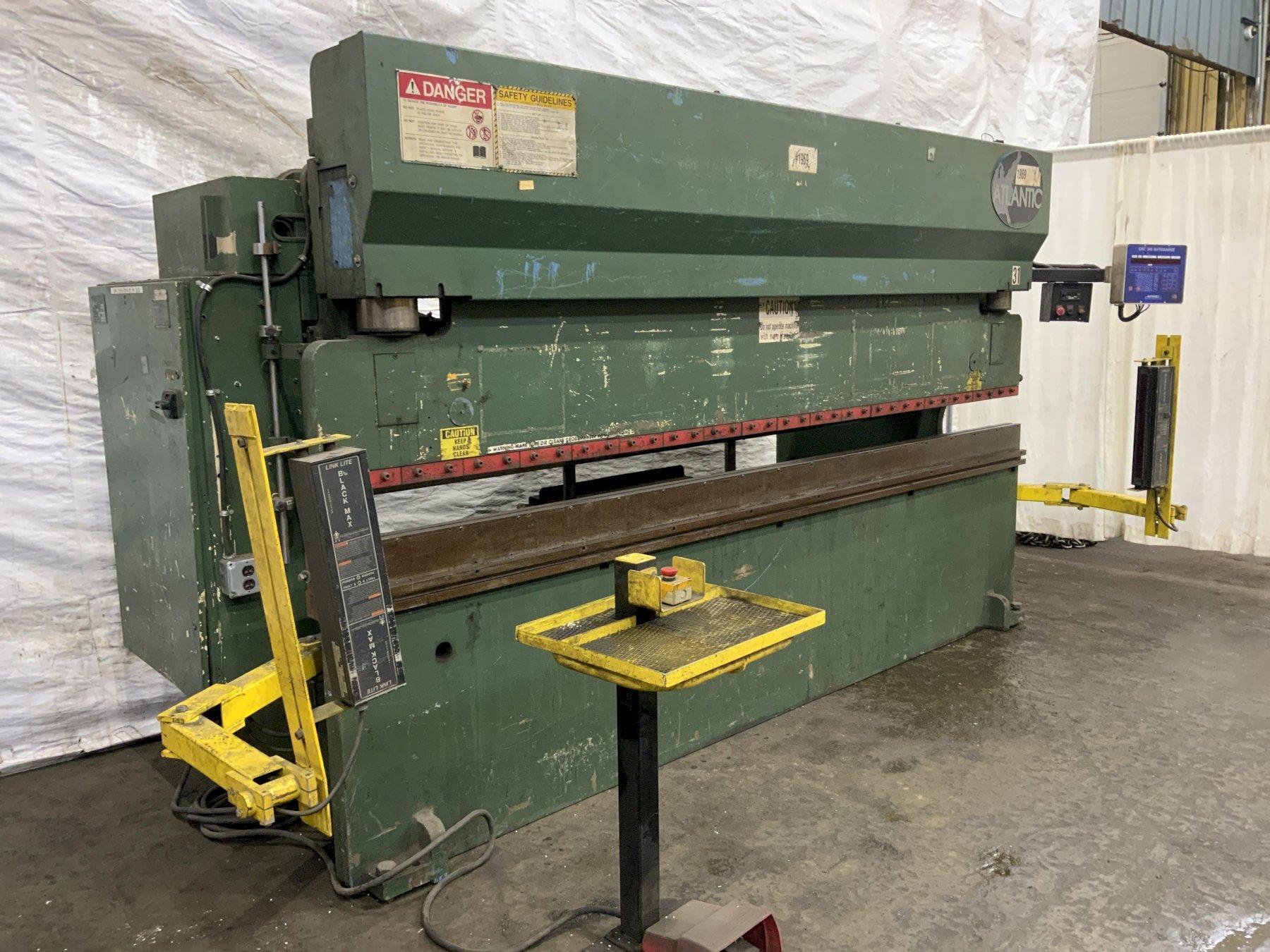

120 TON X 12' ATLANTIC MODEL HDE120-12 HYDRAULIC PRESS BRAKE: STOCK #80880

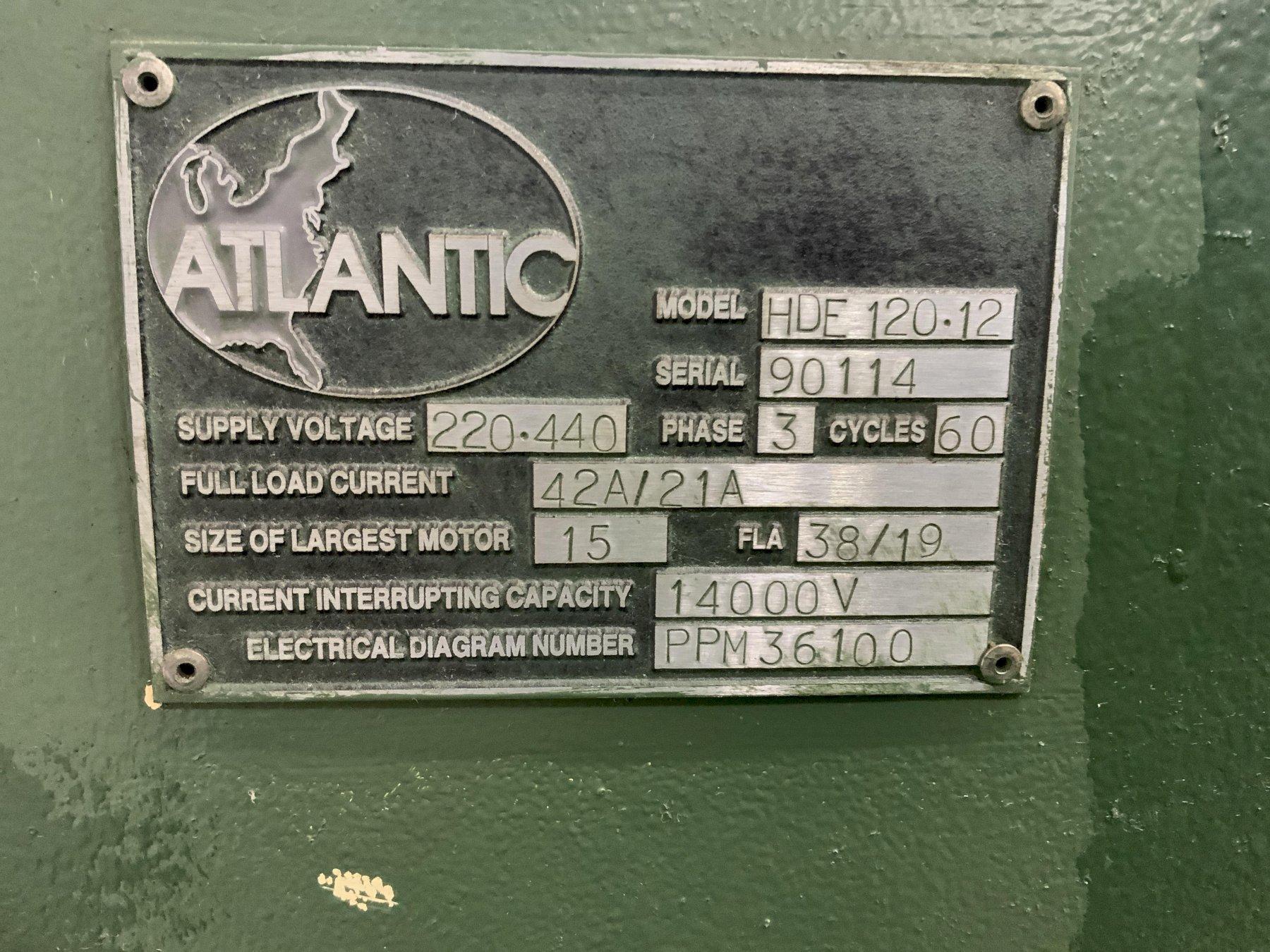

SERIAL ........................... 90114

MODEL ............................ HDE120-12

YEAR NEW ......................... 2006

CAPACITY ......................... 120 TON

BED LENGTH ....................... 144"

DISTANCE BETWEEN HOUSINGS ........ 124"

THROAT DEPTH ..................... 9.8"

STROKE ........................... 4.7"

OPEN HEIGHT ...................... 12.8"

CLOSED HEIGHT .................... 8.1"

PASSLINE HEIGHT .................. 34.4"

FAST APPROACH SPEED .............. 165 IPM

FAST RETURN SPEED ................ 142 IPM

PRESS SPEED ...................... 17 IPM

TONNAGE LIMIT CONTROL............. YES

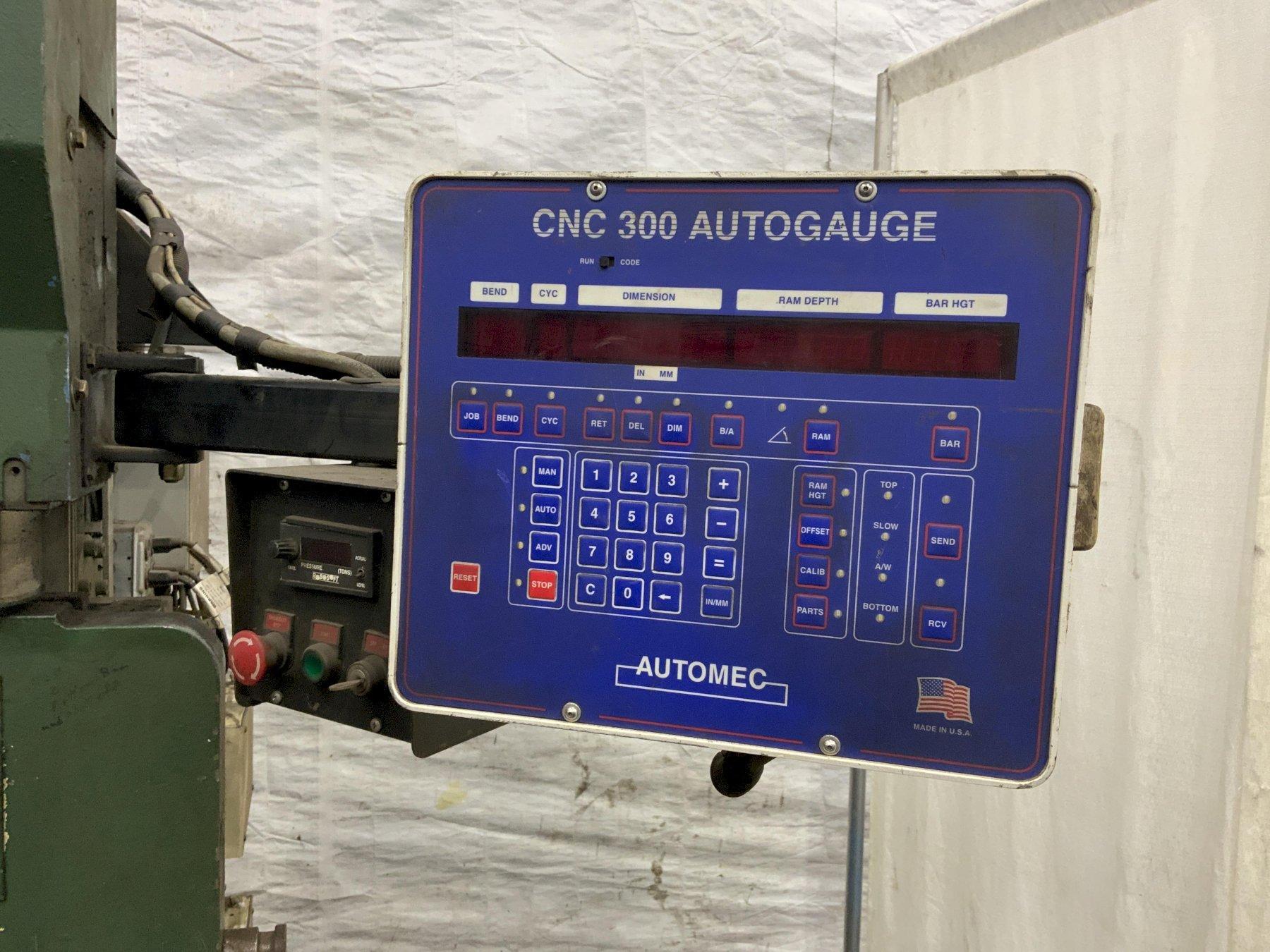

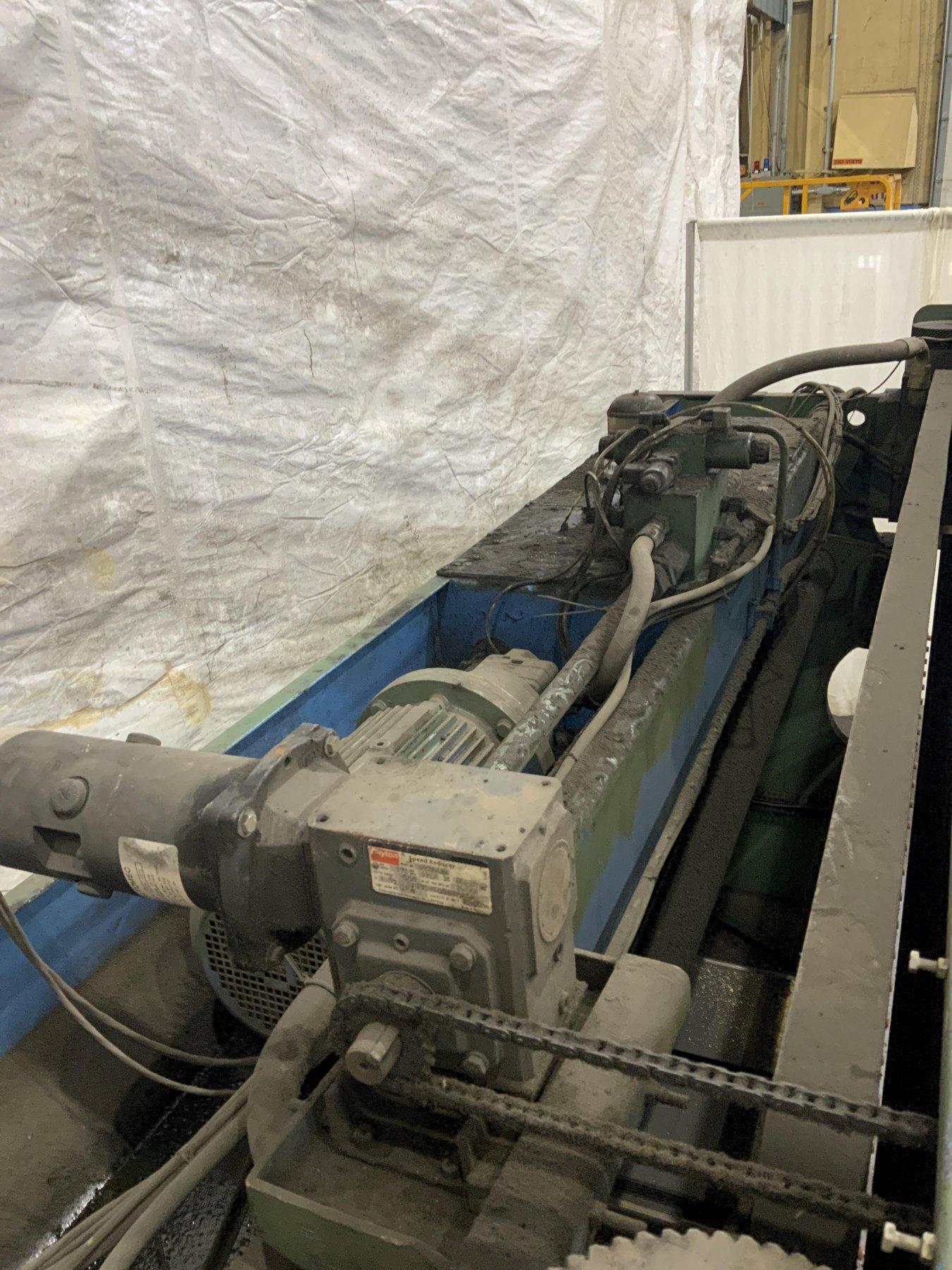

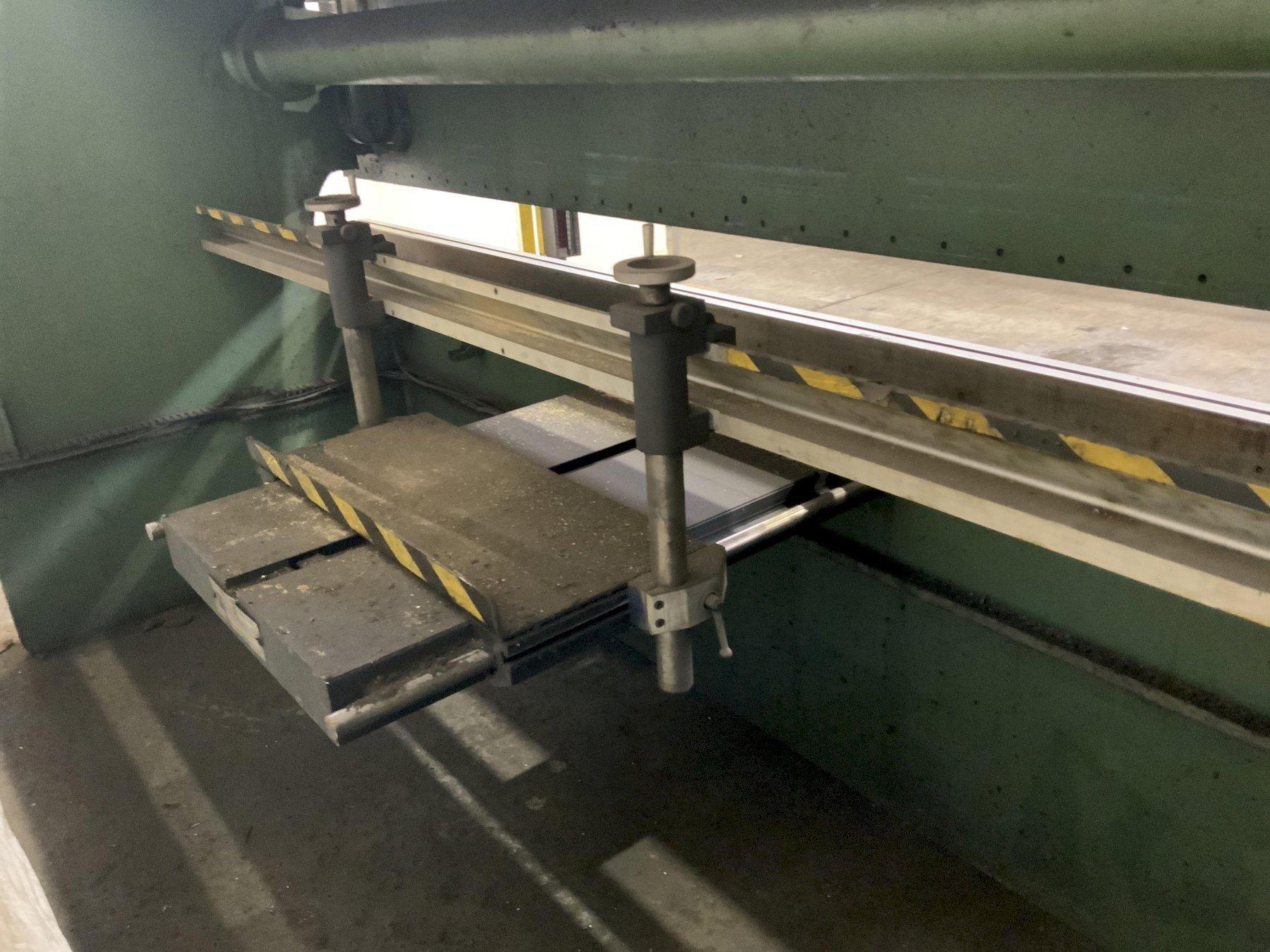

CNC BACK GAUGE ................... AUTOGAUGE 300 "

ELECTRIC FOOT TRIP ............... YES

FILLER BLOCK ..................... YES

MOTOR SIZE ....................... 15 HORSEPOWER
