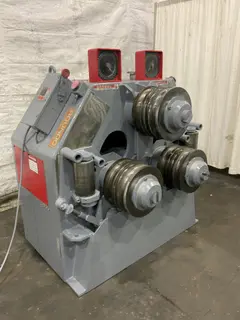

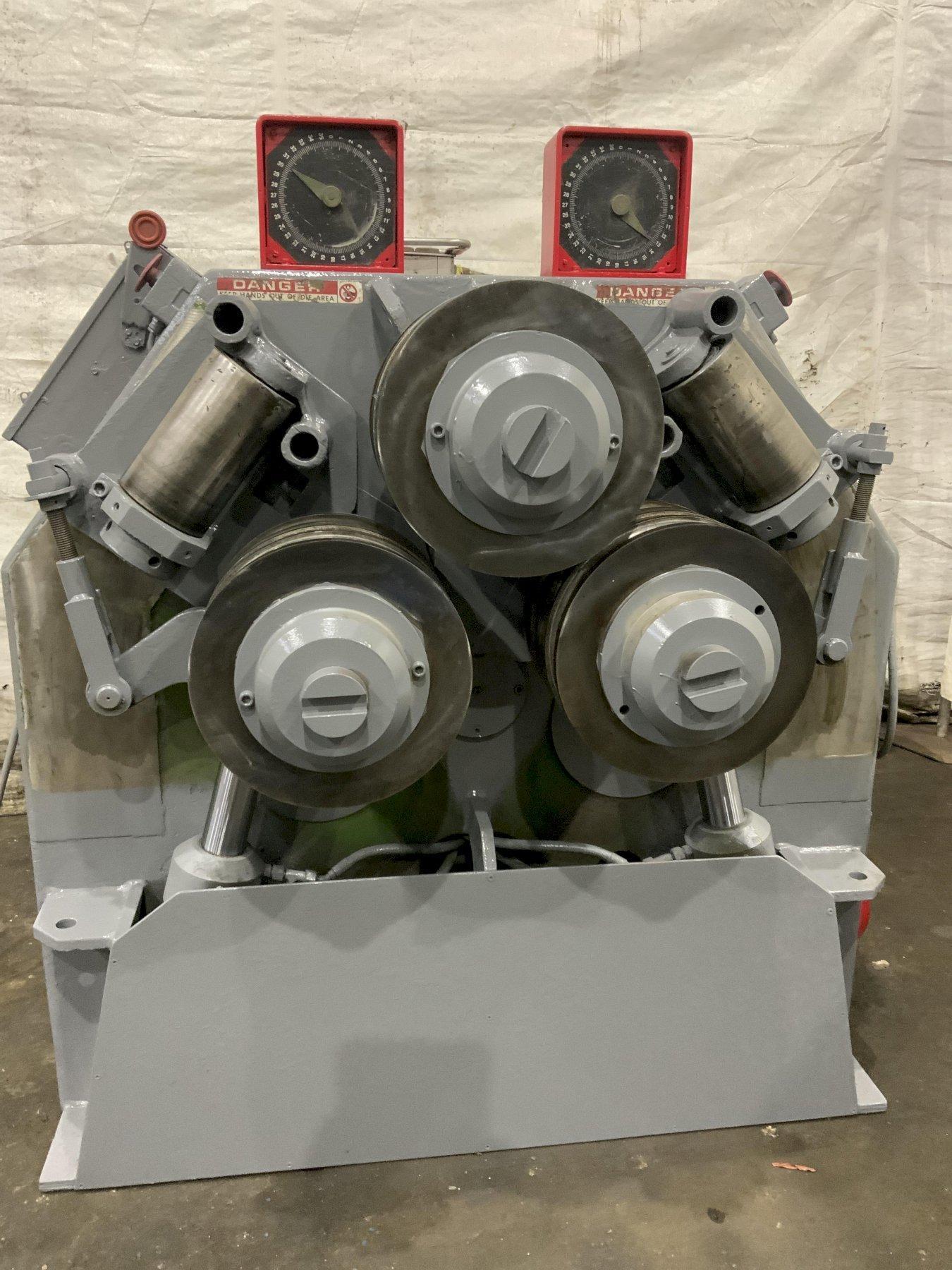

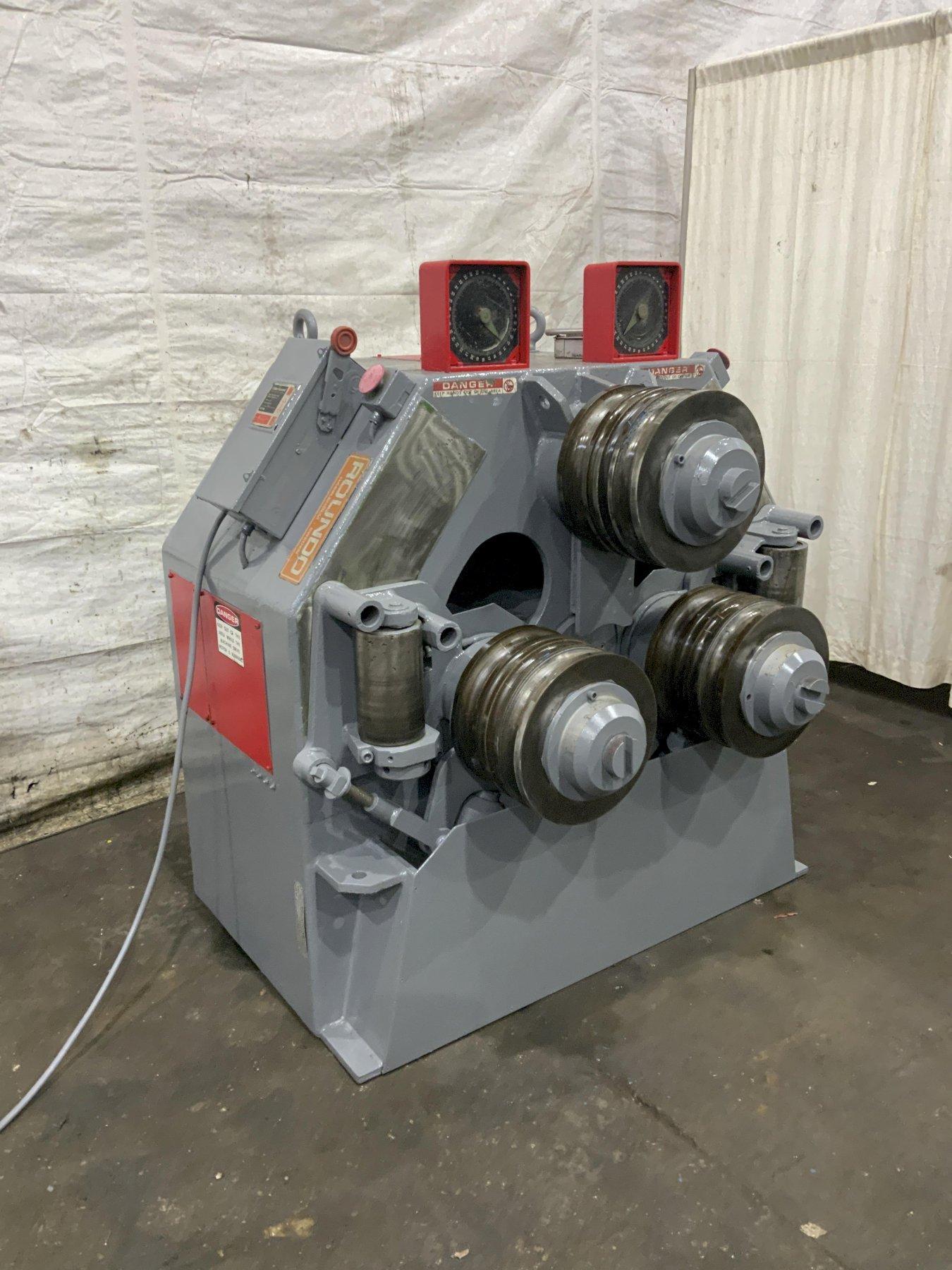

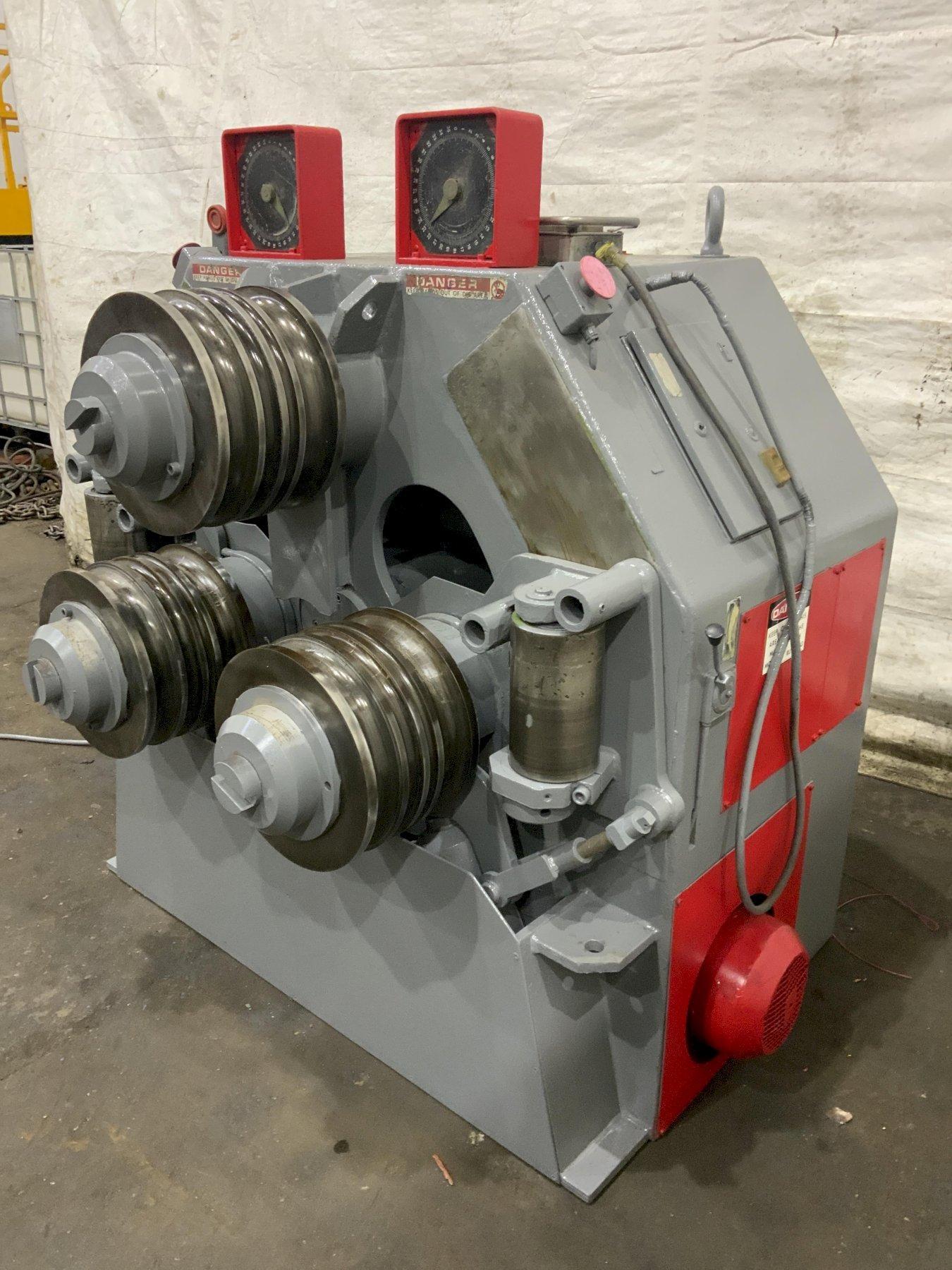

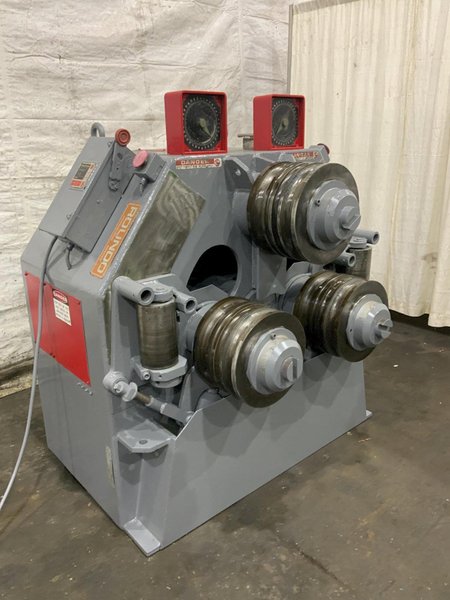

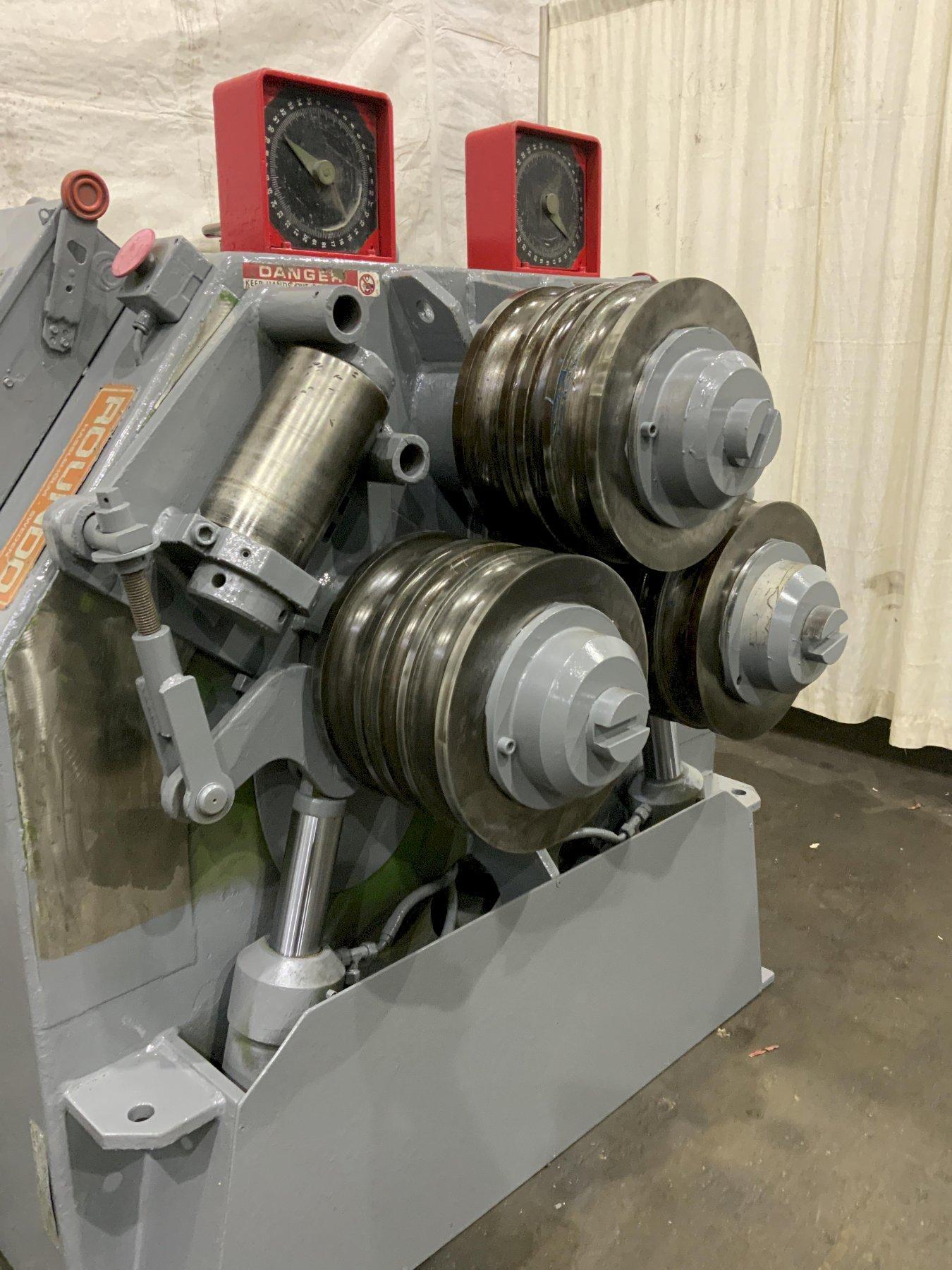

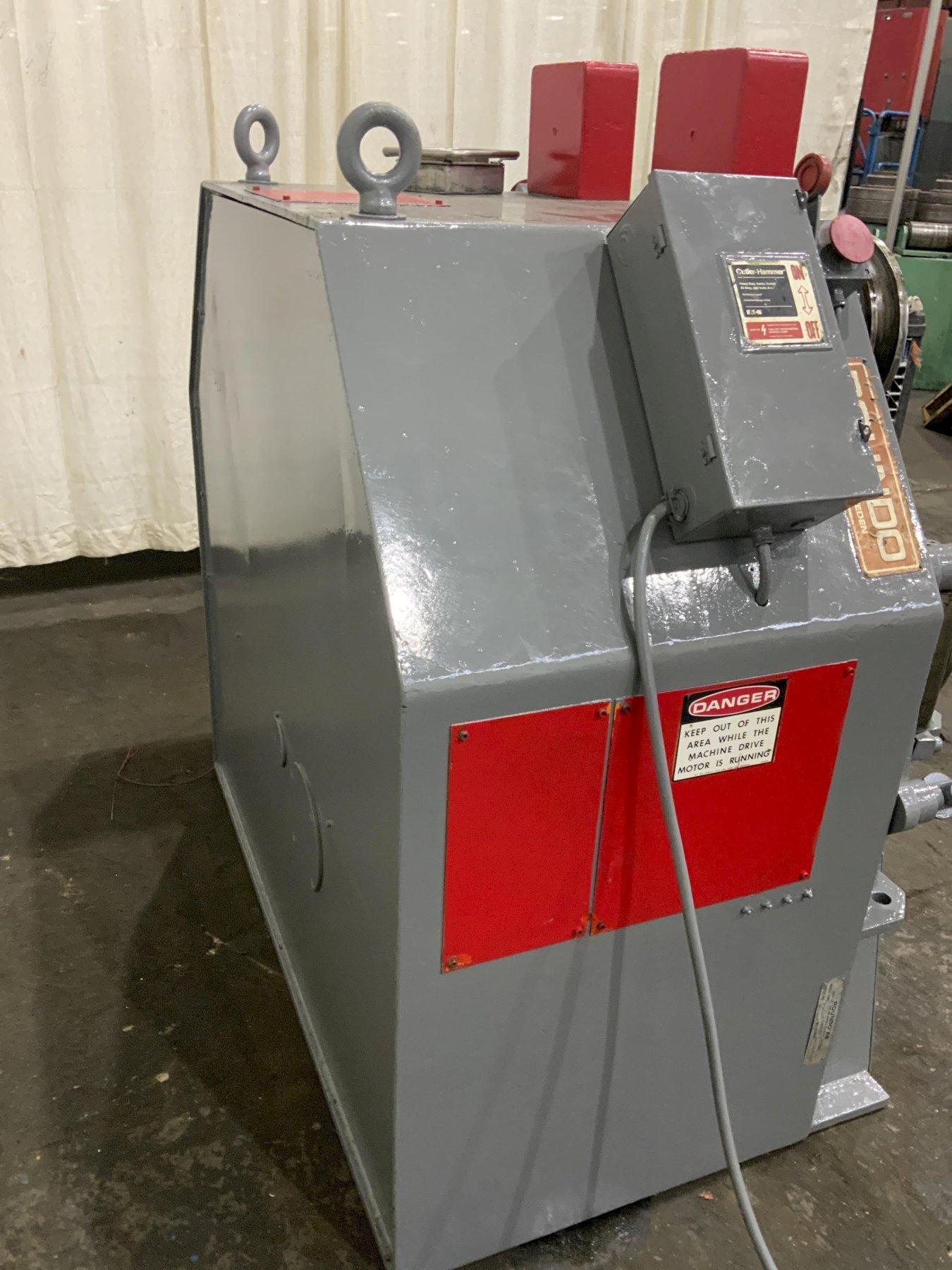

4-1/2” X 4-1/2” X 1/2” ROUNDO R-5 HYDRAULIC VERTICAL/HORIZONTAL ANGLE ROLL: STOCK #80859

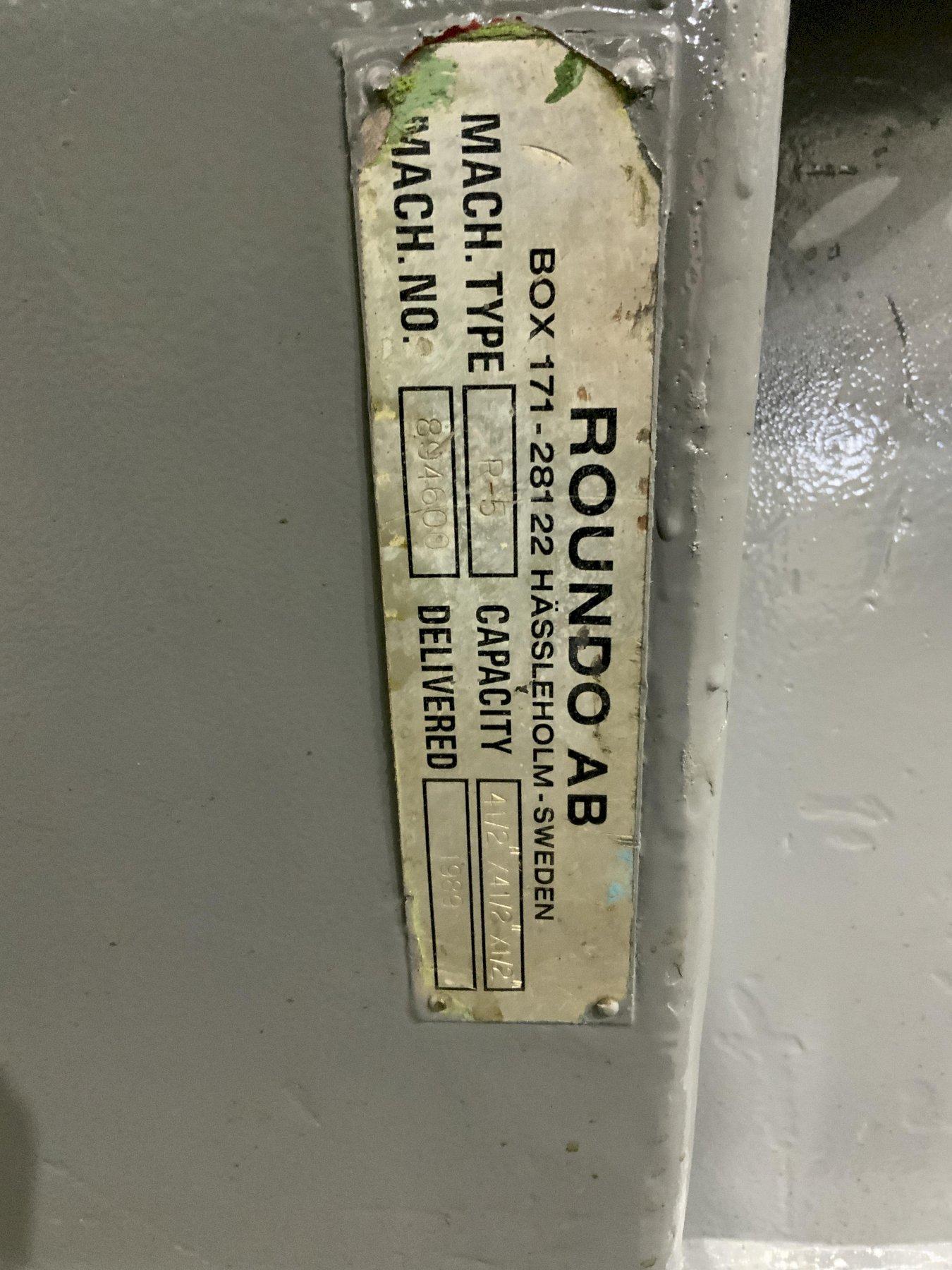

SERIAL ............................. 854600

MODEL............................... #R-5

YEAR NEW ........................... 1989

CAPACITY ANGLE LEG OUT ............. 4-1/2" X 4-1/2" X 1/2"

MINIMUM DIAMETER LEG OUT ........... 50"

CAPACITY ANGLES LEG IN ............. 3-1/2" X 3-1/2" X 1/2"

MINIMUM DIAMETER LEG IN ............ 60"

SMALLEST ANGLE ROLLED .............. 1-1/2" X 1-1/2" X 1/4"

CAPACITY FLAT ON FLAT .............. 8" X 1"

MINIMUM FLAT DIAMETER .............. 36"

CAPACITY SQUARE BAR ................ 2-1/4"

CAPACITY ROUND BAR ................. 2-1/2"

CAPACITY PIPE ...................... 4"

MINIMUM PIPE DIAMETER .............. 48"

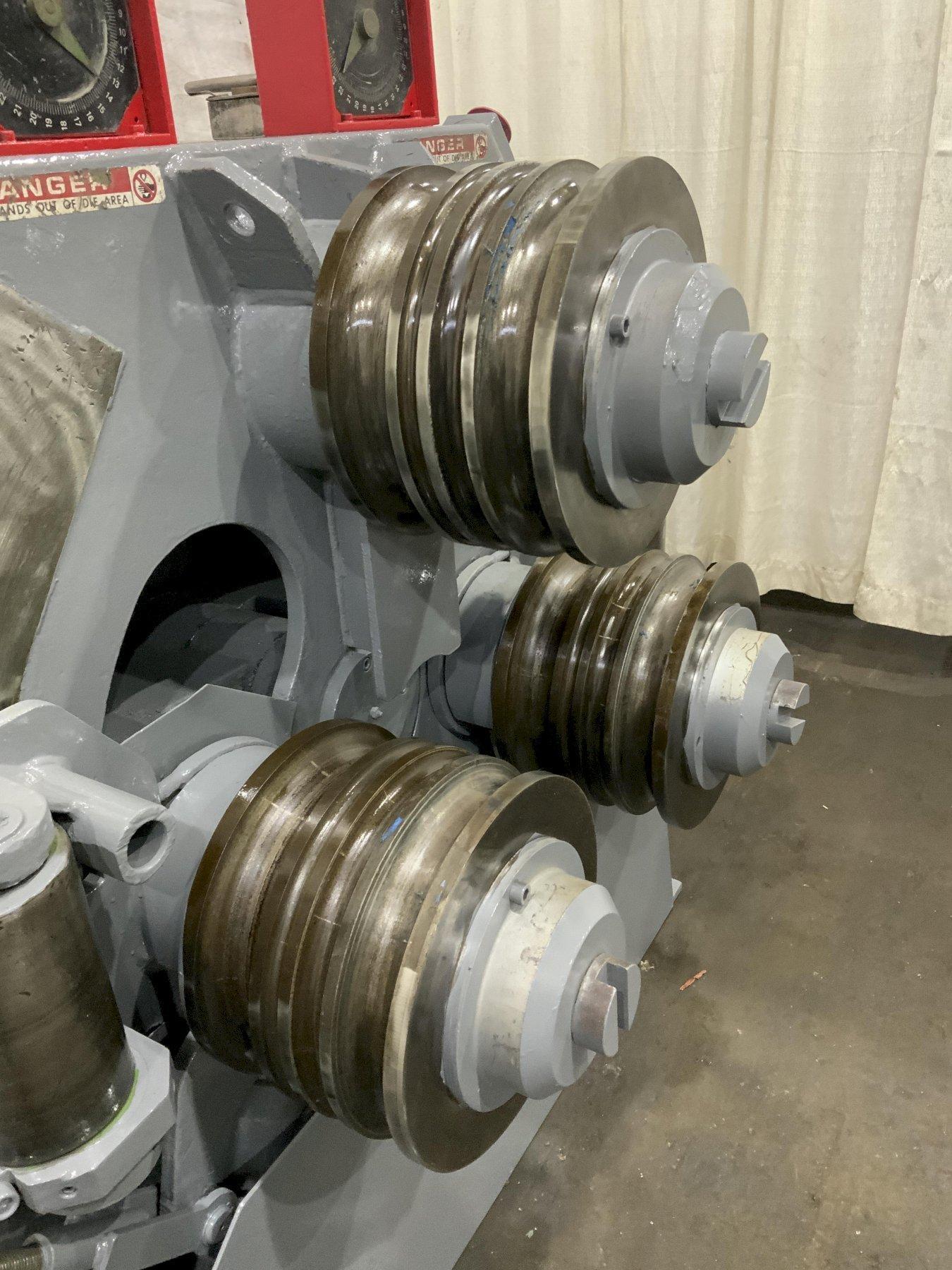

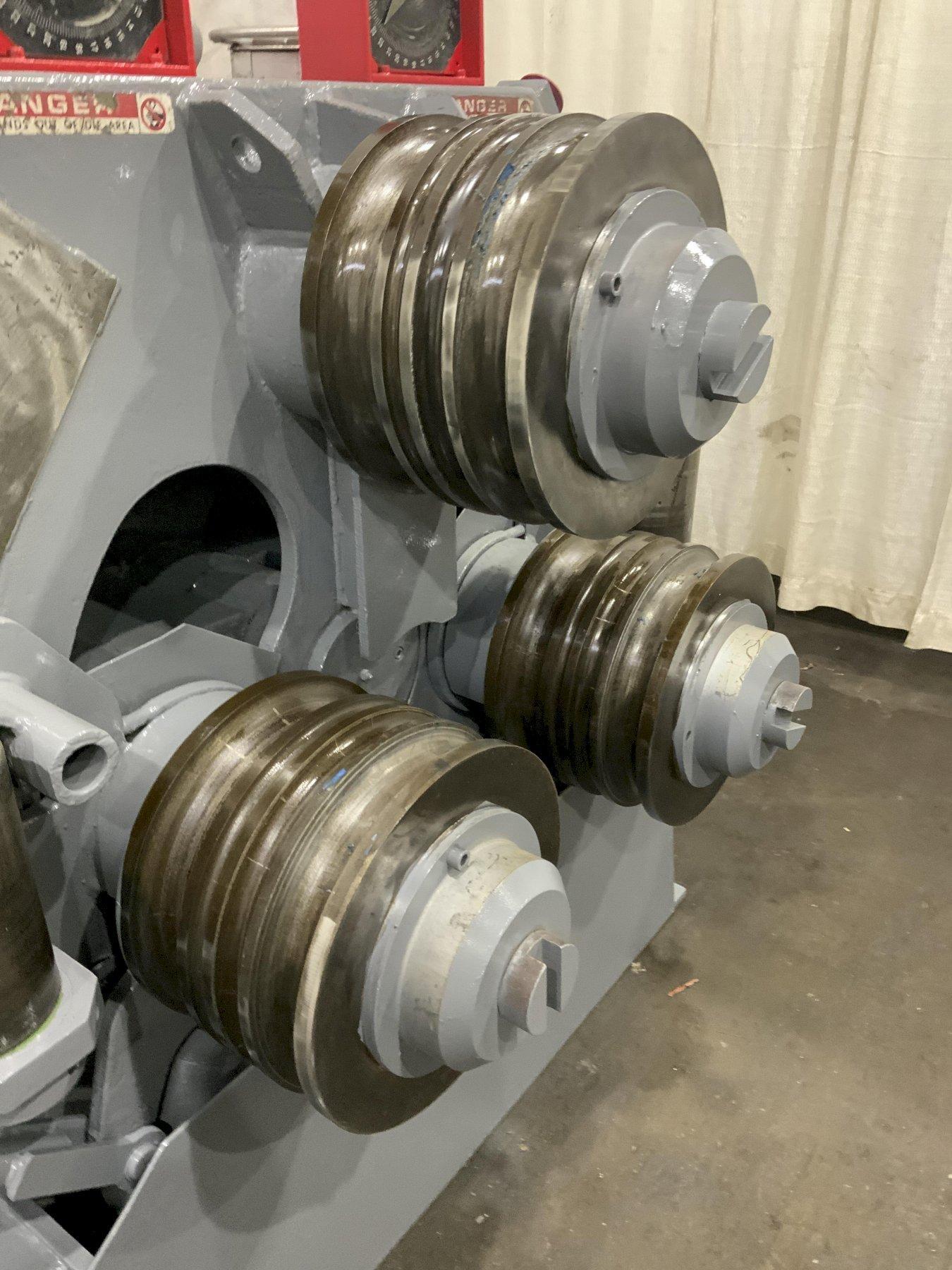

DIAMETER OF BENDING ROLLS .......... 14-1/4"

ROLL SPEED (VARIABLE) .............. 0 TO 23 FPM

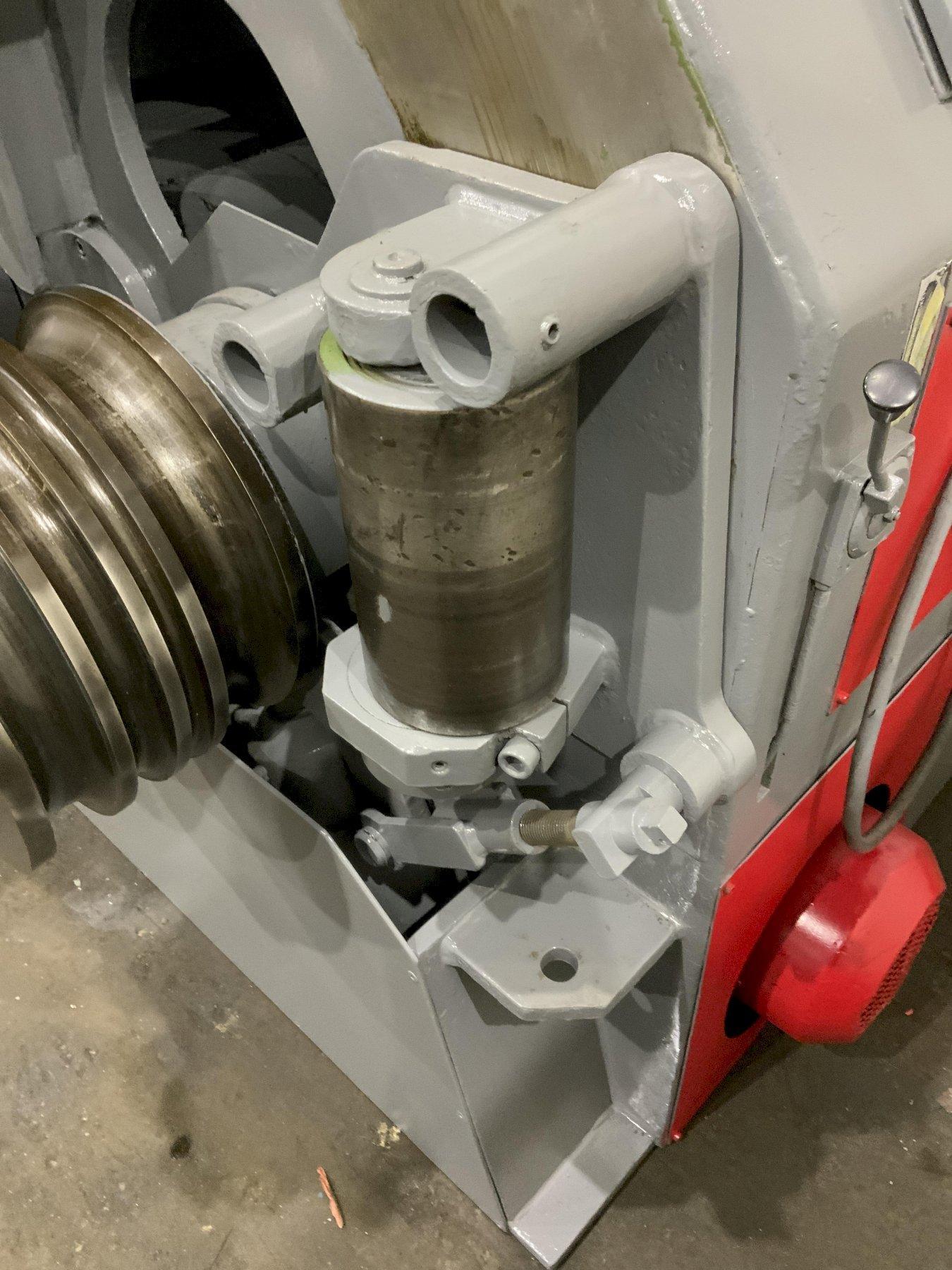

HYDRAULIC ROLL ADJUSTMENT .......... YES

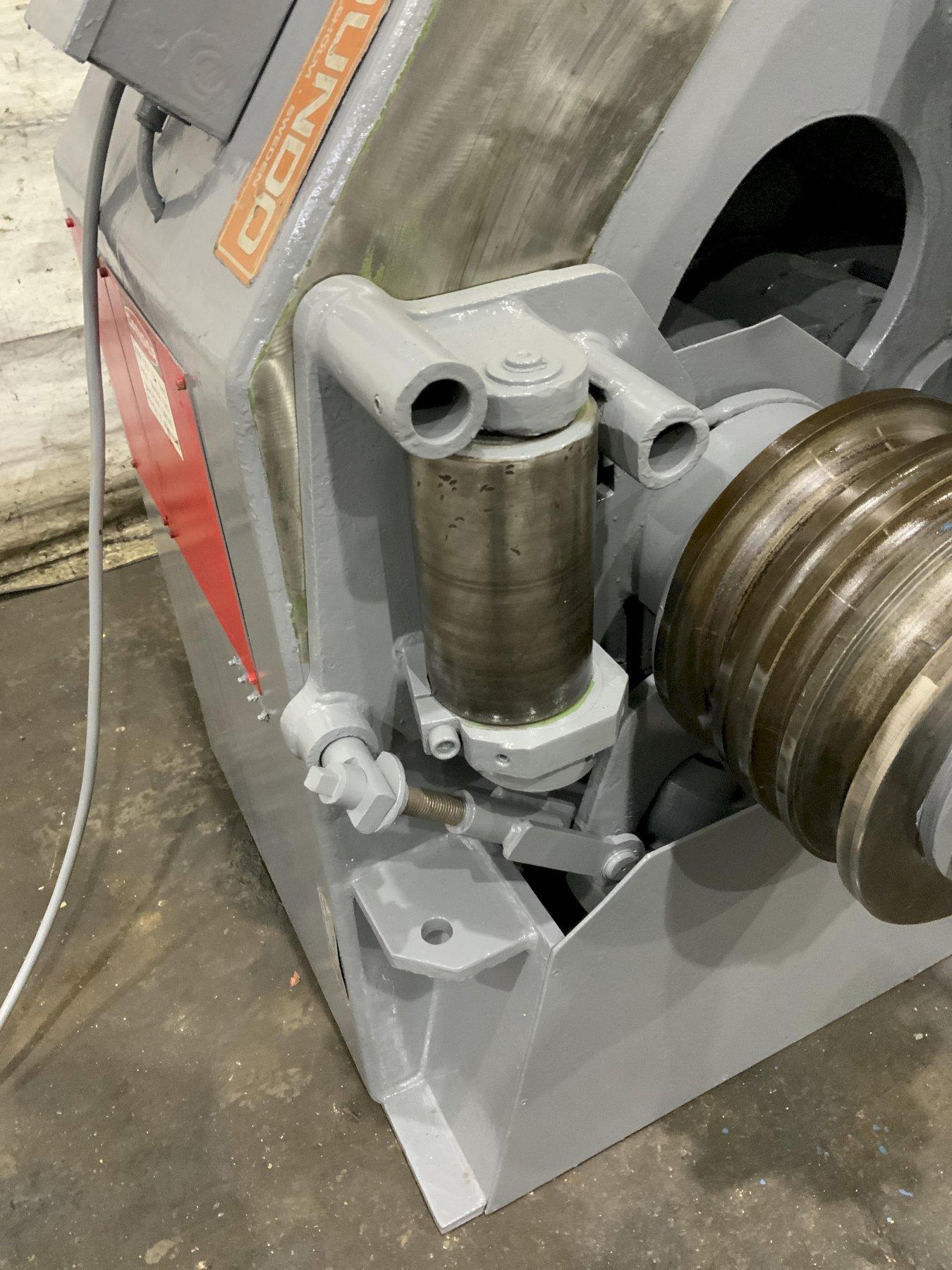

GUIDE ROLLS ........................ YES

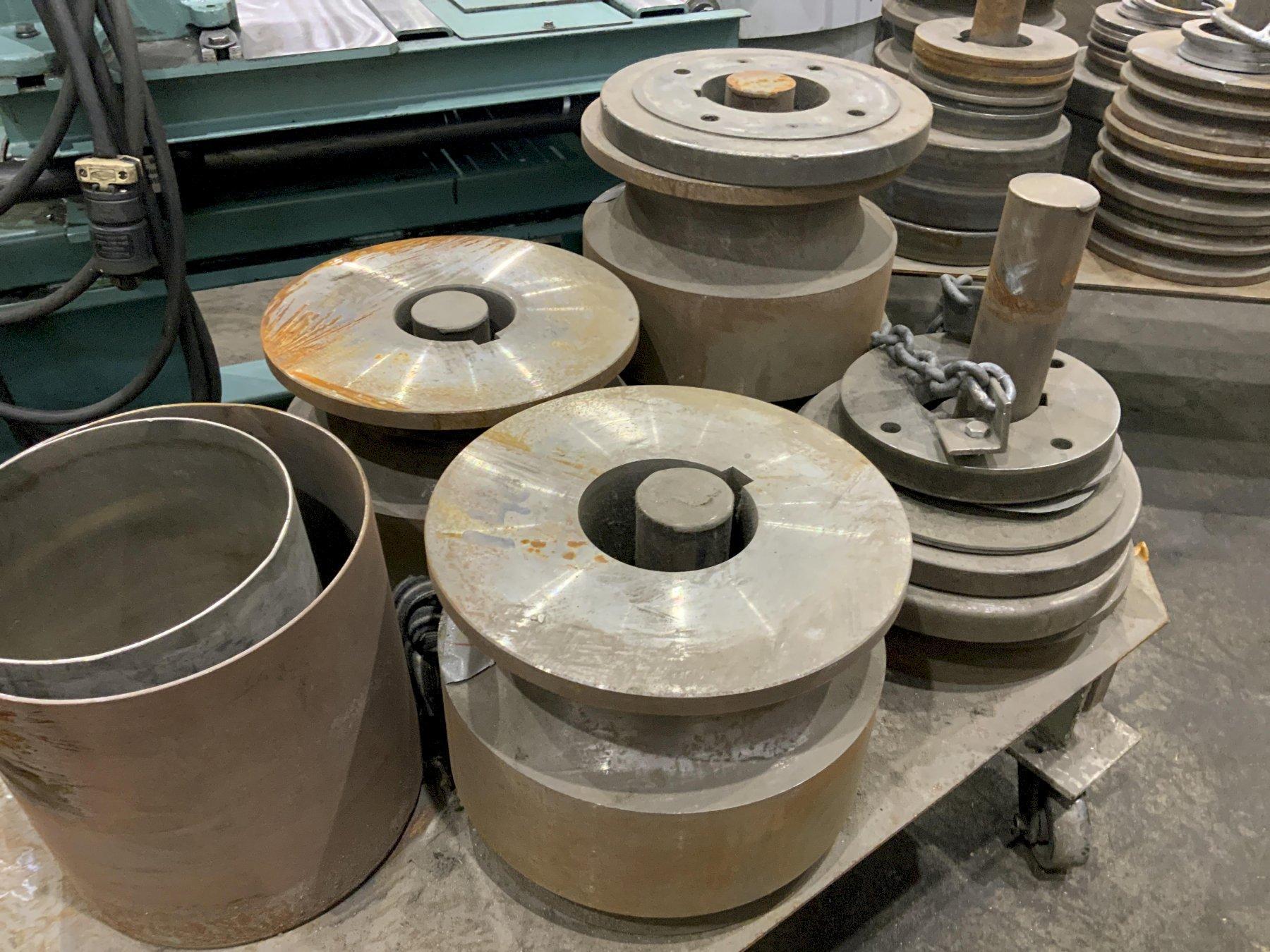

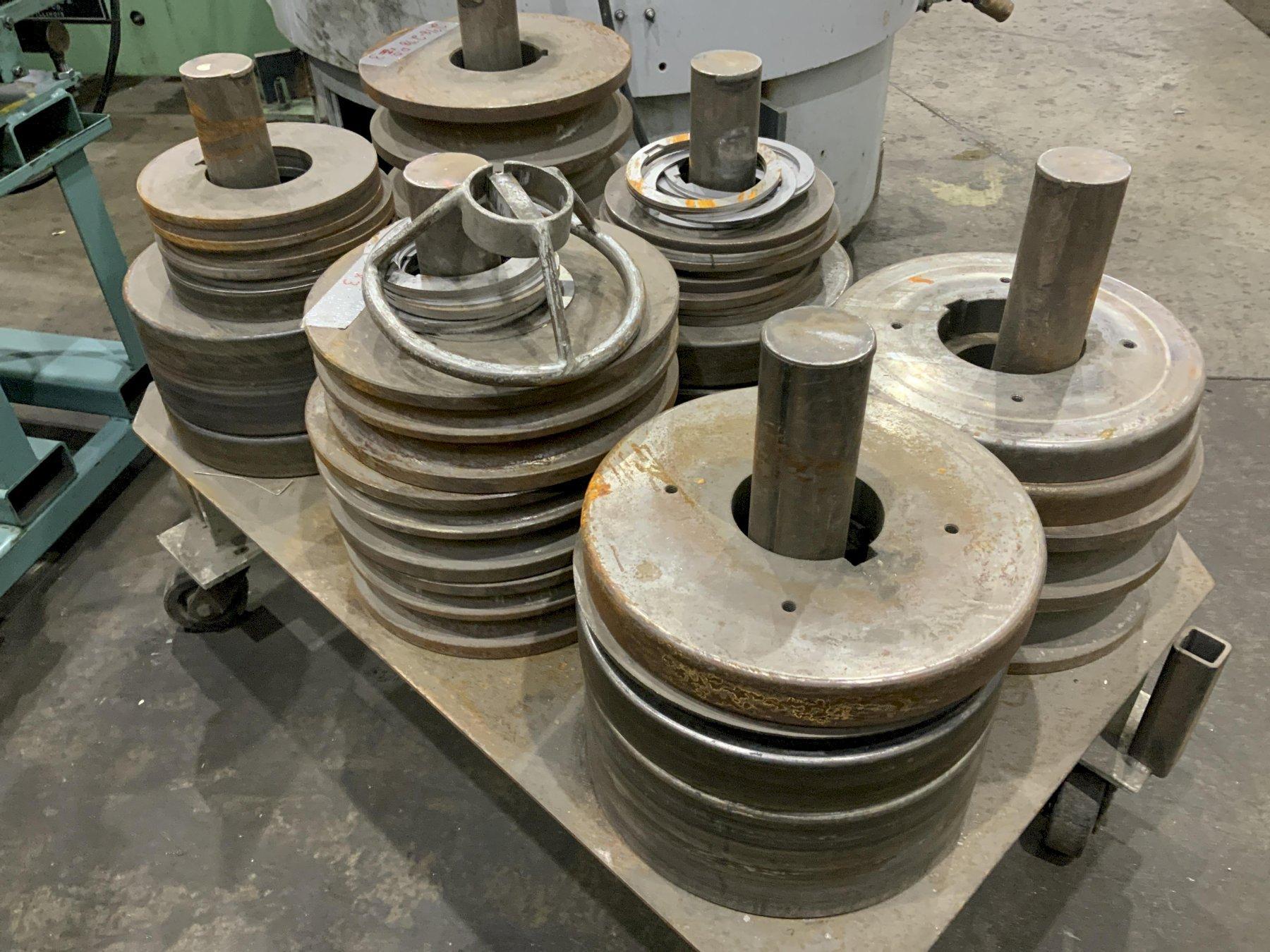

EXTRA TOOLING ...................... YES

HORSEPOWER MAIN MOTOR .............. 10
