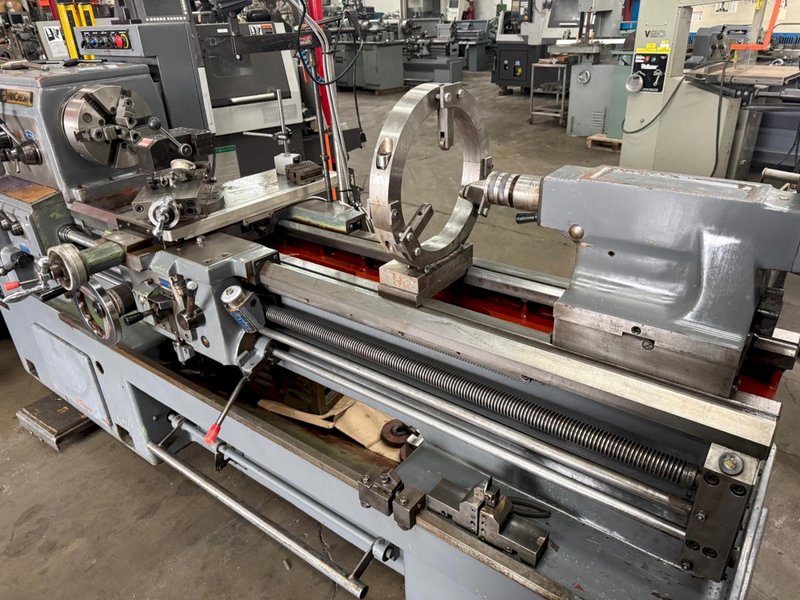

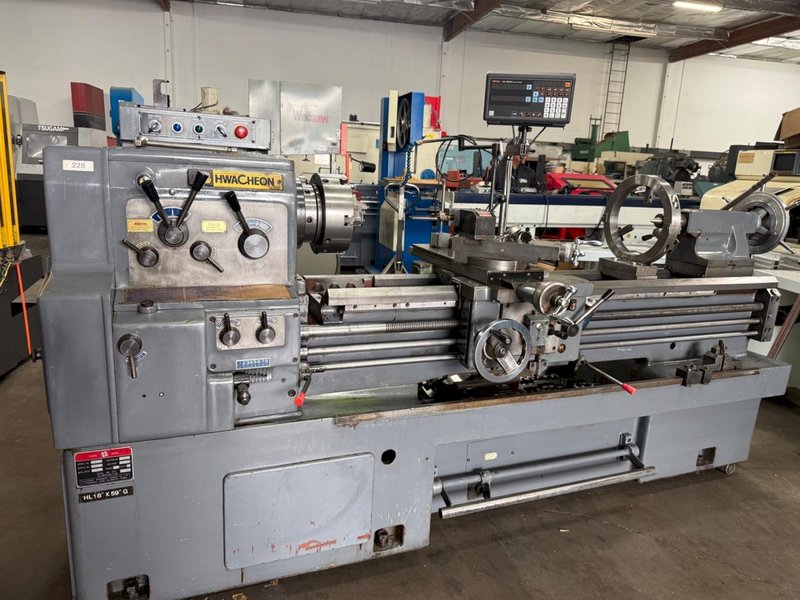

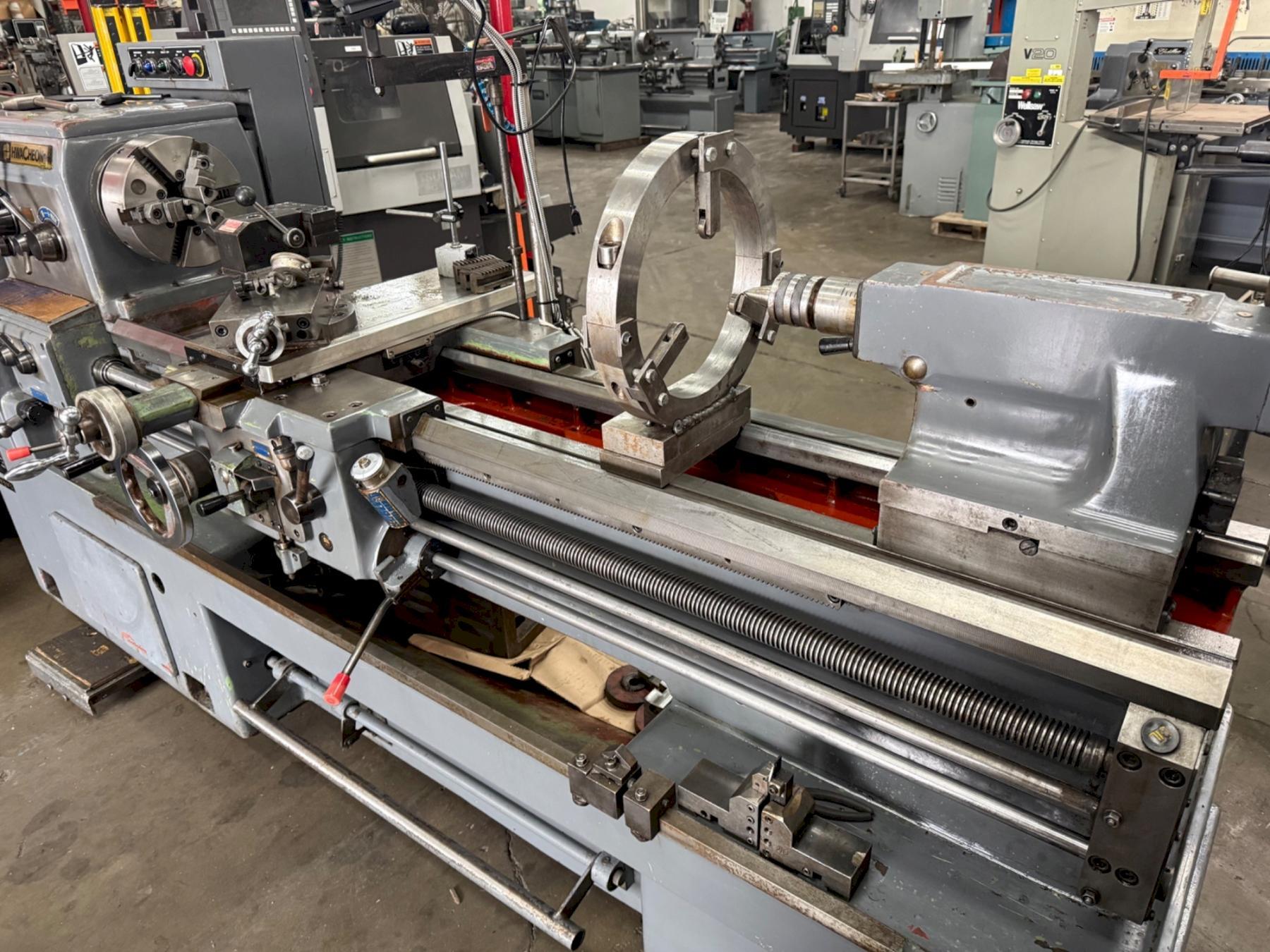

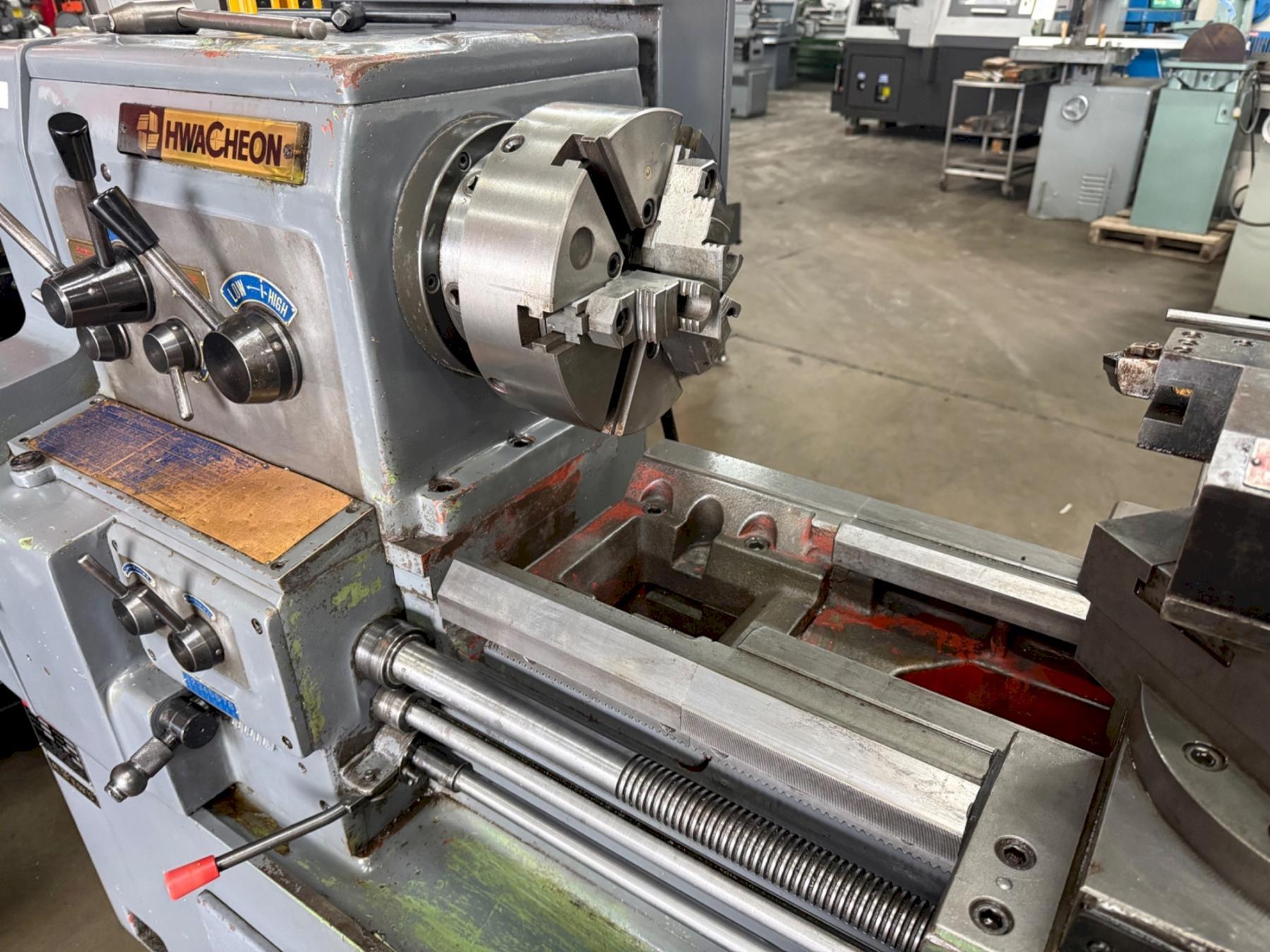

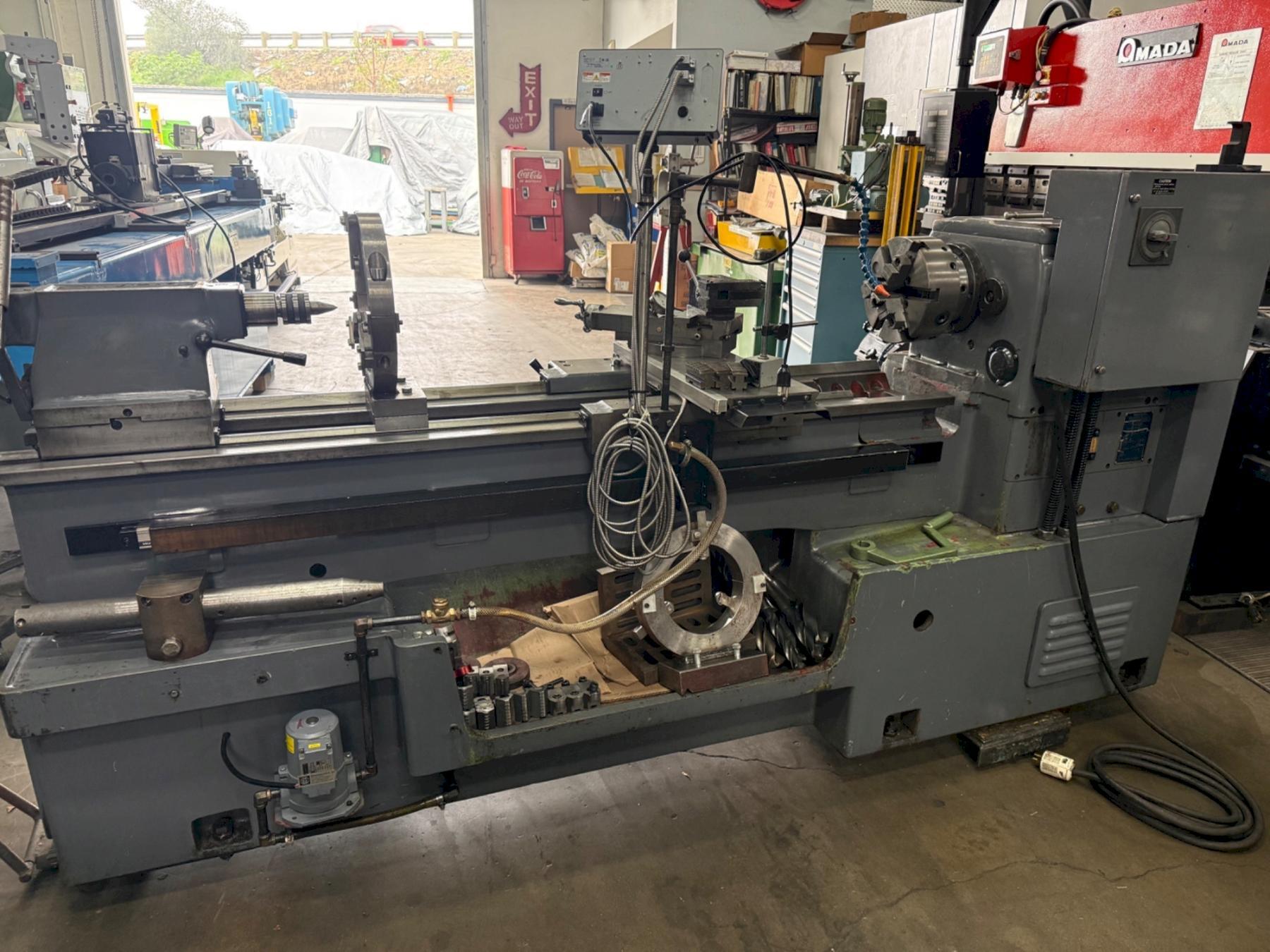

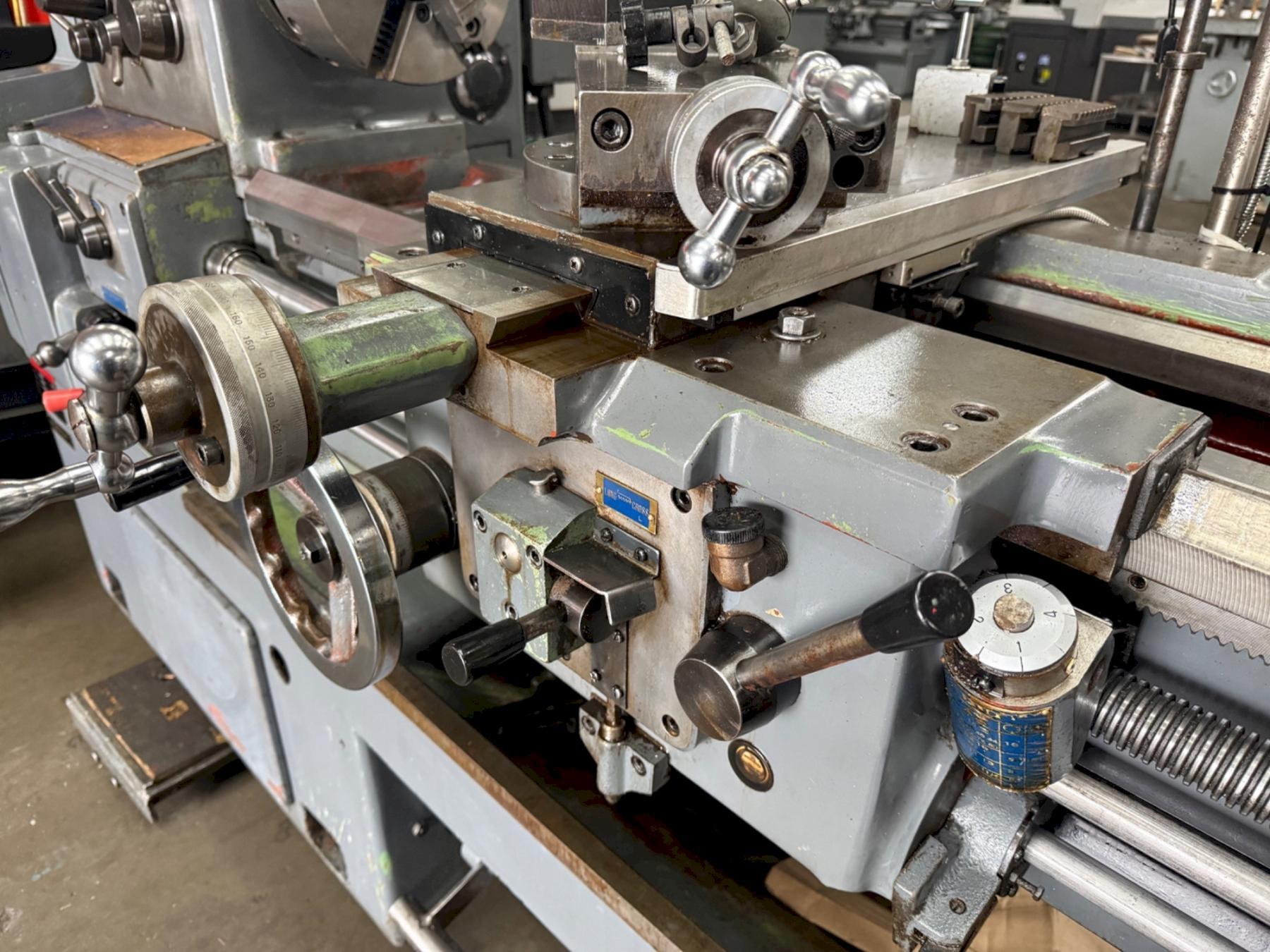

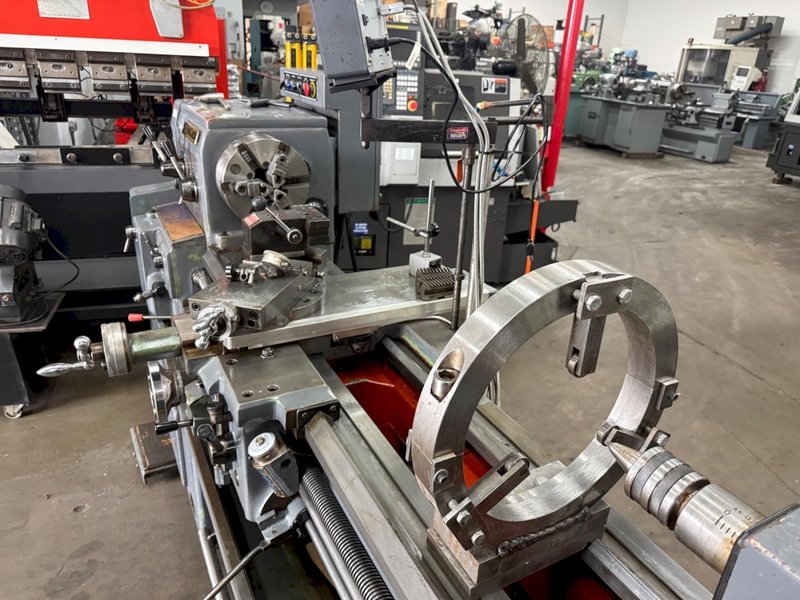

18" x 60" HWACHEON Engine Lathe, Model HL-18
Brand
Category
Type

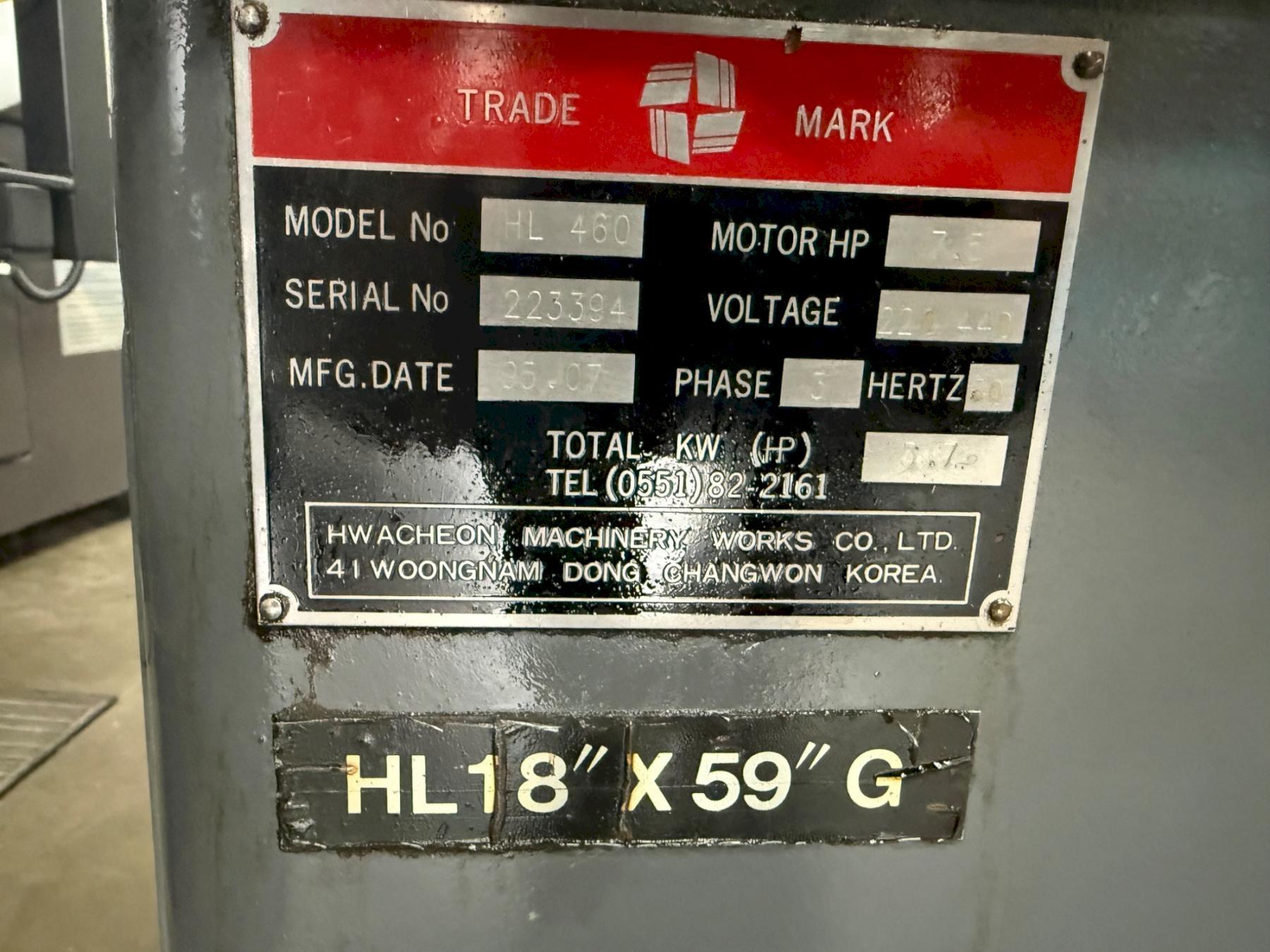

Model
HL-18
Stock #
5029
Year
1995
Condition
Used
Location
California
|

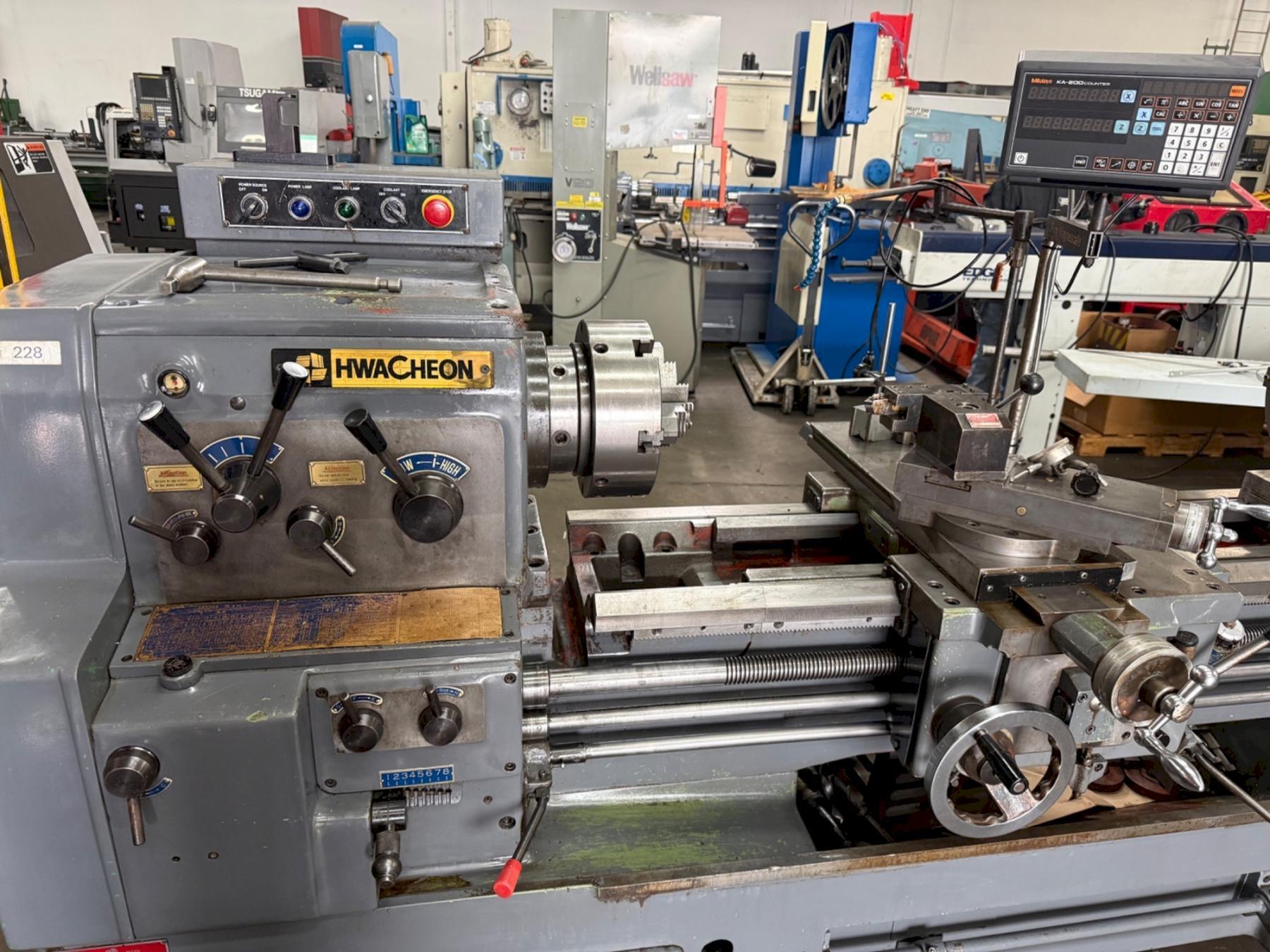

18" x 60" HWACHEON Engine Lathe Swing over bed: 18" Swing over cross slide: 11" Swing over gap: 25" Distance between centers: 594" Spindle nose: D1-6 Spindle bore: 2-3/64" Taper of spindle bore: MT no. 6 Taper of center: MT no. 4 Number of spindle speeds: 12 Range of spindle speeds (RPM): 32, 62, 82, 112, 160, 200, 285, 395, 510, 710, 1010, 1800 Number of feed changes: 40 Cross slide travel: 10" Gap width: 7-7/8" Bed width: 13-3/4" Inch threads: 4 to 80 TPI Metric threads: .5 to 7 mm Approx. Overall Dimensions: 114" x 42" x 55" (W x L x H) Approx. Weight: 5,200 lbs. EQUIPPED WITH: Mitutoyo Digital Readout 3 & 4 jaw chucks Selector switch for on - off Coolant pump with control Emergency stop treadle Approx. 7.5 HP 240 volts motor FOB: Origin |
