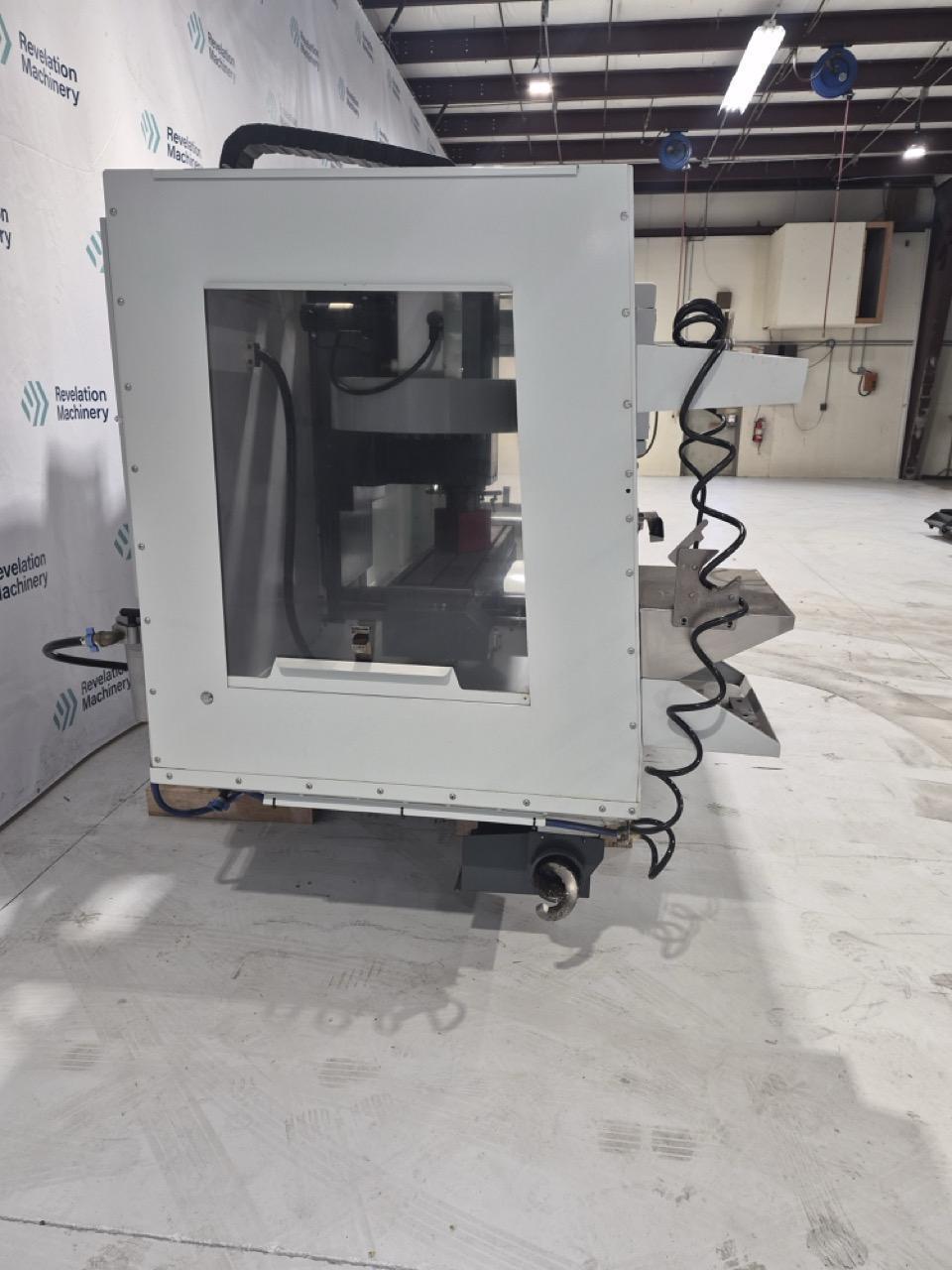

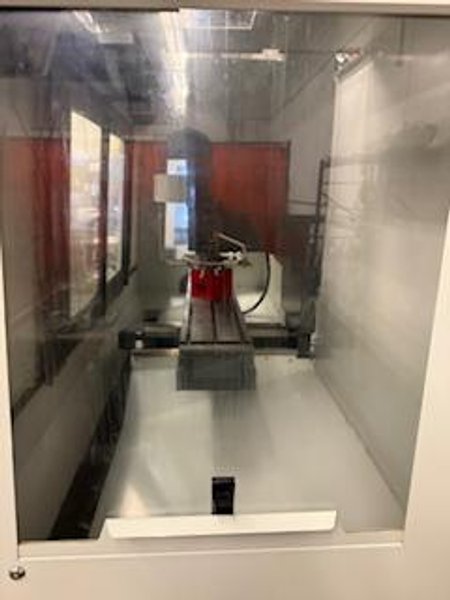

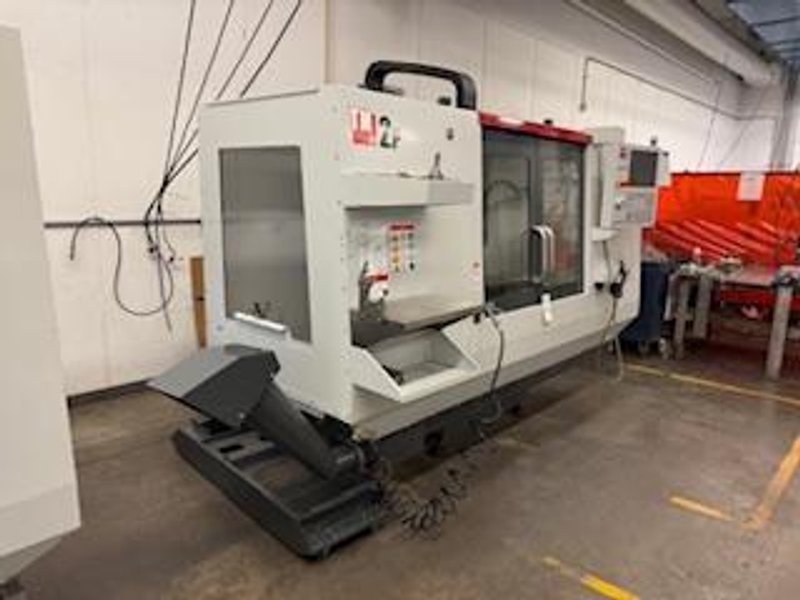

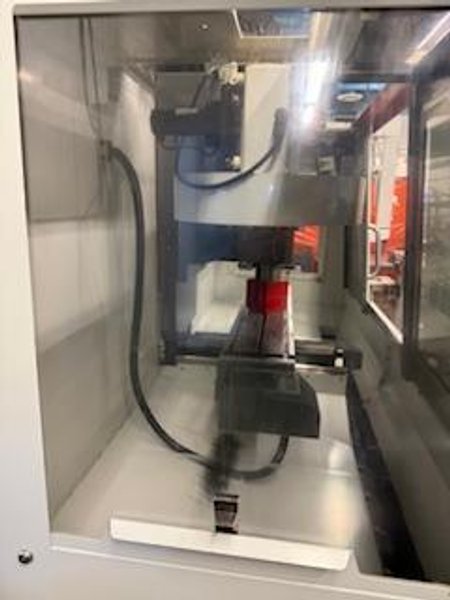

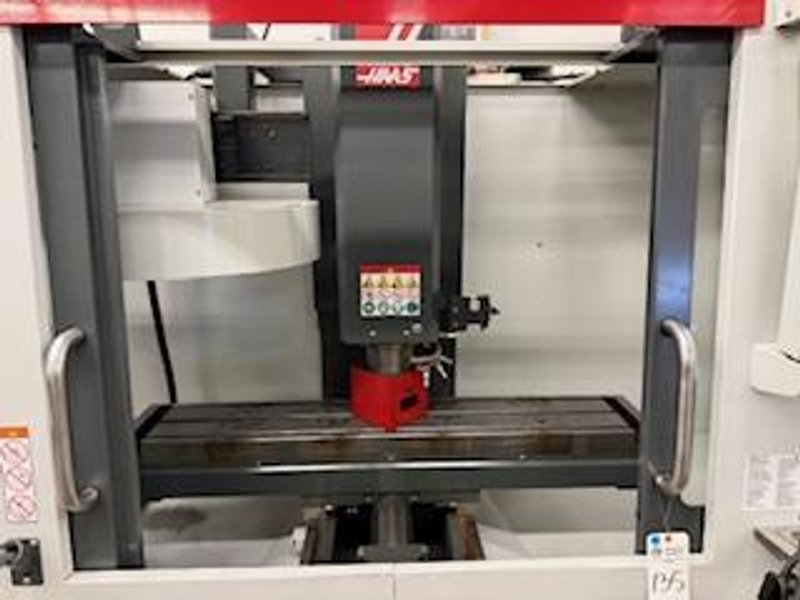

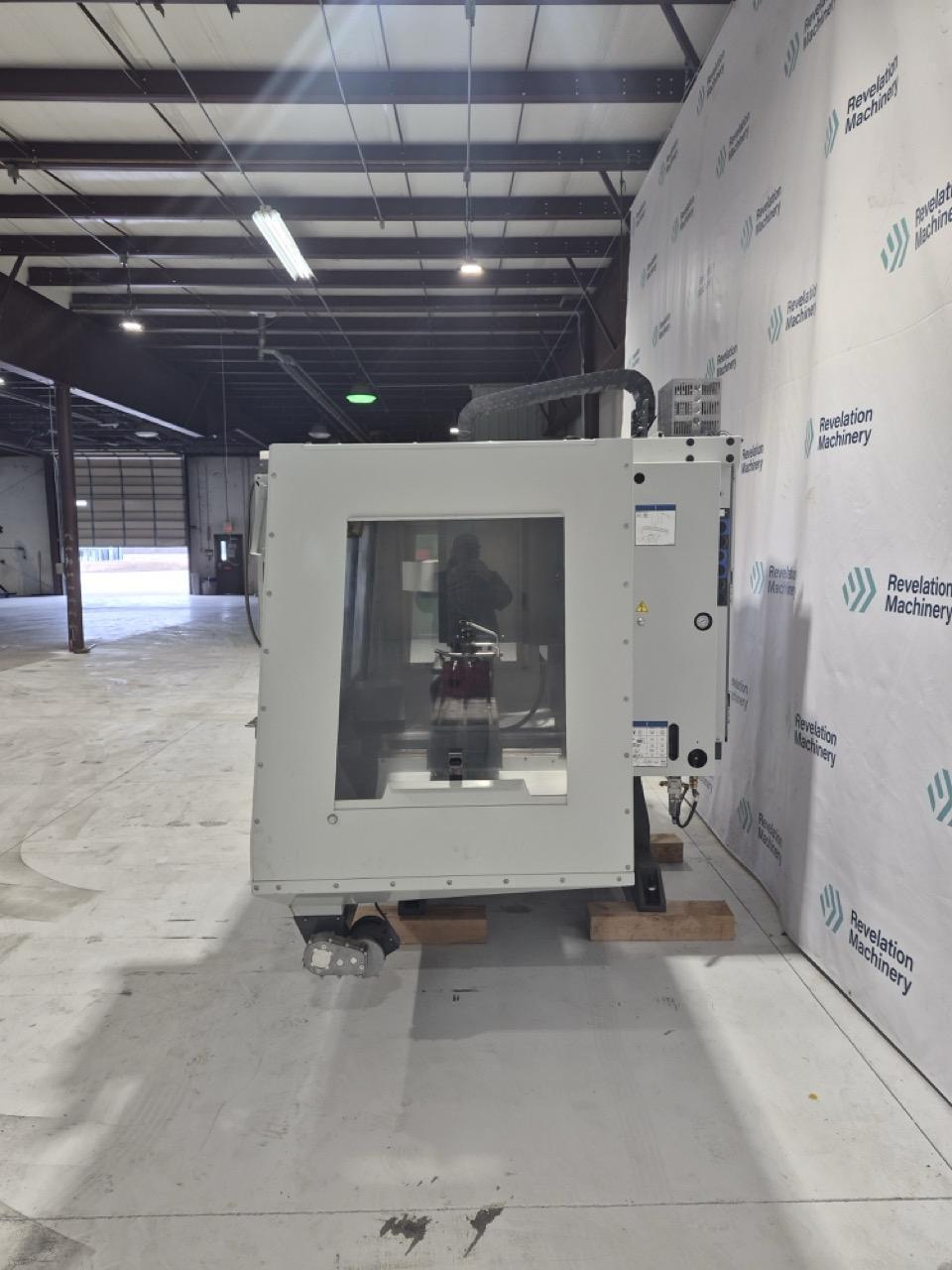

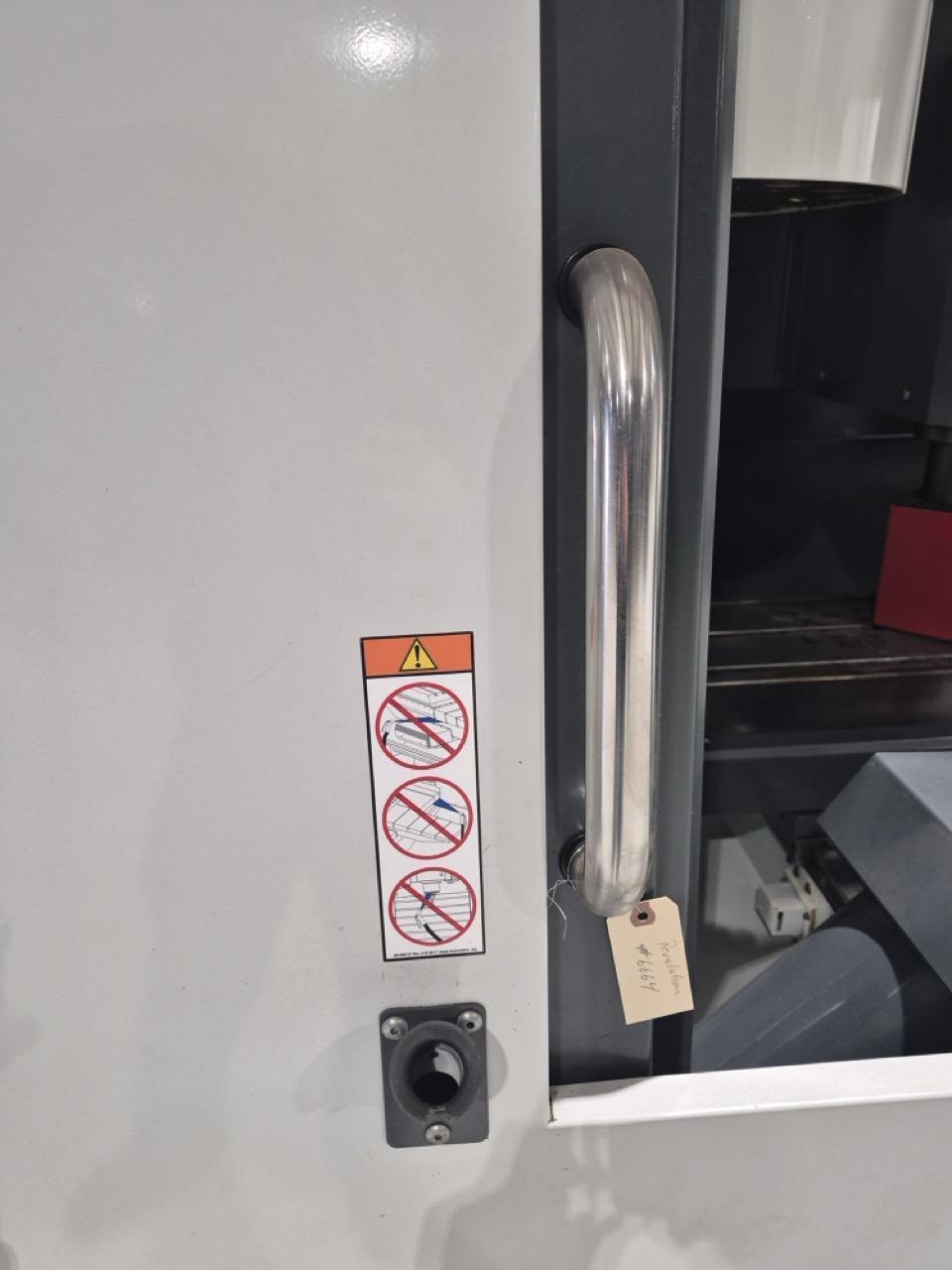

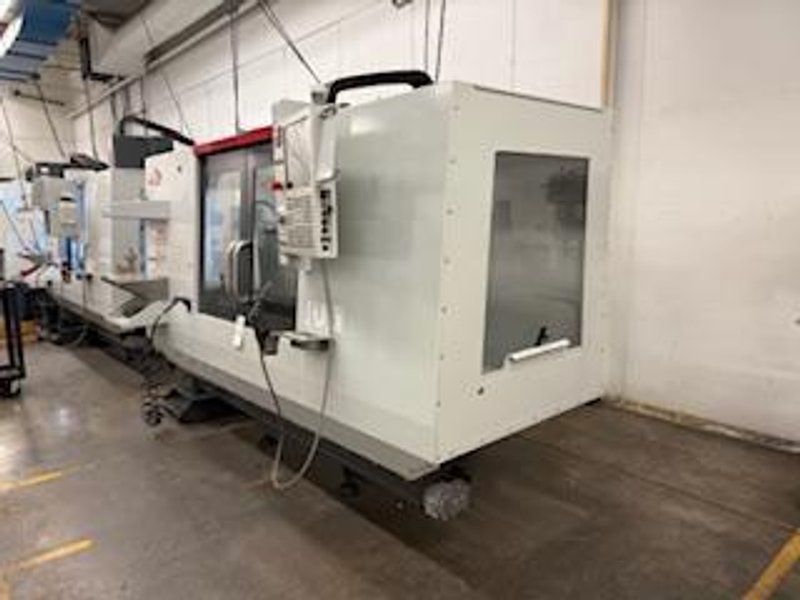

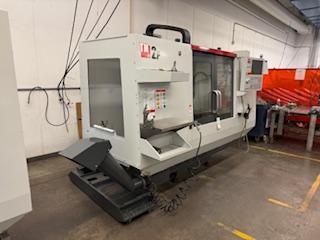

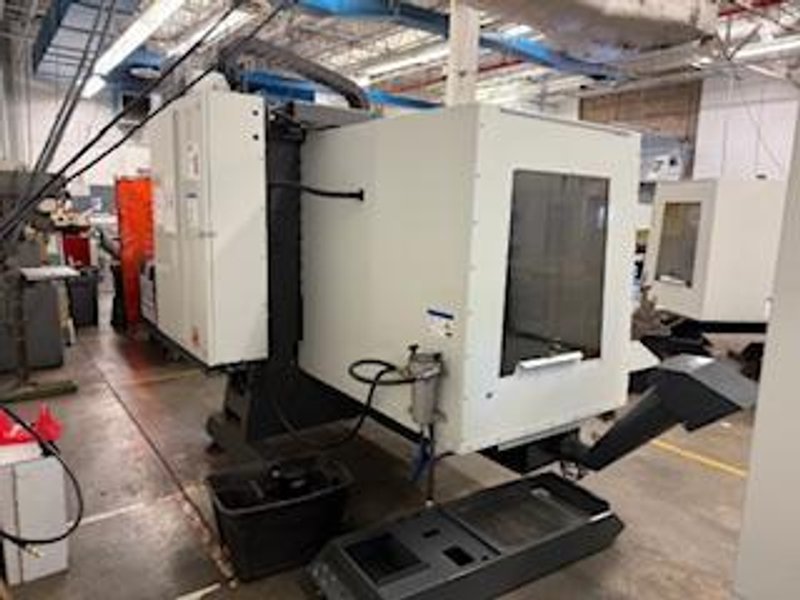

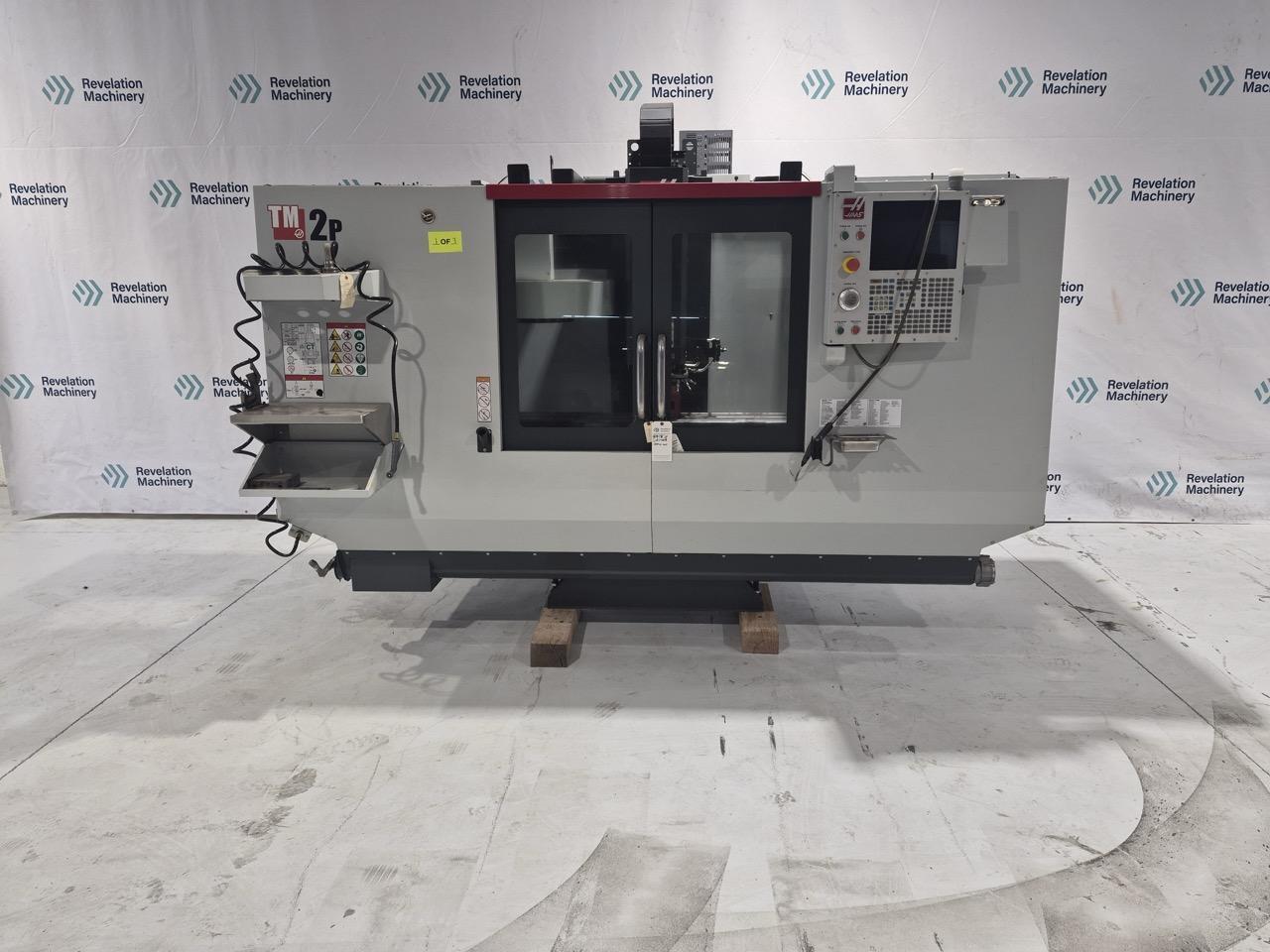

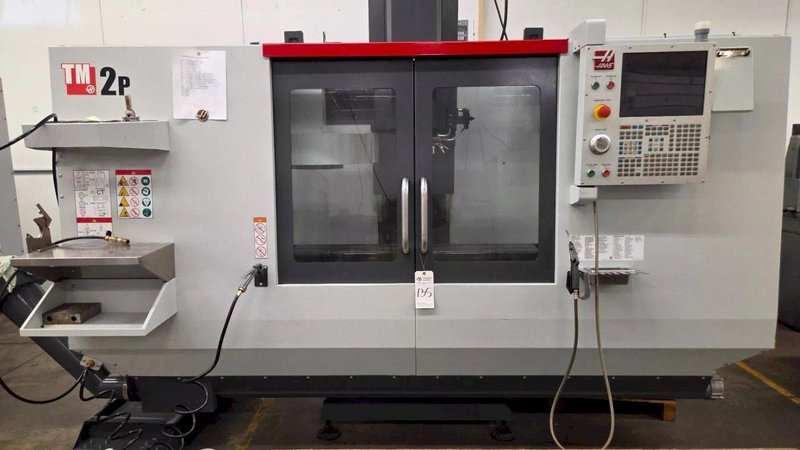

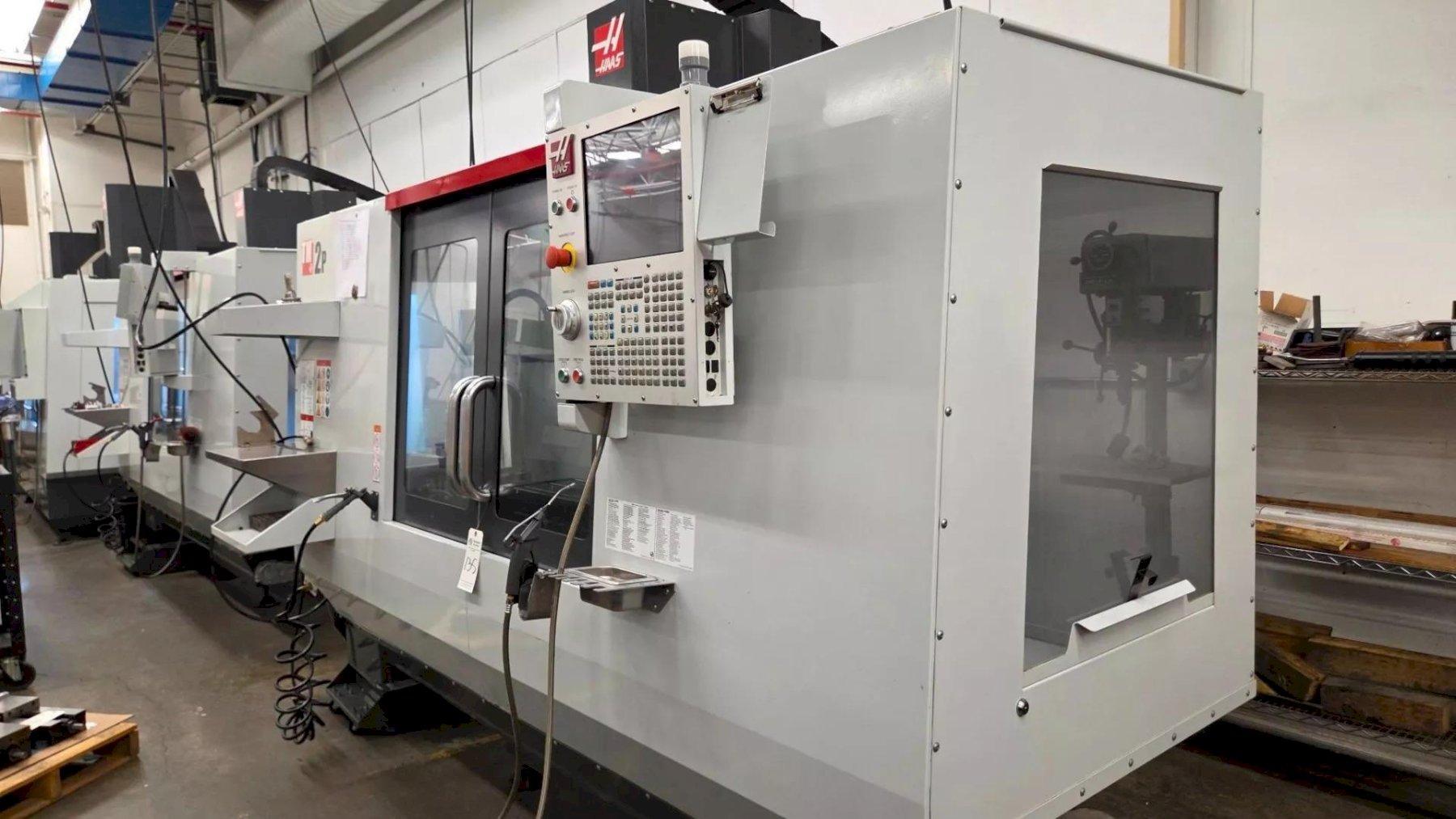

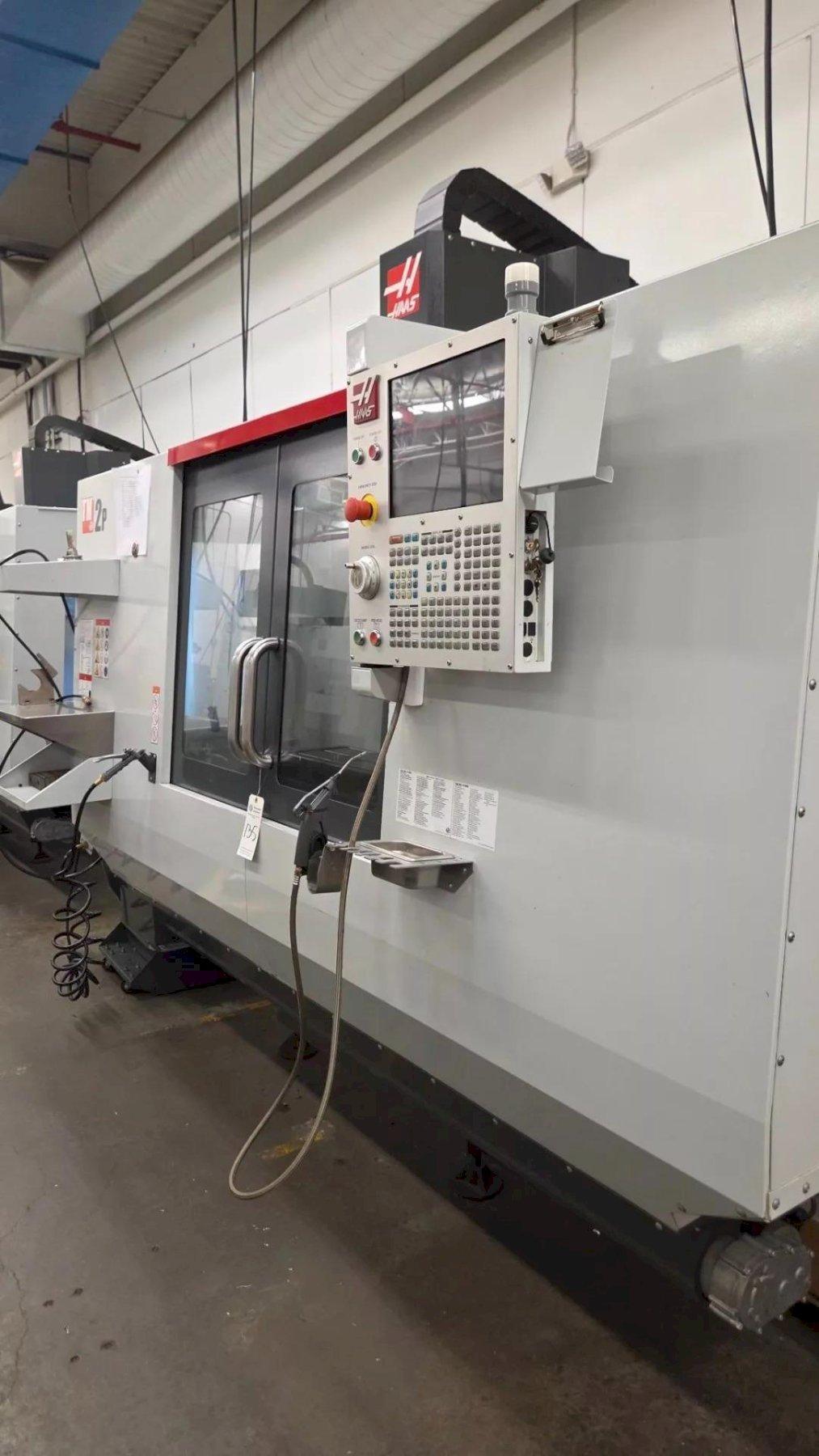

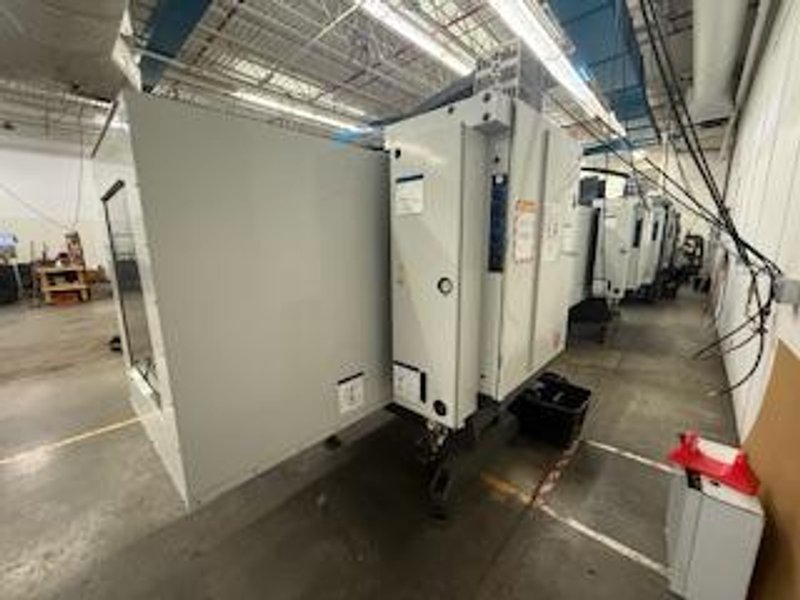

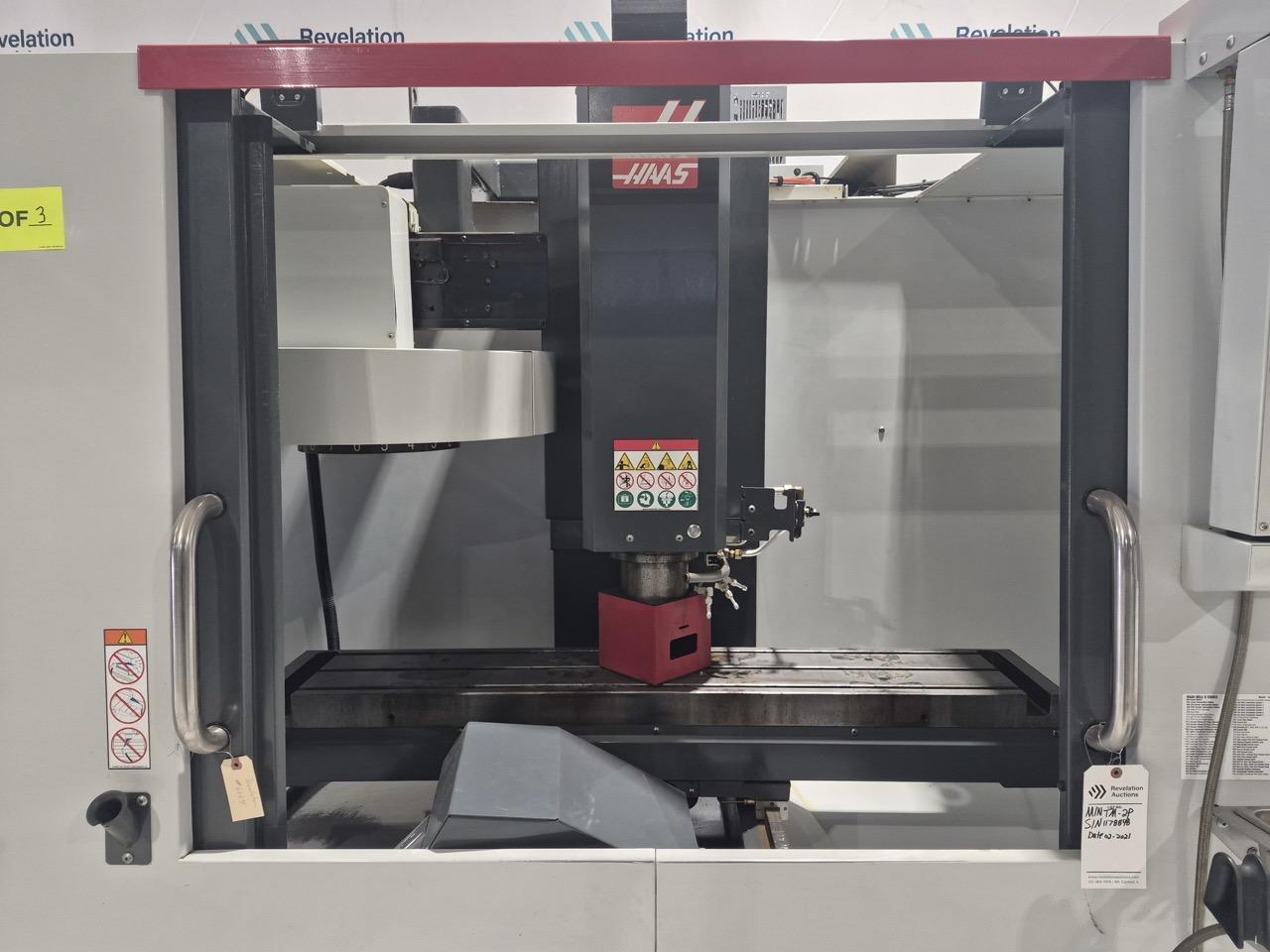

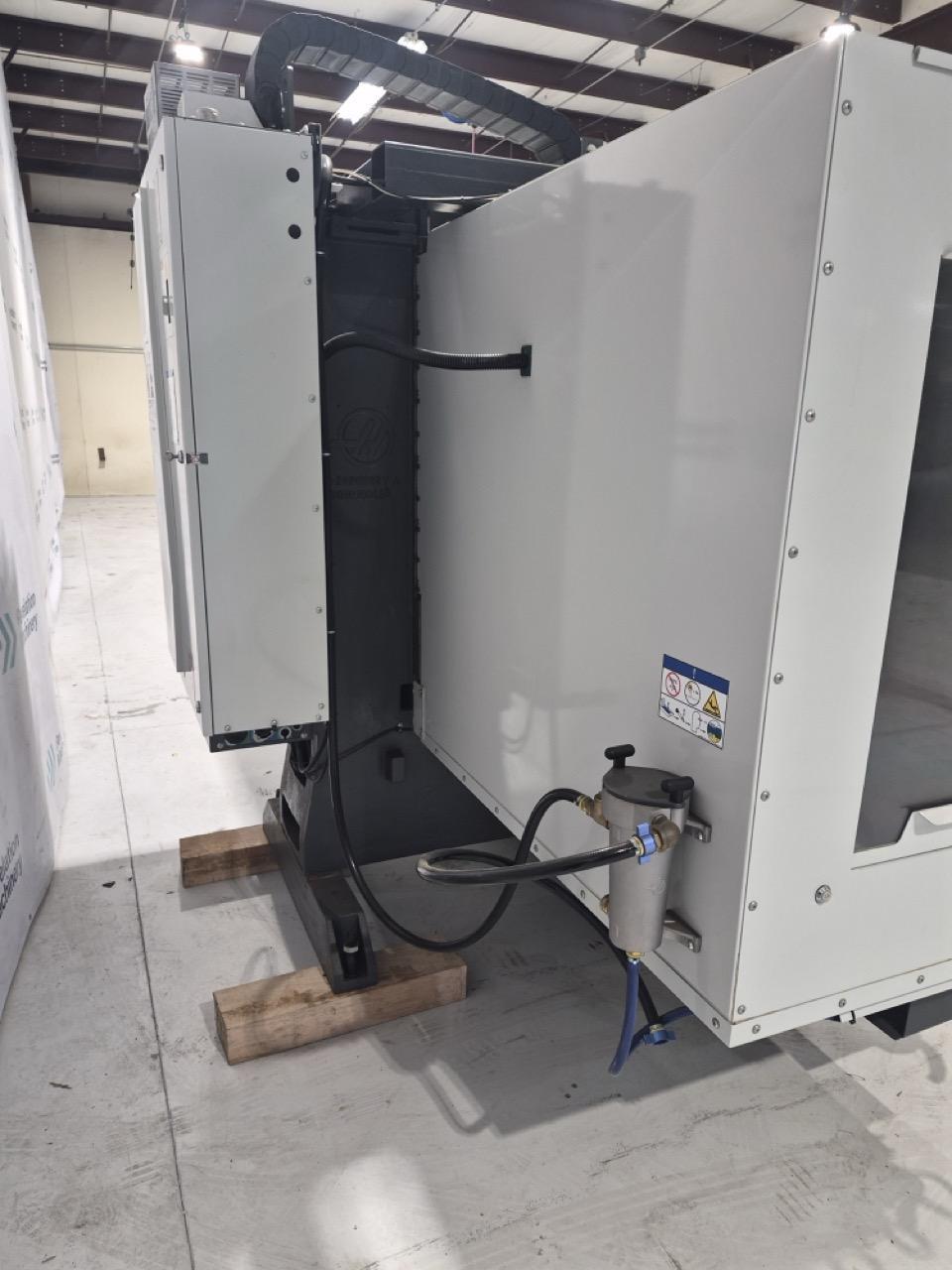

HAAS TM-2P CNC VERTICAL Machining Center, 2021 – VMC

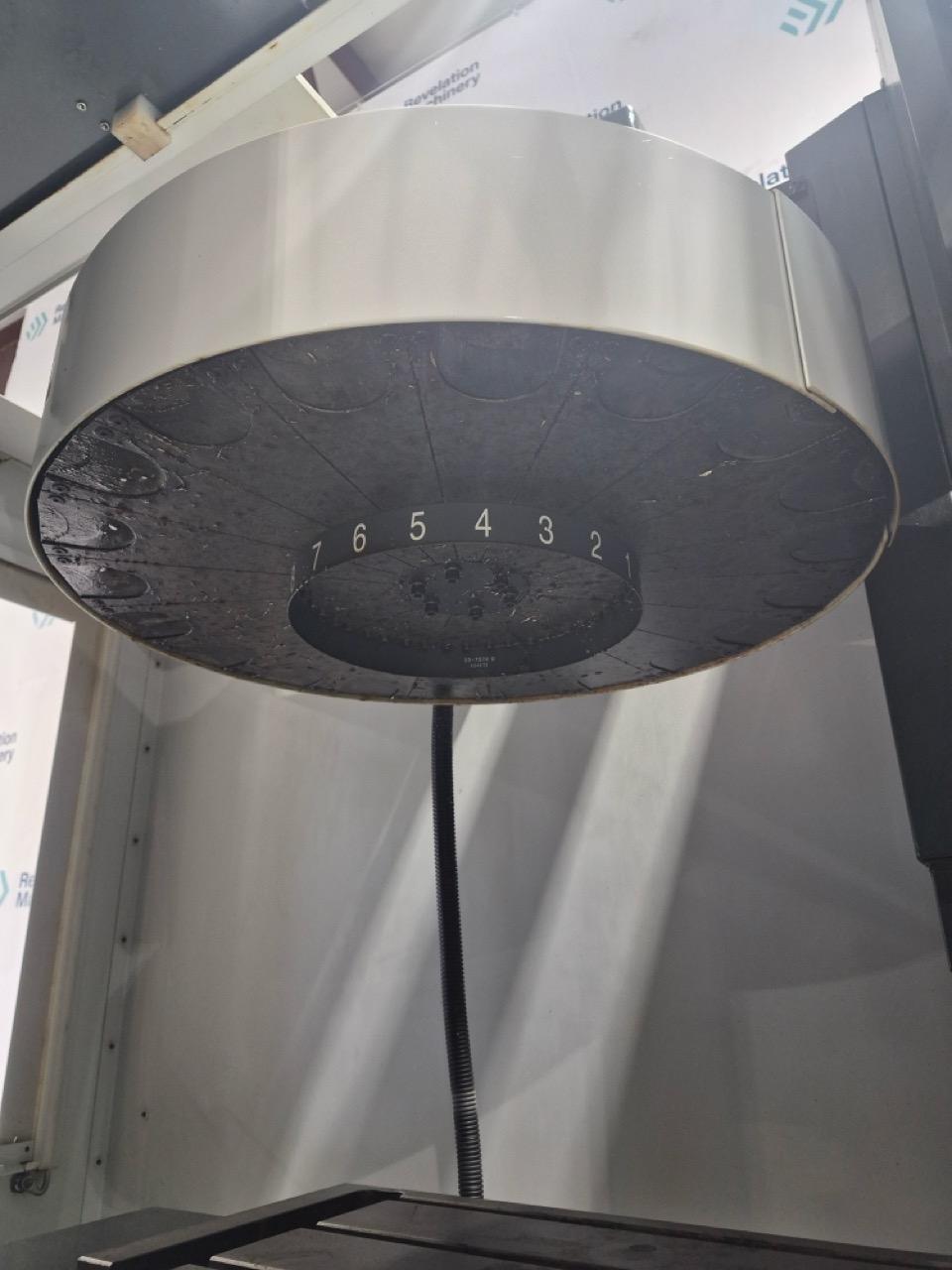

SPECIFICATIONS: TRAVELS X AXIS: 40.00 IN Y AXIS: 16.00 IN Z AXIS: 16.00 IN SPINDLE NOSE TO TABLE (~ MAX) 20.0 IN SPINDLE NOSE TO TABLE (~ MIN) 4.0 IN TOOL CHANGER: 20 SPINDLE MAX RATING: 7.5 HP MAX SPEED: 6000 RPM MAX TORQUE: 33.0 FT-LBF @ 1200 RPM DRIVE SYSTEM: DIRECT SPEED, BELT DRIVE TAPER: CT 40 TABLE LENGTH: 57.8 IN WIDTH: 10.5 IN T-SLOT WIDTH: 0.626 IN TO 0.630 IN T-SLOT CENTER DISTANCE: 4.00 IN NUMBER OF STD T-SLOTS: 3 MAX WEIGHT ON TABLE (EVENLY DISTRIBUTED): 350 LB FEEDRATES MAX CUTTING: 400 IPM RAPIDS ON X: 400 IPM RAPIDS ON Y: 400 IPM RAPIDS ON Z: 400 IPM ELECTRICAL SPECIFICATION SPINDLE SPEED: 6000 RPM DRIVE SYSTEM: DIRECT SPEED, BELT DRIVE SPINDLE POWER: 7.5 HP

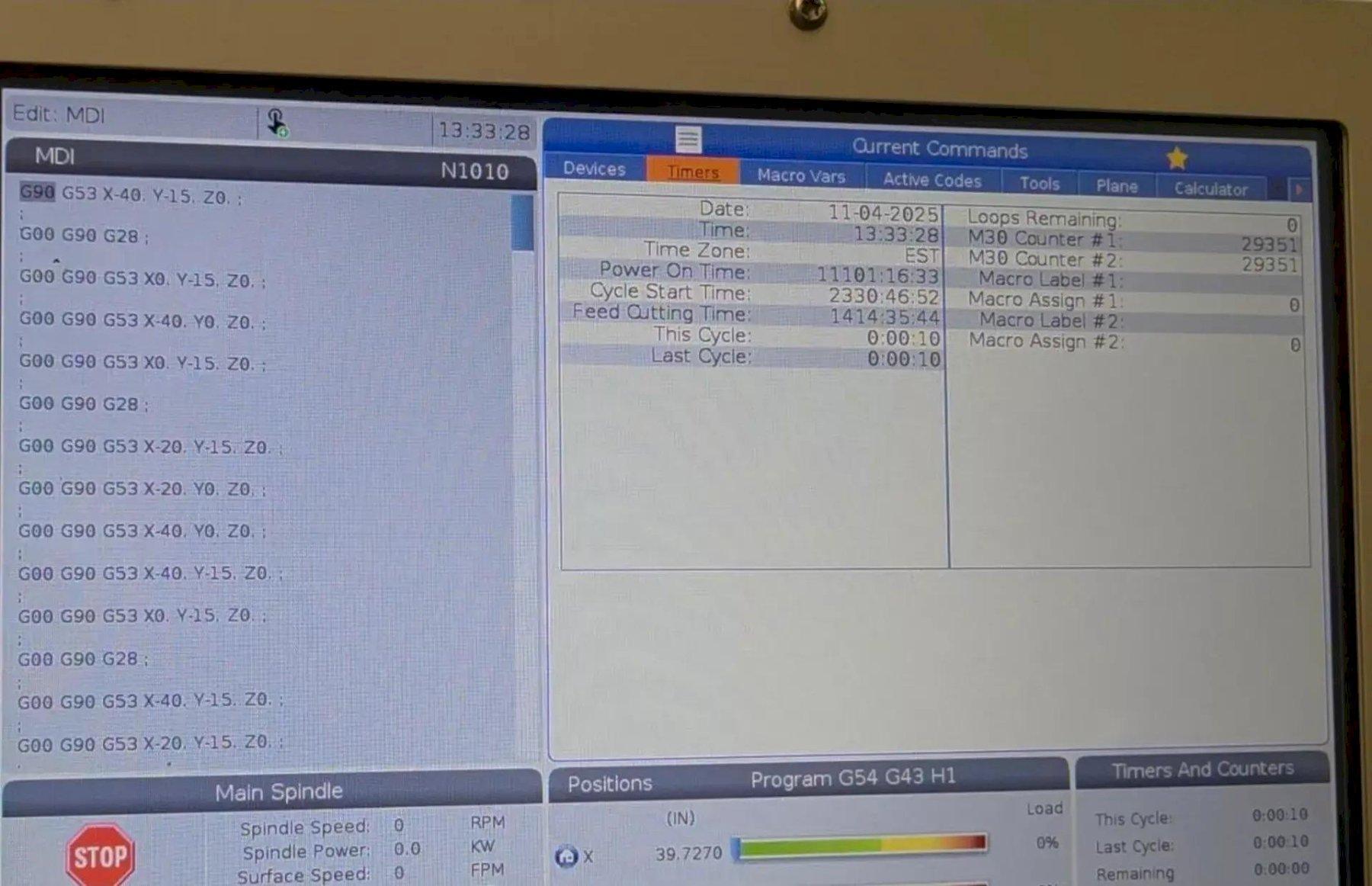

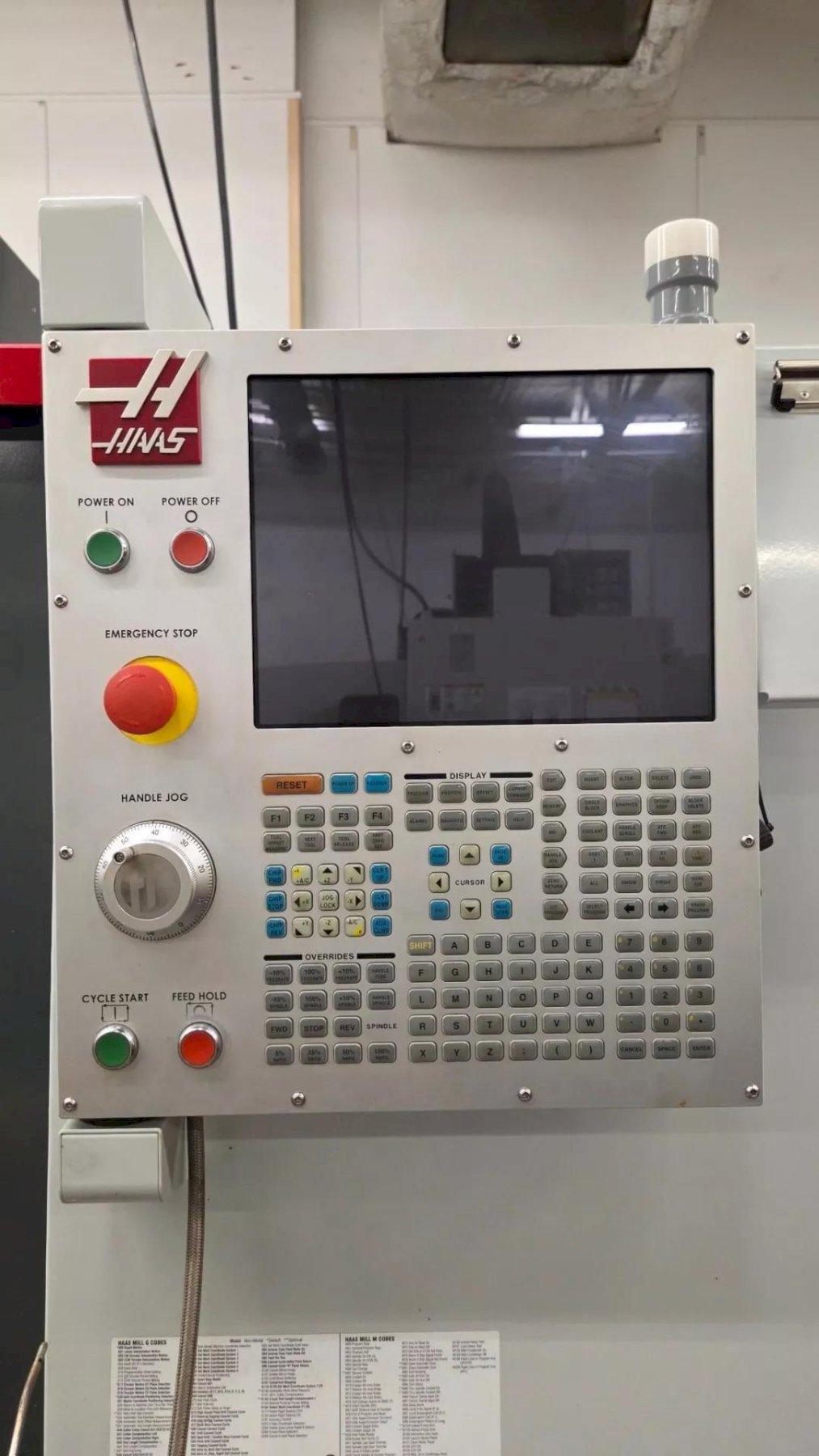

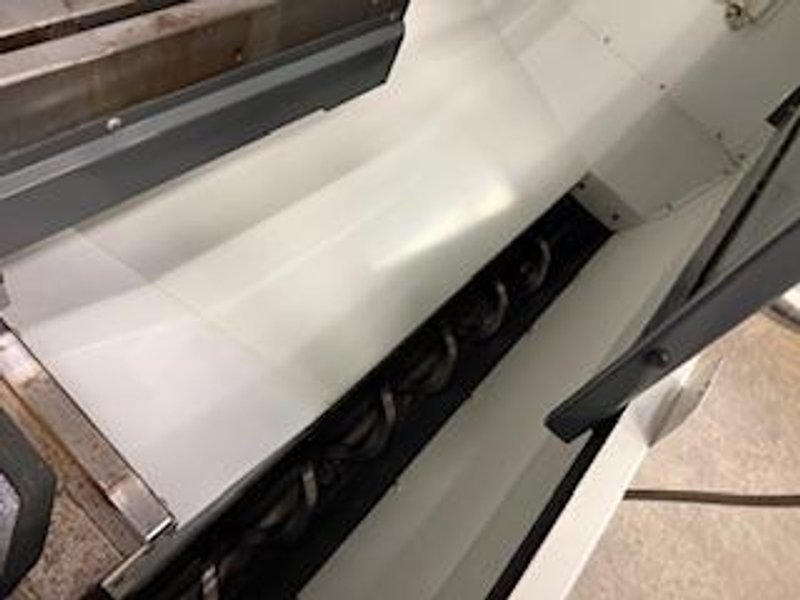

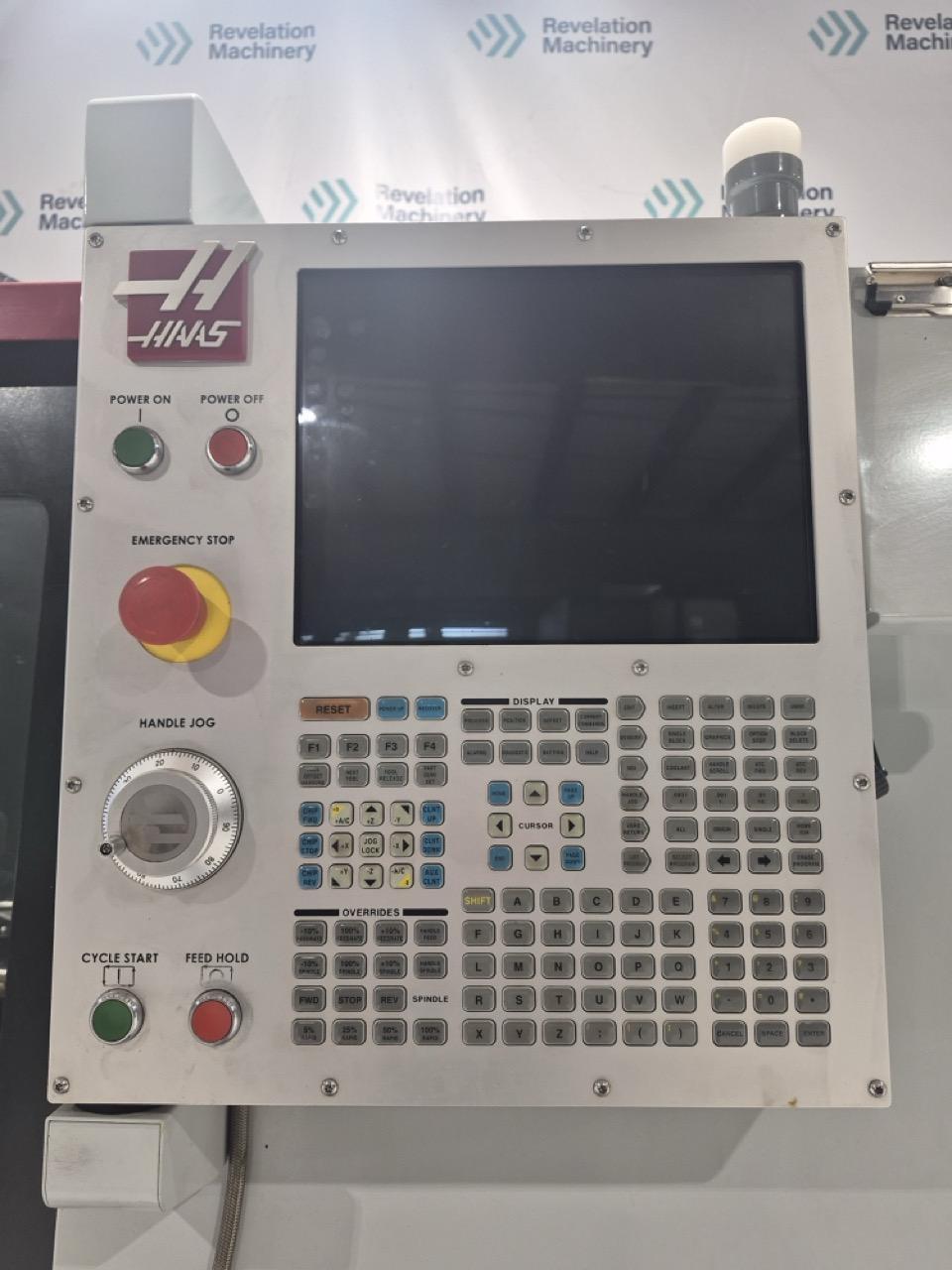

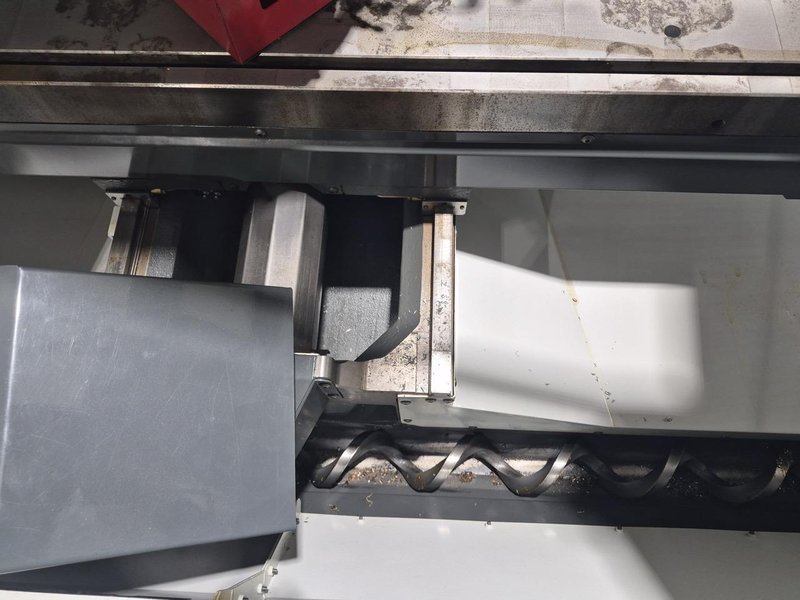

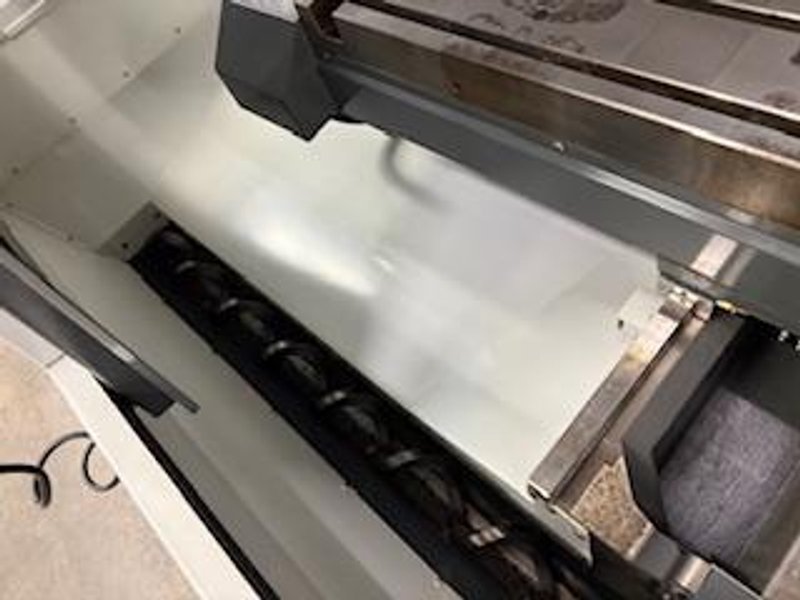

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,EQUIPPED WITH: HAAS CNC CONTROL CHIP AUGER COOLANT SYSTEM

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,INSPECTION AVAILABLE BY APPOINTMENT

All specifications are assumed to be correct but must be confirmed by the purchasing entity.
