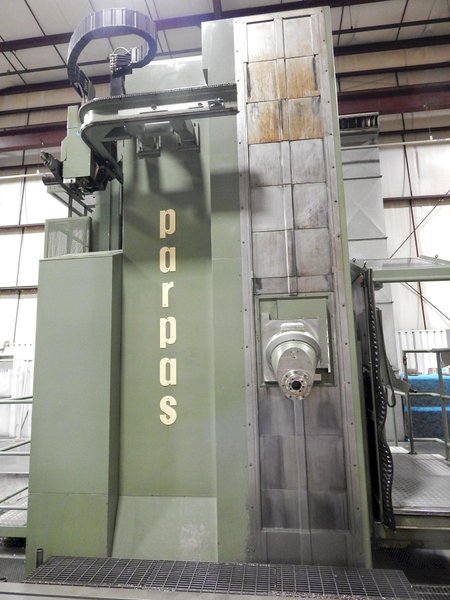

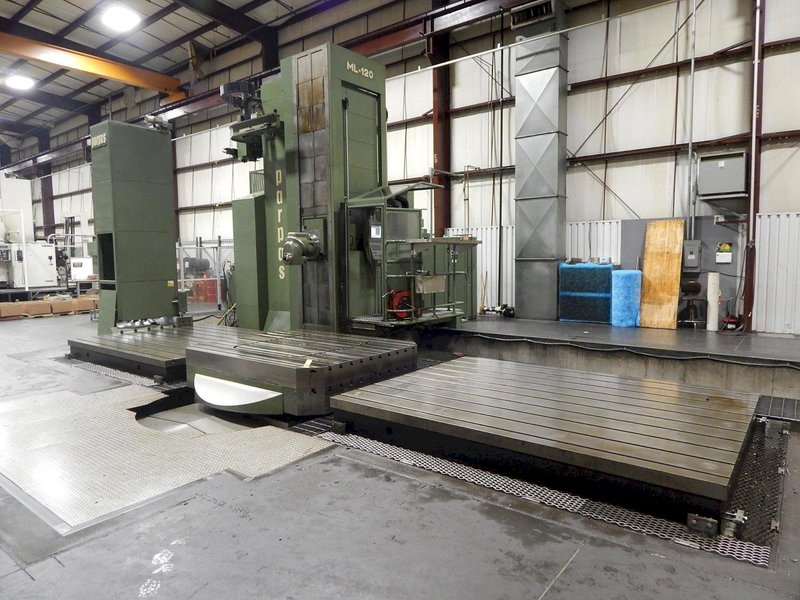

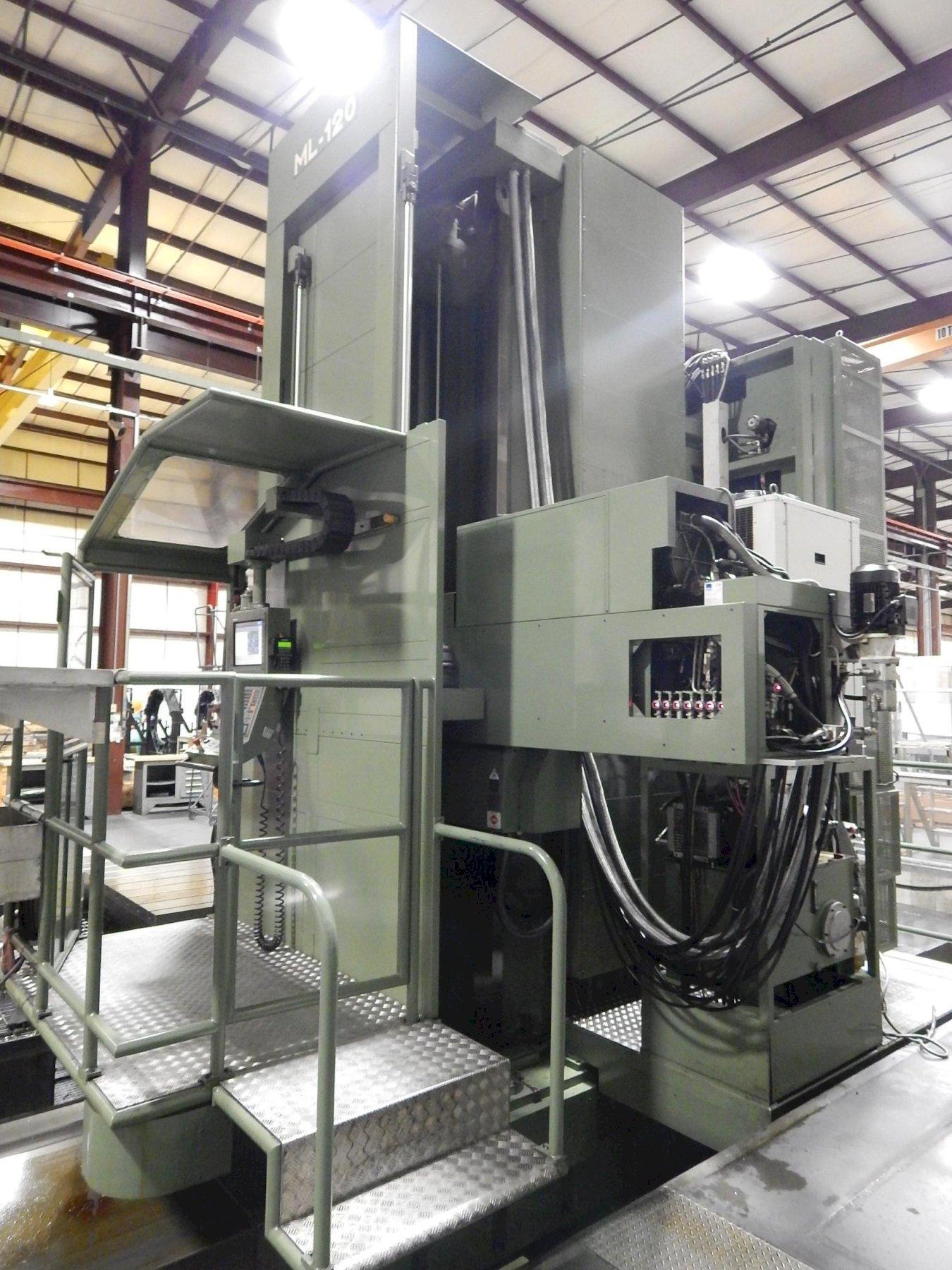

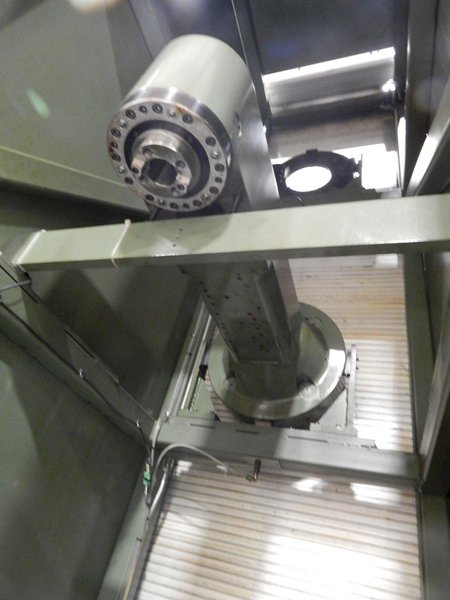

Parpas ML-120 CNC Floor Type Boring Mill, 2007 – 7 Axis, 5″ Spindle, Universal Head, 90 Degree Head, Under Power

Model………………………………………………..ML-120 Manufacturing Year……………………………….2007 Installed Year………………………………………2009 Spindle Diameter………………………………….5.11” Cross Travel (X Axis)…………………………….400” Vertical Travel (Y Axis)…………………………..138” Spindle Travel (W Axis)………………………….26” Spindle Ram Travel (Z Axis)…………………….49” Rotary Table Travel (C Axis)……………………59” Rotary Table Rotation (B Axis)…………………360° Index Head Milling Head………………………….2.5° Orthogonal Milling Head…………………………(+/-)120°/(+/-)180° Rotary Table Size………………………………….98.5” x 78.7” Floor Plate Dimension (1)………………………..98.5” x 128” Floor Plate Dimension (2)………………………..98.5” x 128” Spindle Taper………………………………………ISO 50/40 Max Spindle Speed………………………………..4000 RPM Automatic Tool Changer…………………………120 Max Weight Rotary Table…………………………88,000 LBS Max Weight Floor Plate……………………………200,000 LBS Control………………………………………………Heidenhain Electrics…………………………………………….480V/3PH/60HZ Made In………………………………………………Italy Approximate Weight………………………………135,000 LBS Approximate Overall Dimension………………..675”L x 445”W x 265”H

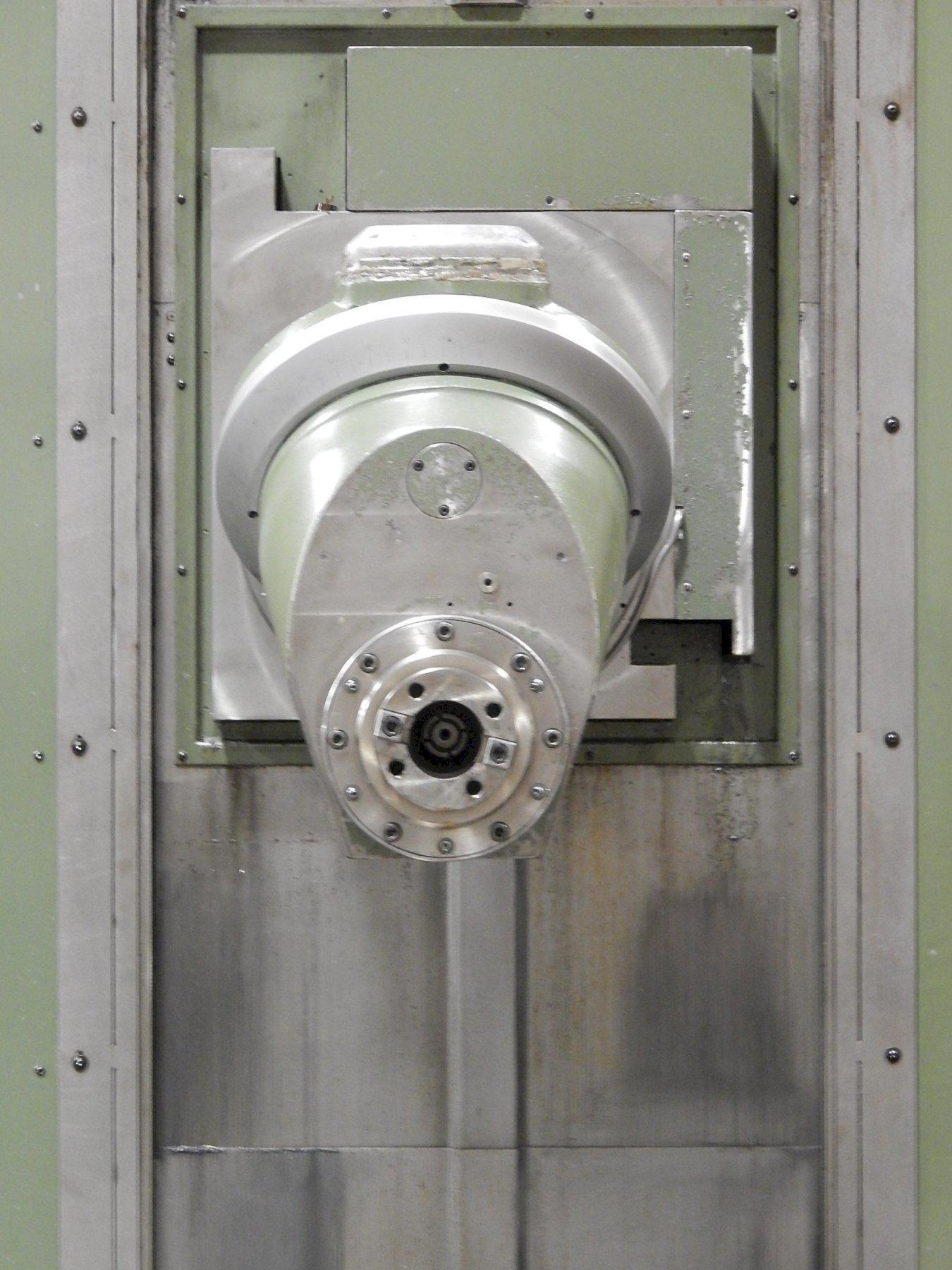

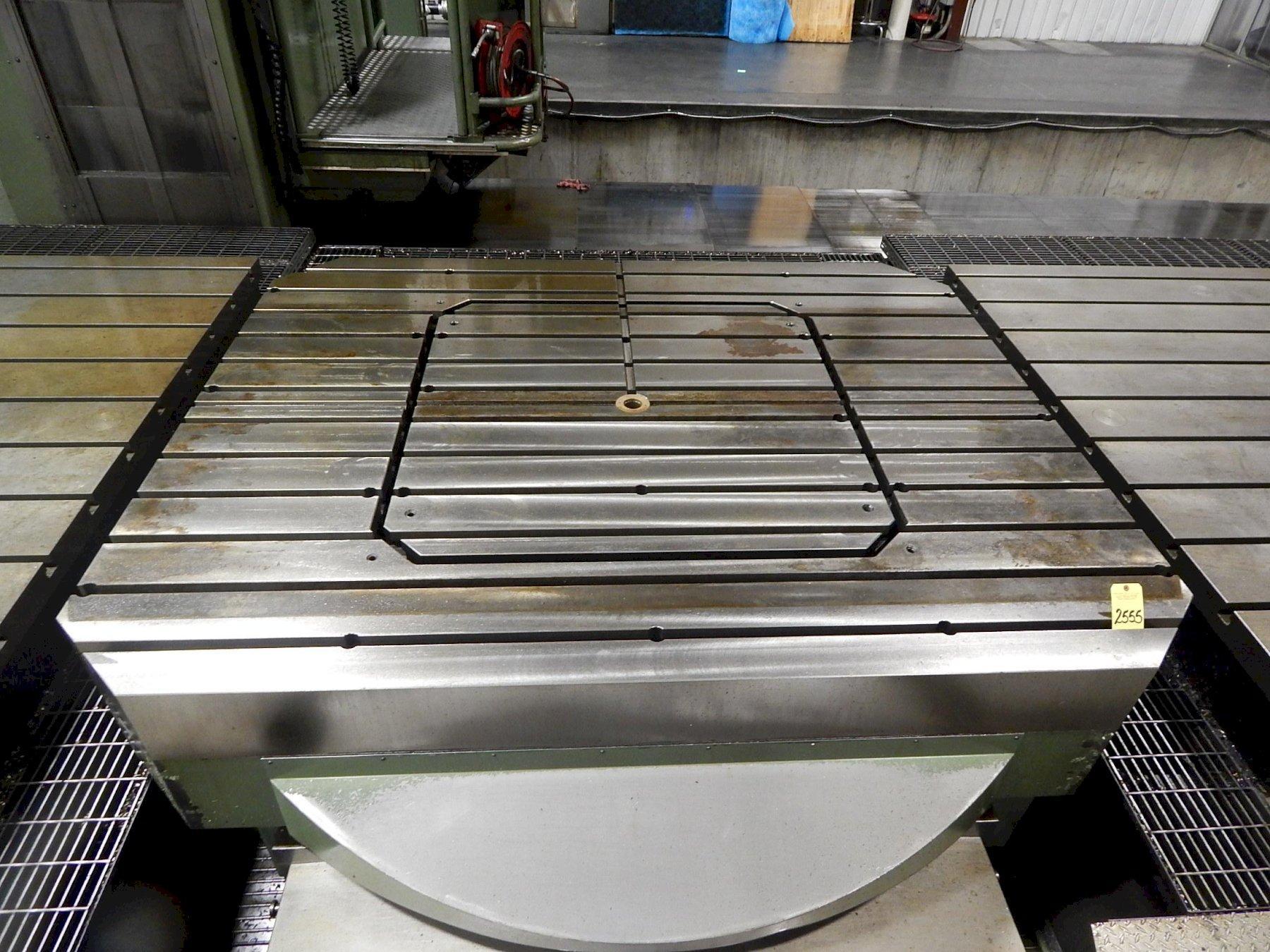

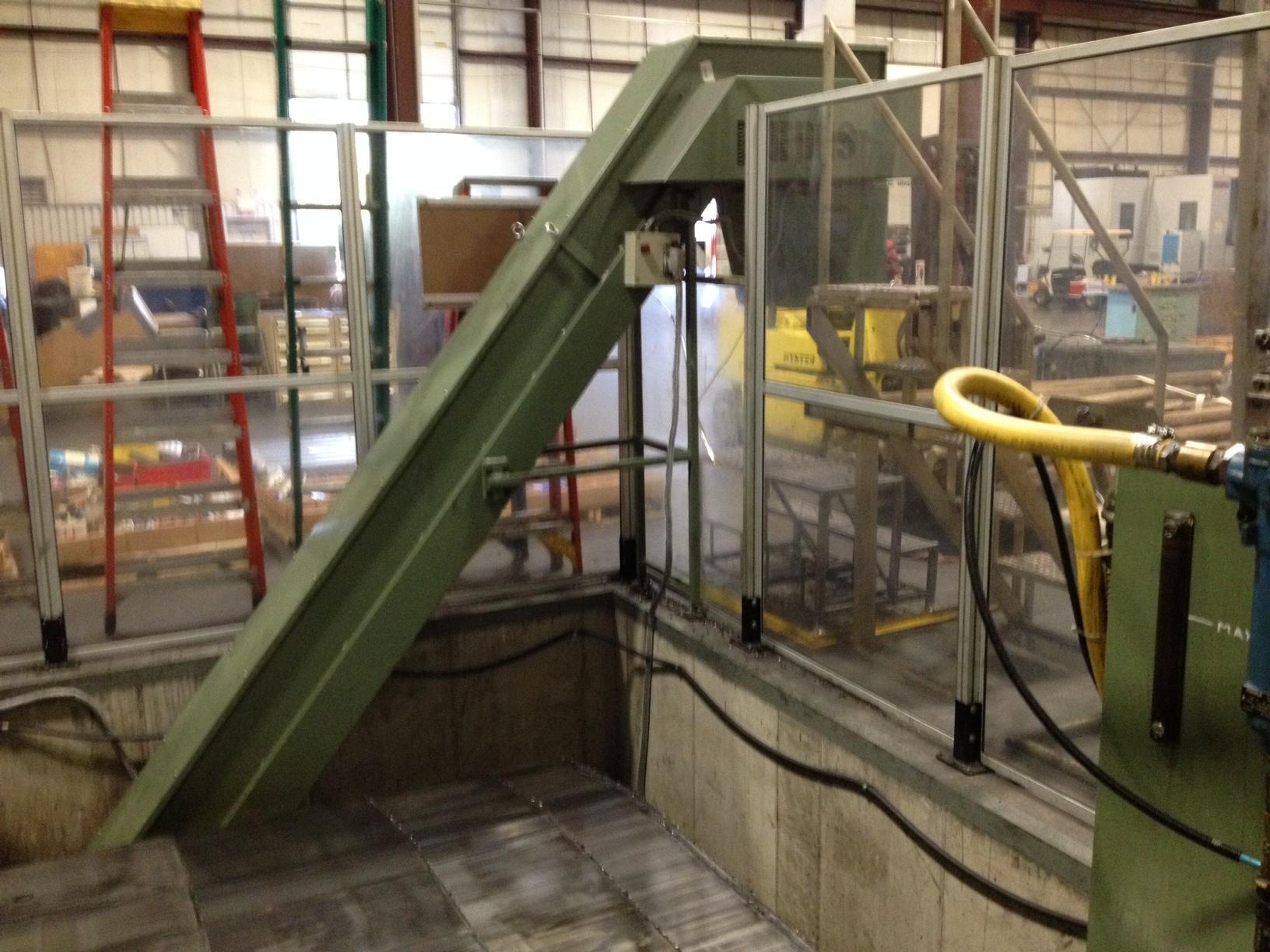

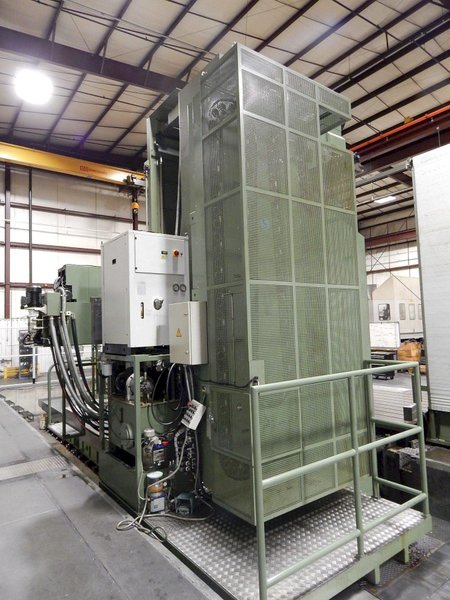

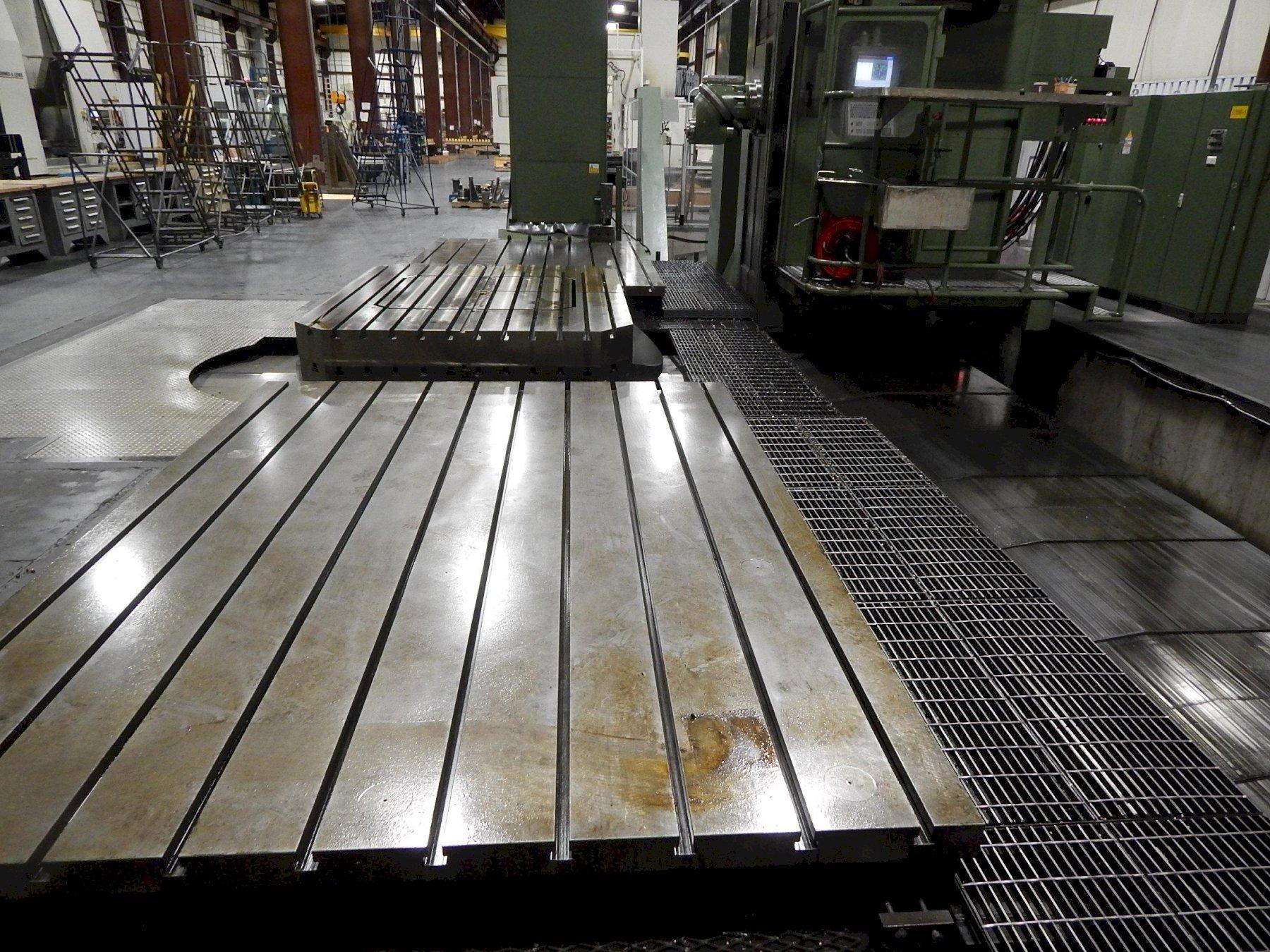

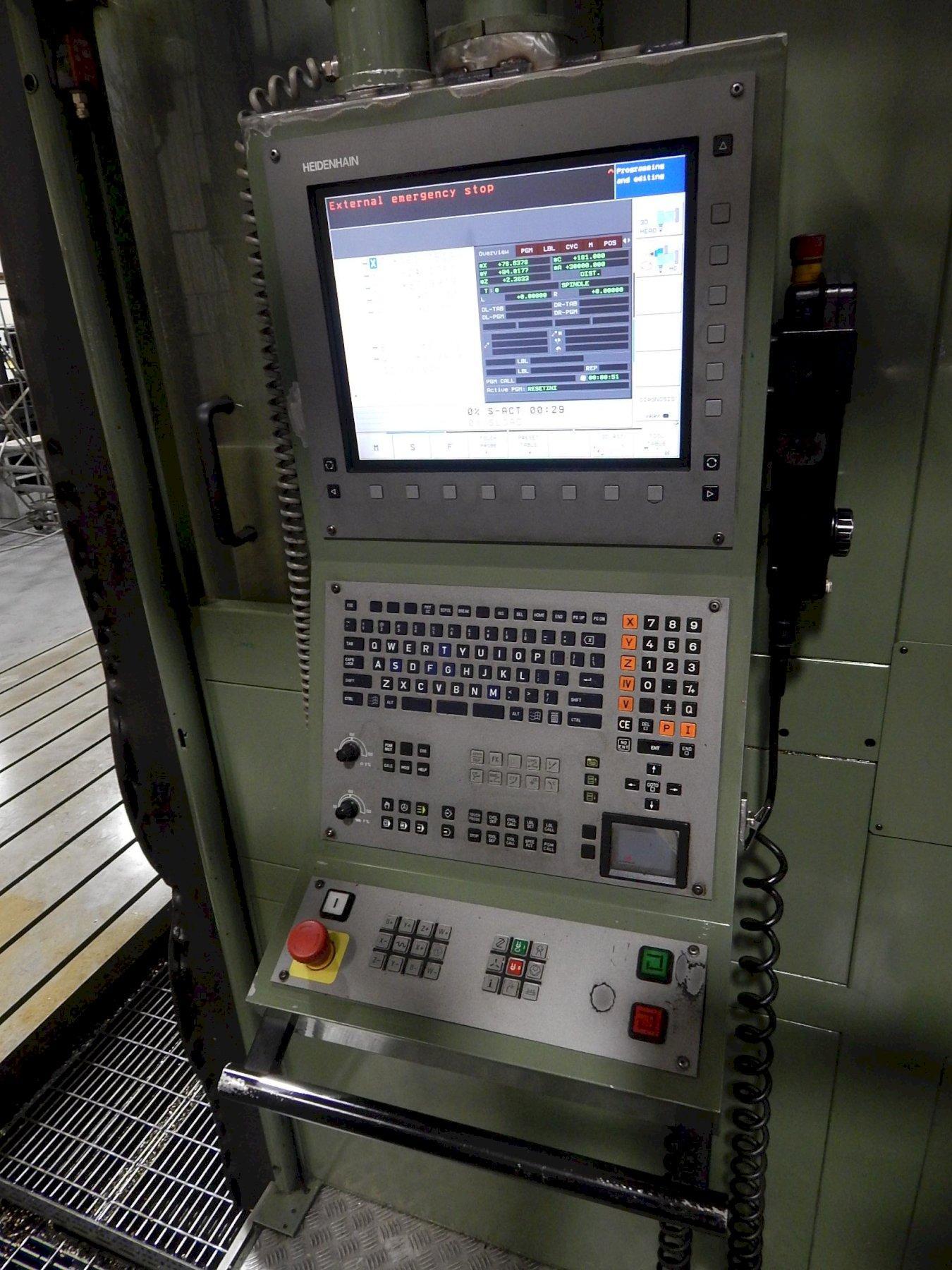

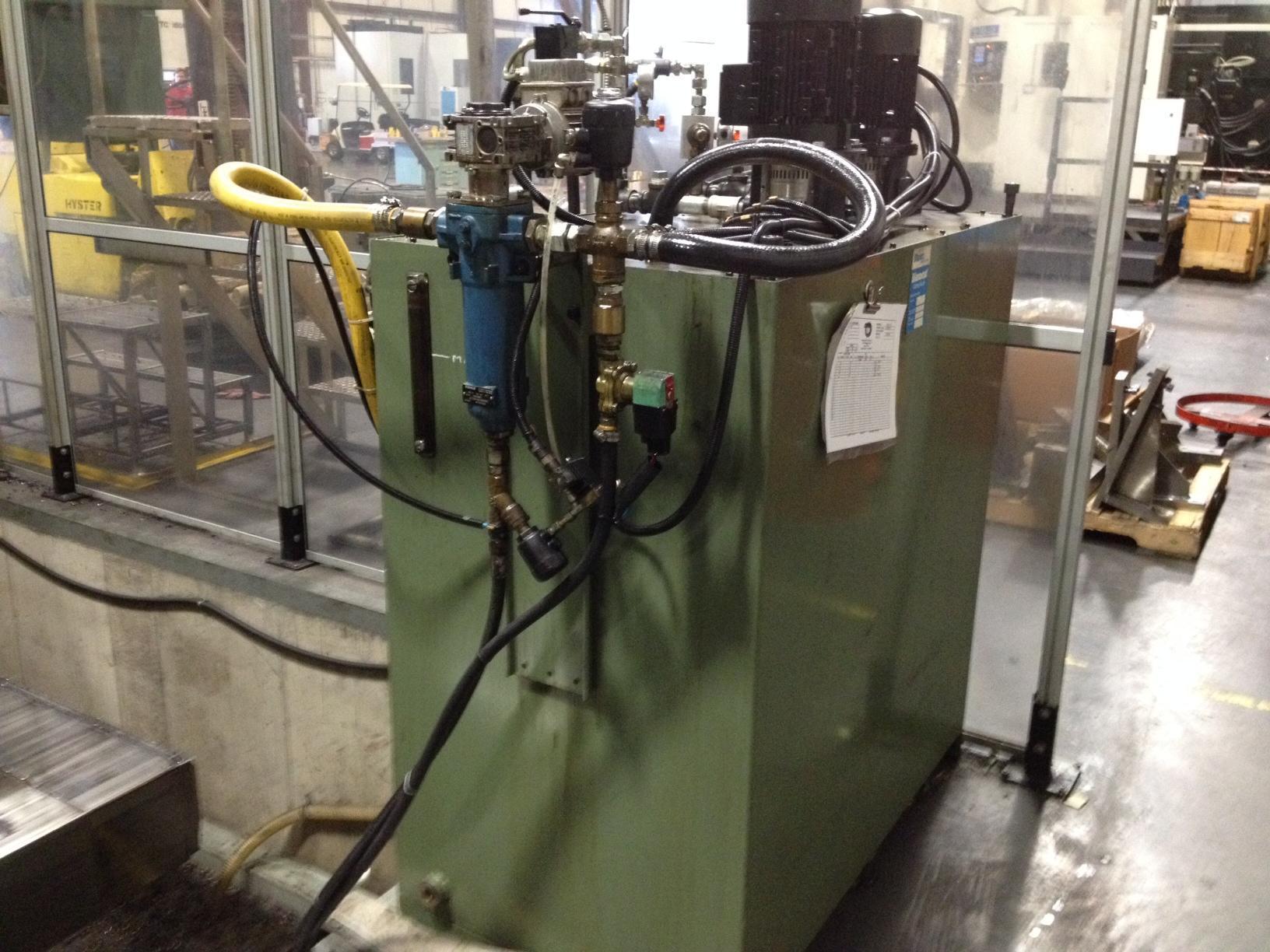

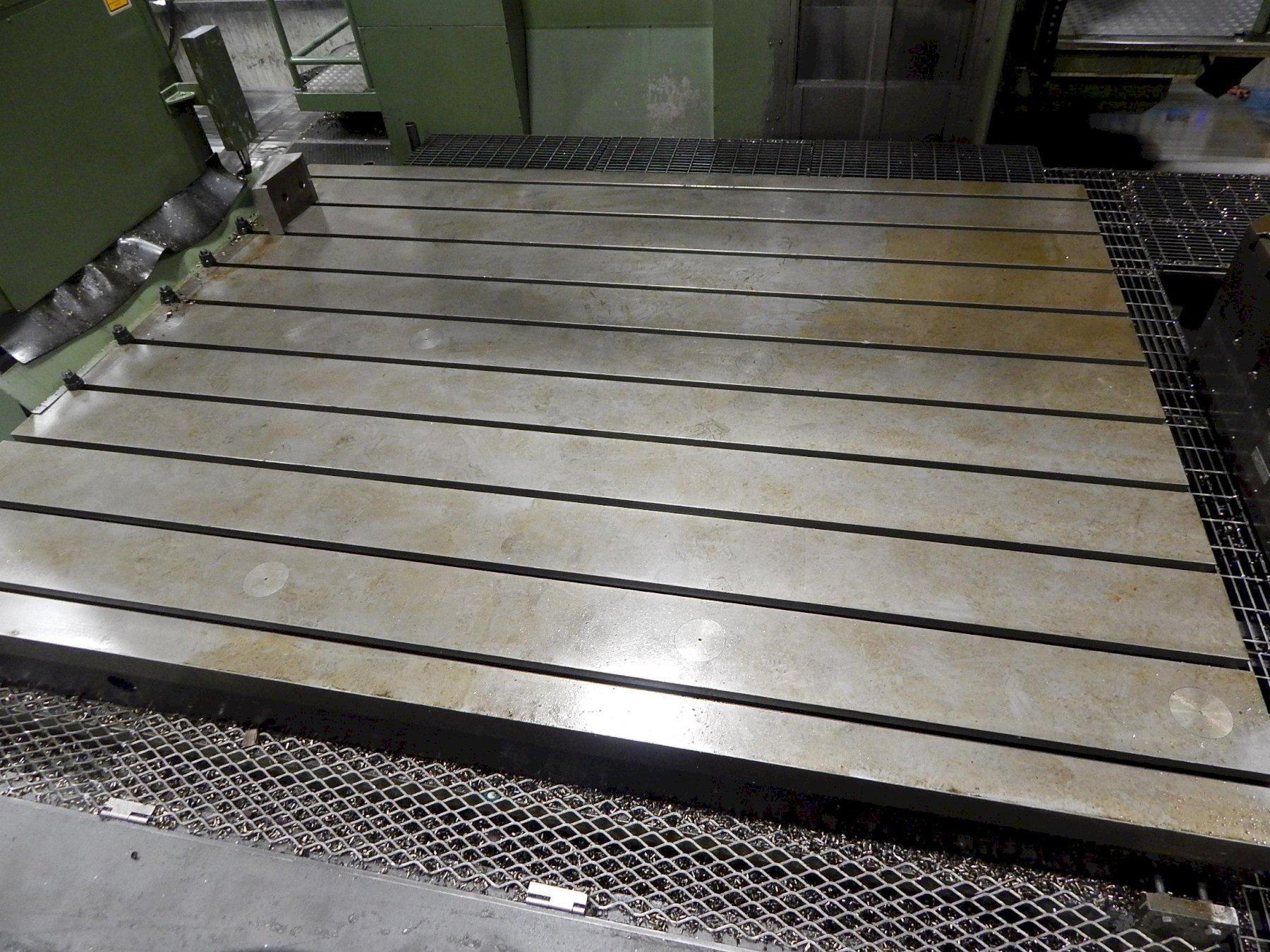

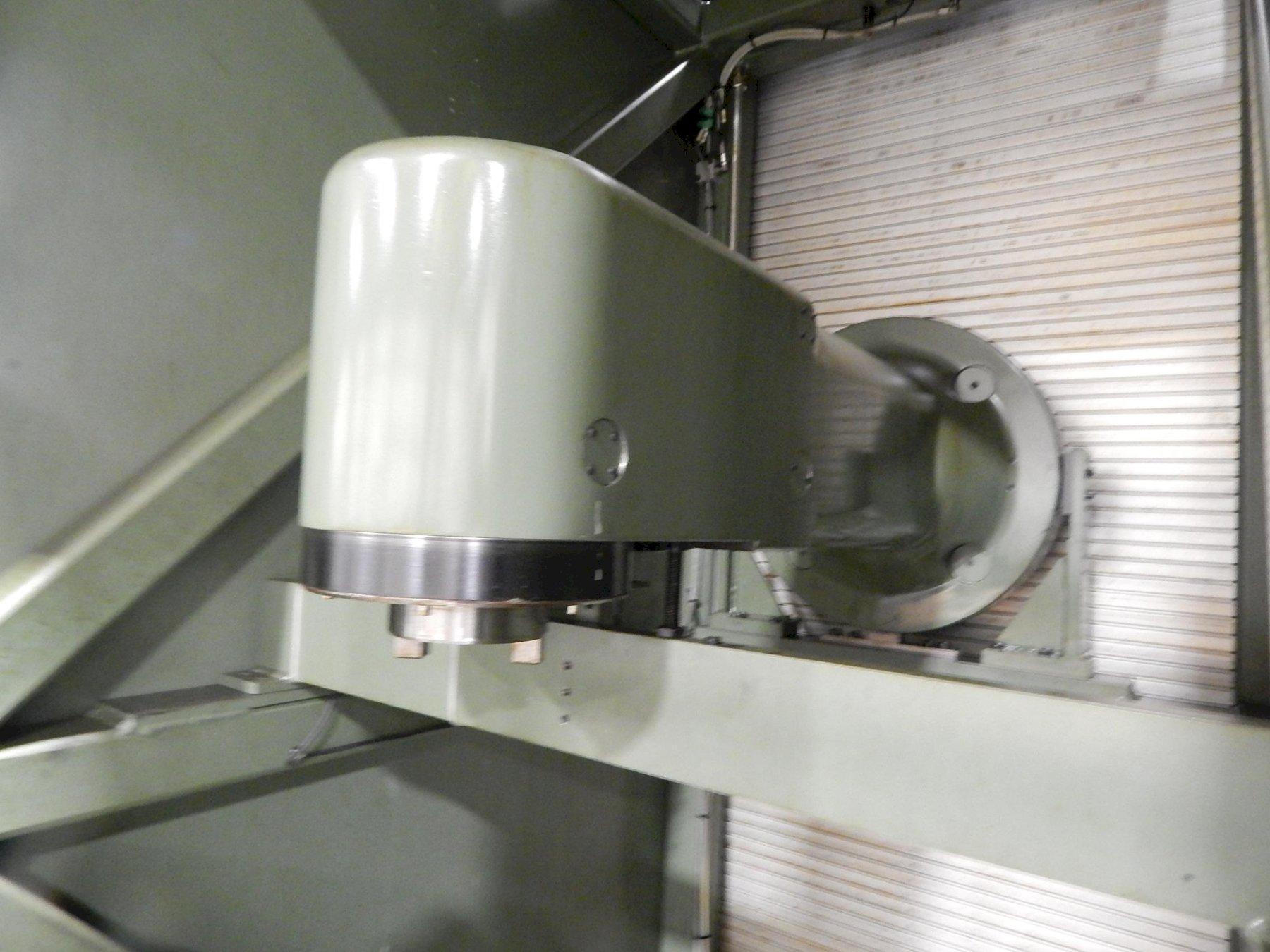

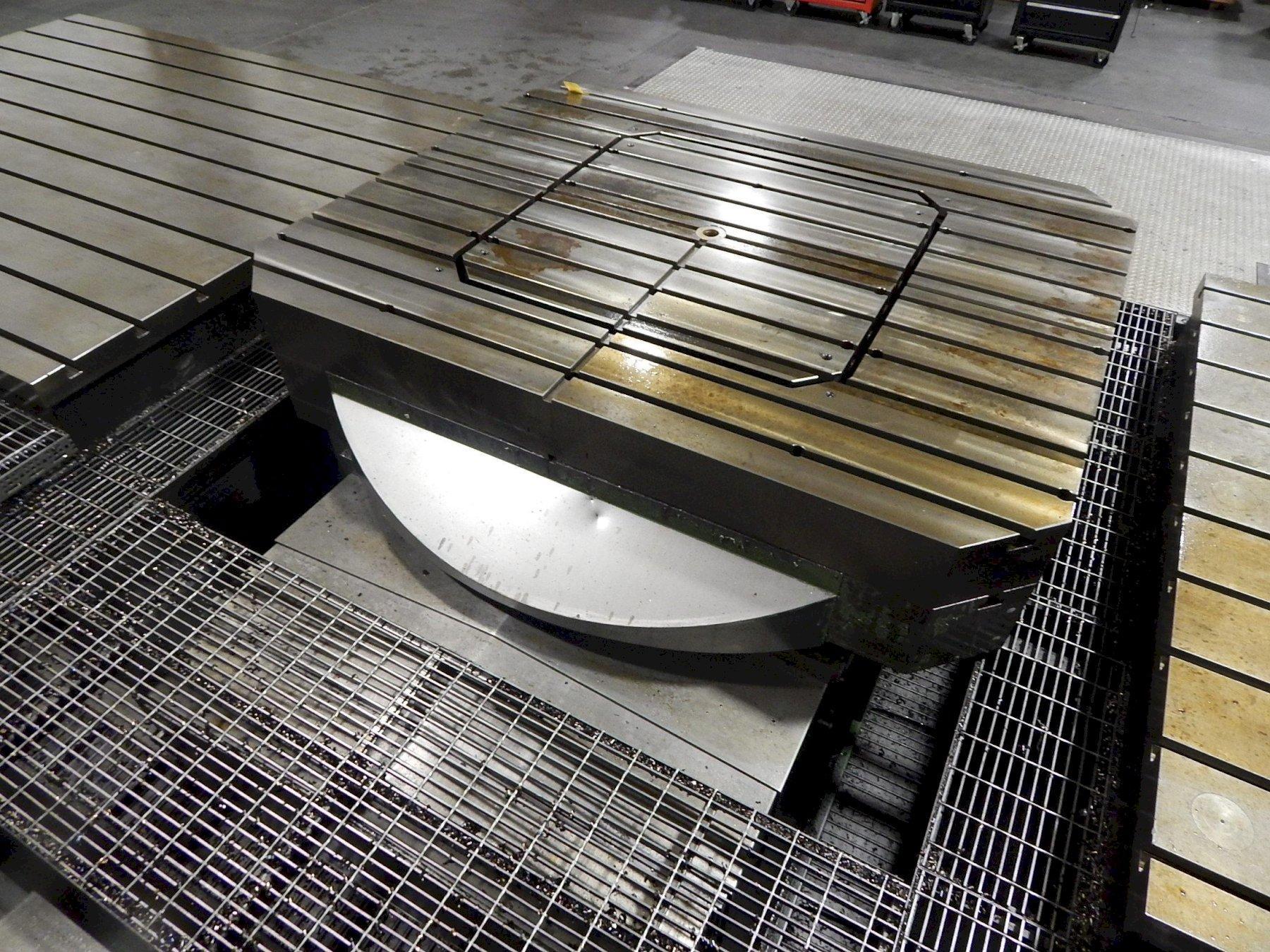

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Equipped With: Heidenhain 7 Axis CNC Control, Heavy Duty CNC Rotary Table, (2) Floor Plates, Universal Head, 90 Degree Head, Standard Boring Head, Remote Hand Pendant, Head Changer Storage Tower, 120 Automatic Tool Changer, Coolant System, Hydraulic System, Chip Conveyor, Chillier Unit, Manual Books & Drawings,
