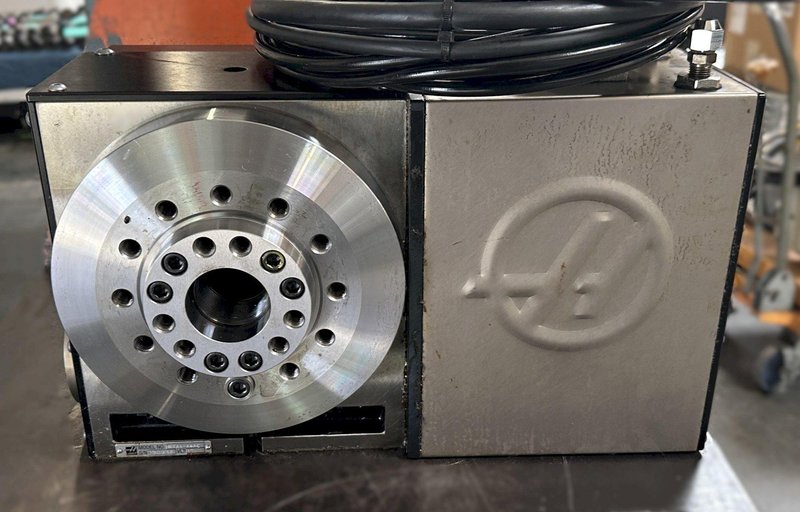

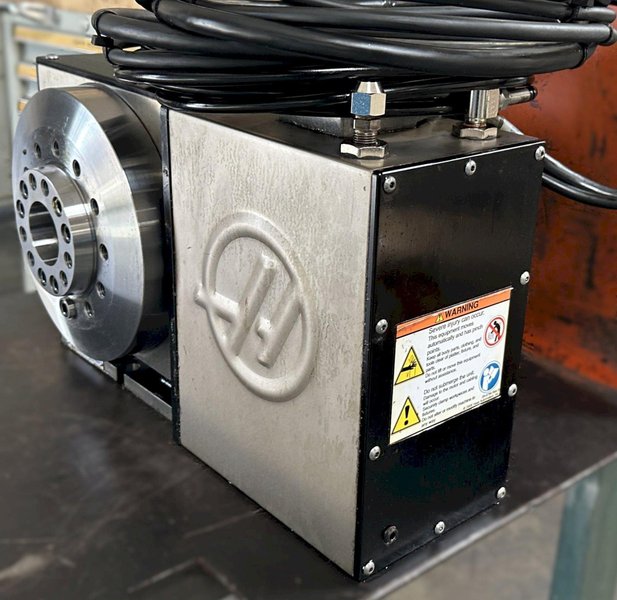

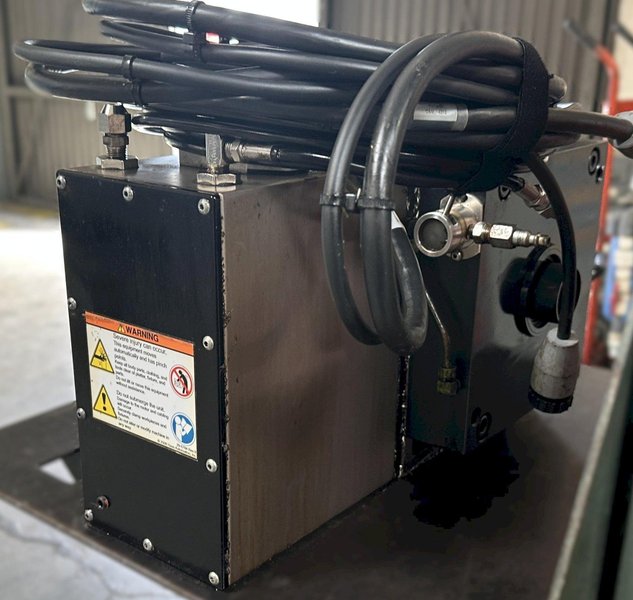

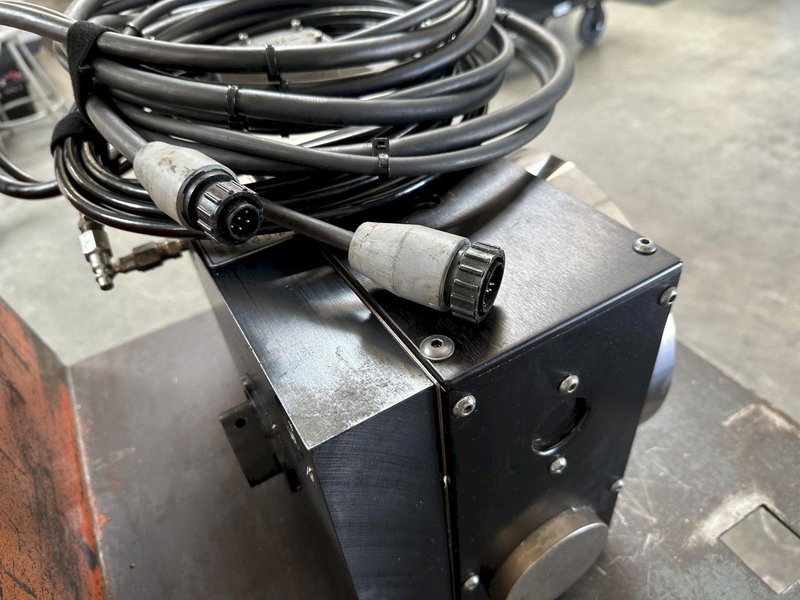

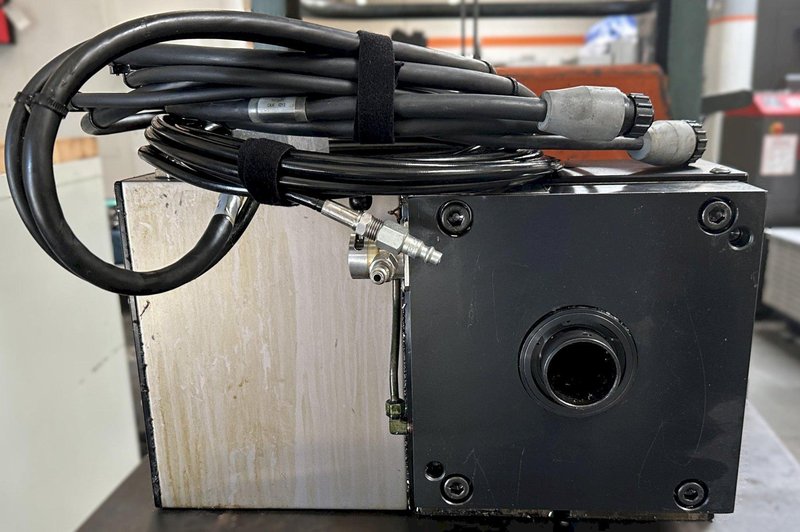

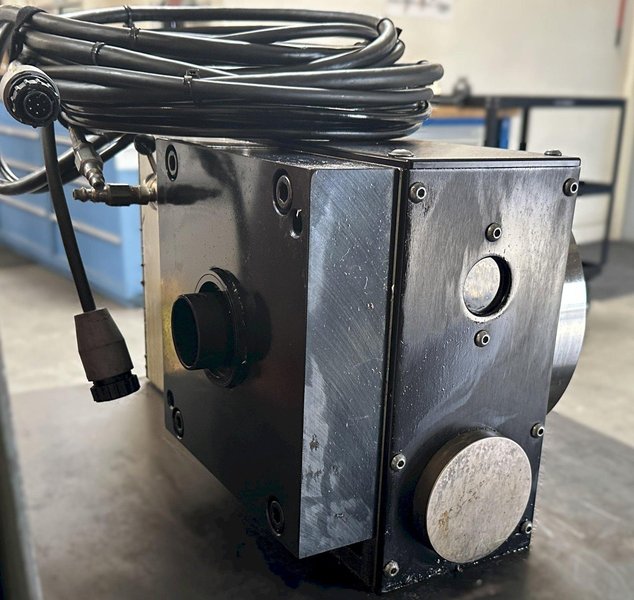

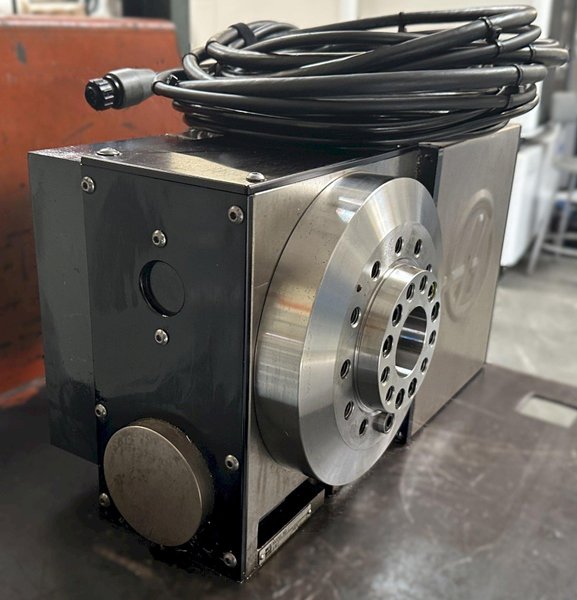

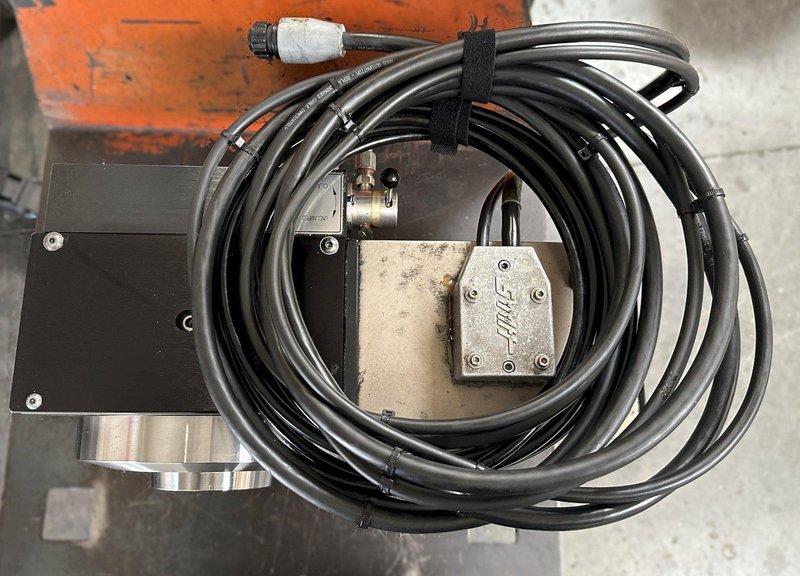

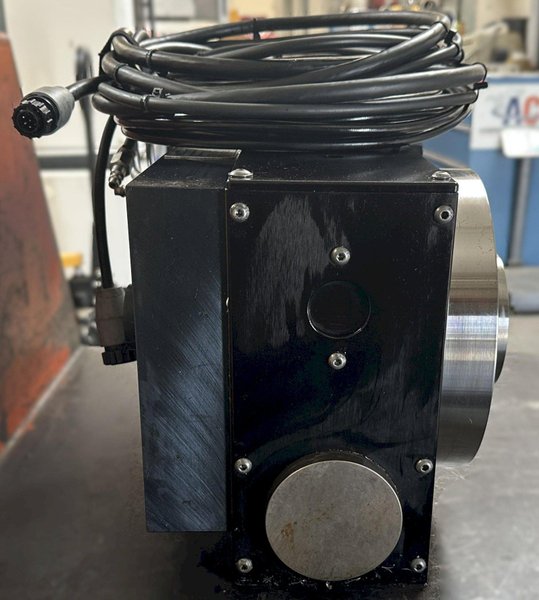

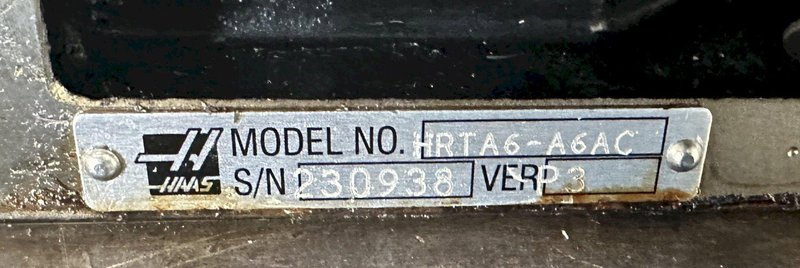

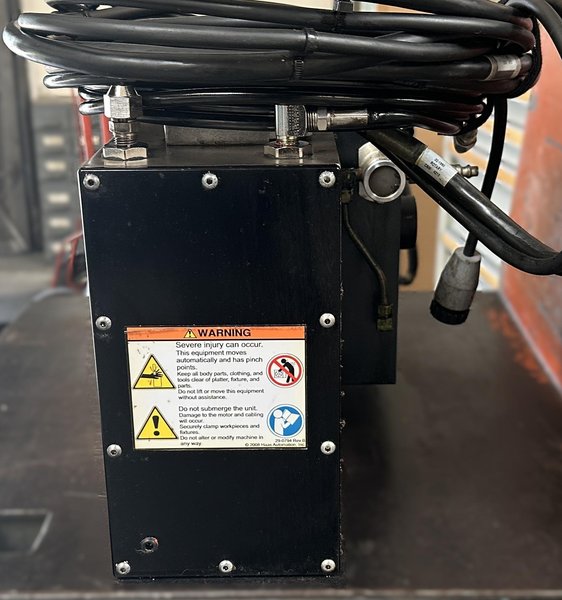

HAAS HRTA6 HRT210 Type 4th-Axis Rotary Table with A1-6 Platter Size Pneumatic Collet Closure

HAAS HRTA6 HRT210 Type 4th-Axis Rotary Table with A1-6 Platter Size Pneumatic Collet Closure

Name: HAAS HRTA6 HRT210 Type 4th-Axis Rotary Table with A1-6 Platter Size Pneumatic Collet Closure
Brand: HAAS
SKU: 7076
Availability: PreOrder

Brand

HAAS

Location

California

REQUEST FINANCING

Specifications
Files & Videos

Max Weight On Platter (w/support)	170 lb
Max Weight On Platter (unsupported)	85 lb
Spindle Max. Speed	100 °/sec
Torque (Continuous)	210 ft-lbf
Runout Max	0.0005 in
Center Height	6.000 in
Backlash	30 arc-sec
Brake Torque @ 100 Psi/6.9 Bar	200 ft-lbf
Gear Ratio	90:1
Timing	2:1
Tooling	A1-6 Spindle
Accuracy (±)	± 15 arc-sec
Repeatability	10 arc-sec
Resolution	0.001 °
Worm Gear Dia	6.3 in
Max Rotation/Step (with Rotary Control)	999.999 °
Power Requirement	115 VAC ±10% @ 15 A
Operating Temp (max Ambient)	100 °F
Air Pressure Max	150 psi
