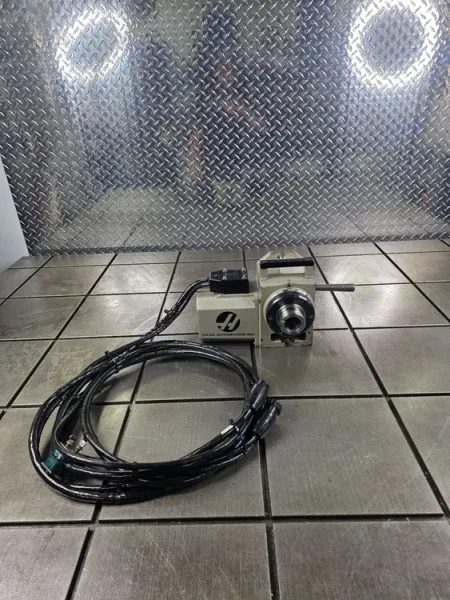

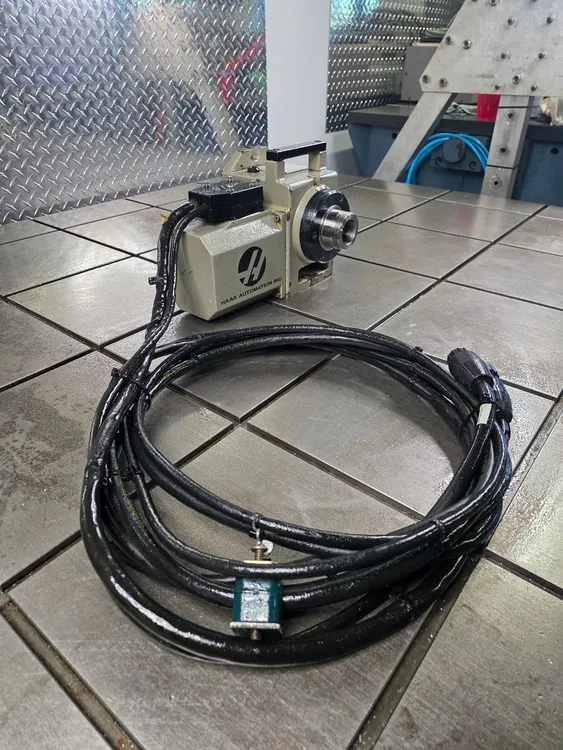

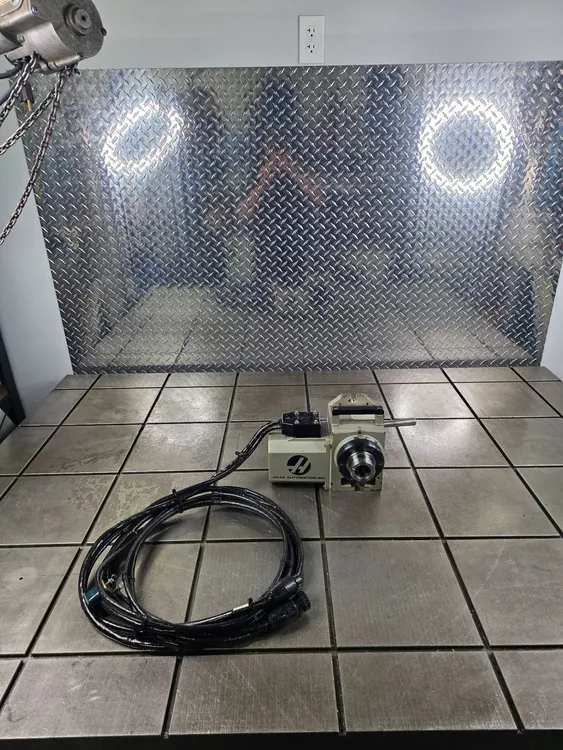

HAAS HA5C CNC Indexer Single-Axis Rotary Unit 5C USA #8144

Brand
HAAS
Category
CNC, Metalworking & Manufacturing
Type
Rotary Tables
Model
HA5C
Stock #
8144
Year
Not specified
Condition
Not specified

Location

Not specified
REQUEST FINANCING

Overview

Type:
Rotary Tables
Manufacturer:
HAAS
Model:
HA5C
Stock #:
8144
Status:
For Sale

Description

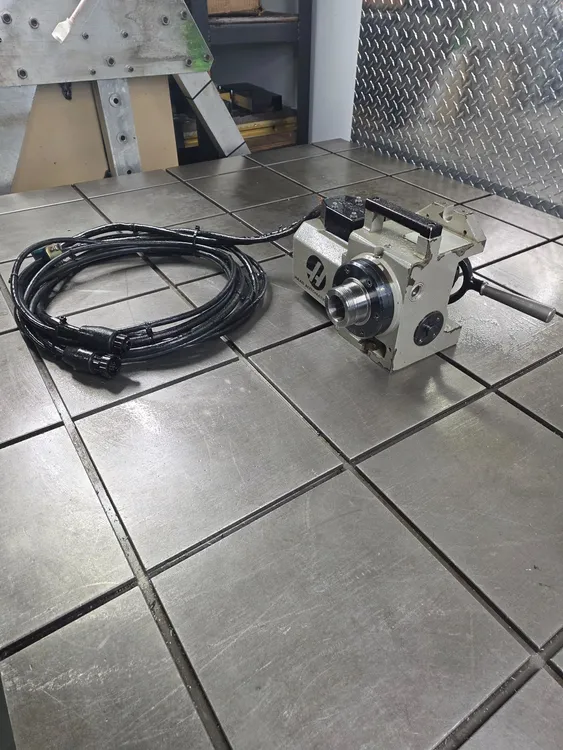

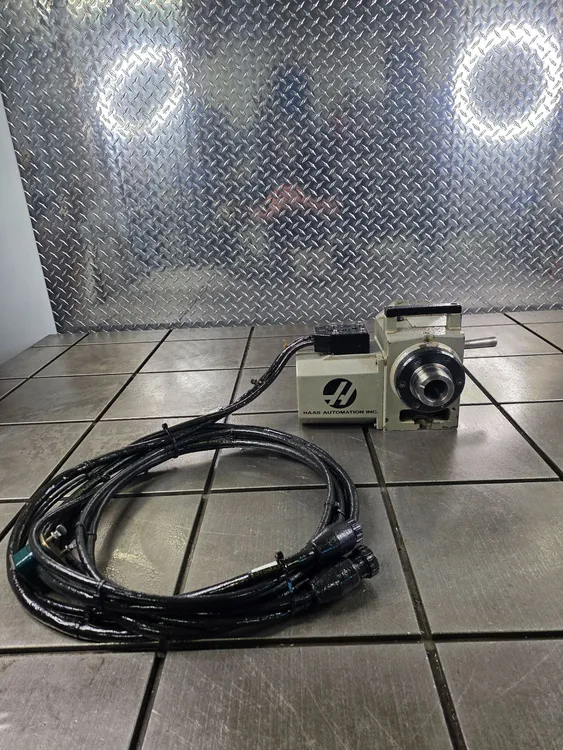

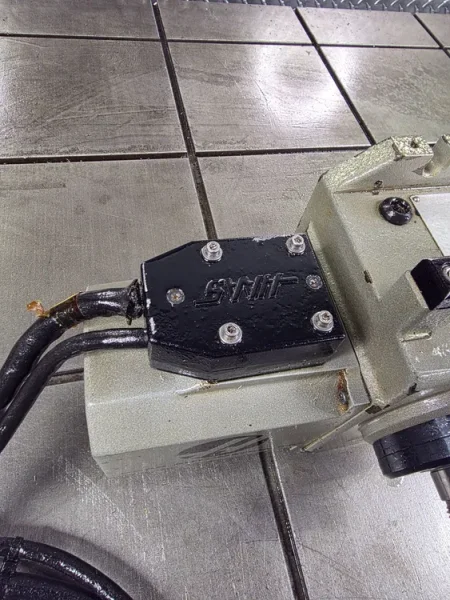

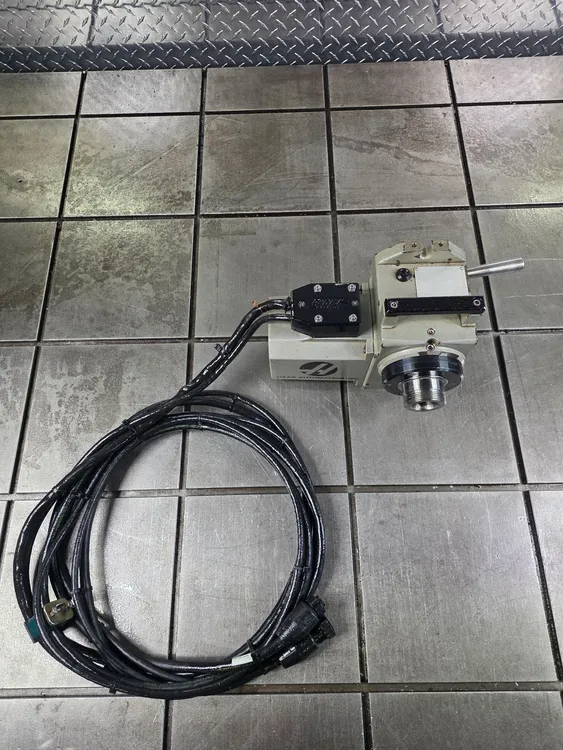

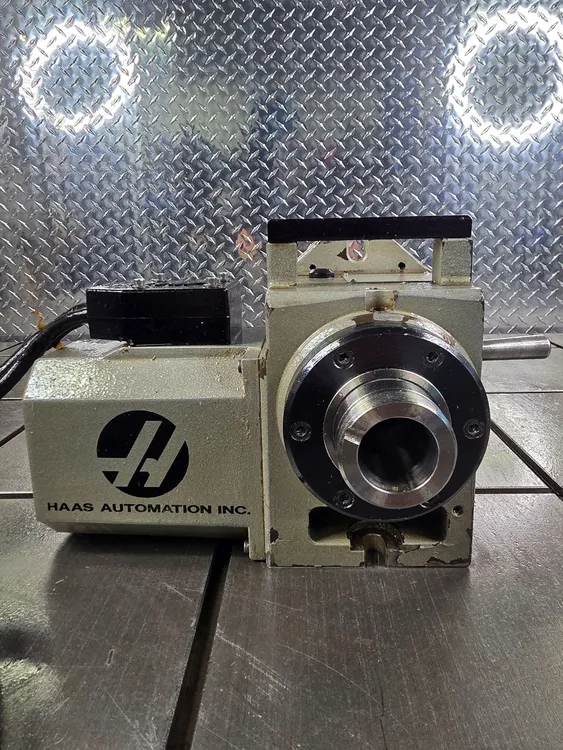

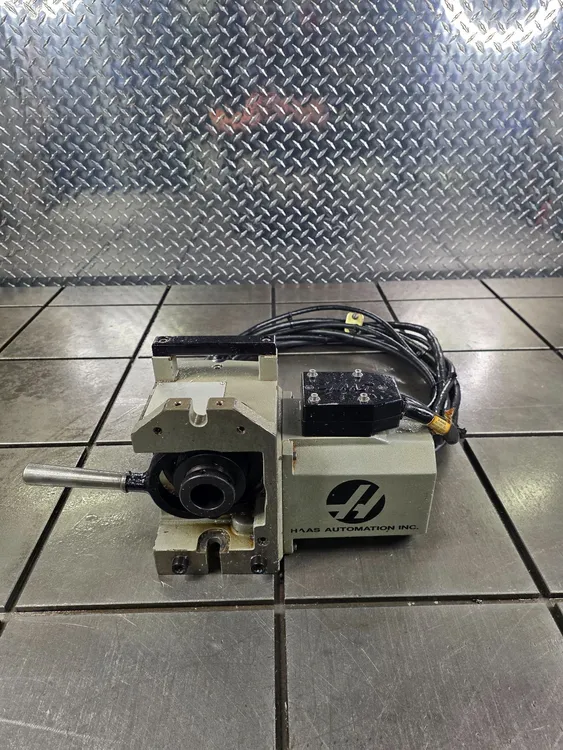

HAAS HA5C CNC Indexer Single-Axis Rotary Unit 5C USA #8144

HAAS HA5C CNC Indexer Single-Axis Rotary Unit 5C USA #8144
Reference #8144

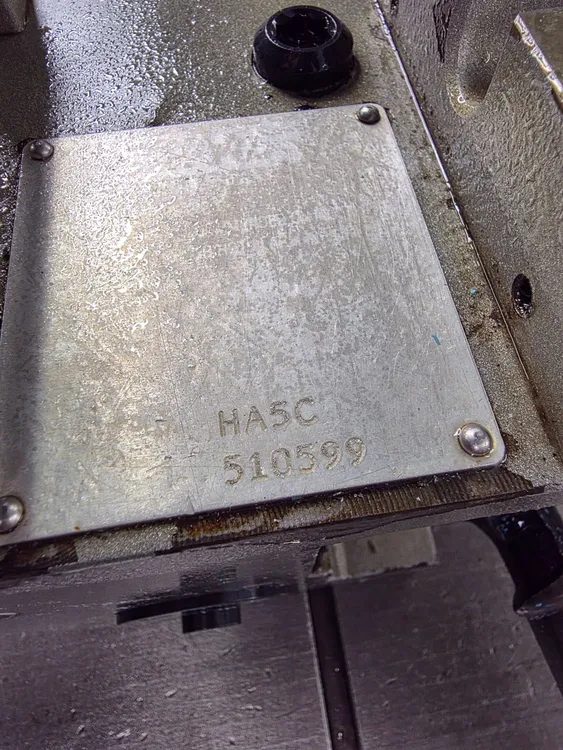

Model # HA5C
Serial # 510599
Max weight on platter supported- 20 Lbs.
Max weight on platter unsupported- 10 Lbs.
Max spindle speed- 410°/sec
Torque- 60 ft-lbf
Nose Thread- 2 3/16 in - 10
Runout max- 0.0004 in
Center height- 4.000 in
Collet Size- 5C
Backlash- 40 arc/sec
Gear ratio- 60:1
Accuracy- +/- 30 arc-sec
Repeatability- 10 arc-sec
Resolution- 0.001°
Worm gear diameter- 2.8”
Max rotation / step- 999.999°

Machine weight- 50 Lbs.
Machine dimensions- 16" x 9" x 8.5" H
Machine location- F.O.B. Sarasota, Florida
