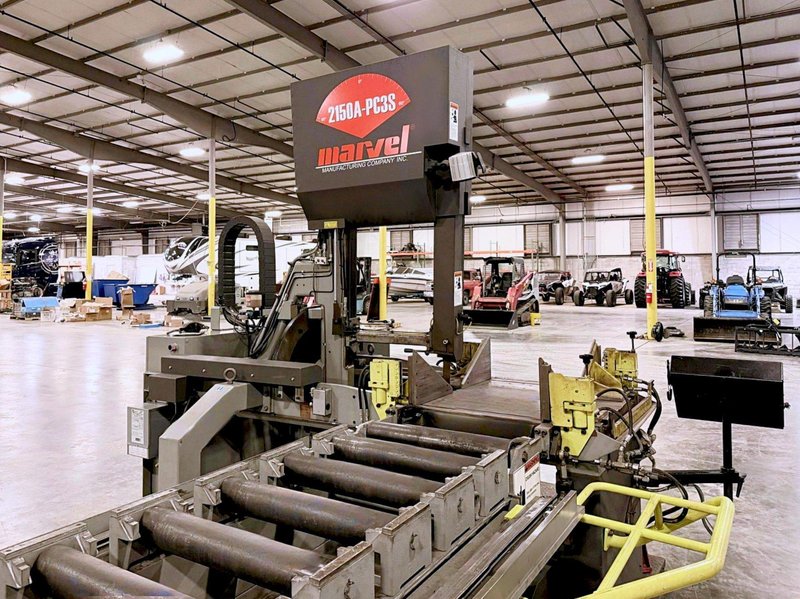

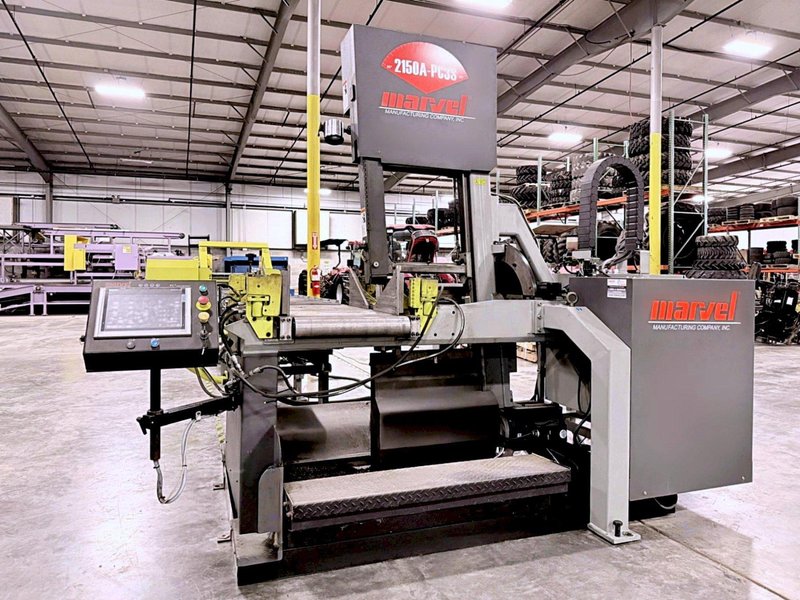

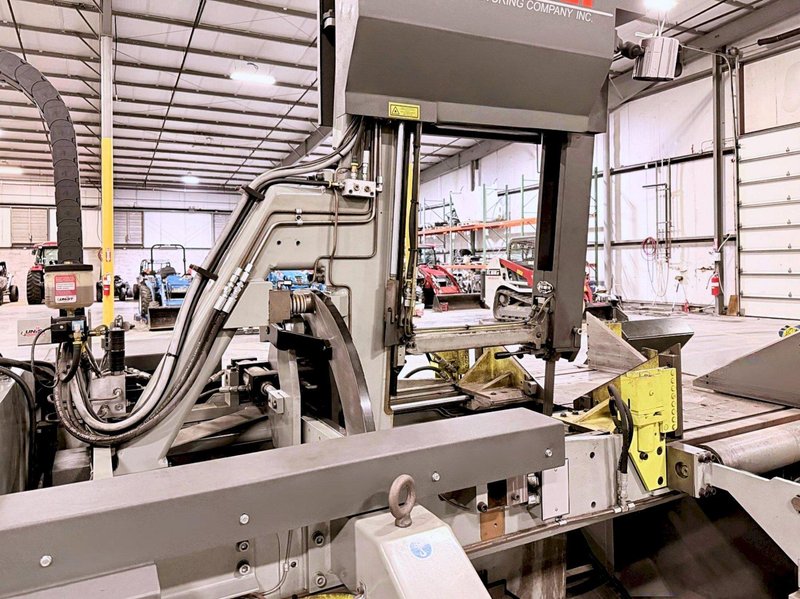

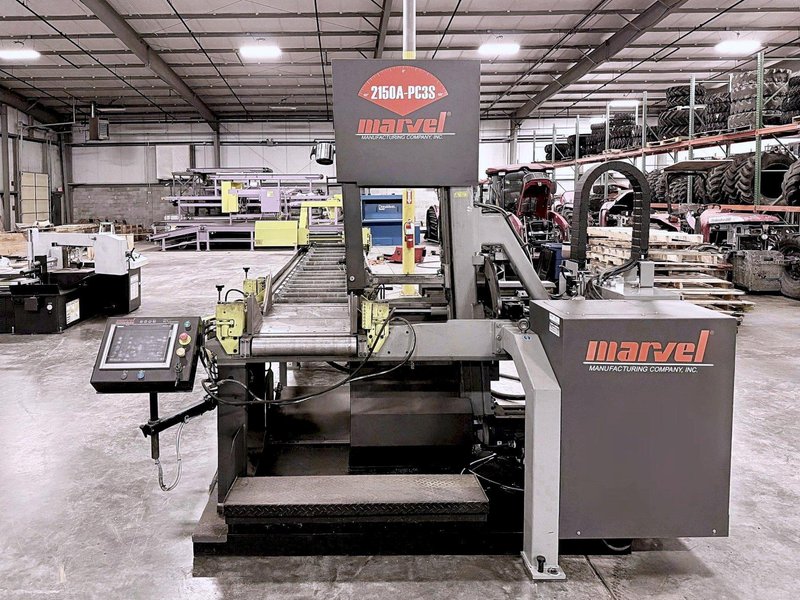

Marvel 2150A-PC3S Vertical Tilt-Frame Band Saw

Marvel 2150A-PC3S Vertical Tilt-Frame Band Saw

Name: Marvel 2150A-PC3S Vertical Tilt-Frame Band Saw
Brand: MARVEL
SKU: 100635
Availability: PreOrder

Brand

MARVEL

Location

Not specified

REQUEST FINANCING

Specifications
Files & Videos

Control	Marvel PC3 CNC Control
Nominal Rectangles	20″ X 25″
Nominal Rounds	20″
Blade @ 45o Rectangles	20″ X 17″
Blade @ 45o Rounds	17″
Blade @ 60o Rectangles	20″ X 11.25″
Blade @ 60o Rounds	11.25″
Max. Material Feed	18'
Speed Range (Infinitely Variable)	30 to 500 FPM
Motors Main Drive	7.5 HP
Blade Drive	Electric w/ Sensorless Vector Control
Column	Tilting for Miter Cutting up to 60° L/R of Vertical
Feed	Direct Force Sensing Electric Ball Screw Feed
Blade	(L) 17′ 6″ x (W) 1.25″
Blade Guides	Carbide & Ball Bearing Roller Guides
Blade Tension	Hydraulically Controlled - 45,000 PSI. Max.
Upper Blade Guide Arm	Hydraulically Positioned & Locking

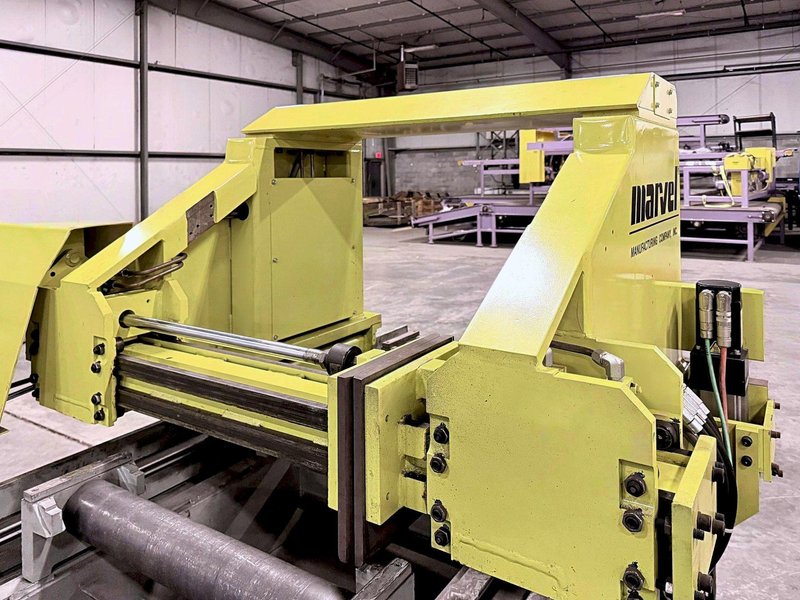

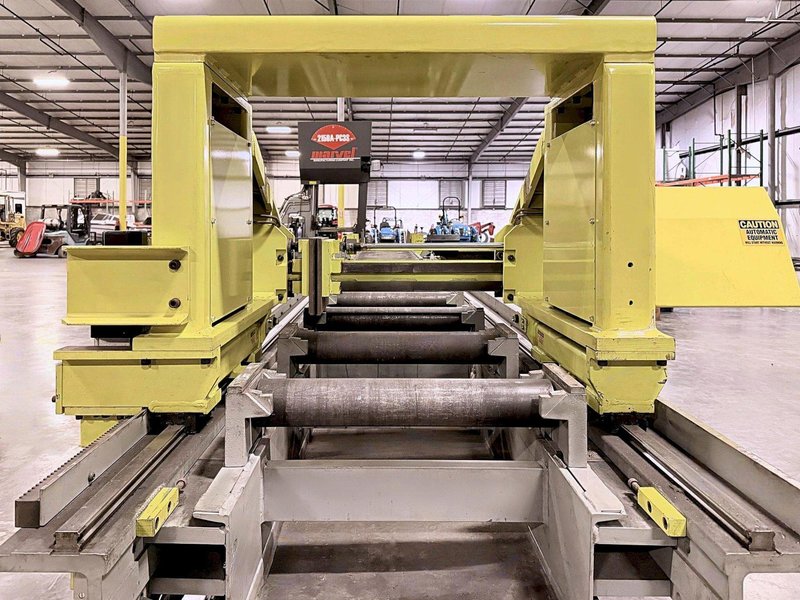

Material Index Mechanism	Shuttle Vise
Vises	Hydraulic, Full Stroking w/ 9-1/2” High x 15” Wide 60o Faceplates
Coolant System	Built-In w/ Flood System (60 Gallon Capacity)
Work Load Capacity	8,000 Lbs.
Work-Rest Rollers	(2) Turned Ball Bearing Rollers, Entry/Discharge Side
Auto Bar Feed Stroke Length	48”
Auto Bar Feed Indexing Speeds	Up To 60 Ft./Min
Auto Bar Feed Creep Speeds	Up to 33 In./Min.
Work Entry	Left-To-Right
Cutting Fluid	Two (2) Gallons Soluble Oil

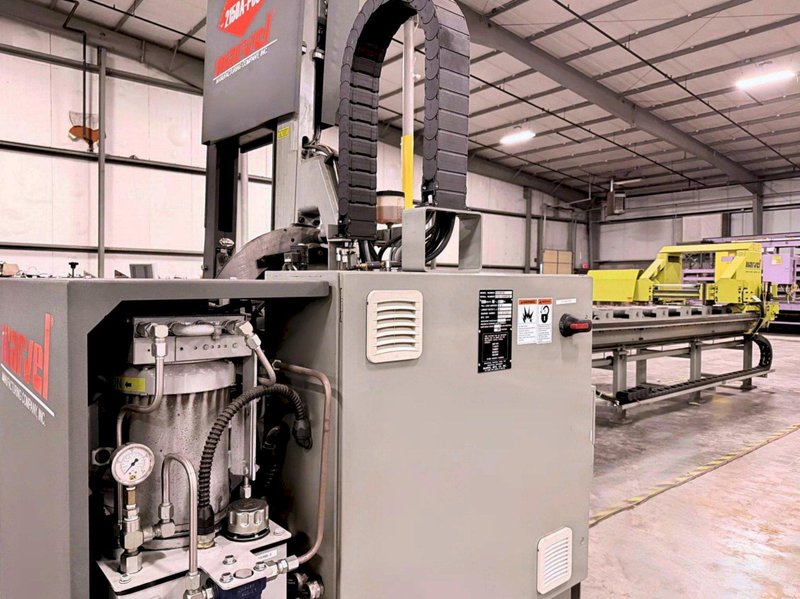

Hydraulic Oil	10 Gallons
Bandsaw Blades	One (1) Welded-Edge Blade
Table Height (Above Floor)	40″
Power Requirements	460V/3Ph/60Hz
Machine Dimensions	(W) 94.7″ x (L) 99.2″ x (H) 90.8″ (Feed Table Not Included)
Weight (Base Machine & Index Tablet)	7,800 Lbs.

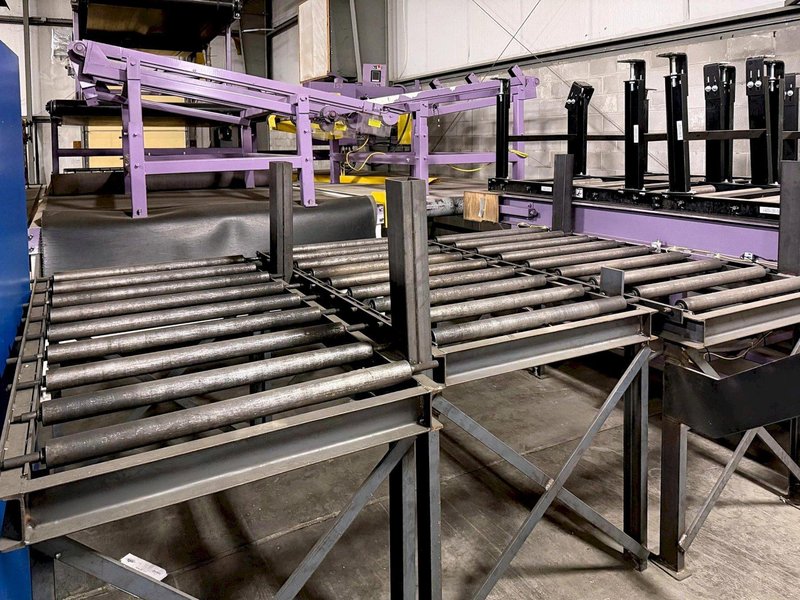

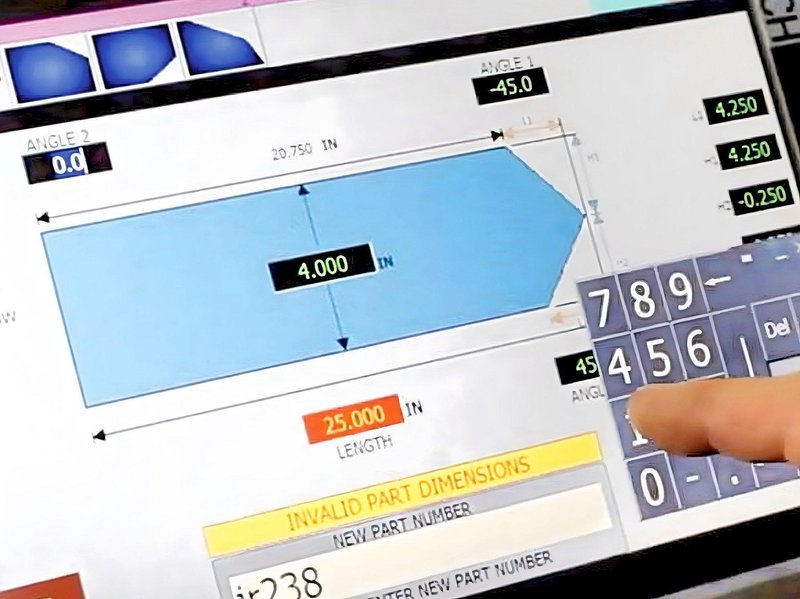

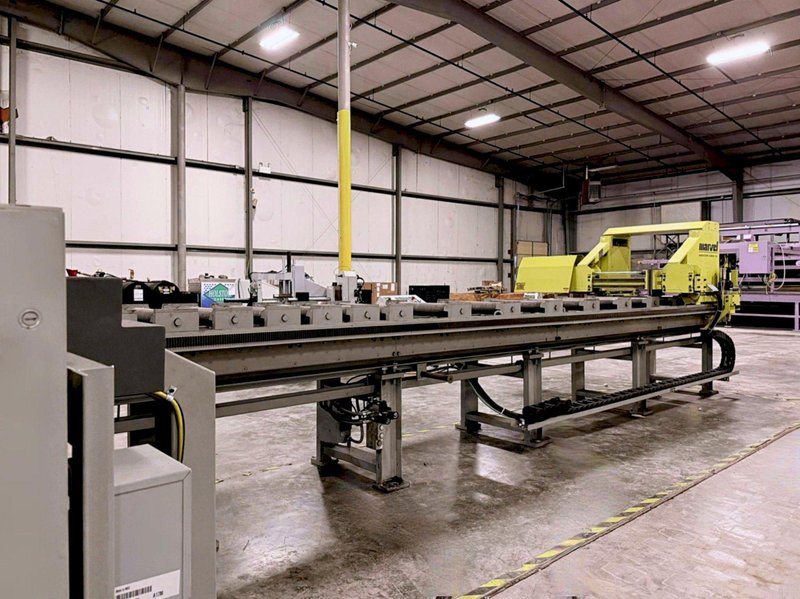

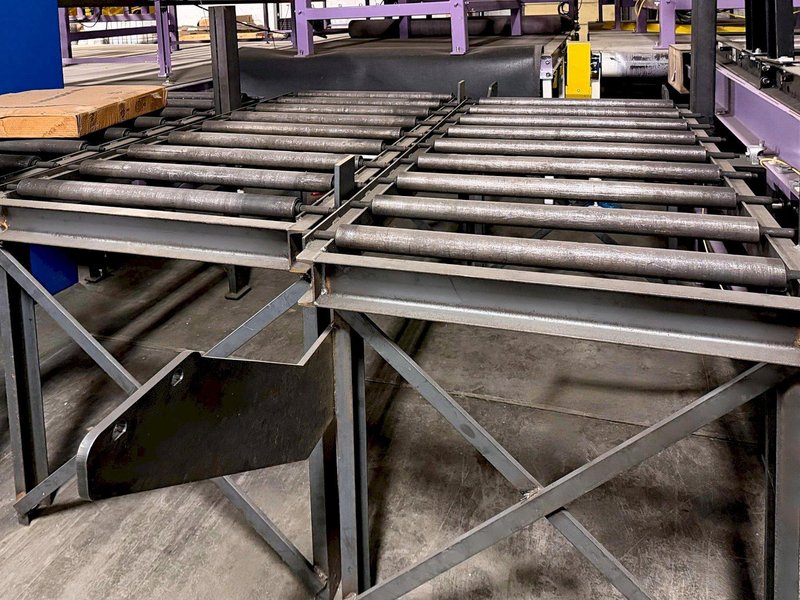

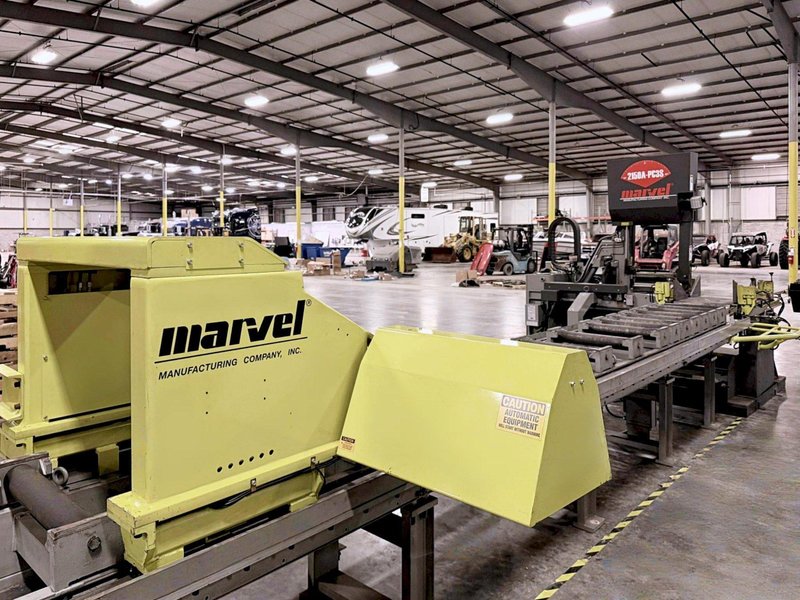

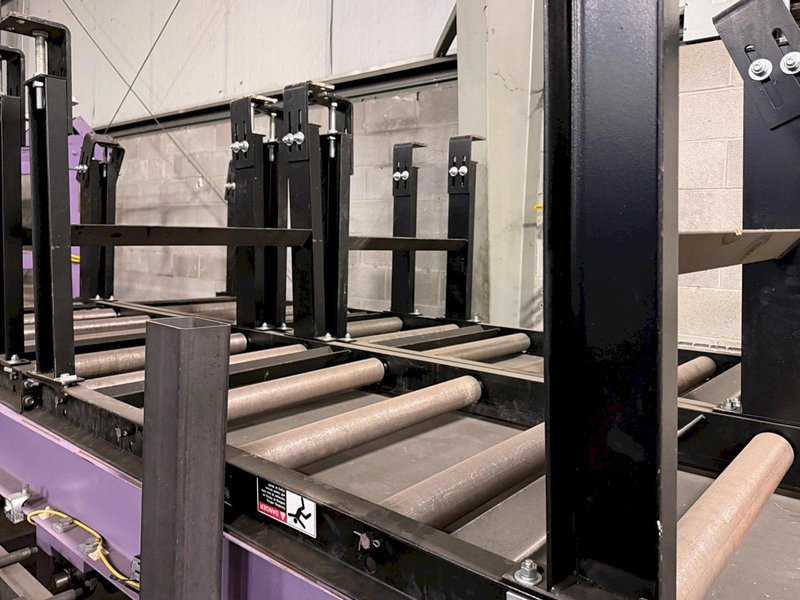

Equipped With: Marvel PC3 Programmable Control w/ Touch Screen 18’ Extended Feed Systems Tilting Column for Miter Cutting up to 60° L & R of Vertical 0° to 3° Canted Column Blade and Direct Blade Drive Hydraulic Upper Blade Guide Arm Blade Guide with Self-Tensioning Design Hydraulic Vises Automatic Bar Feed with indexing Built-In Coolant Flood System (2) Work-Rest Rollers 7.5 HP Main Drive Motor Heavy-Duty Shuttle Conveyor Finished Part Roller Tables (Pictured But Not Setup)
