Name: Used 2022 JTEKT TOYODA 1060V-PRO | Vertical Machining Centers
Brand: JTEKT
SKU: 3286
Availability: InStock

Brand

JTEKT

Location

Not specified

REQUEST FINANCING

Specifications
Files & Videos

X	39.4"	1,000.8 mm
Y	23.6"	599.44 mm
Z	23.6"	599.44 mm
Power	25 hp	18.6 kW
RPM	12,000 RPM	12,000 RPM
# ATC	30	30
Taper	CAT40	CAT40
Table-W	47.2"	1,198.9 mm
Table-L	23.6"	599.44 mm
# Axis	3	3

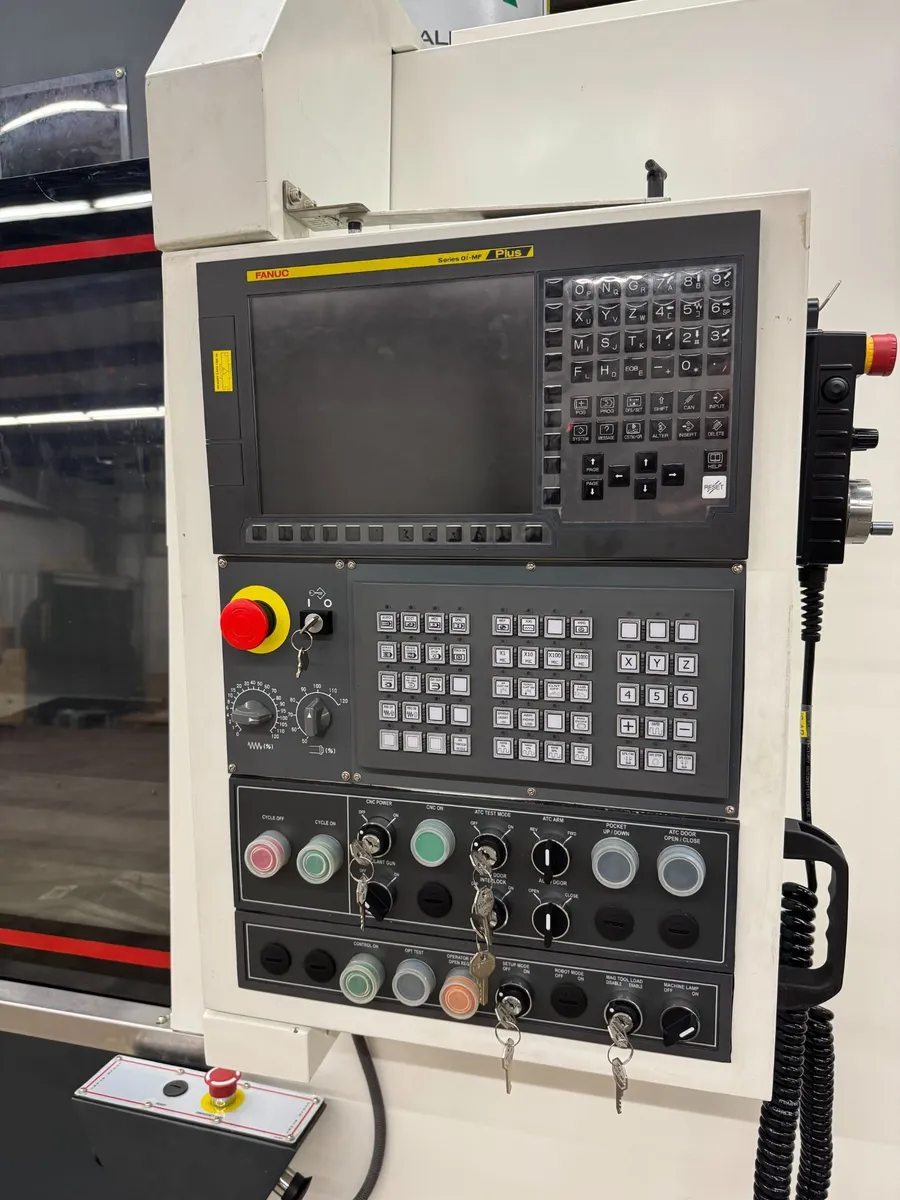

Control	CNC (Fanuc 0i-MF+)	CNC (Fanuc 0i-MF+)
Dimensions	159" W w/ Conveyor x 106" D x 124" H	159" W w/ Conveyor x 106" D x 124" H
Weight	15,000 Lbs.	15,000 Lbs.

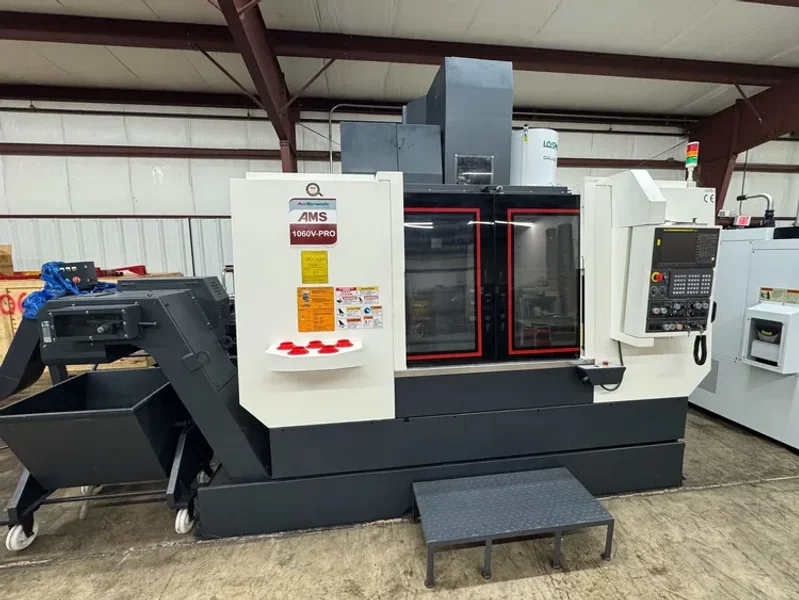

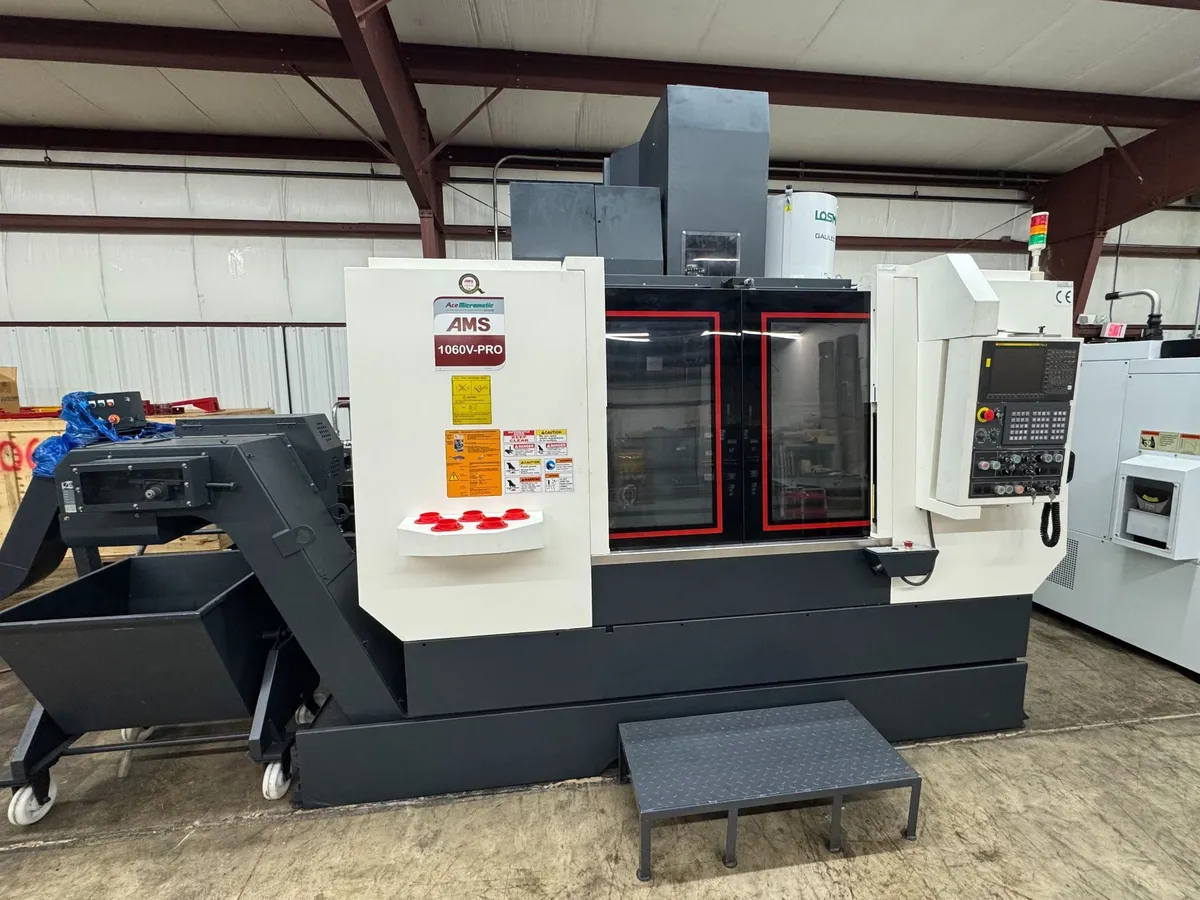

AMS 1060V-PRO Vertical Machining Center w/ Fanuc 0i-MF Plus
* Travels: 39.4" x 23.6" x 23.6"
* Table Size: 47.2" x 23.6"
* Max Table Weight: 1,760 Lbs.
* Rapid Traverse: 1,575 IPM (X/Y/Z)
* CAT40 Spindle, 25 HP, 12,000 RPM
* 30-Pocket ATC

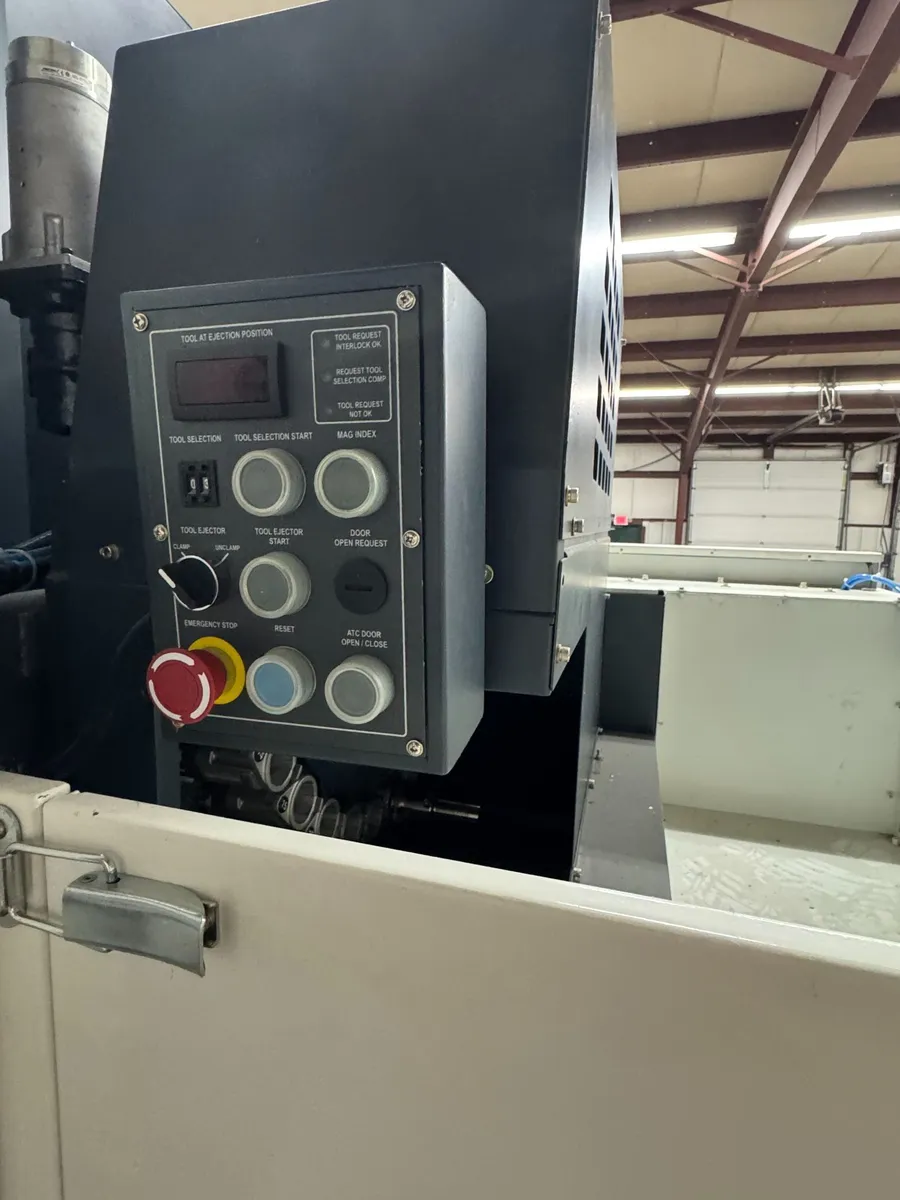

* Rear Tool Load/Unload Provision

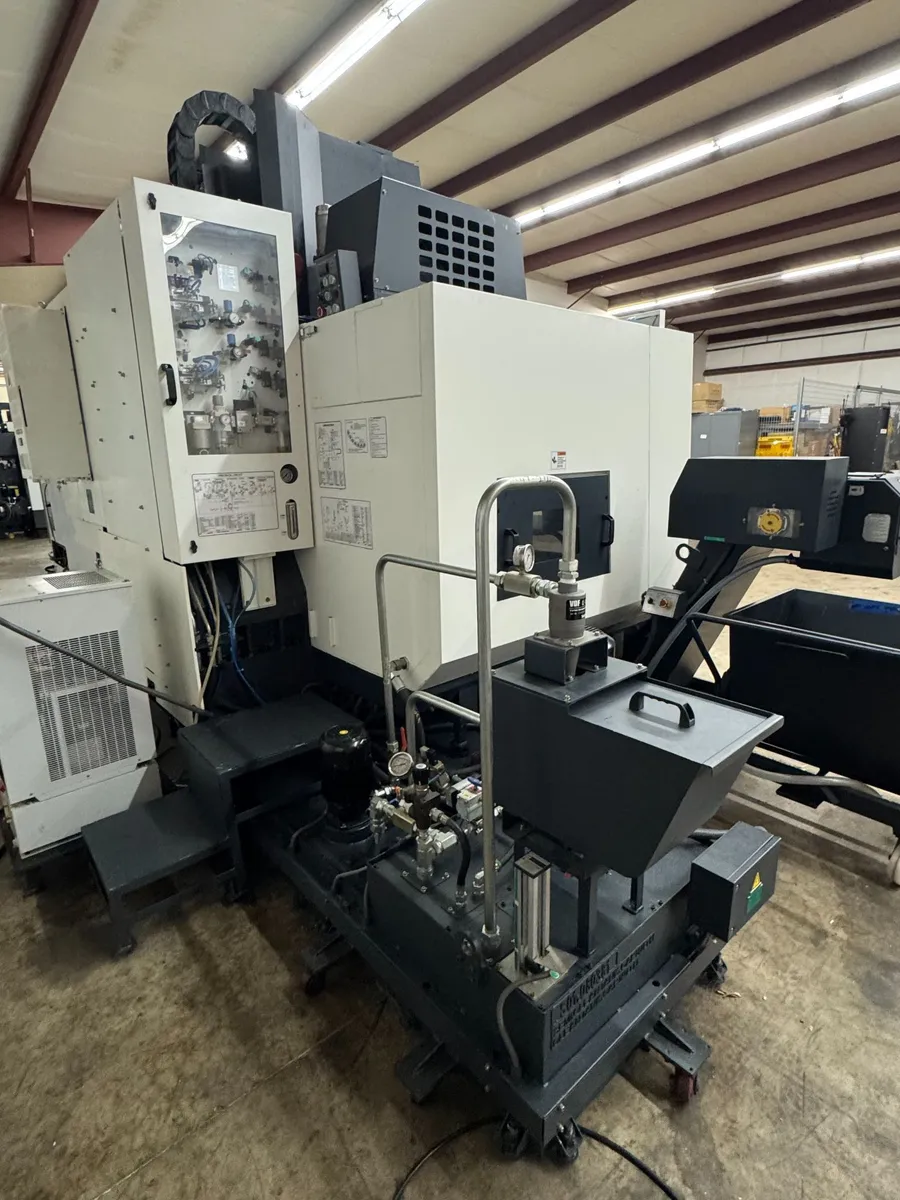

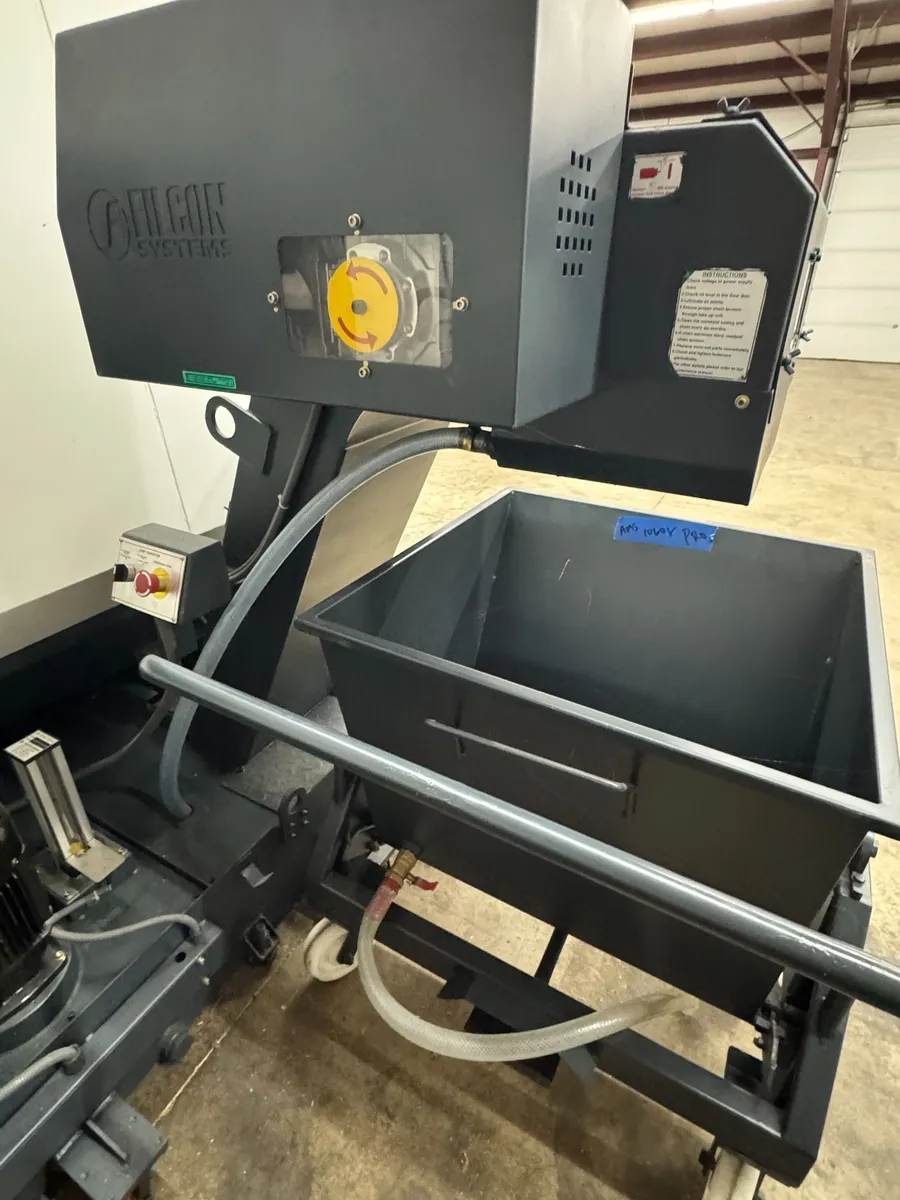

* 725 PSI High Pressure CTS w/ Cyclonic Filtration Unit
* Losma Machine Mount Mist Collector Unit
* Front Auto Door w/ Omron Light Curtain
* Side Discharge Lift-Up Chip Conveyor w/
* Bed Flush Coolant
* Coolant Gun
* Fanuc High Speed Look Ahead (400 Blocks)
* Tool Life Management

Belvidere, IL
