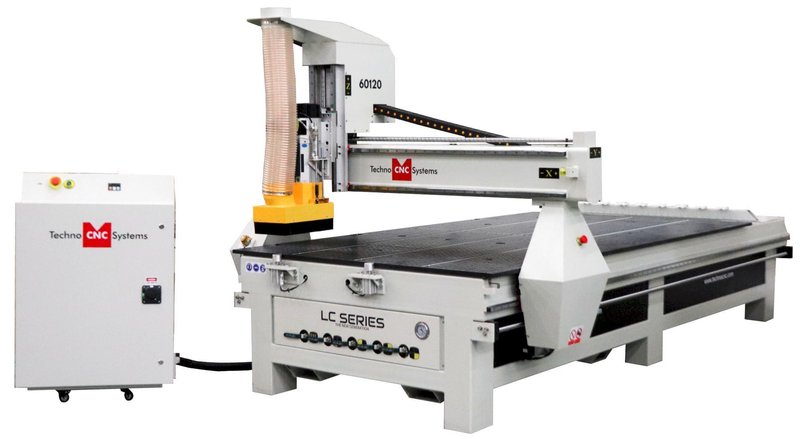

60” X 120” CNC Router with Handheld Pendant Control, Ball & Screw Drive System on All (3) Axes, 12 HP Automatic Tool Changer, Fully Programmable Speeds from 6K - 24KRPM, (8) ISO 30 Tool Holders, (8) ER32 Collets, Pneumatically Operated Dust Hood with Concentrated Air Flow, (2) Calibration Pads, High Flow Multi - Zone Phenolic Vacuum and (5) Pneumatically Operated Pop - Up Pins for Easy Sheet Alignment.
GENERAL SPECIFICATIONS
X - Axis Travel: 60”
Y - Axis Travel: 120”
Z - Axis Travel: 14-¼”
Gantry Clearance: 12”
Max Rapid Traverse Speed: 800” / Min
Spindle Speed: 6,000 - 24,000 RPM
Ultra Quiet Operation: 65 DB
Vacuum Pump: 10 HP
Machine Dimensions: 154” X 85” X 81”H
Approximate Weight: 5,000 Lbs
INCLUDES: Handheld Pendant Control, Ball & Screw Drive System on All (3) Axes, 12 HP Automatic Tool Changer, Fully Programmable Speeds from 6K - 24KRPM, (8) ISO 30 Tool Holders, (8) ER32 Collets, Pneumatically Operated Dust Hood with Concentrated Air Flow, (2) Calibration Pads, High Flow Multi - Zone Phenolic Vacuum and (5) Pneumatically Operated Pop - Up Pins for Easy Sheet Alignment.
***All Price, Location and Specifications Subject to Change without Notice***
