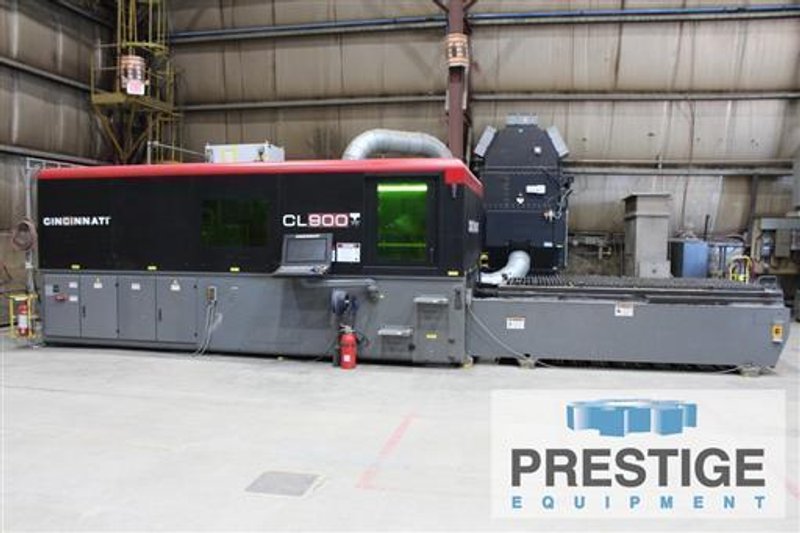

Cincinnati CL960 6KW Fiber Laser

CAPACITY:
Power Output 6,000 Watt
Y-Axis Travel 61"
X-Axis Travel 121"
Z-Axis Travel 10"
Table Load Capacity 3,949 Lbs
Simultaneous X & Y Axis Speed 12,020 IPM
Rapid Traverse, X/Y Axes 8,500 IPM
Rapid Traverse, Z-Axis 1,700 IPM
Electrical Requirements 460V / 3PH/ 60HZ
Approx. Machine Footprint 412" x 183" x 105" High
Approx. Machine Weight 36,750 Lbs .



Equipped With:

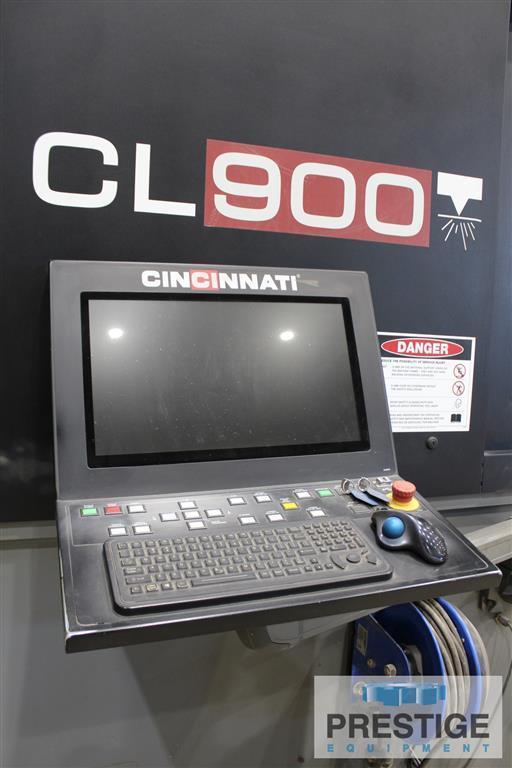

Cincinnati HMI CNC W/High Resolution 15" LCD Color Touch Screen Monitor
IPG 6000 Watt Solid State Fiber Laser
Breakaway Non-Contact Auto-focus Laser
A/C Brushless Permanent-Magnet Linear Servo Motors
Dual Pallet Cutting Tables with Ball Transfers

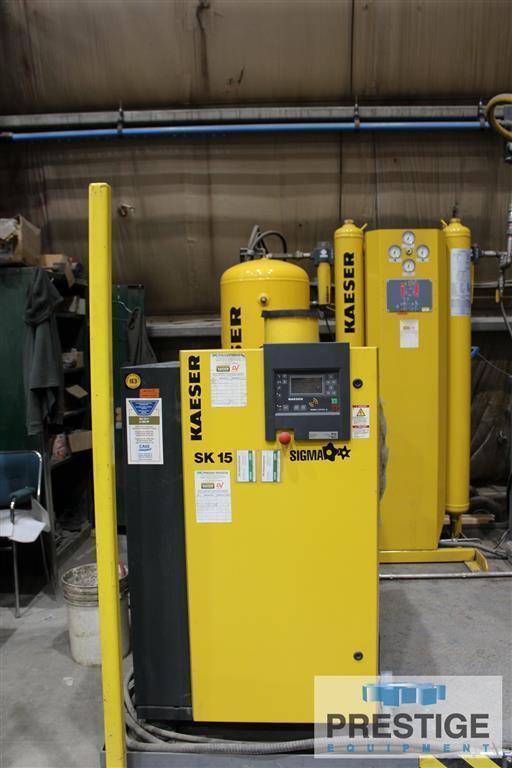

15 HP Kaeser Compressor

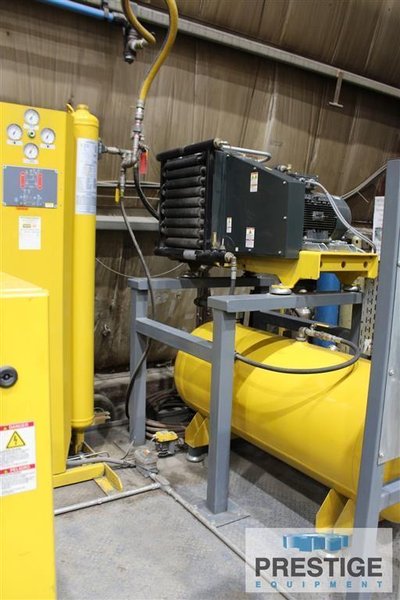

Dryer & Booster for High Pressure Air Assist Cutting

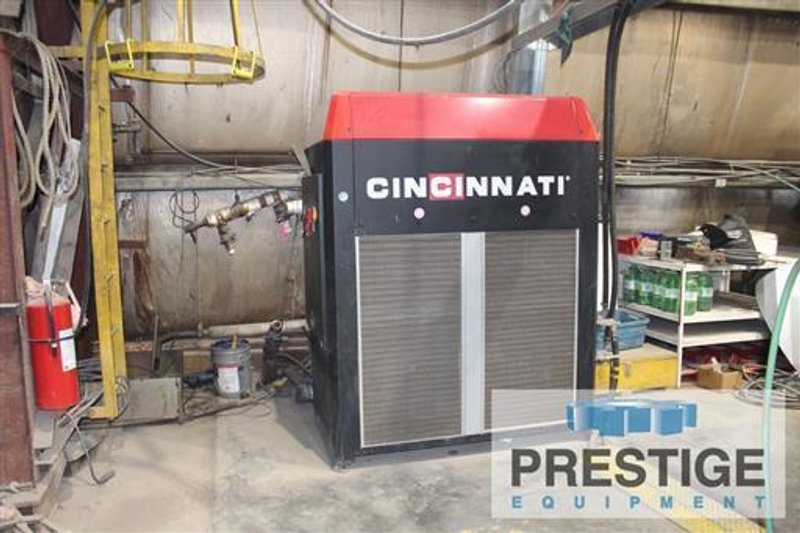

Industrial Chiller

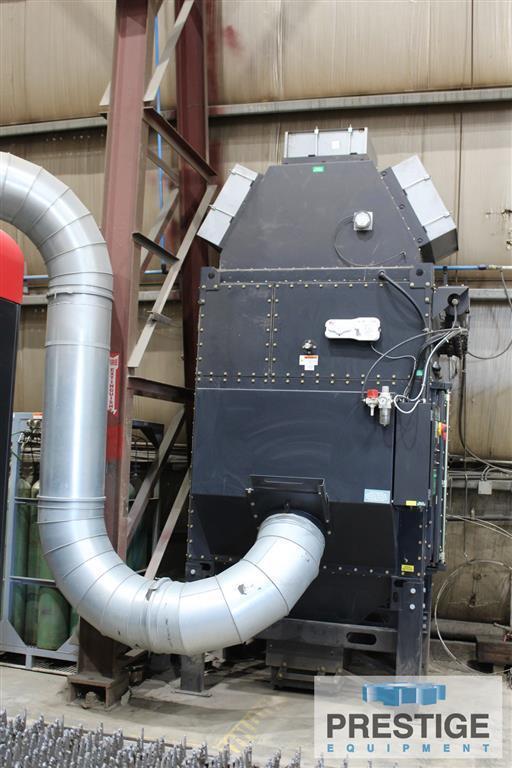

Camfil Dust Collector


HOURS: On Time Hours: 12,960
Beam On Time: 1,239


NOTE: Machine has been on Cincinnati Pro Plan Since New
All PM's and Repairs completed by Licensed Cincinnati Tech
Inspect In Plant Under Power
