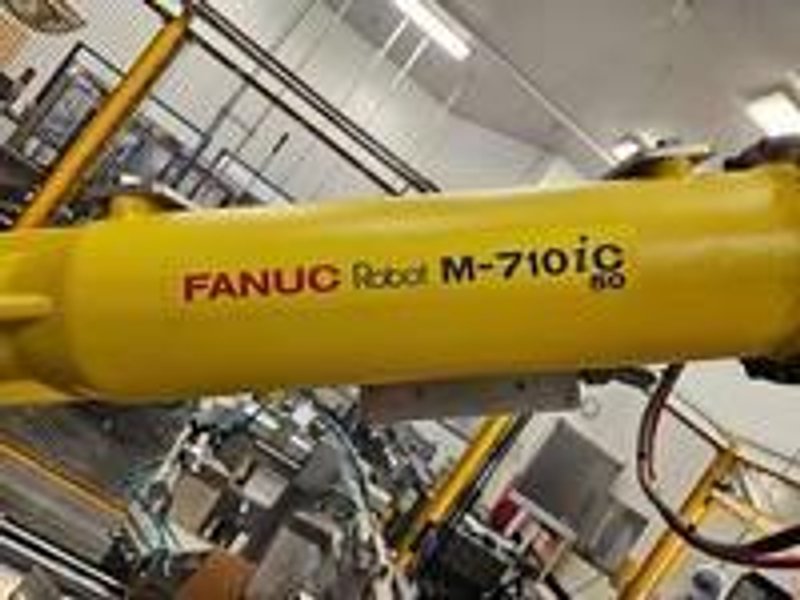

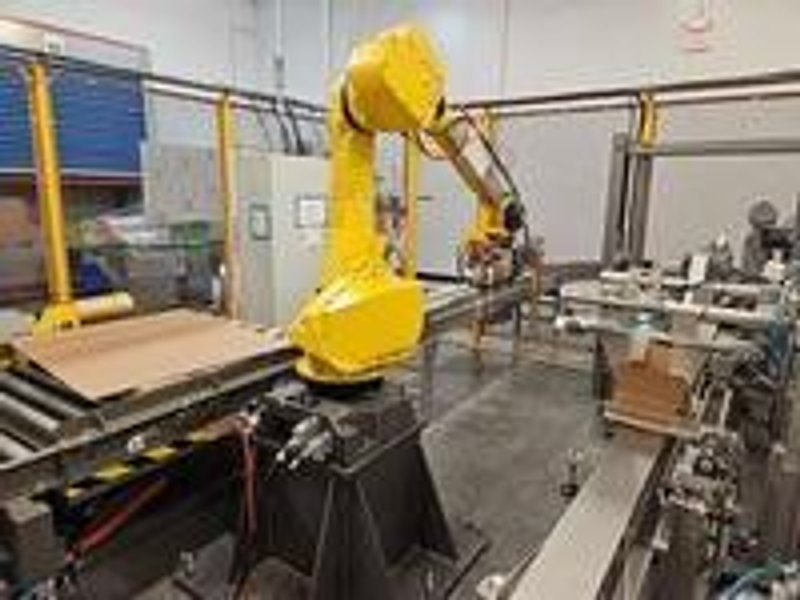

Fanuc M-710iC Plus

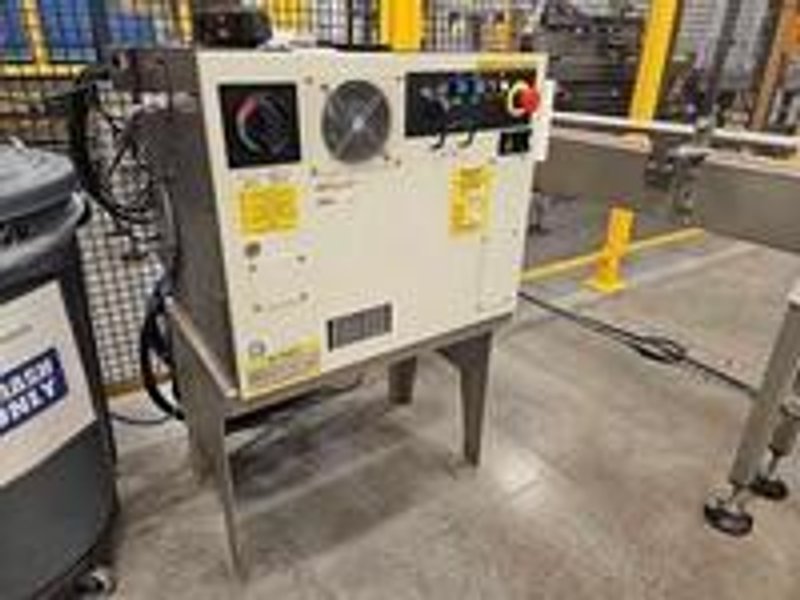

Fanuc System R-30iB Plus
Type: A05B-2610-B222
Year: 2018
Langen LCR700

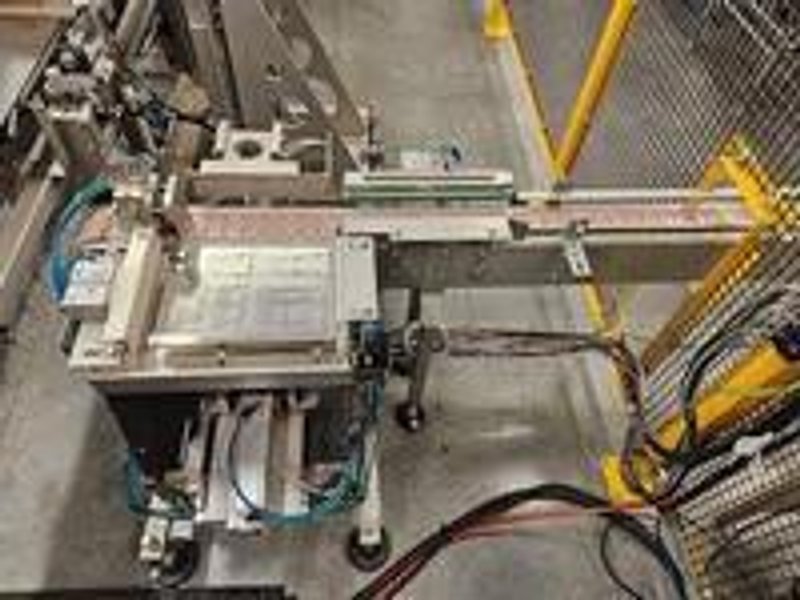

Infeed conveyor 3 inch width x 150 Length
Current blank case 21.75 w x 14 h
Erected case dimensions 12.5 l x 9.5 w x 5 inch height
Magazine 45 Length x 21.75 width

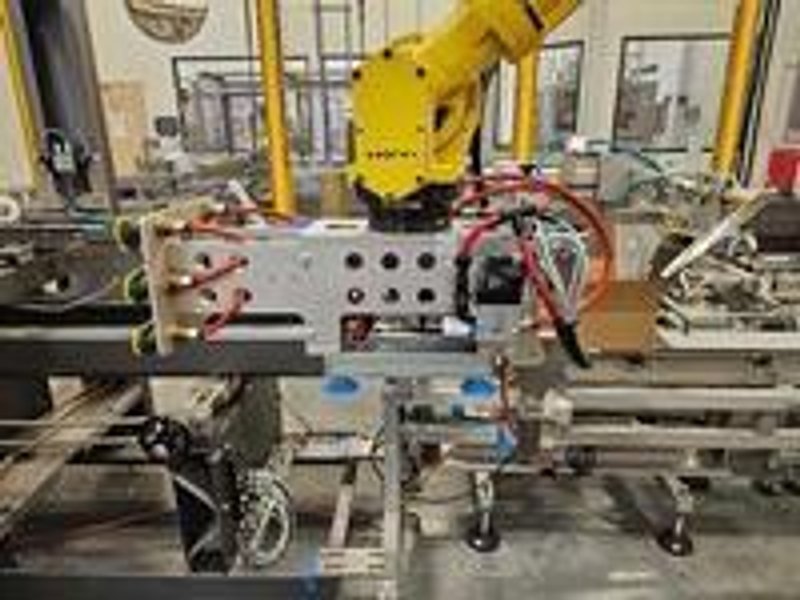

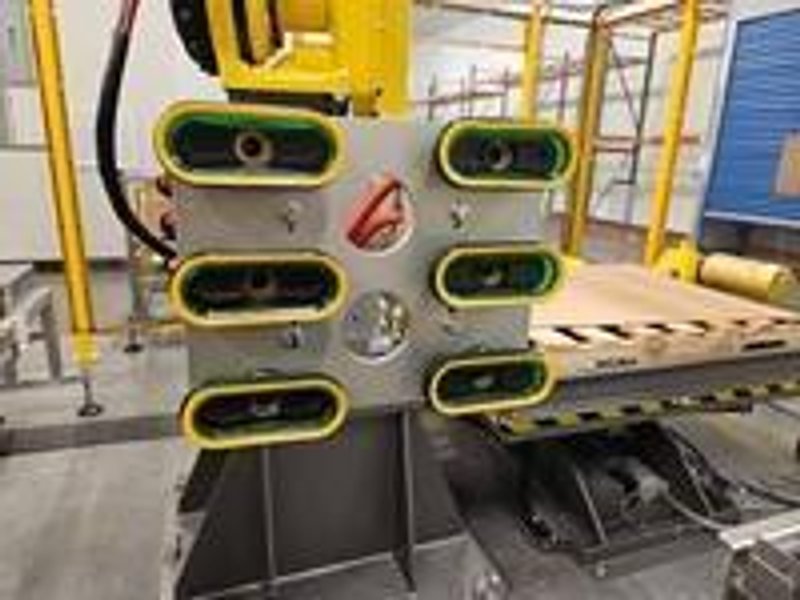

Robot arm Suction cups: (6) 3.75 x 1.75, (5) 2 inch diameter

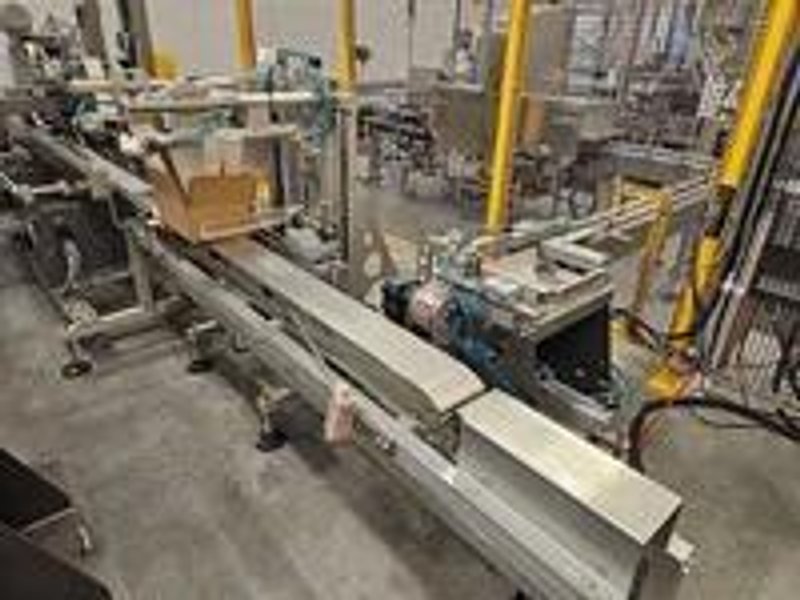

Case taper roller Conveyor 86 Length x 4.75 width

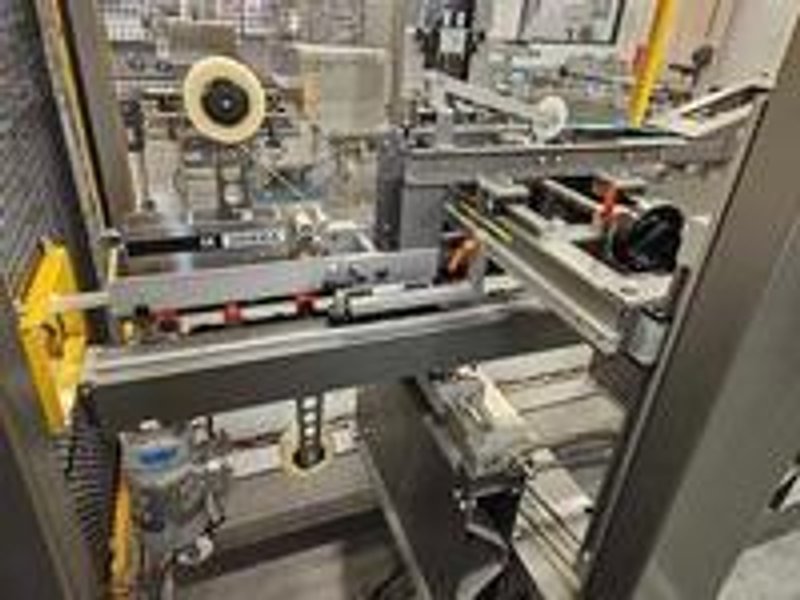

2 inch tape head, top and bottom
Roller Conveyor between case taper and pallet Conveyor: (1) 65 Length x 15 width and 105 Length x 15 width and 120 length x 15 width

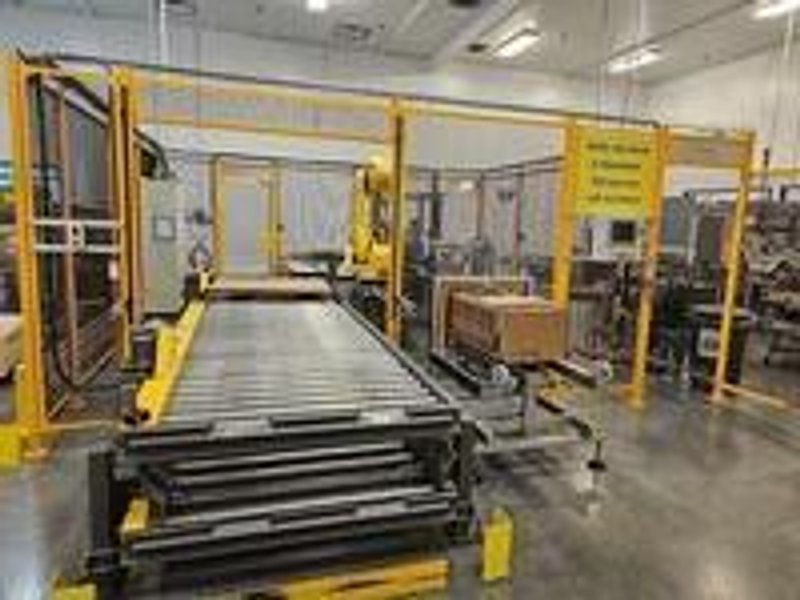

Pallet Conveyor: 174 Length x 50.5 width

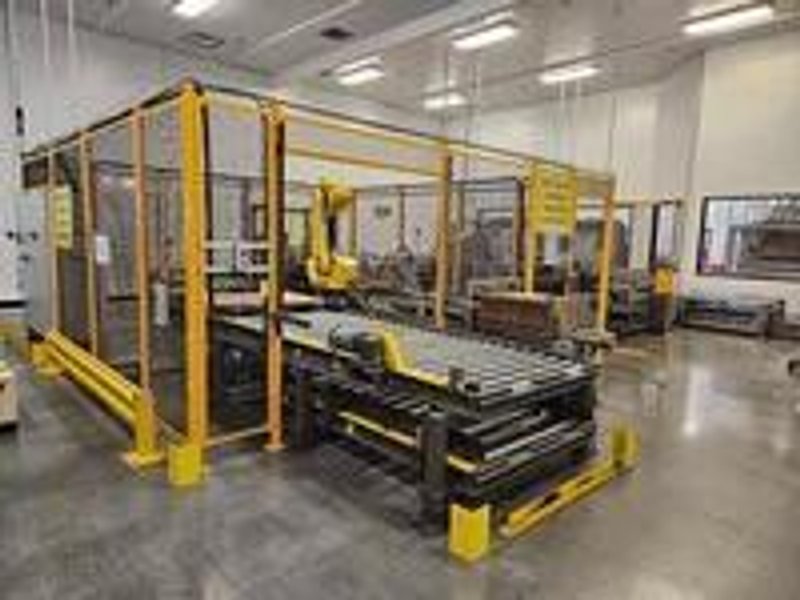

Robot Work Cell enclosure:
Wire mesh fence

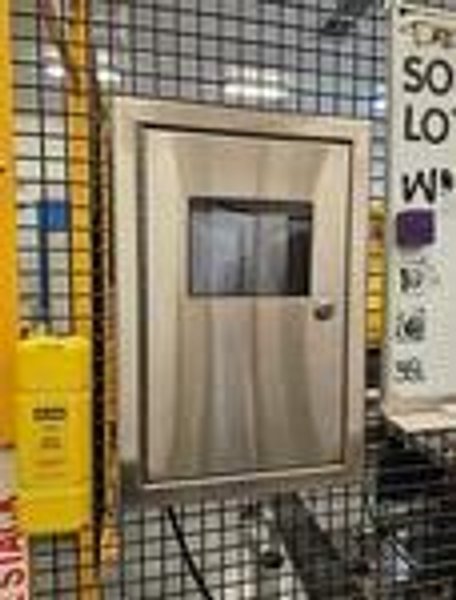

Safety interlocked access doors
Guarding to comply with category 3 safety requirements
Overall footprint 23.5 ft Length x 32 ft x 101 Height
***All Available Books and Manuals Including Complete Blueprint***
All specifications are assumed to be correct but must be confirmed by the purchasing entity. |
