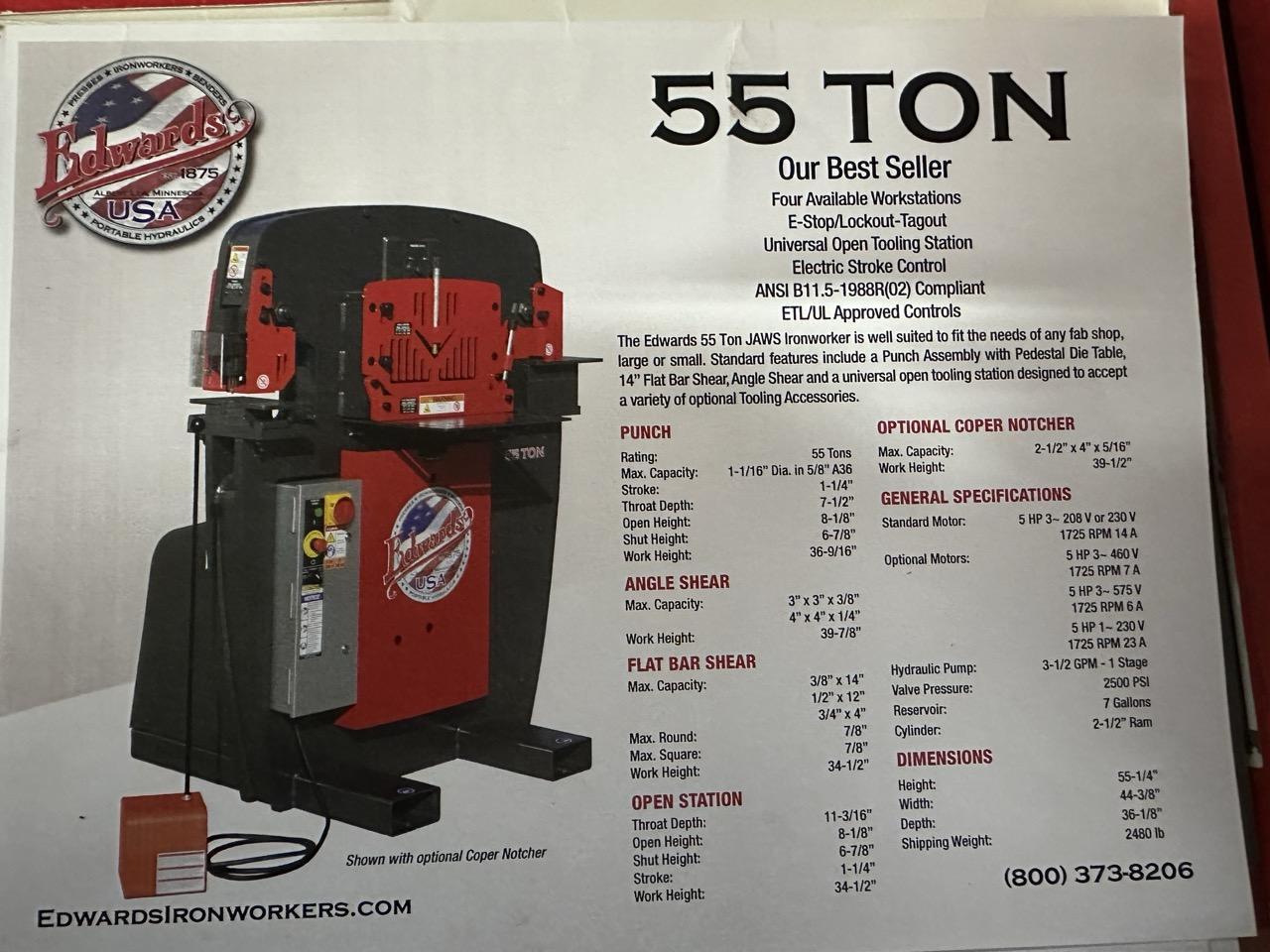

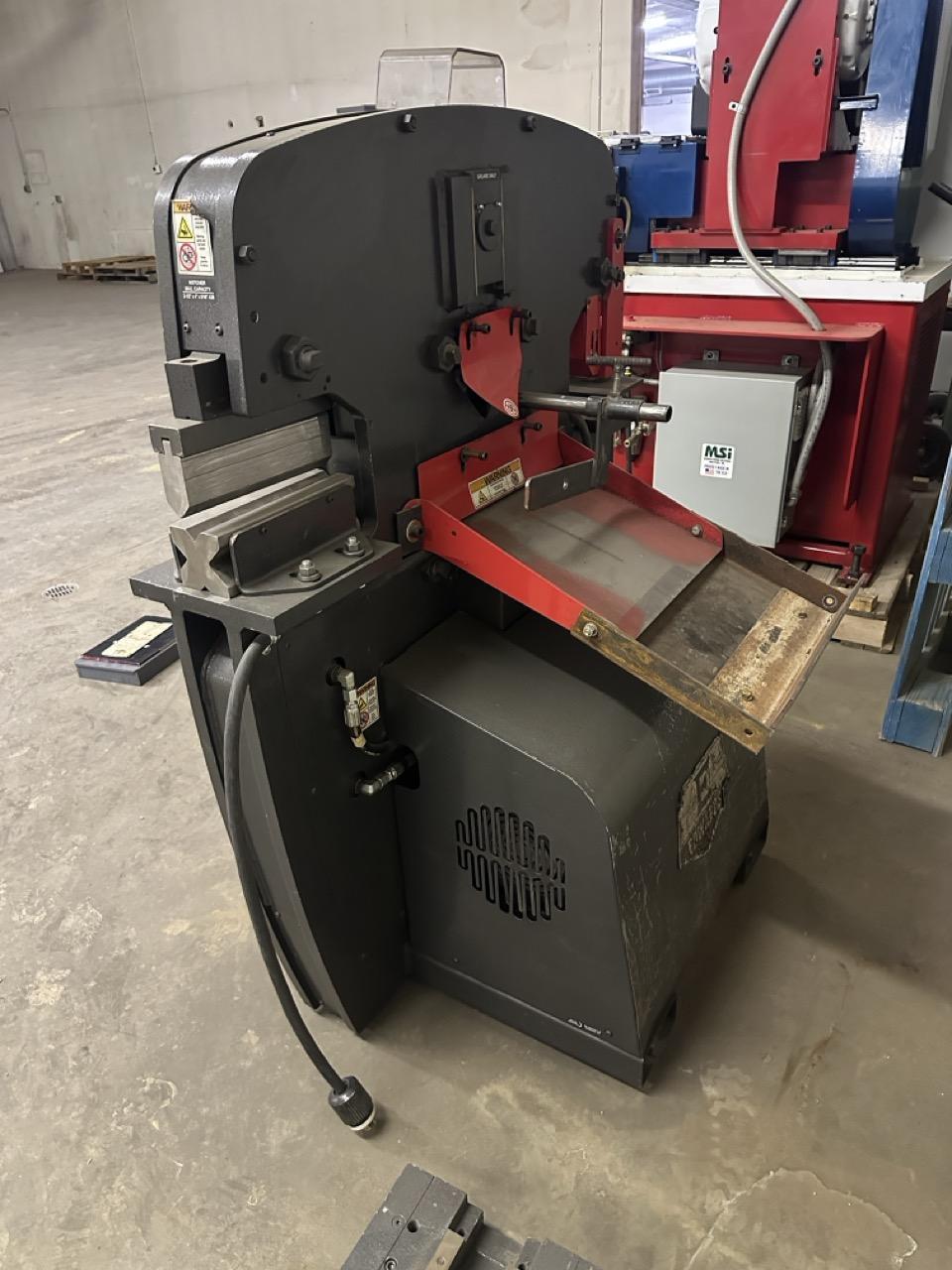

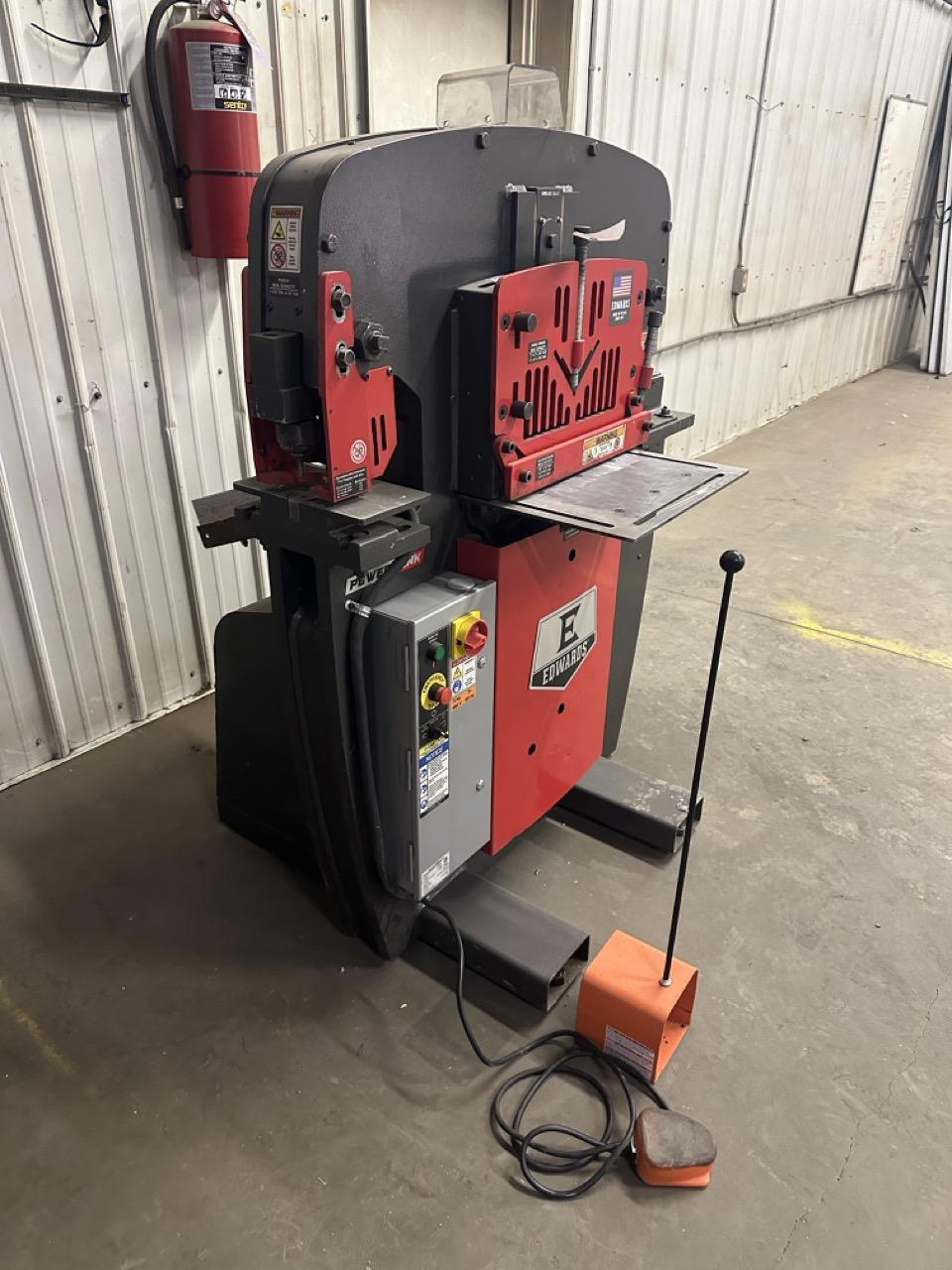

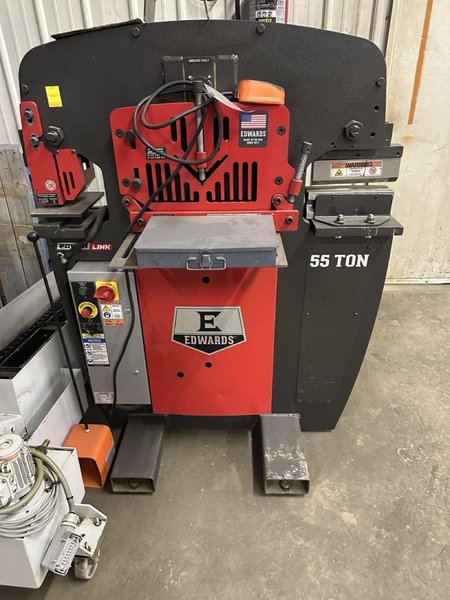

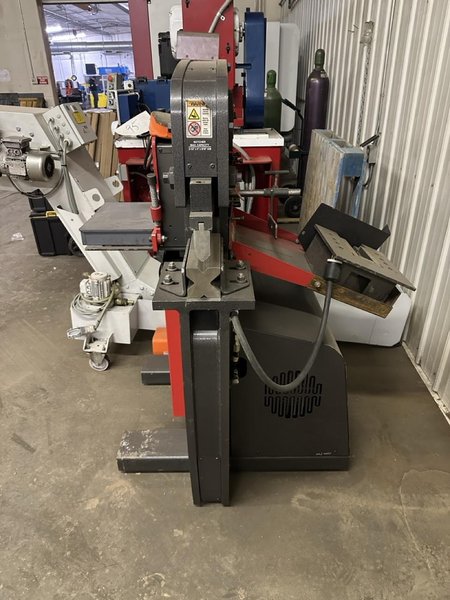

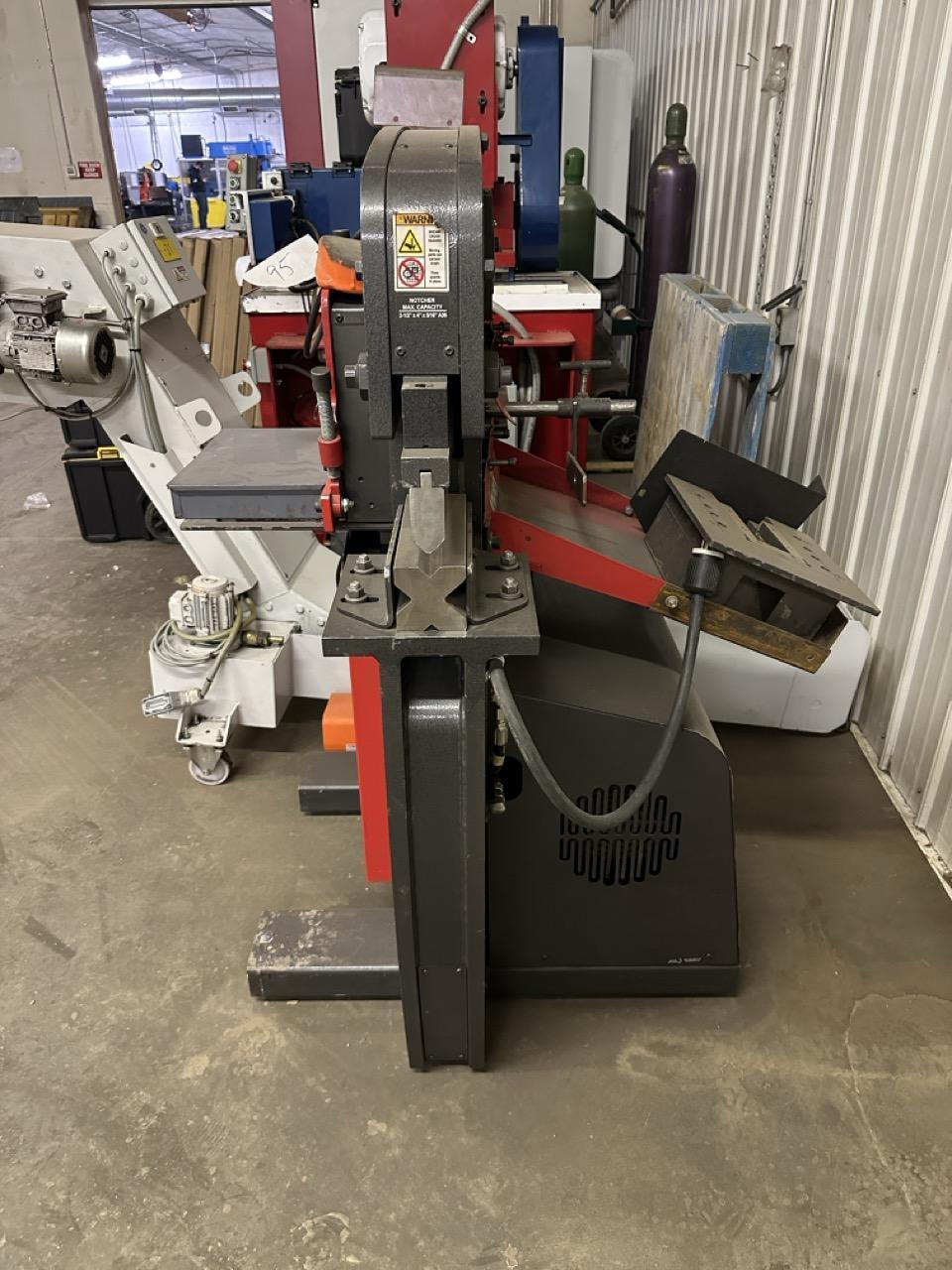

55 Ton Edwards Ironworker, 2020

PUNCH Rating: 55 Tons Max Capacity: 1-1/16″ Dia in 5/8″ A36 Stroke: 1-1/4″ Throat Depth: 7-1/2″ Open Height: 8-1/8″ Shut Height: 6-7/8″ Work Height: 36-9/16″

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,ANGLE SHEAR Max Capacity: 3″ x 3″ x 3/8″ 4″ x 4″ x 1/4″ Work Height: 39-7/8″

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,FLAT BAR SHEAR Max Capacity: 3/8″ x 14″ 1/2″ x 12″ 3/4″ x 4″ Max Round: 7/8″ Max Square: 7/8″ Work Height: 34-1/2″

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,OPEN STATION Throat Depth: 11-3/16″ Open Height: 8-1/8″ Shut Height: 6-7/8″ Stroke: 1-1/4″ Work Height: 34-1/2″

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,OPTIONAL COPER NOTCHER Max Capacity: 2-1/2″ x 4″ x 5/16″ Work Height: 39-1/2″

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Motor: 5 HP – 460 Volts / 3 Phase

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,DIMENSIONS Height: 55-1/4″ Width: 44-3/8″ Depth: 36-1/8″ Shipping Weight: 2480 lb

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Equipped With:

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Four Available Workstations E-Stop/Lockout-Tagout Universal Open Tooling Station Electric Stroke Control

All specifications are assumed to be correct but must be confirmed by the purchasing entity.
