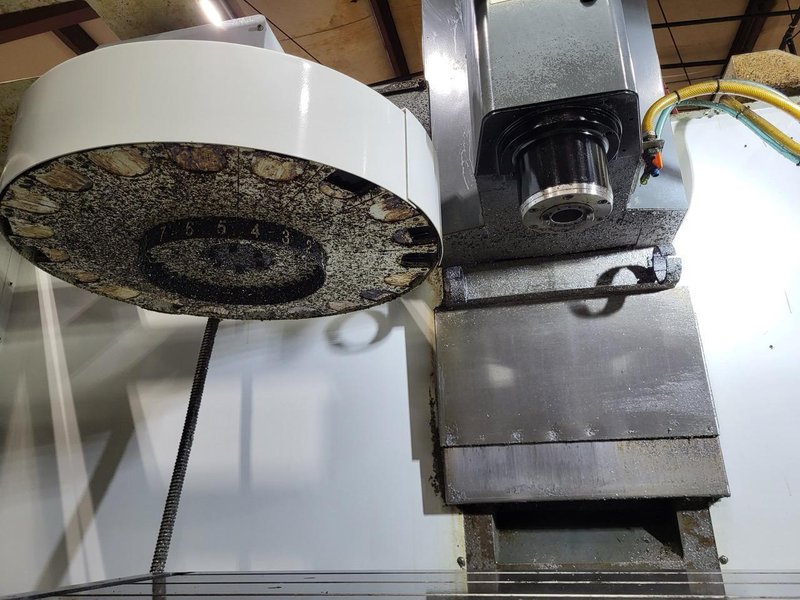

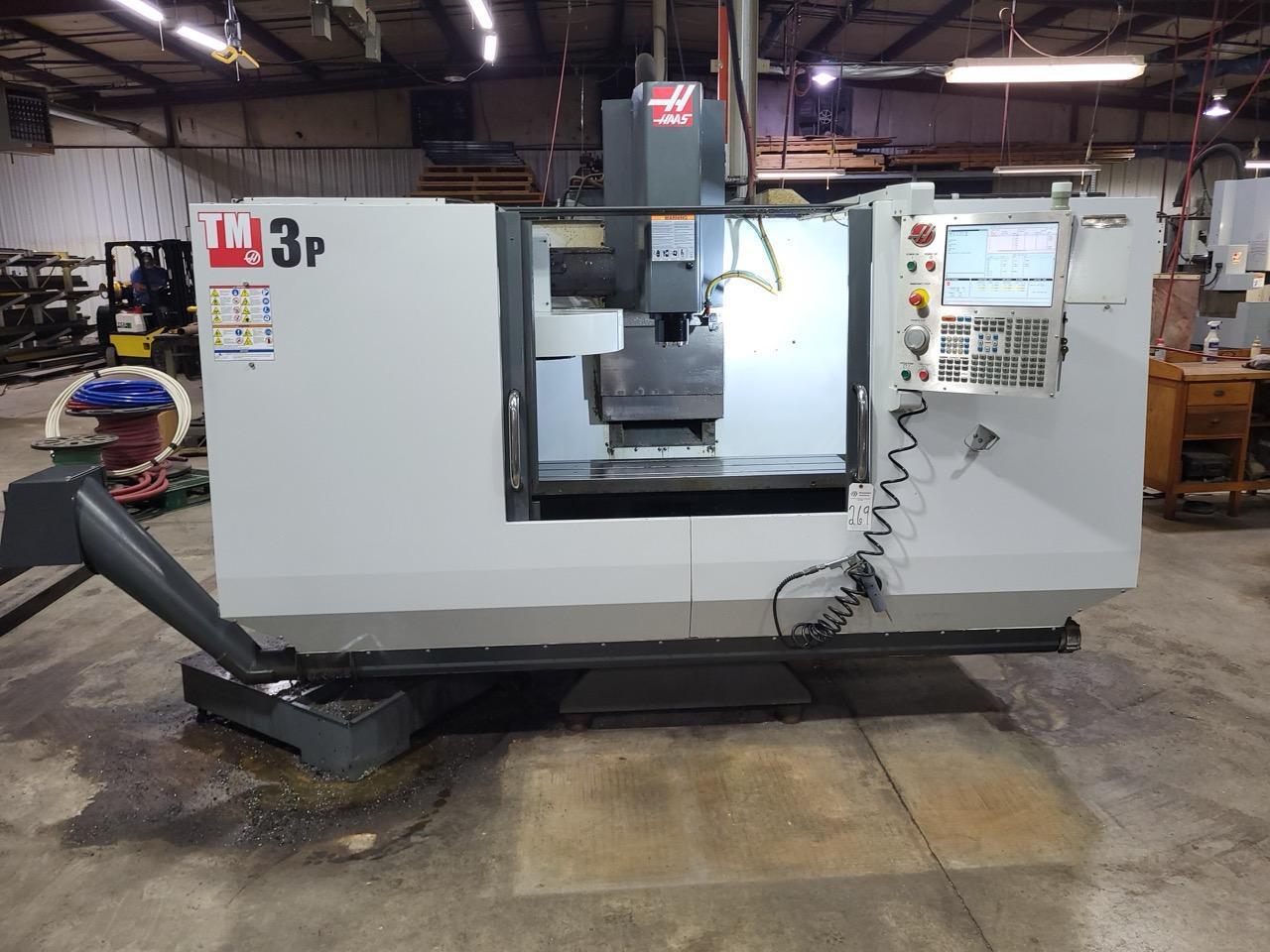

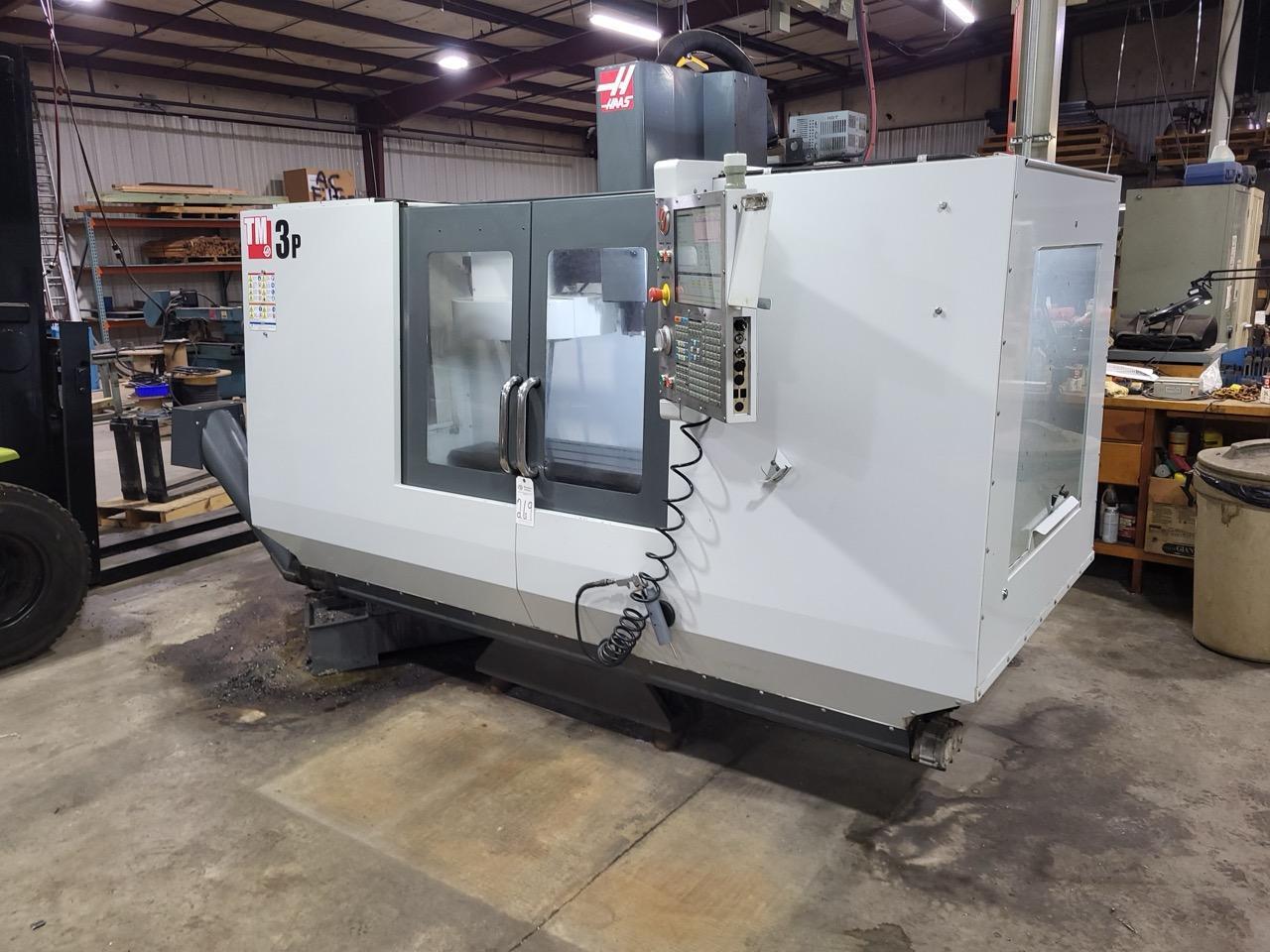

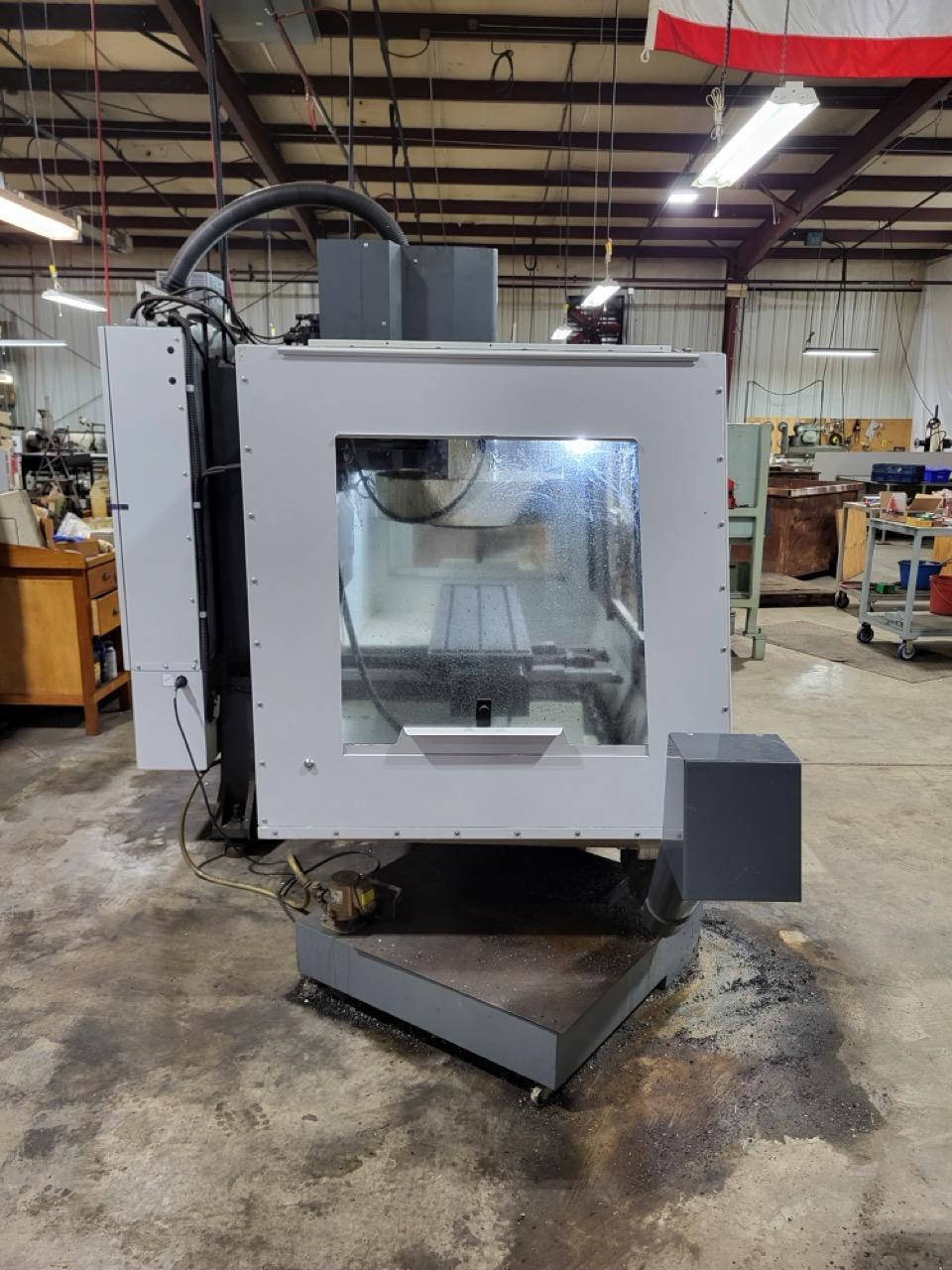

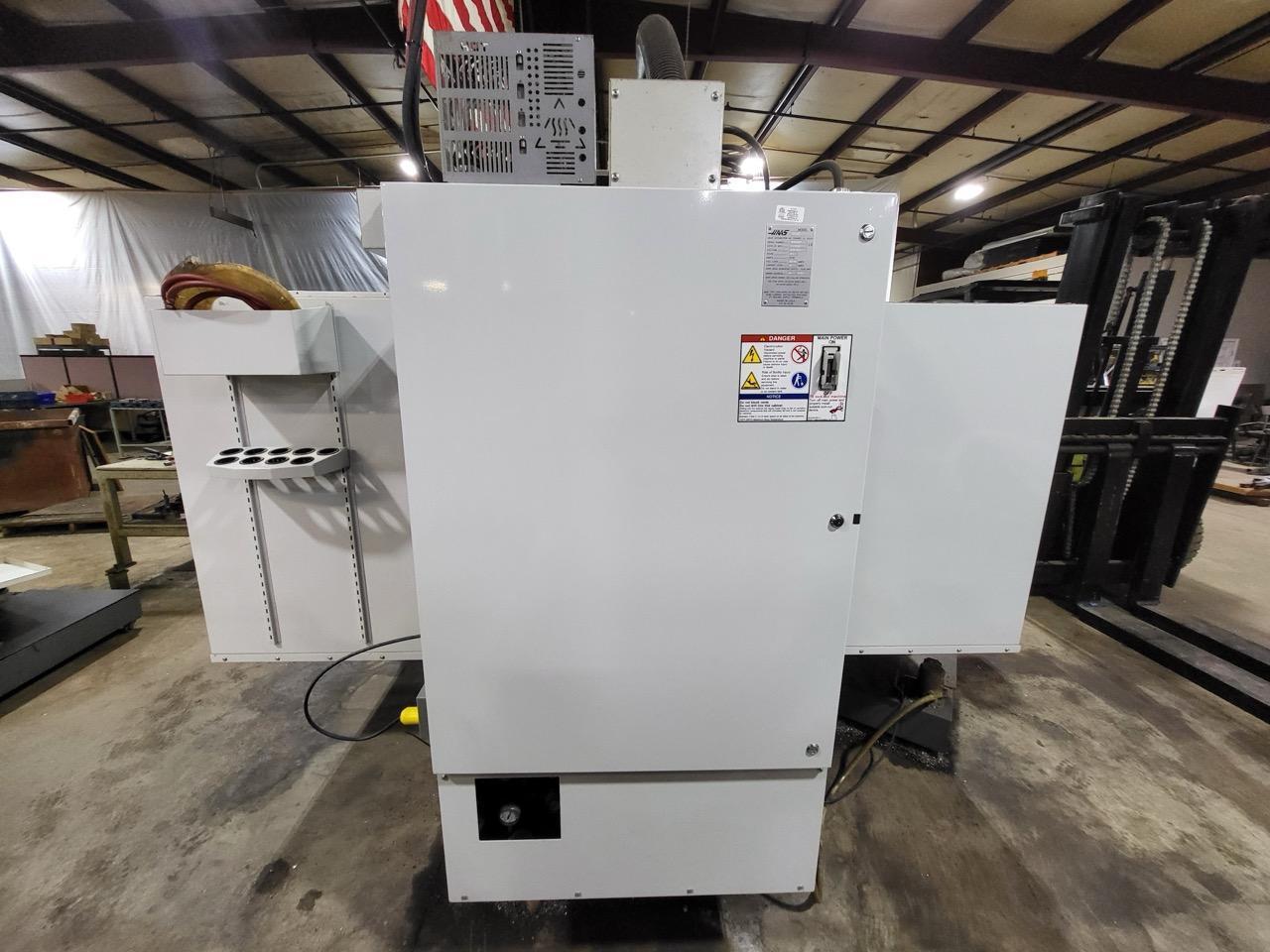

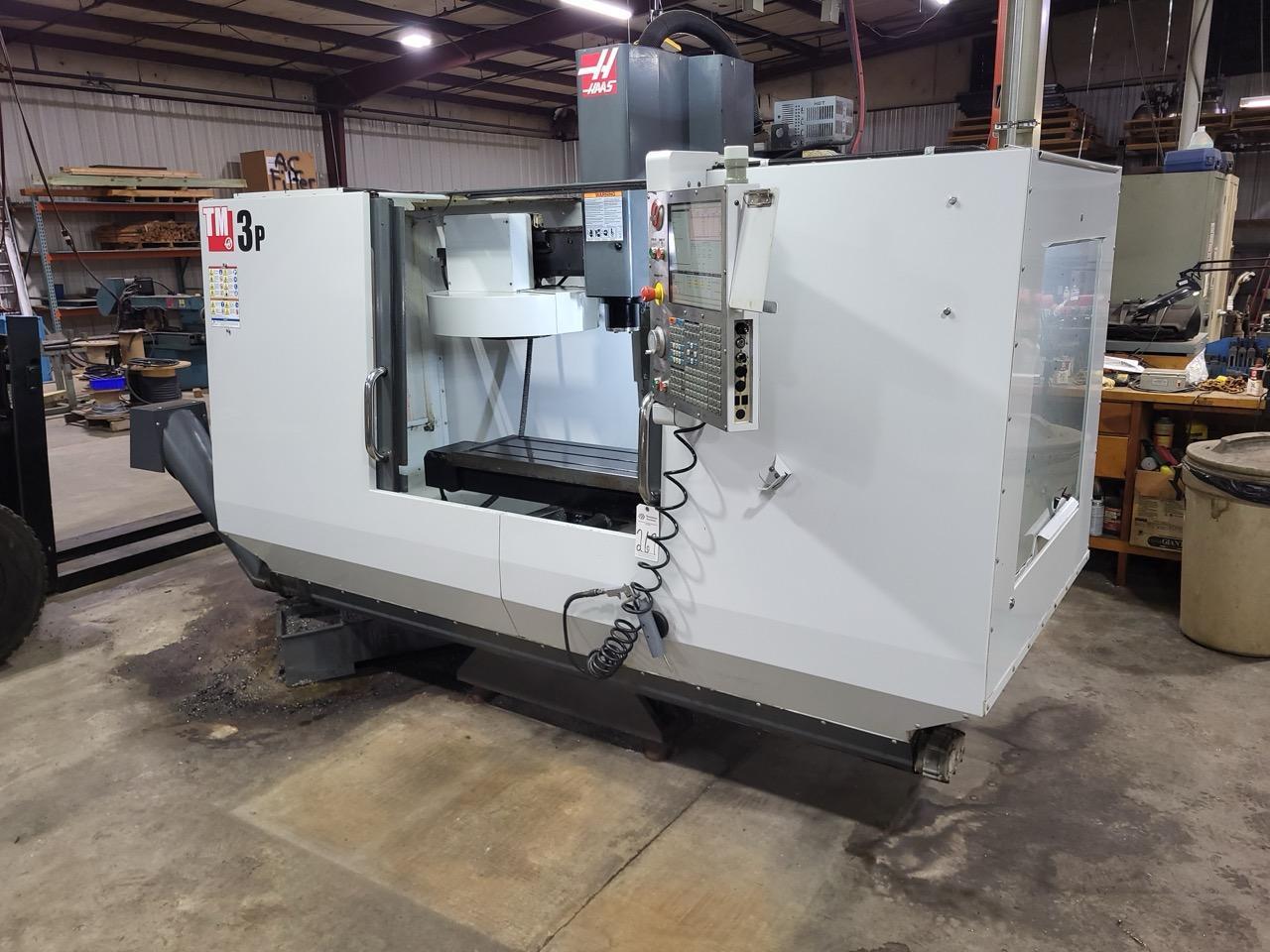

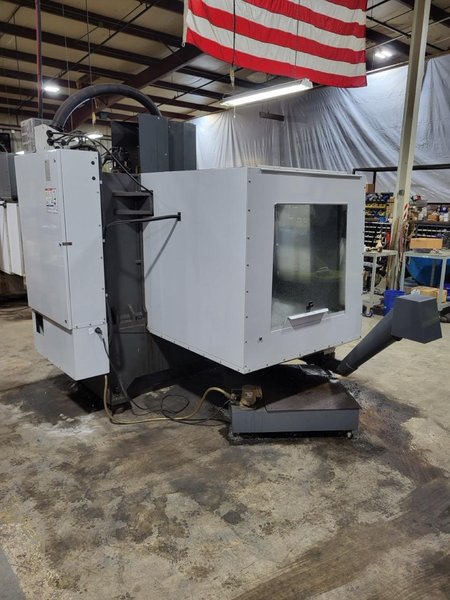

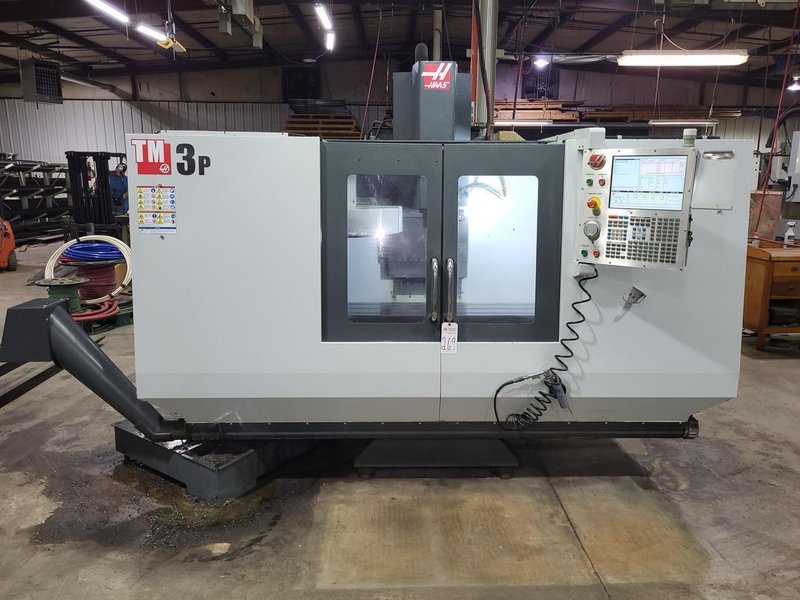

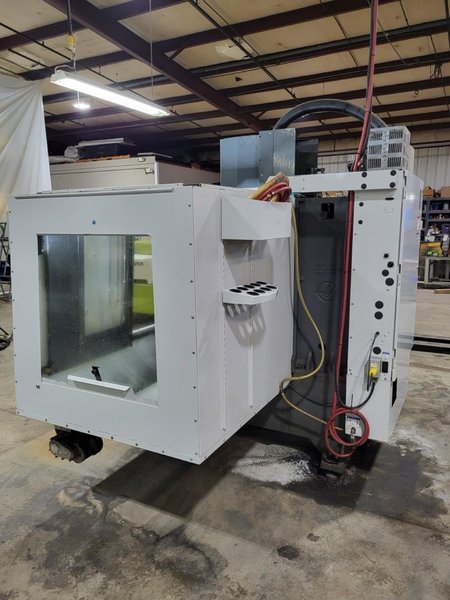

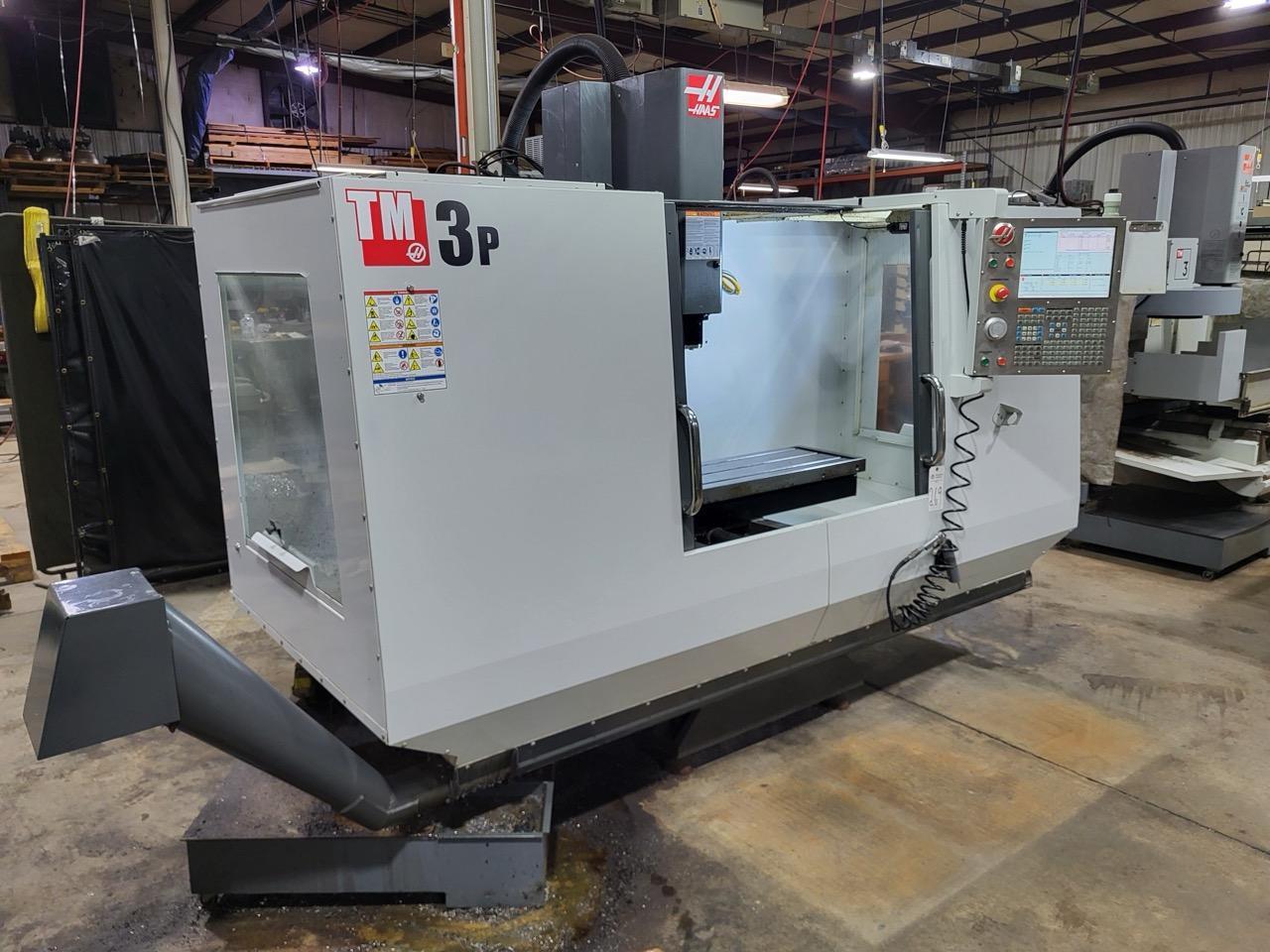

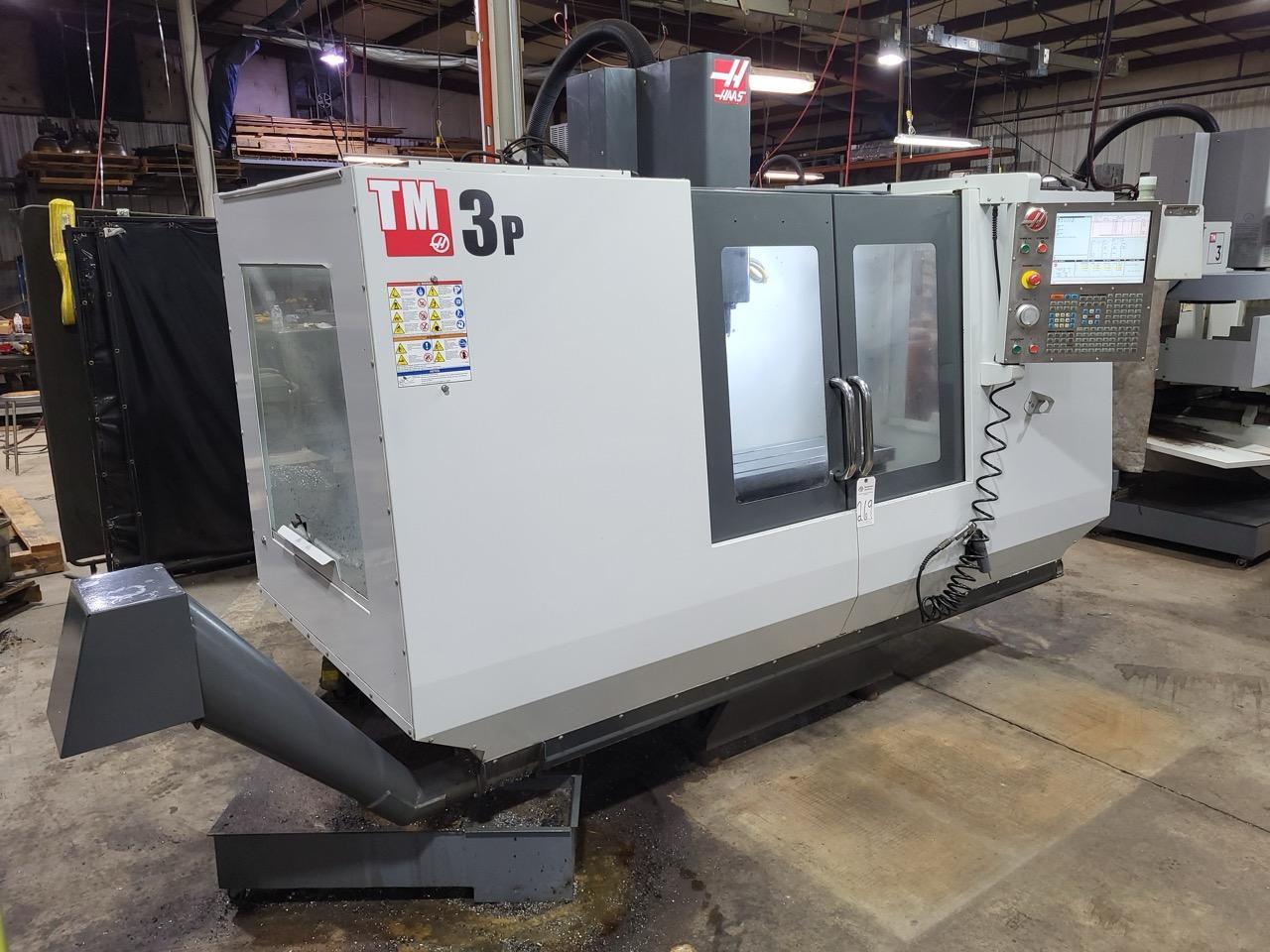

HAAS TM-3P CNC TOOLROOM MILL, 2012 – 4 AXIS VMC, VERTICAL MACHINING CENTER

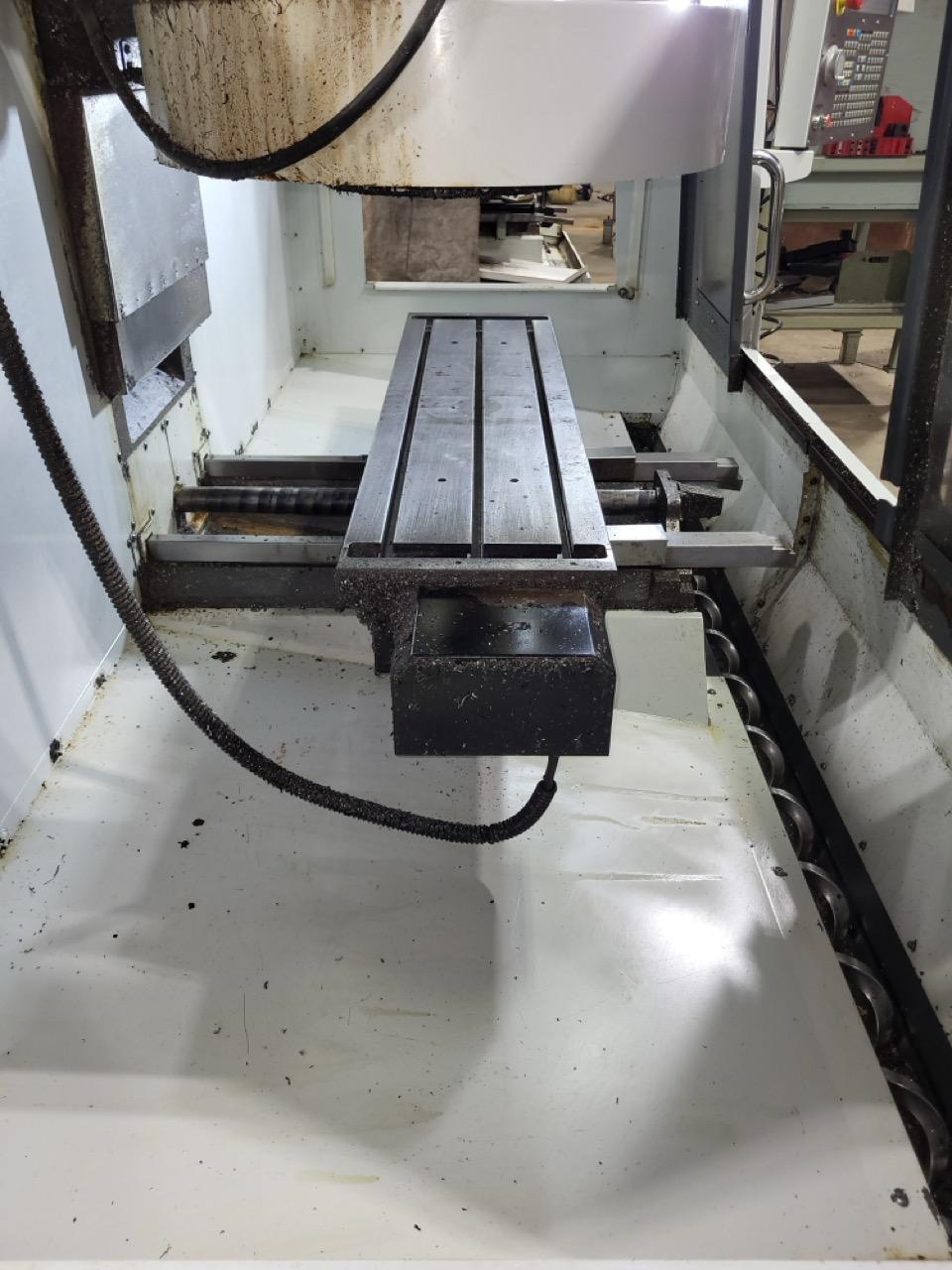

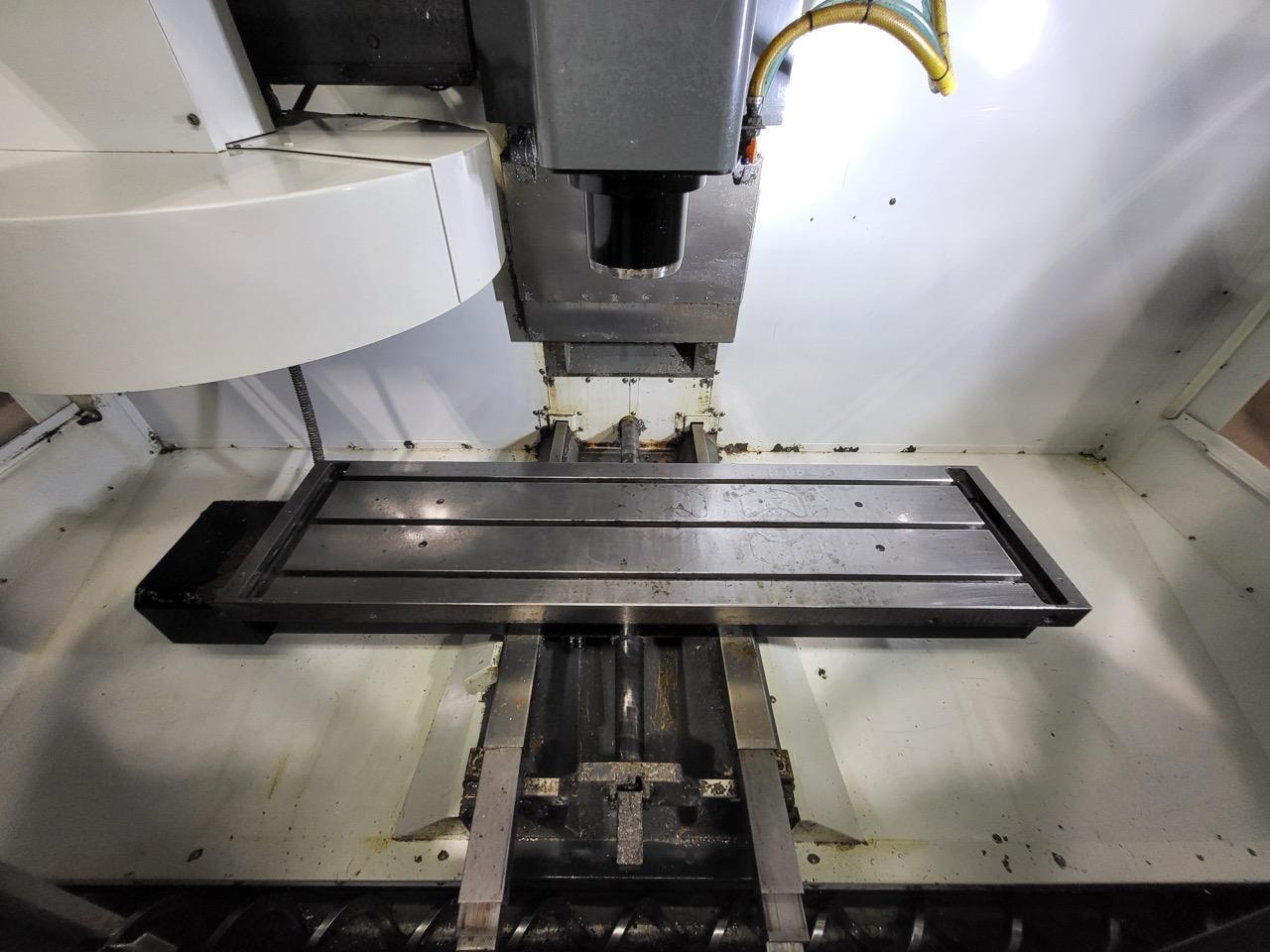

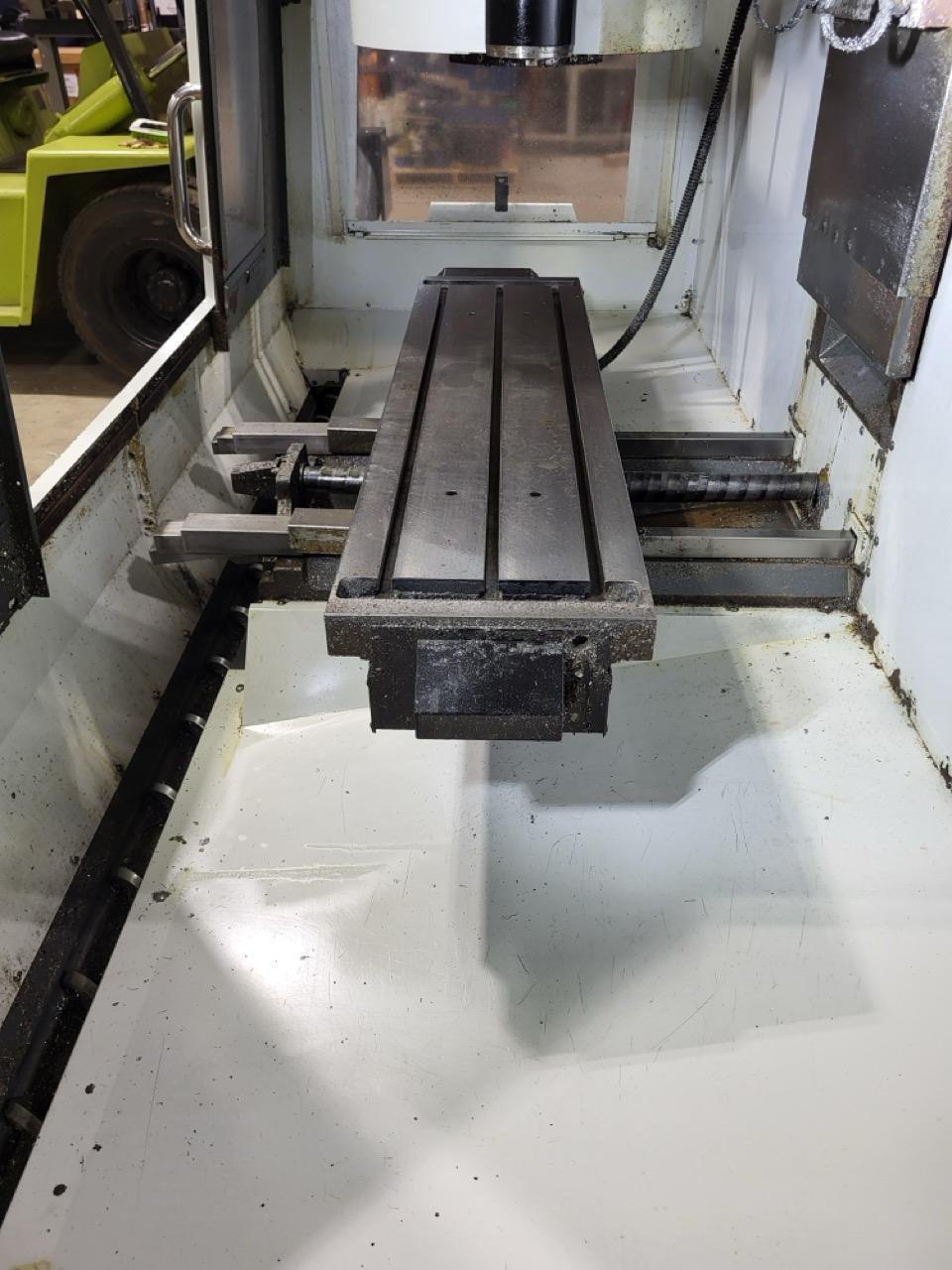

SPECIFICATIONS: TRAVELS X-AXIS: 40” Y-AXIS: 20” Z AXIS: 16” SPINDLE NOSE TO TABLE ~ MAX.: 20” SPINDLE NOSE TO TABLE ~ MIN.: 4” TABLE LENGTH: 57.75” WIDTH: 14.5” T-SLOT WIDTH: 5/8” T-SLOT CENTER DISTANCE: 4.92” NUMBER OF STD T-SLOTS: 3 MAX. WEIGHT ON TABLE: 1000 LBS. SPINDLE MAX. RATING: 7.5 HP MAX. SEED: 6000 RPM MAX. TORQUE: 33 FT-LB @ 1200 RPM DRIVE SYSTEM: DIRECT SPEED, BELT DRIVE TAPER: CT 40 FEEDRATES MAX. CUTTING: 400 IN/MIN RAPIDS ON X: 400 IN/MIN RAPIDS ON Y: 400 IN/MIN RAPIDS ON Z: 400 IN/MIN AXIS MOTORS MAX. THRUST X: 2000 LBS MAX. THRUST Y: 2000 LBS MAX. THRUST Z: 2000 LBS TOOL CHANGER TYPE: CAROUSEL CAPACITY: 20 MAX. TOOL DIAMETER (FULL): 3.5” MAX. TOOL WEIGHT: 12 LBS TOOL-TO-TOOL (AVG): 5.7 SEC CHIP-TO-CHIP (AVG.): 6.5 SEC

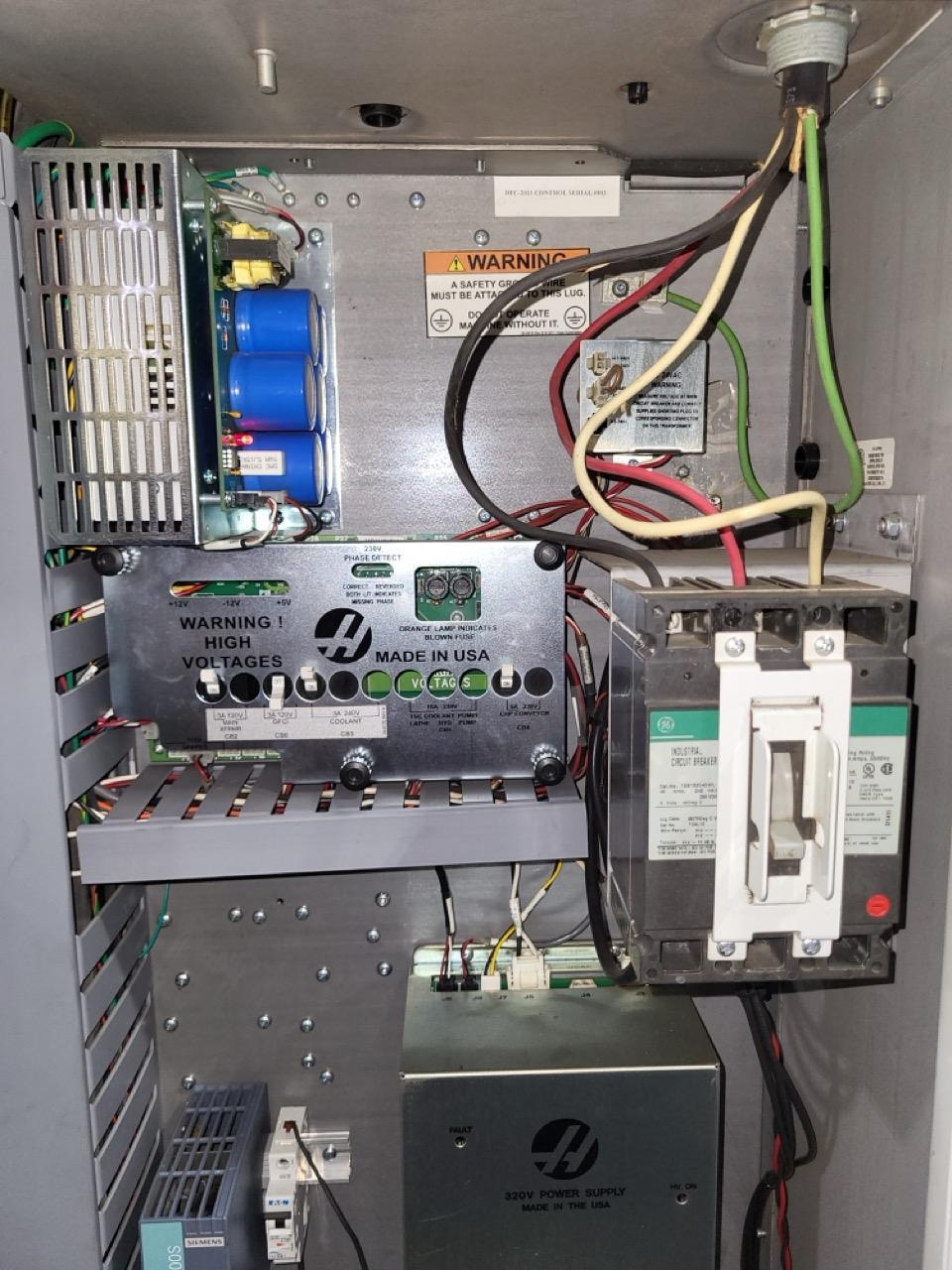

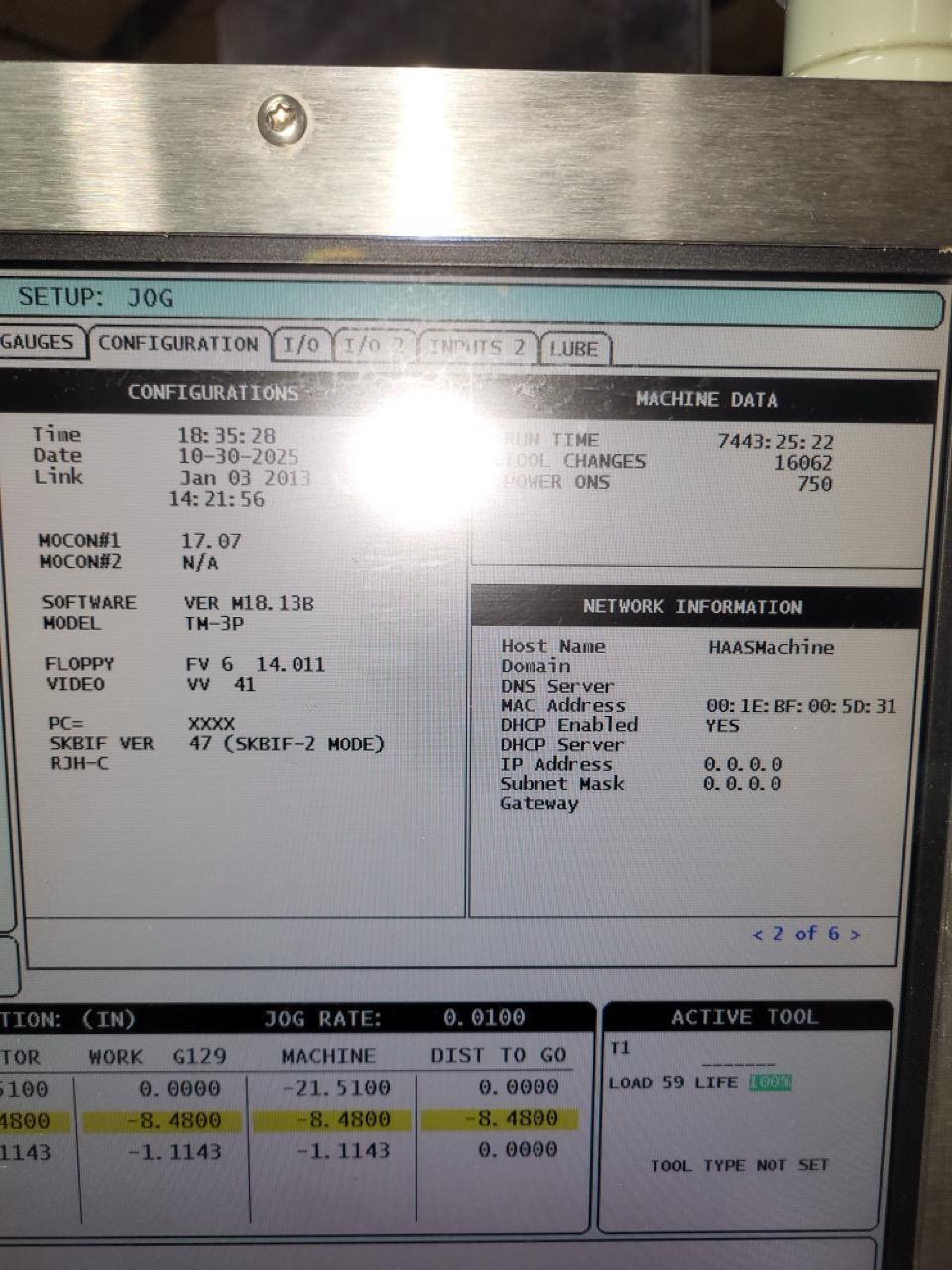

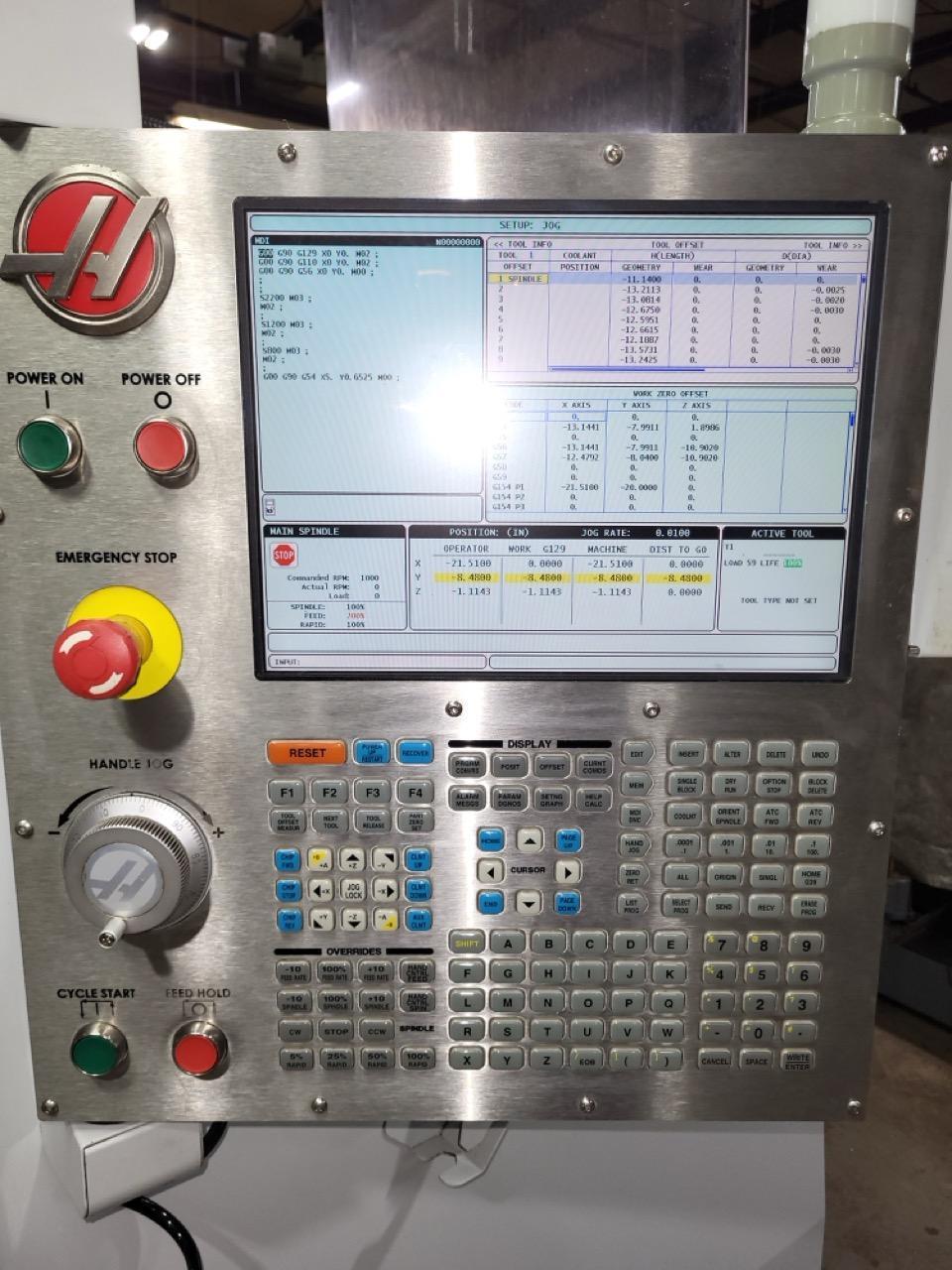

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,EQUIPPED WITH: HAAS CNC CONTROL 20 TOOL ATC CHIP AUGER 4TH AXIS DRIVE

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,INSPECTION AVAILABLE BY APPOINTMENT
