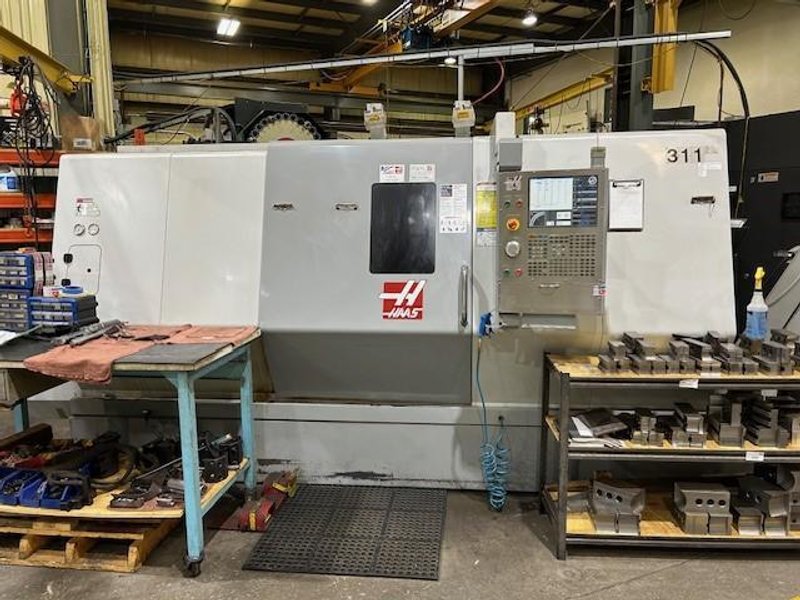

Haas SL-40BB CNC Lathe, 2006 – Tailstock, Chip Conveyor
Brand
Category
Type
Model
SL-40BB
Stock #
508340
Year
2006
Condition
Not specified
Location
Not specified
|
Bar Capacity: 4″
Max Turning Diameter: 25.5″
Max Turning Length: 44″
Chuck Size: 18″
Spindle Bore: 4.125″
Max Spindle Speed: 2,400 RPM
Spindle Motor: 60 HP
Spindle Bore: 4.125″
All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Electrical: 220V, 3-Phase Approximate Machine Dimensions: 177″ x 79″ x 85″ Approximate Machine Weight: 20,000lbs All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Equipped With Haas CNC Control BB40 7.080″ Big Bore Option PTS40 Programmable Hydraulic Tailstock XP40B Extra Performance Option ETP40 Extended Tool Pocket HIL-L High Intensity Lighting LCC40 Belt-Type Chip Conveyor PC18KITA 18″ 3-Jaw Chuck VQC-L Visual Quick Code All specifications are assumed to be correct but must be confirmed by the purchasing entity. |
