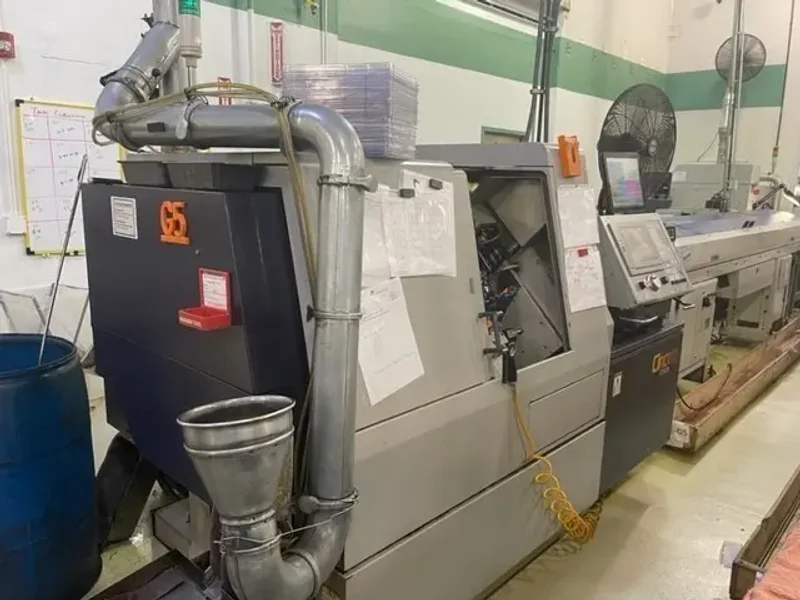

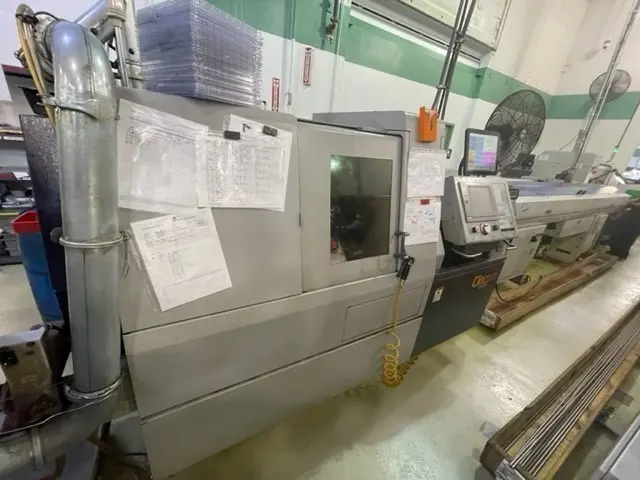

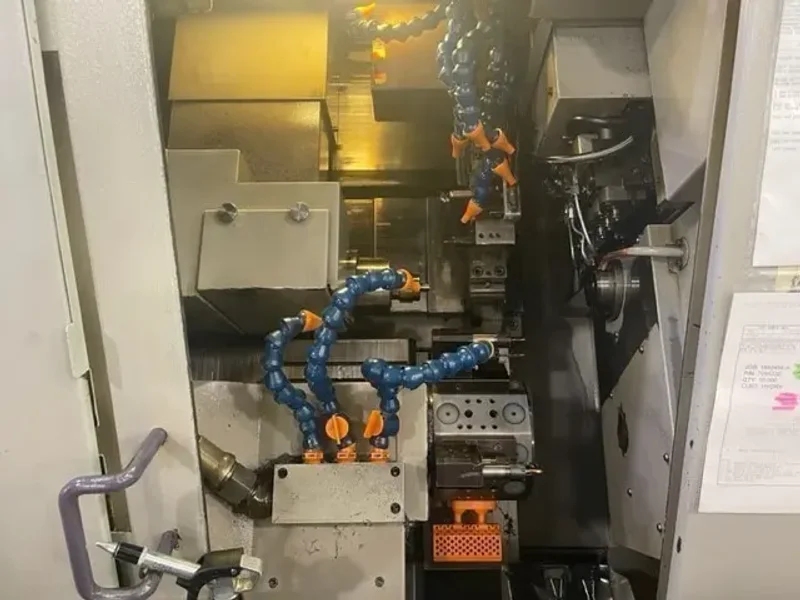

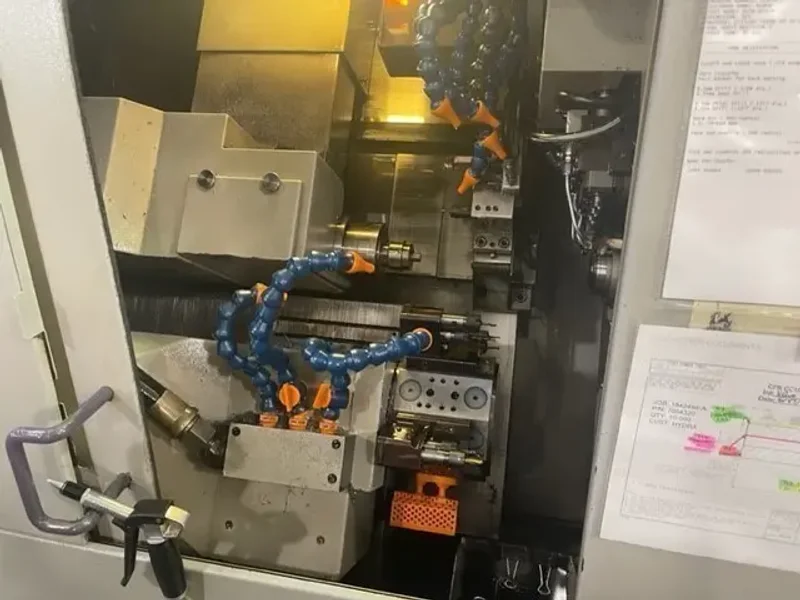

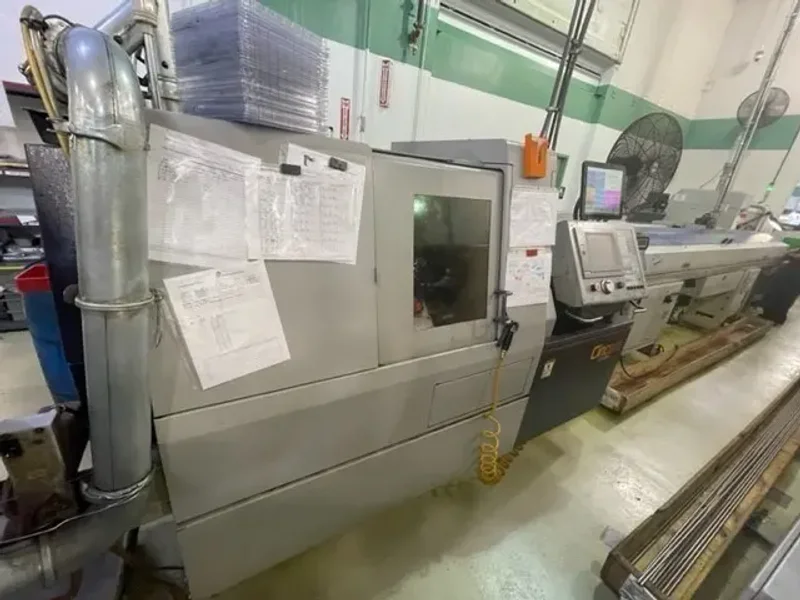

2001 CITIZEN M16 | Screw Machines, Automatic

Equipped With::
Mitsubishi (M6M) CNC Control

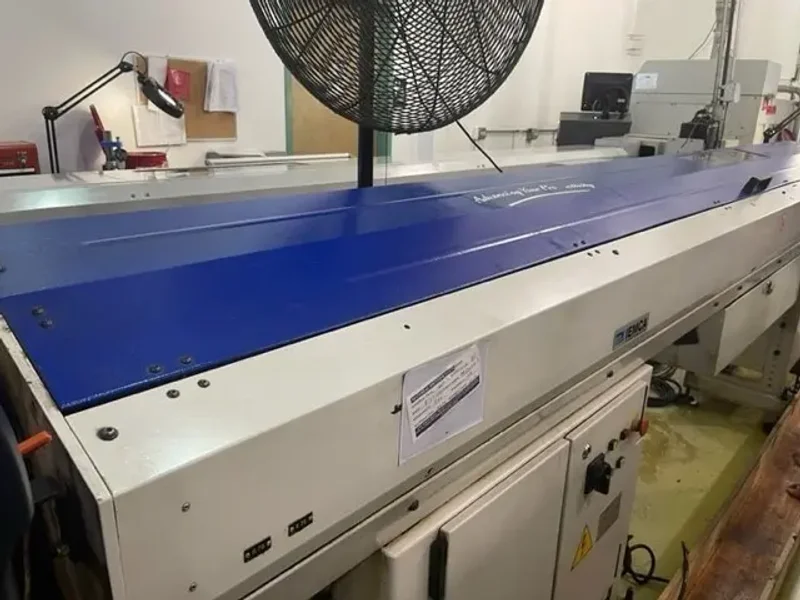

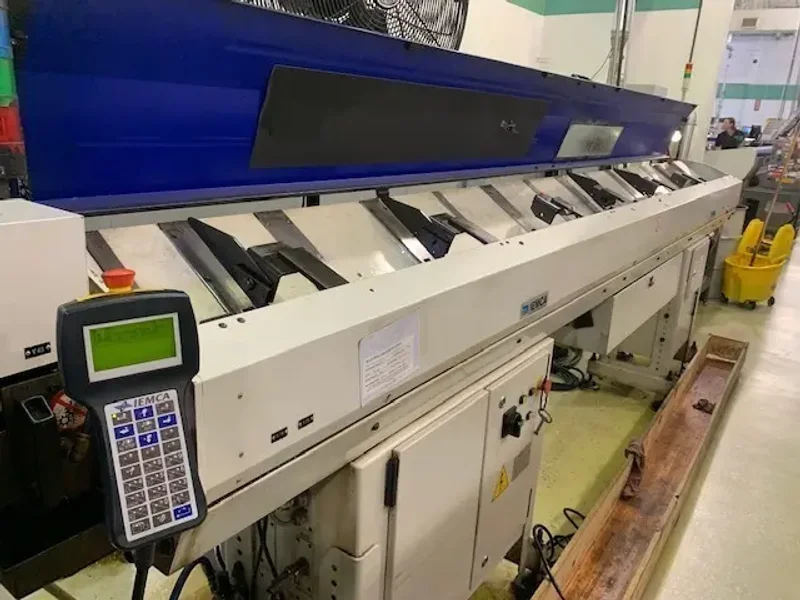

Iemca Boss 432 Barfeed

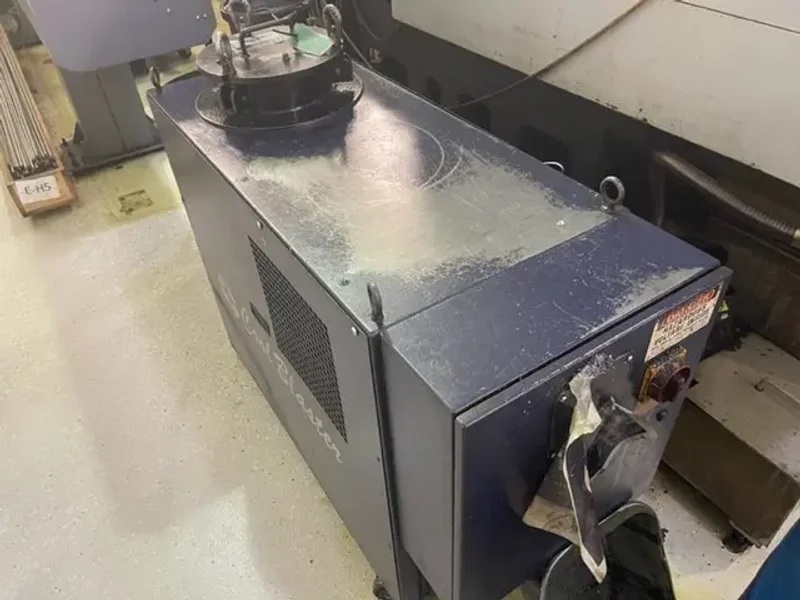

Cool Blaster 8-Line High Pressure Coolant
Parts Conveyor

Specifications:

Capacity 0.625"
RPM 8,000 RPM
Swiss, Chucker or Convertible? Swiss
Main Spindle Indexing Full C
Sub Spindle Indexing Full C
Live Back Working Tools? Yes
Control CNC (Mitsubishi (M6M))
Dimensions 100" x 50" x 84"
Weight 5,000 lbs

General Specifications:
CNC Control: Mitsubishi (M6M)
Axes: X1, Y1, Z1, C1, X2, Z2, A2, Z3, C2
Machining Diameter: 5/8"
Machining Length per Chucking: 7 3/4" (200mm)
Drilling Diameter: 6mm Maximum Threading
Diameter (tap & die): M6
Main Spindle Speed: 200 - 10000 rpm
Main Spindle Indexing: Full C-Axis
Rotary Spindle on Gang Tool Post:
Drilling Diameter: 5mm (Tapping M4)
Spindle Speed: 200 - 8000 rpm
Rotary Spindle on Tool Turret Head:
Drilling Diameter: 5mm
Threading Diameter: M5
Spindle Speed: 200 - 6500 rpm
Backwork:
Chucking Diameter of Backwork Spindle: 5/8"
Backwork Length: 125mm
Drilling Diameter: 5mm
Threading Diameter: M5
Backwork Spindle Speed: 250 - 6000 rpm
Spindle Indexing: Full C-Axis
Number of Installable Tools:
Gang Tooling: 5 Turning, 3 Rotary
Turret Tooling: 10 Tools
Number of Turret Indexes: 10 sets (20 sets avail.)
Back Work Tool Post: 3
Tool Sizes:
Gang Tooling: 10mm x 10mm x 120mm
Turret Tooling: 10mm x 10mm x 60mm
Sleeve Size: 19.05mm diameter
Motors:
Main Spindle Drive: 1.5/2.2kw
Power Supply: 6 kva

Machine: 100" x 50" x 84" 5,000 lbs
