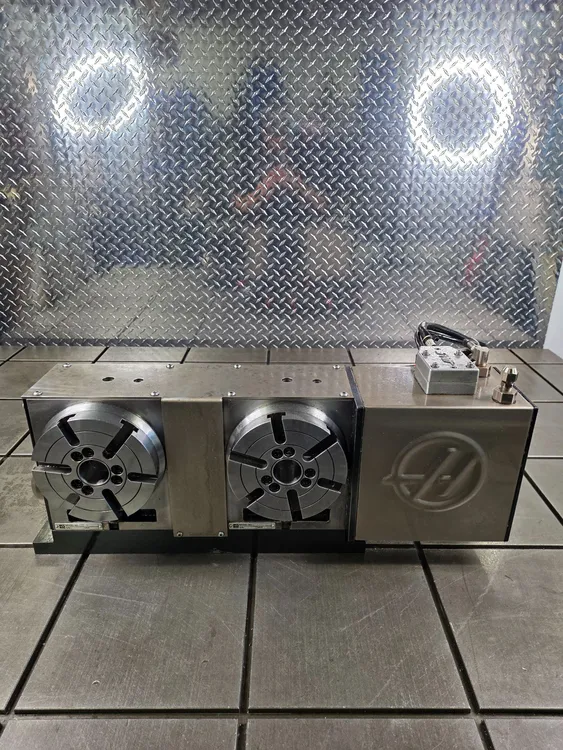

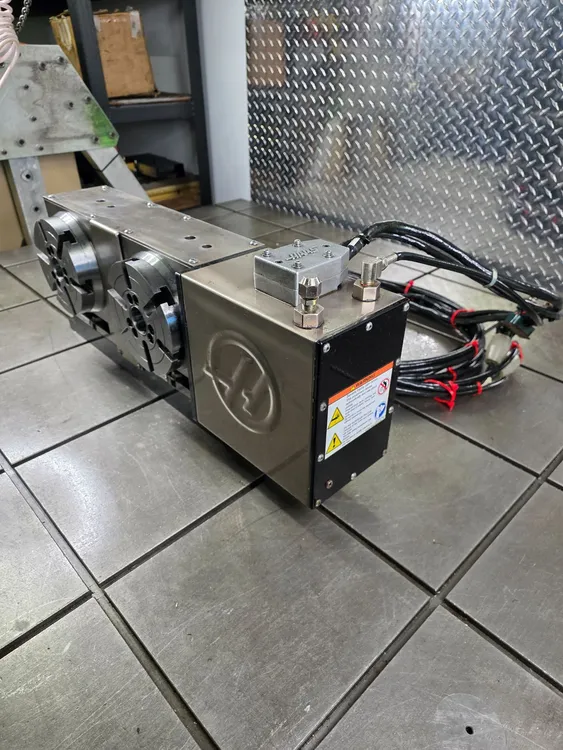

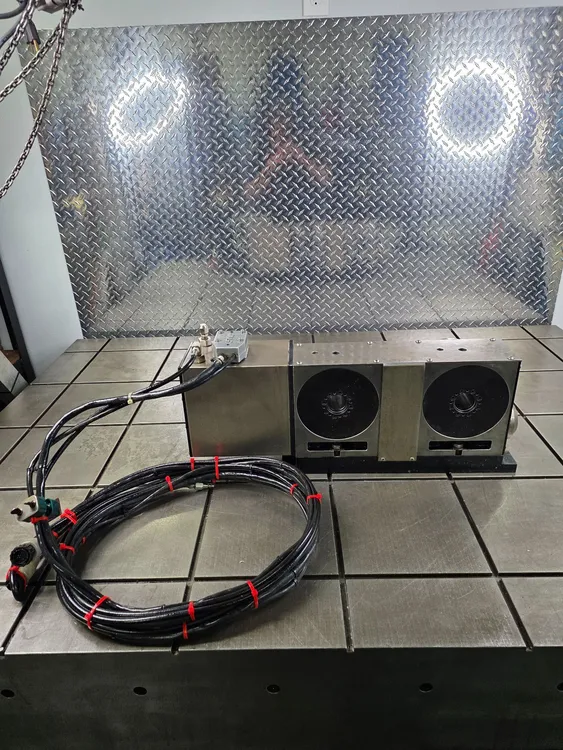

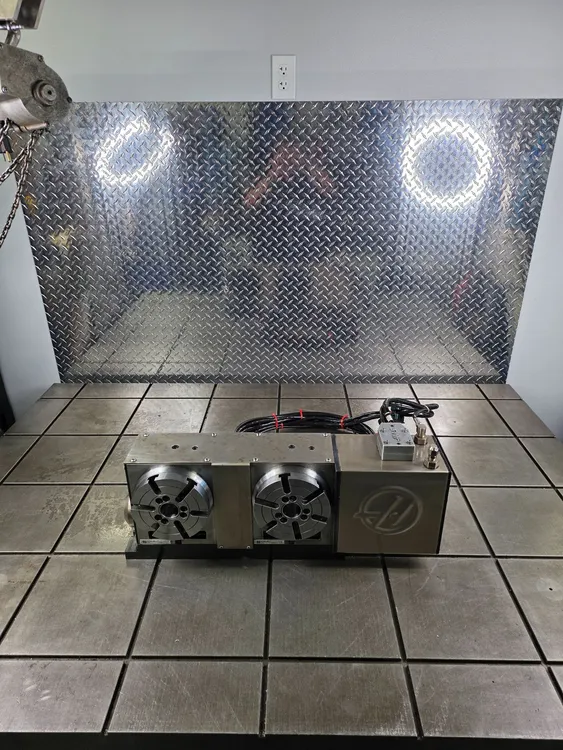

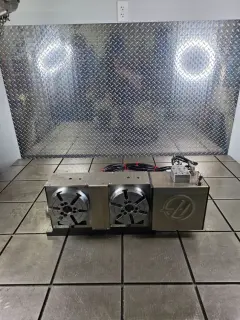

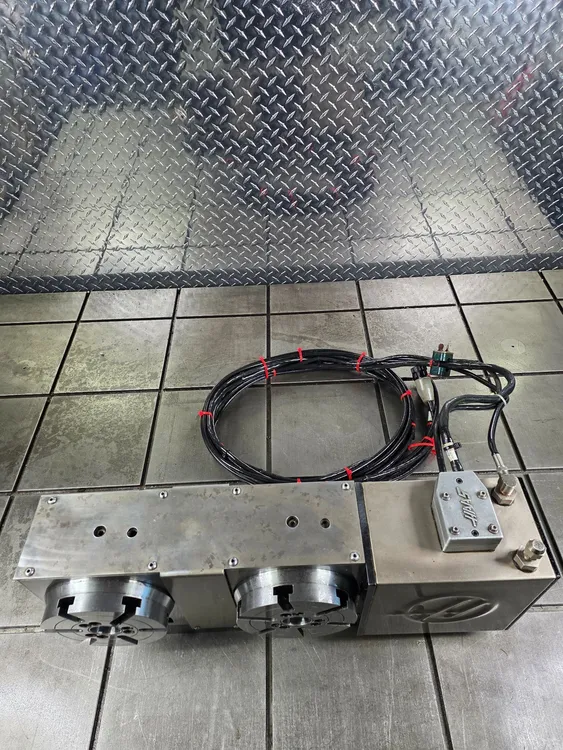

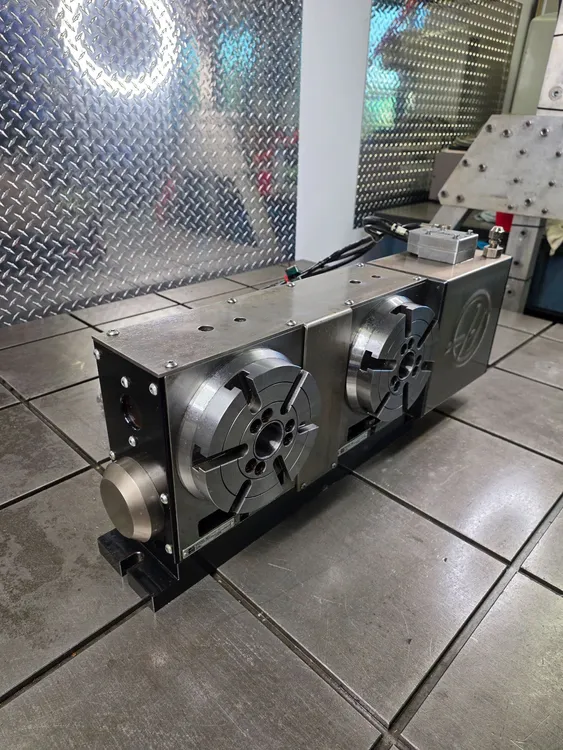

HAAS HRT160-2 6.3" Dual CNC Rotary Table Brushless USA #8138

HAAS HRT160-2 6.3" Dual CNC Rotary Table Brushless USA #8138

Name: HAAS HRT160-2 6.3" Dual CNC Rotary Table Brushless USA #8138
Brand: HAAS
SKU: 8138
Availability: PreOrder

Brand

HAAS

Location

Not specified

REQUEST FINANCING

Specifications
Files & Videos

Overview

Type:

Rotary Tables

Manufacturer:

HAAS

Model:

HRT160-2

Stock #:

8138

Status:

For Sale

Description

HAAS HRT160-2 6.3" Dual CNC Rotary Table Brushless USA #8138

ImperialMetric

Table Size-X	6.3"	160.02 mm
Table Size-Y	6.3"	160.02 mm
Dimensions	27.5" x 6" x 12.5"	27.5" x 6" x 12.5"
Weight	285lbs	285lbs

HAAS HRT160-2 6.3" Dual CNC Rotary Table Brushless USA #8138
Reference #8138
Model # HRT160-2

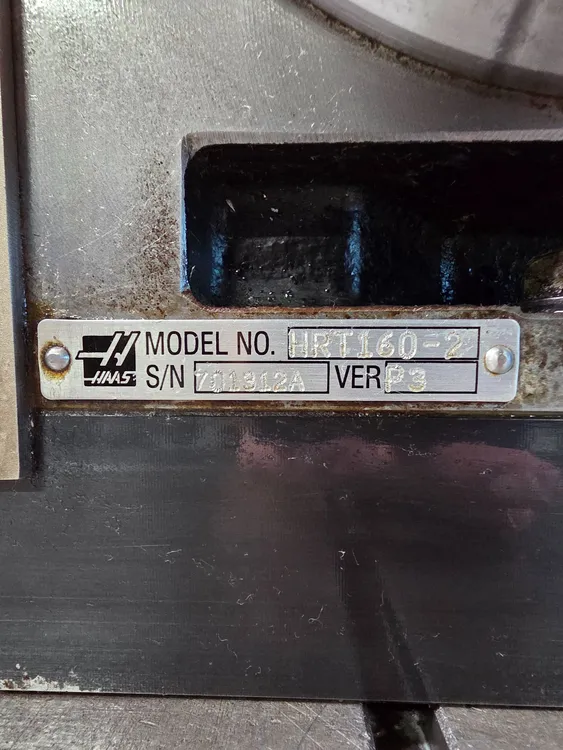

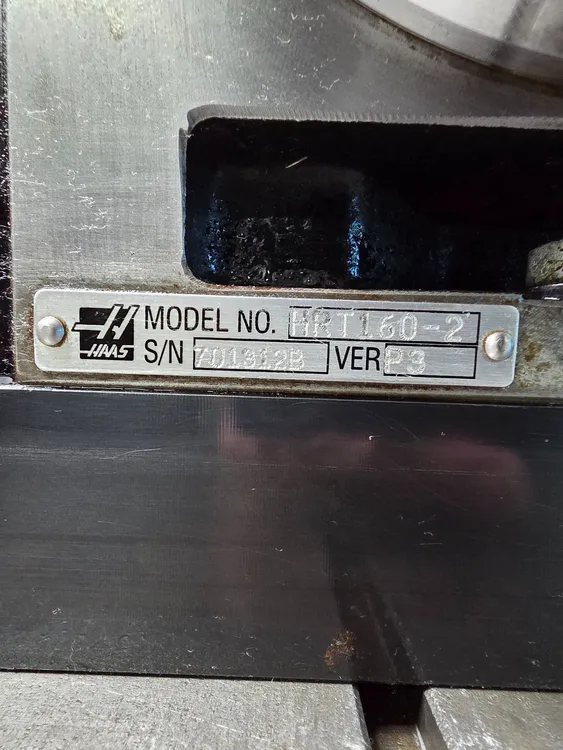

Serial # 701312A & 701312B
Table diameter- 6.3”
Max weight on platter supported- 70 Lbs.
Max weight on platter unsupported- 35 Lbs.
Max spindle speed- 80° sec
Torque- 110 Ft-Lbf
Runout max- 0.0005"
Center height- 6.750"
Backlash- 30 arc/sec
Brake torque @ 100 P.S.I.- 100Ft-Lbf
Gear ratio- 63:1
Timing- 2:1
Accuracy- +/- 15 arc-sec
Repeatability- 10 arc-sec
Resolution- 0.001°
Worm gear diameter-4.7”
Max rotation / step- 999.999°
