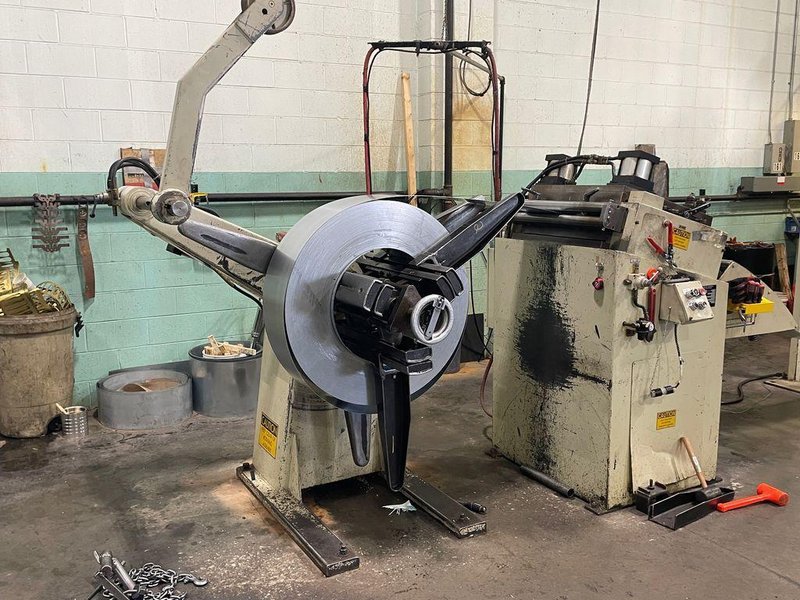

CWP Coil Reel And Straightener Combination 6,500 Lbs. x 24" Wide .187" Stock Thickness
Brand
Category
Model
4R-24 / 24C
Stock #
5586
Year
Not specified
Condition
Used
Location
Michigan
| Coil Weight Capacity: | 6500 pounds |
| Stock Width Capacity | 24 inches |
| Max Stock Thickness Capacity At Full Width | .187 inches |
| Minimum Expansion Range: | 13 inches |
| Maximum Expansion Range: | 21 inches |
| Coil O.D. Capacity: | 60 inches |
|
CWP Coil Reel Uncoiler (Pull Off) Model No. 4R-24
Three leaf mandrel Adjustable coil keeper arms Front mounted expansion ID Range 13" - 21" (with removable riser pads) Air brake mounted on main spindle (adjustable tensioning) Coil hold down arm CWP Powered Coil Straightener Model No. 24C Seven straightener rolls x 2.75" diameter Entry pinch rolls with air operated adjustments Adjustable stock width edge guides Inclined head Exit cascade loop support rollers Variable speed payout Operator's controls Jog forward and reverse Variable speed loop control |
|
