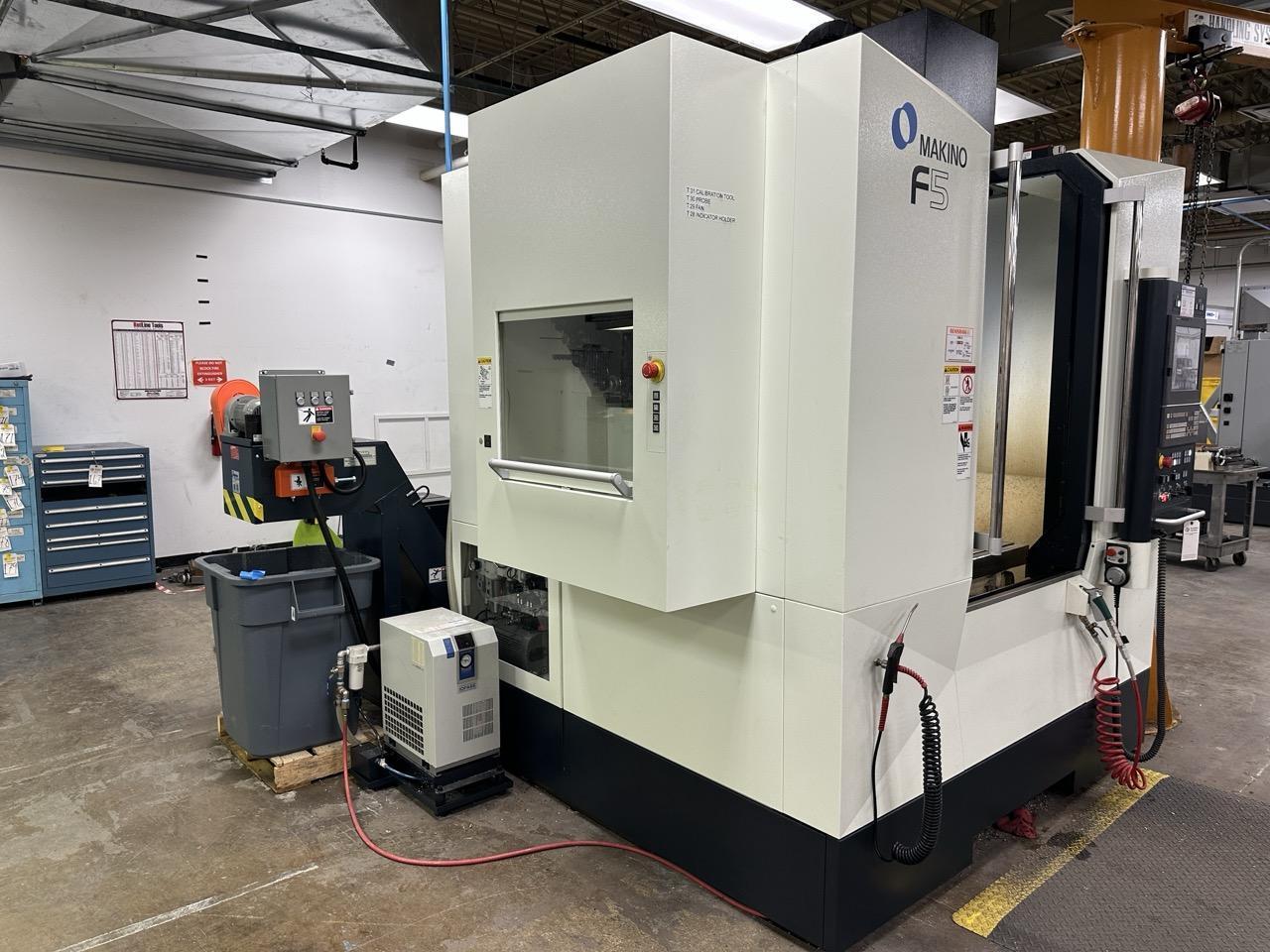

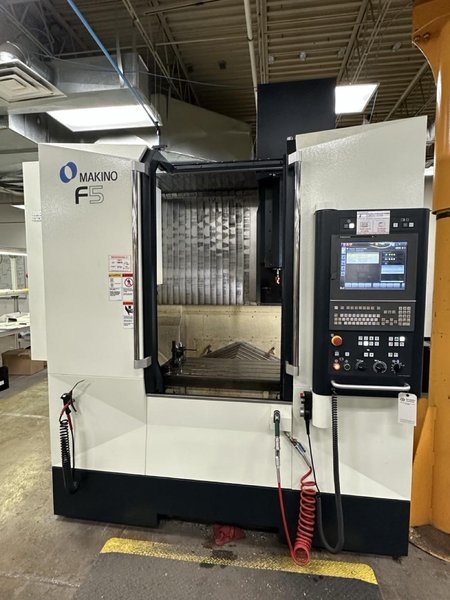

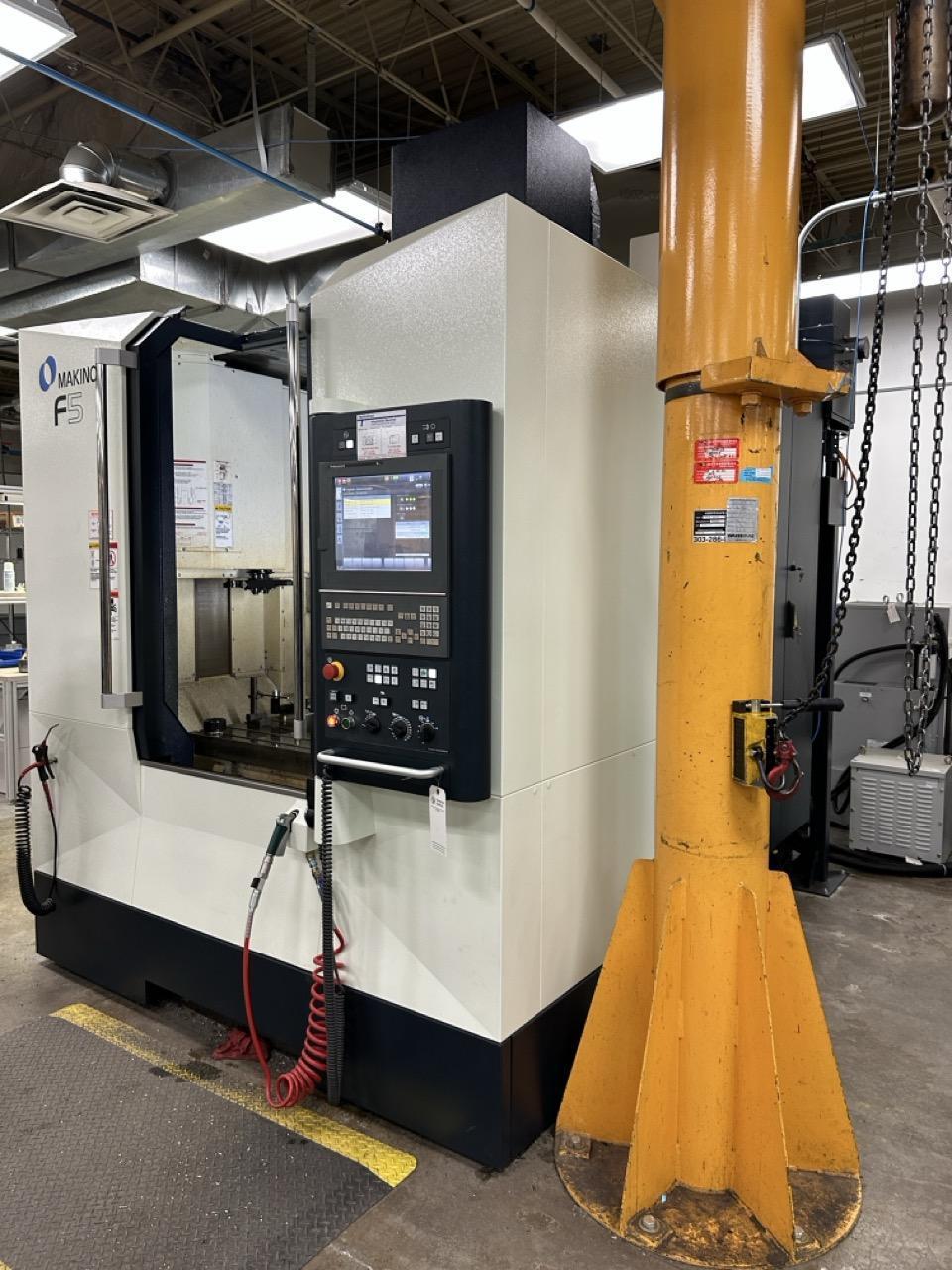

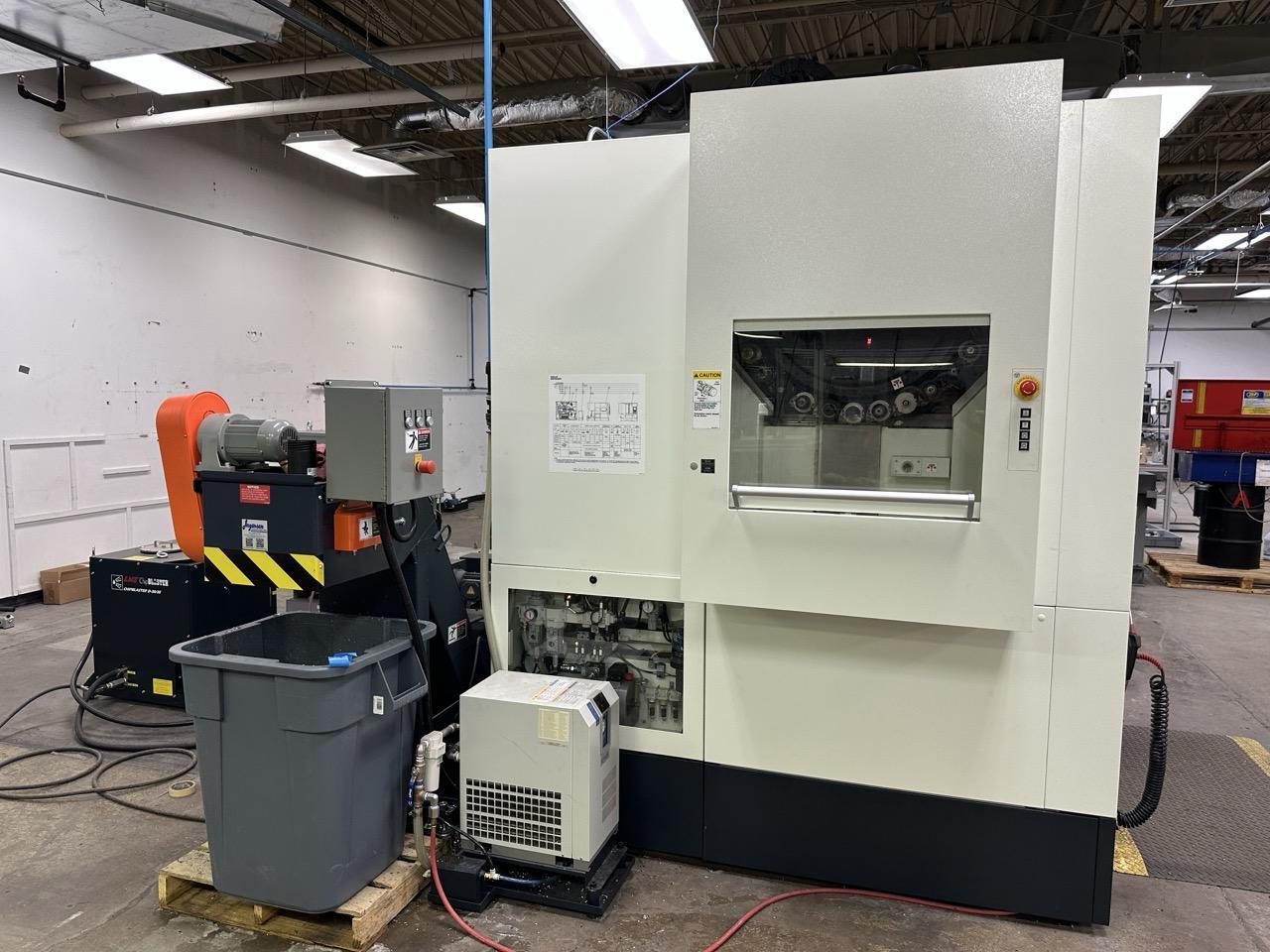

Makino F5 CNC Vertical Machining Center, 2021

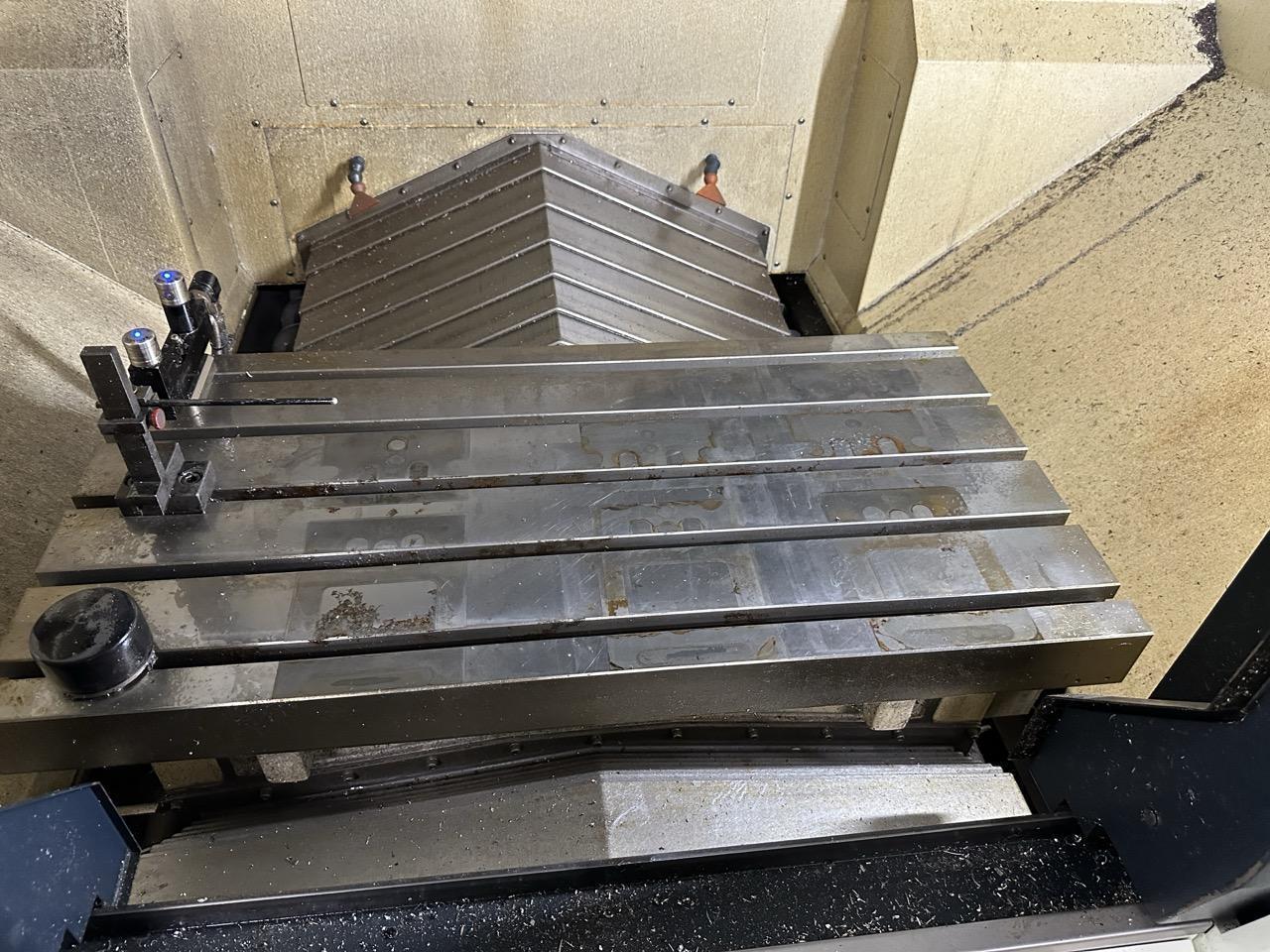

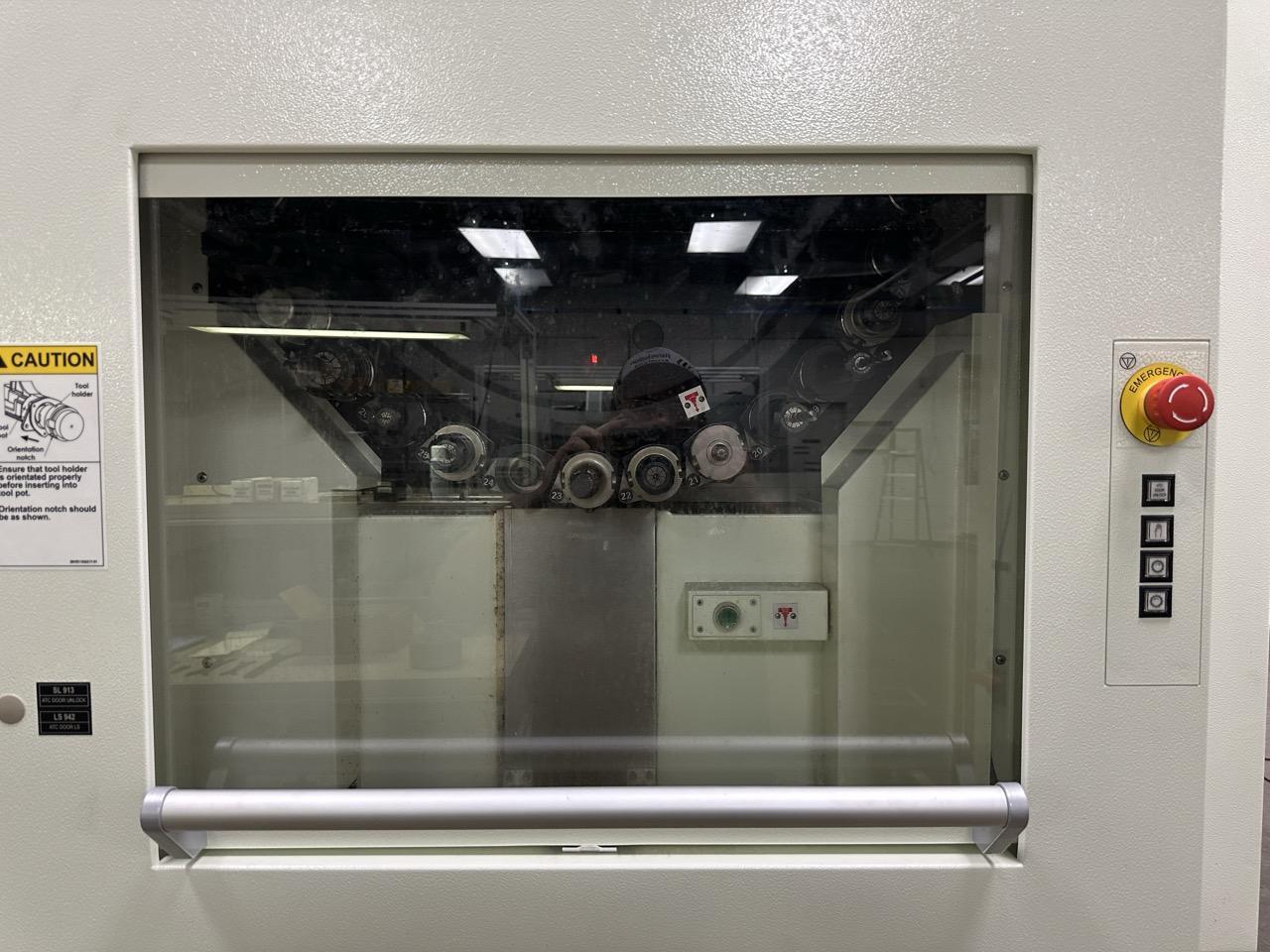

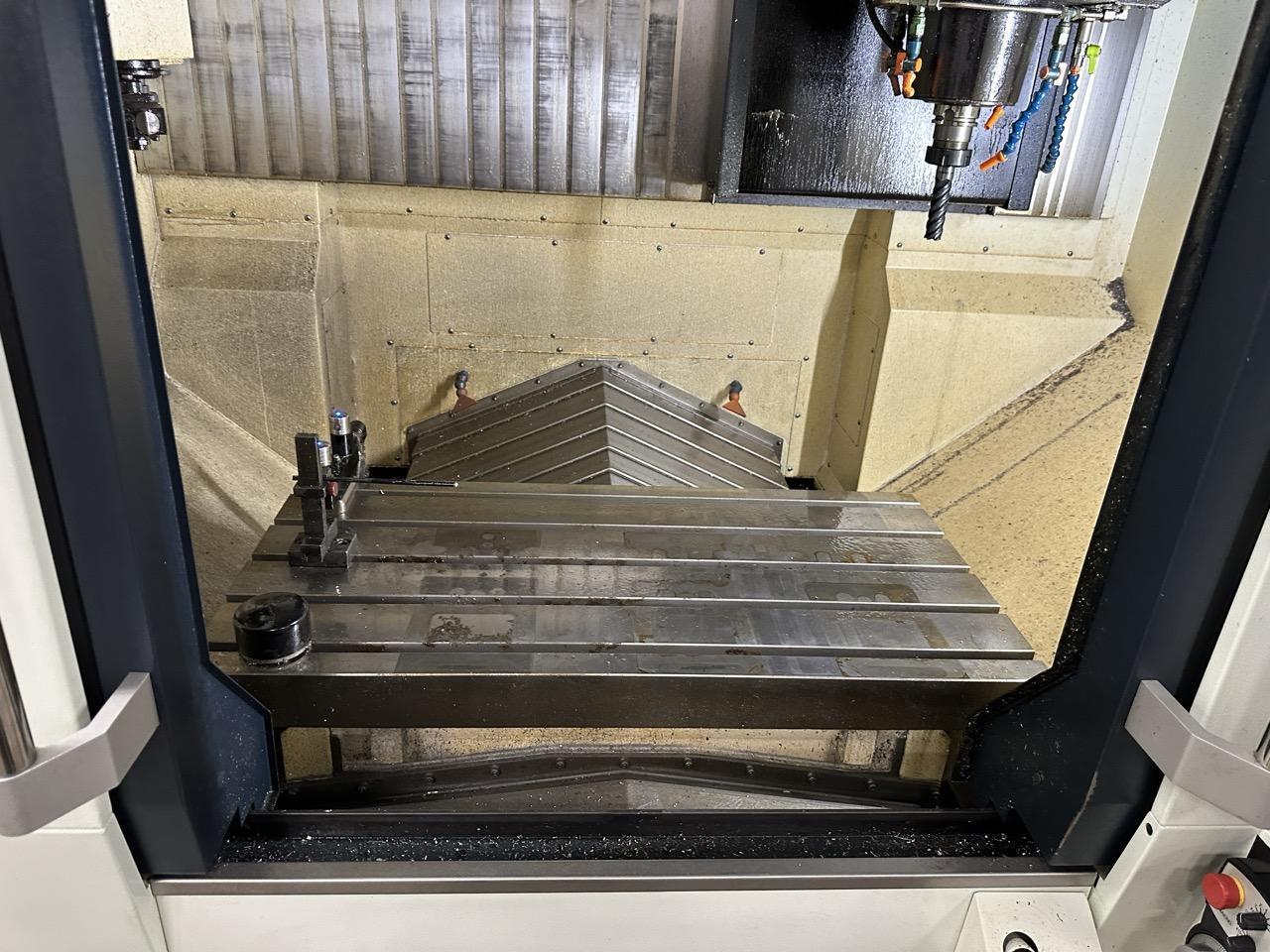

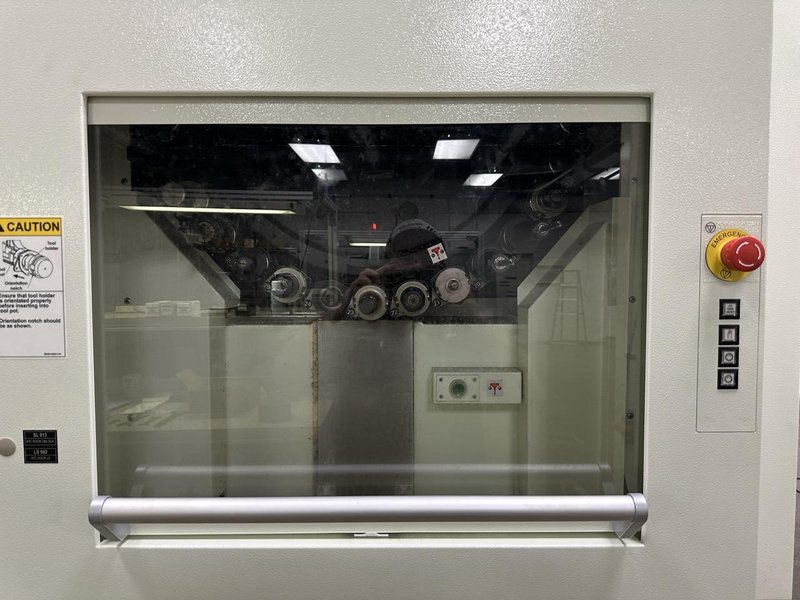

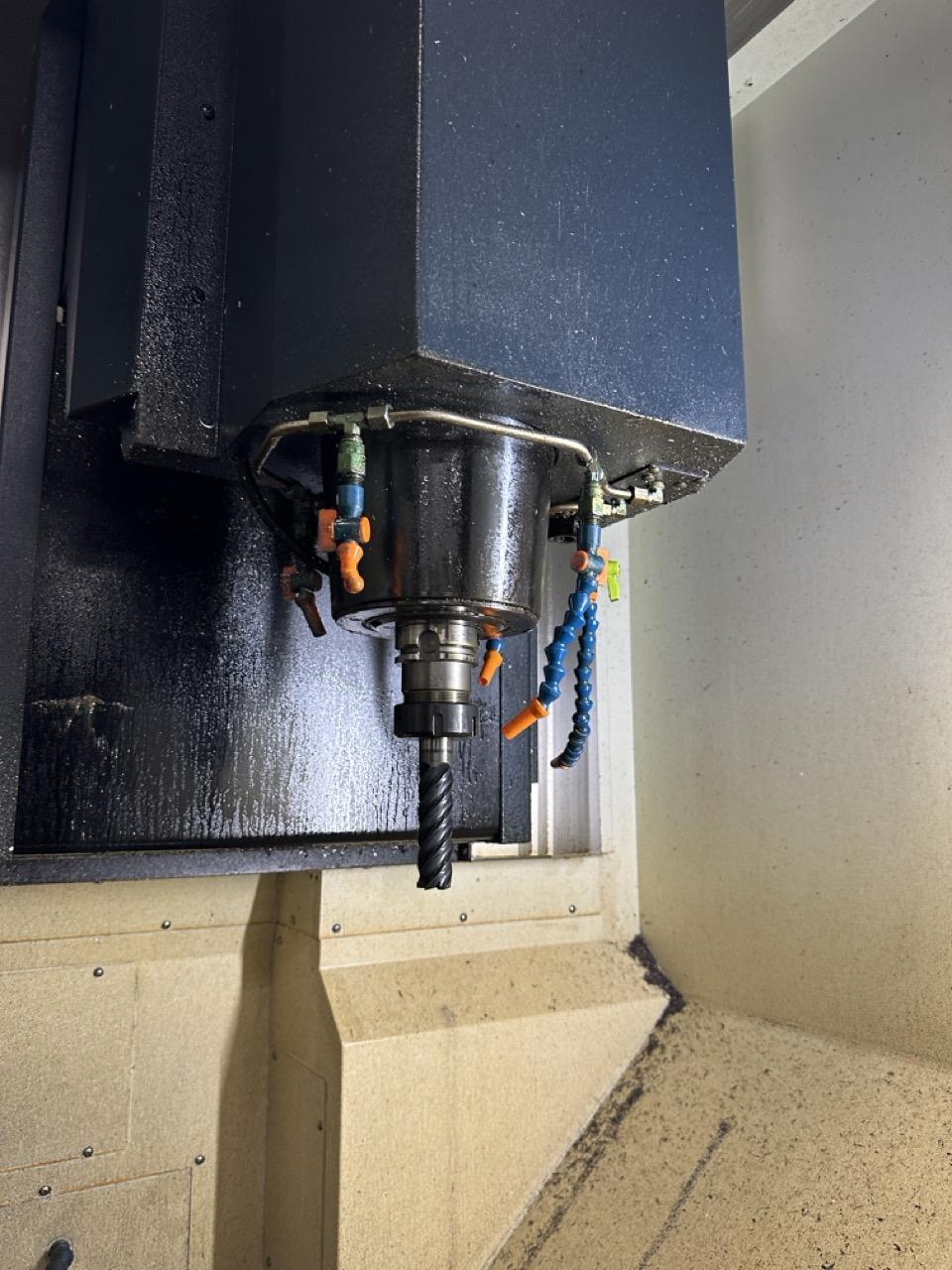

SPECIFICATIONS: X-AXIS TRAVEL: 900 MM Y-AXIS TRAVEL: 500 MM Z-AXIS TRAVEL: 450 MM RAPID FEED RATE (X/Y/Z): 20,000 MM/MIN CUTTING FEED RATE: 1 TO 20,000 MM/MIN POSITIONING ACCURACY (W/ SCALE): ±0.0015 MM REPEATABILITY (W/ SCALE): ±0.001 MM MACHINE WEIGHT: 7,500 KG TABLE SPECIFICATIONS: TABLE WORKING AREA: 1,000 MM X 500 MM MAX. PAYLOAD: 1,000 KG T-SLOT CONFIGURATION: 18 MM X 5 (100 MM PITCH) SPINDLE SPECIFICATIONS: (20,000 RPM) SPINDLE SPEED RANGE: 50 TO 20,000 RPM SPINDLE TAPER: HSK-A63 SPINDLE POWER (15% ED / CONT.): 25 KW / 11 KW (33.5 HP / 14.75 HP) SPINDLE TORQUE (MAX / CONT.): 31.8 NM / 14 NM COOLING METHOD: CORE COOLING & JACKET COOLING AUTOMATIC TOOL CHANGER (ATC) CAPACITY: 30 TOOLS MAX. TOOL DIAMETER (ALL POCKETS FULL): 75 MM (2.95″) MAX. TOOL DIAMETER (ADJACENT EMPTY): 125 MM (4.92″) MAX. TOOL LENGTH: 300 MM (11.8″) MAX. TOOL WEIGHT: 8 KG (17.6 LBS) TOOL SELECTION METHOD: RANDOM SELECTION TOOL CHANGE TIME (TOOL-TO-TOOL): 1.8 SECONDS TOOL CHANGE TIME (CHIP-TO-CHIP): 6.0 SECONDS SPINDLE MOTOR (20K): 25 / 11 KW (33.5 / 14.75 HP) AXIS MOTORS (X, Y, Z): 4 KW (5.36 HP) ATC MAGAZINE MOTOR: 0.5 KW (0.67 HP) SPINDLE TEMPERATURE CONTROLLER: 1.5 KW (2.01 HP) ELECTRICAL SUPPLY: 380-440 V, 3 PHASE, 50/60 HZ POWER CAPACITY: 52 KVA AIR PRESSURE: 0.5 TO 0.8 MPA (72.5 TO 116 PSI) AIR VOLUME: 400 L/MIN (14.13 CFM) INLET AIR TEMPERATURE: 35°C OR BELOW

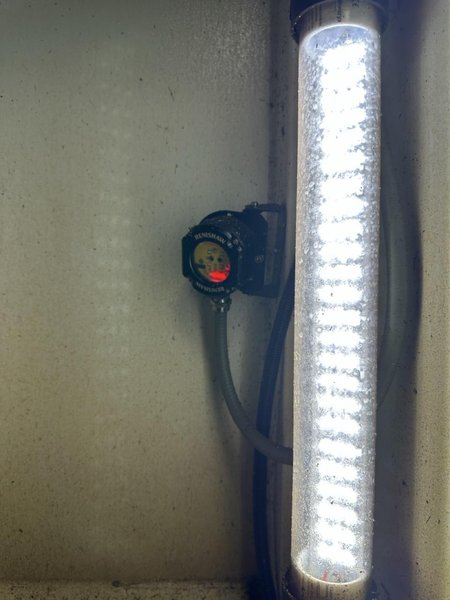

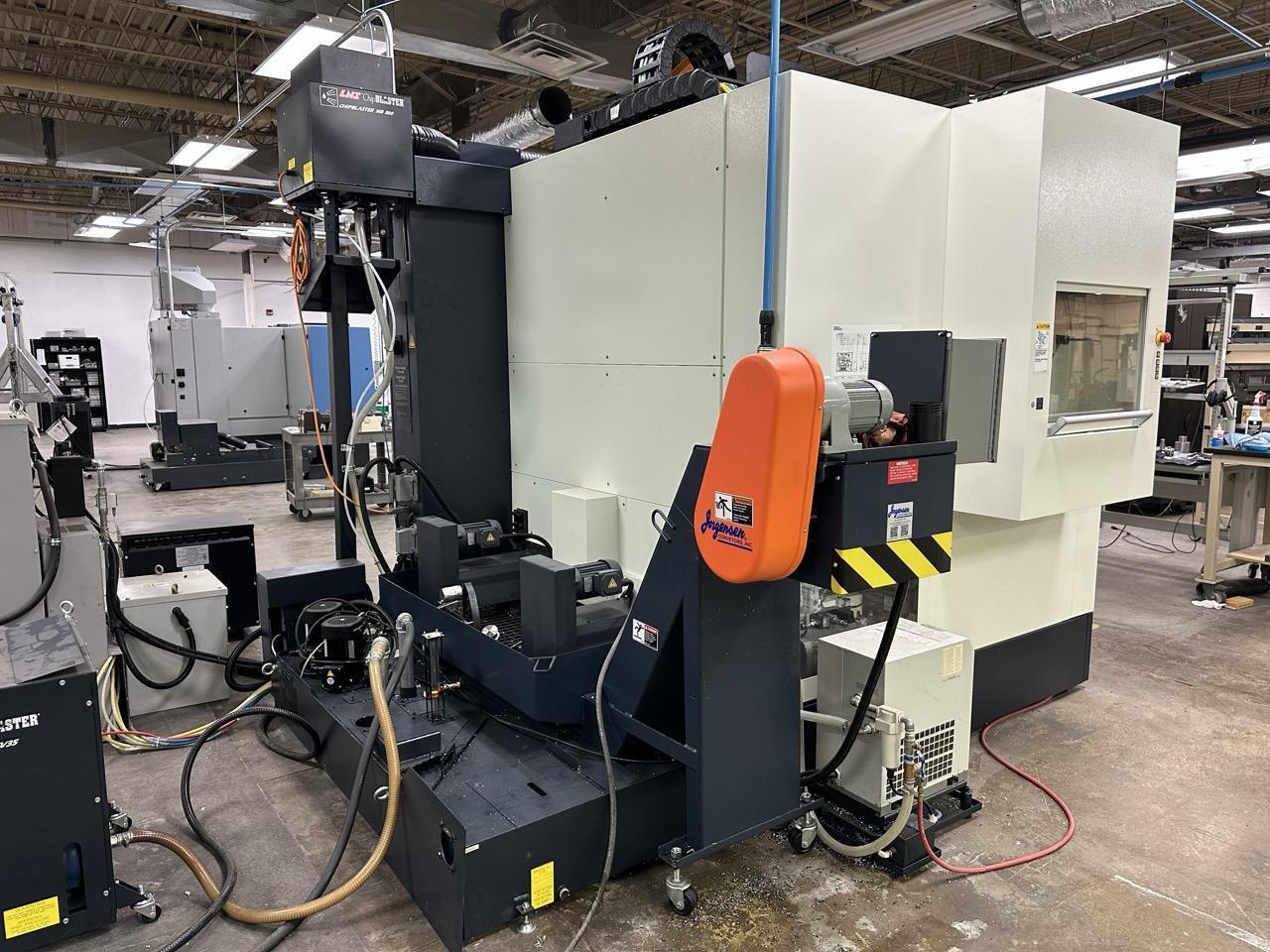

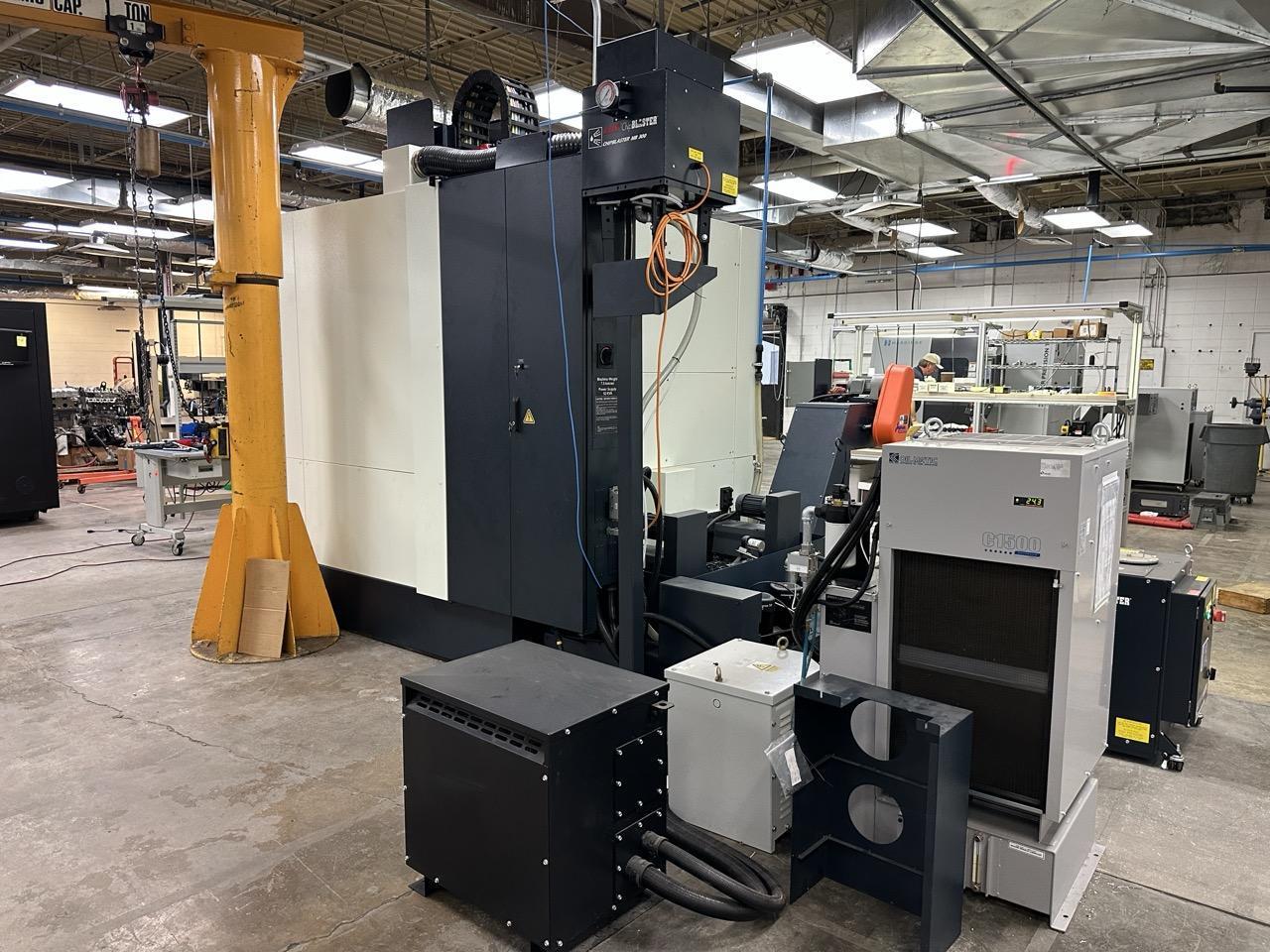

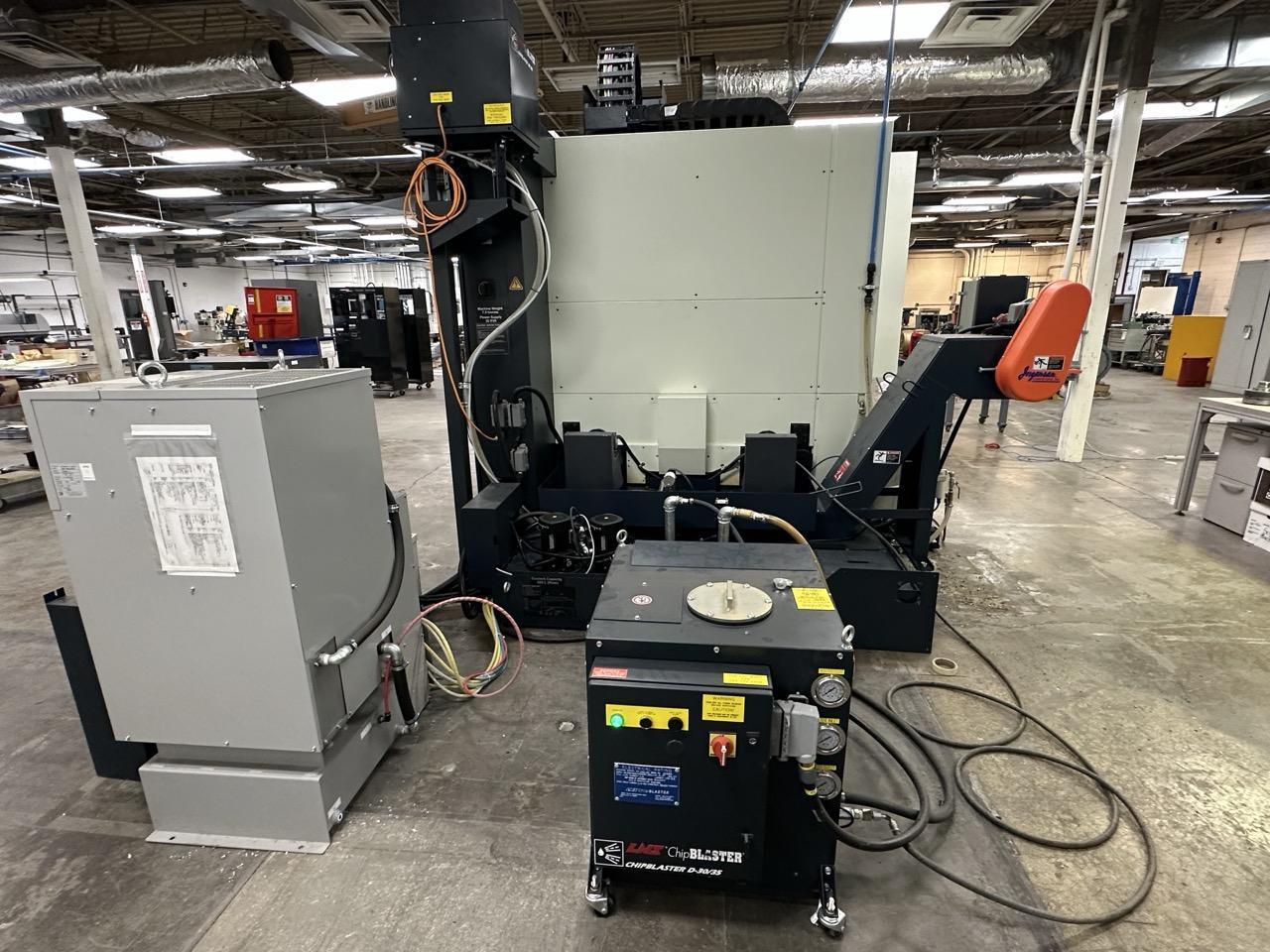

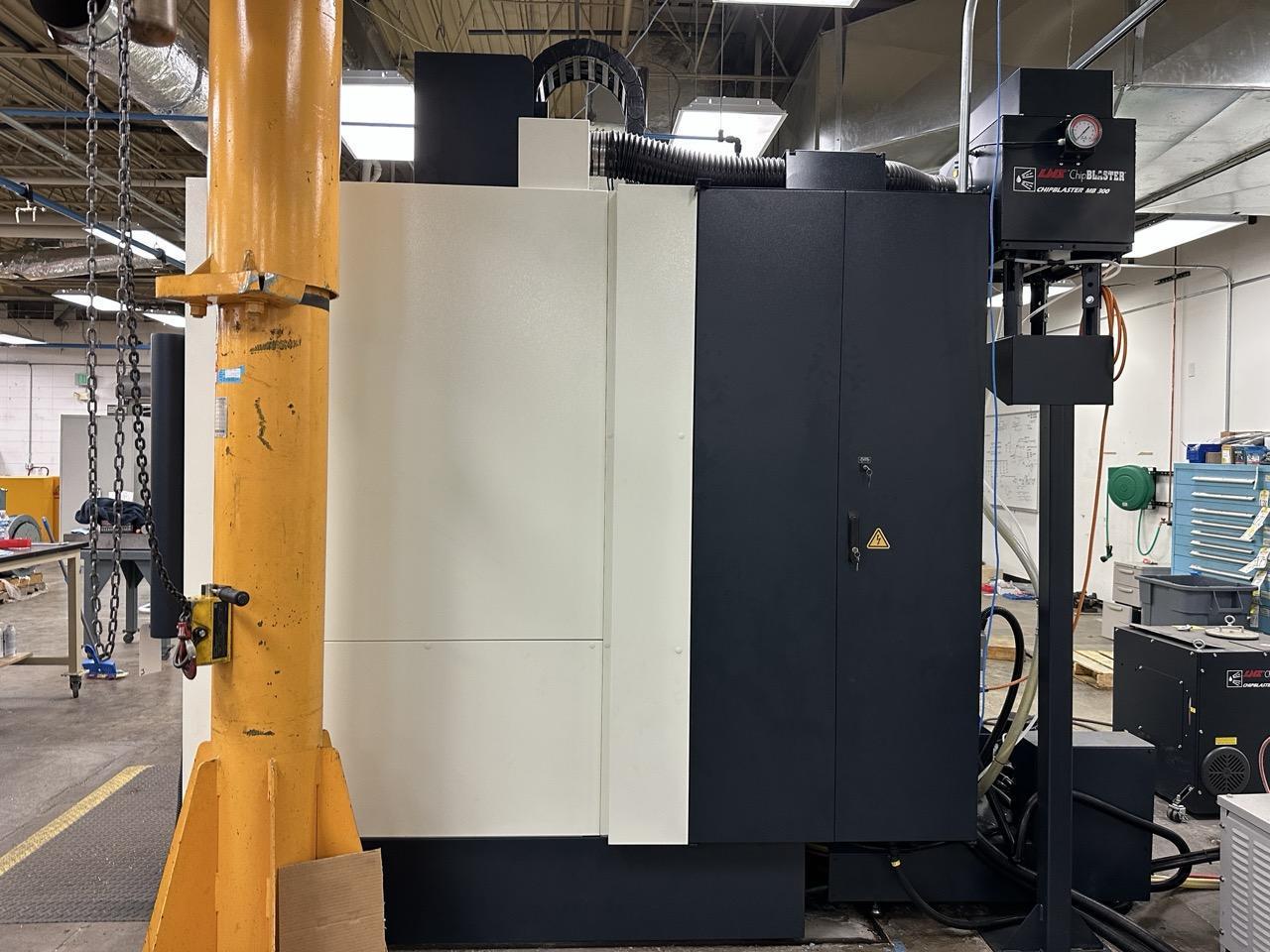

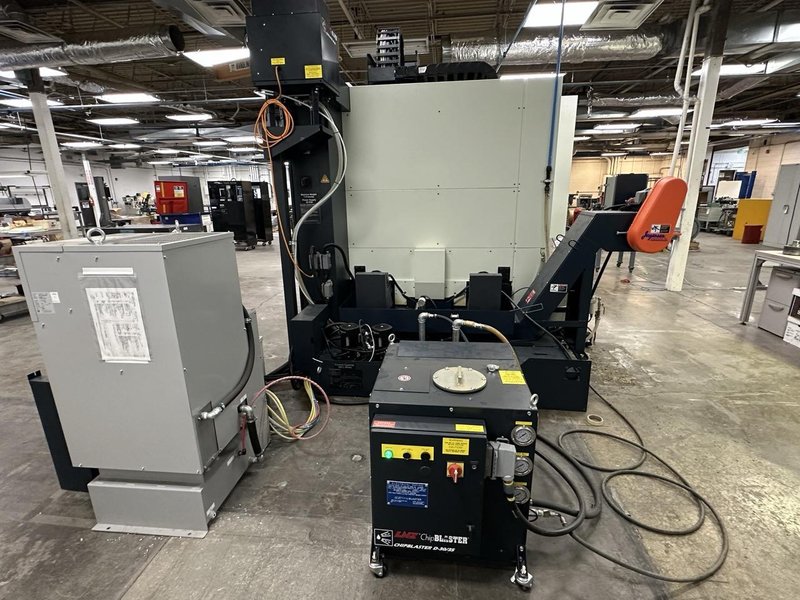

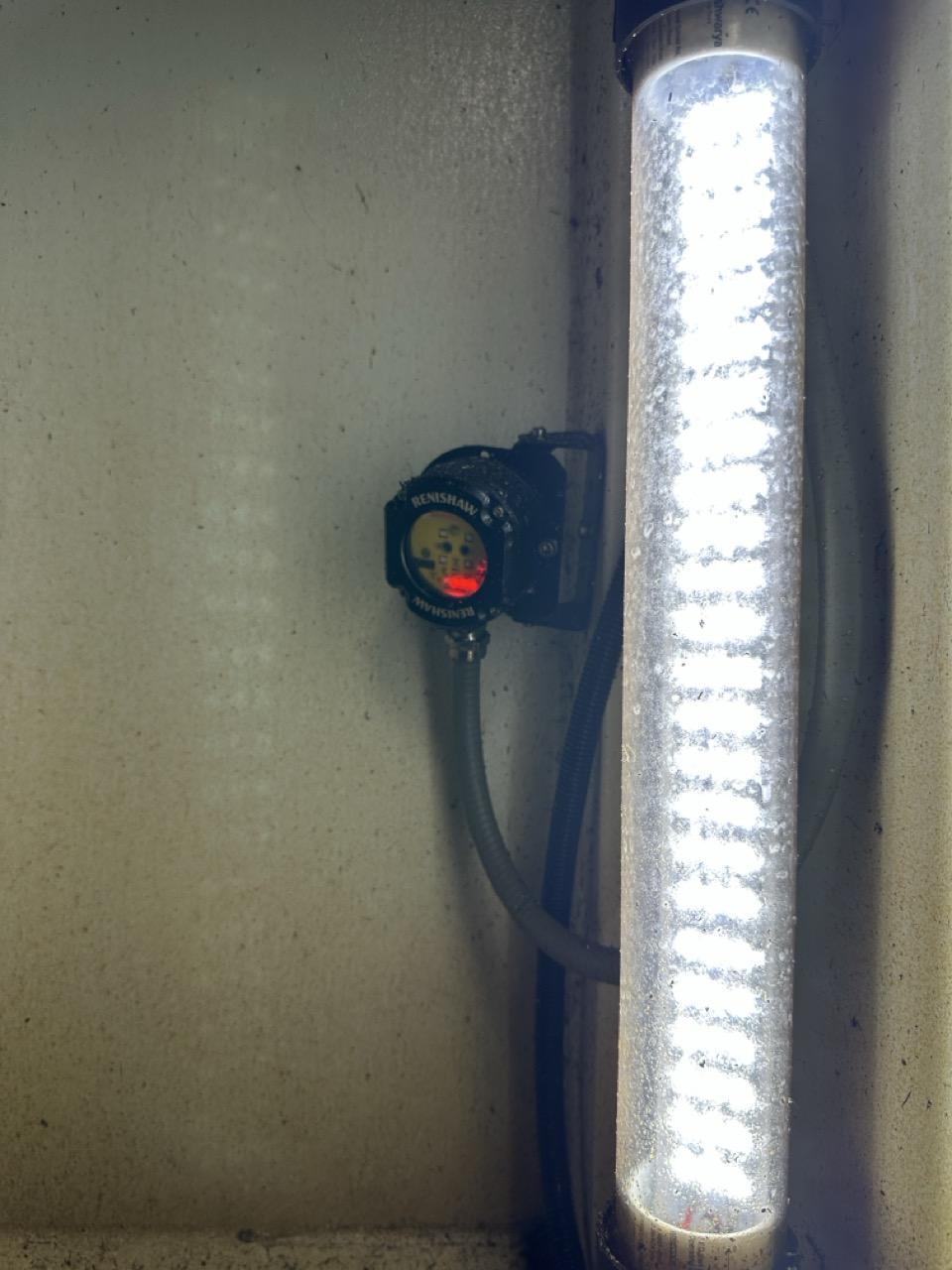

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,EQUIPPED WITH: PRO 6 CNC CONTROL PQI / RENISHAW OMP400 & NC4+ PROBE SYSTEM COMBO (RETROFIT) JORGENSEN SCRAPER CHIP CONVEYOR (LEFT DISCHARGE) CHIPBLASTER D30-35 435PSI 8 GPM THROUGH SPINDLE COOLANT SYSTEM MISTBLASTER MIST COLLECTOR MOUNTED ON A STAND WORKPIECE WASH GUN FAST ETHERNET INTERFACE HEPA FILTER FOR MISTBLASTER MIST COLLECTOR CYLINDRICAL INTERPOLATION (G07.1) ALL AVAILABLE MANUALS

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,More info available upon request
