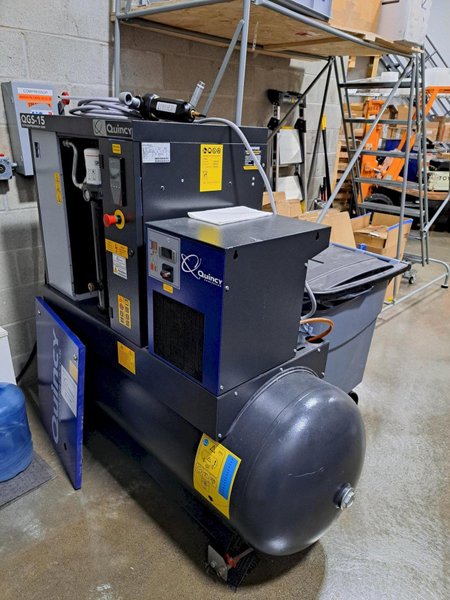

Compressor Type: Oil‑injected Rotary Screw
Horsepower: 15 HP
Air Delivery: ~55 ACFM @ 125 PSI
Pressure Rating: 125 PSI
Duty Cycle: 100% Continuous
Drive Type: Belt Drive with V‑belt and auto‑tensioner
Motor Type: TEFC Electric Motor
Tank: 120 gallon horizontal receiver
Aftercooler: Air‑cooled aftercooler
Lubrication: Premium synthetic fluid (8,000 hr service life)
Noise Level: ~66–69 dBA
Dimensions (approx): Standard QGS footprint (~76″ × 26″ × 58″)
Weight (approx): ~620–700 lbs

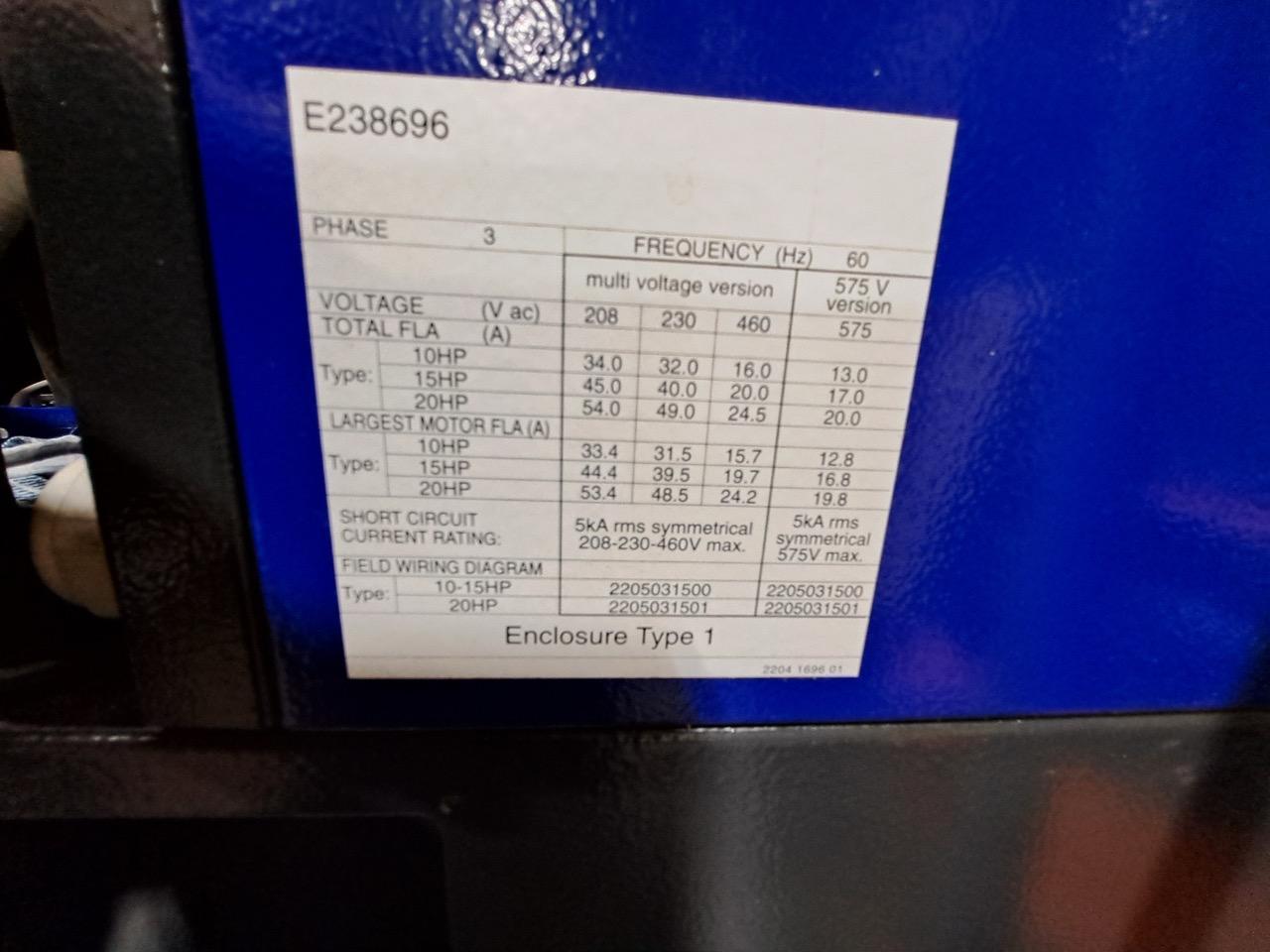

Power Requirement: 208‑230/460 V 3‑Phase
All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Equipped With All specifications are assumed to be correct but must be confirmed by the purchasing entity.,‑ Integrated drying system – Oil‑Injected Twin Screw Pump ‑ TEFC Electric Motor ‑ Integrated Air Receiver Tank ‑ Air‑Cooled Aftercooler ‑ V‑Belt Drive With Auto‑Tensioner ‑ Electronic Controls ‑ All Available Manuals All specifications are assumed to be correct but must be confirmed by the purchasing entity. |
