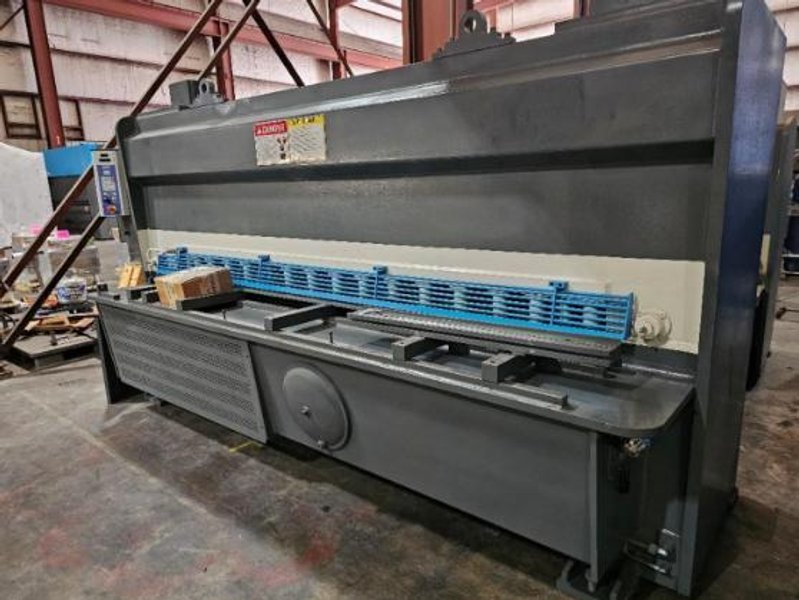

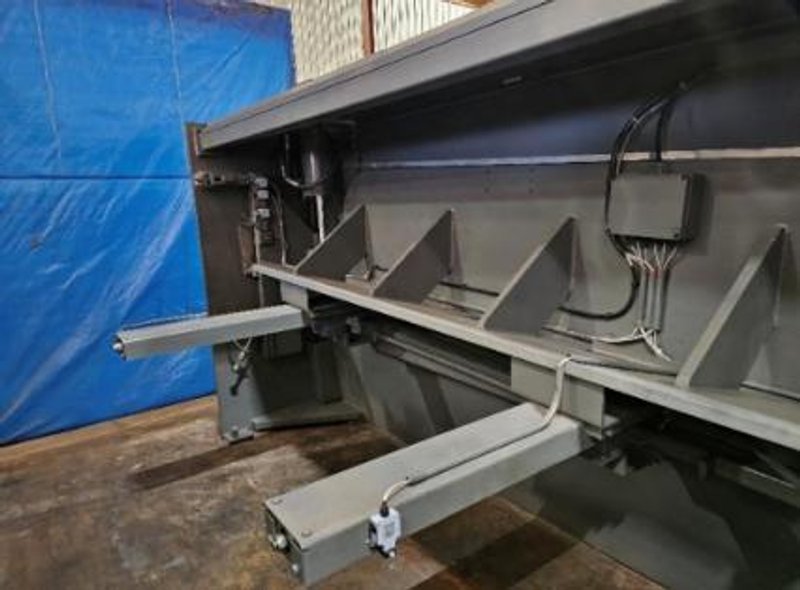

⅜” X 10’ Refurbished Shear with SP9 CNC Control, 40” Squaring Arm, Finger Protection Grid, Mobile Foot Control, Sheet Metal Clamps and 40” Motorized Rear Gauge

GENERAL SPECIFICATIONS
Working Length:                10’
Capacity of Mild Steel:            ⅜”
Min. Cutting Angle:                0.5°
Max. Cutting Angle:                3°
Number of Sheet Metal Clamps:        18
Travel Per Min for Small Angle:        9.5
Wide-Angle Stroke Per Min:        5.5
Working Height:                35”
Engine Power:                18.5 HP
Overall Length:                15.25’
Overall Height:                7.4’
Overall Width:                8.5’
Approx. Weight:                18,739 Lbs


INCLUDES: SP9 CNC Control, 40” Squaring Arm, Finger Protection Grid, Mobile Foot Control, Sheet Metal Clamps and 40” Motorized Rear Gauge.

***We strongly encourage personal inspection of all pieces of used equipment***
***All Price, Location and Specifications Subject to Change without Notice***
